Problems of designing transport systems of « Siberian Antrazit»
N Gorbun ova, O Mirkushov*
Peoples’ Friendshi p University of Russia, student, 6 Miklukho -Maklaya St., Moscow, 117198, Russia

        Abstract         The article discusses the operating conditi ons of transport system s
        located in open pit mining of the enterprise of Si berian Anthracite JSC using
        «Kol yvanskij» opencast mine a s an example. The m ost optimal route for coa l
        suppl y railwa y lines from the open pit to the concentration plants was designed,
        the use of which will increase the enterprise’s producti vit y and reduce the risks
        of using vehicl es. When searching for the optimal rout e for coal deli ver y from
        «Kol yvanskij» open -pit mine to the «List vjanskaja -1» and «List vjanska ja -2»
        enrichment plants, the method of d ynamicall y programming the optimal route (the
        optimalit y principle of R. Bellman) was used as an algorithm. The method of
        dynamic programming is to det ermin e the shortest distance bet ween nodes (place s
        of intersecti on of the pr oposed rail wa y tracks), by successi ve soluti ons of whi ch,
        the shortest r oute i s revealed. Ba sed on the obtai ned parameters, two designed
        tracks were compared and, as a recommendati on fo r sol ving technologi cal issues
        in the design of transport syst ems of a mining enterprise it was proposed to us e
        the optimal railwa y from the open -cast mine to «Li st vjanskaja» «2 wa y»
        enrichment plant.

        Keywords       mot or transport, mining enterprise, coal deli v er y, railroad, circular
        curves, R. Bellman’s equati on

                                                               previ ousl y used in enterprises t o find the
1 Introduction
                                                               optimal rout e.
          Si berian Anthracite is the world's first
producer of ultra -high quality anthracite and is
Russia's largest producer of coking coal. It i s               2 Experiments
one of the fast est gr owing coal companies in
                                                                        In determining the current problem s of
the country. The compan y has an annual
increase in the producti on of minerals about                  designing transport syst ems of incisi ons shoul d
30%, and in the future this increase will depend               take into account the more complex operating
signifi cantl y on the decisi ons made in the                  conditions of the devel oped fi elds of the fiel d
                                                               due t o:
design of transport system s.
          Three coal mines are being devel oped                         The distance of the deposit fr om the
in the Novosi birsk regi on: Kol yvansky,                                transport highwa ys;
Gorlovsky and Oriental. The design capa cit y of                     Lack of devel oped infrastructure and
the Kol yvansky cut for 2019 for pr oducti on has                        industrial enterprises operating in the
been adopt ed equal to 850 0 thousand. t                                 region;
anthracite per year (of which 8100 thousand
                                                                     The complexit y of the mining,
tons/ year - the project capa cit y of the Northern
                                                                         geol ogi cal and mining conditions of the
site, 400,000 t ons/ year - the project capacit y of
                                                                         devel opm ent of deposits associated
the Krutikhinsky sit e). The fi eld is devel oped
                                                                         with the presence of numerous non -
in an open wa y using an in -depth longitudinal
                                                                         concti ve vi olati ons in 14 steep -falling
two-breast ed devel opment syst em (Sysoe v                              coal seams, breaking them into separate
2005).
                                                                         bl ocks of 0.5-1.0 km at a depth of up t o
          The main part of the extract ed
                                                                         200-300 m.
anthracite from slaughter is transported t o the
                                                                    Since 1993 a s the main transport syst em of
industrial site of the processing plants                       JSC Si berian Anthracite, the technol ogy of
List vyanska ya-1 and List vianska ya -2 (further
                                                               mining operations with the use of vehicles wa s
on the text of OF-1 and OF-2). OF-1 and OF-2
                                                               sel ect ed, the use of which, according to the
recei ve and enrich the anthracites of the
                                                               results of technical and economic calculati ons,
Kol yvan fiel d and ship goods t o consum ers b y
                                                               is not advi sa ble. As a result, for the mining and
rail.
                                                               geol ogi cal conditions under consideration, the
          The approaches are defined that
                                                               management of the JSC Si berian Anthracite
comprehensi vel y characterize the economi c
                                                               decided t o make the transition from the use of
effi ci ency of the project using the Bellman                  road transport to rail. This article is devot ed t o
principle and reflect the actual and potential                 the design of an optimal railwa y from the open
damage fr om its implementation throughout                     pit to the List vyanska ya concentrator, which,
the entire life cycle of a mining enterprise.                  according to the authors, will most radicall y
          The novelt y lies in the dynamic
                                                               help to sol ve transport probl ems in the
programming         method,    which      was    n ot
Received: *Corresponding author. Tel: 7(977)4742095, E-mail:
hammer1998179@gmail.com
Problems of designing transport systems of " Siberian Antrazit" - Research Square
devel opm ent of deposits, given that         the       to transport logisti cs in the devel opment of
conditions of each open pit are unique.                 coal deposits of the Siberian Anthracite is
                                                        presented as a multi -st ep decisi on -making
    As an algorithm for finding the required            process, whi ch is broken down into seven
task, and in the case in questi on, sel ecting the      stages (Figur e 2):
shortest di stance of the railwa y from the
Kol yvanski mine t o OF-1 and OF-2 (Figure 1),                 In the first phase of node 0 (OF -1, OF-
the most effecti ve m ethod i s dynami c                        2) without intermediate nodes, you can
programming (the principle of the optimalit y                   onl y get into nodes 1, 2, 3 and 4;
of R. Bellman) (Lezhnev 2010) that allows you                  In the second stage, nodes 1.2 and 4
to find the best opti on for placing the                        can onl y be accessed in 5 , 6 and 11
traject or y of the railwa y in the conditions of               knots;
compl ex surfa ce relief (Tatarinova 2015). The                In the third stage, 5 , 6 nodes need t o
subject of dynamic programming is the stud y                    be entered into nodes 7 and 8;
of multi-st ep tasks and their soluti ons.                     In the fourth stage of knots 7 , 8 and 4
Dynamic programming is a wa y t o sol ve a                      you need t o get into 9, 10, 11 knots;
problem by di viding it into several identical
                                                               In the fi fth stage, ch oose the m ost
(secondar y tasks) recursi vel y relat ed to each
                                                                appropriate distance fr om node 9 t o
other. At the same time, decisi ons at ever y step
                                                                14, through nodes 12 and 13;
are made on the basi s of the interests of the
                                                               In the sixth stage of kn ots 12, 13, 10
wh ole process, and not ea ch step indi viduall y
                                                                and 11 find the shortest distance t o 14 ,
(Tarasenko and Egorova 2019; Ovchinnikov
                                                                15 and 16 knots;
2008; Ovchinnikov 2012; Faure et al. 1975;
Aho et al. 1983). For the design of the                        in the seventh stage we get the best
parameters of the railwa y, 4 main directi ons or               wa y t o the cut (node 17) of 14 , 15 and
tracks were proposed, with connecting roads                     16 knots
(Fig. 1).The application of Bellman's methods

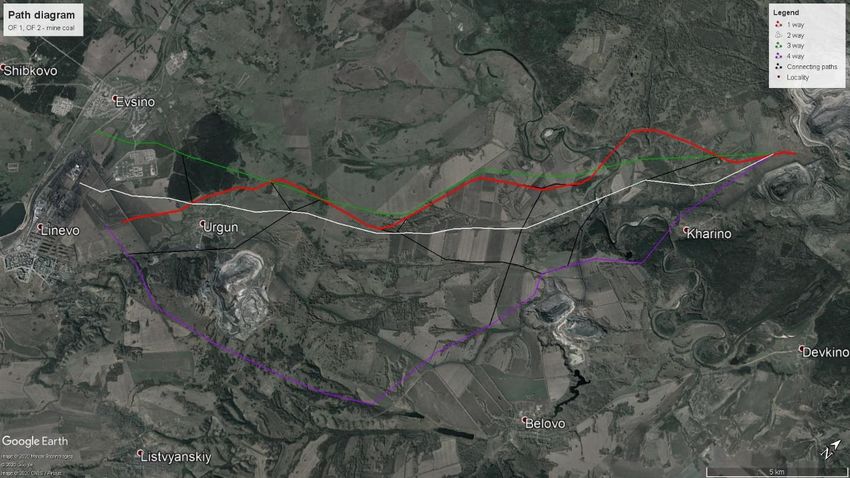

                                    Fig. 1 Scheme of pr oposed r outes
Problems of designing transport systems of " Siberian Antrazit" - Research Square
Fig. 2 Shortest Path Finder
        By graduall y calculating the distances                                    the access road on the surfa ce of the coal
fr om the nodes of one stage and using the                                         mining compl ex (2 wa y). The best path goes
information obtained in the previ ous stages, it                                   through 2,6,8,10 and 15 knots, and the soluti on
is possi bl e to det ermine the optimal route of                                   bel ow i s:

f1 ( X 2 )  min(f0 ( X0 )  U 02 ; f1 ( X 3 )  U 32 ; f1 ( X1 )  U12 )       4, 68;   4.52  1.81; 4, 52  1, 81   4, 68 km
                                                                             7, 61  1, 3; 4, 68  3, 77; 3, 41  6, 17   8, 45 km
f 2 ( X6 )  min(f 2 ( X5 )  U 56 ; f1 ( X 2 )  U 26 ; f1 ( X4 )  U 46 ) 
f 3 ( X8 )  min(f 2 ( X6 )  U 68 ; f 3 ( X7 )  U 78 )   8, 45  3, 81; 9, 58  2, 89   12, 26 km
f4 ( X10 )  min(f4 ( X9 )  U 910 ; f 3 ( X8 )  U 810 )   20, 22  3, 75; 12, 26  4, 45   16, 71 km
f6 ( X15 )  min(f6 ( X14 )  U1415 ; f4 ( X10 )  U1015 )   24, 49  2, 67; 16, 71  4, 7   21, 41 km
f7 ( X17 )  min(f6 ( X14 )  U1417 ; f6 ( X15 )  U1517 ; f6 ( X16 )  U1617 )   24, 49  2, 72; 21, 41  5, 4; 22, 56  9, 38   26, 81 km

                                                                                   or circl e curves. The rationality of direct lanes
         Of the proposed 4 railwa y tracks
                                                                                   is obvi ous, as the shortest distance is provided
(Figure 1) in the future will be considered 2
                                                                                   and on this basis the minimum mileage and
wa y and 1 wa y, as 2 path, based on the
                                                                                   operating cost s are provided. However, in
decisi on, is the shortest, and 1 track (28.73km)
                                                                                   diffi cult t opographical conditions, b ypa ssing
wa s sel ect ed by the Si berian Anthracite as the
                                                                                   obstacl es causes you to deviat e fr om the
main route for construction.
                                                                                   shortest directi on, so the circular curves are
                                                                                   project ed (Lokt ev et al. 2015; Sych ev et al.
        When designing the route of railwa y                                       2016; Ga vrilenkov and Perel ennikov 1984).
tracks, the calculati on of the track is desig ned                                 For the priority 2 paths, calculations of
in two projecti ons - in profil e and plan. The                                    abbreviat ed coordinates of the main points,
ground profil es of the new r out e are pi ecem eal                                distances and directional          angles     were
br oken lines. New rail route plans are a famil y                                  calculated.
of straight lines and curves . When designing a
plan for the new railroad track in the earl y                                              For the uniform pairing of adjacent
stages, you can limit yoursel f to presenting the                                  straight secti ons of the path, there are circular
plan onl y by straight and circular curves. There                                  curves (Figure 3, a, b). Curves are di vided on
are two parameters that directl y characterize                                     the ground by parameters: T - tangens, R -
the length of the L and the directi on                                             radius, D - dom er, B - bissectrix, α - angle of
det ermined by the directi onal angle α.                                           turn, C - the length of the curve. V U is the top
                                                                                   of the corner of the turn.
      The length of the straight traject or y i s
measured bet ween the ends of the transitional
Fig. 3 Scheme t o build circular curves
                           (a - the beginning of the path, b - the end of the road)

     The main parameters of the curve - the                         The calculations of the circular curve
angle of the turn and radius of R - are                     and picket values were made. The average
appointed wh en devel oping a plan based on                 curve radius for the 1st track was 926,923 m .,
their feasi bilit y and effi ci ency, as well a s           and for 2 - 1326,087 m.
dictated by the t opographical forms of terrain
and the planned situation. The parameters o f                        When the train moves al ong curved
the q and R may change in certain ranges. The               secti ons, a centrifugal force arises, which
minimum α min of the turn is limited depending on           results in a negative impact on the increased
the conditi ons, and the maximum - theoreti cal             wear of the track superstructure and rolling
is not limited (Gavrilenkov and Perelennikov                st ock. In diffi cult terrain, underutilization of
1984; Loktev and Loktev 2015). The radius                   the limiting slope can signifi cantl y lengthen
largel y det ermines the positi on of the r oad             the track or increase the volume of earthworks,
within the curve. The smallest radius i s                   and a decrease in the weight rate (train mass)
det ermined by the ride com fort. The rest of the           leads t o an increase in operating costs for train
parameters are measured in meters and                       traffi c and a decrease in the carrying capa cit y
calculated according to well -known formulas                of the road (Ga vrilenkov and Perel ennikov
(1-4):                                                      1984; Bestem' yanov 2015). Indicators of
 Tangens                                                   centrifugal force on a circular curve are
                      T  R * tg                (1)         calculated. The a verage val ue of the
 curve:                           2                         centrifugal force al ong 1 and 2 tracks,
 Length                     * R *
                     К                               (2)   respecti vel y, wa s 658.517 N/m and 352.5 N/m,
 of curve:                   180                           the average height of the rail el evati on,
                            T                               respecti vel y, 105.083 mm and 78.567 mm.
                   B(             )R                      These calculati ons made it possi bl e t o assign
 Bi ssectri
 s cur ve:
                                                     (3)   categories t o the pr oject ed rail wa y tracks. The
                           sin                              categories di ffer in the calculat ed annual net
                               2
                                                            load densit y and the maximum speed of
 Domer                                     *
              D  2* R * (tg                     )   (4)   movement along it. The railroad chosen by the
 curve:                            2       360             authors (2 wa y) wa s assigned the II categor y.
                                                            For categor y II, the calculated annual reduced
3 Results and Discussion                                    load intensit y in the freight directi on for the
tenth year of operation can be over 15 to 30                3) The number of cur ves per 1 km (table 3)
million tons / km, and the spe ed of the train          is calculated by formula (6), where n - total
can reach 160 km/h (SNiP 1995). Unlike the              number of curves;
presented one (1 wa y), which is a ssigned                                      n
categor y III, with a load capacit y of over 8 to                                                      (6)
15 million tons / km, and a permitted maximum                                P  C
speed of up t o 120 km/h.                                   4) Minimum radius of the Rmin curve
                                                        (tabl e 4);
     The qualit y of the paths has been ass essed
                                                            5) Percentage of curves with a minimum
for the categor y (Lokt ev and Lokt ev 2015;            radius (table 5) i s cal culated by formula (7) (
Lokt ev et al. 2015; Khusainov and Ozhereleva
2019; Rickett s et al. 2017, 2019, 2020, 2018,          min the sum of angles of cur ves with Rmin);
2015). The paths were compared by the
foll owing metrics:
                                                                       100 Rmin   min
     1) Am ounts of lengths of curves and                              180*( P   C )
straight (table.1);
     2) Percentage of curves (ta bl e 2) i s                                                           (7)
calculated by formula (5):                                  6) The average radius of cur ves (ta ble 6) i s
                                                        calculated by formula (8):
              100  C /  P   C
                                                (5)                              180*  C
                                                                            R              .          (8)
                                                                                   * 
                      Table 1 Cal culating the amount of curves ∑C and direct ∑P
              Directi on                      1 wa y, km                    2 wa y, km
                 ∑C                              6,640                         7,989
                 ∑P                             19,188                        18,169

                                  Table 2 Cur ve Percentage Calculati on
                         1 wa y, %                                       2 wa y, %
                            41                                              52

                           Table 3 Cal culating the number of cur ves by 1 km
                          1 wa y                                          2 wa y
                           0,89                                            0,87

                      Table 4 Cal culating the minimum radius of the Rm in curve
                        1 wa y, m                                     2 wa y, m
                           350                                           400

                 Table 5 Cal culating the percentage of curves with a minimum radius
                        1 wa y, %                                      2 wa y, %
                           10                                              26
                           Table 6 Cal culating the average radius of cur ves
                       1 wa y, m                                       2 wa y, m
                        959,614                                        1326,087

4 Conclusions
        Thus, as a recomm endation to sol ve            References
technologi cal probl ems in the design of
transport syst em s of the si berian anthracite         (1995) SNi P 32-01-95 Rail wa ys gauge 1520
mining plant, it is proposed to use 2 wa y t o                 mm, Moscow, GP TsPP.
deli ver coking coals fr om the cut t o the
processing plant. This is due t o the fact that the     Aho AV, Hopcroft JE, Ullman JD. (1983) Data
bandwidth of the 2 wa y, which was cal culated                Structures and Algorithms, Addison -
on the principle of optimalit y of R. Bellman, is             Wesl ey Series in Comput er Science and
15 million tons/km higher with the prospect for               Information     Processing.     Reading,
the tenth year of operation.                                  Massa chusetts, et c., Addison -Wesl ey.

Competing interests      On behalf of all               Best em' yanov PF. (2015) A m ethod of
authors, the corresponding author states that                   statistical m odeling of electr omagne tic
there is no confli ct of interest.                              interference     in    automatics    and
telem echanics channels      in     railwa y          ASPECT S OF DEVE LOPMENT OF
       transport,     Russian            Electrical          INFRAST RUCT URE  OF    COAL
       Engineering 9:503-508.                                DELIVE RY TO CONSUME RS. Coal
                                                             1125.
Chrost owski P, Koc W, Palikowska K. (2017)
        Prospect s in el ongation of railwa y         Ovchinnikov VG. (2008) Algorithms of
        transition curves. Proceedings of the               dynamic programming for optimal and
        Institution   of   Civil   Engineers-               similar processes, Proc. of the Fi fth
        Transport 1-28.                                     All-Russian Sci entifi c Conference with
                                                            international participation (29 -31 Ma y
Faure R, Kaufmann A, Denis-Papin M. (1975)                  2008). Part 4, Matem. Mod. Kraev.
       Manuale di Matematica. Milano:                       Zadachi.    Samara,      Samara    State
       ISEDI.                                               Technical Uni v. 107-112.
Gavrilenkov AV, Perelennikov GS. (1984)               Ovchinnikov VG. (2012) On the algorithms of
       Research and design of railwa ys:                    dynamic programming for optimal
       Text book  for  technical sch ools,                  processes, Vestn. Samar. Gos. T ekhn .
       Moscow: Transport.                                   Uni v. Ser. Fiz. -Mat. Nauki 28:215-218.
Hower JC, Gr oppo JG, Graham UM, Ward CR,                   DOI:10.14498/ vsgtu1102.
      Kost ova IJ, Marot o-Val er MM, Dai S.          Pol ozhaenko SA, Rudkovsk y OV. (2020)
      (2017) Coal-deri ved unburned carbons                   FORECASTING MODELING OF T HE
      in fl y ash. International Journal of Coal              CONDITION OF A NON -TRAILING
      Geol ogy.                                               MOBILE RAILWAY AND A CLASS
Khusainov FI, Ozhereleva MV. (2019)                           OF BULK, BRAKE AND PULLED
      TRANSPORTATION OF COAL AND                              CARGOE S TO BE CARRIED IN.
      OIL     CARGO        BY    RAILWAY:                     Coll oquium-journal 57.
      CURRENT           ST AT US      AND             Ri cketts B. (2017) Coal Industr y across
      PROSPECTS, Transport of the Russian                     Europe, 6th edition. EURO-COAL:
      Federation. A journal about science,                    European Association for Coal and
      practice, economi cs 83.                                Lignite.
Lezhnev AV. (2010) Dynamic programming in             Rozhkov AA, Voskoboynik MP. (2018) Trends
      economi c probl ems: a training manual,               and      prospects     of       l ong-term
      Moscow: BINOM. La borat or y of                       devel opm ent of the Russian coal sect or
      Knowl edge.                                           with new technol ogi cal realit ies and in
Lokt ev AA, Gridasova EA, Sycheva AV,                       the new econ omic situati on of the XXI
       Stepan ov RN. (2015) Simulation of the               century. Mining industry 2:4 -18.
       Rail wa y under Dynamic Loading. Part          Sokol ov A, Takaishvili L. (2019) A ST UDY
       2. Splicing Method of the Wa ve and                   OF FACTORS INFLUENCING T HE
       Contact     Soluti ons. Contemporar y                 DEVELOPME NT PROSPECTS OF
       Engineering Sciences 21:955 -962.                     THE COAL INDUST RY IN T HE
Lokt ev AA, Gridasova EA, Zapol'nova EV.                     EASTERN REGIONS OF RUSSIA.
       (2015) Simulation of the Rail wa y under              Energy Syst ems Research 7.
       Dynamic Loa din g. Part 1. Ra y Meth od        Sychev VP, Vinogradov VV, Bykov YuA,
       for Dynamic Probl em. Contemporar y                  Kovalenko NI. (2016) Aut omat ed
       Engineering     Sciences    18:799 -807.             technology for the current maintenance
       DOI:                                                 of the railwa y track, Vestnik MGSU 3.
       http://dx.doi.org/10.12988/ ces.2015.57
       204.                                           Sysoev AA. (2005) Engineering and economi c
                                                             calculations for open ca st mining:
Lokt ev AA, Lokt ev DA. (2015) Method of                     studi es. All owance, Kuz bass. State
       Det ermining the Distance t o the Object              Technical Uni versit y- Kem erovo.
       by    Anal yzing      its   Image   Blur.
       Proceedings       of      Moscow    Stat e     Tarasenko AV, Egorova IP. (2019) T HE
       Uni versit y of Ci vil Engineering 6:140 -            BE LLMAN OPTIMUM PRINCIPLE IN
       151.                                                  THE    PROBLEM    OF   OPTIMUM
                                                             DIST RIBUTION     OF       FUNDS
Lokt ev DA, Lokt ev AA. (2015) Det ermination                BETWEEN      ENTE RPRISE S     TO
        of Object Locati on by Anal yzing the                EXPAND    PRODUCTION.      Vestnik
        Image Blur. Contemporary Engineering                 GUU 10:132-138.
        Sci ences 11: 467-475.
                                                      Tatarinova OA. (2015) Optimization of cargo
Mamedova IA, Pa vl ova EI, Savchenko-Belsk y                 transportation during the devel opm ent
     VYu,     Cherpakova      E V.   (2019)                  of coal deposits in Kuzbass. Vestnik
     ECOLOGICAL         AND     ECONOMIC                     KuzGT U 6:45-52.
Yakovlev VL, Bakhturin YuA, Zhuravlev AG.
      (2015) Focal points and basic research
      trends in construction of transportation
      syst ems in open pit mines, Nauka i
      obrazovanie 80:67-72.
You can also read
