Pervasive tabs, Pads, and Boards: are We there Yet?
We i se r ’s Vi si o n : 20 Ye ars L ate r

             Pervasive Tabs, Pads,
             and Boards: Are We
             There Yet?
             How far have we come with respect to commercial deployments of the
             devices Mark Weiser described? This review of Weiser’s vision evaluates
             the commercial success of tabs, pads, and boards and discusses their
             real-world use.

                           I
                                n 1991, Mark Weiser described the most        use in the real world and forecasting their future
                                profound technologies as those that dis-      potential. We find that although we’ve traveled
                                appear by weaving themselves into “the        a long way toward achieving Weiser’s vision, we
                                fabric of everyday life until they are        have yet to reach our destination.
                                indistinguishable from it.”1 His vision
                        for ubiquitous computing was one where we             Inch-Scale Machines
                        could live comfortably and more productively          Today’s “inch-scale machines” come in many
                        because we’d be surrounded by computers that          forms, from the active badges that Weiser
                        help us yet disappear into the background.            described in his article, to smartphones, which
                          On the 10th anniversary of Weiser’s                 could be considered the direct descendants of
                        publication, IEEE Pervasive Computing                 Weiser’s tabs. But today’s inch-scale machines
                                          examined how far we had             go beyond badges and tabs to include devices
                                          come. Nigel Davies and              such as wristwatch computers, sensor motes,
   Maria R. Ebling                        Hans Gellersen reviewed             MP3 players, and handheld games. Inch-scale
   IBM T.J. Watson Research Center        deployments of ubiquitous           computers are almost ubiquitous, but compared
                                          systems coming out of a             to Weiser’s vision, most are used less as badges or
   Mary Baker                             number of research labs, 2          for sensing or controlling our environment and
   HP Labs                                including the Lancaster             more for personal productivity, entertainment,
                                          Guide system, 3 the Cooltown        and communication. (See the “Commercial
                                          project,4 and the MediaCup          Offerings” sidebar for product information on
                              5
                        work. Now, on the 20th anniversary, we review         devices mentioned throughout the article.)
                        how far we’ve come with respect to commercial
                        deployments of the devices Weiser described.          Active Badges
                          As Weiser explained, “My colleagues and I           An active badge is about the size of an
                        have built what we call tabs, pads, and boards:       identification badge and can be clipped onto
                        inch-scale machines that approximate active           a lapel. 6 The badge can communicate with
                        Post-It notes, foot-scale ones that behave            receivers placed throughout a building or facility,
                        something like a sheet of paper … and yard-scale      notifying a computing system of its location.
                        displays that are the equivalent of a blackboard      The system can then map badge ID numbers
                        or bulletin board.”1 Here, we look at these three     to employees to locate people throughout the
                        scales of computing machines, examining their         building. Initially developed by the Olivetti

42 PER VA SI V E computing                                                 Published by the IEEE CS n 1536-1268/12/$31.00 © 2012 IEEE
Pervasive tabs, Pads, and Boards: are We there Yet?
Commercial Offerings

   T       he following is a list of the commercial offerings discussed
           in the article (in order of appearance) that aren’t referred
   to in citations at the end of the article.
                                                                          Yard-Scale Machines
                                                                          SmartBoard: http://smarttech.com
                                                                          Promethean ActivClassroom: www.prometheanworld.com
                                                                          Hitachi StarBoard: www.hitachisolutions-us.com/starboard
   Inch-Scale Machines
                                                                          Cisco TelePresence: www.cisco.com/en/US/products/ps7060
   i’m Watch: http://live.imwatch.it/
                                                                          Polycom RealPresence: www.polycom.com/products/
   ActiveWave RFID Active Tags: www.activewaveinc.com/
                                                                          hd_telepresence_video
   products_active_tags.php
                                                                          AdSpace Digital’s Mall Network: www.adspacenetworks.com/
   Radianse ID Tags: www.radianse.com/products_tags.html
                                                                          index2.php
   Arch Rock motes: www.cisco.com/web/about/ac49/ac0/ac1/
                                                                          Appliance Studio PrintSign: www.ambientweb.co.uk/sectors/
   ac259/archrock.html
                                                                          smartsigns.htm
   MOOG Crossbow motes: www.xbow.com
                                                                          Dynamax POV system: www.dynamaxworld.com/Solutions-
   Fruition Sciences sensor nodes: http://fruitionsciences.com
                                                                          Vertical-Sectors.html
   Sifteo cubes: www.sifteo.com
                                                                          Haivision CoolSign: www.haivision.com/products/
   Foot-Scale Machines                                                    CoolSign_Cool-Sign
   Amazon Kindle: https://kindle.amazon.com                               Sony Ziris: http://pro.sony.com/bbsc/ssr/cat-digitalsignage/
   Barnes & Noble Nook: www.barnesandnoble.com/nook                       resource.articles
   Apple iPad: www.apple.com/ipad                                         eKiosk Phex Digital Signage: www.ekiosk.de/en/digital_
   Samsung Galaxy: www.samsung.com/us/mobile/galaxy-tab                   signage_system_phex.html

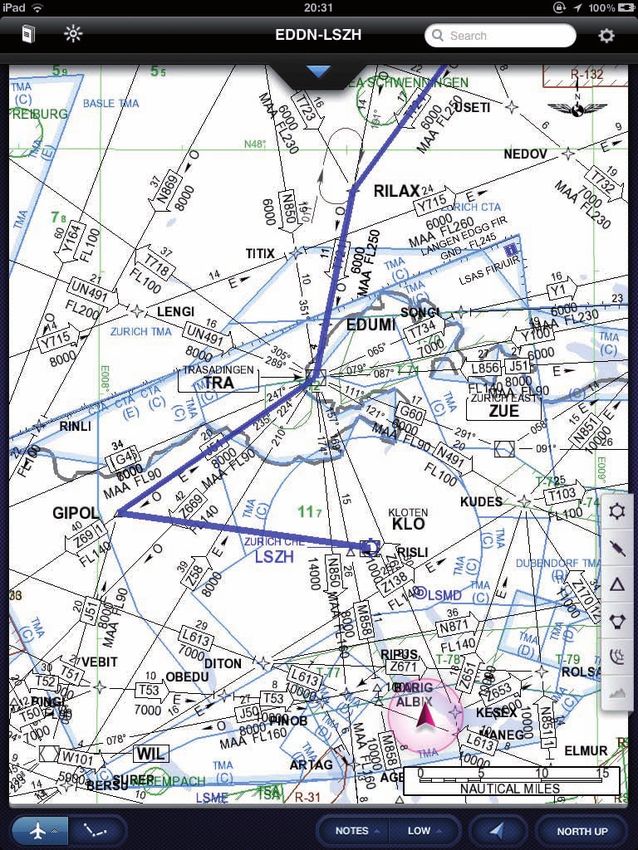

   Jeppensen Mobile FlightDeck: http://ww1.jeppesen.com/apps/
   mobilefd
   Deploid Tablet PC Menus: www.deploid.com/tablet

Cambridge research laboratory, active             lets the center’s technicians comply           area without the proper equipment. For
badges are now offered by numerous                with preventative maintenance                  example, certain sections of the plant
vendors (such as ActiveWave and                   requirements, identify equipment               require a gas monitor. If someone tries
Radianse) in various sizes using several          recalled by the manufacturer, find             to enter such sections without a monitor,
different communication frequencies.              equipment with expiring leases for             or if the person wanders too far from
  The deployment of active badges at              timely returns, and identify idle assets.      the monitor, the safety system sends
Xerox PARC led to articles concerned              We spoke with Maria Agostinho,                 an alert. In addition, the plant can save
about Orwellian futures.7 In fact, active         the center’s Director of Biomedical            electricity by reducing lighting when
badges aren’t widely used in businesses           Engineering, who said they’ve been able        no one is around, as determined by the
today in the way Weiser envisioned,               to “significantly reduce” the amount of        active tags.
primarily because of privacy concerns             time it takes to find equipment and have
and a weak business case. However,                “increased their equipment utilization.”       Smartphones
active badges have found a niche in               Agostinho can’t imagine going back to          Today’s smartphones act as email
industries involving safety, where                using the “Easter egg” hunting method          readers, calendars, diaries, and en­ter­
the business case is stronger and                 of tracking equipment.                         tainment systems, and they can provide
the privacy concerns are weaker. In                 Posco Steel Mill, the fourth largest steel   almost constant connectivity between
particular, hospitals have used them              manufacturer in the world, is also using       people via texting, voice calls, and
to track expensive equipment, and                 active RFID tags.8 At their Finex plant,       video conferencing. These phones have
manufacturing plants have used them               located in Pohang, South Korea, they’ve        become so ubiquitous that networks
to enhance worker safety by tracking              embedded the active tags in the hard           within buildings, such as those in
heavy equipment and people.                       hats that visitors and employees wear.         conference rooms, at times can’t handle
  For example, Saint Michael’s                    This helps Posco’s managers quickly            the hundreds of “computers” attempting
Medical Center uses ultrasound tags               locate people in an emergency. The tags        to gain access simultaneously.
to monitor the location of 1,500                  also help Posco monitor equipment.                Orwellian or not, many applica­
mobile, biomedical assets. The ability            The monitoring system can generate             tions and services track our location
to locate biomedical assets quickly               an alert if a person enters a restricted       through smartphones, often to support

january–march 2012                                                                                               PER VA SI V E computing 43
Pervasive tabs, Pads, and Boards: are We there Yet?
Weiser’s Vision: 20 Years Later

                                                                                             about the technology, Peterson said
                                                                                             he wasn’t versed in the details and
                                                                                             pointed us to Fruition Sciences for more
                                                                                             information—a direct testament to this
                                                                                             technology disappearing into the fabric
                                                                                             of everyday vineyard management.

                                                                                             Sifteo Cubes
                                                                                             As a final example, let’s look at Sifteo
                                                                                             cubes (www.sifteo.com), a type of inch-
                                                                                             scale computer used for entertainment
                                                                                             and education. These cubes, shown in
                                                                                             Figure 1, know their relationship to
                                                                                             one another, allowing them to appear
                                                                                             to interact with one another. The

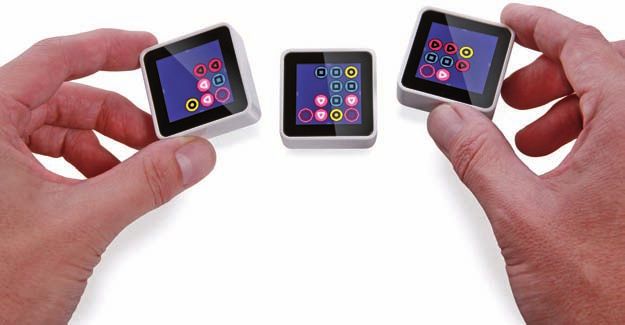

     Figure 1. Sifteo cubes. They know their relationship to one another, allowing them      cubes offer several games designed
     to appear to interact with one another.                                                 to challenge the brain. The cubes
                                                                                             are wirelessly tethered to a laptop or
     end-consumer applications and services.     or MOOG Crossbow’s), can be carried         desktop computer that coordinates the
     Smartphones know their location and         with the item being sensed, such            game and provides sound. This type
     react accordingly. Phones can display       as when the mote is monitoring a            of device is one we could see sprinkled
     maps with a pin to show the phone’s         piece of equipment or a shipping            about the environment and left behind
     current location and can help their         container. In this capacity, they act a     for others to use because it isn’t as
     owners navigate to other locations. They    bit like a smartphone or active badge.      personal as many of the others.
     can show restaurants, gas stations, and     However, they can also be positioned
     other points of interest near the phone’s   in the environment—to monitor the           Assessment: Mixed Results
     current location. They can show us          geological activity of a volcano, for       The inch-scale computer has come
     where our friends are located, where        example, or a grapevine in a vineyard.      the furthest in achieving the ubiquity
     people with similar interests congregate,      Fruition Sciences is attaching sensor    Weiser envisioned. The active-badge
     what businesses they patronize, and         nodes to grapevines, connecting             concept itself is far from ubiquitous
     even what they’re doing.                    the sensors via a mesh network and          but has found a niche in specific
                                                 providing winemakers with a dashboard       applications such as tracking things as
     Car Navigation Systems                      to help them better care for their grapes   opposed to people—or tracking people
     Car navigation systems also exhibit the     (http://fruitionsciences.com). Sap-         in hazardous environments. Smart
     navigation functions just described and     flow sensors, installed on the vines,       dust takes the active-badge concept
     are technically inch-scale computers.       send wireless readings of how much          a step further, allowing more sensing
     Most car navigation systems obtain          water is moving through the vine—its        capability in a somewhat smaller
     their location from satellites and don’t    “transpiration rate.” The system also       package. It too has found a niche—
     have a communication capability to          collects information from weather           again monitoring things as opposed to
     disclose their location externally, so      stations positioned throughout the          people. Navigation devices are common
     they suffer less from privacy concerns.     vineyard. The data is aggregated into       in cars and, unlike active badges and
     They represent an appliance that has        a reporting tool to help the winemaker      sensor motes, are used by consumers to
     disappeared into the background (more so    manage the vineyard, determining            get from one location to another—even
     than smartphones) for drivers in familiar   whether, when, and how much to              by consumers who aren’t necessarily
     and unfamiliar areas alike. However,        irrigate the vines.                         comfortable with computers.
     despite these advantages, car navigation       Austin Peterson, Ovid Napa Valley’s        Mobile phones, however, have clearly
     systems compete with smartphones,           winemaker, has used this system since       achieved the distinction of becoming
     and smartphones offer many additional       2008. He says that the system “is an        ubiquitous in the past 20 years.
     features beyond navigation.                 incredible tool and tremendously            As of November 2010, in the US,
                                                 helpful. It allows better control of the    234 million Americans aged 13 and
     Smart Dust                                  irrigation system to meet the needs of      older use a mobile phone, and more
     Smart dust, 9 best exemplified by           the grapevines and improve the quality      than 61 million use a smartphone.10
     sensor motes (for example, Arch Rock’s      of the fruit.” Interestingly, when asked    In addition to providing the types of

44   PER VA SI V E computing                                                                               www.computer.org/pervasive
Pervasive tabs, Pads, and Boards: are We there Yet?
capabilities available on an active badge,   from room to room, then the pad was          copies, and it’s much easier to avoid
a sensor mote, or a navigation device,       a failure. Weiser’s standard for success     the copious advertising found in print.
mobile phones also provide the killer        might have been a bit high, considering      Also, he finds it easier to scroll through
app—the ability to communicate with          that, by this standard, a pad of paper       the news stories electronically than
anyone wherever you happen to be (as         would be a failure.                          to search the paper layout to find the
long as you have wireless coverage). The                                                  headlines of interest. He notes, “there’s
mobile phone has achieved the goal of        Reading Appliances                           a lot less news in a newspaper than you’d
ubiquity, although perhaps not the goal      Today, many foot-scale devices are           think, and this becomes apparent when
of fading entirely into the background.      available. We have reading appliances,       you access the news from an electronic
   Weiser’s vision also included an          such as the Amazon Kindle, introduced        reader.” Interestingly, he only reads
expectation that computing devices           in 2007, and the Barnes & Noble Nook,        electronic newspapers in the kitchen in
would move away from being personal          introduced in 2009.                          the morning, in the same way he used
to being environmental. On this                 People no longer think of their readers   to read the print newspaper. Other
dimension, inch-scale computers have         as computers. They pick them up and          periodicals—ones that benefit from
had mixed results. Some applications,        naturally turn them on (instead of           color graphics, sound, and videos—he
such as smart dust and environmental         opening them), click a button or touch       reads anywhere, whenever convenient,
sensing, are clearly nonpersonal             the screen (instead of turning the page)     on a tablet computer.
devices, deployed throughout a limited       and annotate them (instead of writing
environment. On the other hand,              notes in the margin). Sharing books is       Pad-Style Appliances
smartphones are very personal devices,       both easier and harder. It’s surprisingly    Pad-style appliances include Apple’s
akin to a wallet. These devices aren’t       easy to share annotations, especially        iPad and Samsung’s Galaxy Tablet,
left lying around, except by accident.       from some readers. It’s more difficult       both introduced in 2010. Businesses
   As we look into the future, we            to share a book, but it’s becoming easier    have started to integrate these devices
anticipate that smartphones will             to check one out from the library.           into their operations.
continue to increase their capabilities         Content isn’t universally available,        One example is Jeppensen’s Mobile
and their foothold in our lives. We expect   but it’s becoming more common.               FliteDeck, which provides a mobile-
to see more smartphones being used to        Book publishers are publishing many,         enabled paperless application for pilots
pay bills in the US, such as the recent      but not all, books electronically,           (see Figure 2). The system provides
beta test at Starbucks.11 (This is already   and newspapers and magazines are             images, dynamic flight data, and an
common in other countries.) We expect        publishing electronically as well            extensive global chart library. The
smartphones to become more aware of          as on paper. In late 2009, Amazon            system eliminates, for instance, the
social and environmental context and         announced that sales of electronic           error-prone and time-consuming need
to adapt their behavior and the services     books exceeded sales of paper books          for pilots to update daily their cockpit
they provide accordingly. We also expect     on Christmas day.12 Although that was        binders of information regarding
to see more integration of smartphones       probably anomalous because of the            changes to landing and take-off
with enterprise business applications as     holiday, it was a sign of things to come     instructions for airports around the
well as more use of smartphones instead      and a trend that has continued.13            world. The application is designed
of laptops for a variety of business            Wendell Baker, a computer scientist       to work on an Apple iPad and is a
applications, including email.               employed by a San Francisco Bay-Area         good example of how businesses are
                                             Internet search company, began reading       exploiting such devices.
Foot-Scale Machines
The second scale of machines that
Weiser identified is the foot-scale                     People no longer think of their readers as
machine—one that acts like a cross
between a piece of paper and a laptop               computers. They pick them up and naturally
computer. Weiser described these
machines as having a paper-sized screen           touch the screen (instead of turning the page).
that could be used to extend the work
area of a traditional computer screen.       newspapers and other periodicals on          Assessment: Not Yet “Scrap”
His view was that they would be left         his Kindle several years ago and ceased      Computers
scattered about a home or office to be       reading paper copies. He explained to        Today, foot-scale devices are typically
used at will. He argued that if people       us that the form factor of the electronic    personal devices, owned and oper-
felt the need to carry such a pad around     reader is more convenient than paper         ated by individuals or shared among

january–march 2012                                                                                      PER VA SI V E computing 45
Pervasive tabs, Pads, and Boards: are We there Yet?
Weiser’s Vision: 20 Years Later

                                                                                           closer to Weiser’s vision as prices
                                                                                           come down and as cloud computing
                                                                                           becomes more useful is unclear. The
                                                                                           limited success of community bicycle
                                                                                           and car programs is a testament to the
                                                                                           fact that people like to “own” their
                                                                                           mobile equipment.
                                                                                             As we look to the future, we expect
                                                                                           foot-scale devices to become even more
                                                                                           pervasive. As prices come down, more
                                                                                           paper-based reading material will
                                                                                           be accessed digitally. In particular,
                                                                                           more students will start using electronic
                                                                                           textbooks in the coming decade—in
                                                                                           fact, several communities are already
                                                                                           exploring this option.14
                                                                                             The foot-scale machine is immature.
                                                                                           People are using these machines
                                                                                           differently from what they expected
                                                                                           when they purchased them. In addition,
                                                                                           businesses are still figuring out how to
                                                                                           integrate them into their enterprise.
                                                                                           Consequently, we expect this market
                                                                                           to evolve over time, and foot-scale
                                                                                           machines should eventually gain
                                                                                           significant market share over laptop
                                                                                           computers.

                                                                                           Yard-Scale Machines
                                                                                           Weiser also envisioned the “board,”
                                                                                           intended to serve as a video screen,
                                                                                           bulletin board, or whiteboard in
                                                                                           the home or office. The board had a
                                                                                           large screen, approximately 40 × 60
                                                                                           inches, controlled by both a keyboard
                                                                                           and an electronic pen. Numerous
     Figure 2. The FliteDeck application. This mobile-enabled paperless application for
                                                                                           prototypes were placed around the
     pilots provides images, dynamic flight data, and an extensive global chart library.
                                                                                           offices at Xerox PARC, allowing
                                                                                           researchers to experiment with them.
     family members. They might be left          personal devices, carried from place      Weiser envisioned these boards serving
     laying on a coffee table, but they’re       to place.                                 as collaboration tools. In fact, the
     not so numerous that they can be used         Foot-scale devices are on track to      boards at Xerox PARC were used
     as the “scrap” computers Weiser en-         fade into the fabric of everyday life,    for impromptu collaboration, even
     visioned, left behind for the next per-     but they might never reach Weiser’s       occasionally between labs separated
     son. Except for some in situ business       ultimate goal of being used like a        by the Atlantic Ocean.
     uses, such as the Deploid, tablets tend     sheet of paper. Because most people
     to be carried from location to location     tend to have just one or two foot-        Interactive Whiteboards
     by their owners. High prices and cus-       scale devices, they don’t “spread         Several companies around the world
     tomization (by way of downloaded            the many parts of the many tasks          manufacture yard-scale devices similar
     apps) play a part in this. Until it be-     of the day out in front” of them as       to those prototyped by Weiser and his
     comes trivial to access our personal        Weiser envisioned.1 Instead, they use     colleagues at Xerox PARC—including
     environments and activities from any        these devices as readers and as more      SMART Board, Promethean, and
     machine, we expect pads to remain           portable laptops. Whether we’ll move      Hitachi’s StarBoard. These systems

46   PER VA SI V E computing                                                                              www.computer.org/pervasive
Pervasive tabs, Pads, and Boards: are We there Yet?
offer an interactive whiteboard that
lets teachers create dynamic lessons
and vivid multimedia presentations.
They support team collaboration and
allow notations using electronic ink.
Although the boards are rarely seen in
homes and aren’t extensively available
in corporate offices, they’re becoming
more common in school classrooms.
   Linda Guzzo, a fifth-grade teacher
at Kensico School in Valhalla, NY,
explained to us that the board makes
her classroom more interactive by
letting students manipulate objects
on the board through a touch-screen
display. She thinks that the board
makes learning fun and more like the
technologies that the kids use at home
(see Figure 3). “The board has changed
the way I teach and the way my students    Figure 3. A teacher and student focus on math using an interactive whiteboard. Such
learn,” said Guzzo.                        boards are becoming more common in schools.
   For students, the technology behind
the boards fades into the background.      team. He explains, “Smart Boards have        video and call signals to provide secure
The students don’t think of the board      changed our meetings. We’re able to          and confidential communication.
as a computer—just as a fun way            get on topic, pull up a 3D model, show       These screens support face-to-face
to learn. Guzzo explained that the         the problem, and quickly get others          meetings without requiring time-
teachers know very well that there’s a     on board. Everyone in the room can           consuming and costly air travel. Shared
computer running the board because         quickly understand what the issue is         materials such as slides and documents
they have to “program” the lesson          and collaborate on resolving it.”15 Once     are typically displayed on an additional
plans. Guzzo seemed amazed at the          all parties have agreed on a solution, the   screen or in the same manner as the
board’s capabilities and is continually    team uses the board to sign off on           participants—with the camera focused
learning more ways to use it in her        the plans right on the screen. By the time   on the materials. In essence, they’re
classroom. She envisions using the         the parties return to their offices, they    acting as video displays to bring people
board to collaborate with children in      have a copy of the new plans waiting on      together.
other countries.                           their computer. This type of technology         Furthermore, computing moves into
   Some boards have integrated             has also proven effective in helping         the background in these systems, at
handheld units for each student that       to manage complex projects. Turner           least when the technology is working as
let the students respond to a prompt,      attributes a US$2 million savings on         designed. Participants in high-quality
such as a quiz. These devices let the      one project to the use of technologies       telepresence meetings can focus on the
teacher quickly see how well each          including SMART boards.                      meeting and the people on the other
student is grasping the material.                                                       side of the world without focusing
They begin to support Weiser’s view        Telepresence                                 on the technology that’s enabling the
of devices interoperating with one         Although yard-scale displays in              meeting.
another, but we still have a long way      corporate offices aren’t widely
to go. Although these boards have          used as the interactive, collaborative       Dynamic Billboards
been used mostly in schools, some          “whiteboards” that Weiser envisioned,        Yard-scale devices that offer specialized
companies have adopted them as well.       they’re used extensively in this             output-only display functionality are
Turner Construction Company uses           environment as telecommunications            commonplace today in transportation
Smart Board technology to enhance          products. For example, Cisco’s Tele-         centers, retail centers, entertainment
their building process, making it more     Presence and Polycom’s RealPresence          venues, and similar locations where
efficient and of a higher quality.15 Dan   use large displays and advanced              people congregate. These devices
Gramer is a national manager with the      computing techniques, such as                and software packages are offered
Turner’s Integrated Building Solutions     automatically encrypting both the            by numerous companies, including

january–march 2012                                                                                    PER VA SI V E computing 47
Pervasive tabs, Pads, and Boards: are We there Yet?
Weiser’s Vision: 20 Years Later

     Adspace Digital’s Mall Network,            For example, at Priscilla of Boston          deployment in less protected spaces.
     Appl ia nc e St ud io’s Pr i nt Sig n ,    Bridal Salons, these displays are used for   We expect to see more personalized
     Dynamax’s POV system, Haivision’s          browsing through selections of gowns         content appear on large, public displays
     CoolSign, and Sony’s Ziris.                and for exploring and configuring            based upon information available from
        Essentially, these systems are          options. Customers use the displays          the inch-scale computers we carry
     dynamic billboards that let their          directly or with a sales assistant.          with us. We also expect to see better
     owners update content more readily         This is especially helpful with brides­      integration of telepresence functionality
     than a billboard, potentially at the       maids as “bringing in a group of             with the ability to collaborate over
     granularity of seconds. Train stations     picky gals can wreak havoc on an             content, all on the same screen, as if the
     and airports can list departure and        appointment if they can’t agree on           participants were all standing together
     arrival times, platforms or gates, and     the cut and color of their dresses. But      around the same whiteboard.
     status updates. Shopping malls can         the TouchSmart screens let the entire
     display advertisements that change         group browse and choose colors, while        Connectivity
     every few seconds. Restaurants can         seeing the transformation take place in      Weiser looked forward to a world
     update menus throughout the course         front of their eyes.”16 Motorbike and        where many devices were blended
     of the day. Sporting venues use these      automotive dealers similarly use large       into our environment, communicating
     displays for scoreboards but can           interactive displays for demonstrating       seamlessly with the environment and
     also show instant replays or in-depth      and selecting different options. These       each other. To achieve his vision,
     coverage of athletes. Although more        displays represent a blurring of the now     Weiser described a need for multiple
     limited in capability than the yard-       almost-ubiquitous digital signage with       network connections. He foresaw
     scale devices Weiser envisioned, they      the functionality of a kiosk.                the need for “three different network
     effectively disseminate information.                                                    connections: tiny-range wireless, long-
                                                Assessment: Slower,                          range wireless, and very high-speed
     Interactive Kiosks                         Specialized Adoption                         wired.”1
     Interactive yard-scale displays are also   Yard-scale devices have achieved a              Today, we indeed have multiple
     beginning to appear. Devices, such as      slower and more specialized adoption         network connections for many of
     the Phex from eKiosk, permit interactive   than their inch-scale or foot-scale          our mobile devices. We have cellular,
     use as well as the more standard           counterparts, but they have remained         Wi-Fi, Bluetooth, and near-field
     information dissemination use dis­         close to Weiser’s original vision. Retail    communication (NFC), providing
     cussed earlier. These kiosks are used in   stores use them as bulletin boards.          communication across long distances
     airports for ticketing and check-in, in    Schools use them as collaboration            as well as very short ones.
     businesses as a virtual receptionist and   tools. Corporations use them as                 Cellular communications are a long-
     for wayfinding (including the ability      video screens, but currently more for        range (kilometers) wireless technology
     to connect to the host via telephone),     connecting people than for interactive       that allows mobile transceiver units
     and for tourism and in hotels to help      collaboration over content. They             to communicate with stationary
     visitors find locations and amenities      achieve these functions while hiding         “cell towers.” The cell towers are placed
     and make reservations independent of       the computers inside—shoppers focus          across a large geographic area and
     time and place.                            on the purchase, students focus on           support mobile transceivers moving
                                                                                             across cells during transmissions.
                                                                                             Cellular phone service companies
                                                                                             commonly provide these networks.
             Yard-scale devices achieve these functions while                                   Wi-Fi connections are medium-range
                                                                                             (many meters) wireless technology
        hiding the computers inside—shoppers focus on the                                    based on the IEEE 802.11 standards
                                                                                             (www.wi-fi.org). Wi-Fi networks
        purchase, students focus on the educational activity.                                provide a wireless local area network
                                                                                             (W LAN), essentially a wireless
       Large touch-screen displays are also     the educational activity, and meeting        alternative to a traditional Ethernet.
     appearing in smaller retail environments   participants focus on the discussion.           Bluetooth connections support
     to provide an “endless aisle”—a way to       As we look to the future, we expect        short-range (a few meters) wireless
     expand the sales function beyond           even more yard-scale devices to appear       communication between two devices,
     the physical boundaries of the store       as prices come down and as the               such as mobile phones, headsets,
     or the immediately accessible stock.       hardware becomes rugged enough for           laptops, printers, and handheld game

48   PER VA SI V E computing                                                                                www.computer.org/pervasive
Pervasive tabs, Pads, and Boards: are We there Yet?
controllers (http://bluetooth.org).           Assessment: Lacking Device                   our ability to connect devices with ease
Bluetooth connections require pairing         Interoperability                             and security is moved into commercially
the two devices.                              Although Weiser correctly predicted          available offerings, we won’t achieve
  NFC is a tiny-range (a few centimeters)     today’s varied ranges and types              Weiser’s vision of devices cooperating to
wireless technology that has been             of connectivity, current reality in          make people’s lives easier.
standardized to enable easy two-
way interactions between electronic
devices.17 By simply touching a device                   The reality is that our ubiquitous computing
such as a smartphone to a poster or
other object with an embedded NFC                  devices are largely disconnected from one another
chip, a user can access content, transfer
data, or perform a transaction such                                   and rarely interoperable.

                                                                                           W
as choosing a menu item or making a
payment.                                      connectivity also differs somewhat                           eiser believed that
  In addition, as Weiser predicted,           from his vision. First, Weiser focused                       ubiquitous computing
most mobile devices can connect with          more on the connectivity of devices                          would “gradually emerge
other computers via a wired cable.            and less on the connectivity of people                       as the dominant mode of
                                              that we see today.                           computer access over the next 20 years.”1
Restaurants and                                  Second, Weiser’s vision of inter­         As we review our commercial progress
Customer Loyalty                              connectedness between these devices          toward Weiser’s vision, we see great
CustomerIn Systems has developed              and between the devices and their            strides have been made in building the
an NFC-based solution called The              environment has been difficult to            required appliances and infrastructure.
Connected Restaurant to “reinvent             achieve. Today, these connections are           Yet Weiser also described a room
the restaurant dining experience at           used mostly for accessing personal           where, “depending on [the purpose
a time when industry profitability is         productivity applications (such as           of] the room, you may see more than
under siege.”18 The goal is to improve        email, contacts, and calendars),             100 tabs, 10 or 20 pads and one or two
customer service without requiring            infrastructure providing services and        boards.”1 We have clearly not achieved
more work from the restaurant staff,          entertainment (such as app stores and        this scale yet. A technologically-
all while speeding up table turnover.         social networking sites), and personal       advanced room might have one board
Customers entering the restaurant can         communications (such as texting, phone       and might have as many pads and
tap their phones against a poster with        calls, and video conferencing). For          tabs as there are people in the room—
an embedded NFC chip, which lets them         example, smartphones are widely used         but this is a far cry from Weiser’s
download the Connected Restaurant             to keep track of incoming email and to       description. People still very much
application. They can then use this app       communicate with business associates         “own” the mobile devices they use,
to check in at the restaurant and ask for a   and family alike. They’re almost             even if they might share them with
particular table. While waiting, they can     ubiquitously connected to a carrier’s or     family members or students in their
read the menu, see customer reviews of        enterprise’s infrastructure, but they’re     classrooms. To achieve this aspect
menu items, and order. They’re alerted        not well connected to each other.            of Weiser’s vision, we need to make
when their table is ready, and at the table      We still can’t easily move content be-    computers much less expensive, change
they can also touch their phones to items     tween our phones, tablets, and boards.       the way people think about and interact
on an NFC-enabled menu to get a list of       Reasons for this are varied. One aspect      with these devices, and change the way
ingredients or a calorie count for a dish.    of the problem revolves around com-          content is made available on the device.
Finally, they can use the app to pay for      munication: It’s challenging to integrate       Weiser also pointed out that “the
their meal.                                   carrier networks and locally owned           real power of the concept comes not
   Competing solutions, such as Enable        networks both easily and securely.           from any one of these devices—it
Table, also let diners with NFC-              Other problems include vendor lock-in        emerges from the interaction of all of
enabled phones pick up and redeem             and incompatibilities between devices        them.”1 Although these devices are
coupons and find information about            sold by different companies. Unfortu-        heavily used to connect people with
daily deals, thus increasing customer         nately, the missing interconnectedness       each other—perhaps more so than
loyalty.19 Furthermore, restaurant            described in Weiser’s article is key to      Weiser predicted—the reality is that
owners can track service times at             his vision.                                  our ubiquitous computing devices
particular tables and the popularity of          Researchers today are actively working    are largely disconnected from one
various dishes.                               to create an “Internet of Things.”20 Until   another and rarely interoperable.

january–march 2012                                                                                       PER VA SI V E computing 49
Pervasive tabs, Pads, and Boards: are We there Yet?
Weiser’s Vision: 20 Years Later

                                                                                      the Authors               12. “Amazon Kindle is the Most Gifted
                                                                                                                    Item Ever on Amazon.com,” Amaz on .
                             Maria R. Ebling is a research staff member and senior manager at the IBM T.J.          c o m , 2 6 D e c . 2 0 0 9 ; h t t p : / / phx.
                             Watson Research Center. Her interests are in distributed systems supporting            cor porate -i r.net /pho en i x.zht m l?c =
                             mobile and pervasive computing, privacy, and human-computer interaction.               1760 60 &p =i rol- ne w s A r t icle& I D =
                             Ebling received her PhD in computer science from Carnegie Mellon University.           1369429.
                             She serves as an associate editor-in-chief for IEEE Pervasive Computing. She was
                             elected to the IBM Academy of Technology in 2011 and is a senior member of         13. “Kindle Device Unit Sales Acceler-
                             both the ACM and IEEE. Contact her at ebling@us.ibm.com.                               ate Each Month in Second Quarter;
                                                                                                                    New $189 Price Results in Tipping
                                                                                                                    Point for Growth,” Amazon.com,
                                                                                                                    19 July 2010; http://phx.corporate-ir.
                             Mary Baker is a senior research scientist at HP Labs. Her research interests
                                                                                                                    net/phoenix.zhtml?c=176060&p=irol-
                             include distributed systems, networks, mobile systems, security, and digital
                                                                                                                    newsArticle&ID=1449176.
                             preservation. Baker received her PhD in computer science from UC Berkeley.
                             She is a founding editorial board member of IEEE Pervasive Computing. She is a
                                                                                                                14. M. Sager, “Schools Weigh Benefits
                             member of IEEE, the ACM, and Usenix. Contact her at mgbaker@hp.com.
                                                                                                                    of Digital Textbooks,” Tampa Bay
                                                                                                                    Online, 14 June 2011; http://www2.tbo.
                                                                                                                    com/news/news/2011/jun/14/schools-
                                                                                                                    weigh-benefits-of-digital-textbooks-ar-
                                                                                                                    237064.

                                                                                                                15. “Turner Construction Company: Inno-
                                                                                                                    vation, Technology and Teamwork,”
                                                                                                                    Smarttech.com; http://smarttech.com/
     We still have a ways to go to achieve                     Int’l Symp. Handheld and Ubiquitous                  Home%20Page/Solutions/ Business%
     the full power of the vision Weiser                       Computing (HUC99), LNCS 1707,                        2 0 S o lu t i o n s / B u s i n e s s%2 0V i d e o s /
                                                               Springer, 1999, pp. 309–310.                         Turner.
     described. To do so, we need to work
     more on realizing the “Internet of                     5. T. Kindberg et al., “People, Places, Thinks:     16. “P r is ci l la of B oston Unvei ls N ew
     Things,” making the devices easily                        Web Presence for the Real World,”                    Partnership with H P,” Geeksugar.
                                                               J. Mobile Networks and Applications,                 com, 24 Mar. 2010; www.geeksugar.
     and naturally interoperable in a secure                   vol. 7, no. 5, 2002, pp. 365–376.                    c o m / H P -To u c h S m a r t- C o mp u t e r s -
     fashion.                                                                                                       Priscilla-Boston-Bridal-Salons-
                                                            6. R. Want et al., “The Active Badge                    7874280.
                                                               Location System,” ACM Trans. Infor-
                                                               mation Systems, vol. 10, no. 1, 1992,            17. “Near Field Communications and
     Acknowledgments                                           pp. 91–102.                                          the NFC Forum: The Keys to Truly
                                                                                                                    Interoperable Communications,” white
     We thank Bob Rosenberry and Emily Dart for             7. P. Coy, “Big Brother Pinned to Your                  paper, N FC Forum, 31 Oct. 2007;
     providing us with information about retail use            Chest,” BusinessWeek, 17 Aug. 1992;                  www.nfc-forum.org/resources/white_
     of touch-screen displays and interactive kiosks.          www.businessweek.com/archives/1992/                  papers.
     We thank Linda Guzzo and Stefan Hild for help             b327929.arc.htm.
     with photos. We also thank the many reviewers,                                                             18. “With the NFC-Powered Connected
     formal and informal, for their helpful comments        8. D. Friedlos, “Posco Steel Mill Improve               Restaurant Solution CustomerIn Systems
     and feedback.                                             Safety, Energy Conservation,” RFID J.,               and UPM RFID are Poised to Trans-
                                                               2 Oct. 2009; www.rfidjournal.com/article/            form Restaurant Dining,” UPM, 20 June
                                                               view/5268.                                           2011; www.upmrfid.com /rfid/upm_
                                                                                                                    rfid-news-2011-customerin-systems-
                                                                                                                    nfc-2.
                                                            9. J.M. Kahn, R.H. Katz, and K.S.J.
     References                                                Pister, “Mobile Networking for Smart
                                                                                                                19. “Enable Table NFC for Android Mar-
                                                               Dust,” Proc. ACM/IEEE Int’l Conf.
      1. M. Weiser, “The Computer for the 21st                                                                      ket is the First Commercially Available
                                                               Mobile Computing and Network-
         Century,” Scientific Am., vol. 265, no. 3,                                                                 NFC App for the First Commercially
                                                               ing (MobiCom 99), ACM Press, 1999,
         1991, pp. 66–75.                                                                                           Available NFC Smartphone,” PRWeb.
                                                               pp. 271–278.
                                                                                                                    com, 11 Jan. 2011; www.prweb.com/
      2. N. Davies and H.-W. Gellersen. “Beyond                                                                     r e l e a s e s / 2 011 / 01 / p r w e b 49 6 37 9 4 .
         Prototypes: Challenges in Deploying Ubiq-         10. “C o m S c o r e R e p o r t s N ov e m b e r        htm.
         uitous Systems,” IEEE Pervasive Comput-               2010 US Mobile Subscriber Market
         ing, vol. 1, no. 1, 2002, pp. 16–35.                  Share,” comScore, 6 Jan. 2011; www.              20. L. Atzori, A. Iera, and G. Morabita, “The
                                                               comscore.com / Press _ Events / Press _              Internet of Things: A Survey,” Com-
      3. N. Davies et al., “Caches in the Air: Dis-            Releases/2011/1/comScore_ Reports_                   puter Networks, vol. 54, no. 15, 2010,
         seminating Information in the Guide                   N ove mb er_ 2 010 _ U. S . _ Mobi le _              pp. 2787–2805.
         System,” Proc. Second IEEE Work-                      Subscriber_Market_Share.
         shop on Mobile Computing Systems
         and Applications, IEEE Press, 1999,               11. M. Hamblen, “Starbucks Extends Smart-
         p. 11.                                                phone Payment App to Android Devices,”
                                                               ComputerWorld, 14 June 2011; www.
      4. H.-W. Gellersen, M. Beigl, and H. Krull,              computerworld.com/s/article/9217626/                        Selected CS articles and columns
         “The MediaCup: Awareness Technology                   Starbucks _ ex tends _ smar tphone _                        are also available for free at
         Embedded in an Everyday Object,” First                payment_app_to_Android_devices.                             http://ComputingNow.computer.org.

50   PER VA SI V E computing                                                                                                          www.computer.org/pervasive
Pervasive tabs, Pads, and Boards: are We there Yet?
COMPUTING
THEN
Learn about computing history
and the people who shaped it.

http://computingnow.
computer.org/ct
This article was featured in

    For access to more content from the IEEE Computer Society,
                 see computingnow.computer.org.

Top articles, podcasts, and more.

                               computingnow.computer.org
You can also read
