Get to your goal faster

     Perfect cooking results in record time with      „„ Powerful thanks to the latest forced
     highest energy efficiency: The new PALUX            draught burner technology: Perfect
     Touch ‘n‘ Steam Gas is the most versatile           cooking results – even in case of fully
     helper for professional kitchens.                   loaded cooking chamber.

     Meat, fish, side dishes and desserts will be     „„ Ready-to-operate faster thanks to
     prepared faster with reliable and better re-        extremely short preheating times, both
     sults with the new PALUX Touch ‘n’ Steam            while starting-up and during the cooking
     Gas. It is one of the most powerful appliances      process.
     on the market and saves valuable resources
     such as water, energy and time                   „„ Easy and safe handling via touchscreen.

                                                      „„ Flexible and productive due to the 4-in-1
                                                         rack system.

2|
PALUX TOUCH 'N' STEAM GAS - Get to your goal faster. Smart Kitchen Solutions made in Germany - mafsi
MORE SPACE

FOR
PASSION
PALUX TOUCH 'N' STEAM GAS - Get to your goal faster. Smart Kitchen Solutions made in Germany - mafsi
F O R T A BL E
COM
          R S A T IL E:
        E
A ND V
      N  W I T H T HE                     144 of croissants in
 E VE               ODE L .
                                          22 minutes
           E S T M
 SM A L L                                 12 apple pies GN 1/1 in
                                          55 minutes

          60 kg of potatoes in            24 grilled chicken in
          25 minutes                      40 minutes – juicy
                                          and crispy!
          35 kg of fresh broccoli in
          6 minutes
          48 kg freshly filled pasta in
          15 minutes
PALUX TOUCH 'N' STEAM GAS - Get to your goal faster. Smart Kitchen Solutions made in Germany - mafsi
PALUX Touch 'n' Steam Gas

Advantages at a glance.

„„ Touchscreen for comprehensible and        „„ A dvanced-Cool-Down-Function for
   safe user guidance as well as high            faster cool-down of the cooking chamber
   comfort.                                      without opening the door.

„„ Triple (optional: quadruple) insulated    „„ Food preparation through an individually
   door glazing with infrared reflection         adaptable cookbook.
   reduces thermal radiation and ensures
   a maximum of energy cost savings.          „„ Automatic cleaning as standard –
                                                 selectable by touch in 3 different modes.
„„ 4-in-1 flexible rack system for highest      Available with solid or liquid cleaner.
   capacity and productivity. Length- and
   crosswise loading, Maxi Tray or Baking     „„ AQA: automatic time-adaptation to suit
   Tray.                                         the quantity of food being cooked.

„„ Available in BASIC or COMFORT user        „„ Up to 25% more dishes compared to
   versions encompassing 6 models.               previous models.

„„ Intelligent Climate Regulation which
   leads to highest food quality.

                                                                                             |5
PALUX TOUCH 'N' STEAM GAS - Get to your goal faster. Smart Kitchen Solutions made in Germany - mafsi
The PALUX-models

                        611 QL / 621 QL   1011 QL /1021 QL   2011 L / 2021 QL

             EL S
     6 MOD                NS
                V ER SIO
      2U S E R
                         T C O N T R OL
               L L IGE N
      1 IN T E

6|
PALUX TOUCH 'N' STEAM GAS - Get to your goal faster. Smart Kitchen Solutions made in Germany - mafsi
Model                                             611 QL               621 QL               1011 QL              1021 QL               2011 L             2021 QL

  Design
  PALUX Touch 'n' Steam
                                                 Basic 611 QL         Basic 621 QL         Basic 1011 QL        Basic 1021 QL         Basic 2011 L         Basic 2021 QL
  Gas BASIC

  PALUX Touch 'n' Steam                             Comfort              Comfort              Comfort               Comfort              Comfort             Comfort
  Gas COMFORT                                        611 QL               621 QL              1011 QL               1021 QL               2011 L             2021 QL

  Capacity
  Dimension and number of inserts                  7 x GN 1/1           7 x GN 2/1           11 x GN 1/1          11 x GN 2/1          20 x GN 1/1          20 x GN 2/1

  Spacing between levels [ mm ]                         67                   67                   67                   67                   67                  67

  Banquet system plates 28 cm                          24                    24                   40                   40                 80/102              80/102

  External dimensions mm
  Length                                               980                  980                  980                  980                  1115                1115

  Depth                                                795                  795                  795                  795                   875                 875

  Height                                               840                  840                  1120                 1120                 1925                1925

  Gas appliances
  Gas connected load
                                                      13,8                   22                   22                   30                   44                  60
  (nominal thermal load) [ kW ]

  Gas diameter                                        R 3/4                R 3/4                R 3/4                 R 3/4                R 1/1               R 1/1

  Electrical connected load [ kW ]                     0,8                  0,8                   0,8                  0,8                  1,6                 1,6

                                                   230 V 1 N             230 V 1 N            230 V 1 N            230 V 1 N            230 V 1 N            230 V 1 N
  Voltage
                                                   50/60 Hz              50/60 Hz             50/60 Hz             50/60 Hz             50/60 Hz             50/60 Hz

  Fuse protection                                   1 x 16 A              1 x 16 A             1 x 16 A             1 x 16 A             1 x 16 A             1 x 16 A

                                                  Natural gas          Natural gas          Natural gas          Natural gas           Natural gas          Natural gas
  Gas types                                       H/L, Liquid          H/L, Liquid          H/L, Liquid          H/L, Liquid           H/L, Liquid          H/L, Liquid
                                                  gas 3BP/3P           gas 3BP/3P           gas 3BP/3P           gas 3BP/3P            gas 3BP/3P           gas 3BP/3P

  Water
  Water supply                                      2xG¾A                2xG¾A                2xG¾A                2xG¾A                2xG¾A                2xG¾A

  Drain [ mm ]                                         50                    50                   50                   50                   50                  50

Subject to changes in power, dimension and construction. Water pressure min. 2 bar, max. 6 bar. For the water connections please observe the information
provided by the respective manufacturer. Subject to technical changes. Date: March 2017

                                                                                                                                                                           |7
PALUX TOUCH 'N' STEAM GAS - Get to your goal faster. Smart Kitchen Solutions made in Germany - mafsi
PALUX Aktiengesellschaft
Wilhelm-Frank-Strasse 36
D-97980 Bad Mergentheim

Contact:
Telephone: +49 (0) 7931/55-0
Fax:       +49 (0) 7931/55-88 600
info@palux.de

Service-Hotline:
Telephone: +49 (0) 7931/55-555

www.palux.de
PALUX TOUCH 'N' STEAM GAS - Get to your goal faster. Smart Kitchen Solutions made in Germany - mafsi
reddot design award

                                 PALUX – awarded
                          the product design 2012

PALUX Touch ‘n’ Steam
“A PASSION FOR COOKING”
PALUX TOUCH 'N' STEAM GAS - Get to your goal faster. Smart Kitchen Solutions made in Germany - mafsi
e!                 vidual!               ect!
    PALUX Touch ‘n’ Steam                                      mpl              indi                    erf
                                                  …      so si             so                      so p
                                                                       …                       …

    PALUX Touch ‘n’ Steam
    All of our experience incorporated
    into a high - performance, intuitive
    multifunctional device.

    A feel for the essence: good cuisine!
    For decades, PALUX Combi-Steamers have been counted
    among the most versatile appliances in gastronomy.
    The new PALUX Touch ’n’ Steam generation
    of advanced Combi-Steamers expands this proven
    concept of quality by adding:

    n Even more user convenience
       – State-of-the-art, intuitive touch control panels.

    n Even more creativity
       – User-friendly, innovative control variations.

    n Even more flexibility and versatility
       – Optimized cooking chamber, higher capacities.

    n An appealing appliance design
       – The highlight in every kitchen.

    n The best cooking and baking results
       – T he standard features in all appliances include
         5 programmable fan speeds, interval mode and
         auto-reverse ventilation, and multi-point core
         temperature sensor.

    n The lowest operating costs
       – New appliance developments with state-of-the-art
         technology.

2
PALUX Touch Technology
Sensor keys for fast fingertips.
Ingenious. Precise. Dependable.

PALUX innovations and benefits

The new PALUX touch panel control adds fun to work. PALUX
has additionally introduced many other innovations and benefits.

n Innovative control
  – Easy, intuitive operation.
  – Extremely time-saving.

n 4 in 1 – new rack system
  – Flexible and adapted to individual needs.

n Selectable Eco Cleaning System EAC
  – Optimum hygiene, selectable with either solid and liquid
    cleaner.

n Threefold insulated door glazing as standard feature
  – Better kitchen climate and additional energy cost savings.

n PrimaClima for any kind of preparation
  – Individually adjustable cooking chamber climate with active
    humidification and dehumidification ensures optimum results.

n Steam Eco System
  – The best climate in the cooking chamber, with considerably
    reduced operating costs.

n AQA – Automatic Quantity Adaptation
  – Automatic adaptation to suit the quantity of food being
    cooked.

                                                                   3
e!                     vidual!                           ect!
    PALUX Touch ‘n’ Steam                 mpl                  indi                                erf
                                …   so si                 so                                  so p
                                                      …                                   …

    Design is also a question of quality –
    Why work without it?

                                                                                                t i o n !
                                                                  i n n                     ova
                                                            m u m
                                                       ax i
                                                   … m

                                                  Daily practice shows:
                                                  Only things that are carefully designed run smoothly.

                                                  At PALUX, we make sure that you can concentrate on the
                                                  important things: The best cooking and baking results for
                                                  satisfied guests. The new Combi-Steamer generation
                                                  Touch ’n‘ Steam assists you with its innovative details and
                                                  supports your creativity with its functional, high-tech design:

                                                  n The panorama viewing door with threefold glazing and
                                                     infrared reflection reduces thermal radiation and always
                                                     allows an optimal view of the food being cooked.

                                                  n The halogen lightening in the cooking chamber always
                                                     provides a clear view.

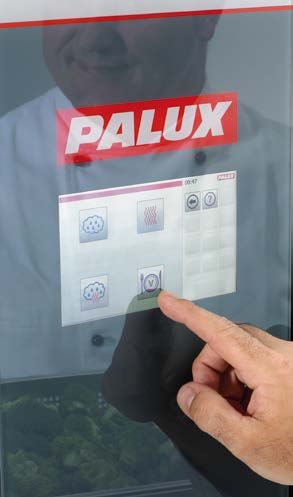

                                                  n The high-resolution TFT color touch screen, fully integrated
