Oceano & Clima: come quantificare i cambiamenti in corso?
CNR          DSSTTA                     ISMAR - IAS - IRBIM
                               www.cnr.it   www.dta.cnr.it             www.ricercamarina.it

     Oceano & Clima: come quantificare i
     cambiamenti in corso?

     Rosalia Santoleri & CNR-ISMAR team
     CNR Istituto di Scienze Marine

Istituto di                                 direttore@ismar.cnr.it
Scienze Marine                              rosalia.santoleri@cnr.it
Oceano & Clima: come quantificare i cambiamenti in corso?
CNR               DSSTTA                ISMAR - IAS - IRBIM
                                                                  www.cnr.it        www.dta.cnr.it        www.ricercamarina.it

                                               Climate and Ocean                                                            IPCC AR5
The ocean contains 97% of all water on Earth
                                                                                     Where is global warming going?
It traps > 90% of global warming                                                                                     Atmosphere
                                                                                                                     2.3%
It receives > 80% of all precipitations                                                                               Continents
                                                                                                                      2.1%
It transports heat and freshwater over                                                         Ocean
                                                                                                                    Glaciers & ice caps
great distances                                                                                93.4%                0.9%
                                                         > 70%                                                     Arctic sea ice
It adsorbes 1/3 of all anthropogenic CO2                                                                           0.8%
                                                                                                              Greenland Ice Sheet
                                                                                                              0.2%
                                                                                                         Antarctic Ice Sheet
                                                                                                         0.2%

                                                                                    Where are CO2 emissions going?

                                                                                               30%      40%              30%
                                                How inappropriate to call this
                                                planet Earth when it is quite
                                                 clearly Ocean - Arthur C. Clarke
                                                                                             Ocean   Atmosphere      Land cover
Oceano & Clima: come quantificare i cambiamenti in corso?
CONSIGLIO NAZIONALE DELLE RICERCHE
                              ISTITUTO DI SCIENZE MARINE
                              Global Ocean Observing System
Osservare l’Oceano è essenziale per
quantificare i cambiamenti avvenuti nel recente
passato e monitorare i cambiamenti in atto e
prevedere il futuro

    Ocean Essential Variable (EOV)
         includes the ECVs
Oceano & Clima: come quantificare i cambiamenti in corso?
CONSIGLIO NAZIONALE DELLE RICERCHE
                       ISTITUTO DI SCIENZE MARINE

Integrated system
   designed to meet
   many requirements:
  •   Climate
  •   Weather prediction
  •   Global and coastal ocean
      prediction
  •   Marine hazards warning
  •   Transportation
  •   Marine environment and     •   Tide gauge stations
      ecosystem monitoring       •   Drifting Buoys
  •   Naval applications
                                 •   Tropical Moored Buoys
  •   8 of 9 Societal Benefits
                                 •   Profiling Floats
                                 •   Ships of Opportunity
                                 •   Ocean Reference Stations
                                 •   Ocean Carbon Networks
Oceano & Clima: come quantificare i cambiamenti in corso?
CONSIGLIO NAZIONALE DELLE RICERCHE
                           ISTITUTO DI SCIENZE MARINE

                                       Ocean Monitoring From Space
                                                                         Doppler velocity    Ocean Colour

Sentinel-1 A/B     Sentinel-2 A/B
                                                                                               Rugosity
                                                                            Sea Surface
                                                                            Temperature

                      Sentinel-3 A/B                                                           Sun Glitter

  Sentinel-5P

                                                                             Surface Solar
                             SMOS                                            Radiation         Sea Level
                                                       Wind   Salinity

       Cryosat-2
                         Meteosat SG
                                             Metop-C
Oceano & Clima: come quantificare i cambiamenti in corso?
CONSIGLIO NAZIONALE DELLE RICERCHE
                                   ISTITUTO DI SCIENZE MARINE
                           European Copernicus Program & CNR-ISMAR
Copernicus is the European Union's Earth Observation Programme, looking at our planet and its environment for
the ultimate benefit of all European citizens. It offers information services based on satellite Earth Observation,
in situ (non-space) data and model.

Next
generation                                                                   CNR: EOV Product Development
Satellite                                                                    & production, reanalysis
mission                                                                      assessment
&
CAL/VAL
activities

                                                                               CNR: Independent Scientific Quality
                                                                              assessment of ECV products
                                                                              (Atmosphere – Ocean – Land) ,
                                                                              reanalysis development
CNR has a leading role on Copernicus Marine and Climate Services
CNR contribute to the Copernicus space and in situ components: data and products requirements ,
product validation and design of the next generation of satellite missions and in situ infrastructures
Oceano & Clima: come quantificare i cambiamenti in corso?
The Copernicus Marine
                                                 CNR
                                                 www.cnr.it
                                                            Environment
                                                                    DSSTTA Monitoring
                                                                    www.dta.cnr.it
                                                                                        Service
                                                                                    ISMAR  - IAS - IRBIM
                                                                                    www.ricercamarina.it
                                                & the CNR-ISMAR role
                                              D
                                              i
                                              s
                                              s
                                              e
                                              m
                                              i
                                              n
                                              a
                                              t
                                              i
                                              o
                                              n

CNR leads: Ocean Colour & SST
TAC & Dissemination Service
CNR is partner in: Multi-
OBS(SSS, currents) & In Situ
(HF radar)

                                     NRT and Multi Years Observation and forecasts covering the global ocean
                                     and the European regional Seas: Mediterranean, Black Sea, North Atlantic,
                                     Baltic and Arctic
Oceano & Clima: come quantificare i cambiamenti in corso?
THE       CMEMS            OCEAN            STATE          REPORT
 Marine      … provides a state-of-the-art assessment of                … draws on expert analysis
Monitoring
             the state of the global ocean and European
             regional seas                                                                     100 experts
                                                   Ocean Monitoring Indicator

                                                             … provides
                                                             • a 4-D view
                                                             • a view from above
                                                             • a view directly from the interior

                                                                 Blu                               Green
                                                                                 White             Ocean
                                                                Ocean
        For ocean scientific community as well                                   Ocean
        as for policy and decision makers.

             Published every year since 2016 in Journal of Operational Oceanography:
             OSR 5 (2021) just published
             https://marine.copernicus.eu/access-data/ocean-state-report/ocean-state-report-5
Oceano & Clima: come quantificare i cambiamenti in corso?
CONSIGLIO NAZIONALE DELLE RICERCHE
                                   ISTITUTO DI SCIENZE MARINE

•   SST is the EOV/ECV variable hisorically more measured
•   The International Comprehensive Ocean-Atmosphere Data Set (ICOADS) offers surface marine data
    spanning 1800-present mainly based primary on ship of opportunity data (until the ‘80s)
•   International Data Rescue initiative are ongoing to recover data since 1662
                                                                                     •   Data Rescue

                                                                                     •   Digitalization

                                                                                     •   Metadata creation

                                                                                     •   Homogeneization

                                                                                     •   Quality control

                                                                                     •   Uncertainty characterization

        These data are used to recostruct the past ocean climate during instrumental era. Global/regional
        gridded and gap free products are public avaliable:
        – statisticallly method (analysis)
        - model-based reconstructions (reanalysis)
Oceano & Clima: come quantificare i cambiamenti in corso?
CONSIGLIO NAZIONALE DELLE RICERCHE
                                                             ISTITUTO DI SCIENZE MARINE
                 Global SST climatology from 2003-2020
Climate
Change

          At Global scale
          ISMAR                                         Global Ocean and climate dynamics
          coordinates the
          Copernicus
          Climate Change                                              Chunxue Yang
          Service (C3S)                                               ISMAR, Roma
          project to assess
          climate datasets
          of the Climate
          Data Store
          (CDS) for the
          study of climatic
          signals in
          different ECV
                                                                                            global SST analysis
          (atmosphere,
          ocean,
                                                                                            intercomparison
          cryosphere and
          land

            Yang et al. (2021) J. Climate (https://doi.org/10.1175/JCLI-D-20-0793.1)
CONSIGLIO NAZIONALE DELLE RICERCHE
          Global monthly
                  ISTITUTO DI mean     SST
                              SCIENZE MARINE
Climate
Change
          Yang et al. (2021) J. Climate (https://doi.org/10.1175/JCLI-D-20-0793.1)

                      Global Ocean and climate dynamics

                                  Chunxue Yang
                                  ISMAR, Roma

                                                                   Satellite Era
CONSIGLIO NAZIONALE DELLE RICERCHE
                               SST trend 2003-2018
                                          ISTITUTO DI SCIENZE MARINE
Climate
Change

                                          Global Ocean and climate dynamics

                                                     Chunxue Yang
                                                     ISMAR, Roma

          Yang et al. (2021) J. Climate
CONSIGLIO NAZIONALE DELLE RICERCHE
                                                                        ISTITUTO DI SCIENZE MARINE
                              Tasso di Crescita della livello del mare 2003-2018
Climate
Change

                                                                    Global Ocean and climate dynamics

                                                                                      Chunxue Yang
                                                                                      ISMAR, Roma

                   Causes of Sea Level Rise
          Cosa provoca l’aumento del livello del mare ?

           addition of heat       addition of freshwater       Total sea level rise                  Coastal ecosystems are
                                                                                                     already impacted by the
                                                                                                     combination of SLR
                              +                            =
CONSIGLIO NAZIONALE DELLE RICERCHE
                            Copertura dei ghiacci ISTITUTO DI SCIENZE MARINE
                                                  marini (2002-2017    )
Climate
Change
                                                      Tasso del cambiamento della concentrazione del
                                                      ghiaccio marino per decennio, nel periodo 2002-2017
               Estesione dei ghiacci
               emisfero nord                 Global Ocean and climate dynamics

                                                        Chunxue Yang
                                                        ISMAR, Roma

          Massonnet et al., Sea Ice MPQB
The dual importance of the Arctic sea-ice decline
The sea-ice decline causes and consequences
                                                                       Ice-albedo feedbacks
                                                                     Thermohaline circulation
           Changes in the global ocean and atmospheric           Increased ocean heat exchanges
                                                                   Meridional heat redistribution
circulation and heat redistribution                                   Heavier winter storms
                                                                                [...]
         Amplification of the climate change

The Arctic as a system
                                                            Sea-ice decline         Climate Change
The sea-ice decline as global warming proxy

         One of the shades of climate change, which is              Increased longwave radiation
easy to measure accurately from the satellite era (from             Change of circulation patterns
                                                                         Warmer air masses
1979 onwards)                                                       Meridional heat redistribution
                                                                        Decrease in snowfall
                                                                        Increase in variability
          The importance in the media: advertising the                Intrusion of warm waters
“global warming”                                                                 [...]
          Perception and sensitivity depends on the proxy
Ocean Heat Content

Ocean Heat Content is a fundamental proxy of the
climate change, as the oceans store ~90% of the                     SST
excess energy caused by the increase of                             OHC
concentration of heat-trapping GHGs (~0.6 W m-2
from 1990s in the top 2000m)

Due to the scarcity of in-situ observations before the
Argo float era, it is not easy to estimate accurately
the variations of OHC on multi-decadal scales, and
disentangling the effect of internal versus external
forcing on the OHC variability, and the natural high-
frequency variability dominated e.g. by ENSO, etc.

Surface datasets (e.g. SST), while more accurate,
                                                                  Recent acceleration visible in OHC
cannot sketch the integrated effect of the global                 and not SST (e.g. Cheng et al., 2018)
climate change
                                                     CNR
                                                     www.cnr.it
historical data

                                            Yang et al. (2017)
                           CNR          DSSTTA                   ISMAR - IAS - IRBIM
Meyssignac et al. (2019)   www.cnr.it   www.dta.cnr.it           www.ricercamarina.it

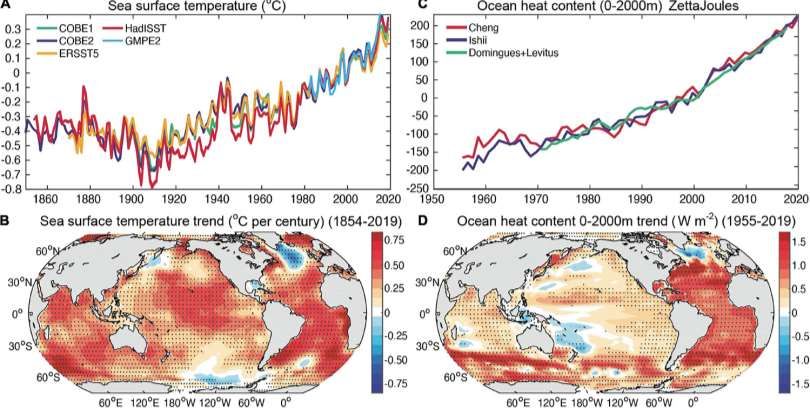

Ocean Heat Content

(Garcia-Soto et al., 2021)   CNR             DSSTTA           ISMAR - IAS - IRBIM
                             www.cnr.it      www.dta.cnr.it   www.ricercamarina.it

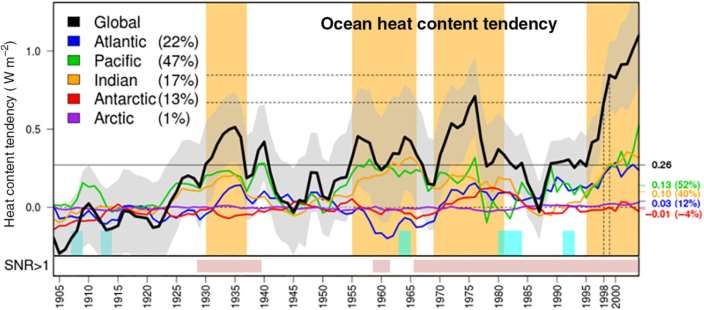

Global and basin-scale warming from
                                                       ensemble reanalyses
                                                                                  •     OHCT is unprecedented since 1998
    Basin Volume
                                                                                  •     The Indian Ocean accumulates
                                                                                        heat more significantly than its
                                                                                        volume contribution. The Atlantic
                                                                                        Ocean less.

                                                                                  •     The Pacific Ocean is the largest (in
                                                                                        absolute) heat accumulator

                                                                                                   Basin warming

                                                                                  •     Contributions from polar regions
                                                                                        are not significant

                                                                                  •     Four periods of anomalous
    Notable volcanic eruptions               Significant signal (w.r.t. spread)         warming are identified: 1929-1935,
•   Only occasional short periods with negative OHCT                                    1954-1964, 1968-1980, 1993-
                                                              CNR                 DSSTTA                  ISMAR - IAS - IRBIM
    (Storto et al., 2021)                                     www.cnr.it          www.dta.cnr.it          www.ricercamarina.it
CNR             DSSTTA                   ISMAR - IAS - IRBIM
                                                           www.cnr.it      www.dta.cnr.it           www.ricercamarina.it

                 Mediterranean Region: a climate change hotspot
Mediterranean region: one of the most responsive to climate change                Global

                                                                                                                           from Medecc AR1
                                                                               Mediterranean
ΔT vs pre-industrial levels = 1.4 °C (0.5 °C more than global average)

Future projections: a global ΔT=2°C implies a ΔTMED=3°C

2100 → 2-6 °C T increase and 5-25% P decrease

                                                                                                                           from IPCC AR4
Mediterranean Sea: a miniature ocean
                                 ▪   Intense winter atmospheric forcings
                                                                           Laboratory for:
                                 ▪   Dense water formation
                                                                           ✓ document changes
                                 ▪   Thermohaline circulation
                                                                           ✓ understand role of
                                 ▪   Short turnover timescales
                                                                               key processes involved in climate change
                                 ▪   Concentration basin
CONSIGLIO NAZIONALE DELLE RICERCHE
        ISTITUTO DI SCIENZE MARINE
CAMBIAMENTI CLIMATICI NEL MEDITERRANEO

          La regione mediterranea si riscalda attualmente il 20% più
          velocemente del globo
          La temperatura media annuale è ora di 1,4°C al di sopra dei
          tempi preindustriali
CONSIGLIO NAZIONALE DELLE RICERCHE
                                  ISTITUTO DI SCIENZE MARINE

          SST trend map (C/year) covering the 1982–2018 period

                                                                                                                         Spectrum Analysis
                                                                                                                         based on Singular
                                                                                                                         Trends reconstruction
trend di riscaldamento quasi continuo della SST ad un
tasso di 0,041 ± 0,006 °C/anno. Rappresenta un                   La SST del Mediterraneo è aumentata di 1,0-1,5 °C mentre nel box
                                                                 atlantico dopo l'aumento di 0,8 °C del 1982-1998 la SST è rimasta
aumento totale della SST di circa 1,5 °C dal 1982 al             costante. Le SST del Mediterraneo e del Box Atlantico si biforcano
2018                                                             intorno al 2008.

        [Pisano et al.Remote Sensing 2020]
CNR                DSSTTA                 ISMAR - IAS - IRBIM
                                                 www.cnr.it         www.dta.cnr.it         www.ricercamarina.it

           Measuring the Ocean : the CNR Observing System

 Oceanographic
     tower                                                    IAS

Moorings
                                                                                     ISP

Oceanographic Buoys
 or cabled systems

Repeated transects
   and stations

  Glider line

   Radars             Datasets → international repositories
                      Upgrade of the ISMAR observing system
CNR          DSSTTA               ISMAR - IAS - IRBIM
                                                                                               www.cnr.it   www.dta.cnr.it       www.ricercamarina.it

                                           Rising temperature and salinity at depth

                                                                                                                                                        Schroeder et al., 2017, ISMAR VE, SP, TS
                                                                      Sardinia Channel, 1900
                                                                          m, 2003-2019

                                                                                                                         T
                                                               ➢ 28 years @400 m: ΔT=0.68°C and ΔS=0.20

                                                               ➢ Mediterranean «signal»

                                                                                                                             S

Adapted from Medecc AR1 and data collected by ISMAR VE, SP, TS data
Extreme Events: Marine Heat Waves in the observed in
the last 40 years

                Leonelli et 2021 in preparation
Climate change: the global picture from OSR 2020
                                         The Earth system as a closed system
                                              and the role of the heat-trapping
                                                              greenhose gases

                                            Looking at the energy budget, its
                                           distribution, its rate of change and
                                                                    acceleration

     from von Schuckmann et al. (2020)
Earth System Models
  Earth system models (ESMs) are numerical representation of the physical processes
     occurring on the Earth, and are based on spatio-temporal discretization of the
                         equations governing such processes
                                                      ⚫   ESMs are fundamental tools for scientists to
                                                          understand the processes underlying the climate
                                                          change

                                                      ⚫   ESMs are affected by both systematic and random
                                   Atmospheric     error, caused by the discretization itself, the
                                   model           approximations contained of parametrizations, and
                                                   our limited knowledge of the physical processes and
                                       Land        limited computational power
                                       model Data Assimilation is the technique that statistically combines
                                 Wave        (weighs) models and observations accounting for their respective
                                                     errors and balances, to recover from ESM errors
                                 model
                                Ocean
                                model                                                      Data Assimilation
                                                                                                  is used
                Biogeochemical model                                                          for predictions
                                                                                                and climate
Sea-ice model
                                                                                              reconstructions
The predictability problem
 Importance of                  ESMs are tools now shared by any scale of   Importance of
the observations                                prediction                   the scenarios
  Deterministic                  Probabilistic
   predictions                   predictions

Sketch extracted from the World Climate Research Program (WCRP) website
CNR            DSSTTA           ISMAR - IAS - IRBIM
                                                         www.cnr.it     www.dta.cnr.it   www.ricercamarina.it

                                              Key messages
     ➢ Understanding of climatic processes occurring in the oceans
       requires regular and long-term observations and advanced
       numerical tools
               → enable us to separate real long-term trends
               in environmental drivers from the natural
               variability of the system or high-frequency
               processes
               → most of the GHG-induced excess energy is stored
               in the sub-surface ocean, requiring proper
               measurement and analysis

     ➢ Mediterranean amplification of the climatic signals stand out
       when compared with global average trends

     ➢ The sea-ice decline is a notable example of complex
       feedback mechanisms occurring in the Earth’s climate

katrin.schroeder@ismar.cnr.it
                                                                       Grazie per l’attenzione.
CNR                    DSSTTA                     ISMAR - IAS - IRBIM
                                                                  www.cnr.it             www.dta.cnr.it             www.ricercamarina.it

References
Marullo S., B. Buongiorno Nardelli, M. Guarracino, and R. Santoleri (2006). Observing The Mediterranean Sea from Space:
21 years of Pathfinder-AVHRR Sea Surface Temperatures (1985 to 2005). Re-analysis and validation. Ocean Science, 3,
299-310, 2007.
Marullo, S. V. Artale, R. Santoleri (2011). The SST multi-decadal variability in the Atlantic-Mediterranean region and its
relation to AMO. J. of Climate, Volume 24, Issue 16 (August 2011) pp. 4385-4401, doi: 10.1175/2011JCLI3884.1.
Minnett, P.J., Alvera-Azcárate, A., Chin, T.M., Corlett, G.K., Gentemann, C.L., Karagali, I., Li, X., Marsouin, A., Marullo, S.,
Maturi, E. and Santoleri, R., 2019. Half a century of satellite remote sensing of sea-surface temperature. Remote Sensing
of Environment, 233, p.111366.
Meyssignac B, et al. (2019) Measuring Global Ocean Heat Content to Estimate the Earth Energy Imbalance. Front. Mar. Sci.
6:432. doi: 10.3389/fmars.2019.00432
Pisano, A., Marullo, S., Artale, V., Falcini, F., Yang, C., Leonelli, F. E., ... & Buongiorno Nardelli, B. (2020). New evidence
of mediterranean climate change and variability from sea surface temperature observations. Remote Sensing, 12(1), 132

.

                     Rosalia Santoleri                            Istituto di            direttore@ismar.cnr.it
                     Direttore ISMAR                              Scienze Marine         rosalia.santoleri@cnr.it
CNR                    DSSTTA                     ISMAR - IAS - IRBIM
                                                                www.cnr.it             www.dta.cnr.it             www.ricercamarina.it

References
Schroeder, K., Chiggiato, J., Josey, S. A., Borghini, M., Aracri, S., & Sparnocchia, S. (2017). Rapid response to climate change
in a marginal sea. Scientific Reports, 7(1), 1-7
Storto, A., Balmaseda, M. A., de Boisseson, E., Giese, B. S., Masina, S., & Yang, C. (2021). The 20th century global warming
signature on the ocean at global and basin scales as depicted from historical reanalyses. International Journal of Climatology, 1–
21. https://doi.org/10.1002/joc.7163
von Schuckmann et al. (2021) Copernicus Marine Service Ocean State Report, Issue 5, Journal of Operational
Oceanography, 14:sup1, 1-185, DOI: 10.1080/1755876X.2021.1946240
von Schuckmann, et al..: Heat stored in the Earth system: where does the energy go?, Earth Syst. Sci. Data, 12, 2013–2041,
https://doi.org/10.5194/essd-12-2013-2020, 2020.
Yang, C., Masina, S. and Storto, A. (2017), Historical ocean reanalyses (1900–2010) using different data assimilation strategies.
Q.J.R. Meteorol. Soc., 143: 479-493. https://doi.org/10.1002/qj.2936
Yang, C., Leonelli, F. E., Marullo, S., Artale, V., Beggs, H., Nardelli, B. B., Chin, T. M., De Toma, V., Good, S., Huang, B.,
Merchant, C. J., Sakurai, T., Santoleri, R., Vazquez-Cuervo, J., Zhang, H., & Pisano, A. (2021). Sea Surface Temperature
Intercomparison in the Framework of the Copernicus Climate Change Service (C3S), Journal of Climate, 34(13), 5257-5283

                    Rosalia Santoleri                           Istituto di            direttore@ismar.cnr.it
                    Direttore ISMAR                             Scienze Marine         rosalia.santoleri@cnr.it
You can also read
