O2/PDP Status Report Predrag Buncic - CERN Indico
O2/PDP Status Report
                                                 Predrag Buncic

ALICE O2 LHCC Review, November 2018
O2/PDP Status Report Predrag Buncic - CERN Indico
Overview

         – Part 1
                • Work Package progress report
         – Part 2
                • Run 3 Computing Model
         – Part 3
                • Resource estimates for Run 3

                                                 2
ALICE O2 LHCC Review, November 2018
O2/PDP Status Report Predrag Buncic - CERN Indico
Part 1

         – Work Package progress reports addressing
                • Software framework status
                • Simulation
                       – Progress report and update on
                • Performance of data compression
                       – Update on RAW data volume estimates
                • Performance of reconstruction
                       – Progress and outlook on using GPUs for reconstruction
                       – Update on CPU estimates
                • Data types and data management in Run 3
                       – Derived data types and relative size estimates

                                                                                 3
ALICE O2 LHCC Review, November 2018
O2/PDP Status Report Predrag Buncic - CERN Indico
WP3 · Software process and tools

● 2018: 2200 commits, 80
    authors
● 2017: ALICE campaign to
    involve developers is working
    → 40% more developers
    → 50% more commits
● Currently 350000 SLOCs               Authors              Contributions

● 25% of the O² project code is
    shared with FAIR
● Some O² components migrated
    to FairMQ/ROOT for                ALICE code
                                      shared with
    reusability                          FAIR

                                                                            4
ALICE O2 LHCC Review, November 2018
O2/PDP Status Report Predrag Buncic - CERN Indico
WP4 – Data Processing Layer (DPL)

       WP8                                   Multi process, concurrent,
                                             message driven software
                                                     framework                                                   RDataFram
                                                                                                                 e

 O2 Monitoring and InfoLogger integration

                                                                                      Apache Arrow integration
                                                                                       for ROOT upstreamed

WP12
       Digitization example using DPL          ALICE Framework showcased at
                                                      CHEP2018 Sofia.

                                             Data Processing Layer (DPL) is common      TPC reconstruction          WP13
  WP7                                         integration framework for ALICE data-     example using DPL
          DataSampling example using DPL
                                                        processing needs.                                                    5
       ALICE O2 LHCC Review, November 2018
O2/PDP Status Report Predrag Buncic - CERN Indico
WP4 – Data Processing Layer (DPL)

  DPL version 1.0
  • Released in November as planned and agreed in the June O2 Technical Board.
  • Real world demonstrators for Simulation (digitisation of multiple detectors),
    Reconstruction (TPC chain, MID pre-clustering), QC (Data Sampling) implemented using
    it. Synthetic examples for Analysis also provided.
  • Extra: integration with O2 Monitoring and Logging. Support for multiple message
    serialisation techniques, most notably ROOT (for HEP interoperability) and Apache
    Arrow (for rest of the world interoperability). Facility to integrate custom (ALFA)
    components, Event Display and custom GUIs.

  DPL Version 2.0:
  • June 2019. Focus on integration with O2 Control, Grid deployment. Improved support for
    Simulation, Reconstruction, and Analysis. Goal is the 2019 Data Challenge.
  DPL Version 3.0:
  • November 2019. Focus on feedback from Data Challenge, performance optimisation,
    and user friendliness.

                                                                                             6
ALICE O2 LHCC Review, November 2018
O2/PDP Status Report Predrag Buncic - CERN Indico
WP12 – Simulation

     Parallel high-performance simulation framework
•      Geant4 based development of a scalable          •   Demonstrated strong scaling speedup (24 core
       and asynchronous parallel simulation                server) for workers collaborating on few large
       system based on independent actors and              Pb-Pb event
       FairMQ messaging                                •   Small memory footprint due to particular ”late-
•      Supports parallelization of simulation for          forking” technique (demonstrated with Geant4)
       any Virtual MC engine                           •   In result, reduce wall-time to treat a Pb-Pb
•      Supports sub-event parallelism                      events from O(h) to few minutes and
                                                           consequently gain access to opportunistic
         –   Make simulation jobs more fine-granular       resources
             for improved scheduling and resource
             utilization

                                                                                                             7
    ALICE O2 LHCC Review, November 2018
O2/PDP Status Report Predrag Buncic - CERN Indico
WP12 – Simulation

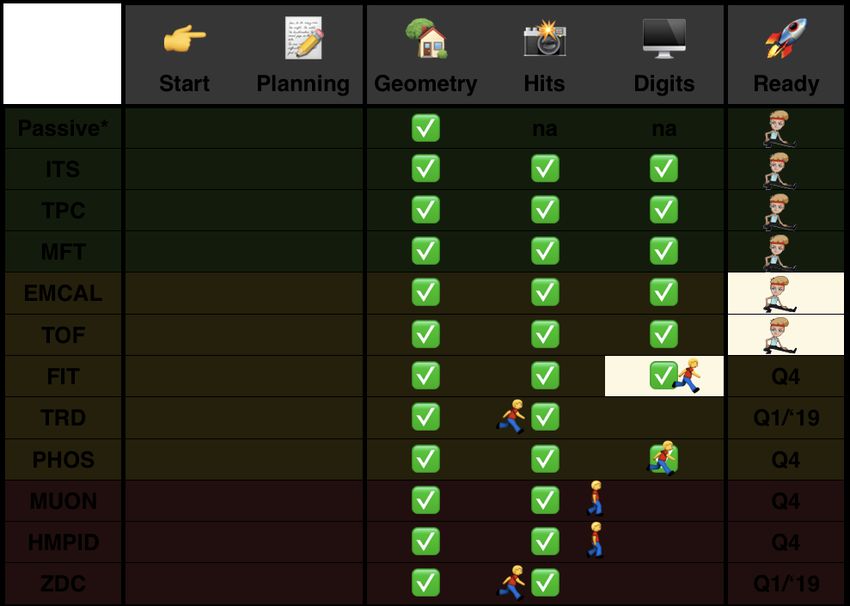

      Milestone: Simulation of all detectors in O2
•     Constant progress within detector specific
      developments
•     Recent updates include
        –    ZDC development kick-started (code-
             sprint)
               •   incl. first implementation of physics response
               •   targeting digitization phase but waiting for
                   input from read-out team
        –    Refinement in EMCAL digitization with first
             stable version
        –    MUON geometry additions (MID)
        –    Several improvements for ITS, TPC, etc:
               •   QED background inclusion in ITS digitization
               •   TPC distortion treatment in digitization
•     Planning:
        –    TRD identified manpower to start focused
             developments in 12/’18

                                                                    8
    ALICE O2 LHCC Review, November 2018
O2/PDP Status Report Predrag Buncic - CERN Indico
WP13 – Reconstruction on GPU (synchronous)

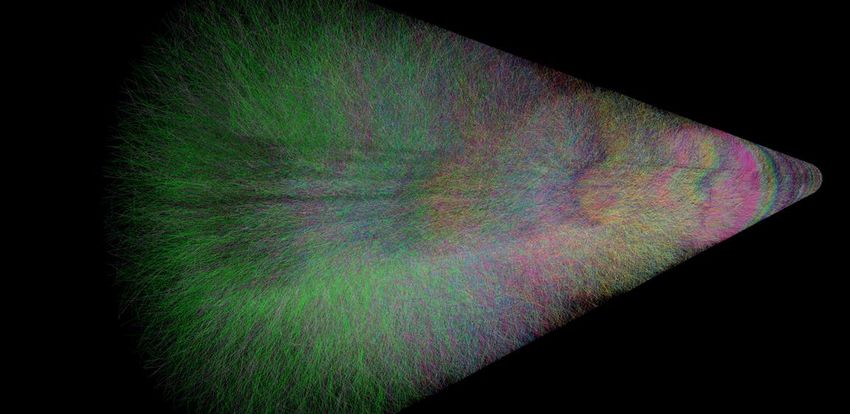

                                      Illustration of Run 3 tracking
                                      problem: 2 ms timeframe(10%
                                      of total)
ALICE O2 LHCC Review, November 2018                                    9
O2/PDP Status Report Predrag Buncic - CERN Indico
WP13 – GPU reconstruction (synchronous)

•   Already running on GPU:                                       GPU Speedup (NVIDIA 1080 v.s. single core @4.2 GHz)
     –   TPC track finding      (speedup: 40x)
     –   TPC track fit          (speedup: 35x)                          TPC Track finding                  40x
     –   ITS track finding      (speedup: 10x – to be improved)
                                                                        TPC / ITS Track fit                >30x

•   Will definitely run on GPU (ongoing development):                   ITS Track finding                  >10x
     –   TRD Track following + fit   (expected speedup: O(30x))   TRD Tracking / Matching / Refit   ongoing development
     –   ITS track fit         (expected speedup: O(30x))
     –   TPC cluster transformation
     –   TPC track merging
     –   TPC compression (except final entropy coding step)                      40x speedup factor on
                                                                                  GPU vs 28x used in
•   Ongoing studies:                                                              TDR estimates (O2
     –   TPC dE/dx computation
     –   TPC-ITS matching
                                                                                   TDR, TABLE 6.3)
     –   Global Refit
     –   Entropy encoding
     –   ITS V0 finder
                                                                                                                          10
    ALICE O2 LHCC Review, November 2018
WP13 – CPU reconstruction (asynchronous)

  Reconstruction Performance Improvements for O2
  CPU time for an average Pb-Pb events, 1 CPU core

                  Run2: 79s → Run3: 11s
                          7     (conservative estimate)         Speedup on CPU:
  Other Detectors                                           Run3 (O2) vs Run2 (AliRoot)
                                        20
                        1                                    TPC Tracking         20x
     ITS Tracking
                                             17
                                                             ITS Tracking         17x
   TPC Ion Tail + 0            (not needed in Run3)
   Common Mode…                       10                    Rest (estimate)       >3x

        TPC dE/dx        2
                                       12
                                                            3x faster than TDR
    TPC Tracking        1
                                                  20             estimates
                    0            10         20         30
                                 CPU seconds

ALICE O2 LHCC Review, November 2018                                                       11
WP13 – Milestones and plans
                                                          CPU                    GPU
                 Tracking (*)                             done                   done
       TPC       dE/dX                                  Q1/2019
                                                                                            (*) TPC reconstruction is operational
                 Compression                            Q1/2019                Q2/2019(*)
                 Tracking finding             done / extra passes: Q2/2019       done
                                                                                            as DPL device, others still need to be
                 Track fitting                            done                  Q2/2019     interfaced to DPL
       ITS
                 ITS-TPC matching             done / afterburner: Q2/2019       Q3/2019
                 Compression                            Q1/2019                Q2/2019(*)   (*) Feasibility of entropy compression on
       TRD       Matching to ITS-TPC                      done                  Q4/2018     GPU is under study
       TOF       Matching to ITS-TPC               done (in validation)         Q2/2019
    EMCAL/PHOS   Clustering                  Q2/2019 (old estimates, no upd)       -
                 MCH                                        ?                      -
      MUON
                 MID                               done (in validation)
                 Tracking (standalone)                  Q1/2019                    -
       MFT
                 Matching to MCH               Depends on MCH schedule
       FIT       T0+ reconstructions               done (in validation)            -

•   TPC Vdrift calibration: Q4/2018
•   TPC distortions calibration with track residuals: Q4/2018
•   TPC distortions calibration with digital currents: Q2/2019
•   TOF channels calibration: Q1/2019

ALICE O2 LHCC Review, November 2018                                                                                                     12
WP11 – Conditions database

•   Metadata central server ✓
•   REST API ✓
•   Offloading calibration files to existing Grid
    SEs ✓
      –   HTTP interface to EOS yet to be enabled⌛
      –   Xrootd protocol redirection until then

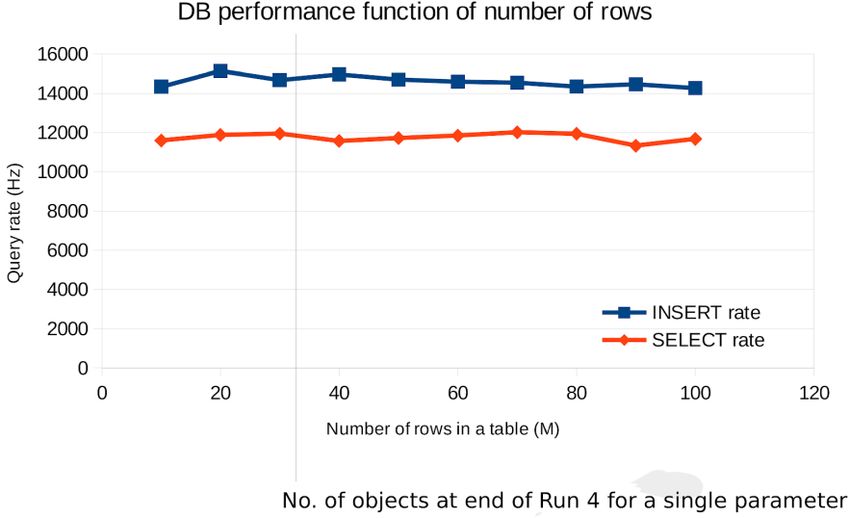

•   Fitting well the use case of CCDB and QC
    queries
      –   15kHz INSERT
          12kHz SELECT
•   Meeting requirements for CCDB and QC
    target rates
                                                          O2 TDR, Ch. 4.11

    ALICE O2 LHCC Review, November 2018
Part 2

         – Run 3 computing model
                •   Physics program and requirements
                •   Compression and data rates
                •   Data processing workflows and schedule
                •   Data management and policies
                •   Computing model parameters
                •   Resource requirements until the end of LS2

                                                                 14
ALICE O2 LHCC Review, November 2018
Physics Requirements
• Physics program
      – ALICE LoI Section 1.4
      – O2 TDR Chapter 2
• Requirements as number of collisions (Run 3 + Run 4)
      – Pb-Pb: 1011 collisions
                    – 10 nb-1 at nominal solenoid magnetic field
                    – 3 nb-1 at reduced solenoid magnetic field
             • Yearly:
                    – 4 years with 2.3*1010 collisions
                    – 1 year with 1.1*1010 collisions
      – pp: 1.6*1011
             • Yearly: 6 years with 2.7 1010
                                                                   15
ALICE O2 LHCC Review, November 2018
Expected number of recorded collisions

•    Average minimum bias readout rate 23 kHz

•    Combined data taking efficiency: 0.57% (0.48% assumed in O2 TDR)

•    Total number of collisions in one yearly HI period: 2.6*1010 (2.3*1010 in O2 TDR, Table 2.3)

•    O2 input data rate
       –   3.5 TB/s (includes continuous unmodified TPC raw data)

•    Data rate after baseline correction and zero suppression of TPC data
       –   22 MB/ uncompressed event
       –   Up to 50 kHz * 22 MB = 1.1 TB/s (O2 TDR Table 3.1)
ALICE O2 LHCC Review, November 2018                                                                 16
O2 Data Rates (in GB/s) for Pb-Pb @ 50 kHz
                    TDR                                                Current status
              raw data: 1081                                           raw data: 3521
                      IT     TR                                                IT     TR
                                          Others                                                      Others
     TPC 1000          S     D
                                            21
                                                              TPC 3456          S     D
                                                                                                        21        20→4 GB/s change in TRD:
                      40     20                                                40      4
           1000                                                     3000
                                                                                                                  central collisions instead of
                                                                                                                  minimum bias were used in
     clusterizer            40     20          21             clusterizer               40      4           21
                                                                                                                  TDR estimate
            400                                                      570
                             clusterization,                                              clusterization,          26→5 GB/s change in ITS
     track model                 noise                       track model                      noise
                             suppression,                                                 suppression,            the noise in ALPIDE chip is
    charge trans.                 Etc.                      charge trans.                      Etc.               significantly better (
WP1 · Data types

                                                               O2 TDR, Table 4.2

                                                     • Transient
                                                           • Exists during the process lifetime
                                                     • Temporary
                                                           • Removed after predefined lifetime
                                                     • Persistent
                                                           • Remains on custodial storage

ALICE O2 LHCC Review, November 2018                                                               18
WP1 · AOD content

ALICE O2 LHCC Review, November 2018                       19
WP1 · AOD size

                                                                           15%

                                                                                  85%

                                                                        CTF             AOD

•    AOD data size is
Run 3 – Computing Model
                                                                                                      O2 TDR, Ch. 4
          Reconstruction              T0/T1        1..n         O2               1
                                                                                     Calibration
             Calibration                                  CTF   RAW -> CTF -> ESD    Reconstruction
                                      CTF -> ESD -> AOD
              Archiving                                                   -> AOD
                                                                                     Compression
               Analysis

                                                          AOD
                                                AOD                      AOD

                                      T2/HPC       1..n         AF           1..3

               Simulation             MC -> CTF -> ESD
                                                                                       Analysis
                                                                 AOD -> HISTO,
                                                 -> AOD             TREE

                                                                                         • Subject to fine tuning
                                                                                         • MC can be run as a
                                                                                           backfill

ALICE O2 LHCC Review, November 2018                                                                                   21
Data Processing Timeline (PbPb)
            Year                                                 Year + 1
      N            D    J    F             M   A         M   J              J    A             S   O         N   D
  S. RECO
              CALIB
                                 A. RECO
                                                   SIM
                                                                                     A. RECO
                                                                                                       SIM

                                                                                • Estimates based on new and improved
                                                                                  CPU and GPU based reconstruction and
                                                                                  data compression performance
                                                                                • Simulation requirements remain the same
                                                                                  as in TDR

ALICE O2 LHCC Review, November 2018                                                                                    22
Recap of the Run 3 Computing model

•   Assuming p+p (2 weeks) and PbPb (4 weeks) data taking in every year of Run 3.
•   RAW data (CTF) compressed by the O2 facility and stored to its disk buffer.
•   1/3 of CTFs exported, archived and processed on T1s.
•   2/3s of CTFs processed by O2 + T0 and archived at T0.
•   One calibration and two reconstruction passes over raw data each year.
•   CTFs and ESDs removed from disk before a new data taking period starts.
•   Only AODs are kept on T0/T1 disk and archived to tape.
•   Only one copy of a given data type (CTF, AOD) on disk and one on tape.
•   10% of AODs sampled and sent to the Analysis Facility for quick analysis and cut tuning.
•   Analysis of full data sample across T0//T1s only upon Physics Board approval.
•   Reprocessing of first two years during the LS3.
•   Gradual removal of Run 2 data and cessation of Run2 related processing.
•   Growth of WLCG resources assumed to be limited to 20% per year.

ALICE O2 LHCC Review, November 2018                                                            23
Run 3 Processing sequence

•   60 PB disk buffer size remains
    unchanged                              2x

                                                10%

     ALICE O2 LHCC Review, November 2018              24
WP15 – Disk buffer

• Objective
      – design and deliver O2-attached storage; assure its compatibility with distributed
        Grid storage and existing local and distributed data management tools
             • O2 TDR, Ch. 6.10, 6.10.3

• All current milestones completed
      # 149: Requirements for the O2 event buffer
      # 150: Basic design of the event buffer with management software selection
      # 151: Document “The ALICE O2 data storage”
                    – Together with CERN IT, includes cost estimate scenarios
      # 152: Design and development of tools for event buffer performance evaluation
                    – Common project with US (LBNL and ORNL)

                                                                                            25
ALICE O2 LHCC Review, November 2018
WP15 – Ongoing work
# 153: Design of abridged evaluation process - testing in production
(expected completion 31/12 2018)
      –   Aligned with the Pb-Pb data buffer test
      –   “10% validation” test for the O2 storage
      –   Includes all data flows foreseen in the TDR, scaled data rates
      –   Evaluation will continue during Pb-Pb run (24 days)

                                                                           26
ALICE O2 LHCC Review, November 2018
WP15 – Remaining work and decision to take
# 154: Buffer performance summary after 2018 Pb-Pb data taking (due
April 2019)
      – After at least ½ of 2018 Pb-Pb data processing completed
      – Full evaluation of asynchronous CTF processing workflow

# 155: Decision on disk buffer location from CERN IT (following official
request, due December 2018)
      – Has a direct bearing on installation and support
      – Possible effect on integration with CTA (CASTOR replacement system)

ALICE O2 LHCC Review, November 2018
                                                                              27
Run 3 deletion/parking policy

                                                                     Re-
              Reconstruc
                                      Archive    Calibrate        Reconstruc
                  t
                                                                      t

•    With the exception of raw data (CTF) and derived analysis data (AOD), all other
     intermediate data created at various processing stages is transient (removed after a
     given processing step) or temporary (with limited lifetime)
      –   CTF and AODs are archived to tape

•    Given the limited size of the disk buffers in O2 and Tier 1s, all CTF data collected in
     the previous year, will have to be removed before new data taking period starts.

•    All data not finally processed during this period will remain parked on tapes until the
     next opportunity for re-processing arises: LS3

ALICE O2 LHCC Review, November 2018                                                            28
Run 3 Processing workflows

•    Initially we assumed that 100%
     of AODs will be stored on AFs        2x
     (now 10%)

•    AODs will be systematically
     archived on T1s and recalled
     from tape on demand in
     coordinated fashion
                                               10%

    ALICE O2 LHCC Review, November 2018              29
Analysis Facility
                                                                                      T         T
                                                                                      1         5
                                                                     Input            T         T         T
                                                                                                                       Output File
                                                                     File(s)          2         4         6
                                                                                      T
                                                                                      3

•         Motivation
      •       Analysis remains /O bound in spite of attempts to make it more efficient by using the train approach

•         Solution
      •       Collect AODs on a dedicated sites that are optimized for fast processing of a large local datasets

      •       Run organized analysis on local data like we do today on the Grid

      •       Requires 20-30’000 cores and 5-10 PB of disk on very performant file system

      •       Such sites can be elected between the existing T1s (or even T2s) but ideally this would be a purpose build facility
              optimized for such workflow

    ALICE O2 LHCC Review, November 2018                                                                                              30
WP14 - Status of analysis framework
•    Transition of Run1/Run2 analysis to Root6
      –   Modifications of the analysis trains system: done
      –   Modifications of the analysis tasks: ongoing
•    Development of RDataFrame-based analysis
      –   Development of Apache Arrow API for RDataFrame (contributed to Root6)
      –   Prototype of parallel analysis chain using Apache Arrow layout, O2 Data Processing Layer
          and RDataFrame: multiple data decompressing devices and multiple analysis clients
          Presented at CHEP2018
•    Prototype of O2 Analysis Facility (O2 TDR, Ch. 4.6) : successfully completed in
     November 2017.
      –   Tested with analysis train and Run3 prototype analysis
•    Design of Lego train system for Run3: ongoing
      –   Evolution of a single process train to multi process parallel analysis framework
      –   Each analysis represented as FairMQ device

ALICE O2 LHCC Review, November 2018
Part 3

         – Resource estimates for Run 3
                •   O2 (disk, CPU, GPU)
                •   T0 (disk, CPU, tape)
                •   T1 (disk, CPU, tape)
                •   T2 (disk, CPU)
                •   Analysis Facility (disk, CPU)

                                                    32
ALICE O2 LHCC Review, November 2018
Resource estimate for Run 3

      CoCoTime

                                      •   Multi year resource simulation of
                                          an experiment computing model
                                            •   CPU
                                            •   Disk
                                            •   Tape
                                            •   Network

ALICE O2 LHCC Review, November 2018                                           33

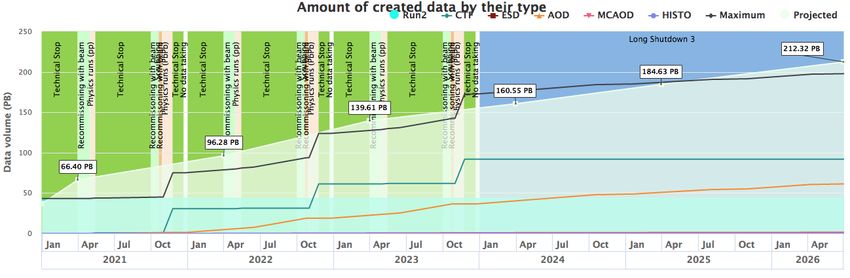

O2 Facility: Disk

  •    60 PB disk buffer is sufficient to hold one standard year of data taking (pp + PbPb)
  •    In case of better than expected LHC performance we can accommodate up to +20% of data
       volume (but without redundancy and a safety margin for operations)
  •    The RAW storage cost is within O2 budget at today’s price point

ALICE O2 LHCC Review, November 2018                                                            34

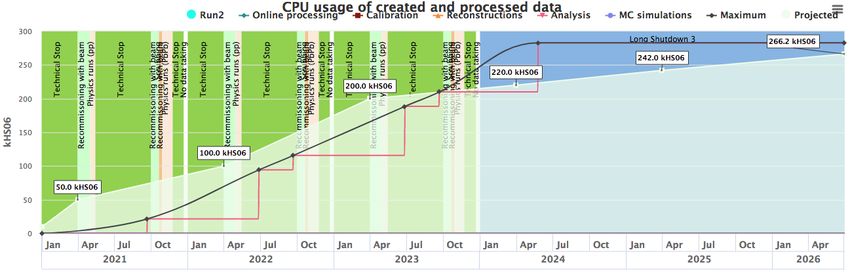

O2 Facility: CPU

                                                             CPU

                                           GPU

•   Thanks to performance improvements of GPU and CPU based reconstruction we can now assume that
    the O2 facility will need at least
      • 1500 modern GPUs will be sufficient for synchronous processing (vs 3000 in O2 TDR, Table 10.2)
      • 360 kHS06 CPU capacity will be needed for asynchronous processing (vs 960 kHS06 in O2 TDR,
         Table 10.2)
ALICE O2 LHCC Review, November 2018                                                                  35

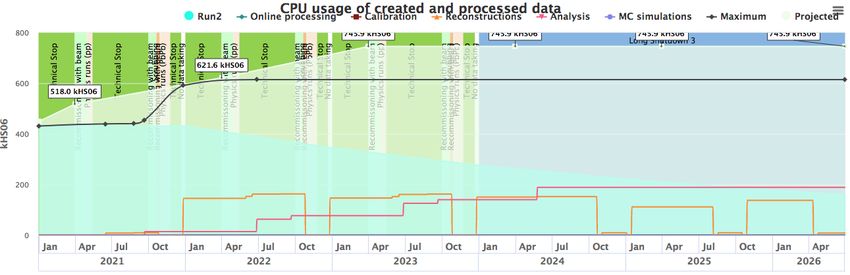

T0
                                      •   Assuming that our resource
                                          request until the start of Run
                                          3 will be fulfilled, we will fit in
                                          20% growth under the fixed
                                          budget scenario for both
                                          CPU and disk.

                                      •   Total disk requirements
                                          shown on these plots do not
                                          include 10% operational
                                          margin.

                                      •   Total CPU requirements do
                                          not account for (in)efficiency
                                          on the Grid jobs (current
                                          observed efficiency is 80%).

ALICE O2 LHCC Review, November 2018                                             36

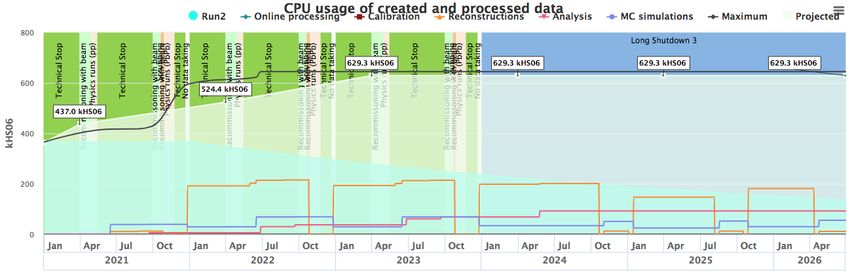

T1
                                      •   Assuming that our
                                          resource request until
                                          the start of Run 3 will be
                                          fulfilled, we will fit in 20%
                                          growth under the fixed
                                          budget scenario for both
                                          CPU and disk

ALICE O2 LHCC Review, November 2018                                       37
Tapes at T0/T1
                                      •   Since we will be now
                                          archiving CTFs and
                                          AODs on tape, our
                                          growth will be 45%
                                          during data taking years
                                          on T0 (25% on T1s) and
                                          5% during LS3.

ALICE O2 LHCC Review, November 2018                                  38
T2
                                      •   T2 will be dedicated to simulation
                                          and, as described in TDR, we plan
                                          to rebalance disk/CPU ratio favoring
                                          more aggressive CPU growth (30%
                                          per year) while keeping disk growth
                                          at 5% per year
                                             •    See O2 TDR, Ch. 4.12.2

                                      •   In these estimates, we did not
                                          account for fast simulation
                                          requirements including event mixing
                                          and embedding
                                             •   See O2 TDR, Ch. 8.2

ALICE O2 LHCC Review, November 2018                                          39
Analysis Facility
                                      •   Compared to TDR where we
                                          assumed that 100% of AODs
                                          would be exported to AF, we
                                          now assume that only 10%
                                          of sampled AODs will be
                                          placed to AF for prompt
                                          analysis
                                             •   See O2 TDR, Ch. 4.6

                                      •   The analysis full data sample
                                          will be run across T1s in an
                                          organized way and upon
                                          approval of the Physics
                                          Board

ALICE O2 LHCC Review, November 2018                                       40
Conclusions
•   We have achieved a significant improvement in key performance figures that allow us to reduce
    resource needs for Run 3
      –   Asynchronous reconstruction improved by x3
      –   Number of GPUs for synchronous reconstruction reduced by x2
      –   Persistent data (CTF, AOD) within 10% of original estimates
      –   Disk buffer size unchanged (60 PB)
•   The projection of our computing resource needs presented here is to illustrate that, under the
    present assumptions, the computing and storage capacity of the O2 facility in combination with
    expected evolution of Grid, assuming a nominal growth of 20% will be sufficient to process
    ALICE Run3 data
      –   These estimates represent the minimal needs based on optimized computing model, no redundancy and
          minimum contingency
      –   That is NOT our definitive resource request to WLCG but an indication that ALICE will not break the flat
          funding scenario during Run 3
•   The same computing model resulting in similar requirements will be applied to Run 4

ALICE O2 LHCC Review, November 2018                                                                                  41
Backup

ALICE O2 LHCC Review, November 2018            42
Run 3 CPU shares
                                      CPU
         4000

         3500

         3000
                                                                                 CPU T2
         2500                                                        CPU AF       20%
 kHS06

                                                                     CPU T2
         2000                                                                                   CPU O2
                                                                     CPU T1                      46%
                                                                              CPU T1
         1500                                                        CPU T0
                                                                               17%
                                                                     CPU O2
         1000
                                                                                       CPU T0
          500                                                                           17%

            0
             2019   2020   2021   2022   2023   2024   2025   2026

ALICE O2 LHCC Review, November 2018                                                                      43
Run 3 Disk shares

                                  Disk
      350

      300
                                                                             Disk AF
      250                                                                      9%      Disk O2
                                                                  AF                    20%
                                                                       Disk T2
      200                                                         T2    15%
 PB

                                                                  T1
      150
                                                                  T0
                                                                  O2                      Disk T0
      100                                                               Disk T1            28%
                                                                         28%
       50

        0
         2019   2020   2021   2022    2023   2024   2025   2026

ALICE O2 LHCC Review, November 2018                                                                 44
Run 3 Tape shares
                                      Tape
      350

      300

      250

                                                                             Tape T1
      200                                                                     35%
 PB

                                                                   Tape T1
      150                                                          Tape T0
                                                                                       Tape T0
      100                                                                               65%

       50

        0
         2019   2020   2021    2022    2023   2024   2025   2026

ALICE O2 LHCC Review, November 2018                                                              45
You can also read
