NEW RANGE R
VISIONARY. INGENIOUS. REMARKABLE. CONTENTS
EVERY VEHICLE BEARS HIS SIGNATURE. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 02
Ranger Raptor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
XLT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Limited . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Towing capability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Wildtrak . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Driver assist technologies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Raptor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
All-wheel drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Colour and trim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Advanced features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Personalise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Audio and communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 Own . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Remarkable Technologies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Model overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28 Next steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
XL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Scan the QR code to access additional content.
View Ford's remarkable history in action.
Left: Model shown is a Super Cab Limited in Copper Red
metallic body colour (option).
Above: Model shown is a Regular Cab XL in Diffused Silver Above: Model shown is a Double Cab Ranger Raptor in Ford
metallic body colour (option). Performance Blue metallic body colour (option).
1
Model shown is a Double Cab Wildtrak in Moondust Silver metallic body colour with Load box bedliner (option).
Your capable partner
2 3
New Ford
Ranger
Tough and capable
The 2019 New Ranger is here. It's tough, capable and ready to work. With a
striking new design, formidable range of engines, and smarter state-of-the-art
technology, Europe's best-selling pick-up* just got even better.
*Based on latest available data from the end of January 2019 for the 20 European main
markets where Ford is represented through National Sales Companies. The Euro 20
markets are: Austria, Belgium, Britain, Czech Republic, Denmark, Finland, France,
Germany, Greece, Hungary, Ireland, Italy, Netherlands, Norway, Poland, Portugal, Spain,
Romania, Sweden and Switzerland.
Model shown is a Double Cab Wildtrak in Sabre Orange fashion
metallic body colour (option).
4 5
Designed around
you
Sophistication and craftsmanship come together beautifully in the new Ford
Ranger. No matter your destination or travelling companions, its upgraded
interior will reward you with SUV levels of luxury and style.
In Wildtrak (shown), the sculpted, supportive seats are partially trimmed in
leather and feature an embossed Wildtrak logo, while the 8-way power-
adjustable driver's seat helps to keep you sitting comfortably.
New Ranger's thoughtful design offers a wealth of advanced features and
technologies, and is available with the new FordPass Connect on-board
modem* and Ford SYNC 3 with 8" colour touchscreen and navigation* to help
guide you through even the toughest working day.
*Availability varies according to series, may be optional at additional cost.
Model shown is a Double Cab Wildtrak in Mettle/Journey Grain Leather in Ebony (standard).
6 7
Ready for the
challenge
If you want a job done right, let the new Ford Ranger do it. Offering an
outstanding combination of four-wheel drive capability, impressive power and
traction, partnered with up to 3,500 kg maximum towing capacity*, the new
Ranger is so capable you'll have to remind yourself that you are actually pulling
a fully laden trailer. The new model retains its exceptional wading capability
and is designed to drive through water up to 800 mm deep.
Note Always consult Owner's Manual before off-road driving. Follow all laws and drive on designated off-road trails and
recreation areas. Care is required when driving through water and speed levels must be reduced accordingly. When a trailer is
attached, it is important that it has adequate mass to ensure road traction on all wheels.
*Please refer to weights and loads page for more information on towing capacity and payloads.
Model shown is a Regular Cab XL in Diffused Silver metallic body colour (option).
8 9
Raptor, the
ultimate Ranger
The sensational new Ford Ranger Raptor is the toughest and highest
performing Ranger ever. Developed by Ford Performance for the true off-road
enthusiast, it combines rugged performance with confident, surefooted
capability.
Ranger Raptor is powered by a new 2.0L Ford EcoBlue BI-TURBO diesel engine.
Developing 213 PS (157 kW) and a mighty 500 Nm of torque, it drives Raptor’s
four-wheel drive system via a new 10-speed automatic transmission to get you
in the right gear at the right time.
Built to withstand high-impact off-road events, its unique, super-strong
reinforced chassis frame uses high-strength, low-alloy steel to endure the
rigours delivered by the most challenging environment.
Race-bred off-road FOX Pro suspension is designed to tackle fearsome terrain
with ease, smoothing out bumps and ruts while leaving you in complete
control and comfort.
Always consult the Raptor supplement to the Owner's manual before off-road driving, know your terrain, and use appropriate
safety gear.
Model shown is a Double Cab Ranger Raptor in Ford Performance Blue fashion metallic body
colour (option).
10 11
Take control
The new Ranger Raptor interior offers a powerful fusion of sportiness and
top-level comfort, putting you firmly in control.
The bolstered front sports seats are specially designed for off-road support,
with technical-suede materials for enhanced grip. Exclusive blue stitching and
leather accents feature throughout. Even the perforated leather steering wheel
is specially designed with an on-centre marker and Raptor logo, and is
equipped with racing-style magnesium paddle shifters for manual gear
selection override.
Ranger Raptor also features a new Terrain Management System with six
selectable drive modes that allow you to optimise its performance on a wide
range of terrain and driving conditions.
From now on, you will view every road and every drive from an entirely new
perspective.

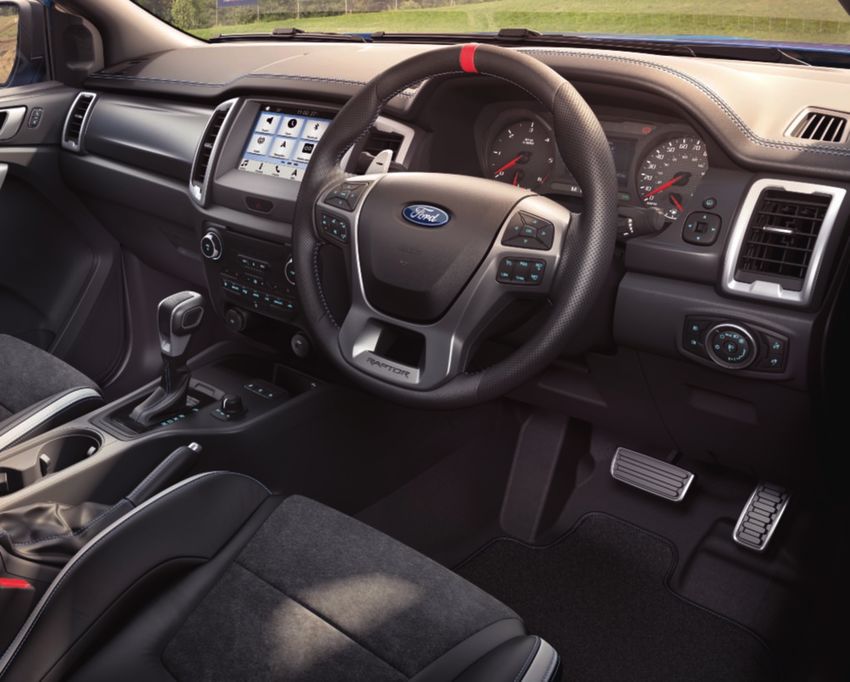

Model shown is a Ranger Raptor with 10-speed automatic transmission (standard).
12 13
Impressive
towing
capability
When it comes to towing heavy loads, new Ranger really comes into its own.
With a gross payload of over 1 tonne, and up to 3,500 kg towing capability*, you
can take on the big tasks and tow bulky loads◊. Further confidence comes from
Ranger's Trailer Sway ControlØ1) system that is designed to detect ‘snaking’ or
trailer sway and reduce your vehicle’s speed to help make towing more
controlled. The system slows the vehicle down by applying the brakes and
reducing the engine’s torque if needed. (Standard, but activated with optional
Ford trailer tow attachment)
*Raptor payload 620 kg, towing capability 2,500 kg.
◊Payload and towing figures are subject to vehicle load and options fitted. Please see weights and loads section for more
information
ØUses sensors.
1)Safety feature.
Model shown is a Double Cab XLT in Blue Lightning metallic body colour (option) with
Chrome Sports Bar (option).
14 15
Thinking
ahead
New Ranger's smart technologies are designed to make your drive easier.
Pre-Collision AssistØ2) with Pedestrian Detection is designed to monitor your
proximity to other vehicles and pedestrians – even in the dark – and can alert
you to a potential collision. If you don't respond to the system's warning
signals, Active BrakingØ2) pre-charges the braking system for enhanced
effectiveness when you brake. If the system determines a collision may occur,
Active Braking is designed to automatically apply the brakes to help reduce the
impact of frontal collisions.
ØUses sensors. Model shown is a Double Cab Limited in Copper Red
Driver assistance feature.
2)
metallic body colour (option) with Load box bedliner (option).
16 17Model shown is a Double Cab Wildtrak in Moondust Silver metallic body colour (option) with Load box bedliner (option).
Wherever the road takes
you
Ford Ranger has a long-established reputation as one of the most capable pick-ups. With its four-wheel drive
system with Roll Stability Control and Traction Control - in addition to an electronic locking rear differential* - the
versatile and sure-footed new Ranger is perfect for a tough week at work, followed by an adventurous weekend
off-road†.
10-speed automatic transmission Electronic shift-on-the-fly
A new 10-speed automatic transmission ensures you are Change from two-wheel drive to four-wheel drive - and back
always in the right gear. (Standard on Raptor and available as again - at the flick of a switch when you're on the move.
an option on Limited and Wildtrak with either the 170 PS or the
213 PS Ford EcoBlue engine)
*Locking rear differential is standard on Wildtrak and Raptor, optional on XL, XLT and
Limited series.
†
Always consult the Owner's Manual before off-road driving. Follow all laws and drive
on designate off-road trails and recreation areas.
18 19Advanced features to ease your
working day
New Ranger is available with an even greater range of driver assistance features to help make your day easier.
Whether you are working hard or playing hard, you can depend on New Ranger to extend a helping hand.
Rear-view camera with Trailer Hitch Assist Hill Start AssistØ2)
Select reverse and the view to the rear of your Ranger vehicle Designed to temporarily prevent you from rolling down a slope
is displayed in the Multi-Functional Display screen. Marker when you move your foot from the brake pedal to the
lines overlaid on the camera image indicate where your vehicle accelerator pedal. It works in forward and reverse gears, and
is heading. (Standard on Limited and above) can be used when towing and pulling loads. (Standard)
ØUses sensors.
Driver assistance feature.
2)
Model shown is a Double Cab XLT in Moondust Silver metallic body colour (option) with Chrome sports bar (option).
20 21Forward-thinking technology
The new Ford Ranger introduces a wider range of advanced features than any Ford pick-up before. Innovative
technologies are supported by a forward-facing camera and sensors that can monitor the area around your
vehicle and scan the road ahead, to help you and those around you. When you come to park your new Ranger,
Active Park Assist can identify a suitable parking space, and automatically steer your vehicle in or out of a parallel
space while you control the pedals and gears. (Option on Limited and Wildtrak)
Electronic Stability Control (ESC)Ø1) Pedestrian DetectionØ2)
Senses when you are deviating from your chosen line and aims Pedestrian Detection can monitor your proximity to other
to keep you on track by automatically regulating braking and vehicles and pedestrians – even in the dark - and is designed
engine output. Traction ControlØ1) is designed to reduce to alert you to a potential collision. (Standard)
excessive wheelspin and improves grip by constantly
monitoring and adjusting the torque delivered to individual
wheels. (Standard)
Ø
Uses sensors.
1)
Safety feature.
2)Driver assistance feature.
Model shown is a Double Cab Wildtrak in Sabre Orange metallic body colour (option) with Mountain top lockable roll cover (option).
22 23Effortless connectivity
For the first time ever, you and your Ford can stay seamlessly connected wherever you are. That's because the FordPass
Connect modem and the FordPass App, together unlock a range of features designed to make every journey easier.
FordPass Connect* can help save you both time and hassle, as well as give you FordPass App when paired with your smartphone it makes FordPass Connect even
peace of mind. more powerful, allowing you to access a host of features.
■ Live Traffic** delivers regular traffic information directly to your SYNC 3 ■ Use your phone to double-check your vehicle is locked, or allow someone to
Navigation system. The technology then adjusts your recommended route based access your vehicle when you're elsewhere
on the traffic conditions, helping you to arrive more relaxed and on time ■ Monitor your fuel level, mileage and tyre pressures, all via your phone
■ On-board Wi-Fi*** - receive up to 4G Wi-Fi for a maximum of ten devices so you ■ Find your way back to your parked vehicle on a map
and your passengers can enjoy the same connectivity on the move as you would ■ Receive over 150 Vehicle Health Alerts directly to your smartphone
at home
■ All other FordPass Connect features are complimentary for 2 years following
registration, thereafter a subscription is required.
Meet your phone's new best friend
Ford SYNC 3
Ford SYNC 3 integrates seamlessly with your compatible smartphone, letting you control everything from phone calls and text messaging to music and satellite navigation - all
via the 8" touchscreen or through remarkably simple voice commands. Map updates help to keep you on track and on time, and are complimentary for a limited period
following vehicle registration.
SYNC 3 features ■ Access additional features via your smartphone with the FordPass App.
Select points of interest along your route. FordPass will send these locations to your
Manage your phone, music, apps and navigation with simple voice commands
■
■
SYNC 3 Navigation when you connect through AppLink
■ Hear your text messages read aloud for you *FordPass Connect is a standard feature on Limited, Wildtrak and Ranger Raptor, and an optional extra on XLT. The on-board modem will be connected at the time of vehicle delivery. You may choose to opt in/out of certain data sharing.
Search for refuelling points by brand or fuel grade, and compare pricing
Emergency Assistance† helps occupants place an emergency call to provide **Live Traffic access is complimentary for the first 2 years following the purchase of a new Ford featuring SYNC 3 with navigation, thereafter a license fee is payable.
■
■
Search available parking spaces, check costs, opening hours and ratings ***Wi-Fi hotspot (up to 4G LTE) includes complimentary wireless data trial that begins when customers activate the trial with Vodafone and expires at the end of 3 months or when 3GB of data is used, whichever comes first. Afterwards data bundles can be purchased from
emergency services with the vehicle location in their respective language
■
Vodafone, refer to their website for details of their data packages. To take advantage of the built-in Wi-Fi hotspot capability, a 2019 Ford vehicle must come with the appropriate hardware, and a data plan is required. Data coverage and service is not available everywhere and
terms of your data plan, including applicable message and data rates, may apply.
■ Control SYNC-compatible apps with AppLink, while Apple CarPlay and Android
Auto let you navigate your smartphone through the SYNC 3 home screen, as if it
were your handset
■ Colour touchscreen supports multi-touch ‘swipe’ and ‘pinch-to-zoom’ gestures, and
lets you arrange application icons and background displays just as you would on
your tablet or smartphone
Please note: Full SYNC 3 smartphone integration only available with iPhone 5/Android 5.0 (Lollipop) or higher. Some SYNC 3 functions require a data connection, so mobile data charges will apply.
†
Ford Emergency Assistance is an innovative SYNC feature that uses a Bluetooth®-paired and connected mobile phone to help vehicle occupants initiate a call to the local Communications Centre, following a vehicle crash event involving an airbag deployment or fuel pump shut off.
The feature operates in more than 40 European countries and regions.
24 25Remarkable Technologies
Adaptive Cruise Control Ford Power starter button Traffic Sign Recognition Parking distance sensors Active Park Assist Lane-Keeping System Power converter Dual-zone Electronic
Set your desired speed and Adaptive The Ford KeyFree System allows you to Designed to automatically read Front and rear parking distance sensors Helps you park into parallel parking Lane-Keeping System (Lane-Keeping Clever additional touches also provide Automatic Temperature
Cruise Control can maintain a pre-set lock and unlock the doors and tailgate, standard format road-speed signs and are designed to assist you when parking spaces. Once activated, it automatically Alert and Lane-Keeping Aid) uses a useful support to your business, such as Control (DEATC) air
distance from the vehicle in front. If the and start the engine without having to display the last posted speed limit in with an audible warning. Activated at steers you in while you operate the forward-looking camera to detect if a 230-volt power socket - invaluable conditioning
sensors detect traffic slowing ahead, get the keys out of your pocket or bag. the driver's instrument cluster. speeds below 5 mph, sensors at the pedals. And it can even steer you out of you're unintentionally drifting out of when you need to charge a media
Ranger's DEATC air conditioning system
your vehicle is designed to The passive sensor inside the car can (Standard) front and rear of the vehicle detect a parallel parking space. (Option on lane. Lane-Keeping Alert then warns device or work tool on the road.
can be adjusted separately for the driver
automatically slow down. When traffic detect you approaching from a obstacles and provide an audible Limited and Wildtrak) you by vibrating the steering wheel and
and front passenger, with up to 4°C
ahead is cleared, your vehicle will return 1.2-metre radius. (Standard on Limited, warning when the vehicle nears an displaying a visual warning. If you're
variation from side to side. (Standard
back to your pre-set cruising speed. Wildtrak and Raptor) obstruction. (Standard on Limited and slow to react or don't respond, Lane-
on Limited, Wildtrak and Raptor, option
(Option on Limited, Wildtrak and Wildtrak) Keeping Aid can provide steering torque
on XLT)
Raptor) assistance to help guide you back into
your lane. (Standard)
26 27Model overview
Choose the right Ranger for you.
Available in a range of uniquely individual series and bodystyles, whatever your preference there is a new Ford Ranger that's right for
you.
Limited Wildtrak
New Ranger's luxury models deliver superior levels of sophistication and comfort, with premium materials, additional
technologies and unique styling elements.
XL XLT
Tough and stylish new Ranger XL and XLT series combine a confident design with rugged, hard-working capability.
Ranger Raptor
The bold new Ranger Raptor is the toughest and highest performing version ever built - a true desert racer and an extreme
lifestyle off-roader.
28 29XL
Key exterior features
■ 16" steel wheels
■ Body colour front bumper
■ Electrically-operated and heated door
mirrors
■ Emergency Brake Assist
■ Intelligent Speed Assist/Traffic Sign
Recognition
■ Lane-Keeping System
■ Electronic Stability Control (ESC)
■ Intermittent variable windscreen wipers
■ Ford Easy Fuel capless refuelling system
■ Under-run bar
■ Rear mudflaps
Key interior features
■ Auto Start-Stop
Quickclear heated windscreen
Bodystyles
■
■ Manual air conditioning
Cruise control
Regular Cab 4x4
■
■ DAB Radio with Bluetooth®, USB and AUX
points Super Cab 4x4
■ Electronic shift-on-the-fly (4x4) Double Cab 4x4
■ Electrically-operated front windows with
one-shot driver's window
■ 6-way adjustable driver's seat Engines
Diesel
2.0L EcoBlue TDCi 130 PS (96kW)
2.0L EcoBlue TDCi 170 PS (125kW)
Ford Easy Fuel capless refuelling system 12 V rear power socket
No dirty fuel caps to touch. Plus, Ford Easy Clever additional touches also provide useful
Transmission Fuel with its unique safeguard ensures support to your business, such as a 12-volt
nobody accidentally fills up with the wrong power socket (invaluable when you need to
6-speed manual fuel. (Standard) charge a media device or work tool on the
road - not available on Regular Cab).
Note The Bluetooth® word mark and logos are owned by the
Bluetooth SIG, Inc. and any use of such marks by Ford Motor
Company Limited and its associated companies is under
licence. Other trademarks and trade names are those of their
respective owners. Model shown is a Double Cab XL in Frozen White solid body colour.
30 31XLT
Key exterior features,
additional to XL
■ 16" alloy wheels
■ Chrome-finish door mirror caps and door
handles
■ Chrome-finish grille
■ Chrome rear under-run bar
■ Plastic moulded side steps
■ Front fog lights
■ Loadbox bedliner with 12 V socket
■ Power tailgate lock
■ Power-operated, heated and foldable door
mirrors
■ Automatic headlights and rain-sensing
wipers
Key interior features,
additional to XL
Bodystyles
■ Radio/CD/DAB with 4.2" TFT screen,
Bluetooth® and USB connectivity, SYNC Super Cab 4x4
with voice control, AppLink and Emergency
Double Cab 4x4
Assistance*
■ Leather-trimmed steering wheel with
remote audio controls Engines
■ Auto-dimming rear-view mirror
■ Overhead console Diesel
■ Illuminated vanity mirror sun visors 2.0L EcoBlue TDCi 170 PS (125 kW)
Transmissions
Mountain Top Industries® roller shutter Electronic shift-on-the-fly
6-speed manual Lockable aluminium roller shutter helps Change from two-wheel drive to four-wheel
protect your tools or your load. (Optional) drive – and back again – at the flick of a
switch when you’re on the move.
Note The Bluetooth® word mark and logos are owned by the
Bluetooth SIG, Inc. and any use of such marks by Ford Motor
Company Limited and its associated companies is under
licence. Other trademarks and trade names are those of their
respective owners.
*Ford Emergency Assistance is an innovative SYNC feature that
uses a Bluetooth®-paired and connected mobile phone to help
vehicle occupants initiate a call to the local Communications
Centre, following a vehicle crash event involving an airbag
deployment or fuel pump shut off. The feature operates in more
than 40 European countries and regions. Model shown is a Double Cab XLT in Sea Grey metallic body colour (option).
32 33Limited
Key exterior features,
additional to XLT
■ 17" silver alloy wheels
■ Keyless entry
■ Rear-view camera
■ Rear parking sensors
■ Bi-xenon headlights with LED daytime
running lights
■ Electrically-operated and heated
power-foldable door mirrors with puddle
lights
■ Chrome tubular sports bar
■ Rear privacy glass
■ EasyLift tailgate
Key interior features,
additional to XLT
Ford Power starter button
■
Bodystyles
■ SYNC 3 with 8" Touchscreen, Apple
Carplay and Android Auto Super Cab 4x4
8-way power adjustable and heated
Double Cab 4x4
■
driver's seat with lumbar support (Double
Cab only)
■ Leather interior Engines
■ Ranger logo floor mats
■ Power converter Diesel
■ Cool Box in centre console 2.0L EcoBlue TDCi 170 PS (125kW)
2.0L EcoBlue TDCi 213 PS (157kW)
17" Panther Black alloy wheels Ford Power starter button
Transmissions 17" x 8" Panther Black alloy wheels (fitted Ford KeyFree System with Ford Power engine
6-speed manual with 265/65 R17 tyres). (Option) starter button.
10-speed automatic
Note Auto Start-Stop feature for 2.0 EcoBlue TDCi 157 kW (213
PS) manual available on vehicles built from November 2019. Model shown is a Double Cab Limited in Copper Red metallic body colour (option).
34 35Wildtrak
Key exterior features,
additional to Limited
■ 18" alloy wheels
■ Plastic moulded side steps with titanium-
effect inserts
■ Aerodynamic sports hoop with integrated
loadbox illumination
■ Titanium-effect grille, door handles and
rear steel step
■ Aluminium-finish roof rails
■ Titanium-effect, electrically-operated and
heated power-foldable door mirrors with
puddle lights and side indicators
Key interior features,
additional to Limited
■ SYNC 3 with 8" Touchscreen and
Navigation
Bodystyles
■ New partial-leather seat trim design
■ Wildtrak logo floor mats Double Cab 4x4
■ Ambient lighting
Engines
Diesel
3.2L Duratorq TDCi 200 PS (147kW)
2.0L EcoBlue TDCi 213 PS (157 kW)
Transmissions
Rear-view camera2) Two USB ports
6-speed manual Select reverse and the image from the Listen to, and operate, your memory stick or
6-speed automatic (on 3.2L 200PS) rear-view camera automatically appears in USB-enabled digital music player via your
the Ford SYNC 3 touchscreen. Marker lines Ranger’s audio system.
10-speed automatic (on 2.0L 213PS) overlaid on the camera image indicate where
the vehicle is heading. (Standard)
2)
Driver assistance feature.
Model shown is a Double Cab Wildtrak in Shadow Black premium body colour.
36 37Raptor
Key exterior features
■ Unique 17" alloy wheels with all-terrain
tyres
■ Unique Raptor front grille
■ Widened front and rear wheel arches with
150 mm wider track
■ Aerodynamic sports hoop with integrated
loadbox illumination
■ Unique front and rear bumpers
■ Front aluminium skid plate
■ FOX Pro shock absorbers with postition-
sensitive damping
■ Front and rear ventilated disc brakes
■ Four off-road tow hooks
■ Strengthened alloy side steps
■ Loadbox roller shutter and carry bars
■ Tow bar
Key interior features Bodystyle
Unique Raptor suede trim with heated and
Double Cab 4x4
■
power-adjustable seats
■ Unique perforated leather sports steering
wheel with centre marker and Raptor logo Engine
■ Unique instrument panel cluster
■ Terrain Management System with six Diesel
selectable drive modes 2.0L EcoBlue 213 PS (157kW)
■ FordPass Connect onboard modem
SYNC 3 with 8" Touchscreen and
■
Transmission
Navigation
10-speed automatic
FOX Pro suspension and engine guard Raptor front seats
Designed to enhance Ranger Raptor's Supportive sports seats with unique 'Raptor'
off-road performance. logo.
Model shown is a Double Cab Raptor in Ford Performance Blue fashion metallic body colour
(option)
38 39Colour and trim
Choose the colour
and trim that
best reflects your
personality. Frozen White Moondust Silver Blue Lightning Colorado Red
Solid body colour Metallic body colour* Metallic body colour* Solid body colour
1. 2. 3.
1. XL
Insert: Circuit fabric in Ebony
Bolster: Pulse fabric in Ebony
2. XLT
Insert: Penta fabric in Ebony
Bolster: Catalyst fabric in Ebony
3. Limited
Insert: Soho Grain leather in Ebony
Bolster: Soho Grain leather in Ebony
4. Wildtrak Diffused Silver Sea Grey Shadow Black Copper Red
Insert: Mettle fabric in Ebony Metallic body colour* Metallic body colour* Premium body colour* Metallic body colour*
Bolster: Journey Grain leather in Ebony
5. Raptor
Insert: Premium leather in Ebony
Bolster: Soho Grain leather in Ebony
4. 5.
Sabre Orange Conquer Grey Ford Performance Blue
Fashion Metallic body colour* Premium body colour Fashion Metallic body colour*
(Wildtrak only) (Ranger Raptor only) (Ranger Raptor only)
12-year perforation warranty
The Ford Ranger owes its durable exterior to a thorough multi-stage painting process. From the wax-injected steel body sections to the hard-wearing top coat, new materials and application
processes ensure it will retain its good looks for many years to come.
Note The images used are to illustrate body colours only and may not reflect the vehicle described. Colours and trims reproduced within this brochure may vary from the actual colours, due to the limitations of the printing processes used.
*Metallic and Premium body colours are options, at extra cost.
Zinc coating Phosphate coat Electrocoat Primer Top coat Clearcoat
40Personalise
Mountain Top Industries® roller Tonneau cover ClimAir®+ wind deflectors Undershields
shutter
A robust awning type tonneau cover Offers a more comfortable drive with Tough, rust resistant aluminum
Aluminium roller shutter, featuring a mounted on aluminum rail frame. Helps the front windows open, even during undershields designed to help protect
dual action locking mechanism that to protect tools and equipment held in light rain. Excludes Regular Cab and against accidental damage during
secures the load area, helping to protect the cargo area from rain and dust. Super Cab. (Accessory) heavy-duty use. Easily removed for oil
your tools, equipment or valuables. Offers multiple fixing points for load changes and routine servicing. Shields
Excludes Regular Cab. (Option or securing and attachment of Rubber floor mats available for engine and transmission
Accessory) accessories. Excludes Regular Cab. The rubberised all-weather floor mats and fuel tank. Excludes Raptor. (Option
(Option or Accessory) with the Ranger nameplate are or Accessory)
Cross bars, for roller shutter
tailor-made and help protect against
Aerodynamically-shaped aluminium dirt and damp. The driver's mat is Brink®+ tow bar
profile, for all attachments, such as bike securely fixed to the vehicle's floor to For extra transport capability, the fixed
carriers and ski racks, etc. Only in help prevent it from slipping. (Option or tow bar can tow up to 3,500 kg,
conjunction with roller shutter. Excludes Accessory) depending on engine. Shown with tow
Regular Cab. (Accessory) bar wiring kit. Excludes Raptor. Mountain Top Industries® soft tonneau Hard tonneau cover system Hard tops
cover
(Accessory) This easy to install lockable hard cover Tough and lockable, the hard top covers help
Thule®+ roof base carrier Helps protect equipment and valuables from system helps provide additional load space to provide additional load space security and
rain and dust. Easy opening and closing with security for any tools you need to carry. are finished in body colour. Available in a
Roof carrier is the base for various roof a steel tonneau bow to assist water run-off. Excludes Raptor. (Option and accessory) variety of designs with or without side
transportation attachments. Excludes (Option or Accessory) windows. For Double Cab models only.
(Option or Accessory)*
Regular Cab, Wildtrak and Raptor.
(Accessory)
For more information on accessories please visit www.ford.co.uk/accessories
For a range of Ford-branded merchandise, from clothing to lifestyle products, visit www.fordlifestylecollection.com
*Available on vehicles built from November 2019.
Fitment of accessories may have an impact on your vehicle’s fuel consumption.
+Item covered by third party supplier’s warranty, please see back cover for details.
42 43FORD BUSINESS
FORD BUSINESS
SERVICE
SERVICE Commercial
Commercial
Vehicle
Vehicle
Finance
Finance FORD PROTECT
FORD PROTECT
Our
Ourbusiness
businessisis
toto
Efficiency,
Efficiency,
accuracyaccuracy
and convenience
and convenience
are at the
are
heart of heart ofWhen it When
at the comesitto comes
financing
to financing
your Fordyour
Commercial
Ford Commercial Commercial
Vehicle, Vehicle, Commercial Extended Extended Warranty Warranty
the Fordthe
Transit24
Ford Transit24
commercial commercial
vehicle service service promise.our size and
vehiclepromise. our size
expertise
and expertise
means we’re
means well
we’re
placedwelltoplaced
provide
to provide
Extend your
Extend
warranty
your warranty
up to 5 years
up to(from
5 yearsdate
(from
of date of
Therefore,
Therefore,
whetherwhether
it is servicing,
it is servicing,
maintenance or repairor repairyou withyou
maintenance a wide
withrange
a wideofrange
finance
of products.
finance products.
registration),
registration),
with Ford with
Protect
Ford available
Protect available
at participating
at participating
you need,youbeneed,
sure to
become
sure to
andcomesee and
us. see us.
keep
keepyour
yourbusiness
business
Ford Credit
Ford
Ø
: Provides
CreditØ: Provides
a range of
a range
financeof plans
finance forplans for Ford Dealers.
Ford Dealers.
■ Available
■ Available
from all from
Transit
allCentres
Transit Centres
and Transit
andService
Transit ServiceCommercial
Commercial
Vehicle customers
Vehicle customers
interested interested
in owning in their
owning their
dealers dealers Extend your
Extend
standard
your standard
3-year warranty
3-year warranty
and enjoy and
worry-
enjoy worry-
vehicle. vehicle.
free motoring
free motoring
for manyfor years
many to years
come.to Ford
come.
Protect
Ford Protect
While-you-wait
While-you-wait
servicingservicing
by prior appointment
by prior appointment
moving.
moving.
■ ■
Ford Lease
Ford
◊
: Specialises
Lease◊: Specialises
in contract
in contract
hire and hire
leasing
andand
leasing andprovidesprovides
a range ofa range
key benefits
of key benefits
including:including:
Late nightLate
servicing
night servicing
availableavailable
at least once
at least
peronce
weekper week
providesprovides
an alternative
an alternative
range ofrange
financeof plans
finance which
planscan
which can
■ ■
Extended Extended
durationduration
and mileage and mileage
Priority treatment
Priority treatment
for urgent forrepairs
urgent repairs
■ ■
■ ■ be tailored
be to
tailored
suit your
to suit
business.
your business.
Cover■ against
Cover unexpected
against unexpected
repair costs
repair costs
Vehicle off
Vehicle
the road
off the
repairs
road(VOR)*
repairs (VOR)*
■
■ ■
ProtectionProtection
on trips abroad
on trips abroad
CollectionCollection
and delivery**
and delivery**
■ ■
■ ■
With ■a Ford
WithProtect
a Ford Plan,
ProtectthePlan,
pricethe
of parts
price of
andparts
labour
and labour
Testing and
Testing
MOTs and MOTs
■
are guaranteed
are guaranteed
for the length
for theoflength
your plan
of your plan
■ ■
Transparent
Transparent
pricing pricing
Helps■ prolong
Helps the
prolong
lifespan
the lifespan
of your Ford
of your
vehicle
Ford vehicle
■ ■
■
Genuine Genuine
Ford partsFordquality
parts quality
Helps protect
Helps your
protect
vehicle
yourresale
vehicle value
resale value
■ ■
■ Ford-trained
■ Ford-trained
technicianstechnicians
Ford ProtectFord
terms
Protect
and conditions
terms andapply
conditions
for further
applyinformation
for further information
please please
■ Interim
■ checks
Interimfor
checks
optimum
for optimum
vehicle performance
vehicle performance
call 03702 416
call726.
03702 416 726.
■ Service
■ Activated
Service Activated
RoadsideRoadside
Assistance
Assistance
† †
■ Ford ■Protect
Ford packages
Protect packages
to suit you
to suit you
■ One Call
■ One
to access
Call toall
access
the Ford
all the
services
Ford services
you needyou need
For moreFor
information
more information
and to find
andyour
to find
nearest
your participating
nearest participating
Ford Commercial
Ford Commercial
Vehicle Dealer,
Vehiclevisit
Dealer,
the visit
aftersales
the aftersales
support support
section at www.ford.co.uk/transit24
section at www.ford.co.uk/transit24
*Repairs will*Repairs
start on will
the same
start on
working
the same
dayworking
(as longday
as you
(asbring
long as
your
youvehicle
bring your
in before
vehicle
3pm),
in before
or at least
3pm),within
or at 24
least
hours
within
of its
24arrival.
hours ofIf we
its arrival.
need toIforder
we need
parts,
to we’ll
orderbegin
parts,work
we’llthe
begin
daywork
they’re
thedelivered.
day they’re
‘Vehicle
delivered.
off road’
‘Vehicle
repairs
off road’
should
repairs
be completed
should bewithin
completed
24-hours.
within 24-hours.
**Your Transit
**Your
Centre
Transit
can arrange
Centre can
to collect
arrangeyour
to vehicle
collect your
and deliver
vehicleitand
back
deliver
to youit after
back service
to you after
or repairs,
service
sooryou
repairs,
can get
so on
youwith
canrunning
get on with
yourrunning
business.
your
Bybusiness.
arrangement
By arrangement
and limited to
anda specific
limited to
mileage
a specific
radius
mileage
of theradius
dealer.ofContact
the dealer.
yourContact
local dealer
your to
local
discuss
dealer
your
to discuss
requirements.
your requirements.
†
Available at†Available
participating
at participating
Dealers only.Dealers
Roadside
only.
Assistance
RoadsideisAssistance
activated automatically
is activated automatically
at every routine
at every
service
routine
with service
coveragewith
extended
coverage
valid
extended
from the
valid
datefrom
of service
the date
forof12service
months,foror12until
months,
the next
or until
service
the next
is due,
service
whichever
is due,comes
whichever
first. comes
See Ford.co.uk/roadsideassistance
first. See Ford.co.uk/roadsideassistance
for for
more information.
more information.
Important Information:
Important Information:
Ford Credit:ØFinance
Ø
Ford Credit:
subject
Finance
to status.
subject
Guarantees
to status. may
Guarantees
be required.
may beFreepost
required.
Ford
Freepost
Credit. Ford Credit.
Ford Credit isFord
a trading
Creditstyle
is a trading
of FCE Bank
style of
plc.FCE
which
Bank
is plc.
authorised
which isby
authorised
the Prudential
by theRegulation
PrudentialAuthority
Regulationand
Authority
regulated
and
byregulated
the Financial
by the
Conduct
Financial
Authority
Conduct
and
Authority
Prudential
andRegulation
PrudentialAuthority
Regulationunder
Authority
firm reference
under firm
number
reference
204469.
number 204469.
◊
Ford Lease: ◊Ford
Ford Lease
Lease:isFord
provided
Leaseby
is ALD
provided
Automotive
by ALD Automotive
Ltd, trading as
Ltd,Ford
trading
Lease,
asOakwood
Ford Lease,
Drive,
Oakwood
Emersons
Drive,
Green,
Emersons
Bristol,
Green,
BS16Bristol,
7LB. ALDBS16
Automotive
7LB. ALD Automotive
is registered is
inregistered
England No.
in England
987418. For
No. the
987418.
purposes
For the
of purposes
the Data Protection
of the DataAct
Protection
1998 theAct
data
1998
controllers
the dataincontrollers
relation toinany
relation to any
information information
you supply are
youFord
supply
Motor
areCompany
Ford Motor
Limited,
Company
FCELimited,
Bank PlcFCE
andBank
ALDPlc
Automotive.
and ALD Automotive.
Finance subject
Finance
to status.
subject
Guarantees
to status. and
Guarantees
indemnities
and indemnities
may be required.
may be
ALDrequired.
Automotive
ALD Automotive
is authorisedisand
authorised
regulated
andbyregulated
the Financial
by the
Conduct
Financial
Authority.
Conduct Authority.
44 45Dimensions Fuel
Regular Cab 4x4
500 Nm
From From 1 September 2017, certain new vehicles will be type-approved using Wolrdwide Harmonised Light Vehicle Test Procedure (WLTP)
according to (EU) 2017/1151, as last amended, which is a new, more realistic test procedure for measuring fuel consumption and CO2
157 kW
201 g/km* emissions. From 1 September 2018 the WLTP will fully replace the New European Drive Cycle (NEDC), which is the current test
procedure. During NEDC phase -out, WLTP fuel consumption and CO2 emissions are being correlated back to NEDC. There will be
(213 PS) some variance to the previous fuel economy and emissions as some elements of the tests have altered, i.e. same car might have
different reported fuel consumption and CO2 emissions.
To learn more about the changes, please visit www.ford.co.uk/owner/resources-and-support/fuel-economy
Powerful
Super Cab 4x4
2.0L Ford EcoBlue 157 kW (213 PS)
BI-TURBO
Regular Cab 4x4 Diesel (XL only)
The new Ford EcoBlue 157 kW (213 PS) diesel engine
develops 500 Nm of torque. This makes it the ideal
choice for carrying heavy loads and towing, while
delivering strong fuel efficiency, up to 36.6 mpg (7.7
l/100km) combined.
Double Cab 4x4
PerformanceØ
340/420 Nm
From
96 kW
178 g/km*
(130 PS)
/125 kW
(170 PS)
Warranty Efficient
2.0L Ford EcoBlue 96 kW (130 PS)/125
kW (170 PS)
New Ranger's next-generation Ford EcoBlue diesel
engines combine outstanding fuel efficiency with
excellent driveability and refinement. Its state-of-the-
art design helps to keep running costs down without
compromising on payload or performance.
www
Full features and specifications
(not located in the printed brochure)
To review the full features and specifications, download the
digital ebrochure or view the interactive brochure. These can be
downloaded from: www.ford.co.uk or scan the QR code.
46 47Get the most from your new
Weights and loads
Ford
◆
We want to help you get the most from your new Ford. And to do that, you need to know how much it is designed to safely carry, both in terms of payload and load volume.
Your Transit Centre can provide professional advice on important specification aspects, and help to find the right vehicle for your budget and business needs.
The Ford Ranger is designed to carry cargo – and lots of it. So to help you choose the right vehicle for your needs, here are Manufacturing tolerances
some more detailed explanations about the factors that can
Choosing a new vehicle is an important decision with lots of Variations in manufacturing and production processes mean
influence a vehicle’s payload. These include, but are not
factors to be considered. While some aspects, like selecting that no two vehicles are likely to weigh exactly the same.
limited to:
the most appropriate derivative, identifying the intended
primary use and determining load box size are relatively Accessories and aftermarket conversions
Driver and crew
simple, others, such as calculating payload are more complex. It is important to think carefully about what you add to your
We calculate the weight of the driver and crew based on the
vehicle after you take delivery. Any accessories fitted or
Payload capacity industry-standard weight of 75 kg/person. Remember that the
aftermarket conversions to the vehicle may adversely affect its
driver and crew are not included in the kerb mass figure, so
To calculate payload, you need to know two things: the payload. Please speak to your Transit Centre for more
when a driver or crew boards the vehicle, its payload will be
vehicle’s gross vehicle mass (GVM) and its kerb mass. information and advice.
reduced accordingly.
GVM is the maximum permissible weight of the vehicle when If payload is critical to your business, or if you plan to carry
loaded and ready to go – that includes the weight of the Factory-fitted options cargo at, or close to, the vehicle’s maximum capacity, your
vehicle itself, ancillaries, driver and crew (assuming the Most factory-fitted options will affect a vehicle’s payload. For Transit Centre can help. Using their specialist expertise and
industry standard weight of 75 kg/person), fluids, fuel tank example, air conditioning can add approximately 18 kg to a knowledge, they can advise you on the exact specification of
90% full (1 litre of diesel = approximately 0.85 kg), optional vehicle’s weight, and therefore reduce its payload accordingly. vehicle required to meet your individual business needs.
and aftermarket equipment, and cargo.
Your Transit Centre will be able to tell you what features can Configure your Pick Up to suit your job
Kerb mass is the weight of a standard-specification XL Series add or reduce your vehicle’s kerb mass and by how much.
vehicle, including fluids and fuel tank 90% full, but without Ford Commercial Vehicles are available with a wide range of
the driver, crew or cargo. Series standard and optional features. Your Transit Centre can help
you ensure that you specify the right vehicle features for your
Payload is the difference between the two. All kerb masses quoted in this brochure are for standard- specific business needs, including technical items to aid
specification XL Series models, unless otherwise stated. aftermarket fitment of specialist equipment or conversion.
Gross vehicle mass minus kerb mass = payload Higher Series models will generally weigh more than lower Note Technical information for vehicle converters can be found online via the Body and
Series due to the increased level of features and equipment. Equipment Mounting Manual @etis.ford.com go to >information >>vehicle conversions.
D I G I TA L B R O C H U R E O N LY D I G I TA L B R O C H U R E O N LYStyling and appearance Driving experience
USB port
Built-in USB-connectivity lets you listen to, and operate, your
memory stick or USB-enabled digital music player via New
Ranger’s audio system. (Included with SYNC 3 availability)
D I G I TA L B R O C H U R E O N LY D I G I TA L B R O C H U R E O N LYYou can also read
