Moreland Watermap 2020 Moreland’s path to a water sensitive city
02 Moreland Watermap 2020
Moreland Watermap 2020
Table of contents
Definitions 02
Mayor’s forward 03
Executive summary 04
Background 06
Moreland as a water sensitive city 10
Moreland Watermap 2020 15
» Vision
» Goals
» Targets
Mapping Moreland’s IWCM
implementation 16
Delivering on Targets 18
Counting every drop – monitoring,
reporting and data management 30
Appendix 32
Definitions
Fit for purpose water – a quality of water that is Water sensitive city – a water sensitive city is
appropriate for the purpose it is intended to be a city which undertakes best practice integrated
used for. water cycle management.
GL – Gigalitres. One thousand, million Water sensitive urban design (WSUD) –
(1,000,000,000) litres design and design approach that integrates
the urban water cycle, including stormwater,
Integrated Water Cycle Management (IWCM), groundwater and waste water management
Integrated Water Management (IWM), Whole of and water supply, into urban design to minimise
Water Cycle Management (WoWCM) – all refer to environmental degradation and improve aesthetic
the same approach to water management that and recreational appeal.
considers the entire urban water cycle, rather
than its individual elements in isolation.
kL – Kilolitres. One thousand (1,000) litres.
ML – Megalitres. One million (1,000,000) litres.
Moreland Watermap 2020 03
Image: Launch of the Charles Mutton Stormwater Harvesting System. From left to right: Dr Paul Pretto, Acting Managing Director
Melbourne Water, Cr Lambros Tapinos, Mayor of Moreland, Hon Peter Walsh MP, Minister for Water, Hon Craig Ondarchie MP.
Mayor’s message
I am very pleased to introduce the Moreland Watermap 2020 also includes a clear
Watermap 2020, which provides a plan for implementation plan, identifying specific projects
Moreland’s transition to a water sensitive city. which contribute towards more efficient use water
resources, protection and enhancement of our
A water sensitive city is one that is healthy, green, waterways and wetlands and mitigating flood risk
productive and resilient. To make this vision a and damage.
reality requires a collaborative effort with
commitment from residents, businesses, Support for community action to reduce
community groups, all levels of Government and community potable water consumption and
many others across our community. increase the number of households with an
installed rainwater tank is also a key area for
This plan shows how we can continue to create ongoing action.
high quality public spaces and landscapes and
provide the water security essential for Moreland is proud to embrace a comprehensive
community health and economic prosperity. and progressive approach integrated water cycle
WaterMap 2020 has set ambitious goals including management and become a Water Sensitive City
Council leading by example through a number of through Moreland Watermap 2020.
operational targets such as:
I would like to thank everyone involved in the
» reducing Council’s total potable water usage by development of WaterMap 2020 throughout 2014
30% from 2001 levels and look forward to working alongside key
partners and community members to achieve the
» developing local stormwater harvesting vision of a water sensitive city.
infrastructure supplying 30ML/a of treated water
for open space irrigation by 2020 Cr Lambros Tapinos,
Mayor of Moreland
04 Moreland Watermap 2020
Executive summary
Balancing access to water suitable for our needs and the needs of the ecosystems
we depend on is critical to our future resilience, liveability and prosperity.
The Millennium Drought external stakeholders. The actions involve both hands-
provided first hand experience on and advocacy approaches
The vision of Moreland
of the challenge of managing with success relying upon active
Watermap 2020 is for the City of
this balance in a changing partnerships with the Moreland
Moreland to become a water
climate, and was a catalyst for community and key
sensitive
the evelopment of more stakeholders such as water
city in which Council leads
innovative and collaborative authorities.
by example and supports
water management solutions.
community actions to manage The plan will be monitored
Council plays a vital role in water resources in an annually to ensure that the
water cycle management both environmentally, socially and priority settings remain correct
directly through public assets financially responsible manner. and emerging opportunities for
management and indirectly delivery and management are
Framed around the seven
through influencing the integrated as appropriate.
targets outlined below, the
community’s actions and working Progress towards the vision and
plan includes a program of
with relevant stakeholders and delivery of the targets will be
carefully considered projects
regulators. Given these multiple reported annually.
to achieve this vision.
interfaces Council is well placed
This is an exciting step change
to deliver integrated water cycle IWCM solutions at all scales
in the evolution of Moreland’s
management (IWCM) solutions, have been matched to sub-
approach to water management
either through Council’s capital catchments within the
and will provide the platform for
works program or through municipality based
the creation of a water sensitive
partnerships and advocacy on the existing water cycle
city that ensures our future
with the community and other opportunities and constraints.
resilience and prosperity.
Council’s 2020 Targets
Council leading Council supporting
by example community action
01 04 06
Reduce Council’s total potable Advocate IWCM to and 25% reduction in community
water usage by 30% from 2001 on behalf of the community. potable water consumption from
levels (400ML/a) to 280ML/a 2001 baseline consumption to
by 2020. 10.1GL/a by 2020.
02 05 07
Treat 11% of Council’s All new residential developments 50% of Moreland households
stormwater catchments to best of greater than 2 dwellings and have an installed rainwater
practice by 2020. non-residential developments tank by 2020. 25% of Moreland
greater than 100m² to households have an on-lot
03 incorporate best practice stormwater treatment raingarden
water efficient fittings, water or other stormwater treatment
reuse and/or recycling and mechanism by 2020.
Implement water sensitive urban stormwater management.
design into all Council capital
works projects.
Moreland Watermap
Watermap 2020
2020 05
Key elements of a water sensitive city
Waste water Water sensitive
treatment communites
Rainwater Water
efficiency
Alternate Stormwater
water sources treatment
Water sensitive city
A water sensitive city is a city is which water cycle management is integrated into all aspects
of the city. A water sensitive city is created though collaboration between our community,
Council and key stakeholders. It is a city that is healthy, green, productive and resilient.
WATER SENSITIVE CITIES INTERACT WITH THE WATER CYCLE IN WAYS THAT
Create high quality Provide water Enhance and Mitigate
green public spaces security essential for protect the health flood risk
and landscapes economic prosperity of watercourses and damage
through efficient use and wetlands
of the diversity of water
resources available
THE THREE PRINCIPLES OF WATER SENSITIVE CITIES ARE
Cities as water Cities providing Cities comprising water
supply catchments: ecosystem services: sensitive communities:
Access to suitable water The built environment Communities are engaged
through a diversity of sources supplements and supports with decision makers and
from a diverse range of supply the function of the natural enabled to participate in
scales – small local scale supply environment including local creating a water sensitive
solutions through to mains biodiversity through to city through political support
water supplied to Moreland using or replicating natural and their own local actions
water treatment systems
06 Moreland Watermap 2020
Background
This plan is based on careful consideration of Moreland’s interaction
with and influence over the water cycle.
The water cycle includes the a water sensitive city by 2020. Council supporting community
flows of water into and through These channels can be split into action – areas of indirect
the City; the use, treatment and two themes: Council control where Council
management of these flows can support or influence the
and the loss of water through Council leading by example – community to take action such
waste water, stormwater and areas of direct Council control as reducing the total water
evaporation. such as reducing the potable consumption by the community,
water usage of Council’s increasing the uptake of
To address the whole of the operations, increasing the rainwater tanks within the
Moreland water cycle, Council’s quantity of treated stormwater community and encouraging
Watermap 2020 identifies used for sportsfield irrigation on-lot stormwater treatment.
targets and actions within our and improving the quality of
channels of influence to lead stormwater runoff to our creeks.
Moreland towards becoming
Image: Sugarloaf Reservoir, one of Melbourne’s dams that supply
Moreland with drinking water. Image supplied courtesy of Melbourne Water.
Moreland Watermap 2020 07
Moreland’s water balance
in 2012-13
Mains water Rainfall Note
11,829ML 27,920ML Over twice as much rain falls within
» Commercial 2,045ML Moreland as we use from the mains
» Residential 9,408ML drinking water supply
» Council 376ML
Evapotranspiration
16,792ML
Pervious Rainwater and
17,168ML stormwater reuse 5ML
Roofs
5,032ML
Other
Waste impervious
water surfaces Infiltration
9,162ML 2,178ML 1,795ML
Roads
3,493ML
Waste water Treated Stormwater
treatment stormwater runoff
6ML 9,333ML
08 Moreland Watermap 2020
Climate change and water use
Due to human generated Furthermore, Yarra Valley Water component to securing
greenhouse gas emissions, investigations into demand from Moreland’s future water
southeastern Australia is sports field irrigation noted that supply needs.
projected to warm during the days in which the maximum
1. IPCC, 2014: Chapter 25: Australasia
21st century, along with other temperature exceeds 35°C have [Blair Fitzharris and David Karoly (eds.)].
changes in climate1. Annual a large effect on increasing In: Climate Change 2014: Impacts,
rainfall is also expected to irrigation volumes. Associated Adaptation, and Vulnerability.
decrease1, with projections of up with a warming climate, more Contribution of Working Group II to the
to a 40% decline in average frequent hot extremes are Fifth Assessment Report of the
Intergovernmental Panel on Climate
annual runoff for southeast anticipated for southeastern Change [Paulina Aldunce, Jean Pierre
Australia1. Australia1. As such, Moreland Ometto, Nirivololona Raholijao, Kazuya
is very likely to experience an Yasuhara (eds.)]. Cambridge University
Along with future changes in increase in days over 35°C, Press, Cambridge, United Kingdom
Melbourne’s climate and it’s resulting in significant increases and New York, NY, USA.
water catchment regions, in required irrigation volumes, 2. P
lan Melbourne, Metropolitan Planning
Melbourne’s population is also even with the implementation Strategy. The State of Victoria,
expected to grow by a further of efficiency measures. Department of Transport, Planning and
3.5 million people to be a city of Local Infrastructure, 2014. Accessed
7.7 million people by 20512. In the face of both an uncertain from: http://www.planmelbourne.vic.gov.
Taking into account this increase rainfall future with likely runoff au/
in water demand, combined with declines, as well as increased 3. M
elbourne’s Water Future. Victorian
a possible 40% reduction in water demands due to Government Department of Environment
rainfall runoff, it is predicted that population growth and warmer and Primary Industries, November
further desalination plants will temperatures increasing 2013. Accessed from:
http://www.livingvictoria.vic.gov.au/mwf
be required to be constructed irrigation demands, alternate,
meet Melbourne’s water non-potable water supplies are
demand by 20503. a key

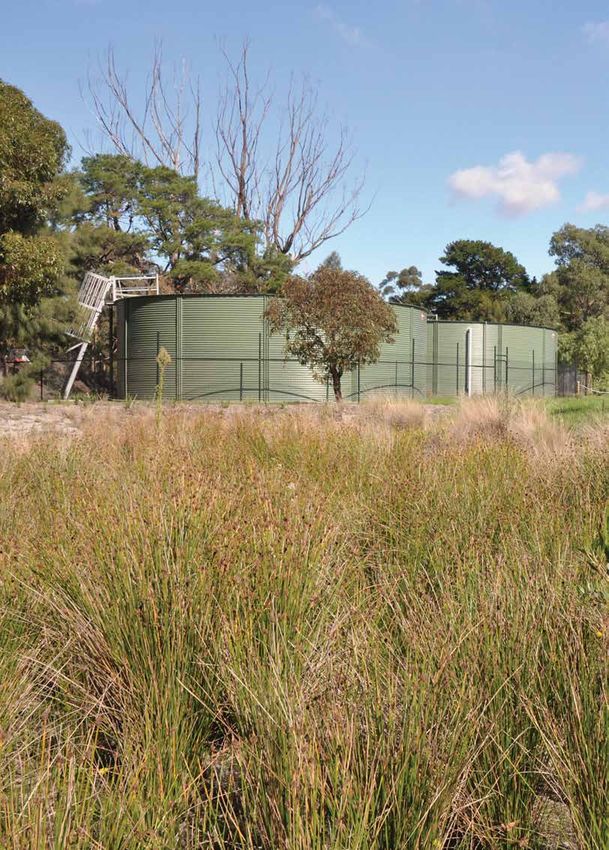

Image: Stormwater harvesting system at Sewell Reserve, Glenroy
Moreland Watermap 2020 09
An integrated water cycle management approach
The protection and efficient The drought identified that in » Where drinking water is not
management of our water the face of climate change if we required to be used, replace it
resources is critical to the are to maintain the liveability of with the right alternate water
ongoing resilience, liveability Moreland to the standards our source such as rainwater,
and prosperity of our community expects with green treated stormwater or treated
community. open spaces, safe community waste water
sportsfields, healthy trees and
The water security pressures a cool urban environment, then » Maintaining and improving
caused by Melbourne’s an approach that considers and the health of our local and
recent 13-year drought have best manages the whole of the broader natural systems such
fundamentally changed the water cycle is necessary. as waterways through best
way we use water. The drought managing stormwater runoff
detrimentally stressed our Watermap 2020 moves and pollution
trees, parks and gardens and Moreland beyond a water
decreased the liveability of security focused approach, to a This approach will lead Council
Moreland for our community. liveability focussed approach. to maintain healthy landscapes
During this time it was common This approach focussed on: that in turn provide heat
place to see brown and dead mitigation, liveability and health
sportsfields, trees and open » Making best and most efficient benefits to the community, and
space and to experience use of drinking water transform Moreland into a water
extreme urban heat. sensitive city.
10 Moreland Watermap 2020
Moreland as a water sensitive city
Becoming a water sensitive city will bring many benefits to Moreland
Water sensitive community tree canopy and urban A city more adapted to
attitudes and values biodiversity, efficient irrigation heatwaves and other weather
systems and increased
» A shared community extremes in a changing
permeability
understanding of the need climate
for careful use of high quality » Mitigation of urban heat
Grassed sportsfields
drinking water, appreciation of island effects by increased
our waterways, and embracing » Maintained to high standards tree canopy and urban
the use of “fit for purpose” even during periods of drought greenery, reduced effects of
water where-ever possible flash flooding and access to
Cleaner, less polluted alternate water supplies that
Cities as water waterways reduce demand for drinking
supply catchments water in times of low rainfall
» WSUD and other stormwater
» Local “fit for purpose” treatment measures to reduce
water systems supplying stormwater pollution entering Ecological and
water across the municipality our waterways biodiversity benefits
and passive irrigation for » Increased habitat and
street scapes Improved liveability biodiversity through healthy
and amenity natural waterways and
A water sensitive wetlands, increased
» High-quality open space, streetscape vegetation and
built environment
waterways and natural areas constructed stormwater
» Buildings that include: providing attractive options treatment wetlands and
raingardens, green roofs, for recreation, relaxation and biofiltration systems
rainwater tanks, permeable connecting with nature
surfaces and stormwater
infiltration and water efficient Financial savings
Community health and avoided costs
fittings, fixtures and
and well being
whitegoods as standard » Savings on water utility
» Cool, green streets and parks costs and drinking water
Greener streets and high and high quality open spaces infrastructure upgrades
encouraging community through reduced drinking
quality open spaces
participation and interaction water consumption and
» Constructed wetlands and the use of “fit for purpose”
raingardens, passive irrigation water supplies
systems, tree pits, increased

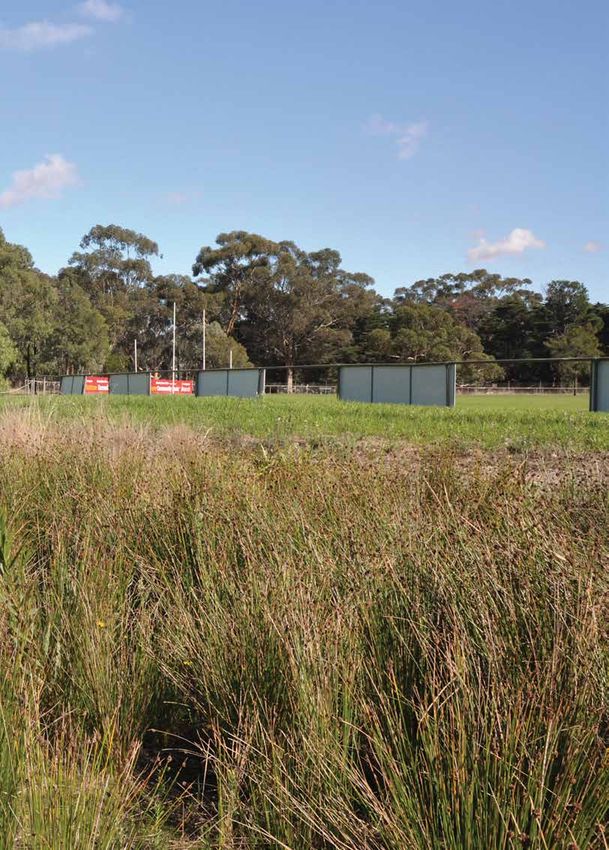

Image: Stormwater harvesting system under construction at Charles Image: Knobby Club-rush ready for planting in a raingarden
Mutton Reserve, FawknerMoreland Watermap 2020 11
What would a water sensitive
Moreland look like?
A water sensitive Moreland is a city where this precious resource is highly valued,
carefully managed to best practice standards and accessed equitably by all users
to protect ongoing liveability and sustainability.
The elements of a water sensitive Moreland will be visible in our values and in our
natural and built environments.
Drinking
water supply
Green Water sensitive Rainwater Stormwater
roofs communites harvesting harvesting
Stormwater
treatment
wetlands
Reuse
of treated Waste water Tree pits and
waste water treatment raingardens12 Moreland Watermap 2020

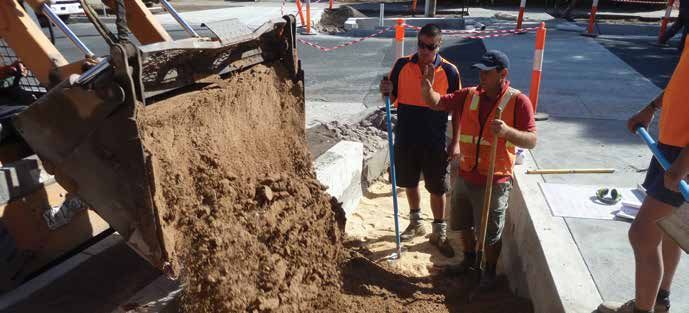

Image: Construction of a raingarden at Anderson Road shopping strip, Fawkner
An integrated Council approach
An integrated approach to » Theme: Environmentally Watermap 2020 supports the
water management requires Sustainable Moreland other themes of the Council
an integration with Councils Strategic Action 12.4: Plan that are reliant upon the
existing policy context and Implement the Integrated sustainable management of
cross-Council departmental Water Management Plan water across the community.
objectives. Watermap 2020 and Stormwater Quality
is a key plank of the Council Targets Study
Plan 2013-17 as identified in:
Watermap 2020 supports the following Council strategies through addressing
sustainable water management:
Council strategy Support / alignment Council strategy Support / alignment
Active Moreland Irrigation to support Litter Trap Implementation of
sportsfields and healthy Action Plan litter traps to reduce
open spaces. stormwater pollution.
Carbon Management Fit for purpose water Merri Creek and Improvement of
Strategy and Zero and passive watering to Environs Strategy creek health.
Carbon Evolution support urban vegetation.
Climate Action Plan
Drainage Asset WSUD reducing flooding. Open Space Strategy Irrigation to support
Management sportsfields and
Strategy healthy open spaces.
Flood WSUD reducing flooding. Street Landscape Fit for purpose water
Management Plan Strategy and passive watering to
support urban vegetation.
Health and Irrigation to support Waste and Reducing litter entering
Well-being Strategy sportsfields and Litter Strategy our waterways.
healthy open spaces.Moreland Watermap 2020 13

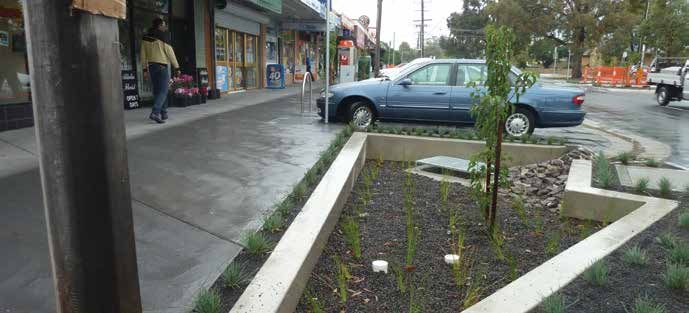

Image: Completed raingarden at Anderson Road shopping strip, Fawkner
“Merri Creek Management Committee strongly supports the intent of this
document as Moreland’s path to becoming a water sensitive city. We acknowledge
and support the targets that are win-win for both reduction in potable water
use and stormwater impacts, such as wide adoption of rainwater tanks.”
Merri Creek Management Committee
An integrated stakeholder and partner approach
Achieving Watermap 2020 Key stakeholders include: » Environmental Protection
implementation requires Authority (EPA), Victoria –
the engagement, cooperation » Moreland households, Government environmental
and compliance with a broad businesses and regulator
range of key stakeholders and community groups
» Department of Health,
regulators. It also acknowledges » Creek committees and Victoria – Government
that genuinely holistic approach “Friends of” groups body responsible for setting
to IWCM inherently requires the
» Melbourne Water – standards of acceptable
consideration of the water
Wholesaler of Melbourne’s water quality
cycles at our local scale and
those that extend beyond the water supply, responsible for » Council’s upstream and
boundaries managing the catchments, adjacent to Moreland’s
of the municipality. Council must treating water waterways including Darebin
ensure that our opportunities and transferring it the three and Whittlesea Councils
and obligations to work with retail water companies (Merri and Edgars Creeks),
these key stakeholders and » Yarra Valley Water – Hume Council (upper Merri
regulators are always Water retailer servicing and tributaries and Moonee
considered when delivering the the Moreland municipality Ponds Creek) and Shire of
objectives, strategies and Mitchell (upper Merri and
actions outlined » The Office of Living Victoria tributaries)
in this plan. (OLV) – A Victorian
Government body tasked to
deliver urban water reform in
Victoria14 Moreland Watermap 2020
Moreland Watermap 2020
4.1 Vision
The vision for this strategy is for the City of Moreland to become a Water
Sensitive City in which Council leads by example and supports community
actions to manage water resources in an environmentally, socially and
financially responsible manner.
4.2 Goals Key goals fall within the
following two themes
Council leading Council supporting
by example community action
» Reduce Council’s total water consumption » To reduce potable water consumption
to the minimum amount required in order to with the community through water saving
maintain Council’s services to the community measures and displacement with fit for
purpose water use
» Displace the use of potable water consumption
with fit for purpose alternate water sources » To reduce stormwater pollution originating
from residential lots
» Reduce the pollution carried by stormwater
originating from within the Moreland
municipality
» Implement and encourage the uptake of
water sensitive urban design across the
City of Moreland
» Advocate for the efficient use of water
resources and implementation of integrated
water cycle management to the community and
to external bodies such as water providers and
wholesalers on behalf of the community
» Reduce potable water consumption, increase
water reuse and recycling and reduce
stormwater pollution coming from new
developments within the Moreland municipality
that require a Council Planning PermitMoreland Watermap 2020 15
4.3 Targets
To fulfil our goals, Council has set a number of targets:
Council leading Council supporting
by example community action
01 02 06
Reduce Council’s total potable Treat 11% of Council’s 25% reduction in community
water usage by 30% from 2001 stormwater catchments to potable water consumption
levels (400ML/a) to 280ML/a best practice by 2020. Post from 2001 baseline
by 2020. 2020, continue to make consumption to 10.1GL/a by
proportional progress to 2020.
Subtarget 1.1 – Increase treat 100% of catchments
Council’s use of alternative to best practice by 2070.
water sources through:
» 30ML/a of community
03 07
sportsfield or open space
irrigation water to be reuse
water from local stormwater Implementation of WSUD into 50% of Moreland households
harvesting infrastructure all Council capital works have an installed rainwater tank
by 2020 projects. by 2020. 25% of Moreland
households have an on-lot
» Sourcing additional alternative 04 stormwater treatment raingarden
“fit for purpose” water supplies
or other stormwater treatment
to the above where feasible
mechanism by 2020.
Advocate IWCM to and on
Subtarget 1.2 – Improve behalf of the community.
community sportsground
irrigation efficiency to 75% for
100% of class A sportsfields 05
and irrigated parks by 2020.
Subtarget 1.3 – All Council All new residential
facilities to have best practice developments of greater than
fittings, appliances and toilets 2 dwellings and non-residential
and rainwater tanks installed developments greater than
where possible. 100m² to
incorporate best practice
water efficient fittings, water
reuse and/or recycling and
stormwater management.16 Moreland Watermap 2020
Mapping implementation
To effectively guide the delivery of the targets Council has mapped the
sub-catchments making up the Moreland municipality based upon their
suitability for different IWCM treatments.
The treatment identified for Large-scale stormwater Alongside reducing stormwater
each catchment was based treatments use wetlands or pollution, WSUD also provides
upon the opportunities and large raingardens to treat numerous benefits such
constraints that each catchment stormwater before it enters our as reduced potable water
presented. This map then forms creeks. consumption, increased tree
the basis for directing the They typically provide the most canopy, increased green spaces
implementation of the plan’s economical way of reducing and reduced urban heat island
targets and stormwater pollution per hectare effect. It is now common to see
key actions. of catchment treated whilst WSUD treatments in areas with
also providing habitat for high stormwater pollutant loads
Stormwater harvesting is the wildlife and improving amenity. such as shopping strips.
process of treating and reusing
stormwater, provides dual In areas where neither Bringing together these
benefits of reducing stormwater stormwater harvesting or large- treatments will provide the
pollution and displacing drinking scale treatments are feasible, infrastructure required for
water usage for “non-premium” achieving the stormwater Council to meet our stormwater
water uses such as community treatment targets will rely upon treatment target and help
sportsfield irrigation. Areas streetscape and household transform Moreland into
where this is feasible require a scale water sensitive urban a water sensitive city.
suitable catchment and an design (WSUD) such as tree-
opportunity for treatment and pits, raingardens and rainwater
reuse. tanks.
Image: Map of Moreland’s stormwater catchments and proposed treatmentsMoreland Watermap 2020 17
THE BUILDING BLOCKS OF
A WATER SENSITIVE CITY
01
Alternative water
sources (stormwater
harvesting)
02
Large-scale
stormwater
treatments
03
Water sensitive
urban design
Water
sensitive
communities18 Moreland Watermap 2020
Delivering on targets
Council leading by example
Reduce Council’s total potable water usage by 30% from 2001 levels
01
(400ML/a) to 280ML/a by 2020.
Council requires a certain rainfall is through turning off the Increasing potable water
amount of water to maintain irrigation to a large number of consumption is reflected
healthy open space and its sportsfields and open space. in increasing water charges.
services to the community. Council’s water charges have
However access to water is This is illustrated in the graph increased by 3.2 times from
limited and as such Council below which shows that the $211,414 in 2007-08 to
needs to make the best use of 50% reduction in potable water $688,704 in 2012-13.
all sources of water including consumption target was
drinking water, rainwater, achieved during the 2007-08 – Investigations have found
stormwater and recycled waste 2010-11 period. The reducing Council’s potable
water. Council’s two year achievement was during a water consumption to a target
average potable water usage for period of water restrictions, in of 280 ML/a can be sustainably
2011-12 – 2012-13 was which irrigation was reduced or achieved through focusing
301ML/a, a 25% reduction turned off at many Community upon constructing stormwater
from the 2000-01 – 2001-02 sportsfields. This action resulted harvesting infrastructure to
two year average of 400ML/a. in many community sportsfields replace the use of potable
becoming unusable or water, improving the efficiency
The IWMP 2009-2013 set a dangerous to play on. of community sportsfield
potable water reduction target irrigation and reducing
of 50% from the 2000-01 More recently, the 2012-13 Council building water usage.
- 2001-02 two year average of “angry summer” (as described
400ML/a. Investigations have by the Climate Council) which Based upon the cost of potable
found that whilst this target may was characterised by below water to Council in 2014 ($2.53/
be achieved during wet summer average rainfall and above kL), such a reduction would
years when there is low demand average temperatures has seen save Council $303,600 in
required from Council irrigation, a rapid increase in Council’s potable water usage charges
the only means of achieving this potable water usage with every year compared to the
target during summers of irrigation consumption continuation of 2000-01 – 2001-
average or below-average increasing 70% over the 2011-12 02 consumption.
summer.
Tracking Council’s potable water consumption Council’s potable water consumption
Baseline (average of 2000-01 and 2001-02)
600 30% reduction from baseline
50% reduction from baseline
500
Water Consumption
400
300
200
100
0
2000-01
2001-02
2002-03
2003-04
2004-05
2005-06
2006-07
2007-08
2008-09
2009-10
2010-11
2011-12
2012-13Moreland Watermap 2020 19
Sub-Target 1.1:
Increase Council’s use of alternative water sources through:
»»30ML/a of community sportsfield or open space irrigation water to be reuse water from
local stormwater harvesting infrastructure by 2020
»»Sourcing additional alternative fit for purpose water supplies to the above where feasible
Key action:
Construct stormwater harvesting infrastructure supplying 30ML/a of irrigation water by 2020.
Benefit: significant progress towards Targets 1, 2 and 3
Timing: three year cycle, year one = design, year two and three = construction
Responsibility for implementation: City Strategy and Design
Council has already followed by a 10ML/a system at greater water security for
commenced construction of Charles Mutton Reserve, irrigation during future periods
stormwater harvesting Fawkner, constructed in 2014, of restricted potable water
infrastructure to displace the bringing Council’s total usage.
use of potable stormwater harvesting capacity
water for sportsfield irrigation to 15ML/a. Atleast two new projects will
with fit for purpose treated be required to achieve this goal.
stormwater. Increasing this total to 30ML/a Projects are to be prioritised
by 2020 will make substantial based upon ground class
At Sewell Reserve, Glenroy, a progress towards reducing (A, B or C) and total potable
5ML/a system was constructed Council’s potable water usage consumption at the ground.
in 2012. This system was to 280ML/a and provide Council
Stormwater harvesting Reuse of waste water
Stormwater harvesting The reuse of treated waste
infrastructure provides water provides a significant
multiple benefits to Council: opportunity for Council to use
“fit for purpose” water in addition
» Reduced potable water to stormwater harvesting.
consumption Community sportsfield irrigation
» Reduced potable water and industry are two key areas
charges with Moreland that could benefit
» As a non-potable water source through the supply of treated
– secures access to irrigation waste water.
water during future periods
The supply of treated waste
of drought
water is a multi-stakeholder
» Reducing stormwater issue. As such Council will
pollution – also contributing advocate to and work with
to Target 2 external stakeholders such as
Yarra Valley Water, Melbourne
Water and the Office of Living
Victoria to explore the supply of
treated waste water as a
resource to Moreland.
Image: Stormwater harvesting system under
construction at Charles Mutton Reserve,
Fawkner20 Moreland Watermap 2020
Sub-Target 1.2:
Improve community sportsground irrigation efficiency to 75% by 2020 for 100% of class A
sportsfields and irrigated parks.
Key action:
Undertake an audit of Council’s class A community sportsfields and irrigated parks with
irrigation infrastructure older than 10 years, review Council’s irrigation control system
and implement a program of irrigation upgrade works between 2015 and 2020.
Benefit: Significant progress towards Target 1
Timing: 2015-16 audit of irrigation systems
Post 2016: implement upgrade program of irrigation infrastructure
Responsibility for implementation: City Infrastructure
Playing fields and irrigated » Class A = four efficiency is implemented at all
parks are Council’s largest » Class B = 12 class A grounds Council’s
consumer of potable water. potable water irrigation
The improvement of irrigation Reductions in total irrigation consumption can be reduced by
efficiency has the potential to water consumed are only likely approximately
significantly reduce Council’s to be achieved at existing class 12ML/year – a reduction of
potable water consumption A grounds. Current class B and approximately 5% of total
whilst maintaining (or improving) C grounds are likely to irrigation demand. A reduction
the condition of the have an incomplete irrigation in potable water consumption of
sportsgrounds for use by the infrastructure and therefore any 12ML/year equates to $30,360
community. irrigation upgrades are likely to per year in water savings.
increase the area irrigated, and
An investigation into Council’s Class A community
whilst efficiency will be
sportsfield irrigation sportsgrounds and irrigated
improved, overall water
infrastructure has found that parks are most valued by the
consumption is likely to
approximately 60% of Council’s community, and in periods of
increase. Such action will
class A and water restrictions, these
increase water consumption,
B community sportsfields have are the open space areas that
however they will also contribute
irrigation infrastructure over the community want maintained
to other Council goals such as
ten years old and likely to be most. Thus, in addition to the
the Recreation and Open Space
performing at well below best potable water savings,
Strategies and mitigation of the
practice irrigation efficiency. The undertaking efficiency upgrades
Urban Heat Island Effects and
number of sportsgrounds with should be prioritised
thus bring other benefits of
irrigation infrastructure greater to ensure that they can continue
IWCM.
than ten years old total: to operate in future water
If best practice irrigation restriction scenarios.
Breakdown of Council’s potable water usage
1999-01 average
Buildings 2007-08
2012-13
Playing fields
Open space
and nurseries
Swimming
pools
Total
0 50 100 150 200 250 300 350 400
Water consumption (ML/a)Moreland Watermap 2020 21
Sub-Target 1.3:
All Council facilities to have best practice fittings, appliances and toilets, and rainwater tanks
installed where possible.
Key action:
Continue to implement the Council building water efficiency program every year between
2014 and 2020.
Benefit: Significant progress towards Target 1
Timing: Design and construction undertaken within each financial year
Responsibility for implementation: City Strategy and Design
Council’s building stock makes The building water efficiency
up a significant proportion of to reduce potable water usage program aims for:
Council’s total water usage. within these buildings through
In particular Council’s Aquatic upgrading fittings, fixtures » All Council buildings to have
Centres and major Civic and appliances to best practice best practice fixtures, fittings
buildings are high consumers of water efficiency. Between and appliances
water. Since 2009 Council has 2009 and 2013, over 25 Council » All Council buildings to have
been running a building water buildings have had water installed rainwater tanks
efficiency program efficiency audits and connected to toilet flushing /
installations. laundry uses where possible
THE BUILDING WATER EFFICIENCY
PROGRAM AIMS FOR:
All Council buildings to
All Council buildings have installed rainwater
to have best practice tanks connected to
fixtures, fittings and toilet flushing / laundry
appliances. uses where possible.22 Moreland Watermap 2020
Treat 11% of Moreland’s stormwater catchments to best practice by 2020.
02
Post 2020, continue to make proportional progress to treat 100% of
catchments to best practice by 2070.
Best practice is to be defined as Total Suspended
80%
the Environmental Management Solids removed
Guidelines (BPEM) stormwater Total Phosphorus removed 60% (Moreland adopted target)
pollutant reduction targets. As
Total Nitrogen
of 2014 these targets are: removed
45%
Litter 70%
Maintain discharges for the 1.5
Flows year ARI at pre-development
levels
Key action:
Implement large scale stormwater treatment and water sensitive urban design across
all Council operations to treat 11% (170ha of impervious areas) of Moreland’s stormwater
catchments to best practice by 2020.
Benefit: Significant progress towards Targets 1, 2 and 3
Timing: Design and construction undertaken each year
Responsibility for implementation: City Strategy and Design, City Infrastructure

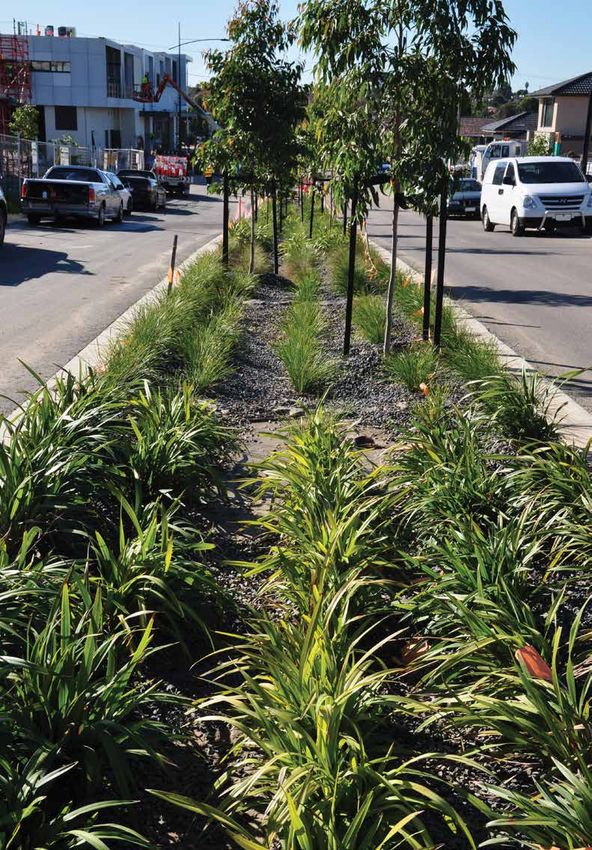

Image: Raingarden and tree pits at Michael Street, BrunswickMoreland Watermap 2020 23
In order to meet the targets 3. Small-scale distributed pollutant loads such as
by 2070, stormwater treatment WSUD treatments. shopping strips before further
measures treating 1.8% large scale treatment is
of Moreland’s stormwater Stormwater harvesting is undertaken downstream. On-lot
catchments to best practice prioritised due to the dual stormwater treatment will
each year are required to be benefits of reducing stormwater substantially assist Council’s
implemented. Over the 56 pollution and displacing potable objectives. In particular for the
years following 2014, this will water usage through provision “small scale” treatment areas,
see Council treating 100% of “fit for purpose” treated water. however it will help everywhere
of Moreland’s stormwater This provides a direct economic and should be encouraged.
catchments to best practice benefit as well as the benefit to
stormwater quality. An important note is that
by 2070.
alongside construction of
To direct implementation Large scale WSUD treatments stormwater treatment assets,
in the most efficient manner, are prioritised second, as they an adequate maintenance
the map of WSUD catchments provide the most economical program must be implemented.
in mapping implementation way of reducing stormwater Unless adequate maintenance
has been developed. The map pollution. is undertaken, WSUD assets
identifies the WSUD treatment Small scale distributed WSUD can quickly fall into disrepair
to be undertaken each of treatments are used where and cease to provide the level
Moreland’s catchments based neither stormwater harvesting of treatment to which they
upon a priority of: nor large-scale WSUD are designed – this may result
treatments are available for use. in the target being missed
1. Stormwater harvesting
They may also be used to despite adequate assets
2. Large-scale end-of-line being constructed.
WSUD treatments pre-treat areas with high
Council’s stormwater » Prevent waste water
obligations discharges to stormwater
drains
Councils play a significant role
in improving the environmental » Monitor and report to the
management of urban community and relevant
stormwater. This includes stakeholders on the impact
obligations under the State of stormwater drains on
Environment Protection surface waters
Policy (Waters of Victoria) to:
» Ensure new and retrofit
» Develop stormwater developments include
management plans and effective design measures and
implement effective practices to manage
management practices, stormwater run-off volumes
particularly for new and minimise pollutant run-off
developments in stormwater
and drainage systems
» Provide educational material
on stormwater management
and pollution avoidance
Image: Jones Reserve
stormwater runoff pond24 Moreland Watermap 2020
03 Implementation of WSUD into all Council capital works projects.
Key action:
Implement water sensitive urban design into all Council capital works projects, specifically:
»» Streetscape upgrades
»» Open space capital works projects
»» Shopping strip renewal projects
»» Drainage upgrade and replacement works
»» Retrofit projects (Open Space, Streetscape, Buildings etc)
Benefit: Significant progress towards Targets 1, 2 and 3
Timing: Design and construction undertaken each year
Responsibility for implementation: City Strategy and Design, City Infrastructure,
Open Space Maintenance
Water sensitive urban design Components of WSUD can » Improved stormwater quality
(WSUD) is an approach include (but are not limited to): » Improved urban greenery, tree
to integrate water cycle canaopy and mitigation of the
» Rain gardens, rooftop
management into urban Urban Heat Island Effect
greening and urban forests
planning and design to improve
stormwater quality, reduce » Rainwater tanks – stormwater Implementation of WSUD can
potable water consumption harvesting and reuse be undertaken in across Council
and improve public amenity » Gross pollutant traps, including:
at the same time. wetlands and sediment ponds
» Shopping strip renewals
WSUD works at all levels. At » Grassed or landscaped
» Streetscape upgrades
the lot level, street and precinct swales
» Drainage upgrades / renewals
levels, as well as regional » Infiltration trenches and
scales, with the aim of bio-retention systems » Streetscape / landscape
protecting and improving works
» Grey water harvesting
waterway health by mimicking and reuse » Street tree planting
the natural water » Tree pits and passive watering » Capital works building /
cycle as closely as possible. landscape projects
As such it is a key component » Porous pavements
» Open Space capital works
of a becoming a water » Aquifer recharge and reuse
projects such as reserve
sensitive city and links upgrades / amenity projects
closely with Council’s The benefits of implementing
Flood Management Plan. WSUD can be seen across » Retrofit projects such as
the water cycle including: Open Space, Streetscape,
Buildings etc
» Reduced potable water
consumptionMoreland Watermap 2020 25
04 Advocacy of IWCM to and on behalf of the community.
Key action:
»» Advocate to the community for the efficient use of water resources and implementation
of IWCM within/by the community
»» Advocate for Melbourne Water and Yarra Valley Water to implement IWCM when supplying
potable and “fit for purpose” water within Moreland and managing the treatment of waste water
generated from Moreland
»» Demonstrate the efficient use of water resources and implementation of integrated water cycle
management through the inclusion of WSUD in high profile works such as shopping strip
upgrades, and accompanying these projects with interpretive signage
»» On an as-needs basis write formal letters or take other action on behalf of the community
supporting the implementation of IWCM by external state and federal government bodies
Benefit: Significant progress towards Targets 4, 5, 6 and 7
Timing: Ongoing, as-needs basis
Responsibility for implementation: City Strategy and Design, City Infrastructure
Advocacy to and on the behalf community develop these
of the community is an essential attitudes.
step towards the engagement
of the community in IWCM and Advocacy on behalf of the
moving Moreland towards community is required in order
becoming a water sensitive city. to engage other organisations
Such advocacy helps to foster involved in the Moreland water
the behaviour and infrastructure cycle on the journey towards
changes that are required for becoming a Water Sensitive
Moreland to become a water City. Such organisations include
sensitive city. Melbourne Water and the Water
Retailers who can influence
Advocacy is required in two and construct the water cycle
main areas: to the community infrastructure used to supply
and on behalf of the community. Moreland’s drinking water and
dispose of the waste generated
Advocacy to the community from within the Moreland
is required in order to engage municipality.
the community on the journey
towards becoming a water Maintaining support and
sensitive city. A water sensitive engagement with Moreland’s
city requires its citizens to think strong “Friends of”, Waterwatch
broadly and smartly about the and Creek Management
use of water in their everyday Committees community groups,
lives. As such Council has a will greatly assist with this
large role to play in assisting the target.
Image: Raingarden at Snell Grove, Oak Park26 Moreland Watermap 2020
05
All new residential developments of greater than two dwellings and
non-residential developments greater than 100m² to incorporate:
»»Best practice water efficient fittings, toilets and appliances
»»Best practice water reuse and/or recycling
»»Best practice stormwater management
Key action:
Support development, adoption and implementation of Amendment C71 Environmentally
Sustainable Development (ESD) Policy.
Benefit: Significant progress towards Targets 5, 6 and 7
Timing: Ongoing, as-needs basis
Responsibility for implementation: City Strategy and Design, Planning and
Economic Development, City Development
The implementation of Council currently supports the for best practice ESD outcomes
Amendment C71 provides development, adoption and including water resources and
a significant opportunity implementation of Amendment storm water management.
to implement IWCM into all C71 Environmentally
new buildings within Moreland. Sustainable Development When enacted the amendment
The ESD policy recognises Policy. The ESD policy provides will require:
the importance of considering objectives » Best practice water efficient
environmentally sustainable and planning application
design at the time of planning requirements for residential » Best practice water reuse
approval for new development developments of two or more and/or recycling
so as to maximise sustainable dwellings and non-residential » Best practice stormwater
design outcomes and minimise developments of more than management
costs associated with retrofit 100m2. Applications will need
and poor design. to respond to design objectivesMoreland Watermap 2020 27
Melbourne’s water future
Produced by the Office of
Living Victoria this strategy
aims to implement IWCM
across Melbourne. The
strategy sets out general
IWCM outcomes to aspire
towards achieving and a
framework of local, regional
and metropolitan IWCM
plans. This plan takes into
account the aims and
objectives of Melbourne’s
Water Future and its targets
have been developed to
support the goal of
achieving IWCM across the
Melbourne metropolitan
area.

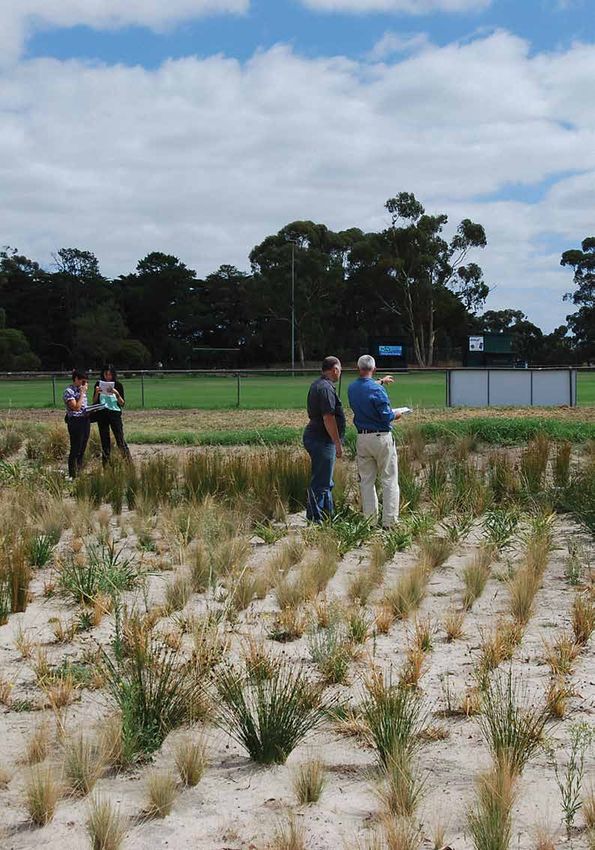

Image: Council staff undergoing maintenance training for
the stormwater harvesting system at Sewell Reserve, Fawkner28 Moreland Watermap 2020
Council supporting community action
Reduce the Moreland Community’s total potable water usage by 25%
06
from 2001-02 levels (13.5GL/a) to 10.1GL/a by 2020.
Key action:
Council to partner with community organisations to promote implementation of IWCM within
Moreland’s community and businesses.
Benefit: significant progress towards Targets 5, 6 and 7
Timing: Pilot program commencing 2014-15. Larger roll out following pilot program results.
Responsibility for implementation: City Strategy and Design
The table below shows potable 2001 baseline 2007-08 2012-13
water consumption within
the Moreland municipality. Residential 10.7GL 8.8GL (-18%) 9.4GL (-12%)
It is apparent that although Commercial 2.8GL 1.9GL (-32%) 2.0GL (-29%)
there was a significant decrease Total 13.5GL 10.7GL (-21%) 11.4GL (-16%)
in total water consumption
within Moreland between 2001
and 2007-08, there has since
been 2001-02 2007-08 2012-13
a rise in consumption between Average
2007-08 and 2012-13. water use per
190kL 140kL (-26%) 141kL (-26%)
property per
The average water use per
year
property shows that although
total water consumption has
increased between 2007-08
and 2012-13, average use per Moreland community water consumption
property has remained steady.
16
This is likely due to increasing
density of dwellings within 14
Moreland during this time.
12
Water consumption (GL)
Council will seek to play a
leading role in supporting the 10
implementation of community /
8
household IWCM. Council will
aim to partner with community 6
organisations to develop a
pilot community scale IWCM 4
project. The pilot will aim to
identify ways to implement 2
IWCM within a trial Moreland
community, and if successful 0
may be expanded across the
2001-02
2002-03
2003-04
2004-05
2005-06
2006-07
2007-08
2008-09
2009-10
2010-11
2011-12
2012-13
entire Moreland municipality.
YearMoreland Watermap 2020 29
07
50% of households have an installed rainwater tank by 2020.
25% of households have an on-lot stormwater treatment raingarden
or other stormwater treatment mechanism by 2020.
Key action:
Council to partner with community organisations to promote implementation of IWCM within
Moreland’s community and businesses.
Benefit: significant progress towards Targets 5, 6 and 7
Timing: Pilot program commencing 2014-15. Larger roll out following pilot program results.
Responsibility for implementation: City Strategy and Design
The uptake of IWCM at the internal household uses such treatments will remove
household scale is an essential as toilet flushing and laundry pollutants from the stormwater
part of Moreland becoming a purposes as well as used for exiting a property and contribute
water sensitive city as it will garden watering reducing a towards Council’s stormwater
provide a significant boost to household’s water consumption quality targets.
achieving the community by up to 70%. In addition to
potable water reduction target reducing the consumption of The 2010 Greenlight Report
and the stormwater treatment potable water, water sourced found that 30% of Moreland
target. from rainwater tanks has households have a rainwater
a lower carbon footprint, tank. This figure is also
Two key components of IWCM is more sustainable and supported by Yarra Valley Water
at the household scale are reduces stormwater pollution. data. Target 7 aims to increase
rainwater tanks and on-lot the proportion of Moreland
stormwater treatment. On-lot stormwater treatment, households with an installed
most commonly in the form rainwater tank from 30% up to
Rainwater tanks can reduce of a raingarden, may either 50% and for half of the
community water consumption be a stand alone treatment households with a rainwater
and stormwater pollution at the or complement an installed tank to have an additional
same time through reducing rainwater tank. Stormwater stormwater treatment measure.
the quantity of stormwater treatment measures suitable for
leaving a property. To ensure use “on-lot” include household
displacement of potable water raingardens, vegetated swales
year round, a rainwater tank and downpipe diverters. Such
should ideally be installed for
CURRENT
30 50
TARGET
% %
of Moreland of Moreland
2010 2020
households that households to
have an installed have an installed
rainwater tank rainwater tank
in 2010 by 202030 Moreland Watermap 2020
Counting every drop monitoring, reporting
and data management
Monitoring and 1. Continue data management Review and reporting
data management process for potable water
use from Yarra Valley Reporting on our progress
Adequate and accurate Water bills or database under this plan is a critical
management of data that incorporates targets part of our accountability,
and information on water and indicators. stakeholder engagement
consumption, water reuse and and best practice integration
recycling and water quality is 2. Continue updating the process. It also enables us to
central to measuring progression monitoring database for review our priorities based on
towards water the targets. water quality improvements a range of external influences
based on modelling of and opportunities as they
Council is able to monitor water Council projects and emerge during implementation.
consumption and water quality information submitted in Reporting
through a variety of means and planning applications. and review will be underpinned
it is important that consistent 3. Continue monitoring program by our monitoring and data
methods are established so for WSUD treatment systems management processes and
that accurate benchmarking to determine effectiveness include the following key actions:
and comparison can occur over relative to modelled
the long term. A number of 1. Annual reporting of our
treatment predictions.
these monitoring and reporting progress towards the Vision
systems were established under 4. Develop a monitoring and the Targets of the plan
Council’s Integrated Water database to quantify impacts to Council.
Management Plan 2009-10 – of sustainability initiatives
2. Annual review of the
2012-13. included in developments
schedule of project priorities,
and measure relative to
The existing and future data scheduling, partners and
targets.
management and reporting delivery capacity.
actions that will be carried out 5. Install separate metering
3. A mid plan review and
during the life of this plan are for large scale water reuse
update completed after three
as follows: projects.
years
6. Investigate the installation of implementation.
of sub-metering at aquatic
centres.
Image: A household-scale raingarden (Melbourne Water). Image supplied courtesy of Melbourne Water.Moreland Watermap 2020 31 Image: Raingarden swale in Snapshot Drive, Coburg North
Moreland City Council’s
Integrated Water Management Plan
2014 - 2020
Appendix A
Implementation PlanMoreland Watermap 2020 | Appendix A – Implementation Plan 33
Overview
The purpose of Appendix A is to define the approach to implementation
of the actions set out in Watermap 2020.
Projects and costs are defined including the project’s contribution towards delivering the targets
and vision for Watermap 2020. The implementation plan will be reviewed annually to ensure the
actions and strategies, and their priority for delivery remain correct. The prioritisation of actions
will be measured against the criteria outlined below.
Timeframe for implementation
The schedule below provides an overview of the timing for implementation of the key actions
and will be updated annually based upon the outcomes from the annual review process.
Action 2014-15 2015-16 2016-17 2017-18 2018-19 2019-20
Stormwater harvesting D C C D C C
Audit of irrigation P
infrastructure
Upgrades to irrigation P P P P
infrastructure
Implement building water X X X X X X
efficiency program
Implementation of water X X X X X X
sensitive urban design program
Advocacy X X X X X X
Amendment C71 X X X X X X
Community IWCM program Pilot P P P P P
Key:
C = Construction D = Design X = Action (Design and construction within the same year)
P = Priority for consideration in this year unfunded. Subject to Council business case.
Project prioritisation
The prioritisation of the actions set out in this plan is based on the following criteria:
» Benefit to the community » Ability to attract external » Additional benefits provided
grant funding by the project (e.g. mitigation
» Contribution to meeting
of Urban Heat Island Effect,
Watermap 2020 targets » Alignment with other Council
increased community amenity)
strategies and priorities
» Capital outlay and return
on investment34 Moreland Watermap 2020 | Appendix A – Implementation Plan
Cost estimates
The cost estimates provided for implementation have been developed based upon Melbourne
Water’s WSUD life cycle costing data and previous projects that Council has undertaken.
Melbourne water WSUD life cycle costing data
Asset Asset Parameters Planning, Design and Ongoing
Construction costs Maintenance costs
Wetlands < 500m² $150/m² $10/m²/yr
500 to 10,000m² $100/m² $2/m²/yr
> 10,000m² $75/m² $0.5/m²/yr
Streetscape raingardens < 50m² $2,000/m² $30/m²/yr
50 to 250m² $1,000/m² $15/m²/yr
> 250m² $500/m² $10/m²/yr
Bioretention basins < 100m² $1,000/m² $5/m²/yr
(end-of-line raingardens) 100 to 500m² $350/m²
> 500m² $250/m²
Tree pits < 10m² total $8,000/m² $150/asset/yr
10 to 50m² total $5,000/m²
> 50m² total $1,000/m²
Previous Council projects
Project Cost Date Details
Sewell Reserve $64,485 (design) 2012 5ML/a. Treatment raingarden.
stormwater harvesting Gravity fed from stormwater
$518,487 drain. Above ground tanks.
(construction)
Charles Mutton Reserve $89,650 (design) 2014 13ML/a. Treatment raingarden.
stormwater harvesting Pump extraction from stormwater
$913,868 drain. Combination of above and
(construction) below ground tanks
Charles Mutton Reserve raingarden ~$327,000 2014 25m² above ground raingarden +
only site costs.
Please note that the projects for which cost estimates have been specified on following pages
have only had preliminary feasibility investigations completed. As such the costs estimates are
highly uncertain (~ +/- 50%)You can also read
