Module vs. SoC: what makes sense for your
next Wi-Fi product

 A Dialog VirtualZero™ Webinar

JUNE 2021

                                 © 2021 Dialog Semiconductor   1
MODULE VS. SOC: WHAT MAKES SENSE FOR YOUR NEXT WI-FI PRODUCT - A DIALOG VIRTUALZERO WEBINAR
Welcome to the Dialog Webinar
                                                                           2
                                                               3
Here are several important notes/tips before we
start:
1. Our webinar will be recorded
2. You will be muted for the whole webinar
3. You can ask questions during the webinar, use
   the Questions tab [1]
4. You can find audio settings in the Audio tab [2]
5. To minimize the GoToWebinar panel click on
   [3]
                                                                           1
In the Handout you will find a copy of todays
presentation along with links to find out more.

                                             © 2021 Dialog Semiconductor       2
MODULE VS. SOC: WHAT MAKES SENSE FOR YOUR NEXT WI-FI PRODUCT - A DIALOG VIRTUALZERO WEBINAR
What is Dialog ?
Global design centers coupled with local sales and expert field application support

    Employees globally¹

                                                                        US HQ                      Global HQ
                            USA: 31%                                    Santa                       London,
                                          Europe                        Clara                         UK
                                           52%                                                                             Asia HQ
                                   APAC                                                                                    Taipei,
                                    17%                                                                                    Taiwan

      Dialog Organization
                                                                                                    Sales Offices
      1. Advanced Mixed Signal: AC/DC, power conversion, PMIC,
                                                                                                    Major R&D Centers
      Backlight drivers, SSL and Configurable Mixed-signal ICs (CMICs)
      2. Custom Mixed Signal: Custom mixed signal ICs
      3. Industrial Mixed Signal: Custom and standard products including specialty memory targeted at
      Industry 4.0 and cloud connected server solutions
      4. Connectivity & Audio: Bluetooth® low energy (BLE), IoT Wi-Fi, audio, haptics and low latency wireless solutions
      5. Automotive: Leveraging technologies across Dialog

1~2300 Employees as of July 2020                                 © 2021 Dialog Semiconductor                                         3
MODULE VS. SOC: WHAT MAKES SENSE FOR YOUR NEXT WI-FI PRODUCT - A DIALOG VIRTUALZERO WEBINAR
Speaker Introduction

                                                                                               Omer Cheema
                     Dialog
                  Semiconductor                                                        Head of IoT Wi-Fi Business Unit

                                                                                        omer.cheema@diasemi.com
   Custom            Advanced          Connectivity
 Mixed Signal       Mixed Signal        and Audio

                                                                                                Ture Nielsen
                   Low Power                                                           Head of Wi-Fi Marketing EMEA
                                             Bluetooth   DECT
                     Wi-Fi
                                                                                         ture.nielsen@diasemi.com
                Today’s Presentation

                                                         © 2021 Dialog Semiconductor                                     4
MODULE VS. SOC: WHAT MAKES SENSE FOR YOUR NEXT WI-FI PRODUCT - A DIALOG VIRTUALZERO WEBINAR
Good News: EEMBC Wi-Fi Benchmark Results

▪ EEMBC IoTMark-Wi-Fi is designed to provide a comprehensive assessment of the entire
  platform in a real usage scenario
▪ Benchmark took 18 months to development
▪ Participants include Dialog, Silicon Labs (plus Redpine), Infineon (formerly Cypress), Texas
  Instruments, Altran, and STMicroelectronics.

                                        •      Roughly 815 days of battery life for a product running
                                               on 2 AA Alkaline batteries
                                        •      At least 50% better than the closest competitor

https://www.eembc.org/iotmark/wifi/         © 2021 Dialog Semiconductor                                 5
MODULE VS. SOC: WHAT MAKES SENSE FOR YOUR NEXT WI-FI PRODUCT - A DIALOG VIRTUALZERO WEBINAR
Dialog offers both SoC and Modules
No preference if customer chooses a module or an SoC for their design

               DA16200 SoC                                                      Wi-Fi Modules
       Lowest Power Wi-Fi SoC in Industry                                  Wi-Fi and BLE Combo Modules
              6mm

                                     3.8mm
        6mm

                             3.8mm

  Module or chip-down: Same experience for the customers
      • Support comes from Dialog, not from the third party
         • One supplier to manage
      • Same IDE: FreeRToS and IAR
      • Source code for Mobile Apps: both Android and iOS

                                             © 2021 Dialog Semiconductor                                 6
MODULE VS. SOC: WHAT MAKES SENSE FOR YOUR NEXT WI-FI PRODUCT - A DIALOG VIRTUALZERO WEBINAR
Build vs. Buy: Strategic Considerations

                      © 2021 Dialog Semiconductor   7
MODULE VS. SOC: WHAT MAKES SENSE FOR YOUR NEXT WI-FI PRODUCT - A DIALOG VIRTUALZERO WEBINAR
Strategic Consideration: Time to Market (TTM)

Time to Market means lost sales and less profitability                     When TTM is more Important

                                                            Illustrative   •   Seasonal Products
                                                                                 • Product sales window is
                                                                                   seasonal e.g. Christmas
                                                                                   Holidays, School year, Winter

                                                                           •   Goal is to be 1st in the market with
                                                                               novel features

                                                                           •   Last Gen product revenues are
                                                                               declining -> New product to re-
                                                                               invigorate demand

 ▪ Total COD = Lost Month Cost + Peak Reduction Cost

                                             © 2021 Dialog Semiconductor                                              8
MODULE VS. SOC: WHAT MAKES SENSE FOR YOUR NEXT WI-FI PRODUCT - A DIALOG VIRTUALZERO WEBINAR
Case Studies: Strategic Considerations

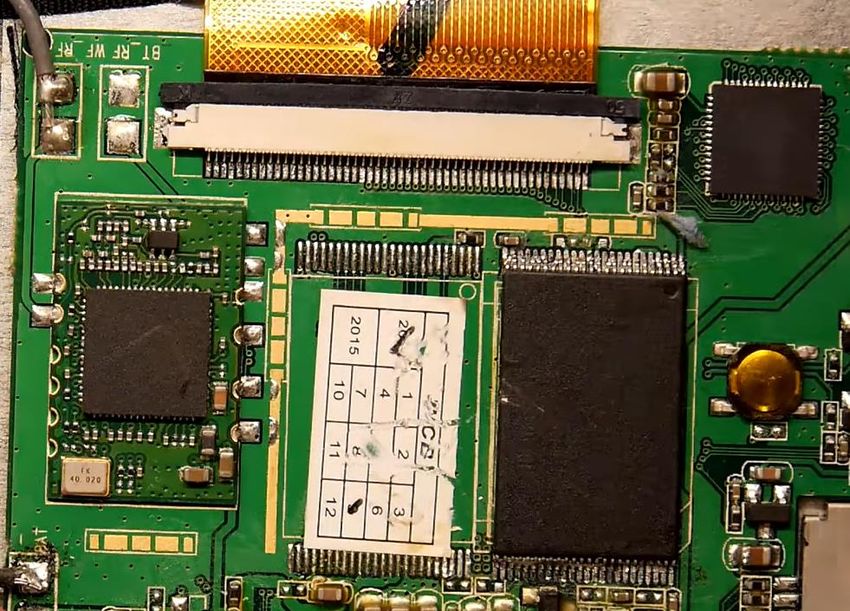

               Home Appliances                                                                           Tablets
Main board is used for both smart and “dumb”                                50%+ use Wi-Fi modules
appliances
                                                                            Benefits:
    •   Additional module to add connectivity\
                                                                                        •   Time to market is important
    •   NO need to redesign and re-certify main PCB for
        smart products                                                                  •   Supply Chain Complexity
    •   Easier to repair -> Customer support
        strategy

                                                          © 2021 Dialog Semiconductor                                     9
MODULE VS. SOC: WHAT MAKES SENSE FOR YOUR NEXT WI-FI PRODUCT - A DIALOG VIRTUALZERO WEBINAR
Product Requirement: Custom form factor

                 Irregular shapes                                                       Small Sizes
•   Circular                                                     •     Application has space constraints e.g. wearables
•   Triangle                                                     •     Looking for SiP or other advanced packaging e.g.
                                                                       ePoP (embedded package on package)
•   Other polygons
•   Non-geometric shapes

Why irregular shaped PCB are more expensive:
•   Materials usage
•   Substrate wastage
•   Product cost: routing machine
                                                                               DA16200 based Hongjia SiP module
•   Easier storage and transportation

                                               © 2021 Dialog Semiconductor                                                10
“Build vs. Buy” Cost Analysis

                      © 2021 Dialog Semiconductor   11
Build vs. Buy Analysis Framework
An excel model will be provided as part of webinar material for you to use for your project

                                 Costs Involved in Module Design

                                          Cost Analysis

     RF & Test         Other Design
                                          Certification                    Component      Inventory
    Engineering       Costs: Samples,
                                             Costs                           Costs        Overheads
       Costs            Equipment

                        Fixed Costs                                              Variable Costs
                  (Independent of Volumes)                                   (Dependent on Volumes)

                                             © 2021 Dialog Semiconductor                              12
Choosing a chipset with Lowest Possible BoM
Circuit of a typical DA16200 application
                                                        ▪ Designed for fewest external components
                                                          possible
                                                          Part           Quantity   Note

                                                          Wi-Fi SoC      1          DA16200 SoC

                                                          Flash          1          Not included because customer need for
                                                          Memory                    memory size vary
                                                          Xtal           1-2        40MHz (mandatory), 32KHz (Optional for
                                                                                    RTC)
                                                          Shield         1          Optional. Depending if the shield is on
                                                                                    end product or RF section
                                                          Antenna        1

                                                          Total RLC      19-25      Used internal tunable load capacitors.

                                                          Estimated BoM 60-90 cents excluding DA16200 -> Depending on
                                                          the volumes

                                                          Note: Competing SoCs might require additional components
                                                          e.g. Internal MCU, Balun, LFXO, more passives

                                           © 2021 Dialog Semiconductor                                                        13
Hidden Costs to consider when choosing an SoC

     Additional SoC choice parameters                                                    Pricing Trends
                                                                 •     Module vendors have more pricing power
                                                                       for SOC and passives because they
•   3Ps of Wi-Fi SoC: Price, Performance and                           aggregation volumes from many customers
    Power
                                                                 •     Individual customers: less pricing power
                                                                                    Other Costs to consider
•   Decide how important is each “P” for your
    product                                                      •     Supply situation, lead times
     • Price: No differentiation                                 •     Security features
         • Mostly used by “Me too” products
                                                                 •     Customer support:
     • Long battery life: battery operated                                   •   Dialog has best customer support
        applications                                                             infrastructure in industry
     • RF performance: e.g. Throughput                                            • Global FAE teams
                                                                                  • Ticketing support system

                                               © 2021 Dialog Semiconductor                                          14
RF Design and Test Engineering Costs

                    Cost of RF and Test Engineers                                                    Engineering Resource Requirements for
                                                                                                                 an RF module
•       RF and Test Engineering are specialized                                                          Engineering                   Item                   MM
        domains                                                                                                              Schematic                             0.50
                                                                                                                       EVT
          •        RF designs change based on Antenna supplier,                                                              Issue debug and validation            1.50
                   Antenna Type: PCB antenna vs external, Layout                                                             Schematic                             0.50
                   optimization, Parasitic, Fab constraints, Impact                                                    DVT
                   of housing and batteries                                                                                  Issue debug & characterization        2.00
                                                                                                           RF & Test
•       Fully loaded cost (salary + overheads) of                                                          Engineer
                                                                                                                             Schematic                             0.25
        RF engineers vary across geographies                                                                                 Issus debug & production
                                                                                                                             support
                                                                                                                                                                   1.00
          •        US (Bay Area): $150K-$200K                                                                          PVT
          •        Western Europe: €60K-€100K                                                                                Preparation for Qual/Env test         0.50
          •        Korea: ₩60M – ₩100M                                                                                       Preparation for certification         1.25
          •        China: 250K CN¥ -350KCN¥                                                                            EVT                                         0.50
                                                                                                   PCB engineer        DVT                                         0.50
                                                                                                                       PVT                                         0.25
•       Cost is still the same if Engineer is already on
        your staff                                                                                ~8-9 Man Months of Effort Depending on required certifications
          •        Accounting rules might vary across companies

EVT: Engineering Validation Test, DVT: Design Validation Test, PVT: Production
Validation Test                                                                  © 2021 Dialog Semiconductor                                                              15
Other Module Design Costs

          Samples, Material and Test Costs
                                                                                               Lab Equipment Costs
•   During Prototyping, EVT, DVT, PVT and mass
                                                                            Rent labs: $400-$800 per day. ~2-3 weeks for testing
    production
                                                                            Or setup the lab: $60K-80K installation and
                      • Samples, Material                                   2K/month maintenance
     Development
                      • Antenna Test -> Lab                                 • Shield Room/Anechoic Chamber: $20,000K
     ($20K-$25K)        equipment
                                                                            • Air-conditioning and Ventilation: $5,000
                                                                            • Wi-Fi Emulator/Sniffer; $20,000K
                      • EPOS: Hazardous materials
    Qual & Env Test   • ESD (Electrostatic discharge)                       • UPS: Installation and Maintenance costs: 10,000K
       ($3,500)       • Reliability Test: Temp range,                       • Wireless Testing Software: $3,000K
                        Drop etc.
                                                                            • Spectrum Analyzer: $2,000K
                                                                            • Antenna: $5,000K
    Mass Production   • MP test setup
                                                                            • Misc.: $5,000K
       ($3500)        • Socket Board etc.

                                                        © 2021 Dialog Semiconductor                                                16
Cost of Regulatory Approvals

     Overview of Wi-Fi Regulatory Approvals                          ~$20,000 cost for certification in major markets
                                                                                       Rough       Module certification accepted by the
                                                                                        Cost                     product
                                                                                       (USD)
                                                                         Wi-Fi         $600-       Depends on membership and if product
                                                                        Alliance       $7500               is core or derivative
                                                                        FCC (US)       $3,300
                                                                                                               Generally, Yes.
                                                                     IC (Canada)       $2,200
                                                                                                  •    Need to follow FCC Module
                                                                     CE (Europe)       $2,600
                                                                                                       Integration Guide v01: Shield
                                                                                                       requirements, Voltage Regulation
                                                                    SRRC (China)      $2,500
                                                                                                   • Antenna: follow reference antenna
                                                                     KCC(Korea)       $2,500       • No Material, schematics, additional
                                                                                                       components added
                                                                                                   • No Multiple RF modules are used
FCC (US), CE (Europe), ISEDC(Canada), SRRC (China), KCC              Additional Certifications e.g.• ULSystem
                                                                                                        for safety
                                                                                                                doesn’t exceed the spurious
(Korea) and Telec (Japan) for covering major markets                Telec (Japan)     $3,800
                                                                                                       emissions or output power limit

                                                                     Costs include personnel costs at the test lab
                                                      © 2021 Dialog Semiconductor                                                             17
Supply Chain Overheads
Hardware is hard. Supply chain is the hardest part of hardware

                    Module                                                              Chip Down Design

• One supplier to manage: Module                                   • Multiple suppliers to manage
  vendor                                                                       •   SoC, RLC, PCB, Crystal, Memories
                                                                               •   Different MoQs
                                                                               •   Different lead times
•   One point of failure when module
    vendor is also the SoC vendor                                              •   Different longevity of products
    •   Easy to identify and fix failures/bugs

                                                                   •     More resources to manage supply
                                                                         chain

                                                 © 2021 Dialog Semiconductor                                          18
Supply Chain Overheads for Chip Down Design

                                  Small Established
     Large Company                   Company                                 Startup
• Dedicated Supply Chain      • Part time supply chain              • No supply chain
  Department                    resources                             resources
                                  • Established
                                     relationships and
• Personnel costs are                system                         • No established
  higher: need to be spread                                           relationships with
                                  • Some QA processes
  over all projects handled                                           component vendors
  by the supply chain team
                              • Medium Personnel cost
                                                                    • Up to 10% of supply
• 1-2% inventory Overhead                                             chain overhead
                              • 3-5% of overhead

                                      © 2021 Dialog Semiconductor                           19
Using the Framework: Wi-Fi Module Example

                    © 2021 Dialog Semiconductor   20
Step 1: Estimating the Component Costs
Tab: Component Costs

Fill in the 25K unit costs of each component based on your knowledge: Fields in GREEN
      •    Embedded cost curve based on “Rule of Thumb” will model the price for higher volumes.
                      Wi-Fi                                                                                          Component BoM Cost with 95%
      •
# of Units            SoC      Flash Memory Crystals Antenna PCB             RLC              Shield      Others     Cost       Yield
                25000     2.25           0.27      0.29   0.05        0.06               0.11        0.07        0.1       3.20              3.37
                50000     2.03           0.24      0.26   0.04        0.05               0.10        0.06       0.09       2.88              3.03
               100000     1.94           0.23      0.25   0.04        0.05               0.09        0.06       0.09       2.76              2.90
               250000     1.78           0.21      0.23   0.04        0.05               0.09        0.05       0.08       2.52              2.65
               500000     1.74           0.21      0.22   0.04        0.05               0.08        0.05       0.08       2.46              2.59
              1000000     1.71           0.20      0.22   0.04        0.05               0.08        0.05       0.08       2.43              2.55
             25000000     1.68           0.20      0.22   0.04        0.04               0.08        0.05       0.07       2.39              2.51
             50000000     1.65           0.20      0.21   0.04        0.04               0.08        0.05       0.07       2.35              2.47

          • Assuming 95% yield at production, final BoM will adjust the number accordingly.
          • Feel free to adjust the volume pricing curve if your personal situation is different

Other includes connectors, power inductors etc.            © 2021 Dialog Semiconductor                                                              21
Step 2: Estimate Test & RF Engineering Costs
Tab: RF& Test Engineering

• Fill in fully loaded cost per year per engineer: Fields in GREEN
    • Fully loaded cost includes salary, bonus, pension, healthcare, vacations, office equipment etc.
    • Ask your HR/Accounting to better understand fully loaded cost of your resources
• Optional: Adjust Man Months Estimate depending on your project complexity
                            Engineering                             Item                         Man Months
                                                     Schematic                                         0.50
                                          EVT
                                                     Issue debug and validation                        1.50
                                                     Schematic                                         0.50
                                          DVT
                             RF & Test               Issue debug & characterization                    2.00
                             Engineer                Schematic                                         0.25
                                                     Issus debug & production support                  1.00
                                          PVT
                                                     Preparation for Qual/Env test (3rd party)         0.50
                                                     Preparation for certification (x5)                1.25
                                          EVT                                                          0.50
                         PCB engineer     DVT                                                          0.50
                                          PVT                                                          0.25
                         Total                                                                         8.75

                         RF & Test Engineering (Fully Loaded Costs) per year per Engineer         $150,000.00

                                                        © 2021 Dialog Semiconductor                             22
Step 3: Input Other Design Costs
Tab: Other Design Costs

        Samples, Materials and Test                                                         Lab Equipment Cost

• Estimate the Design, Qual and Mass                                • Choose if you are renting the lab or
  Production Costs                                                    have it in-house.     In case of Rental Equipment
    •   Fields in Green are pre-populated with
        a typical Wi-Fi module. Change If                                       Are you renting the lab? Equipment
                                                                                                         Yes       Cost
                                                                                                                    Rental/Day
                                                                                                                                             Column1
                                                                                                                                                    $700
        needed                                                                                                      Number of Days                     10

                                                                    •     Input Green fields for the     relevant case $7,000
                                                                                                  Total Equipment
        Material and Test Costs at
        Each Design Stage          Cost (USD)                              In case of Rental Equipment              In case of in-house lab and equipment
        Design                         $13,000                                                                      Item                       Cost
        Qual and Test                    $3,500                            Equipment Cost           Column1         Lab Setup Cost                $60,000.00
                                                                           Rental/Day                      $700     AC/Ventilation Cost/Month        $1,000
        Mass Production                  $3,500                            Number of Days                     10    Maintenance costs e.g. UPS batteries
                                                                                                                                                     $1,000
        Total                          $20,000                                                                      Number of days used                   10
                                                                           Total Equipment                 $7,000   Total Costs                      $1,000

                                                                           In case of in-house lab and equipment
                                                  © 2021 Dialog Semiconductor                                                                                  23
                                                                           Item                       Cost
Step 4: Input Certification Costs
Tab: Certification Costs

▪ Choose from the drop-down menu if the product is core or derivative for Wi-Fi alliance
  certification
▪ Select the geographies that need to be certified for.
                                  Column1             Certification Required?
                                  Wi-Fi Alliance      Core Product
                                  US                  Yes
                                  Canada              Yes
                                  Europe              Yes
                                  China               Yes
                                  Korea               Yes
                                  Japan               Yes

▪ Summary Tab: Input Supply Chain Overheads based on the feedback of supply chain teams
    ▪ If data is not available, enter 2% for large established companies, 5% for smaller companies and
      10% for a startup
                                Supply Chain Overhead                     3%

                                                   © 2021 Dialog Semiconductor                           24
Cost Analysis: A Wi-Fi Module with on-chip antenna
   Breakeven point at 190K units

Cost/ Unit (USD)                     Cost per unit by volume ($ USD)
    12.00                                       Breakeven
                                               (~190K units)
    10.00

     8.00

     6.00

     4.00

     2.00

     0.00
               25,000   50,000     100,000            250,000                 500,000             1,000,000   25,000,000   50,000,000
                                                     Number of Units

                                             Chip Down Design Cost                 Module Price

                                                     © 2021 Dialog Semiconductor                                                        25
DA16200 Module
▪ The DA16200MOD is a small size module solution for IoT applications
▪ The fully integrated module consists of:
    ▪ DA16200 SoC, 4MB flash memory, RF components including crystal oscillator, RF lumped filter, and either a chip
      antenna or a connector for an external antenna
▪ Single power supply voltage (3.3V) operation
    ▪ VBAT, VDD_DIO1,2
▪ 37 pin out
    ▪ GPIO, J-tag, RTC control, UART, Power input and 32.768KHz
▪ DA16200 module SKUs
    ▪ DA16200MOD-AAC4WA32: with on board chip antenna
    ▪ DA16200MOD-AAE4WA32: with external antenna connector (u.FL)
    ▪ Both modules have the same dimensions
    ▪ 13.8mm x 22.1 mm x 3.3 mm
▪ Certifications
    ▪ FCC, IC, CE, Telec, Korea, SRRC, Wi-Fi

                                          © Copyright 2020 Dialog Semiconductor. All Rights Reserved.
                                                   Highly Confidential - Internal to Dialog                            26

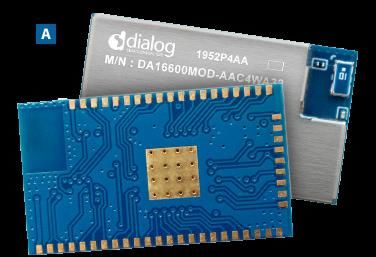

DA16600 Wi-Fi + BLE Combo Module
▪ The DA16600MOD is a module for lowest power Wi-Fi + BLE
▪ The fully integrated module consists of:
    ▪ Wi-Fi SoC : DA16200 (6x6 QFN)
    ▪ BLE SoC : DA14531 (2.2x3 FCGQFN)
    ▪ 4MB Flash memory (5x6 8-pin 150mil)
    ▪ 40MHz XTAL for Wi-Fi
    ▪ 32MHz XTAL for BLE
    ▪ 32.576 RTC XTAL for Wi-Fi DPM operation
    ▪ One Antenna : Chip antenna or uFL connector
    ▪ SPDT
▪ Single power supply voltage (3.3V) operation
▪ DA16600 module SKUs
     ▪ DA16600MOD-AAC4WA32: with on board chip antenna
     ▪ DA16600MOD-AAE4WA32: with external antenna connector (u.FL)
▪ Dimensions
     ▪ Both modules have the same dimensions
     ▪ 14mm x 24 mm x 3.3 mm
▪ Certifications
     ▪ FCC, IC, CE, Telec, Korea, Wi-Fi
                                                 © Copyright 2020 Dialog Semiconductor. All Rights Reserved.
                                                          Highly Confidential - Internal to Dialog             27
Dedicated Direct Support
Customer’s Success is Dialog’s success

▪ Dedicated FAE support
    ▪ Global network of Regional FAEs
    ▪ Online Forum from Q2 2021
▪ Ticket support available
    ▪ Fully trackable support
    ▪ Easy access to dedicated design team
▪ Long product life time
    ▪ All Low Power Wi-Fi products on Dialog Longevity program
    ▪ Minimum 10 year product life guaranteed
▪ New FreeRTOS/GCC SDK
▪ AT Command Tool

                                    Confidential – subject to Non-Disclosure Agreement restrictions.   28
When to Choose a Module vs SoC: Summary

     Choose chip-down design when:                                     Choose a module when:

•   Your product volumes are high                          • You need to get to market fast
•   You have a large R&D budget                            •     You need to minimize design risk
•   You have equipment to measure
    antenna performance                                    • You don’t have RF experts on staff
•   You have schedule for multiple rounds                  •     You don’t want to invest in Test/Lab
    of prototyping to get the antenna tuning                     Equipment
    right
                                                           •     You don’t want your engineering
•   You have experts who understand                              resources tied up in RF design
    compliance testing and filing
•   You need smaller or custom form factor
    for the module

                                         © 2021 Dialog Semiconductor                                    29
Question and Answers

For more details, reach out to:
Omer Cheema: omer.cheema@diasemi.com
Powering the Smart Connected Future
        www.dialog-semiconductor.com
           Personal • Portable • Connected

                    © 2021 Dialog Semiconductor   31
You can also read
