Model 31 and 33 DVI Gas Fireplace Inserts
Model 31 and 33 DVI
Gas Fireplace Inserts

                 BUILT IN
                AMERICA
Model 31 and 33 DVI Gas Fireplace Inserts

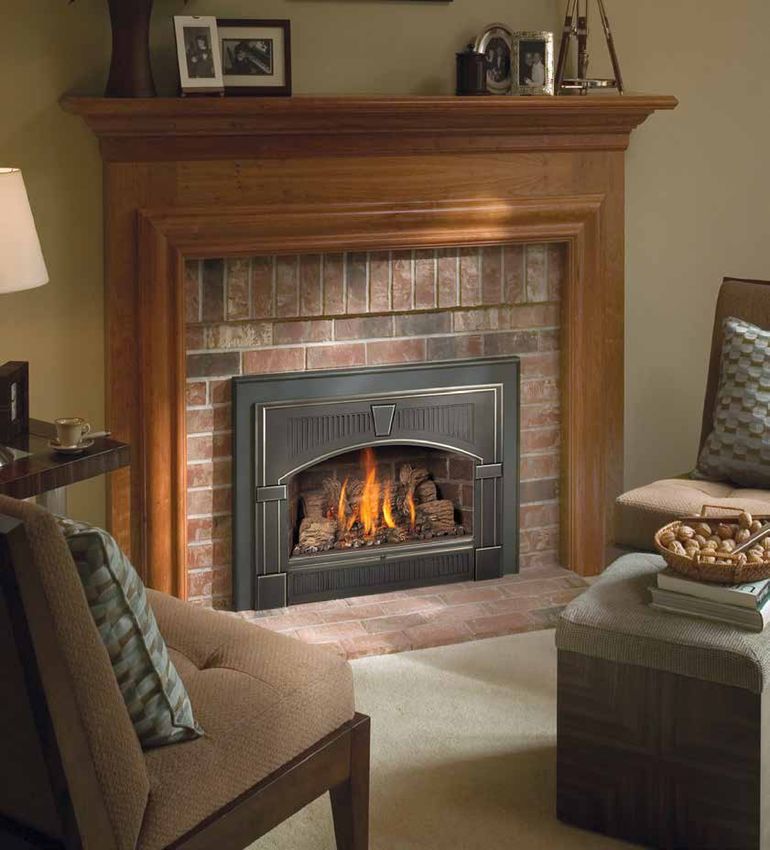

31 DVI Shown with Discovery face, traditional log-
         set and common brick fireback options.
Model 31 and 33 DVI Gas Fireplace Inserts
Model 31 and 33 DVI
Gas Fireplace Inserts
Great Features At An Affordable Price
Modeled after the top-selling Lopi DVS GSR and DVL GSR inserts, the Lopi DVI gas inserts offer the same top
quality construction, beautiful fire and high heat efficiency with a simplified control system. They are
controlled manually from the dashboard - or for added convenience you can choose an optional wall thermostat
or a remote control thermostat.

The 31 & 33 DVI include the GreenSmart 2 system which allows you the widest heating range possible utilizing
the Comfort Control feature that turns the rear burner on and off and the Flame Control feature for higher or lower
flames. With the new technology and the GreenSmart Pilot you only use the amount of fuel necessary to maintain
your desired temperature for the most consistent and efficient fire possible.

The DVI series will turn your cold, inefficient masonry or zero clearance fireplace into a beautiful source of
heat for your home. These inserts are “heater rated” and they are perfect for zone heating a room or as a
primary heater for your home.

Features
• Dancing-Fyre Burner with your choice of media options
• GreenSmart 2 control system - latest technology, easy to use
• Large ceramic glass offers a great viewing area and heat transfer
• Heater rated, high efficiency inserts
• 180 CFM blower comes standard, increasing efficiency and heat transfer into your home
• Approved for installation into both Masonry and Zero Clearance Fireplaces
• LP conversion kit included at no additional cost

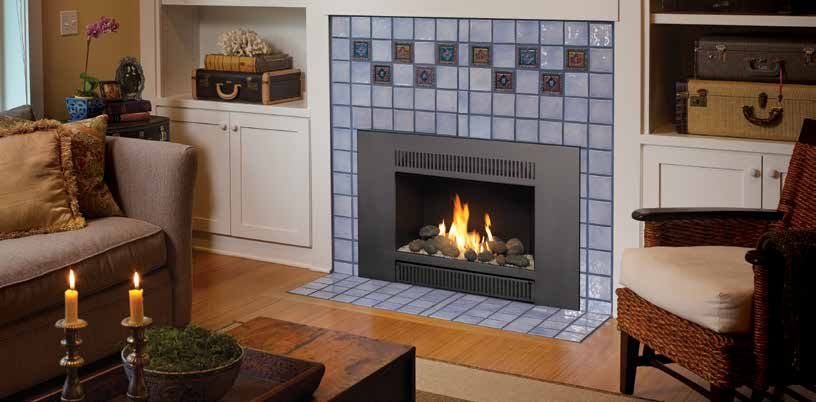

                                                                                   33 DVI Shown with Universal face
                                                                         and Fyre-Stone Rock Set with Platinum Glass
Model 31 and 33 DVI Gas Fireplace Inserts
Face Options
                      All faces are shown with the Traditional logs and ember set.

   Complete Face/Panel These faces do not require Finish Panels.
Universal                                                                 Independence™ Double Door
                                                                              31 DVI ONLY 29” H x 40 3/8” W SKU: 95100327
                                     31 DVI   Small: 23” H x 37” W
                                              SKU: 95100050
                                     31 DVI   Large: 29” H x 40” W
                                              SKU: 95100051

                                     33 DVI   Small: 27” H x 40” W
                                              SKU: 95100055
                                     33 DVI   Large: 33 1/2” H x 44” W
                                              SKU: 95100056

Faces These faces may require Finish Panels to complete. See Finish Panels on next page.
Discovery™          Dimensions: 31 DVI = 21 1/2” H x 32” W | 33 DVI = 26” H x 35 3/4” W
                                    Black Door Frame (Standard)
                                    31 DVI - SKU: 99300464
                                    33 DVI - SKU: 99300468

                                                          Antique Gold Door
                                                               Frame option
                                               31 DVI - SKU: 99300440 Only

Wilmington™            Dimensions: 31 DVI = 22 1/2” H x 32 1/4” W | 33 DVI = 27” H x 36” W
                                     Black Paint Finish
                                     31 DVI - SKU: 99500146
                                     33 DVI - SKU: 99500200

                                                              Carbon Patina
                                                    31 DVI - SKU: 95100238
                                                    33 DVI - SKU: 95100638

                                     Brushed Nickel Arabesque Grill option
                                     Shown on the Wilmington Face in the Black Painted Finish

                                     A brushed nickel plated Arabesque Grill set is available to change the
                                     look of the Wilmington face.

                                     Switch the standard vertical grills which ship with the face and the
                                     optional Arabesque grills any time you’d like for different looks
                                     depending on your mood.

                                     Available ONLY on the 31 DVI - SKU: 91002185
Finish Options
Choose from Logset or Stones
Easily transforms the overall look and appearance by allowing the insert to fit a wide range of
architectural styles. The Traditional Log Set comes with glowing embers and beautifully detailed logs. The Fyre-Stone
Rock Kit and Driftwood Fire Art offer the choice of three reflective glass colors: platinum, bronze or cobalt blue.

          Traditional Log Set                 Fyre-Stone Rock Kit with Glass Media              Driftwood Fire Art with Glass Media

Add A Fireback
As An Option
Both DVI inserts ship with
a painted black interior or
you have the option of add-
ing a realistic ceramic brick
fireback that looks like real       Common Straight Brick                Herringbone Brick                  Handmade Brick
masonry brick. For a more
contemporary look, add the
stainless steel liner or glossy
black enamel firebacks to add
a new dimension of depth to
your insert.
                                                        Stainless Steel                      Black Enamel
                                                     (will patina with use)
Finish Panels
To complete the picture after the insert is installed in your fireplace, a set of panels are attached to the insert to accommo-
date the size variance between the insert face and the size of your existing fireplace opening.

31 DVI - 3 Piece Panels
4” x 6” Panels = 37 1/8” W x 25” H
8” x 10” Panels = 40 3/8” W x 28 7/8” H
10” x 13” Panels = 44 3/8” W x 31 7/8” H
8” x 10” Arched Panels = refer to Owner’s Manual
31 DVI - One Piece Panels
38” W x 25” H
40” W x 28 1/2” H
                                                                  Three Piece Panel                One Piece Panel
33 DVI - 3 Piece Panels
4” x 6” Panels = 40” W x 29” H
8” x 10” Panels = 44 3/16” W x 33 3/8” H
10” x 13” Panels = 48 3/16” W x 36 3/8” H
8” x 10” Arched Panels = refer to Owner’s Manual
33 DVI - One Piece Panels
42” W x 30 1/2” H
44” W x 34” H
                                                                    Arched Panel              Lower Zero Clearance Panel
GREEN SMART Technology   2                          TM

                         The patent-pending GreenSmart 2™ System is the most innovative collection of components,
                         controls and technology that when combined provides an elegant, smarter and greener way
                         to heat your home.
  GreenSmart 2 Manual System
  A dashboard is located under the front of the 31 DVI and 33 DVI models, and is operated manually.

               1                          2               3
                                                                              4       5            6
  1.   Convection Blower Rheostat Control: OFF and HIGH to LOW adjustments.
  2.   Variable Flame Control: This control adjusts flame and heat up and down.
  3.   Two Position Pilot Selection: Push up for continuous pilot and down for GreenSmart Pilot.
  4.   Comfort Control: Push UP for both burners and DOWN for front burner only.
  5.   Battery Back-Up: Automatically switches from AC to battery during power outages and back again when power is restored.
  6.   Main Burner Switch: This switch turns the burner ON/OFF.

Drop Down Concealment Door
The control valve and wires are hidden by our concealment door to provide an elegant, finished appearance.
The concealment door conveniently opens and closes for easy access to the controls.

                                Closed                                                      Open
Highly Visible Dashboard
The manual controls are located on a black dashboard behind the concealment door. All controls are clearly labeled with white
silk-screened lettering.

Comfort Control™
The Comfort Control, operates the split-flow burner system.
Push the button to OFF and your Comfort Control will turn
off the rear burner while leaving the front burner on for
an attractive flame appearance when less heat is desired.
                                                                 Control Panel Lighting
This feature offers a turn-down ratio of up to 81%! Push
the button to ON and the rear burner will light giving you       When the concealment door is opened, control panel lighting
maximum heat when you need it. This offers you the most          is automatically turned on to make viewing controls on the
beautiful fire and more heating flexibility than any other       dashboard easy in a low light environment in your home. LED
product. Another smarter, greener way to enjoy fire in           lights are powered by a 9 volt battery for use even during
                                                                 power outages.
your home.

                      Continuous Pilot (Standing) or GreenSmart Pilot (IPI)
                      This switch allows you to run in either Continuous Pilot mode or GreenSmart Pilot mode. A continuous pilot
                      stays on all the time, ideal during cold weather when a draft is needed for safe, reliable operation. It also
                      reduces condensation which can form on the glass when the appliance is first turned on. The GreenSmart Pilot
                      mode uses an intermittent pilot ignition (IPI) spark to light the pilot flame only when the unit calls for heat,
                      therefore conserving energy when the appliance is not being operated. This system includes a battery back-up,
                      ensuring proper ignition even during power outages.
Installation Specifications
Always refer to and use the Installation Manual for complete install information.
31 DVI Insert                                                                                      33 DVI Insert
Heating Capacity:* 500 to 1,500 Sq. Ft.                                                            Heating Capacity:* 600 to 2,000 Sq. Ft.
Maximum BTU/HR Input:** 31,000 (NG/LP)                                                             Maximum BTU/HR Input:** 40,000 (NG/LP)
Minimum BTU/HR Input:** 10,700 (NG) 12,600 (LP)                                                    Minimum BTU/HR Input:** 11,900 (NG) 7,400 (LP)
P4 Efficiency (FE):** 70% (NG) 72.35 (LP)                                                          P4 Efficiency:** 70.05 (NG) 70.23 (LP)
Dimensions:            Height = 19-1/2”                                                            Dimensions:                 Height = 23-3/4”
		                     Width = 26-1/2” (Front), 18” (Back)                                         		                          Width = 31-1/2” (Front), 20” (Back)
		                     Depth = 15-1/8”                                                             		                          Depth = 14-1/2”
                       Glass Area = 24-1/8” W x 12-7/8” H                                                                      Glass Area = 27-7/8” W x 16-7/8” H
* Heating Capacity will vary with floor plan and ceiling height, Insulation, and outside ambient temperature.
** The EnerGuide P4 efficiency rating (FE) is the only recognized measurement of vented gas appliances in Canada and used by many USA gas utilities. The FE rating
   reports an appliances true energy efficiency by taking into account all its energy losses and by considering its overall performance during an entire heating season, not just
   on the day of testing.

Fireplace Requirements:                                                              Venting Requirements:
Insert must be placed within a code-conforming masonry or                            • Requires UL listed (441 or 1775) Gas Liner for exhaust and air inlet.
tested and listed factory-built (metal) wood burning fireplace.                      • 31 DVI - Co-linear Adapter 3” & 3” to Simpson Duravent 6 5/8” and flashing.
                                                                                       33 DVI - Co-linear Adapter 3” & 4” to Simpson Duravent 6 5/8” and flashing.
                                                                                     • Simpson Duravent High-Wind Vertical Termination Cap
                                                   31 DVI - Min. 26 1/2”
                                                   33 DVI - Min. 31 1/2”
              31 DVI                                                                                        31 DVI - Exhaust 3” Dia.
         Min. 19 1/2”                                                                                       33 DVI - Exhaust 4” Dia.
             33 DVI                                                                                                                                         Air Inlet
        Min. 23 3/4”                                                                                                                                        3” Dia.
                                                                                    31 DVI
                                                                                    15 1/8” into fireplace
                                                                                    33 DVI
                                                                                    14 1/2” into fireplace            Max. Height: 40 ft.
                                                                                                                      Min. Height: 8 ft.
 Gas line shutoff                                                                   Leveling
 valve included                                                                     bolts
 with insert

 NOTE: Measurements will vary if                                                                                                                         Max. 2 ft.
       using one piece panel                                                                                                                             offset

Minimum Clearances:                                                                                       Ma
                                                                                                             nte
                                                                                                                  l
           31 DVI   33 DVI                                                                                                                    Listings:
                                                                                                               To                             This appliance was listed by
Sidewall to insert:        A = 4-1/2”         A = 4”                                                              p   Fa
                                                                                                                        cin                   OMNI and Intertek Test Labs
Side facing:               B = 4-1/2”          B = 4”                                                                      g
                                                                        Sidewall                                                              to ANSI Z21.88 Report
                                                                                       A              D
Top facing:                C = 35”*            C = 35-1/2”*                                                                                   #028-F-73-5. The listing label is
Mantel:                    D = 35”*            D = 35-1/2”*                                                                                   attached to the appliance near
                                                                                                                                              the gas control valve.
Extension on Hearth E = 1-1/4”                 E = 1-1/4”
                                                                                                                               C
*Measured from the base of the insert.                                                                                                        IAS (ICBO)
                                                                                                                                              Approval
Mantel & Top Face Clearance:                                                                   B                                              This appliance was listed by
                                                                                                                                              OMNI Test Labs - IAS # TL130.
Maximum Mantel Depth is 12”
Maximum Top Facing Depth is 3/4”                                                                                                              Massachusetts
(otherwise considered a Mantel)
                                                                                                                                   E          Approval
                                                                                                                                              Submitted to the Massachusetts
Hearth Requirements:                                                                                                                          Board of State Examiners of
A non-combustible hearth extension is not required. However, if the heater is installed                                                       Plumbers and Gas Fitters
next to the floor, we recommend a hearth to protect the flooring surface from discoloration.
Children, like most of us, are fascinated by fire, and
                                                                                       for families with young children, fireplaces pose a
                                                                                       potential safety hazard. Take the time to educate
                                                                                       young children about the dangers of fire and the hot
                                                                                       surface temperatures of glass and metal surround-
                                                                                       ing the fireplace insert. If you have an infant or tod-
                                                                                       dler consider installing a fire screen; make sure it’s
                                                                                       tall enough so that children can’t climb over it, and
                                                                                       that it’s placed far enough away so that reaching
                                                                                       arms can’t touch the surfaces of the fireplace. A few
                                                                                       precautions such as these will allow everyone in
                                                                                       your home to safely enjoy the comfort and warmth
                                                                                       of your new gas fireplace insert.

                   Scan the QR Code                  Remote Control
                   to watch a video
                                                     Adding a remote provides for the ultimate in convenience
                   of the 31 DVI Burning.
                                                     when operating of your fireplace insert. The remote offers
                   http://vimeo.com/11933511
                                                     ON/OFF and thermostat setting. This remote control also
                                                     offers a clock, fireplace timer to turn off your insert and a
                                                     childproof lockout.
                   Scan the QR Code
                   to watch a video
                   of the 33 DVI Burning.
                                                     Wall Thermostat
                   http://vimeo.com/11933375
                                                     The wall thermostat can be wired up to 25 feet away
                                                     from the appliance and allows for easy hands-free
                                                     convenience.

                                                     Insert Wiring Kit
                                                     If you do not want to run a power cord across your hearth when using the
                                                     optional fan or remote, use optional wiring kit to hard-wire your AC power
                                                     from inside the fireplace.

Your Authorized Lopi
Dealer Is Located At:

www.lopistoves.com
Photos and illustrations are for descriptive purposes only. We reserve the right to improve or change our products without prior notification.
 Dancing-Fyre™ and all other trademarks belong to Travis Industries, inc. Consult the Owner’s Manual for complete installation requirements.
© Copyright T. I. 03/2013		                           Printed in the U. S. A.				                                                 98800142
You can also read
