Microkernels and their verification: seL4 - Timothy Bourke Systèmes et réseaux-ENS DI L3, 2017-2018 - DI ENS
Microkernels and their verification: seL4

              Timothy Bourke

  Systèmes et réseaux—ENS DI L3, 2017-2018

                                             1 / 52
Microkernels and their verification: seL4 - Timothy Bourke Systèmes et réseaux-ENS DI L3, 2017-2018 - DI ENS
Why are operating systems used?
‘Operating system’ in the narrow sense: i.e., the kernel, and not the user
interface libraries, window manager, minesweeper, etcetera.

For sharing
 • memory,
 • computation time and processors, and,
 • input/output devices (keyboards, disks, graphics).

For abstraction (a base for building bigger systems):
 • application portability (i.e., hardware independence, device drivers);
 • common services (e.g., file systems, access control);
 • concurrency and communication—
     • with protection,
     • and access control (for untrusted users and applications).

              Lots of low-level details and bookkeeping!
                                                                         2 / 52
Microkernels and their verification: seL4 - Timothy Bourke Systèmes et réseaux-ENS DI L3, 2017-2018 - DI ENS
Protection modes: overview
A kernel is more than just a standard library of code. It works closely with
hardware. It controls other processes and manages their interactions.

Most processors have protection modes that
They control access to the processor and core hardware—interrupt
controllers, memory management units, timers.
The kernel runs in privileged mode (kernel mode):
 • It can change the address spaces of other processes;
 • It can configure and respond to interrupts (i.e., preempt);
 • If it misbehaves, the whole system can crash.
Other code runs in user mode:
 • under an illusion of an isolated and flat address space;
 • using system calls to setup interaction with hardware and other
    processes.
 • If it misbehaves, the kernel can recover.
                                                                          3 / 52
Microkernels and their verification: seL4 - Timothy Bourke Systèmes et réseaux-ENS DI L3, 2017-2018 - DI ENS
Bad memory access in user mode

                                 4 / 52
Microkernels and their verification: seL4 - Timothy Bourke Systèmes et réseaux-ENS DI L3, 2017-2018 - DI ENS
Bad memory access in protected mode

                                      5 / 52
Microkernels and their verification: seL4 - Timothy Bourke Systèmes et réseaux-ENS DI L3, 2017-2018 - DI ENS
Bad memory access in protected mode

 Address incorrectly reference
                                                        instruction address
                                IRQL used for access

                                              0 = read, 1 = write

     Cause: This Stop error message usually occurs during instal-
     lation when there was an attempt in kernel mode to touch
     pageable memory at too high a process internal request level
     (IRQL). Typically, this error occurs when a driver uses an in-
     correct memory address. Other possible causes of this er-
     ror include an incompatible device driver, a general hardware
     problem, or incompatible software.
     http://support.microsoft.com/kb/314063

                                                                              5 / 52
Microkernels and their verification: seL4 - Timothy Bourke Systèmes et réseaux-ENS DI L3, 2017-2018 - DI ENS
Protection modes: switching mode
Interrupts
 • User-mode processes make system calls by loading arguments into
    registers and triggering a software interrupt.
 • Device interrupts (incl. timers) also trigger the kernel.

Traps: Execute an illegal instruction to trigger a CPU trap.
Special instructions
 • Modern Intel processors have sysenter and sysexit instructions.
 • AMD processors have syscall and sysret instructions.

Alternatives
 • No protection: small embedded systems.
 • Type-safe OSes: e.g., Singularity     .
                                       [?]

                                                                     6 / 52
Microkernels and their verification: seL4 - Timothy Bourke Systèmes et réseaux-ENS DI L3, 2017-2018 - DI ENS
How much code should run
   in privileged mode?

                           7 / 52
Microkernels and their verification: seL4 - Timothy Bourke Systèmes et réseaux-ENS DI L3, 2017-2018 - DI ENS
How much code should run
            in privileged mode?
• The minimum.

                                    7 / 52
Microkernels and their verification: seL4 - Timothy Bourke Systèmes et réseaux-ENS DI L3, 2017-2018 - DI ENS
How much code should run
             in privileged mode?
• The minimum.
  “But it must be fast and easy to write!”
  Monolithic kernels

                                             7 / 52
How much code should run
             in privileged mode?
• The minimum.
  “But it must be fast and easy to write!”
  Monolithic kernels

• The absolute minimum.

                                             7 / 52
How much code should run
              in privileged mode?
• The minimum.
  “But it must be fast and easy to write!”
  Monolithic kernels

• The absolute minimum.
  “But it can be fast and it is a better architecture for building
  systems!”
  Microkernels

                                                                     7 / 52
How much code should run
              in privileged mode?
• The minimum.
  “But it must be fast and easy to write!”
  Monolithic kernels
  (Windows, Linux, *BSD, MacOS)

• The absolute minimum.
  “But it can be fast and it is a better architecture for building
  systems!”
  Microkernels
  (Minix, EROS, L4, seL4)

                                                                     7 / 52
Monolithic kernels: Windows

              Windows NT 4 architecture (1996)
                                                 8 / 52
Monolithic kernels: Linux

                            9 / 52
Hardware                                                         Hardware

Microkernels
         • Kernel provides no services, only mechanisms
         • Strongly dependent on fast IPC and exception handling

      COMP9242 S2/2013    5   ©2012 Gernot Heiser, UNSW/NICTA. Distributed under Creative Commons Attribution License

                                                                                                                        10 / 52
Pr" U"DBWDB_Dx%&##%2D"# /                                                                                                                                                                                                                                                                                                                         ª¥²N²                                        ¡g¢ ¯¶­¥¡
                         2D1Pr)2$2)B&"2PUD)of                                                                                                                                                                                                                                                                              81"uÙN81F:N8D2
                                             ¦                                                                                                                                                                                                                                                                                      ¡g¢ ³¥¨¥¡
               ²N´rµ$¬«.žN,4                                                                                                                                                                    ¡g¢ £r©¥¡                                                                                                                                          "#)B lí "#)7C"PhDB_Dx"2E#S%UC82S%LT&BdS/
                                               ¦                                                                                                                                                                                                                                       ¡g¢ §g¯¶®
                                   ±¥·                                                                                                                                                                                                                                                  ¡g¢ §r£¥¤
                                                                                                                                                                                                                                                                                                                                                                     •Œblack=i-cache
                                                                                                                                                                                                                                                                                                                                                                                     L2 (a#8 D4/
                                                   ¦                                   ¡Y¢ ¡r³¥®                                                                                                                                                                                                                                                                     •^white=other                                                         causes
                                                                                                                                                                                                                                                                                                                                                                                      D1Pr"#3&D &"#S%88D:"f&>DC"Ph>e$+Yf7)
       ^:And                                                                           that         81"U!there                                              2))"Dis                                                                            no        82Dfundamental                                    reason      :))"#)E#CDwhy                        >!D"Ta                   microkernel,                                        if
                         • >T                                                                                                                                                                                                                                                              S3ÕB&Dx:                                                                                                  )|   /
        T&5dproperly                           12))S3B&DÖdesigned,                                                                      8#8DS%~DS%&4cannot                                                                                                3(D .+88Dbe          L2fast.
                                                                                                                                                                                                                                                                                                                                     %                                  M&81Cte$+gf#7)(TN8))BWoD;"P6!"81S%&o:N8
           %#+y878D U7I%|7d:LT&5
Key microbenchmark: round-trip IPC time in cycles
 Name        Year   Processor                       MHz     Cycles    µs
 Original    1993   i486                               50      250   5.00
 Original    1997   Pentium                           160      121   0.75
 L4/MIPS     1997   R4700                             100       86   0.86
 L4/Alpha    1997   21064                             433       45   0.10
 Hazelnut    2002   Pentium 4                       1,400    2,000   1.38
 Pistachio   2005   Itanium 2                       1,500       36   0.02
 OKL4        2007   XScale 255                        400      151   0.64
 NOVA        2010   Core i7 (Bloomf eld) 32-bit     2,660      288   0.11
 seL4        2013   Core i7 4770 (Haswell) 32-bit   3,400      301   0.09
 seL4        2013   ARM11                             532      188   0.35
 seL4        2013   Cortex A9                       1,000      316   0.32

             Table 1: One-way IPC cost of var ious L4 kernels.

The context-switch friendliness of the hardware is an important factor.
                                                                            [?]

                                                                          12 / 52
200
                 mechanisms
Microkernels:
          – L4 performance
               V2 API: 7 system calls plus                                                                     L4 with cache flush

                     a few kernel protocols                                    100                                                L4
                   – reduced IPC complexity
                   – 15 kLOC(?) x86 assembler                                                                                 raw copy

                                                                                  0
                                                                                      0               2000                 4000          6000
                                                                                                             Message Length [B]

         COMP9242 S2/2013   22   ©2012 Gernot Heiser, UNSW/NICTA. Distributed under Creative Commons Attribution License

                                                                                                                                                13 / 52
L4 family of microkernels
On µ-Kernel Construction—Liedtke, SOSP 1995

Feature inclusion based on essential functionality and not performance
 • Address spaces (page-based virtual memory)
 • Threads
 • IPC: Inter-Process Communication
    (i.e., transferring messages between address-spaces via the kernel;
     also for communicating interrupts)

Implement (minimal) mechanisms, not policy
Outside the kernel: memory managers, pagers, device drivers.

(See also: From L3 to seL4: What Have We Learnt in 20 Years of L4
Microkernels?—Elphinstone and Heiser, SOSP 2013)
                                                                          14 / 52
The seL4 microkernel

What is seL4?
 • seL4 is a 3rd-generation microkernel in the L4 tradition.
 • It comprises about 10,000 lines of C and 600 lines of assembler.
 • It was developed at NICTA in Sydney.
 • It is a capability-based system.

It has undergone extensive formal analysis.
Why?
  1   A kernel is essential to a Trusted Computing Base (TCB).
  2   A high-performance microkernel is hard to program correctly.
  3   Microkernels are small—there are less lines of code to verify.

                                                                       15 / 52
seL4: what does it do?
 • A critical ‘brick’ for building secure and trustworthy systems.
 • Share computing resources between several subsystems.
 • Control communications between subsystems with different levels of
    criticality and trustworthiness.

Typical applications
 • Mixed-security workstation:
    a single machine with simultaneous access to a secure network and
    the Internet.
 • Mobile phones:
    execute dedicated telecommunications code and user applications on
    the same processor and not on separate chips.
 • Isolation and protection of intellectual property.

Replace physical separation by capability-based security and validated by
formal proof.
                                                                        16 / 52
DARPA HACMS: High-Assurance Cyber Military Systems
                                                       mission computer
                               Link to       Critical
                            ground station                  Virtual machine
                                              and               (Linux):

                                             Secure             Wifi
                                                                 +
                                Crypto
                                                               Camera

                                                             (non-critical,
                                                              not secure)
       flight computer      CAN interface    Drivers

                                             seL4

 • Research prototype: quadcopter
 • seL4 runs on the mission computer.
 • It shares a single computing unit between critical components and an
   unsecured virtual machine.
 • The attacker has access to the Linux subsystem and tries to
   compromise the rest of the system.
                                                                              17 / 52
DARPA HACMS: High-Assurance Cyber Military Systems
                                                         mission computer
                                Link to        Critical
                             ground station                   Virtual machine
                                                and               (Linux):

                                               Secure             Wifi
                                                                   +
                                 Crypto
                                                                 Camera

                                                               (non-critical,
                                                                not secure)
       flight computer        CAN interface    Drivers

                                               seL4

 • Commercial platform: the ‘Unmanned Little Bird’ (ULB)
   ‘potentially autonomous’ helicopter developed by Boeing.
   (https://ts.data61.csiro.au/projects/TS/SMACCM/)
 • Execute legacy code on seL4 then successively isolate components to
   reduce attack surfaces and facilitate analysis of the architecture.
 • Same principle of secure separation for other systems.                       17 / 52
What is a capability?

     A capability is a communicable, unforgeable token of
                          authority.
It contains:
  • A reference (e.g., a pointer) to an object (e.g., a memory page, a
     thread, a fifo), and,
  • access rights (e.g., read, write, grant, send, receive).

They must be protected from modification.

An example:
 the string "/etc/passwd"                     is not a capability.

                                                                         18 / 52
What is a capability?

     A capability is a communicable, unforgeable token of
                          authority.
It contains:
  • A reference (e.g., a pointer) to an object (e.g., a memory page, a
     thread, a fifo), and,
  • access rights (e.g., read, write, grant, send, receive).

They must be protected from modification.

An example:
 the string "/etc/passwd"                     is not a capability.
 "/etc/passwd" and O_RDWR                     is not a capability either.

                                                                            18 / 52
What is a capability?

     A capability is a communicable, unforgeable token of
                          authority.
It contains:
  • A reference (e.g., a pointer) to an object (e.g., a memory page, a
     thread, a fifo), and,
  • access rights (e.g., read, write, grant, send, receive).

They must be protected from modification.

An example:
 the string "/etc/passwd"                     is not a capability.
 "/etc/passwd" and O_RDWR                     is not a capability either.
 fd = open("/etc/passwd", O_RDWR)             is (almost) a capability.

                                                                            18 / 52
Capabilities in seL4
Capabilities for everything
 • Most notably for memory management.
 • Tricky: also used to allocate memory to store (more) capabilities.

Key concepts
 • CPtr: Capability addresses (integers given to user processes).
 • CSpace: The ‘address space’ of process capabilities.
 • CNode: A Capability Table in the CSpace.
 • CTE: Capability Table Entry (a ‘slot’ containing a capability).

                                                                        19 / 52
Capabilities in seL4
Capabilities for everything
 • Most notably for memory management.
 • Tricky: also used to allocate memory to store (more) capabilities.

Key concepts
 • CPtr: Capability addresses (integers given to user processes).
 • CSpace: The ‘address space’ of process capabilities.
 • CNode: A Capability Table in the CSpace.
 • CTE: Capability Table Entry (a ‘slot’ containing a capability).

Communicable
 • Capabilities may be sent via IPC.
 • Parts of CSpaces may be shared between processes
    (just as with virtual memory).
                                                                        19 / 52
Capability lookup
                                     14                                                              CHAPTER 3. CAPAB

 • A capability address is just an integer            CNode
                                                                                                  Guard      0x0 (4 bits)

                                                                                                   0x00        Object

    (‘handle’/‘token’).                                Guard    0x000 (12 bits)
                                                                                                               Object
                                                                                                               Object

                                                        0x00 CNode
 • It is resolved to a capability by the                                                                   CNode

    kernel (or not).                                                 Object
                                                                     Object                        0xFF

                                                                                                          4 bit guard + 8 bit radix = 12 bits
                                                               CNode
 • Thread CSpaces are implemented as                    0xFF
                                                                                                          translated
                                                                                                          32 - 20 - 12 = 0 bits remaining

    guarded page tables:                                                                          Guard      0x0 (3 bits)

      • efficient
                                                                                                    0x0
                                                         12 bit guard + 8 bit radix* = 20 bits                 Object
                                                         translated. 32 bit word - 20 bits = 12

      • sparse
                                                         bits remaining
                                                         *(2^8 = 256 slots)

                                                                                                          CNode

 • Lots of flexibility (read: complexity)                                                           0xF
                                                                                                                   CNode

     • sharing and ‘lending’ subspaces;                                                                   3 bit guard + 4 bit radix = 7 bits
                                                                                                          translated
                                                                                                          32 - 20 - 7 = 5 bits remaining

     • Allocated memory (‘Untyped’
                                               Figure 3.2: An example CSpace demonstrating object referen
        capabilities) can be chopped up to     all levels, various guard and radix sizes and internal CNode refer
                                                                                                                                      [?]
        increase a CSpace.
                                     It should be noted that Figure 3.2 demonstrates only what is possi
                                     usually practical. Although the CSpace is legal, it would be reason
                                     work with due to the small number of slots and the circular 20
                                                                                                  reference
                                                                                                    / 52
System calls

System calls are made by ‘invoking’ capabilities.
 • The client invokes a Send or SendWait on an object capability.
                                     Client                                       Kernel

                                              Object Cap                 Object
                      Request
                               SendWait                                                    Syscall
                       Result
                                              Reply Cap                 Endpoint

                 Figure 2.3: A request by a client for a kernel service. The dotted lines represent the
                             conceptual flow of control and data during the request.

                                                                                                            [?]

 • The type of the object and a message field determine the call made.
 • The kernel may send a response on a given reply capability.
 • The message field may contain other capabilities (e.g., copying
    cnodes).
                                     Client                                       Server

                                          Service Cap                   Service Cap          Wait
                     Request
                                                                                                          21 / 52
the destination slot.
   seL4 CNode         src root     CPTR to the CNode that forms the root of
                                   the source CSpace. Must be at a depth of 32.
   seL4 Word          src index    CPTR to the source slot. Resolved from the
                                   root of the source CSpace.
   uint8 t            src depth    Number of bits of src index to resolve to find
                                   the source slot.
   seL4 CapRights     rights       The rights inherited by the new capability.
                                   Possible values for this type are given in Sec-
                                   tion 3.1.3.

Return value: A return value of 0 indicates success. A non-zero value indicates that
an error occurred. See Section 9.1 for a description of the message register and tag
contents upon error.
Description: See Section 3.1.2.

                                                                                     22 / 52
Deleting and Revoking capabilities
Delete: removes a capability from a slot
 • Simple.
 • Unless it is the last capability to an object: then the object is
    destroyed.
 • Destroying a TCB or CNode requires deleting all of the child
    capabilities (and so on. . . )

Revoke: removes previously granted rights
 • Deletes all derived capabilities.
 • Leaves the actual capability intact.
 • The bookkeeping is done by a Capability Derivation Tree (CDT)
     • Track all child capabilities generated by retyping and copying.
     • Conceptually a tree. Implemented as a doubly-linked list.

                                                                         23 / 52
Object 1                                       derived       derived
                        derived   derived   derived
                                                           badged        badged

                       Figure 3.1: Example capability derivation tree.

level 4, both are the original capability to the respective object, both are children
the untyped capability they were created from.
Ordinary original capabilities can have one level of derived capabilities. Further cop
of these derived capabilities will create siblings, in this case remaining on level 5. Th
is an exception to this scheme for endpoint capabilities — they support an additio
layer of depth with the concept of badged and unbadged endpoints. The orig
endpoint capability will be unbadged. Using the mint method, a copy of the capabi
with a specific badge can be created. This new, badged capability to the same ob
is treated as an original capability (the “original badged endpoint capability”)
supports one level of derived children like other capabilities.

3.2     Deletion, Revocation, and Recycling
                                                                                   24 / 52
seL4: design, development, and
          verification

                                 25 / 52
26 / 52
David Cock                                       Alexander Kroh                                     Vernon Tang
Adrian Danis                                     Etienne Le Sueur                                   Michael von Tessin
Matthias Daum                                    Corey Lewis                                        David Tsai
Jeremy Dawson                                    Japheth Lim                                        Harvey Tuch
Philip Derrin                                    Anna Lyons                                         Adam Walker
Dhammika Elkaduwe                                Tran Ma                                            James Wilmot
Kevin Elphinstone                                Daniel Matichuk                                    Simon Winwood
Kai Engelhardt                                   Stephanie McArthur                                 Jiawei Xie
Matthew Fernandez

   © 2016 Data61/CSIRO. Legal notice and Disclaimer (http://www.csiro.au/About/Footer/Legal-notice) · Contact us (/contact/) · privacy
                   (http://www.csiro.au/About/Access-to-information/Privacy) Served by Apache on Linux on seL4.

                                                                                                                            26 / 52
Online Repositories

Developed in L4.verified and later (on-going) projects.
 • Source code (Haskell and C):            https://github.com/seL4/seL4

 • Proofs (Isabelle):   https://github.com/seL4/l4v

                                                                          27 / 52

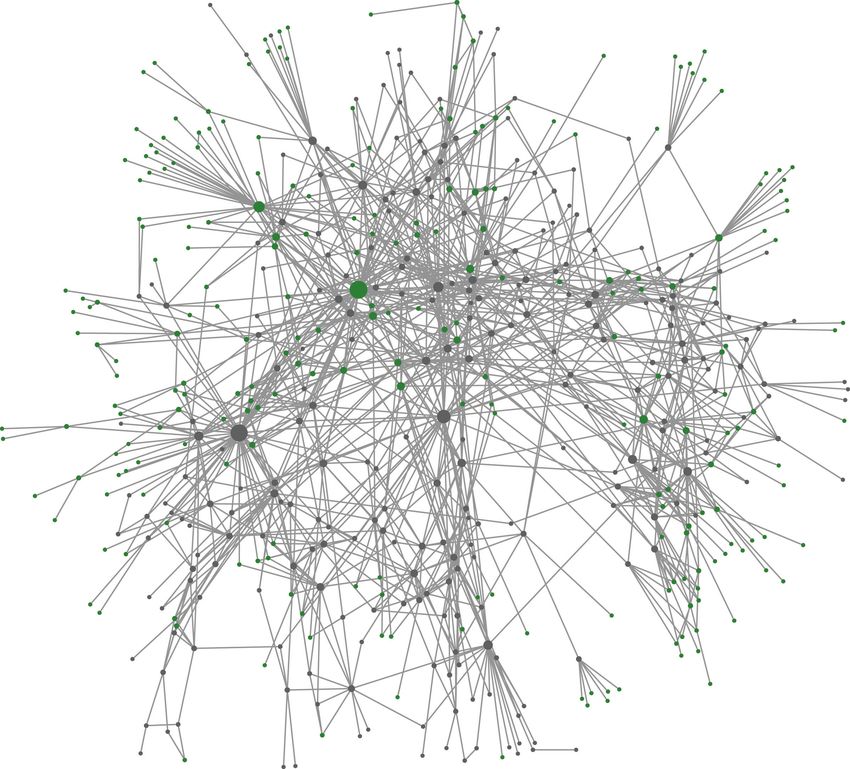

seL4 call graph

                                   [?, Figure 1]

 • Good: Small code base (
Abstract specification
 • Non-deterministic model in a higher-order logic.
 • Defines the kernel’s binary interface and the effect of calls on
    an abstract state.
                                  Abstract
                                specification
Haskell prototype                                           iterative
                                                            development
 • A shared language between systems
    programmers and formal methods experts
                                                      Haskell prototype
 • Iterative and rapid prototyping
 • Defines an implementation of the specification
 • It is executable: co-simulation with QEMU
 • Model with algebraic data types (records, lists, etc.)
 • Functional expressions without side-effects (maps, folds, etc.)
 • Manipulate global state in a monadic style
     • Global program variables (Model/StateData.lhs)
     • ARM Machine state (Model/StateData/ARM.lhs)

                                                                          29 / 52
Reactive model

             [?, Figure 10]

                              30 / 52
Abstract
specification
                     iterative
                     development

                Prototype Haskell

                                    31 / 52
Abstract
specification

 Executable     translator
                             Prototype Haskell
specification

                                                 31 / 52
Abstract
                                specification

                                 Executable     translator
                                                             Prototype Haskell
                                specification

                                                                       manual
Why rewrite the kernel in C?                                           implementation

 • Haskell requires a significant run-time
    environment (even bigger than the kernel).               C Implementation

 • It requires a garbage collector.
 • The manual translation gave opportunities for
    micro-optimization.

                                                                                        31 / 52
Abstract
                         specification

                          Executable     translator
                                                      Prototype Haskell
                         specification

                                                                manual
                                                                implementation

                                          parser
Model of the C implementation
                                                      C Implementation
   (operational semantics)

                                                                                 31 / 52
Abstract
                         specification

                                 refinement

                          Executable            translator
                                                             Prototype Haskell
                         specification

                                                                       manual
                                 c-refinement                          implementation

                                                 parser
Model of the C implementation
                                                             C Implementation
   (operational semantics)

                                                                                        31 / 52
Abstract specification (Isabelle/HOL)

 seL4/l4v:/spec/haskell/spec/abstract/Schedule_A.thy

Executable specification (Haskell)                     C implementation

seL4/l4v:/spec/haskell/src/SEL4/Kernel/Thread.lhs
                                                       seL4/seL4:/src/kernel/thread.c   32 / 52
Modelling state
 • (Most) Global and local variables as fields in a record.
 • Model the heap as a mapping from addresses to bytes.
                                              heap_mem                                                                             heap_mem
                                                 ...                        byte list
                                                                                                                                        ...
                                                 204     heap_update_list      204         to_bytes
                                                                                                          int                          204
                                                 136                           136
                          size_of TYPE(int)                                                           1646954700                       136
                                                 42                             42
                                                         heap_list                      from_bytes
                                                 98                             98                                                     42

                                                  0                                                                                    98
                                                  1                                                                                     0
                                                  0
                                                                                                                                        1
                                                  0
                                                                                                                                        0
                                                 34

                                                 65
                                                                                                                                        0

                                                 20                                                                                    34
                                                 ...                                                                                   65

                                                                                                                                       20

                                                                                                                                        ...
                                              Figure 3. int heap representation                                    [?]

 • Actual model: model multiple ‘typed’ heaps.                                 [?]                                                     Figure 4. In
                            In this work we deal primarily with C’s base and pointer types
                        but it is possible to extend this to compound types. Array indexing,
 • Requires reasoning about offsets, alignment, overlap, validity, etc.,
                        access, and update semantics can be expressed in terms of the cor-
                                                           rewrite rules connecting the m
                        responding pointer semantics. C’s struct types can be translated
   but sometimes unavoidable.                              this kind of aliasing when prog
                        to Isabelle record types, however the models in this paper require
                                                           ment of C.
                        extending when fields have their address taken2 or padding is in-
 • Automatic generation of bitfield access routines and associated         proofs
                                                               In this type-safe fragment,
                        volved. Similarly, union types can be treated as datatypes when a
                                                           language would be based on
                        tag field can be identified, and otherwise translated to type-casts.
   (Python script).                                        for each language type, e.g. a
                        Low-level heap access and update Heap dereferences in expres-                               this avoids the problem of inter
                        sions, e.g. ∗p + 1 are given a semantics by first lifting the raw heap                       proofs, it does not allow
                                                                                                                                          33 / us
                                                                                                                                               52 to
                        state with the polymorphic lift function, e.g. lift s p + 1 where s is
C: source to model

 kernel_all.c_pp      StrictC-parser   Simpl model   vcg   proof obligations

Simpl: Sequential IMperative Programming Language             [?]

 • General model of imperative programming in Isabelle/HOL
    (exceptions, local and global variables, pointers and heap, . . . )
 • Big-step operational semantics Γ ` hc, si ⇒ s 0
 • Small-step operational semantics
 • Hoare logic (i.e., axiomatic semantics; derived thus correct)
 • Verification Condition Generator
    a tactic to automate weakest precondition reasoning

                                                                           34 / 52
C: source to model

  kernel_all.c_pp   StrictC-parser   Simpl model   vcg   proof obligations

datatype (dead ’s, ’p, ’f) com =
    Skip
  | Basic "’s => ’s"
  | Spec "(’s * ’s) set"
  | Seq "(’s,’p,’f) com" "(’s,’p,’f) com"
  | Cond "’s bexp" "(’s,’p,’f) com" "(’s,’p,’f) com"
  | While "’s bexp" "(’s,’p,’f) com"
  | Call "’p"
  | DynCom "’s => (’s,’p,’f) com"
  | Guard "’f" "’s bexp" "(’s,’p,’f) com"
  | Throw
  | Catch "(’s,’p,’f) com" "(’s,’p,’f) com"

                                                                         34 / 52
C: source to model

  kernel_all.c_pp     StrictC-parser   Simpl model   vcg   proof obligations

StrictC: parsing into Isabelle for a subset of C
 • Treats a large subset of C (no goto, no side-effects in expressions, . . . )
 • Allows some annotations to help the proof tools.
 • The command install_C_file
     1 parses a C file,
     2 translates it into a Simpl program,
     3 discharges some minor proof obligations,
     4 generates lemmas for unmodified globals.

 • The translation into Simpl encodes the semantics for C and gives a
    model.

                                                                           34 / 52
Abstract
                       specification

                               refinement

                        Executable            translator
                                                            Haskell prototype
                       specification

                                                                      manual
                               c-refinement                           implementation

                                              parser
Model of C implementation
                                                           C implementation
 (operational semantics)

                                                                                       35 / 52
Abstract
                                  specification

                                          refinement

                    lateral
                  refinement       Executable            translator
fastpath                                                               Haskell prototype
                                  specification

                                                                                 manual
     c-refinement                         c-refinement                           implementation

                                                         parser
           Model of C implementation
                                                                      C implementation
            (operational semantics)

                                                                                                  35 / 52
Abstract
                                  specification

                                          refinement

                    lateral
                  refinement       Executable            translator
fastpath                                                               Haskell prototype
                                  specification

                                                                                 manual
     c-refinement                         c-refinement                           implementation

                                                         parser
           Model of C implementation
                                                                      C implementation
            (operational semantics)

                                                                               gcc -O1

                                                                        seL4 binary

                                                                                                  35 / 52
Translation validation of binary in HOL4
                 • Extremely rigours, but no longer ‘end to end’:
                     more formal tools
                                        Comprehensive Formal Verification of an OS Microkernel                            2:27
                 • Work on gcc -O2 continues. . .
                                    Abstract
                                  specification

                                          refinement

                    lateral
                  refinement       Executable                   translator
fastpath                                                                             Haskell prototype
                                  specification

                                                                                                     manual
     c-refinement                         c-refinement                                               implementation

                                                                 parser
                                                                  Fig. 12. Binary verification overview for seL4.
           Model of C implementation
                                                                                  C implementation
            (operational semantics)
                                           We use two SMT solvers, Z3 [de Moura and Bjørner 2008] and Sonolar [Peleska et al.
                                        2011]. We use Z3 first with a small time-out, because it is fast, even though it solves
                                        fewer goals. Sonolar is slow but stronger on the theory of arrays and bit vectors which
                                        model memory and machine words.                      gcc -O1
                        HOL4 + SMT         One key aspect of this work is the link between two existing semantics and the
                                        link to an existing proof: we join a well-validated hardware model with the Isabelle C
                                        semantics and the invariants and assertions that have already been proven on it.
                                           The latter is important, because traditional translation validation approaches must
                                        assume what the C standard gives in terms of language guarantees, similarly to the
                                                             read bytes
                                        CompCert theorem. Since, as mentioned, OS kernel code purposefully breaks the C
            Model of binary
                                        standard, these approaches typically failseL4      binary
                                                                                     at such code. Our approach, however, can
       (Cambridge ARM semantics)        adapt assertions to fit with existing memory invariants, giving the translation valida-
                                        tion proof more information, even where the C standard is followed only partially. Not
                                        only does this make the translation validation succeed, it also gives assurance that the
                                        compiled code has the expected behaviour, even where it is outside the standard.35 / 52
                                           Using this approach, we have managed to verify the binary correctness of all seL4
• The specification is implemented by the binary. . .
           • But the abstract specification is itself a complicated
               program.
           • Does it have the desired properties?
                                    Abstract
                                  specification

                                          refinement

                    lateral
                  refinement       Executable             translator
fastpath                                                                Haskell prototype
                                  specification

                                                                                  manual
     c-refinement                         c-refinement                            implementation

                                                           parser
           Model of C implementation
                                                                       C implementation
            (operational semantics)

                                                                                gcc -O1
                        HOL4 + SMT

                                                         read bytes
            Model of binary
                                                                         seL4 binary
       (Cambridge ARM semantics)

                                                                                                   35 / 52
Capacity dis-
                    tribution

                 pas-refinement

                                    Abstract
                                  specification

                                          refinement

                    lateral
                  refinement       Executable             translator
fastpath                                                                Haskell prototype
                                  specification

                                                                                  manual
     c-refinement                         c-refinement                            implementation

                                                           parser
           Model of C implementation
                                                                       C implementation
            (operational semantics)

                                                                                gcc -O1
                         HOL4 + SMT

                                                         read bytes
            Model of binary
                                                                         seL4 binary
       (Cambridge ARM semantics)

                                                                                                   35 / 52
integrity
                  Capacity dis-                    Access control and
                    tribution                       information flow

                 pas-refinement                      pas-refinement

                                    Abstract
                                  specification

                                             refinement

                    lateral
                  refinement       Executable                translator
fastpath                                                                   Haskell prototype
                                  specification

                                                                                     manual
     c-refinement                            c-refinement                            implementation

                                                              parser
           Model of C implementation
                                                                          C implementation
            (operational semantics)

                                                                                   gcc -O1
                         HOL4 + SMT

                                                            read bytes
            Model of binary
                                                                            seL4 binary
       (Cambridge ARM semantics)

                                                                                                      35 / 52
Model of capability distribution and access control

                                                      [?, Figure 13]

                                                              36 / 52
Assumptions made by the proof

 • Correctness of the initialization code (no longer the case).
 • Correctness of the C compiler and linker (no longer the case).
 • Correctness of assembly code and hardware:
     • Register save and restore;
     • Context switch on kernel exit;
     • Cache consistency, colouring and TLB flushing.

                                                                    37 / 52
Assumptions made by the proof

 • Correctness of the initialization code (no longer the case).
 • Correctness of the C compiler and linker (no longer the case).
 • Correctness of assembly code and hardware:
     • Register save and restore;
     • Context switch on kernel exit;
     • Cache consistency, colouring and TLB flushing.

               What about mistakes in the proof?

                                                                    37 / 52
Guarantees given by the proof
 • No code injection attacks (not allowed by spec)
 • No buffer overflows
    • All array accesses within bounds.
    • All pointer accesses are well typed.
 • No NULL pointer access: proof obligation at every pointer access
 • No ill-typed pointer access: proof obligation at every pointer access
 • No memory leaks: consequence of design, proven.
 • Termination: all kernel calls terminate.
 • No arithmetic or other exceptions: modelled at C-level, proven.
 • No unchecked user arguments: all user input is checked and validated.
 • Aligned objects: all objects are aligned to their size; none overlap.
 • Well-formed data structures: properties of linked lists.
 • Algorithmic invariants: many optimizations rely on certain properties
    being true. These are shown as invariants.
                                                                           38 / 52
seL4: Size of code, specs and proofs

                                       [?, Figure 17]
                                                        39 / 52
Fig. 19. Development and Proof Efforts (starred numbers come from rigorous effort counting, others are
conservative estimates).

ACM Transactions on Computer Systems, Vol. 32, No. 1, Article 2, Publication date: February 2014.
highest level of certification. EAL7 does not require the code
to be formally linked to the design model, and the industry
rule-of-thumb for the lower EAL6 is already $1000/LOC.”

        Fig. 19. Development and Proof Efforts (starred numbers come from rigorous effort counting, others are
        conservative estimates).

        ACM Transactions on Computer Systems, Vol. 32, No. 1, Article 2, Publication date: February 2014.

                                                                                                                 40 / 52
seL4: Bugs

             [?, Figure 20]

                              41 / 52
Maintenance de la preuve

                           42 / 52
Ordonnancement dans seL4

  TCB

        ..
         .
   tcbState
  tcbPriority

  tcbQueued

 tcbTimeSlice

        ..
         .
Ordonnancement dans seL4

  TCB           setThreadState():
                runnable /
        ..      blocked / idle
         .
   tcbState
  tcbPriority

  tcbQueued

 tcbTimeSlice

        ..
         .
Ordonnancement dans seL4

  TCB           setThreadState():
                runnable /
        ..      blocked / idle
         .
   tcbState
  tcbPriority

  tcbQueued

 tcbTimeSlice

        ..
         .      decremented
                by timerTick()
Ordonnancement dans seL4
                                         Globals

  TCB           setThreadState():
                runnable /                 ksCurThread       tcb
        ..      blocked / idle
         .
                                                   ..
   tcbState                                         .         255

  tcbPriority                                                 254   tcb
                                          ksReadyQueues
  tcbQueued          tcbSchedEnqueue()                        253   tcb   tcb
                     tcbSchedDequeue()
 tcbTimeSlice                                      ..          ..
                     tcbSchedAppend()                           .
                                                    .
        ..
         .      decremented                                    0
                by timerTick()
                                         ksSchedulerAction
Ordonnancement dans seL4
                                              Globals

  TCB            setThreadState():
                 runnable /                     ksCurThread      tcb
        ..       blocked / idle
         .
                                                        ..
   tcbState                                              .         255

  tcbPriority                                                      254       tcb
                                              ksReadyQueues
  tcbQueued           tcbSchedEnqueue()                            253       tcb   tcb
                      tcbSchedDequeue()
 tcbTimeSlice                                           ..          ..
                      tcbSchedAppend()                               .
                                                         .
        ..
         .       decremented                                        0
                 by timerTick()
                                             ksSchedulerAction

  utilisateur                             utilisateur

  callKernel()                                    schedule()
                      système

                                                                 chooseThread()
Ordonnancement dans seL4
                                              Globals

  TCB            setThreadState():
                 runnable /                     ksCurThread      tcb
        ..       blocked / idle
         .
                                                        ..
   tcbState                                              .         255

  tcbPriority                                                      254         tcb
                                              ksReadyQueues
  tcbQueued           tcbSchedEnqueue()                            253         tcb      tcb
                      tcbSchedDequeue()
 tcbTimeSlice                                           ..          ..
                      tcbSchedAppend()                               .
                                                         .
        ..
         .       decremented                                        0
                 by timerTick()
                                             ksSchedulerAction          ResumeCurrentThread

  utilisateur                             utilisateur                   SwitchToThread
                                                                             possibleSwitchTo()
  callKernel()                                    schedule()
                      système                                           ChooseNewThread

                                                                 chooseThread()
Ordonnancement dans seL4
Modification ‘Non-lazy’                       Globals

  TCB            setThreadState():
                                                             Plus dans la file d’attente
                 runnable /                     ksCurThread         tcb
        ..       blocked / idle
         .
                                                        ..
   tcbState                                              .           255

  tcbPriority                                                        254         tcb
                                              ksReadyQueues
  tcbQueued           tcbSchedEnqueue()                              253         tcb      tcb
                      tcbSchedDequeue()         Runnable
 tcbTimeSlice                                           ..            ..
                      tcbSchedAppend()                                 .
                                                         .
        ..
         .       decremented                                          0
                 by timerTick()
                                             ksSchedulerAction            ResumeCurrentThread

  utilisateur                             utilisateur                     SwitchToThread
                                                                               possibleSwitchTo()
  callKernel()                                    schedule()
                      système                                             ChooseNewThread

                                                                   chooseThread()
                                                                                           43 / 52
Modifications requises
 Spécification abstraite

        REFINE

   Prototype Haskell

       CREFINE

   Implémentation C
Modifications requises
 Spécification abstraite

        REFINE

   Prototype Haskell

       CREFINE

   Implémentation C
                  1. patch original
Modifications requises
 Spécification abstraite

        REFINE

   Prototype Haskell
                  2. patch
                  correspondant
       CREFINE

   Implémentation C
                  1. patch original
Modifications requises
 Spécification abstraite
                  3. patch mineur

        REFINE

   Prototype Haskell
                  2. patch
                  correspondant
       CREFINE

   Implémentation C
                  1. patch original
Modifications requises
                                                                                     [. . . .]

                                        AInvs                       [HOL]                         [BASE_REFINE]             KernelInit_AI

 Spécification abstraite                                         Invariants_H
                                                                                  LevityCatch

                  3. patch mineur               StateRelation                    Invocations_R

                                                                      Corres

                                                                    Bits_R

                  4. correction des             Machine_R                         EmptyFail

        REFINE       preuves
                                                             KHeap_R

                                                                   SubMonad_R

                     (modifications                                ArchAcc_R

                                                                   CSpace_I

                     des invariants)                              CSpace_R

                                                                 TcbAcc_R

   Prototype Haskell                            VSpace_R                        InterruptAcc_R

                  2. patch             Schedule_R                   Retype_R

                  correspondant
                                       IpcCancel_R                                    Detype_R

                                                             Finalise_R                          Untyped_R

                                                     Ipc_R                         Arch_R

       CREFINE                             CNodeInv_R                                     Interrupt_R

                                                     Tcb_R

                                                                             Syscall_R

                                                                       ADT_H                          PageTableDuplicates

                                                                IncKernelInit

   Implémentation C                                   InitLemmas                      KernelInit_R

                                                                                     Refine

                  1. patch original                                               Orphanage

                                                       REFINE
Modifications requises
                                                                                    [. . . .]                                                                                                           Pure

                                                                                                                                                                                                       [HOL]

                                       AInvs                       [HOL]                         [BASE_REFINE]             KernelInit_AI
                                                                                                                                                                                      [HOL-Word]                      [VCG-orig]

 Spécification abstraite                                        Invariants_H
                                                                                 LevityCatch                                                                                                  [WORD]

                                                                                                                                                                                                     [UMM]

                  3. patch mineur
                                                                                                                                                                                                              [Sep]

                                               StateRelation                    Invocations_R
                                                                                                                                                                                                            [vcg]

                                                                     Corres                                                                                                                          [CKERNEL]

                                                                                                                                                                                      SimplRewrite                    [CSPEC]
                                                                   Bits_R

                                                                                                                                                                                      CToCRefine                            [CBASE_REFINE]

               4. correction des               Machine_R                         EmptyFail
                                                                                                                                                                           DetWPLib              LemmaBucket_C                  SIMPL_Lemmas             MonadicRewrite        Move

        REFINE    preuves
                                                            KHeap_R                                                                                                DetWP                 CLevityCatch                   Corres_UL_C                 XPres

                                                                  SubMonad_R                                                                                                             Wellformed_C                  CCorresLemmas               MonadicRewrite_C

                  (modifications                                  ArchAcc_R
                                                                                                                                                                                            StateRelation_C

                                                                                                                                                                                              SR_lemmas_C
                                                                  CSpace_I

                  des invariants)                                CSpace_R
                                                                                                                                                                                   TcbQueue_C                       Corres_C

                                                                                                                                                                                                     Ctac
                                                                TcbAcc_R

   Prototype Haskell                           VSpace_R                        InterruptAcc_R                                                      CSpaceAcc_C            Machine_C                         TcbAcc_C                  PSpace_C                Detype_C

                  2. patch            Schedule_R                   Retype_R                                                                    CSpace_RAB_C            CSpace_C

                  correspondant
                                      IpcCancel_R                                    Detype_R                                                    CSpace_All                                  VSpace_C

                                                            Finalise_R                          Untyped_R                                                                     StoreWord_C

                                                    Ipc_R                         Arch_R

       CREFINE                            CNodeInv_R                                     Interrupt_R
                                                                                                                                                              SyscallArgs_C

                                                                                                                                                                 IpcCancel_C
                                                                                                                                                                                              Retype_C

                  5. correction                     Tcb_R

                                                                            Syscall_R                                                      Interrupt_C
                                                                                                                                                                     Finalise_C

                                                                                                                                                                  Ipc_C                                         Delete_C

                  des preuves                                         ADT_H                          PageTableDuplicates                                                                              Recycle_C                                  Tcb_C

                                                               IncKernelInit                                                                                                             Arch_C                        Invoke_C                                  Schedule_C

   Implémentation C
                                                                                                                                                                                              Syscall_C                                             ADT_C
                                                     InitLemmas                      KernelInit_R

                                                                                                                                                                                        FastpathMachine_C                           Init_C

                                                                                    Refine
                                                                                                                                                                                             Fastpath_C

                  1. patch original                                              Orphanage                                                                                                     Refine_C

                                                      REFINE                                                                                                  CREFINE
                                                                                                                                                                                                                                                                              44 / 52
Chronogramme

 master                                       implémentation C / prototype Haskell

 nonlazysched
 3 févr. 15 févr.      29 févr.              27 mars    3 avr.                                     7 juin    21 juin       28 juin

                                                         ajuste isBlocked/isRunnable
patch original                     supprime tcbSchedDequeue

 master                                             raffinement / raffinement-c

 nonlazysched
 3 févr.    15 févr.    27 févr.         23 mars   2 avr. 10 avr.                 15 May                         26 juin   28 juin

           invs’:1     invs’:2              invs’:3 invs’:4 invs’:5          raffinement complet            raffinement-c complet
     mise à jour des specs
branchement

                                                                                                                           45 / 52
Chronogramme

 master                                       implémentation C / prototype Haskell

 nonlazysched
 3 févr. 15 févr.      29 févr.              27 mars    3 avr.                                      7 juin    21 juin       28 juin

                                                         ajuste isBlocked/isRunnable
patch original                                     modèles
                                   supprime tcbSchedDequeue              (1.0    ETP)                  0.6     semaines
                                                   raffinement           (1.6    ETP)                 20.4     semaines
                                                   raffinement-c         (1.2    ETP)                  4.0     semaines
                                                   merge                 (1.0    ETP)                  0.4     semaines
 master
                                                                          (1 semaine = 35 heures)
                                                    raffinement / raffinement-c                      38.44     semaines

 nonlazysched
 3 févr.    15 févr.    27 févr.         23 mars   2 avr. 10 avr.               15 May                            26 juin   28 juin

           invs’:1     invs’:2              invs’:3 invs’:4 invs’:5          raffinement complet             raffinement-c complet
     mise à jour des specs
branchement

                                                                                                                            45 / 52
Invariants

invs’

inQ p tcb ≡ tcbQueued tcb ∧ tcbPriority tcb = p

valid-queues ≡
λs. ∀ p. (∀ t∈set (ksReadyQueues s p). obj-at’ (inQ p) t s) ∧
         distinct (ksReadyQueues s p)

valid-queues’ ≡ λs. ∀ p t. obj-at’ (inQ p) t s −→ t ∈ set (ksReadyQueues s p)

                                                                                46 / 52
Invariants

invs’ :1 (15 février)

inQ p tcb ≡ tcbQueued tcb ∧ tcbPriority tcb = p ∧ tcbState tcb = Running

valid-queues ≡
λs. ∀ p. (∀ t∈set (ksReadyQueues s p). obj-at’ (inQ p) t s) ∧
         distinct (ksReadyQueues s p)

valid-queues’ ≡ λs. ∀ p t. obj-at’ (inQ p) t s −→ t ∈ set (ksReadyQueues s p)

                                                                                46 / 52
Invariants

invs’ :2 (27 février)

inQ p tcb ≡ tcbQueued tcb ∧ tcbPriority tcb = p ∧ runnable’ (tcbState tcb)

valid-queues ≡
λs. ∀ p. (∀ t∈set (ksReadyQueues s p). obj-at’ (inQ p) t s) ∧
         distinct (ksReadyQueues s p)

valid-queues’ ≡ λs. ∀ p t. obj-at’ (inQ p) t s −→ t ∈ set (ksReadyQueues s p)

                                                                                46 / 52
Invariants

invs’ :3 (23 mars)

inQ p tcb ≡ tcbQueued tcb ∧ tcbPriority tcb = p

valid-queues ≡
λs. ∀ p. (∀ t∈set (ksReadyQueues s p). obj-at’ (inQ p and runnable’ ◦ tcbState) t s) ∧
         distinct (ksReadyQueues s p)

valid-queues’ ≡ λs. ∀ p t. obj-at’ (inQ p) t s −→ t ∈ set (ksReadyQueues s p)

                                                                                         46 / 52
Invariants

invs’ :4 ( 2 avril)

inQ p tcb ≡ tcbQueued tcb ∧ tcbPriority tcb = p

valid-queues ≡
λs. ∀ p. (∀ t∈set (ksReadyQueues s p). obj-at’ (inQ p and runnable’ ◦ tcbState) t s) ∧
         distinct (ksReadyQueues s p)

valid-queues’ ≡ λs. ∀ p t. obj-at’ (inQ p) t s −→ t ∈ set (ksReadyQueues s p)

ct-not-inQ ≡
λs.
      obj-at’ (Not ◦ tcbQueued) (ksCurThread s) s

                                                                                         46 / 52
Invariants

invs’ :5 (10 avril)

inQ p tcb ≡ tcbQueued tcb ∧ tcbPriority tcb = p

valid-queues ≡
λs. ∀ p. (∀ t∈set (ksReadyQueues s p). obj-at’ (inQ p and runnable’ ◦ tcbState) t s) ∧
         distinct (ksReadyQueues s p)

valid-queues’ ≡ λs. ∀ p t. obj-at’ (inQ p) t s −→ t ∈ set (ksReadyQueues s p)

ct-not-inQ ≡
λs. ksSchedulerAction s = ResumeCurrentThread −→
      obj-at’ (Not ◦ tcbQueued) (ksCurThread s) s

                                                                                         46 / 52
Appels aux tcbSchedEnqueue et tcbSchedAppend
                                                                                                                                                                                                            handleSyscall

                                                                                                                                                                                    handleInvocation                 handleWait   handleInterrupt

                                                                                                                                                                               decodeInvocation          handleReply                   timerTick   handleYield

     schedule                      decodeCNodeInvocation                                                                                                                                   performInvocation_Reply                       tcbSchedAppend

invokeCNodeDelete      invokeCNodeRevoke          invokeCNodeRecycle                                           decodeTCBInvocation                                                                     doReplyTransfer

                    cteRecycle      decodeSetIPCBuffer      decodeSetSpace     decodeTCBConfigure   decodeSetPriority           decodeWriteRegisters     decodeCopyRegisters

          cteRevoke                recycleCap                 invokeTCB_ThreadControl               invokeTCB_Resume    invokeTCB_WriteRegisters     invokeTCB_CopyRegisters

           cteDelete                                                                                                            restart                    decodeReadRegisters                                       deleteCallerCap

                     finaliseSlot                                       setPriority            invokeTCB_Suspend                                        invokeTCB_ReadRegisters

    reduceZombie       finaliseCap               epCancelBadgedSends

          epCancelAll               possibleSwitchTo           aepCancelAll                  rescheduleRequired                           suspend                      decodeIRQHandlerInvocation

                     deletingIRQHandler                          tcbSchedEnqueue                                          ipcCancel   invokeIRQHandler_SetIRQHandler    invokeIRQHandler_ClearIRQHandler

                                                                                                                                                cteDeleteOne

                                                                                                                                                                                                                                                    47 / 52
Appels aux tcbSchedEnqueue et tcbSchedAppend
                                                                                                                                                                                                            handleSyscall

                                                                                                                                                                                    handleInvocation                 handleWait   handleInterrupt

                                                                                                                                                                               decodeInvocation          handleReply                   timerTick   handleYield

     schedule                      decodeCNodeInvocation                                                                                                                                   performInvocation_Reply                       tcbSchedAppend

invokeCNodeDelete      invokeCNodeRevoke          invokeCNodeRecycle                                           decodeTCBInvocation                                                                     doReplyTransfer

                    cteRecycle      decodeSetIPCBuffer      decodeSetSpace     decodeTCBConfigure   decodeSetPriority           decodeWriteRegisters     decodeCopyRegisters

          cteRevoke                recycleCap                 invokeTCB_ThreadControl               invokeTCB_Resume    invokeTCB_WriteRegisters     invokeTCB_CopyRegisters

           cteDelete                                                                                                            restart                    decodeReadRegisters                                       deleteCallerCap

                     finaliseSlot                                       setPriority            invokeTCB_Suspend                                        invokeTCB_ReadRegisters

    reduceZombie       finaliseCap               epCancelBadgedSends

          epCancelAll               possibleSwitchTo           aepCancelAll                  rescheduleRequired                           suspend                      decodeIRQHandlerInvocation

                     deletingIRQHandler                          tcbSchedEnqueue                                          ipcCancel   invokeIRQHandler_SetIRQHandler    invokeIRQHandler_ClearIRQHandler

                                                                                                                                                cteDeleteOne

       {|invs’ and st-tcb-at’ runnable’ t and
          (λs. ksSchedulerAction s = ResumeCurrentThread −→ ksCurThread s 6= t)|}
       tcbSchedEnqueue t
       {|λ-. invs’|}

                                                                                                                                                                                                                                                    47 / 52
Appels aux tcbSchedEnqueue et tcbSchedAppend
                                                                                                                                                                                                            handleSyscall

                                                                                                                                                                                    handleInvocation                 handleWait   handleInterrupt

         sa = ChooseNewThread / SwitchToThread                                                                                                                                 decodeInvocation          handleReply                   timerTick   handleYield

     schedule                      decodeCNodeInvocation                                                                                                                                   performInvocation_Reply                       tcbSchedAppend

invokeCNodeDelete      invokeCNodeRevoke          invokeCNodeRecycle                                           decodeTCBInvocation                                                                     doReplyTransfer

                    cteRecycle      decodeSetIPCBuffer      decodeSetSpace     decodeTCBConfigure   decodeSetPriority           decodeWriteRegisters     decodeCopyRegisters

          cteRevoke                recycleCap                 invokeTCB_ThreadControl               invokeTCB_Resume    invokeTCB_WriteRegisters     invokeTCB_CopyRegisters

           cteDelete                                                                                                            restart                    decodeReadRegisters                                       deleteCallerCap

                     finaliseSlot                                       setPriority            invokeTCB_Suspend                                        invokeTCB_ReadRegisters

    reduceZombie       finaliseCap               epCancelBadgedSends

          epCancelAll               possibleSwitchTo           aepCancelAll                  rescheduleRequired                           suspend                      decodeIRQHandlerInvocation

                     deletingIRQHandler                          tcbSchedEnqueue                                          ipcCancel   invokeIRQHandler_SetIRQHandler    invokeIRQHandler_ClearIRQHandler

                                                                                                                                                cteDeleteOne

       {|invs’ and st-tcb-at’ runnable’ t and
          (λs. ksSchedulerAction s = ResumeCurrentThread −→ ksCurThread s 6= t)|}
       tcbSchedEnqueue t
       {|λ-. invs’|}

                                                                                                                                                                                                                                                    47 / 52
Appels aux tcbSchedEnqueue et tcbSchedAppend
                                                                                                                                                                                                            handleSyscall

                                                                                                                                                                                    handleInvocation                 handleWait   handleInterrupt

         sa = ChooseNewThread / SwitchToThread                                                                                                                                 decodeInvocation          handleReply                   timerTick   handleYield

     schedule                      decodeCNodeInvocation                                                                                                                                   performInvocation_Reply                       tcbSchedAppend

invokeCNodeDelete      invokeCNodeRevoke          invokeCNodeRecycle                                           decodeTCBInvocation                                                                     doReplyTransfer

                    cteRecycle      decodeSetIPCBuffer      decodeSetSpace     decodeTCBConfigure   decodeSetPriority           decodeWriteRegisters     decodeCopyRegisters

          cteRevoke                recycleCap                 invokeTCB_ThreadControl               invokeTCB_Resume    invokeTCB_WriteRegisters     invokeTCB_CopyRegisters

           cteDelete                                                                                                            restart                    decodeReadRegisters                                       deleteCallerCap

                     finaliseSlot                                       setPriority            invokeTCB_Suspend                                        invokeTCB_ReadRegisters

    reduceZombie       finaliseCap               epCancelBadgedSends
                                                                                     mis en file d’attente des threads, appel à RescheduleRequired
          epCancelAll               possibleSwitchTo           aepCancelAll          utilise: all-invs-but-ct-not-inQ
                                                                                             rescheduleRequired                           suspend                      decodeIRQHandlerInvocation

                     deletingIRQHandler                          tcbSchedEnqueue                                          ipcCancel   invokeIRQHandler_SetIRQHandler    invokeIRQHandler_ClearIRQHandler

                                                                                                                                                cteDeleteOne

       {|invs’ and st-tcb-at’ runnable’ t and
          (λs. ksSchedulerAction s = ResumeCurrentThread −→ ksCurThread s 6= t)|}
       tcbSchedEnqueue t
       {|λ-. invs’|}

                                                                                                                                                                                                                                                    47 / 52
Appels aux tcbSchedEnqueue et tcbSchedAppend
                                                                                                                                                                                                            handleSyscall

                                                                                                                                                                                    handleInvocation                 handleWait   handleInterrupt

         sa = ChooseNewThread / SwitchToThread                                                                                                                                 decodeInvocation          handleReply                   timerTick   handleYield

     schedule                      decodeCNodeInvocation                                                                                                                                   performInvocation_Reply                       tcbSchedAppend

invokeCNodeDelete      invokeCNodeRevoke          invokeCNodeRecycle                                           decodeTCBInvocation                                                                     doReplyTransfer

                    cteRecycle      decodeSetIPCBuffer      decodeSetSpace     decodeTCBConfigure   decodeSetPriority           decodeWriteRegisters     decodeCopyRegisters

          cteRevoke                recycleCap                 invokeTCB_ThreadControl               invokeTCB_Resume    invokeTCB_WriteRegisters     invokeTCB_CopyRegisters

           cteDelete             retrait puis mis en file d’attente                                                             restart                    decodeReadRegisters                                       deleteCallerCap

                     finaliseSlot                                       setPriority            invokeTCB_Suspend                                        invokeTCB_ReadRegisters

    reduceZombie       finaliseCap               epCancelBadgedSends
                                                                                     mis en file d’attente des threads, appel à RescheduleRequired
          epCancelAll               possibleSwitchTo           aepCancelAll          utilise: all-invs-but-ct-not-inQ
                                                                                             rescheduleRequired                           suspend                      decodeIRQHandlerInvocation

                     deletingIRQHandler                          tcbSchedEnqueue                                          ipcCancel   invokeIRQHandler_SetIRQHandler    invokeIRQHandler_ClearIRQHandler

                                                                                                                                                cteDeleteOne

       {|invs’ and st-tcb-at’ runnable’ t and
          (λs. ksSchedulerAction s = ResumeCurrentThread −→ ksCurThread s 6= t)|}
       tcbSchedEnqueue t
       {|λ-. invs’|}

                                                                                                                                                                                                                                                    47 / 52
Appels aux tcbSchedEnqueue et tcbSchedAppend
                                                                                                                                                                                                            handleSyscall

                                                                                                                                                                                    handleInvocation                 handleWait   handleInterrupt

         sa = ChooseNewThread / SwitchToThread                                                                                                                                 decodeInvocation          handleReply                   timerTick   handleYield

     schedule                      decodeCNodeInvocation                                                                                                                                   performInvocation_Reply                       tcbSchedAppend

invokeCNodeDelete      invokeCNodeRevoke          invokeCNodeRecycle                                           decodeTCBInvocation                                                                     doReplyTransfer

                    cteRecycle      decodeSetIPCBuffer      decodeSetSpace     decodeTCBConfigure   decodeSetPriority           decodeWriteRegisters     decodeCopyRegisters
                                                                                                                      la cible est bloquée et ResumeCurrentThread
          cteRevoke                recycleCap                 invokeTCB_ThreadControl               invokeTCB_Resume
                                                                                                                      sch-act-wf assure que ksCurThread n’est pas bloqué
                                                                                                                        invokeTCB_WriteRegisters     invokeTCB_CopyRegisters

           cteDelete             retrait puis mis en file d’attente                                                             restart                    decodeReadRegisters                                       deleteCallerCap

                     finaliseSlot                                       setPriority            invokeTCB_Suspend                                        invokeTCB_ReadRegisters

    reduceZombie       finaliseCap               epCancelBadgedSends
                                                                                     mis en file d’attente des threads, appel à RescheduleRequired
          epCancelAll               possibleSwitchTo           aepCancelAll          utilise: all-invs-but-ct-not-inQ
                                                                                             rescheduleRequired                           suspend                      decodeIRQHandlerInvocation

                     deletingIRQHandler                          tcbSchedEnqueue                                          ipcCancel   invokeIRQHandler_SetIRQHandler    invokeIRQHandler_ClearIRQHandler

                                                                                                                                                cteDeleteOne

       {|invs’ and st-tcb-at’ runnable’ t and
          (λs. ksSchedulerAction s = ResumeCurrentThread −→ ksCurThread s 6= t)|}
       tcbSchedEnqueue t
       {|λ-. invs’|}

                                                                                                                                                                                                                                                    47 / 52
Résumé des modifications du raffinement

                                                           number of lemmas affected

                                  0   10   20   30   40   50   60   70   80   90   100   110   120   130   140   150

                 new: invariant

          stronger precondition

                   new: crunch

        minor proof adjustment

            new: helper lemma

              proof adjustment

               modified crunch

                 new: variation

      minor adjusted statement

                       deleted

           adjusted statement

       new: helper lemma (key)

           weaker precondition

          stronger assumption

            new: corres helper

           new: invariant (key)

            weaker assumption

                                                                                                                       48 / 52
Maintenance: résumé
 • Un programme utile, vérifié ou non, doit être modifié.
 • La mise à jour des preuves
     • est chronophage
     • est (encore plus) difficile à planifier
     • demande de l’expertise

 • Mais il y a aussi des points positifs :
    • L’assistant de preuve localise les parties à corriger.
    • On peut confier les modifications aux nouveaux arrivants
       en sachant que les invariants sont documentés et contrôlés.
    • L’itération dans l’assistant de preuve aide à découvrir
       la forme correcte des invariants.
    • La réflexion requise et l’inertie ne sont pas forcément une mauvaise
       chose pour un système critique.

 • Il faut bien réfléchir à l’automatisation dès le début du projet
    (‘tactiques’)
                                                                             49 / 52
Related Projects

 • The Verisoft (2004–2007,                   http://www.verisoft.de   ) and Verisoft XT
     (2007–2010,       http://www.verisoftxt.de    ) projects
 • The CompCert project                [?]

 • CertiKOS (http://flint.cs.yale.edu/certikos/index.html)
 • Prove & Run’s Provencore (http://www.provenrun.com/products/provencore/)
 • See also Klein’s overview                 [?]

                                                                                           50 / 52
seL4: key publications
                                           [?]
                                           [?]

                               [?]

                         [?]

                                     [?]

                         [?]

    [?]   [?]

                   [?]                           [?]

                                                       51 / 52
52 / 52
You can also read
