Maendy Primary School
Cwmbran
26Y003-ASL-XX-XX-RP-A-0003
Design & Access Statement
Torfaen County Borough Council
April 2021
CONTENTS
1 - INTRODUCTION AND BRIEF P.3
2 - SPATIAL REQUIREMENTS P.8
3 - SITE ANALYSIS P.11
4 - DESIGN DEVELOPMENT P.21
5 - DEVELOPED DESIGN P.27
6 – LANDSCAPE P.48
7 – SECURITY P.52
8 – ACCESS & MOVEMENT P.54
9 - ENVIRONMENTAL STRATEGIES P.60
10 - CONCLUSION P.62
Austin-Smith:Lord Ltd
Cardiff
Bristol
Glasgow
Liverpool
Revision Author Checked Date
London
P01 ABB TY 30/04/2021
One Dunleavy Drive, Cardiff, CF11 0SN
+44 (0) 2920 225 208 Cardiff@austinsmithlord.com
www.austinsmithlord.com
1 INTRODUCTION
AND BRIEF
Maendy Primary School - Torfaen County Borough Council
1.1 INTRODUCTION
This Design and Access Statement has been prepared by
Austin-Smith:Lord for the design of a replacement 420 place
primary school, 30 place nursery and ALN assessment
centre, as well as a Flying Start and Childcare unit on the site
of the existing Maendy Primary School in Cwmbran.
The proposed development will significantly improve the
education provision for this part of Cwmbran, providing a
facility for the community that will ensure future generations
have enhanced opportunities for learning.
The innovative brief looks to incorporate elements
into the design that provide benefit to the local and
wider environment, including sustainable drainage and
biodiversity boosting landscape elements, integrated within
the wider building design. These elements will emphasise
to the pupils coming through the school the importance
of protecting our natural environment, instilling a sense of
respect and understanding for the world in the children from
a young age.
The new school is required to meet the Passivhaus Low
Energy Building Standard and achieve a BREEAM rating of
‘Excellent’.
Client:
Torfaen County Borough Council
Design Team:
Main Contractor - Morgan Sindall
Principal Designer - Morgan Sindall (Baker Hicks)
Architects - Austin-Smith:Lord
Landscape Architects - Austin-Smith:Lord
Civil / Structural Engineer - Bradley Associates
MEP - Troup Bywaters + Anders
Passivhaus Consultant - Piers Sadler Consulting

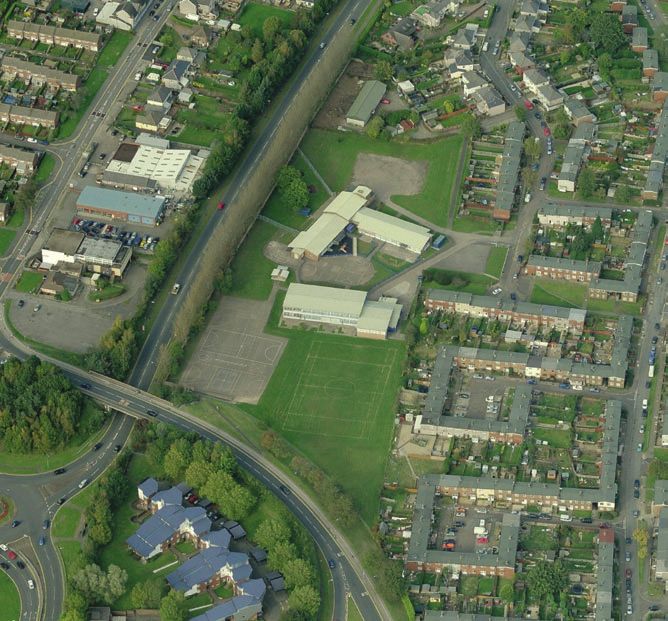

Fire – WSP Views of the existing school
Acoustics – Formant Limited
BREEAM Assessor – MM Sustainable Design Ltd
Planning Consultants – Asbri Planning
Highways/ Transport – Asbri Transport
Flood Consultant - JBA
4
Maendy Primary School - Torfaen County Borough Council
1.2 PROJECT BRIEF
Introduction and Business Case Desired Outcomes The basic external requirements are as follows: Additional Briefing Information:
The replacement of Maendy Primary School is an integral The basic internal space requirements are as follows: • New driveway off Maendy Way This briefing information has been identified and agreed
part of Torfaen’s Band B proposals and is required to • Adequate parking and drop-off spaces for all users in addition to the information contained within initial client
continue to deliver against the investment objectives School and ALN: • Shelters/canopies for rain/sun for all users. brief:
established at the start of Torfaen’s 21st Century Schools • School:
Programme. • A 420 place primary school plus 30 place FTE Nursery to • MUGA
Welsh Government guidelines. • Grass pitch Welsh Government requirement for sprinklers:
The proposal is to increase the capacity of Maendy from 231 • 16 place Special Need Resource Base • Hard and soft play areas and Foundation Phase Sprinklers are mandatory in new school buildings in Wales.
to 420 places and the Nursery from 24 to 30 places. This will • ALN Assessment Centre outdoor classrooms. The sprinkler design for the building will be developed in
provide sufficient capacity in the cluster for the predicted • Forest School area consultation with specialists.
growth in pupil demand, from the South Sebastopol area in • Cycle parking
particular, and a manageable level of surplus places of 12% Flying Start and Childcare: • Play equipment BB93 requirements for acoustics:
to 14%. The school also currently accommodates a 16 place • Outdoor storage BB93 sets out the performance standards for the acoustic
SNRB, an ALN Assessment Centre, a Flying Start provision • Flying Start parenting room, plus associated store, • Bin store design of schools.
including Flying Start childcare. Northville Community Group kitchenette, toilets, baby change, office.
also has some access to facilities in the school. • Flying Start Crèche with associated toilets, baby change, • Flying Start and Childcare: CiW regs; Care Inspectorate Wales
kitchenette and store. (1 to 4 year olds.) • Flying Start play space Regulations and National Minimum Standards: Childcare
The topic of carbon emissions is high on the national agenda • Flying Start Childcare facility for 20 registered places 2-3 • Childcare Play space and play services
and having researched examples set by some other local years old. • Buggy Bay
authorities in Wales, Torfaen have decided to build a school • Childcare Provision for 20 registered places, 3-4 years • Outdoor storage Segregated service access for deliveries, waste/
that meets the Passivhaus standard. These types of buildings old with associated toilets, baby change, kitchen or • Bin store (up to 1 euro bin and 2 wheelie bins) recycling collection:
offer significant improvements over other modern building kitchenette, staffroom, office, washing machine room To avoid hazards and disruption to the school, the access
designs and methods in terms of energy consumption and separate from kitchen, store. point for deliveries and waste/recycling collection must be
carbon emissions as well as air quality. Constraints separated from pedestrian routes and away from the school
Community use - There is an aspiration to allow the entrance.
Due to the restricted access to the school through the community group access to some facilities as is current • The budget.
Northville Estate, the Highways Department is mandating practice in school. This could take the form of: • Planning consent. No requirement for coach access
that we build a new access driveway to the school from • The development should not interrupt the day to day The school stakeholders have confirmed that there is no
Maendy Way and an initial feasibility study has been carried • Shared use of the Flying start parenting room and crèche running of the school and other services. requirement for large coaches to access the site, as there is
out that confirms this is possible. room, i.e. in the mornings, but with separate storage • Environmental Health Regulations available parking on adjacent land.
provided including space for the community group’s • BREEAM Excellent
files, fridges, freezer and washing machine. • Passivhaus standard certification
Project Aims • Access to school hall, MUGA and grass pitch. • CIW regulations for Childcare and Flying Start facilities.
• The school will control community bookings in Note on Building Bulletin guidance:
consultation with the Flying Start team.
• To design and build a new 3-11 school incorporating the We have followed BB99 design guidance, with any derogations
existing ALN provision of SNRB and assessment centre. highlighted to Torfaen CBC for agreement. Where appropriate,
• To design and build a new Flying Start and Childcare we have also referred to BB103 for additional guidance.
Access and security requirements are as follows:
provision, with close links to the school, but with
independent access and security.
• To allow the school/site to offer its facilities for • Adequate security fencing and gates.
community use with suitable access arrangements, • Separate and secure access for Flying Start / Childcare
during and after school hours. from the main school.
• To design and build a school that meets the Passivhaus • Secure area for ALN assessment centre.
certified standard and BREEAM Excellent. • Keeping the school hall accessible after school hours
whilst keeping the rest of the school secure would
enable easier community use/letting of this facility.
• Potential zoning of security alarms to allow one part of
site to be in use, while other parts remain locked and
alarmed.
• CCTV with remote monitoring capability as existing.
5
Maendy Primary School - Torfaen County Borough Council 1.3 BREEAM The design is targetting BREEAM ‘Excellent’. An initial * # #* - 534;& #*# #'7 assessment by the project’s BREEAM consultant has ** **$ %+3 >
Maendy Primary School - Torfaen County Borough Council
1.5 PASSIVHAUS
In addition to achieving BREEAM ‘Excellent’, the building is The low heating demand in a Passivhaus is achieved Examples of Passivhaus Schools:
required to meet the Passivhaus standard. mainly through the following measures:
What is Passivhaus?
Passivhaus is a proven approach for achieving low-energy
buildings. EXCELLENT TRIPLE GLAZED
INSULATION WINDOWS
A Passivhaus is a building in which thermal comfort can
be provided solely by heating or cooling the fresh air flow,
so that in theory all the heating can be provided by the air
needed for ventilation. Most Passivhaus buildings in the UK AIRTIGHTNESS
include a small heating system, however, heating demand
must be no more than 15 kWh/(m2a).
VENTILATION THERMAL
This low space heating demand is achieved through
mainly passive measures: excellent insulation, airtightness, WITH HEAT BRIDGES
reduced thermal bridges, triple glazed windows and RECOVERY REDUCED
ventilation with heat recovery.
Passivhaus buildings must be modelled using the Passive
House Planning Package (PHPP).
Passivhaus is an energy and comfort standard.
Passivhaus is suitable for non-residential as well as
residential projects. The following are key considerations in designing a
Passivhaus
Examples of Passivhaus schools by others
Passivhaus is an effective way of reducing operational
carbon emissions but does not adress embodied carbon. Orientation - Where possible a Passivhaus building should
be orientated along an east/ west principle axis so that the
There are 3 Passivhaus classes: Classic, Plus & Premium, building faces within 30 degrees of due south.
which relate to differing criteria for renewable energy
generation and renewable energy demand. Compactness - The compactness of a building is indicated Typical form factor for a Passivhaus school
by the surface area to volume (A/V) ratio (see adjacent
diagram). This ratio, between the external surface area
and the internal volume of a building, has a considerable
influence on the heating demand of the building. 1.2
1.1
1.0
Simplicity - A building with a simple form will have a fewer 0.9
thermal bridges and better A/V ratio. These factors will have 0.8
an impact on the annual energy balance. 0.7
0.6
The project’s Passivhaus consultant has provided further
guidance for the design of a Passivhaus primary school. 0.5
Stage 2 design has been informed by this guidance, with
further detail to be considered and developed through 0.4
RIBA Stage 3. Reducing energy
demand per m2
0.3
Diagram 1. Building
Compactness (A/V ratio)
0.2
Passivhaus criteria Surface area to volume ratios for Passivhaus buildings
7
2 SPATIAL
REQUIREMENTS
Maendy Primary School - Torfaen County Borough Council
2.1 TARGET SCHEDULE OF ACCOMMODATION
The target schedule of accommodation has been
based on the BB99 baseline for a 420 pupil JMI
school, with additional spaces allocated to the
Flying Start unit and ALN Assessment Centre. This
has also been cross-referenced and compared to
the BB103 guidance. Space provision was reviewed
on a number of occasions with the client and
stakeholders to agree the requirements.
The total recommended gross area for a school
without nursery under BB99 is 2212m2 as per the
adjacent table.
The nursery provision calculated as per BB99 brings
the recommended area up to 2330.5m2
The supplementary areas required by the school
were estimated to add up to just under 80m2,
bringing the recommended total internal floor area
of the school to 2410 m2 .
The brief also requires a Flying Start unit, which
was estimated to require approximately 330m2 of
internal floor area.
TOTAL GROSS AREA (incl. nursery, but excl. supplementary areas) 2330.5
Supplementary Areas (Flying Start) Supplementary Areas (School)
Flying Start Unit Area (m2) ALN Assessment Centre Area (m2)
Community Room 25 Classroom 20
Entrance Lobby 5 Classroom 20
FS Store 5 Classroom 20
Tea Point 5 Pupil WC 2
Office 6 Breakout Space 10
Acc WC 5 Entrance Lobby 2.5
Community Store 5 Acc WC 5
Flying Start Creche Total 79.5
FSC Room 47
WC - Child 5
Kitchenette 6 External Areas to BB99
Small Baby Change 3.5
Store 5 External Area Type Area (m2)
Childcare Facility Soft Outdoor PE 8400
Childcare Room (2-3) 56 Hard Outdoor PE 1440
Childcare Room (3-4) 46 Soft Informal + Social 1925
Child WCs 5.5 Hard Informal + Social 1075
Child WCs 5.5 Habitat 345
Staff WC 6 Float 2250
Acc WC 5 Total (Net Area) 15435
Baby Change 9
Kitchen & Staff Room 20 Non-Net minimum (10%) 1543.5
Circulation 50 Non-Net maximum (25%) 3858.75
Cleaner's Cupboard 3
Total (min) 16978.5
Washing Machine Room 1.5
Total 330 Total (max) 19293.75
9
Maendy Primary School - Torfaen County Borough Council
General Zoning
2.2 SPATIAL ADJACENCIES DIAGRAM
External Entrance Zone Open Spaces Classrooms External
Primary School Building
Kitchen
The spatial adjacencies are broadly defined by the specific
‘zones’ that each space is categorised within. These
can be seen in the colour coding of the Schedule of
Accommodation on the previous page.
MAIN SCHOOL Entrance Hall
Careful planning of these zones is highly important within
a primary school, ensuring pupils of similar age groups are
+ community use
kept together, and given ample space in which to learn and
play.
Admin
Current trends in primary school design place an emphasis
on a ‘heart space’ or ‘street’ that sits between similar age
group classrooms, providing an open space to breakout into, Heart Space Juniors Classrooms
for play and teaching.
A central Learning Resource Area then sits between these
Learning Resource
‘heart spaces’ to act as a common, shared location for a
library, group rooms, and SEN resources.
Infants Classrooms
Main dining and assembly hall, as well as any secondary
halls/studios should ideally be placed centrally to the school, Heart Space
so that the two age groupings are within the same distance
from the hall.
Reception Classrooms
External Play Areas
Reception and Infants classrooms should ideally have
direct access to outdoor play spaces from the classrooms,
potentially via dedicated cloakroom spaces. Nursery Classrooms
ALN Assessment Ctr
Plant + Service
SEN Resource Base
Division of facilities
Community Room
External Play Areas
FLYING START Entrance Heart Space Flying Start Creche
FACILITY
Admin Childcare Facilities
Kitchen
103 SITE
ANALYSISMaendy Primary School - Torfaen County Borough Council
3.1 SITE LOCATION
The site is located in Torfaen County Borough, in the ward of 1 Blaenavon
Pontnewydd. Cwmbran town centre is located to the south 2 Abersychan
of the site
3 Pen Tranch
Railway startions and artery of connected A-roads link the 4 Trevethin
northern and southern wards of the borough. The site ben- 5 New Inn
efits from close proximity to both of these transport corridors.
1 6 Pontymoile
7 Panteg
8 Upper Cwmbran
9 Pontnewydd
10 Croesyceiliog
11 Fairwater
12 Cwmbran Central
13 Llanyrafon
2 14 Henllys
15 Llantarnam
16 Ponthir
4
5
3
6
7
8 9
10
11 12 13
16
14 15

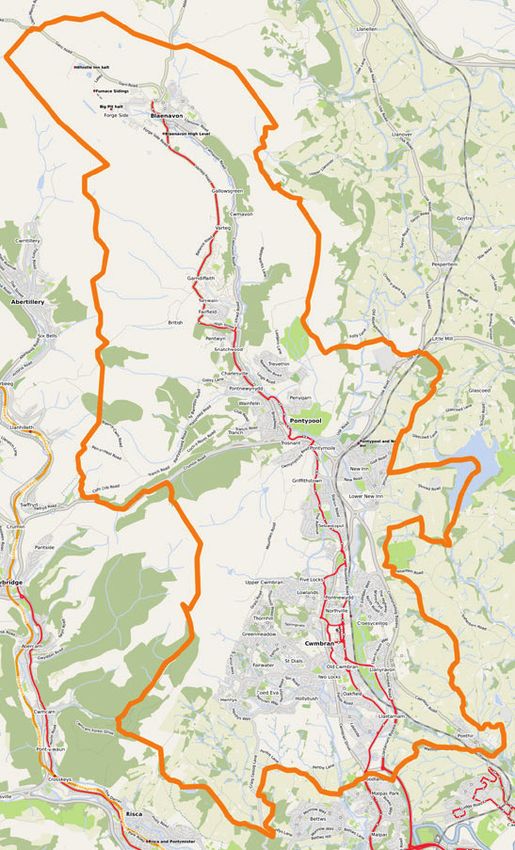

Torfaen County Borough, Wales Torfaen County Borough - Ward Map Transport Connections Railway A-Roads
12Maendy Primary School - Torfaen County Borough Council
SITE LOCATION
Aerial view of site (looking north)
Extract from Torfaen Planning Policy Map (South) Site Boundary
(not to scale)
13Maendy Primary School - Torfaen County Borough Council
3.2 EXISTING SITE PHOTOS
QRQ
RX
WEX
LOGLQ
JV
Infant
School
5
9
'U
EUDQ
&ZP
GURSRII
VSDFHV
4
8
1 Looking east across playing fields 2 Looking north-west at the top of southern bank
Junior
School
3ODV,VOZ\Q
1
3
7
0
DH
QG
\
:
D\
+DQEXU\&ORVH
2
Existing site plan 3 Looking north towards junior school 4 Looking east from Cwmbran Drive 5 Looking west towards infant school
6 Infant school 7 Looking west along bank in the south of the site 8 Looking south-east from Cwmbran Drive 9 Existing site access
14Maendy Primary School - Torfaen County Borough Council
3.3 SITE CONSTRAINTS
Following analysis of the site, the constraints to development • Existing school buildings and continued use - the
have been identified below and illustrated on the options need to consider the continued use of the school
accompanying site plan: on the site during construction. Disruption to the existing
school will need to be minimised, and the school will
need to continue to safely operate on the site through the
• Topography - the site falls in level broadly from west to
construction period either utilising existing buildings or
east, and to the south east corner. The existing hard surface
within temporary accommodation as required.
games area is set at a higher level to the school buildings.
• Adjacent residential properties - to ensure amenity of
• Services easement - below ground services including a
the adjacent residential properties is protected, the school
public sewer cross the site at the mid-point from east to
design must avoid overlooking habitable rooms. MUGA’s
west, with a legal easement covering the ground above to
should be a minimum of 30m distance away from houses
prevent building over.
to avoid disruption to the residents.
• Noise/air pollution - the A4051 Cwmbran Drive is a main
• Existing pedestrian access points to the north, east and
road running along the west boundary of the site. There
south-west of the site.
is an existing concrete fence providing some acoustic
protection, but noise levels from the road will prevent
a natural ventilation strategy with opening windows
complying with BB93 acoustic criteria. Classroom
elevations should avoid facing directly towards the road.
• Flooding - the Flood Consequence Assessment confirms
the implications of flood risk on the design.
• Trees - a row of existing trees exists along the west
boundary. They offer partial screening to the adjacent main
road, however, the trees are of relatively low value.
• Site access - with the requirement for a new vehicular
access from Maendy Way to the south, the site will feature
two main public access points to serve the School and
Flying Start/ Childcare unit. The split access points will
dictate preferred site arrangement to ensure safeguarding
for the school pupils by ensuing the school can operate
within it’s own secure area.
• New vehicular access from Maendy Way - the design
of the access road to meet requirements for movement/
tracking of service and emergency vehicles, as well as the
level change, impacts on site area and is a constraint on
the site options. Torfaen CBC and the School have advised
their preference that coaches and buses will not need to
access the site and that they will pick up/ drop off at an off-
site location nearby as they currently do. This requirement
is occasional only, to serve school trips for example.
15Maendy Primary School - Torfaen County Borough Council
pedestrian
access SITE CONSTRAINTS
parking
.(<
6LWH2ZQHUVKLS $SSOLFDWLRQ%RXQGDU\
*UHHQDUHDV
Inf
an
tS
cho
ol 6LWHRI,PSRUWDQFHIRU1DWXUH&RQVHUYDWLRQ 6,1&
Dr
site
bran
entrance
7UHHVDQGKHGJHV
Cwm
W easement
pedestrian
E 6ORSH
access
7RUIDHQ6WUDWHJLF$FWLRQ$UHDV
Junior Sc
hool
noise
(DVHPHQW XQGHUJURXQGZDWHUSLSH
traffic
([LVWLQJEXLOGLQJV
sports
overlooking
pitches Plas Islwy
n
pedestrian
access Site Area:
18,034 sqm
s tr a
wind ffic
ing no
ail ise
Porth Mawr Road
ev
pr
e
M
op
ae
sl
nd
y
W
Hanbury Close
ay
Torfaen Strategic Action Area
SAA2 (Canalside, Cwmbran)
A 6.2ha housing led scheme of
approx. 150 dwellings in total (100
S P P P
to be delivered within the Plan
Period), Canalside uses and public 1
open space.
16Maendy Primary School - Torfaen County Borough Council
3.4 CHARACTER OF THE NEIGHBOURHOOD
CHARACTER OF THE NEIGHBOURHOOD
The area local to Maendy Primary School is characterised
by a nearby housing estate primarily comprising two-storey
terraced houses dating from the 1960s.
The houses in this estate are mainly brown brick, though
there are some examples of render, paint or pebbledashing.
A few of the terraces to the northern end of the estate are in
red brick.
The dwellings on Station Road - which runs East-West along
the top of the estate - are older, with examples built using
grey pennant stone and buff brick dating from the 1900s.
A recent residential development to the south of Maendy
Way has employed red brick paired with silver and blue Porth Mawr Road Porth Mawr Road Station Road
cladding.
Porth Mawr Road Porth Mawr Road Maendy Way
Porth Mawr Road Porth Mawr Road Maendy Way
17Maendy Primary School - Torfaen County Borough Council

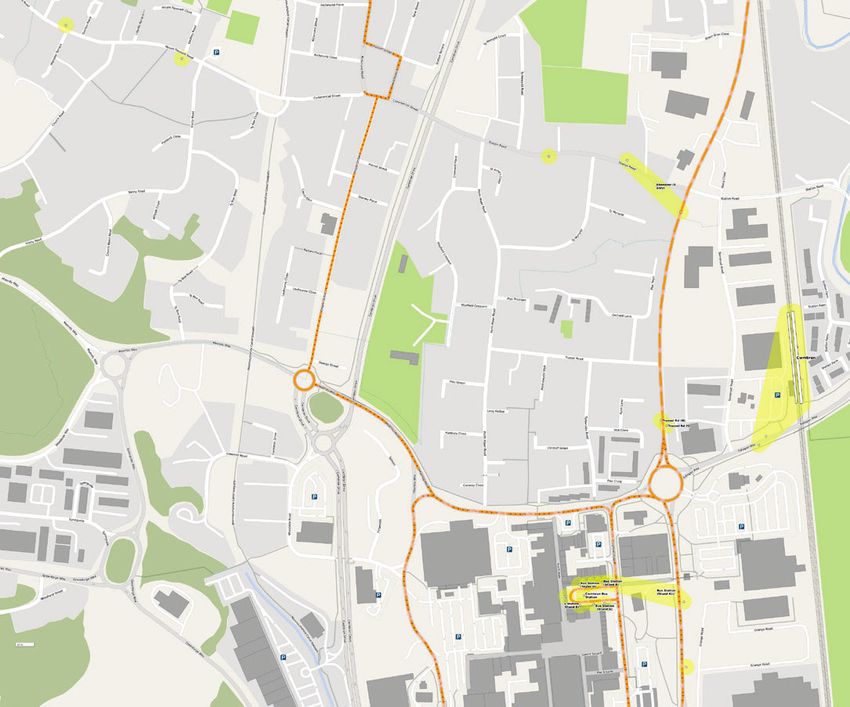

3.5 PUBLIC TRANSPORT & PARKING PROVISION
The site is located in close proximity to Cwmbran train station
as well as the town’s main bus terminus. There are a number of
5 minute
bus stops within a 5 minute walk from the site, and the routes walk /
connecting the public transport links are pedestrian friendly. 400m
There is currently a problem with school-related parking in
the residential area to the north-east of the site. This will be
addressed in the proposals through a new access road off
Maendy Way, the provision of on-site vehicular parking as well
as cycle hoops to encourage sustainable modes of transport.
Additional information has been provided in the Transport
Assessment by Asbri Transport, submitted as part of this
application.
400m alk /
w
n u te
5 mi
k/
5 minute wal
Cwmbran
400m
Station
THE
SITE
KEY
Bus Stop
Bus Station
Train Station
Parking
5 minute
walk /
400m
Within 5min walking
distance from site
18Maendy Primary School - Torfaen County Borough Council

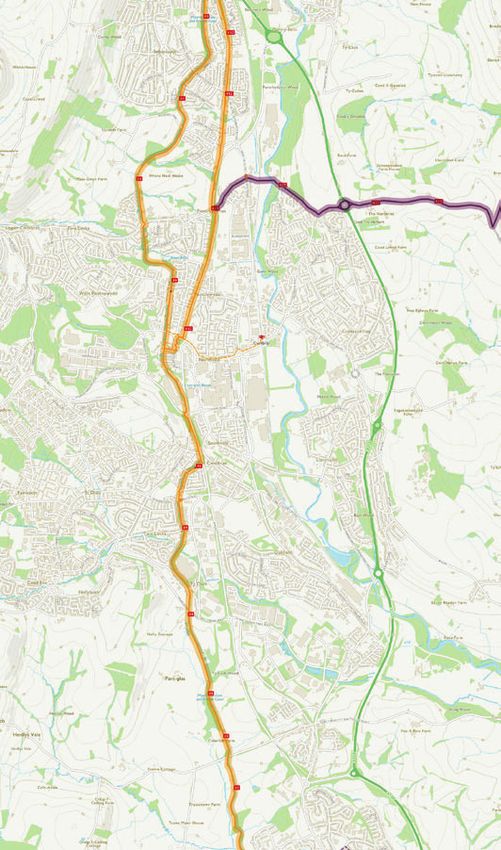

3.6 CYCLING
NATIONAL CYCLE ROUTES
49
492
National Cycle Route 492
This route runs from Brynmawr to 49 492
Cwmbran via Blaenavon, with views of
the Pontypool and Blaenavon Railway.
It passes very close to the school site
and merges with route 49 in the south-
west. 49 423
423 423
423
National Cycle Route 49
Route 49 is a 20.2-mile route
connecting Abergavenny and Newport. 492
The route follows the Monmouthshire 49
and Brecon canal towpath along the
River Usk. The canal provides a green
corridor with a wide towpath.
National Cycle Route 423
Route 423 is a 28.2-mile route
connecting Cwmbran to Ross via
Monmouth. It follows the former
Regional Route 30 and the Peregrine 49
Path.
49
10 MINUTES BY BIKE
49
It is possible to cycle to the school site in under 10 minutes from the
following residential areas:
Northville Llanyravon 49
Pontnewydd Llantarnam
Pontrhydyrun Oakfield
Sebastopol Hollybush 49
Five Locks Two Locks
Lowlands St. Dials
West Pontnewydd Old Cwmbran 49
Croesyceiliog Southville
National cycle network routes (source: https://www.sustrans.org.uk/) 10 minutes by bike (source: https://map.bikecitizens.net/gb-cardiff)
19Maendy Primary School - Torfaen County Borough Council

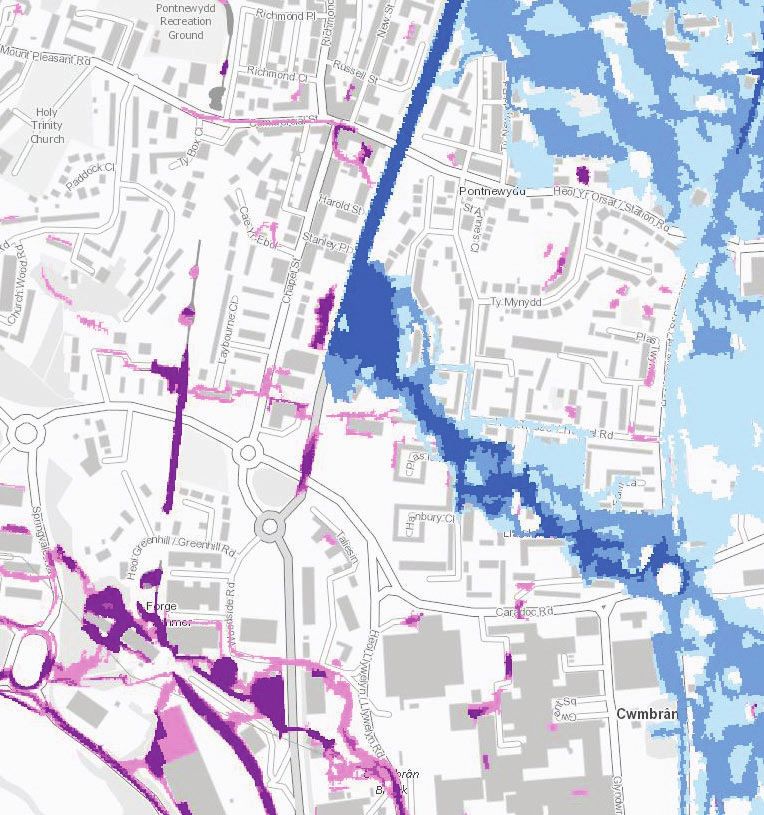

3.7 FLOODING
The adjacent map shows data from Natural Resources
Wales’ Flood Risk Map viewer. The map illustrates that the
north portion of the site is currently in a high risk area for
flooding from rivers.
The flooding consultant JBA has undertaken a Flood
Consequences Assessment (FCA) to inform the
development, and have provided advice in terms of flood
risk, flow of water across the site, and proposed finished floor
levels of the building. This assessment has been submitted
as part of this application and provides further information on
the flood consequences relating to the development.
The new scheme will include SUDS strategies in accordance
with the Flood and Water Management Act 2010, and the
proposals submitted to the SAB for approval.
204 DESIGN DEVELOPMENT
Maendy Primary School - Torfaen County Borough Council
4.1 DESIGN DEVELOPMENT - 1. 2. 3.
SITE LAYOUT
6RIW,QIRUPDO
6RIW)RUPDO
6RIW)RUPDO
6RIW)RUPDO
6RIW)RUPDO
08*$
In the development of the early strategic site options, the
key site constraints were considered in exploring different
configurations of built form, play areas and parking spaces as 6RIW)RUPDO
well as vehicular and pedestrian access. &\FOH 3HGHVWULDQ
$FFHVV2QO\
&\FOH 3HGHVWULDQ
$FFHVV2QO\ 08*$
&\FOH 3HGHVWULDQ
$FFHVV2QO\
6RIW)RUPDO
08*$
6RIW,QIRUPDO
Most of the options show the building form oriented towards 08*$
'U
'U
6RIW,QIRUPDO
the south, along an east-west axis. This is deemed to be the
EUDQ
EUDQ
&ZP
&ZP
GURSRII GURSRII GURSRII
VSDFHV VSDFHV VSDFHV
most suitable orientation for meeting the Passivhaus standard. +DUG,QIRUPDO
08*$
We also explored options for the building form/footprint to be
6RIW,QIRUPDO
352326('
3DUNLQJ 'UR 6&+22/
orientated on a north south axis, or to form an L shape (options S2II
08*$
)O\LQJ6WDUW
&KLOGFDUH
E and F), but that these were not feasible due to the impact 3DUNLQJ
'URS2II
P
on Passivhaus requirements as well as key site constraints
+DUG,QIRUPDO
including services easement, site access and available site area.
P
)O\LQJ6WDUW
&KLOGFDUH
352326(' 3DUNLQJ 'UR
S2II
It was also preferable for classrooms to face north-south to 352326('
6&+22/
6&+22/ )O\LQJ6WDUW
&KLOGFDUH
avoid problems of noise from Cwmbran Drive, and potential 9HKLFXODU
DFFHVVURXWH
9HKLFXODU
DFFHVVURXWH
overlooking of adjacent residential properities +DUG,QIRUPDO
+DUG,QIRUPDO
It quickly became apparent that the position of the two site
access points would be a key constraint, and the ability to 9HKLFXODU
DFFHVVURXWH
maintain a secure school site a highly significant consideration 6RIW,QIRUPDO
68'6ODQGVFDSH
in developing the site options.
There is a preference to keep the existing ‘tear-drop’ approach
0
0
DH
DH
off Wayfield Crescent, but to remove vehicular access and
QG
QG
\
\
:
:
D\
D\
maintain this route for pedestrians and cyclists only.
The vehicular access to the site is to be relocated to a new
junction off Maendy Way in the south of the site. The initial
feasibility arrangement showed this snaking down the bank to
the western side of the site, however, we have also considered The existing junior and Infant schools could be retained during All school facilities and outdoor activity areas are enclosed All school facilities and outdoor activity areas are enclosed
the option of flipping this arrangement to keep public access the construction of the new building. Due to this, temporary within one secure zone, meaning that pupils would not need to within one secure zone, meaning that pupils would not need to
points in the east. accommodation would not be required. be escorted from one part of the site to another. be escorted from one part of the site to another.
PROS
PROS
PROS
The existing junior and Infant schools could be retained during The school zone is less elongated, resulting in a closer
the construction of the new building. Due to this, temporary relationship between the school and play areas.
accommodation would not be required.
Pedestrians accessing the site from the teardrop would not
need to cross vehicular traffic to get to the entrance of the
school or the flying start / creche facilities.
The car park subdivides the site and splits the secure school The school is very close to the bank of the new raised The junior school would first have to be demolished in order to
zone in half. Due to this, pupils would need escorting to and access road in the south. This limits the feasibility of having construct the new building. Temporary accommodation would
from the northern part of the site. hard informal play areas directly in front of the building and be required.
negatively impacts on the views out from the classrooms which
The school is very close to the bank of the new raised will primarily be arranged along the southern facade. Welsh Water would need to confirm whether they would be
access road in the south. This limits the feasibility of having willing to relax their easement zone requirement (red diagonal
CONS
CONS
CONS
hard informal play areas directly in front of the building and The civil engineer has confirmed that the access road in the hatch).
negatively impacts on the views out from the classrooms which east of the site is unlikely to be feasible with the existing levels.
will primarily be arranged along the southern facade. Due to the Welsh Water easement zone, and the location of the
.(<
car-park, there is limited space for hard informal play areas to the
6LWH%RXQGDU\
south of the school. As a result of this, the classrooms arranged
6HFXUH6FKRRO=RQH along the southern facade of the school would overlook the car
6XSHUYLVLRQUHTXLUHG park.
WRFURVVSXEOLFDUHDV
22Maendy Primary School - Torfaen County Borough Council
4. 5. 6. 7.
352326('
3DUNLQJ &RD 6RIW)RUPDO 6&+22/
FK
7XUQLQJ
+DUG,QI RUPD
O
08*$ 352326('
6&+22/
'URS2II
08*$
6RIW)RUPDO
6RIW)RUPDO &\FOH 3HGHVWULDQ &\FOH 3HGHVWULDQ &\FOH 3HGHVWULDQ &\FOH 3HGHVWULDQ
$FFHVV2QO\ $FFHVV2QO\ $FFHVV2QO\ $FFHVV2QO\
08*$
0 8*
6RIW)RUPDO $
'U
'U
'U
6RIW,QIRUPDO
EUDQ
EUDQ
EUDQ
08*$
&ZP
&ZP
&ZP
GURSRII GURSRII GURSRII GURSRII
+DUG,QIRUPDO VSDFHV VSDFHV VSDFHV VSDFHV
HURDG
VHUYLF
6RI W
) RUPDO
3DUNLQJ 'UR 0 8*
S2II $
352326(' 08*$
6RIW)RUPDO
6&+22/ )O\LQJ6WDUW
&KLOGFDUH
+DUG,QIRUPDO
)O\LQJ6WDUW
&KLOGFDUH
3DUNLQJ 'UR 3DUNLQJ 'UR
S2II S2II
08*$ 352326('
6&+22/
6RIW)RUPDO
9HKLFXODU
DFFHVVURXWH
9HKLFXODU 9HKLFXODU
DFFHVVURXWH DFFHVVURXWH
+DUG,QIRUPDO
9HKLFXODU
DFFHVVURXWH
6RIW,QIRUPDO
68
68
'6
'6
OD
OD
0
0
0
QG
QG
DH
DH
DH
VF
VF
QG
QG
QG
DS
DS
\
\
\
:
:
:
H
H
D\
D\
D\
All school facilities and outdoor activity areas are enclosed The existing junior and Infant schools can be retained during All school facilities and outdoor activity areas are enclosed All school facilities and outdoor activity areas are enclosed
within one secure zone, meaning that pupils would not need to the construction of the new building. Due to this, temporary within one secure zone, meaning that pupils would not need to within one secure zone, meaning that pupils would not need to
be escorted from one part of the site to another. accommodation would not be required. be escorted from one part of the site to another. be escorted from one part of the site to another.
PROS
PROS
PROS
The school zone is less elongated, resulting in a closer The school zone is less elongated, resulting in a closer The school zone is less elongated, resulting in a closer
relationship between the school and play areas. relationship between the school and play areas. relationship between the school and play areas.
PROS
While drop-off points are close to the school entrance, parking Existing Junior and Infant school buildings could potentially be
bays are located away from the school, creating a more retained during construction.
attractive outlook from the school across soft play areas on both
sides. This buffer zone between the school and the majority of The car park subdivides the site and splits the secure school Orientation of facades not ideal for achieving Passivhaus. Orientation of facades least favourable for achieving
traffic would also result in better air quality for the frequently zone in half. Due to this, pupils would need escorting to and Passivhaus.
used hard play areas next to the building. from the northern part of the site. New school very close to existing Infants school building - risk of
The junior school would first have to be demolished in order to disruption to existing school. The junior school would first have to be demolished in order to
construct the new building. Temporary accommodation would The school is very close to the bank of the new raised construct the new building. Temporary accommodation would
be required. access road in the south. This limits the feasibility of having Logistically challenging to build school in constrained site area, be required.
CONS
CONS
CONS
hard informal play areas directly in front of the building and divorced from the new site access to the south of the site, close
Pedestrians accessing the site from the teardrop would need to negatively impacts on the views out from the classrooms which to boundaries. Compound would likely be divorced from the Construction zone would be divorced from the new site access
CONS
cross vehicular traffic to get to the entrance of the school or the will primarily be arranged along the southern facade. construction area. to the south of the site. Compound would likely be divorced
flying start / creche facilities, although safe crossing points could from the construction area.
be utilised to mitigate this risk. School at furthest point from the new vehicular site access,
resulting in car park separated from the building, and the service School at furthest point from the new vehicular site access,
The civil engineer has confirmed that the access road in the and disabled parking access road cutting through the site. resulting in car park separated from the building, and the service
east of the site is unlikely to be feasible with the existing levels. and disabled parking access road cutting through the site.
23Maendy Primary School - Torfaen County Borough Council
4.2 DESIGN DEVELOPMENT -
DEVELOPED SITE OPTIONS
Further to discussing the pros and cons of the initial site layout
options with the stakeholder and project teams, it became clear
that there were two layouts that represented the best potential
for future development - layouts 2 & 3.
A subsequent exercise in planning the internal spaces
revealed that the Flying Start unit was unlikely to sit well within
the footprint school, due to the requirement for ground floor
access, and an already ‘bottom-heavy’ school layout in terms of
a ground floor / first floor split.
This consideration led to the development of two further
options - A and B, which show the Flying Start unit as distinct
from the school.
24Maendy Primary School - Torfaen County Borough Council
4.2.1 DEVELOPED SITE OPTION A
(Separate Flying Start / Based on previous option 2, this layout separates CONS
JV
Childcare unit) the Flying Start unit from the main building. This
has been deemed necessary due to a significant The school is very close to the bank of the new
proportion of facilities requiring a ground floor raised access road in the south. This limits the
position, combined with the constraints of the site. feasibility of having hard informal play areas directly
in front of the building and negatively impacts on the
views out from the classrooms which will primarily
6RIW)RUPDO
be arranged along the southern facade.
PROS
The school zone is long and narrow with some play
All school facilities and outdoor activity areas are areas needing to be located at the opposite end of
enclosed within one secure zone, meaning that the site from the school.
)6 &KLOGFDUH pupils would not need to be escorted from one part
of the site to another. The road for kitchen deliveries cuts across the
school entrance.
The existing junior and Infant schools can be
6RIW)RUPDO
retained during the construction of the new building. Drop off point further away from school.
&\FOH Due to this, temporary accommodation would not
3DUNLQJ &\FOH 3HGHVWULDQ
$FFHVV2QO\ be required. The access road in the East would make DDA
compliant levels more difficult to achieve. It may also
U
EUDQ'
No early temporary classroom accommodation cause issues to neighbours in terms of noise, dust,
&ZP
GURSRII
VSDFHV
required saving on costs and an early order. and seeing into back of gardens etc.
08*$
Allows the existing school to remain in use without Children in close proximity with vehicles in the north
any disruption with decanting and east of the site.
08*$
FS/Childcare provision could be prefabricated. The MUGAs are a lot closer to the school, creating
7XUQLQJ 3DUNLQJ
possible issues with noise.
6HUYLFH
$FFHVV 'URS2II
VSDFHV
The car park cannot be handed over at the same
+DUG,QIRUPD
O3OD\
time as the school.
Negative comments received from Principal
352326('6&
+22/
Designer (Baker Hicks) regarding pedestrian safety.
Limited construction access / very restricted site
with embankment and the existing school.
+DUG,QIRUPD
O3OD\
3ODQWLQJDORQ
JQHZEDQN No staff car parking on handover of Phase 2.
Ph.3 - Existing buildings
demolished & Flying
No FS/Childcare provisions on handover of Phase 2.
9HKLFXODU STart / Childcare building
DFFHVVURXWH
constructed Early Phase 1 works necessary for Construction
Ph.2 - School Access. Temporary access off Cwmbran Drive might
building
not be viable.
constructed
Ph.1 - Site entrance Doesn’t allow plant / kitchen access on handover.
constructed
0
DH
QG
\
:
.(<
D\
KEY
6LWH%RXQGDU\ Phase 1
6HFXUH6FKRRO=RQH Phase 2
Phase 3
6XSHUYLVLRQUHTXLUHG
WRFURVVSXEOLFDUHDV
25Maendy Primary School - Torfaen County Borough Council
4.2.2 DEVELOPED SITE OPTION B
(Separate Flying Start / Based on previous option 3, this layout separates Access road in the west works with existing levels
JV
Childcare unit) the Flying Start unit from the main building. This as it drops into the higher sider of the site. Positive
has been deemed necessary due to a significant comments received from civil engineer.
proportion of facilities requiring a ground floor
7HPSRUDU\
$FFRPPRGDWLRQIRU position, combined with the constraints of the site. DDA compliant falls can be achieved with the
7HPSRUDU\6LWH -XQLRU6FKRRO
$FFHVV IRU VL]H7%& access road in the west.
LQVWDOOLQJ
WHPSRUDU\
DFFRPPRGDWLRQ
RQO\
PROS CONS
6RIW)RUPDO
6RIW)RUPDO Better access during construction. The junior school would first have to be demolished
in order to construct the new building. Temporary
Better option for vehicle parking on handover of accommodation would be required.
phase 2.
Due to the Welsh Water easement zone, and the
&\FOH 3HGHVWULDQ
Safe, uniterrupted access off Cwmbran Drive. location of the car-park, there is limited space for
08*$ $FFHVV2QO\
hard informal play areas to the south of the school.
Space for construction vehicles to manoeuvre The car park may be reduced in size to allow for a
6RIW,QIRUPDO
around site & more room for storage. narrow band of play space with screening planting
08*$
along the boundary.
U
EUDQ'
FS/Childcare provisions available on handover of
&ZP
GURSRII
VSDFHV
phase 2. Limited school social play on handover of Phase 2.
6LWH$ SRUDU\
+DUG,QI RUPDO
FFHVV
Easier segregation lines / hoarding lines. Early instruction required for early orders (temporary
HP
1HZ7
classroom block, asbestos removal and demolition).
All school facilities and outdoor activity areas are
352326('
6&+22/
enclosed within one secure zone, meaning that
pupils would not need to be escorted from one part
of the site to another.
7HPSRUDU\ The school zone is less elongated, resulting in a
6LWH$FFHVV
closer relationship between the school and play
areas.
3DUNLQJ 'U Ph.1 - Temporary School
RS2II
Pedestrians accessing the site from the teardrop
do not need to cross vehicular traffic to get to the
9HKLFXODU entrance of the school or the flying start / creche
DFFHVVURXWH
facilities. Positive comments received from Principal
Designer and BREEAM consultant. Ph. 3 - Infant School
Demolished
Kitchen deliveries in the West can be kept separate
from the teaching and play spaces.
)O\LQJ6WDUW
&KLOGFDUH
Access road off Maendy Way is the correct side for Ph. 1 - Junior School
neighbours as to avoid noise, dust, and seeing into Demolished
back of gardens etc.
68
Ph. 2 - Construction of new
Sharon & Kerry’s preferred option during stakeholder
'6
buildings
OD
0
QG
DH
consultation.
VF
QG
DS
\
:
.(<
H
D\
KEY
6LWH%RXQGDU\
Flying start is very accessible from car park. Phase 1
6HFXUH6FKRRO=RQH School, car park and flying start can be handed over Phase 2
at the same time. Phase 3
6XSHUYLVLRQUHTXLUHG
WRFURVVSXEOLFDUHDV
265 DEVELOPED DESIGN
Maendy Primary School - Torfaen County Borough Council
5.1 PROPOSED SITE LAYOUT
Based on the analysis of pros and cons, it became apparent
that layout option B was clearly preferred, providing the best
use of the available site and safer access routes.
The developed version of this layout is illustrated here.
A separate application has been made to cover the
temporary school building that will be required to ensure
the continuity of school operation during the consitruction
works.
Site section lines are annoted on the site plan adjacent and
illustrated on the following page.
Drive
Cwmbran
Bin Store
Service Yard
Sprinkler Tank
PROPOSED
SCHOOL
3
0915
Primary School
Bin Store
Flying Start
& Childcare 4
1 0915
0915
M
ae
nd
yW 2
ay 0915

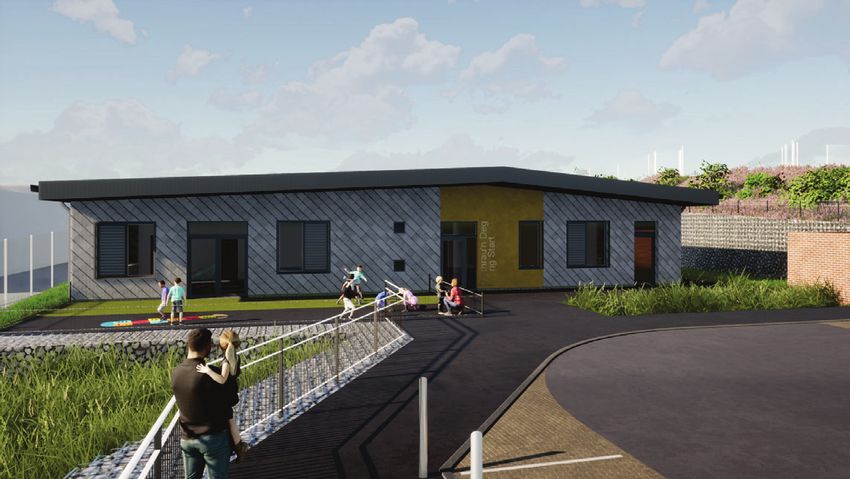

Flying Start /
Childcare Unit
28Maendy Primary School - Torfaen County Borough Council
5.2 PROPOSED SITE SECTIONS
Bank Path Road Bank Car Park Planting Primary School Service Yard Bin Store Swale Amenity Grass
Site Section 01
1 1 : 200
Hard Play Flying Start / Childcare Unit Hard Play Path Car Park Path Hard Play Primary School Hard Play Path Swale
Site Section 02
2 1 : 200
Primary School Road
3
Site Section 03
3 1 : 200
0915
Flying Start / Childcare Unit Path Bank Road Path
4
1 0915
0915
2
0915
Site Section 04
4 1 : 200
29Maendy Primary School - Torfaen County Borough Council
5.3 AMOUNT AND SCALE - SCHOOL BUILDING
Overall Massing
The context and constraints of the site have had a
strong influence on the size and scale of the development,
in accommodating the required spaces on a tight and
challenging site. The proposal creates approximately 2518
m2 of Gross Internal Floorspace, across two levels, with the
Ground floor creating 1409 m2, and the First floor creating
1109 m2.
The building is two storeys throughout, however, due to
the smaller space requirements at first floor, there is a void
above the ground floor kitchen area. The compactness
requirements of the Passivhaus Standard have influenced
the decision to avoid single storey or lean-to components
within the design.
The building has a simple roof profile, with two shallow pitch
roof elements and overhanging eaves. Clerestorey windows
to the central internal spaces are also provided. The main
hall at the western end of the building follows the same
pitch at the South-facing roof, but is expressed by projecting
forward in plan.
Massing Image - Clay Model
30Maendy Primary School - Torfaen County Borough Council
5.4 PLANS - SCHOOL BUILDING
Soft landscape
Sprinkler tank
location/ details TBC
Store
Outdoor play space
(Infants)
Outdoor play space
(SNRB)
WELSH WATER EASEMENT ZONE WELSH WATER EASEMENT ZONE
E
T ZON
MEN
ASE
RE
W ATE
LSH
WE
G.007 G.008 MVHR G.044
G.049
SNRB Tutorial Rm
SNRB Tutorial Rm
WC / Change Dry Store Cloaks (EY)
7.77 m² 12.20 m² Cloaks (EY)
Folding Partition
10.72 m² 10.72 m²
19.91 m²
19.91 m²
G.039
G.038
G.009 G.052 G.048 G.047 G.043
Riser / Plant Infant Classroom Infant Classroom Infant Classroom Infant Classroom
17.49 m²
61.95 m² G.050 61.95 m²
61.95 m² G.045 61.95 m²
Kitchen Early Years WC Early Years WC
Dirty Returns
12.13 m² 12.13 m²
G.006 equipment
Kitchen indicative
61.35 m² only G.010
SNRB Office
Stair 1
Acc. WC
G.040
4.12 m²
G.037
5.76 m²
37.18 m²
Servery G.051 G.046
G.005
Grp Rm Grp Rm
PE Store 9.41 m² 9.41 m²
18.31 m² G.015
G.014
G.004 Lift Flexible Screening Flexible Screening G.042 G.041
Interview 4.05 m²
Chair Store 7.55 m² 1.023 1.024 Hygiene SNRB Therapy
G.053 1.022
24.65 m² 11.86 m² 12.19 m² G.036
Library Food/Science/DT
G.016 Library Library
26.27 m² 15.88 m²
7.30 m² Stair 2
Riser 7.30 m² 23.14 m²
1.42 m²
G.017 G.029
G.002
Circulation Circulation
Circulation 76.08 m² 33.88 m²
30.54 m²
G.011 G.021 G.025 G.031
Cl. St. Store + DB Pupil WC G.035
Acc WC 4.34 m²
4.34 m²
Reprographics
2.18 m²
3.75 m² G.018 Breakout
12.24 m²
Nurture
G.012 9.36 m²
G.030
Secure gate to
service yard Sick Bay Circulation
4.63 m² G.022 G.026 7.47 m²
TS1071 Early Years WC Early Years WC
12.13 m² 12.13 m²
G. 003 Kitchenette
Plant (Electrical)
Gen. Office + Rec
2.68 m² G.019 G.024 G.028
Main Hall G.033
Staff Work Room
179.94 m² Nursery Reception Classroom Reception Classroom
G.034
9.45 m²
ALN
29.41 m²
G.013
61.95 m²
61.95 m² 61.95 m² G.032 13.13 m²
G.001 G.023 G.027
G.020
9.23 m²
ALN
Circulation Cloaks (EY) Cloaks (EY) 11.90 m²
14.91 m² 10.72 m² 10.72 m²
Cycle hoops
Main Outdoor play space Outdoor play space Outdoor play space
Entrance (Nursery) (Reception) (ALN)
Store
Swale
School - Proposed Ground Floor Plan
31Maendy Primary School - Torfaen County Borough Council
Soft landscape
Sprinkler tank
location/ details TBC
Store
Outdoor play space
(Infants)
Outdoor play space
(SNRB)
1.008
Junior WCs
1.022
Plant (Ventilation) 1.027
28.22 m²
1.031 1.028
1.026
1.021
46.74 m² Junior Classroom
Plant Junior Classroom Junior Classroom 61.95 m² Junior Classroom
61.95 m²
61.97 m² 1.030 61.95 m² 61.95 m²
A.V. Studio
28.23 m²
void over
Stair 1
1.009
9.84 m²
kitchen
1.011 1.025
1.007 Cl. St.
Circulation
1.010 Lift
1.029 5.13 m² 1.023
1.006
7.47 m²
Server Room 4.05 m²
void void
Nurture 1.012
8.55 m² Grp Rm 1.024 Grp Rm
7.55 m² 6.67 m² Circulation 8.99 m²
Riser
122.27 m² Staff WC
2.55 m²
1.005 1.020
Circulation Stair 2
41.15 m²
6.90 m²
1.004
1.014
Gen Store
8.76 m² Staff Work Room
10.71 m²
1.003
Secure gate to
service yard Staff Shower/Chng
6.00 m²
1.013
1.019
Junior WCs
Staff Room 1.015 1.016 1.018
Deputy Head Office
28.22 m²
void over Junior Classroom
1.017
39.35 m²
Junior Classroom Junior Classroom Junior Classroom
main hall 61.95 m² 61.95 m²
61.95 m²
61.95 m²
18.19 m²
1.002
1.001
Head Office
19.21 m²
Cycle hoops
Main Outdoor play space Outdoor play space Outdoor play space
Entrance (Nursery) (Reception) (ALN)
Store
Swale
School - Proposed First Floor Plan
32Maendy Primary School - Torfaen County Borough Council
11°
11°
standing seam metal roof
standing seam metal roof
5°
5°
School - Proposed Roof Plan
33Maendy Primary School - Torfaen County Borough Council
5.5 SECTIONS - SCHOOL BUILDING
77886 77886
11° 11°
Clerestory Clerestory
75730.0 5° 75730.0 5°
Circulation services
services
void over
kitchen
Stair 1
Deputy Head Office
01 - First Floor 01 - First Floor
71225.0 71225.0
Main Hall
Kitchen Circulation
Circulation
00 - Ground Floor 00 - Ground Floor
67400.0 67400.0
Section 1 Section 2
2 1 : 100 1 1 : 100
Clerestory
75730.0
Circulation
Circulation
Stair 2
01 - First Floor
71225.0
Main Hall
Circulation Circulation
Circulation
00 - Ground Floor
67400.0
Section 3
3 1 : 100
2 1
2
0120 0120
0121
1
3 0121
0120
Reference Plan
4 1 : 500
34Maendy Primary School - Torfaen County Borough Council
Clerestory
75730.0
Circulation
Circulation
01 - First Floor
71225.0
SNRB Therapy Hygiene
00 - Ground Floor
67400.0
Section 4
1 1 : 100
77886
11°
Clerestory
75730.0 5° services
services
services
Junior Classroom Junior Classroom
01 - First Floor
71225.0
services services services
Reception Classroom Infant Classroom
00 - Ground Floor
67400.0
Section 5
2 1 : 100
2 1
2
0120 0120
0121
1
3 0121
0120
Ref Plan
3 1 : 500
35Maendy Primary School - Torfaen County Borough Council

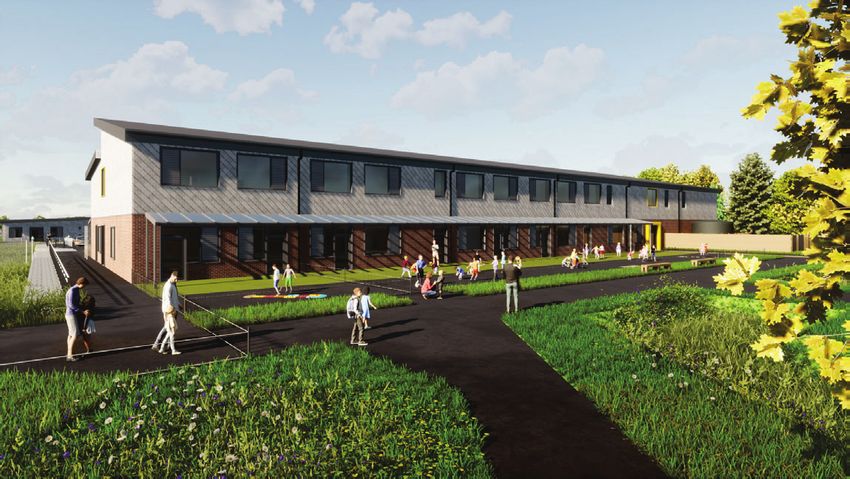

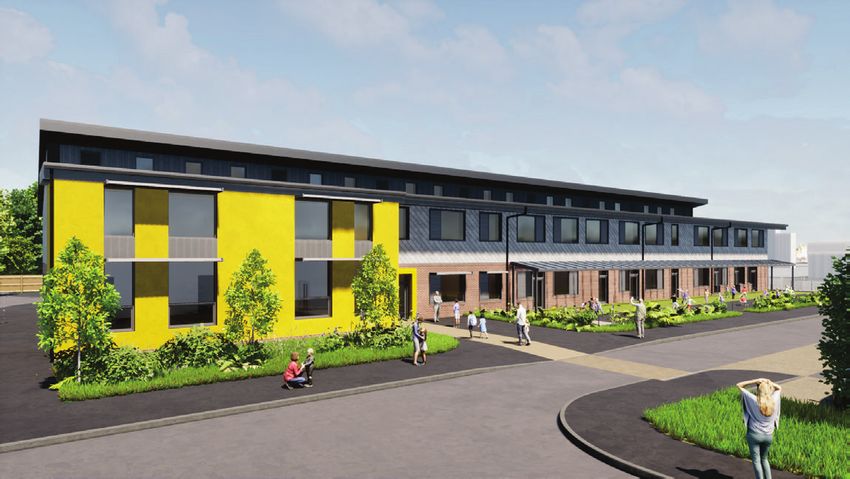

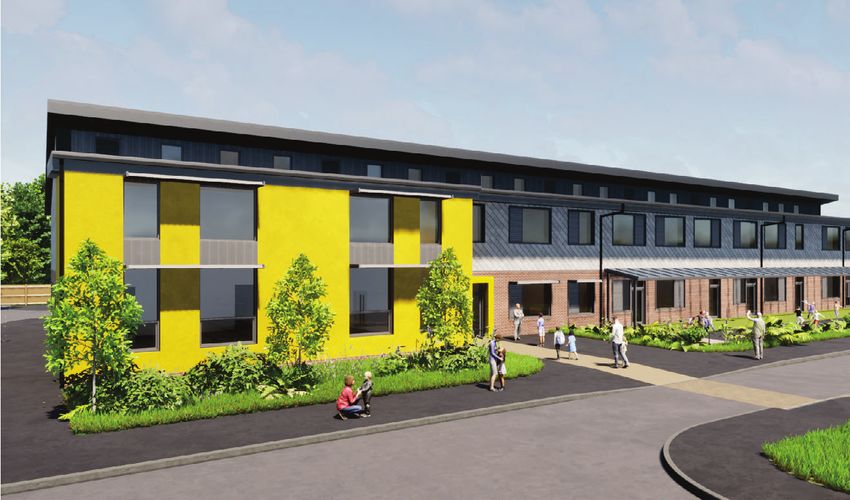

5.7 APPEARANCE - SCHOOL BUILDING
Building Appearance
Due to the requirements of the Passivhaus Standard, the
school building has a simple form and avoids wherever
possible the use of projecting elements or indents/alcoves.
The windows are sized and arranged to make use of solar
gain in the winter while mitigating the risk of overheating
in the summer. Windows are also designed to avoid any
unnecessary mullions or transoms, as this ensures that
the thermal performance of the unit is optimised. The
design includes louvred panels in front of openable
windows to enable natural ventilation at night time without
compromising the security of the building.
Shading is provided primarily by overhanging eaves and
freestanding canopies at ground floor level, however there
are a few locations where brise soleil have been included
over windows due to the localised absence of other shading
features.
A palette of materials has been chosen to provide a timeless
and elegant appearance, with variety added through the use
of colour and detailing in selected areas. The main hall at the
west end of the building will appear as a contrast to the rest
of the school, with the aim of creating a point of interest and
enhancing the design’s legibility.
It is the intention for all window frames, window surrounds,
brise soleil, canopy frames and rainwater goods to be
finished in a mid-grey colour in order to compliment the
standing seam metal roof and not detract from the impact
of the other materials in the scheme. The quality of materials
and detailing will ensure the status of the building as a
design exemplar within the local area.
36Maendy Primary School - Torfaen County Borough Council
5.8 PLACEMAKING
Planning Policy Wales 10 places a focus on the idea of
‘Placemaking’ as a marker of good design, and defines it as
the following:
“Placemaking” is a holistic approach to the planning and
design of development and spaces, focused on positive
outcomes. It draws upon an area’s potential to create high
quality development and public spaces that promote
people’s prosperity, health, happiness, and well being in the
widest sense.
Placemaking considers the context, function and
relationships between a development site and its wider
surroundings. ...
... Placemaking adds social, economic, environmental and
cultural value to development proposals resulting in benefits
which go beyond a physical development boundary and
embed wider resilience into planning decisions.”
There are clear aims to ensure that the facility actively
complements the surrounding area, and promotes a
healthier and happier lifestyle through its use. Through the
opening up of some school facilities to community use, the
local residents will experience additional benefits.
There are also placemaking advantages with the sustainable
drainage scheme proposed, which seeks to manage the
speed at which rainwater enters the drains, and to naturally
filter the water itself through the use of bioretention planting
beds and water gardens. As this is achieved with visible
swales, the measures in which we are sustainably managing
rainwater can serve as an educational tool for the local
community, as well as promoting prospective developments
in the area to follow the same measures.
The site itself is located in an area with excellent public
transport links, which ensures that it is sufficiently accessible
by a wide variety of means and will continue to be so, long
into the future.
Finally the appearance, and materiality, will serve as a quality
marker for the area. High quality materials and finishes will be
specified to enhance sense of place and hopefully promote
the same in nearby developments in the future.
37Maendy Primary School - Torfaen County Borough Council
5.9 MATERIALITY - SCHOOL BUILDING
Grey diamond fibre cement tiles Painted render
The first floor of the building will be clad in grey diamond In order to differentiate it from the rest of the building and
fibre cement slates. This cladding option will lend an element create visual interest, the main hall will appear as a block of
of geometric interest to the building facade while also not vibrant colour. This effect will be created using painted render
diminishing the colour contrast proposed in the location of in a hue that enhances the playful appearance of the building
the main hall. while complimenting the rest of the material pallete. The
current design shows the render painted yellow, however the
colour is still subject to confirmation.
Red brickwork Standing seam metal roof covering
The areas most exposed to potential impact will be built from The pitch of the roof is shallow, so the options for the roof
red brickwork, providing a balance between a hard wearing covering are limited. A metal standing seam roof will be ap-
material, and an attractive external finish. The use of brick is propriate for the shallow pitch but will also lend the building a
still TBC and dependent on the chosen construction method. contemporary appearance. The colour will be selected from a
standard range of mid-greys.
Grey rainwater goods, window frames, surrounds, and Translucent polycarbonate canopies with grey painted
ventilation louvres steel frames
The colour of rainwater goods, window frames, surrounds, and The canopies outside the classrooms will be translucent poly-
ventilation louvres will be mid-grey, selected from a standard carbonate, providing shade and shelter from the rain whilst
RAL range of powder coatings to compliment the cladding still letting some light through. The frames will be painted in
colour. a standard grey to match the window frames, surrounds and
ventilation louvres.
38Maendy Primary School - Torfaen County Borough Council
5.10 ELEVATIONS - SCHOOL BUILDING
The school elevations have been designed with consideration of Passivhaus guidance as well
as the operational requirements of the school.
The choice of external finishes has also been influenced by information received from the LCA
(embodied carbon) assessments of different cladding options undertaken my MM Sustainable
Design. This analysis assumed the main wall structure to be timber frame with cellulose blown
insulation. The results of this assessment are summarised below:
Clerestory
75730.0
01 - First Floor
71225.0
00 - Ground Floor
67400.0
East Elevation
1 1 : 100
Following this analysis, the decision was made to replace brick at the first floor with fibre
cement tiles, which have almost half the global warming impact.
EXTERNAL FINISHES:
These are all suggested materials and colours at the time of pre-application consultation and
are subject to confirmation.
Walls Clerestory
Main (Ground Floor): Red brick (TBC). 75730.0
Main (First Floor): Grey fibre cement tiles, laid diamond pattern.
Secondary: Painted render to provide feature colour to main hall.
Roof
01 - First Floor
Standing seam metal roof
71225.0
Window and door frames
Polyester powder coated aluminium
00 - Ground Floor
Rainwater goods 67400.0
Polyester powder coated aluminium to match window frames
West Elevtion
2 1 : 100
39Maendy Primary School - Torfaen County Borough Council
Clerestory
75730.0
01 - First Floor
71225.0
00 - Ground Floor
67400.0
Main Entrance
South Elevation (visitors and staff)
1 1 : 100
Clerestory
75730.0
01 - First Floor
71225.0
Sprinkler tank enclosure
00 - Ground Floor
67400.0
Pupil Entrance Kitchen
North Elevation (juniors) Entrance
2 1 : 100
40You can also read
