INSTRUCTION MANUAL 8L Evaporative Cooler Model: DCEVP8BW For domestic household use only.
IMPORTANT
THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR
FUTURE REFERENCE. Note also the information presented on the appliance
CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/
OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY
Please read the operating instructions carefully before using your evaporative cooler
for the first time and keep them in a safe place.
WARNING – This appliance must not be used in a bathroom.
WARNING – Do not use this appliance in the immediate surroundings of a bath, a
shower or a swimming pool.
• Never immerse the appliance in water or other liquids.
• Unplug the appliance during filling and cleaning.
• Operate this unit only on a firm, flat surface to avoid the risk of water leakage.
Ensure that the unit is kept upright at all times.
• Do not place on soft, unstable or non-horizontal/angled surfaces.
• Never operate the appliance if a cable or connector has been damaged, after
appliance malfunction or if the appliance was dropped or is otherwise damaged.
• If the mains lead is damaged it must only be replaced by the manufacturers service
agent or a similarly qualified person in order to avoid a hazard.
• Please ask a professional service agent to repair the product. Improper repair may
cause danger to users.
• Disconnect the appliance from mains power whenever it is not in use, before
relocating it, filling it and before cleaning.
• Operate the appliance only at the voltage specified on the rating label.
• Only connect the unit to a properly installed and easily accessible socket so that
you can quickly disconnect the plug if necessary.
• Do not connect this product to the mains using an extension lead.
• This evaporative cooler is only intended for INDOOR RESIDENTIAL applications.
This evaporative cooler should not be used for commercial or industrial or leisure
applications or in small enclosed spaces.
• Never use the mains lead as a carrying strap or pulling lead.
• To avoid a fire or electrocution hazard, NEVER put the cord near heat registers,
radiator, stoves or heaters.
• DO NOT touch the power cord with wet hands to avoid the risk of electric shock.
• DO NOT cover cord with carpeting, throw rugs, runners, or similar coverings.
• DO NOT route cord under furniture or appliances. Take care to position the cord
away from traffic areas and where it will not be a tripping hazard.
• DO NOT use the unit near windows or where water collects. Rain and water collection
may lead to a risk of fire or electric shock.
• Only operate this appliance with a minimum of 50cm clearance all around i.e. away
from walls, furniture and overhanging objects such as curtains or a shelf.
2• This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning use
of the appliance by a person responsible for their safety.
• Children should be supervised to ensure they do not play with the appliance.
• To prevent spillage, empty the water tank before lifting or relocating the appliance.
• WARNING: To avoid danger of suffocation please remove all packaging materials
particularly plastic and EPS and keep these away from vulnerable people, children
and babies.
• NEVER drop or insert any object or fingers into any openings.
• Do not use the appliance in locations where paint, petrol or other flammable liquids
are used or stored.
• Do not use bug sprays or other flammable cleansers/vapour sprays on or around
the unit.
• Always switch off the unit and take the plug out of the socket:
• If you are not using the unit
• Before you clean or carry out maintenance on the unit
• If a fault occurs
• During filling
• In the event of an electrical storm
• Avoid electromagnetic interference. Keep the unit at least 1 metre away from
electrical appliances such as televisions & radios.
• Never insert objects or fingers into the air inlet and outlet, it may lead to current
leakage, short circuit and product damage.
WARNING - KEEP BATTERIES OUT OF REACH OF CHILDREN
• Swallowing may lead to serious injury in as little as 2 hours or death, due to chemical
burns and potential perforation of the oesophagus.
• If you suspect your child has swallowed or inserted a button battery immediately
call the 24-hour Poisons Information Centre on 13 11 26 (in Australia) or 0800 764
766 (in New Zealand) for fast, expert advice.
• Examine devices and make sure the battery compartment is correctly secured,
e.g. that the screw or other mechanical fastener is tightened. Do not use if the
compartment is not secure.
• Dispose of used button batteries immediately and safely. Flat batteries can still be
dangerous.
3Exposed to the Near water If the power cable
weather outdoors wires are frayed or cut
Where small children If an extension Where the power
may be left unattended lead may become cable may be
overloaded damaged
On a slope or Where there is risk Where it may be
uneven surface of fire or close to damaged by
a naked flame chemicals
Where there is a risk This product is not If there is a risk
of interference by made for DIY repair of water falling on
foreign objects the unit
4Specification
Model no. DCEVP8BW
Colour Black/White
Power supply 220-240V~50Hz
Rated power 80W
Speed settings 3
Modes 3 (natural, normal & sleep)
Turbo air speed 7m/s
Water tank capacity 8L
Remote control Y
Timer 0-9 hours
Swing function Y
Controls Button with LED display
Max. room size 20m2
Water consumption 1L/h (high speed)
Weight (net) 7kg
Dimensions (w x d x h) 270 x 325 x 1062mm
• For greater precision, please always refer to the rating label placed on the product.
5Parts
(1) Top panel (8) Remote control storage
(2) Rear panel (9) Rear screen
(3) Front panel (10) Cord winding frame
(4) Base (11) Water tank
(5) Display (12) Power cord
(6) Vertical blade
(7) Horizontal blade
Remote Ice pack x 2
6Display & Control Panels
Control Panel
Fan speed
Timer
Swing
Cooler/ Wind
Humidifier On/Off Mode
Display Panel
On/Off Fan speed Wind Timer Swing Cooler/
Mode Humidifier

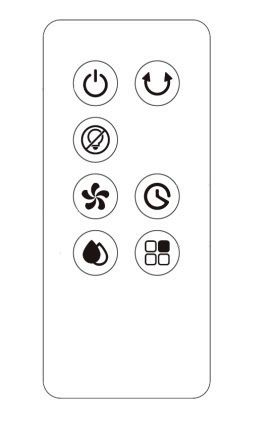

7Remote Control
On/Off Swing
Display
Speed Timer
Cooler/Humidifier Mode
Functions
Note: The buzzer beeps twice when the power supply is first turned on. The unit
is in ‘standby’ until the On/Off button is pressed.
The horizontal louvres need to be opend manually by hand.
ON/OFF
Press the ON/OFF button to turn the unit ON. The default settings when first turned
on are low fan speed, normal wind mode, and no timer. When turning the unit back
on after powering it off, the state upon turning it off will be memorised, excluding
the timer setting. If the sleep wind mode was on before turning off, the mode will
not be memorized after turning it on again, but the normal wind mode will start.
To turn the unit OFF press this button again. It may take a few seconds to power off
completely.
SWING
Press this button to turn on the SWING function, the vertical louvres will move left
to right as the synchronous motor switches on/off the vertical fan blades.
SPEED
The fan SPEED can be selected in the following sequence: low (1) > medium (2)
> high (3) > low (1).... The selected fan speed LED indicator light will illuminate
accordingly.
8Functions
TIMER
The TIMER can be set in 1 hour increments up to the maximum timer of 9 hours. The
set time will be indicated on the display panel and the time indicator turns on and
the display panel flashes to display the set time, indicating that it is in the timer
setting state. At this moment, you can press the timer button to set the time, and
press any key (except the switch key) or wait 5 seconds to exit the setting. After
setting the timer, the display panel alternately displays the set timer and current
wind speed at 10 second intervals, and the wind speed indicator and time indicator
display correspondingly. When the internal timing program reaches the set time, the
machine will shut down and stay in standby state.
MODE
The default mode after turning “On” is normal. Press this button to select modes
in this sequence: normal > natural > sleep. The MODE indicator light will illuminate
accordingly. There is no indicator for the normal wind mode.
Normal: The fan runs at a fixed speed for the wind speed selected, without any
change.
Natural: The fan motor runs irregularly according to the preset program, and can be
set to low, medium and high natural wind in conjunction with the wind speed key.
Natural wind is to imitate the effect of natural wind, making the air volume softer
and more comfortable.
Sleep: In natural sleep mode, the wind speed changes with a 30-minute cycle
change, but does not indicate with the change of natural wind. The fan motor
performs timing downshifting operation mode according to the wind speed set by
the user and preset rule of the program. This mode prevents physical discomfort
due to excessive wind when people fall asleep.
High: 30 minutes high speed natural wind > 30 minutes medium level normal
wind > 30 minutes low level normal wind (until turned off).
Medium: 30 minutes medium level normal wind > low level normal wind (until
turned off).
Low: Low level normal wind (until turned off)..
COOLER / HUMIDIFIER
Press this button once to turn on the COOLER / HUMIDIFIER function, the pump
will start and the COOLER / HUMIDIFIER LED will illuminate. Press this button again
to turn off the cooling function, and to use as a fan only.
9Other Functions
Environmental protection function:
In the power on state, if there is no operation of any key (including the remote
control) for 1 minute all LEDs will dim to 33% of their original brightness. Press the
key again to restore the brightness and perform the corresponding operation.
Water level protection function:
When the cooling function is first turned on, the water pump works for 50 seconds.
If low water is detected, the pump will stop working and a buzzer alarm beeps 10
times.
Uninterrupted power memory function:
When the power is restored after a power outage, the fan will start in the state
before shutting down when it is turned on again. The unit will restore to the previous
settings. Note: the previous function will be restored (except if in sleep mode). The
timer is not memorised either.
10Operation & Set Up
1. Remove the unit from its packaging
2. To begin using the COOLER/HUMIDIFIER function, rotate the Cord winding
frame clips 90° and remove the water tank located at the back of the unit and fill
to the MAX fill line. Replace the water tank and secure the clips.
3. For extra cooling power, place an ice pack (supplied) into the water tank.
4. Open the horizontal louvres.
5. Plug into a power supply and press the ON/OFF button to start the appliance.
6. The unit will operate initially on a continual basis. If a set period of operation is
required, please follow the TIMER instructions on page 9.
7. Select the desired fan SPEED by pressing the SPEED button. Refer to page 8 for
different settings.
8. Select the operation MODE as required, by pressing the MODE button. Refer to
page 9 for different settings.
9. Press the SWING function as required.
10. To switch the unit off at any time, press the ON/OFF button.
Precautions
• Do not overfill the water tank (check the MAX fill line).
• Only fill the water tank half full, when using the ice packs.
• Use only cold, clean filtered water.
• The unit is equipped with a number of safety devices, including a water level
protection, uninterrupted power memory function & auto power off function.
• Do not allow the same water to sit in the machine for a prolonged period.
• It is recommended that any water left in the machine for 3 days or more be re-
moved and replaced with clean water.
• The control panel must not come in contact with water or any other liquids.
Using the Remote Control
1. Unscrew and open the battery cover of the remote control, and insert a 3V
CR2032 battery.
2. Please point to the receiver when using the remote control.
3. If the battery voltage is low, please open the battery cover and replace with a
new battery (CR2032). Then replace the battery cover.
11Cleaning
Your unit is designed to remove dirt and other atmospheric impurities by drawing air
through the wet curtain. DO NOT block the air filter, as this will impair the efficiency
of the unit.
Wet Curtain
• In a smoky or dusty environment, this wet curtain will become grey in colour after
one to two months.
• Disconnect the unit from the main supply. Gently soak the wet curtain in mild,
soapy water for a few minutes, dry and replace. Be sure to re-fit the rear screen
securely. No special tools are required for this.
Water Tank
The water tank should be cleaned regularly, especially in hard water areas. If not
cleaned, deposits may build up affecting the efficiency of the unit. Cleaning the tank
with mild soapy water once every month is recommended. To do this, follow the
steps below:
1. Disconnect the appliance from the main supply.
2. Completely remove the water tank from the unit by rotating the Cord winding
frame clips 90° and removing the water tank by putting your hand into the water
tank, rotate the fixing buckle 90°, and then push the water pump box assembly
down to take it out, and finally take out the water tank. Remove any deposits or
dirt from the tank with a mild, soapy detergent and cloth. Note: for hard water
areas use a citric acid solution to descale & clean the tank. Mix 1 part citric acid to
20 parts water.
3. Flush the tank with clean water.
4. Replace the tank and make sure to secure it back in place by reversing the steps
in point 2.
Outside Cabinet
1. Turn the unit OFF and disconnect the appliance from the power supply.
2. Remove any dust build up with a soft brush.
3. Wipe the surface of the unit with a soft damp cloth. Mild detergent can be used
for any stubborn marks.
Do not use abrasive sponges, scouring pads, or a stiff brush to clean the
IMPORTANT
The control panel and other parts must not come into contact with water or any
other liquids.
12Storage
If not using the unit for an extended period of time. After cleaning please:
• Turn the unit off, unplug and take care of the mains lead & plug.
• Cover the unit and store it upright in a location where it will not receive direct
sunlight. NB- Prolonged exposure to direct sunlight will discolour the enclosure.
Maintenance
If the unit fails to operate efficiently, is broken or other problems arise, unplug and
do not operate. Ask for advice by calling your local after sales service agent or the
Customer Care Centre on 1300 556 816 (AU) / 0800 666 2824 (NZ).
Warranty
Please refer to the warranty card in the box for warranty information. For any
troubleshooting advice, please contact the relative Customer Care Centre below.
Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd
8 Lakeview Drive, 38 Harris Road, East Tamaki,
Scoresby 3179, Victoria Auckland 2013
Australia New Zealand
Ph: 1300 556 816 Ph: 0800 666 2824
Recycling: Do not dispose of electrical appliances as unsorted
municipal waste. Use separate collection facilities. Contact your
local government for information regarding the collection systems
available. If electrical appliances are disposed of in landfills or dumps,
hazardous substances can leak into the ground water, polluting the
food chain and damaging health and well-being.
1314
15
Customer Care: 1300 556 816
customer.care@glendimplex.com.au
www.dimplex.com.au
Supplied by Glen Dimplex Australia
8 Lakeview Drive, Scoresby, Victoria, 3179
© Glen Dimplex Australia. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without
prior permission in writing of Glen Dimplex Australia.
DCEVP8BW REV2
16You can also read
