8 Jaakko Heikkilä Implementing a RESTful API with .NET Core 2.1 Metropolia University of Applied Sciences Bachelor of Engineering Software Engineering Bachelor’s Thesis 31 January 2021
Abstract
Author Jaakko Heikkilä
Title Implementing a RESTful API with .NET Core 2.1
Number of Pages 48 pages
Date 31 January 2021
Degree Bachelor of Engineering
Degree Programme Information Technology
Professional Major Software engineering
Instructors Janne Salonen, Principal Lecturer
Tuomas Jokimaa, supervisor
The objective of this thesis was to design and implement a bespoke backend API using
Microsoft’s .NET Core framework. The work included the architectural planning, writing ap-
plication logic and unit tests, setting up a version control system in GitHub Enterprise and
implementing a continuous integration pipeline using TeamCity and Octopus Deploy.
The implemented API is part of a larger group of intranet applications which are used by the
end users to manage their sales materials and to partition them for different sales teams.

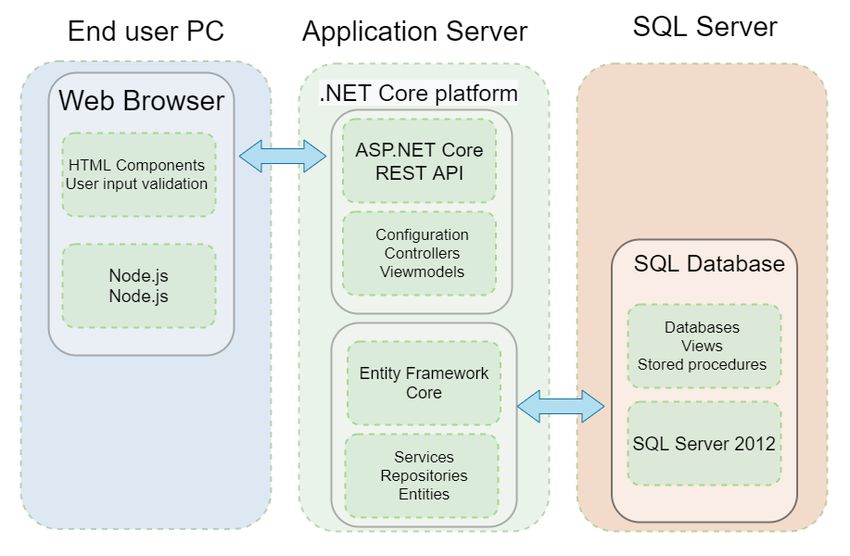

The implemented API works as a facade between the user interface and a SQL Server in
which the actual logic was implemented.
The thesis explores briefly the technologies which were used, and explains the .NET fram-
work’s history and some of its web development tools. The three external tools: GitHub En-
terPrise, TeamCity and OctopusDeploy are explained. The software development process
and the structure of the code are then looked at in more detail.
The thesis was carried out in order for the customer to improve their business critical oper-
ations. The application was made as a part of an already existing set of applications which
dictated the use of programming technologies.
The following technologies and tools were used in the implementation: Visual Studio 2017
Enterprise Edition, GitHub Enterprise, TeamCity, OctopusDeploy
Keywords Microsoft .NET Core, ASP .NET Core, REST ApiAbstract
Tekijä(t) Jaakko Heikkilä
Otsikko REST API:n toteutus .NET Core 2.1 Sovelluskehyksellä
Sivumäärä 48 sivua
Aika 31.1.2021
Tutkinto Insinööri (AMK)
Koulutusohjelma Tieto- ja viestintätekniikka
Suuntautumisvaihtoehto Ohjelmistotekniikka
Ohjaaja(t) Janne Salonen, Principal Lecturer
Tuomas Jokimaa, supervisor
Tämän opinnäytetyön aiheena on suunnitella ja ohjelmoida asiakkaan tarpeisiin räätälöity
backend API käyttäen Microsoftin .NET Core ohjelmistokehystä. Työhön kuului sovelluk-
sen arkkitehtuurin suunnittelu, sovellus- ja testauskoodien kirjoittaminen, versiohallintajär-
jestelmän pystyttäminen sekä jatkuvan integraation työkalujen pystyttäminen.
Työssä tehty API on osa ohjelmistoa, joka on intraverkossa oleva palvelu, millä loppukäyt-
täjät voivat hallita myyntimateriaaleja ja niiden jakamista eri myyntitiimeille. Toteutettu API
toimii eräänlaisena fasaadina businessäännöt sisältävän sovelluksen ja käyttöliittymän vä-
lillä.
Opinnäytetyössä perehdytään käytettyihin teknologioihin ja .NET ohjelmointialustan histori-
aan, ohjelmointiprosessiin ja ohjelmakoodin rakenteeseen, sekä automaatiotyökaluihin
TeamCityyn ja OctopusDeployhin
Opinnäytetyö tehtiin, jotta asiakasyritys voisi hallinnoida ja seurata liiketoiminnalle tärkeän
materiaalin myyntiä. Sovellus tehtiin osaksi isompaa kokonaisuutta .NET Core -kehyksellä
tehtyjä ohjelmia, joissa on pyritty pilkkomaan isompaa sovelluskokonaisuutta pienempiin
hallittaviin osiin. Ohjelmistokehys .NET Core valittiin sen ollessa jatketta kypsälle .NET
Frameworkille ja myös sen monialusta-tuen vuoksi.
Sovelluksen toteutuksessa käytettiin seuraavia Microsoft .NET työkaluja: Visual Studio
2017, GitHub Enterprise, TeamCity, OctopusDeploy.
Avainsanat Microsoft .NET Core, ASP .NET Core, REST ApiContents
List of Abbreviations
1 Introduction 1
1.1 Background for the reasoning of the project 1
1.2 Commissioning the work, challenges faced 2
1.3 Outline for the thesis 3
1.4 Key concepts 3
2 Goals for the project 4
2.1 Implementation limitations 4
2.2 Version control, continuous integration and delivery (CI/CD) 5
2.3 Pursued benefits for the related parties 5
3 Overview of .NET Core framework 7
3.1 A brief history of .NET Core 7
3.2 .NET Standard 8
3.3 .NET Core features 8
3.3.1 ASP.NET Core 8
3.3.2 NuGet Package Manager 9
4 The implementation of the project 12
4.1 Application development tools and environment 12
4.1.1 Limitations set by the development environment 12
4.1.2 Docker 13
4.2 CI/CD tools 13
4.2.1 GitHub Enterprise 14
4.2.2 TeamCity 15
4.2.3 Octopus Deploy 16
4.3 Application architecture 16
4.3.1 REST (REpresentational State Transfer) 17
4.4 Overview of the server application architecture 18
4.4.1 The program class and the WebHost 20
4.4.2 Startup class, middleware 21
4.4.3 Routing 254.5 Controllers 26
4.5.1 Controller implementation 27
4.5.2 DTO models 28
4.6 Data-access layer 30
4.6.1 Entity classes 30
4.6.2 Updating the database through entity’s methods 33
4.6.3 DbContext 35
4.6.4 Repositories 36
4.6.5 Services 39
4.7 Unit tests and fake implementations 40
4.7.1 Unit test naming convention 40
4.7.2 Unit test frameworks and libraries 41
4.7.3 Structure of the unit tests 42
4.7.4 Fake services and data initializers 43
4.8 Summary of the implementation 44
5 Conclusions 46
5.1 Successes 46
5.2 Further improvements 47
References 48List of Abbreviations
.NET Microsoft’s leading software framework
.NET Core Modern version of the framework
ASP.NET A software framework for web based applications
On-premises Residing in a local server and not in the cloud
REST API HTTP based architectural model introduced in 2000 for web-based appli-
cations
Docker Virtualized operating systems in small packages.
Azure Public cloud service for Microsoft.
T-SQL Query language for Microsoft SQL Servers
Entity Name for objects that describe the database rows and columns. Used in
Entity Framework.
Environment In software development there are different environments for the software
to exist depending on the stage of the version of the software. Develop-
ment, testing, production are just a few examples
Pull request For version control systems, the review of code is done via pull requests.
A code change is asked to be pulled into another version of the code.
AAA Arrange, Act, Assert principle for unit testing.Appendix 2
1 (49)
1 Introduction
The work carried out for this thesis was commissioned by the employer company Elisa
Oyj. Elisa Oyj was founded in 1882 and has been developing the infrastructure and tel-
ecommunication technologies as a pioneer in Finland ever since. In 2010 Elisa Oyj ac-
quired Appelsiini Finland Oy, which later was fused into the parent company. Appelsiini
Finland Oy had a history of software development in Microsoft's .NET technologies and
had many clients and their projects which were transferred to Elisa Oyj in the fusion.
One of these clients had an application critical to their business. This application included
number of different business functions that were programmed in a monolithic codebase
with .NET Framework 4 using ASP.NET MVC. The applications consisted of a user in-
terface that was tightly coupled with the server code logic. The server application handled
the requests from a web browser and passed those requests onto an SQL Server in-
stance where business logic was handled with parametrized stored procedures. The
stored procedures were not in the scope for the project.
The application resided on a single, on-premises server that is accessible only through
the client's network. It was running on a Windows Server 2012 in an instance of IIS.
Starting from 2017, this application was given greenlight to be rewritten in smaller indi-
vidual applications reminiscent of microservices and using .NET Core as their technology
stack.
1.1 Background for the reasoning of the project
As software becomes larger and its codebase grows older, the upkeep of the software
becomes more time consuming, difficult and costly. Years of hotfixes and patches can
leave software filled with undocumented code that violates many principles of good soft-
ware craftmanship. At some point it will be more efficient for long term costs to re-write
an application.
In 2018 .NET Framework 4 was already on a path to be replaced by .NET Core, an open-
source version of Microsoft’s technology stack. For many projects made during that time,
or after it, there was no discussion on whether to use the newer stack. But not all kindsAppendix 2
2 (49)
of software could be - or can yet be - ported to the new .NET Core framework. As for
simpler web applications that use the ASP.NET framework, the groundwork done in .NET
Core was already feasible to be used in production applications in its version 2.
This change in the direction for the framework came from Microsoft and subsequently
also became a priority for the employer. As the employer is also focusing heavily on
Azure cloud competence, the need to make applications with .NET Core rises.
1.2 Commissioning the work, challenges faced
New applications for the replacement to the client's application were started to be pro-
grammed late 2017, and by late 2018 three out of four of the first applications were ready.
The overall software architecture for these was in place, the initial requirements and
schedule was in place. However, when the last application was to be started, the original
team was unavailable, so a new team was tasked to finish the one remaining application.
The team consisted of two frontend developers and two backend developers.
Requirements for the backend application was to be able to pass the queries from the
new React.js frontend to the database which had not been changed during the migration
to the new architecture. During the development, the visibility to the database was limited
to excel sheet descriptions of the database which included the names of stored proce-
dures and the parameters they used. The database also had views which were queried
for the data that was returned for the client application.
The project was to be done agile, in sprints, but the client was availably minimally, and
was only asked to clarify requirements. During its development, the requirements turned
out to be incomplete and needed to be addressed many times by the new team which
had not the time to properly get familiarized with the existing software. As for the new
team, half of its programmers could not commit to the project due to other projects. De-
spite these challenges the work was delivered almost on time.Appendix 2
3 (49)
1.3 Outline for the thesis
In the first section, the goals for that were set for the RESTful API, other implemented
features and benefits for all parties are explored. Then in the second section, the history
of .NET Core and the relation to .NET Framework is looked at. Also, the main features
of ASP.NET Core, the web application framework which were used, are introduced.
These sections set up the mindset to understand the chosen technologies and what they
offer. The third section looks at the overall architecture of the application, the guiding
principles for the design and explanation of some core language features of C# are ex-
plained while describing the code through example snippets of the delivered product.
The fourth section explains the continuous integration tools, version control and the
measures which were implemented to ensure code quality. The last section discusses
how the implementation compares to the design principles and what works and what
does not.
1.4 Key concepts
RESTful API - A RESTful API is a server application that accepts HTTP request verbs,
processes those and responds with HTTP responses.
Client application - An application that acts as a client to a server. These can be html
and JavaScript-based, native phone, console application, and more. They act as an in-
termediary for the user
ORM - Object Relation Mapping is a process where database tables or views are
mapped onto objects, such as C# objects in Entity Framework, that represent the data-
base in code.
SOLID principles – A set of principles for object-oriented software design to make soft-
ware more understandable and maintainable introduced by Robert C. Martin.Appendix 2
4 (49)
2 Goals for the project
Numerous requirements that had to be met were set by the existing architecture and the
employer, while other decisions were guided by code libraries that were available for
.NET Core. For long term maintainability, and to ease other developers contribute to the
application, source control and CI tools had to be used.
2.1 Implementation limitations
For the project, the goal was to create a RESTful API that would act as an intermediary
between the user interface and the existing database, and to setup a continuous inte-
gration and delivery (CI/CD) pipeline for the application. ASP.NET Core 2.1 was the re-
quired technology for the server application. For the CI/CD pipeline, the employer had
already chosen the services: GitHub Enterprise, TeamCity, Octopus Deploy, So-
narQube.
Figure 1 shows a simplified overview of the different parts of the whole application. The
scope of this project was the REST API running on the application server.
Figure 1. Application overviewAppendix 2
5 (49)
Most, if not all, of the business logic happens in the stored procedures in the client’s
database instance. These stored procedures were not the responsibility of the develop-
ment team. As such, the server application’s main responsibilities included those of vali-
dation, input sanitation, error logging and handling the HTTP requests and responses.
The requirements for the interaction with the client app were simply to accept its re-
quests, validate and sanitize the queries, and direct the data onto the database for re-
quired stored procedures in case of an insert or an update. In case of errors the server
application needed to respond with human readable messages.
For the interacting with the database, the application called existing stored procedures
for updates and SQL server views for fetching data. Entity Framework Core was chosen
for this purpose as it is the de facto ORM in .NET Framework.
2.2 Version control, continuous integration and delivery (CI/CD)
In addition to the application itself, to ensure code quality, better teamwork and faster
deployments, a version control repository needed to be created and a pipeline for CI/CD
was to be created.
Using GitHub Enterprise, TeamCity CI server and Octopus Deploy a pipeline was built.
The responsibilities of the pipeline were to ensure code reviews, unit test coverage, main
code branch code quality and the deployment of the application to the development, QA
and production environments.
2.3 Pursued benefits for the related parties
The commissioned work was ordered by the client and, as such, brings financial benefits
to the employer. The modernization of the existing application should he the employer to
further help transform the codebases of its various projects to a more sustainable plat-
form and advancing the knowledge in new technologies. The usage of .NET Core tech-
nologies is critical in the transformation from on-premises servers to cloud based appli-
cations using Microsoft Azure or other cloud platform providers.Appendix 2
6 (49)
For the client, the modernized application helps with their plans in moving their applica-
tions from intranet to an Azure based environment and can help with the upkeep costs
of their application.
For the development team the project was a starter for ASP.NET Core technologies and
react.js frontend.Appendix 2
7 (49)
3 Overview of .NET Core framework
.NET is a free software framework originally developed by Microsoft, but subsequently
changed to be open source and supported by Microsoft. It supports all major platforms
including desktop and mobile operating systems.[1]
.NET Core is the continuation of .NET Framework, and it can be used to implement var-
ious kinds of desktop, server, mobile, IOT and cloud-based software solutions. For .NET
Core the main goals were to create a new codebase that was open source, fast, loosely
coupled and updated frequently, as opposed to the older .NET Framework which was
not open-source and suffered from having to support older code.[1]
.NET Framework has been made available to other platforms than Windows using Mono,
but .NET Core has taken this to another level. It has a native UNIX development and run
environment and can be run with less resources than its predecessor.[1]
3.1 A brief history of .NET Core
In 2016 the version 4.6 of .NET Framework was followed by the first versions of .NET
and ASP.NET Core. While the development of .NET Core continued, the main imple-
mentation was still .NET Framework which kept getting updates for the following years.
The first .NET Core releases were made available to the developers but included only a
subset of the .NET platforms features. As such the release was not yet recommended to
be used in software meant for production. [2]
In 2018, around the time the work done in the thesis discussed here, the release of
version 2 was already out and ASP.NET Core could be used to create web applications.
Some parts, such as Entity Framework Core, had still limited features.
Later versions implemented more of the .NET platform features and in 2020 the version
.NET 5.0 was released. In this version the name “Core” was removed because it was
going to be the main implementation of .NET platform for the future. [3]Appendix 2
8 (49)
3.2 .NET Standard
For the purposes of supporting different environments and development kits, a set of
standards are defined in .NET standard. It is the formal specification of the APIs that
.NET platform provides.[4]
The first version of .NET standard was introduced together with the release of .NET Core
and the final version was .NET Standard 2.1 for the release of .NET Core 3.0.[4]
Other implementations of the .NET are Mono, Xamarin, UWP and Unity. These are for
UNIX, MacOS, iOS, Android, Windows UWP platform and games.[4]
With the release of .NET 5.0, the need for .NET Standard was no more as .NET 5.0 has
a different approach for multi-platform support.[5]
3.3 .NET Core features
.NET Core source code is available to public in a public GitHub repository, it can be
forked and changed and is open to pull requests and feedback. In addition to the main
source code, the Roslyn-compiler and the .NET Core SDK and the runtime libraries are
all available. [6]
The framework supports languages such as C#, F# or Visual basic to create different
types of applications with different approaches. Web, mobile, desktop and IOT-device
applications are supported. The platform has also support for machine learning libraries,
cloud services and game development.[7]
3.3.1 ASP.NET Core
Building websites, or services that consume or use other services over the web or HTTP
protocol can be built with ASP.NET Core. It has first class support from Microsoft and
Visual Studio IDE.[8]Appendix 2
9 (49)
ASP.NET Core supports different frontend frameworks such as Blazor, Razor Pages,
Bootstrap, React.js and Angular. For these frameworks there are templates that can be
used to scaffold an application rapidly.[9]
It also has numerous libraries for essential web development purposes, these include
HTTP clients, consuming REST and SOAP services, gRPC and GraphQL support, data
validation, serialization, security, CORS, interacting with different cloud providers and
much more.
3.3.2 NuGet Package Manager
A major part of modern platform frameworks is the capability of downloading and sharing
software libraries in packages. Many new languages, for example Rust, come with their
own package management systems, and Node.js has managers such as npm and Yarn
for this purpose. These packages in .NET platform are compiled code which is wrapped
in a NuGet-package.
NuGet defines how the packages are created, maintained and used, and also provides
the tools to create them. These packages then can be pushed to a public or a private
repository from where they are accessible to be used by other code as imports. A pack-
age can be created with the dotnet CLI tool that comes with .NET Core, using nuget.exe
CLI or using MSBuild. The packages then can be pushed to the repository and consumed
by other code.[10]
During the installation of Visual Studio IDE, the NuGet package manager can be chosen
to be installed. Figure 2 shows the installation option for Visual Studio 2019 Community
edition. NuGet package manager is a tool to browse public code packages and managing
those for your own .NET code solutions.Appendix 2
10 (49)
Figure 2. Visual Studio 2019 installation, showing optional components.
When a specific package is added onto a project, the .csproj-file of said project is up-
dated with the reference of the included package. The references include the name and
the version of the package as a PackageReference-node. Listing 1 shows how these
package references look like in the file.
Listing 1. A .NET Core project’s .csproj-file references
Advantages of using the packages is that the location of the .dll for an individual devel-
oper is not an issue as the packages are only referenced and downloaded when re-
quired for the environment. Another advantage is that the packages can be excluded
from source control repositories which can lead to a lot smaller file size for the project.
Because the packages are usually downloaded over the internet, an internet connection
is then required to restore the files for local development environment. NuGet supports
private repositories in case public internet access is not available as can be for high
security software development.
Packages that are available in public NuGet repository and installed locally are shown in
the NuGet package manager window as picture in Figure 3. The view also shows which
packages have updates available on the repository.Appendix 2
11 (49)
Figure 3. NuGet package manager window in Visual Studio 2019
NuGet Package Manager automatically downloads the packages for each project in a
solution during the build process when using either Visual Studio or Visual Studio Code.
A manual restoration of the packages could also be triggered using the dotnet restore
CLI command.
When the packages have been successfully installed for a project, they are available to
be used and the Visual Studio’s IntelliSense works for the packages.
Many of the libraries used in the implemented REST API were installed using NuGet,
while some libraries were included in the .NET Core 2.1 Software Development Kit
(SDK).Appendix 2
12 (49)
4 The implementation of the project
The objective for the implementation was a .NET Core based server application that can
accept HTTP requests, validate them and create necessary queries and commands to
an underlying SQL database. In short, a RESTful API working as a gateway between the
user interface and the database.
In addition to the application, a CI/CD pipeline had to be configured using the technolo-
gies which were already taken into use by the employer. These tools included a
TeamCity build server, Octopus Deploy automated software deployment server and
GitHub Enterprise for the source code.
4.1 Application development tools and environment
The code was written and debugged in Windows 10 using Visual Studio (VS) 2017 En-
terprise Edition provided by the employer. VS 2017 is an integrated development envi-
ronment from Microsoft offering tools for software development. It has a wide variety of
software development tools for many purposes such as:
• writing, debugging and refactoring code
• code quality analysis and cleanup
• creating architectural diagrams
• writing and running unit tests
.NET Core 2.1 SDK including ASP.NET Core SDK was required for web development
for the .NET platform. Docker for Windows was installed to enable running the application
in other platforms without requiring the installation of .NET Core runtime.
4.1.1 Limitations set by the development environment
During the entirety of the development there was no access to the actual database, and
there was not an up-to-date copy of the database available for the development team.
This is why a reference excel-sheet was used to model the database structure in theAppendix 2
13 (49)
application. The excel-sheet comprised of the tables and views with their corresponding
columns and datatypes.
This limitation made it necessary to create a dummy interface that returned data which
looked like the actual database. The values for the dummy interfaces were hardcoded in
the data-layer of the backend application. For the QA and production environments these
were replaced by the real implementations. In the end it proved to make the development
slightly more difficult.
4.1.2 Docker
The backend software was also necessary to be made available for frontend developers
who were not capable of running the server on their machines. A docker containerized
version of the application was then made. The only requirement for the developer’s ma-
chine was to install Docker for their operating system.
Docker is a lightweight OS virtualization layer on top of the native OS. It was originally
available only for UNIX based operating systems, but Windows operating system support
was added and has been made more robust since. With .NET Core, it is possible to
target the application for UNIX or Windows and to make it available for containerization.
New Visual Studio releases support this directly from the IDE.
Using Visual Studio 2017’s built-in Docker support, a docker-compose file was created
for the backend server to provide a container for frontend developers.
4.2 CI/CD tools
For any software project that is larger in scope it is recommended to use some form of
Continuous Integration, Deployment and Delivery. It means processes that can be auto-
mated, which reduce the complexity and overhead that is associated with synchronizing
with other developers and stakeholders. Automation also reduces the probability of a
human error in repetitive tasks. CI/CD tools provide almost any software functionality
needed for software development. These include, but are not limited toAppendix 2
14 (49)
• ensuring code quality with automated tests and
• checking for failing tests to ensure compatibility, performance, etc.
• creating deployment packages for various deployment scenarios
• installing the software and making it available to end users.
In addition to creating the application, a baseline for CI/CD was needed as required by
the employer. This included code reviews, automated tests, automated deployment and
delivery of the application. Three services that were in use during the time at the com-
pany were GitHub Enterprise, TeamCity and Octopus Deploy. Some form of automation
was added to all of these.
4.2.1 GitHub Enterprise
GitHub Enterprise is the on-premises version of the leading source control platform
GitHub. It is used for local networks and can be integrated into different organizational
authentication systems. Its features are largely the same as the public platform, with
focus on private organizations. Some features that require a public repository are only
available on GitHub.com might not be available for the enterprise version.[11]
A new repository was created for the project and a team was created to limit the people
who can change the repository settings. The master branch was set to be protected while
other branches could be used for development. All pull requests had to have been re-
viewed and a passing unit test report had to have been received from the CI pipeline.
The connection to TeamCity required an SSH key that was created using personal cre-
dentials on GitHub Enterprise and then used in TeamCity Server.
A simple version of trunk-based development was used as a branching strategy for the
repository, as shown in Figure 4. Making code changes to the master branch had to go
through a short-lived branch which then was merged to the master. These branches
were prefixed with feature or bug depending on their nature. This was chosen for its
lightweight nature and because the development team was small. The master branch
was then used as the source for release packages for different environments.Appendix 2
15 (49)
Figure 4. Simplified trunk-based development branching.
The master branch was set as a protected branch so that it could not be deleted by
accident. For pull requests that targeted the master branch, at least one other develop-
er needed to approve the pull request. The approval requirement was set to enforce code
review practices. Code review is good to help find errors in the code and to help other
developers stay up to date with the changes in the repository. Code reviews are not fast
nor a cheap practice and require the reviewer to understand the language, requirements,
and the domain of the application.
4.2.2 TeamCity
TeamCity by JetBrains was used as the CI/CD server. Its responsibilities were: to run
automated unit tests, building the code, running code quality analysis with SonarQube
and creating a package for Octopus Deploy. The server was running on the employer’s
private servers.
Managing different builds was done via build configurations that could be edited through
a web-based GUI. A project was created. Then three different build configurations were
made.
One configuration was created to run automated tests whenever a pull request was cre-
ated on GitHub Enterprise. It was set up only to listen to pull requests the targeted the
master branch.
Two build configurations were created for deployment: one for the private testing envi-
ronment and the other for QA and production environments. Private testing was made to
build the application in the debug mode for having access to more detailed error mes-
sages on the web browser. The other one was a build configuration using the release
build settings.Appendix 2
16 (49)
The two build configurations largely shared the same steps with the exception of using
debug or release build and where to push the final deployment package.
4.2.3 Octopus Deploy
Octopus Deploy was used as the package delivery tool. It consists of a development
server app which has a web portal to manage deployments, releases, variables, access
rights for users, and create automated deployment processes. Different processes are
grouped together in a project that can in theory have multiple applications, settings and
deployment target environments. The server application resided in the employer’s serv-
ers.
Another part of the tool is the Tentacle-agent. The agent resides in the target environ-
ment and runs the steps that are described in the deployment process.
Octopus Deploy can receive deployable code multiple ways, but for the thesis the
TeamCity server pushed the application package to an endpoint which was specified in
the Octopus Deploy environment.
First a project was created for the purpose of delivering the REST API to three target
environments: internal testing, QA and production.
Because the QA and production environments had been configured to be as similar as
possible, they were configured with variables that had different values depending on the
environment.
4.3 Application architecture
When an application’s complexity rises, the task to build that it becomes more difficult.
This complexity can be managed from multiple different perspectives whether by taking
out features, using existing software or the planning of the developed system. The de-
sign should be resistant to changes that happen over time. Changes including new re-Appendix 2
17 (49)
quirements, changes to existing features, hardware or software changes, or even per-
sonnel who are maintaining the application. As it is, software development can be quite
tricky.
To manage complexity and to make an application more resistant to changes can be
done through the architectural planning of the software. The planning can be done on
many levels, such as the hardware and software the system is used with, or the structure
of the code itself.
In this thesis the architecture means the different parts of the developed application and
their relations to each other and external systems. The application’s different parts can
be classes which model the client’s needs, or more general software practices for code
craftmanship. N-layered architecture and REST architecture are such general practices.
Architectural models are used to try to solve specific software development problems.
Three tier architecture, which was used in the thesis, divides responsibilities of the server
code into presentation, service and repository layers. This structure has been quite pop-
ular for a long time to divide the responsibilities of different parts of a web application.
This way the development of different parts can be done more independently, but most
bespoke software development will run into changes that penetrate through all layers.
For example, a change in UI will most likely be added to the logic layer and the data
storage.
4.3.1 REST (REpresentational State Transfer)
A pure RESTful service should follow the guidelines of using the correct HTTP-verbs for
different use cases. Using the verbs correctly, all of the requests targeting the entities
can be placed behind a single URL:
Table 1 lists the commonly used http methods and how they are used. For example,
making a PUT/PATCH request to the url: website/product/id can be used to update data
either with the updated fields in the body of the request or by having them as query
parameters on the URL itself. [12]Appendix 2
18 (49)
Table 1. Common http methods and their usage.
http verb Usage Payload
GET Fetch data URL
POST Add new entries URL or request body
PUT Update an entry URL or request body
PATCH Update part of an entry URL or request Body
DELETE Delete an entry URL only
A maturity model for REST APIs has been suggested. It is called the Richardson Maturity
Model and it states three levels of maturity for REST APIs depending on how thoroughly
they implement the HTTP-verbs.[13]
A fully functioning API can be implemented using only POST requests, but this way the
URLs define the action for the HTTP-request. The url: ‘website/products/delete/id’ would
be used for deletion.
The endpoints in the API implemented in the thesis are mostly POST-requests but a few
endpoints responding to HTTP GET requests exist.
4.4 Overview of the server application architecture
The codebase was divided roughly into two projects. One for the API layer facing the
client application and another one for the data layer. A third, abstract, separation exists
inside the data layer project. Separating the database CRUD (Create Read Update De-
lete) implementation details from the business rules and validation. Figure 5 depicts the
three layers of the server application architecture.Appendix 2
19 (49)
Figure 5. The server application architecture in three layers
Application Core exposes services for the Controllers, repository interfaces that the im-
plementations must follow and the entities that match the required data fields. The REST
API, or presentation layer uses ASP.NET Core's libraries to handle the common web
application needs, while the database facing code uses Entity Framework to access the
database and to do parameter sanitation.
The API application was created using a template included with the ASP.NET Core SDK,
which was then stripped of unnecessary code and customized to fit the needs of the
project.Appendix 2
20 (49)
4.4.1 The program class and the WebHost
The API layer is the entry point to the application for client applications. It exposes HTTP
endpoints called Controllers that can be called by the client. It is hosted on the ASP.NET
Core runtime as a console application that is started by the Main function of a Program-
class. The application’s entry point is the program class shown in Listing 2.
public class Program
{
public static void Main(string[] args)
{
var logger = NLog
.LogManager
.LoadConfiguration("nlog.config")
.GetCurrentClassLogger();
try
{
logger.Debug("Initializing Thesis API");
CreateWebHostBuild(args).Build().Run();
}
catch (Exception ex)
{
//NLog: Catch setup errors
logger.Error(ex, "Stopped program on exception")
throw ex;
}
finally
{
//Ensure to flush and stop internal
// timers/threads before application exits
Nlog.LogManager.Shutdown();
}
}
public static IWebHostBuilder CreateWebHostBuilder(string[] args) =>
WebHost.CreateDefaultBuilder(args)
.UseStartup()
.ConfigureLogging(logging =>
{
logging.ClearProviders();
logging.SetMinimumLevel(LogLevel.Trace);
})
.UseNlog();
}
Listing 2. The program class of an ASP.NET Core 2.2 WebApi application
The class Program has a Main-function, which accepts arguments from the executing
environment. The code following sets up an instance of NLog logging utility to log any
errors that happened during the application’s startup phase. In the fuction Create-
WebHostBuilder, it uses the WebHost-class to build a runtime host for the application’s
startup and lifetime management using the configuration created in the Startup-class.Appendix 2
21 (49)
The WebHost.CreateDefaultBuilder-function does many things. It sets up the ASP.NET
Core webserver, the content root folder, loads the appsettings.json file for database con-
nection strings and the configuration for authentication and logging among others.[14]
4.4.2 Startup class, middleware
In the core of the application, the class that sets up required services and which works
as a glue between different parts of the architecture is the Startup-class.
Each request that the client makes goes through the ASP.NET Core middleware pipeline
in which the requests are processed and directed to the designated code block that can
handle them. The pipeline can be configured by the developer in the Startup class which
is called when the program starts.
The code for the Startup-class is depicted in Listing 3. In its constructor, the class re-
ceives the following:
• IConfiguration object that has the deserialized value of the appsettings.json
file
• ILogger object for logging events in Startup.ConfigureServices
• IHostingEnvironment object that can tell where and in what build configu-
ration the application is run. Can be used to configure services based on
the envinronment.
public class Startup
{
private readonly IConfiguration _config;
private readonly IHostingEnvironment _env;
private readonly ILogger _logger;
public Startup(IConfiguration configuration, ILogger logger,
IHostingEnvironment environment)
{
_config = configuration;
_env = environment;
_logger = logger;
}
// Add services to the .NET Core IoC container.
public void ConfigureServices(IServiceCollection service)
…
// Configure the HTTP request pipeline
public void Configure(IApplicationBuilder appBuilder)
…
}
Listing 3. The Startup class and its methods.Appendix 2
22 (49)
In addition to the arguments in the constructor, the class has two methods which are
called when the application starts: ConfigureServices and Configure. These methods are
looked at next.
While the host provides services via the Startup class’s constructor, additional services
are configured with the ConfigureServices method using the IServiceCollection object.
Listing 4 shows a part of the ConfigureServices method and some of the important ser-
vices that were configured within it.
// This method gets called by the runtime. Use this method to add services to
the container.
public void ConfigureServices(IServiceCollection services)
{
services.AddMvc().SetCompatibilityVersion(CompatibilityVersion.Ver-
sion_2_1);
services.AddSwaggerGen(c =>
{
c.SwaggerDoc("v1", new Swashbuckle.AspNetCore.Swagger.Info { Title =
"JaakkoHe API", Version = "v1" });
});
services.AddCors(options =>
{
options.AddPolicy("CorsPolicy",
builder => builder.AllowAnyMethod().AllowAnyOrigin().AllowCre-
dentials().AllowAnyHeader()
);
});
services.AddDbContext(options =>
options.UseSqlServer(_config.GetConnectionString("ThesisConnection-
String")));
Listing 4. Important 3rd party services within ConfigureServices method
First the AddMvc is used to add many required functionalities that are used in .NET Core
2.1 REST APIs. Then a Swagger-documentation is added to provide developers or users
a way to explore the endpoints the API provides. After that an open CORS-policy was
added since the application was running on the intranet. Finally the database-connection
is configured with the AddDbContext-method. The DbContext is explored more later in
the thesis.
Listing 5 shows the two ways in which the implemented services were injected to the
application’s runtime using the built-in dependency injection functionalities provided by
the ASP.NET Core framework. Firstly, for testing with fake data, and to remove depend-
ency from a real database, a “debugging” configuration injects fake implementations ofAppendix 2
23 (49)
the services as singletons. Secondly, when using a database connection, the services
are injected with AddScoped-method. The lifecycle of a class injected this way lasts for
one HTTP request.
switch (_env.EnvironmentName)
{
case "Debugging"://Developing with mock data using fake services
// add project services
services.AddSingleton();
services.AddSingleton();
services.AddSingleton();
services.AddSingleton();
services.AddSingleton();
services.AddSingleton();
break;
default://Use a database
// add project services
services.AddScoped(typeof(IRepository), typeof(BaseRepository));
services.AddScoped(typeof(ISprocRepository), typeof(SprocReposi-
tory));
services.AddScoped(typeof(IListContentRepository), typeof(ListCon-
tentsRepository));
services.AddScoped(typeof(IUserRepository), typeof(UserRepository));
services.AddScoped(typeof(IDynamicTableRepository), typeof(Dy-
namicTableRepository));
services.AddScoped();
services.AddScoped();
break;
}
Listing 5. Dependency injection in the ConfigureServices-method
Services are the components that make up the application functionality such as the built-
in routing, JSON formatting, controller-class discovery. In addition to the built-in features
and third party libraries, the Inversion-Of-Control container is configured with the appli-
cation’s interfaces and the implementations that will be used.[15]
The Configure-method lays out the order in which different parts of the application are
run. The order in which the code is run is important. For example, to authenticate a user
before directing the request to the endpoint. The implemented pipeline can be seen in
Listing 6.Appendix 2
24 (49)
public void Configure(IApplicationBuilder appBuilder)
{
try
{
appBuilder.UseHttpsRedirection();
appBuilder.UseAuthentication();
if (_env.IsDevelopment() || _env.EnvironmentName == "Debugging")
{
appBuilder.UseDeveloperExceptionPage();
_env.ConfigureNLog("nlog.Development.config");
appBuilder.UserCors(corsBuilder =>
corsBuilder
.WithOrigins(_config.GetSec-
tion("Frontend:Url").Value)
.AllowAnyHeader()
);
}
else
{
_env.ConfigureNLog("nlog.config");
appBuilder.UseHsts();
}
appBuilder.UseSwagger();
appBuilder.UseSwaggerUI(swaggerBuilder => )
}
catch (Exception exc)
{
appBuilder.Run(context =>
{
_logger.LogError(new EventId(), e, e.Message);
context.Response.StatusCode = 500;
return Task.CompletedTask;
})
throw;
}
}
Listing 6. Startup.Configure method
There are rules that apply whether used in production or debugging locally. First in the
pipeline is to redirect all requests to use HTTPS instead of HTTP and after that the con-
figured authentication is run. Enforcing HTTPS is the secure way to create APIs. Then a
Swagger-endpoint is called. Last in the pipeline are the handler to catch all exceptions,
a CORS-policy enforcing component and the functionalities that are in the ASP.NET
Core 2.1 MVC-library. [16]
For the release build there is also a specific logging-configuration that is loaded and the
app is configure to use HSTS. HSTS is a web security policy against man-in-the-middle-
attacks and is generally used for web browsers. Phone or desktop applications do not
follow the HSTS instruction.[16]Appendix 2
25 (49)
If the application is run using development-configuration the app shows a developer ex-
ception page, which has the stack trace and exception messages printed onto the re-
sponse. The logger uses a different configuration for the development environment and
the CORS-policy accepts any headers only from the origin of the configured value
Frontend:Url.
4.4.3 Routing
In web applications, routing is the act of directing requests to their correct endpoints.
These requests can be done from the address bar of a web browser, an ajax call in
javascript or another application that uses HTTP as its protocol. In ASP.NET Core there
are two ways to implement routing:
• A middleware-based routing in which the startup-class is used to define the
routes and rulesets which dictate how the requests are directed. This way
it is possible to separate the routing logic to its own code and keep that
code in a single place is necessary.
• Attribute-based routing uses the C# language attributes-feature. In control-
ler classes, the classes themselves and their methods can be decorated
with an at-tributes that specify the route and the HTTP verb that the class
or the method will we tied to.
These two ways are not mutually exclusive and can be used simultaneously. Using a
mix of both strategies it is possible to create general rules for routing and add exceptions
via attributes. When using both strategies, ASP.NET Core tries to find the best route for
each HTTP request. In this thesis, only the attribute-based routing was used in both
classes and their methods.
The attributes were used to define the HTTP verbs, and in some cases the specific routes
for certain methods. However, only the HttpPost and HttpGet attributes were used.
In Listing 7 an HTTP endpoint is shown. This is a method in a controller-class that re-
turns an ActionResult-type object. The attribute is shown above the method declaration.Appendix 2
26 (49)
[HttpPost("api/[controller]/[action]")]
public ActionResult Add([FromBody]PartitionRuleAddModel model)
{
if (!ModelState.IsValid)
{
return BadRequest();
}
try
{
_partitionRulesService.AddPartitionRule(
model.ListID,
model.RecipientInfoID,
model.ProductCode,
model.PercentShare,
model.CountShare,
model.MaxOut,
model.Priority,
model.Active);
return Ok();
}
catch (Exception innerException)
{
throw new ApplicationException
("Failed to add a new PartitionRule.", innerException);
}
}
Listing 7. An MVC Controller’s endpoint.
ActionResult is the base class for the result of an action method. In the picture above the
two results that are returned are BadRequest and Ok. These return the HTTP responses
with their specific HTTP response status codes.
4.5 Controllers
In the three-layer architectural model using ASP.NET Core, the implemented API-layer
comprises of controller classes and models for validation and data transfer. The control-
lers are responsible for catching specific HTTP requests based on their URL and the
used HTTP verb, and they are largely based on the conventions set by ASP.NET Core.
The controller layer does not have to know what kind of client sends the requests and,
in the case of a RESTful API, is not responsible for rendering any views. It takes re-
quests, validates the payload and then returns proper responses with data in JSON-
format for the client application.Appendix 2
27 (49)
In ASP.NET Core all controllers inherit from a base controller class which is included in
the libraries provided by the framework. This class is tied into the ASP.NET Core’s pipe-
line which directs requests to their respective classes.
The ASP.NET Core conventions recommend naming all created controllers ending with
a ‘controller’-suffix in order for them to be discoverable by the built-in pipeline of the
framework. The first part of the name then works in tandem with the routing system to
define the class as an endpoint for a request. For example, HomeController-class would
respond to requests that are made to website/home-url.[17]
4.5.1 Controller implementation
A total of ten controllers were created for the API, most of them representing a domain
model and one for the abstract base class. As some data was dynamic in its signature,
meaning that depending on the state of the database the returned object could have
different properties, some controllers were mapped to return a Dynamic Object.
First a custom base class, inheriting from the controller-class, was created. Listing 8
show this implemented BaseController class.
namespace JaakkoHe.Thesis.Api.Controllers
{
[ApiController]
public class BaseController : ControllerBase where T : BaseControl-
ler
{
protected readonly ILogger _logger;
public BaseController(ILogger logger)
{
_logger = _logger ?? (_logger = logger);
}
}
}
Listing 8. BaseController
The BaseController-class was created to pass the _logger class onto the ControllerBase.
Other controllers then inherit from this class and pass a typed _logger instance to the
ControllerBase via the type argument T.Appendix 2
28 (49)
4.5.2 DTO models
Classes that model the payload for data requests and responses were created in the API
layer. Request-classes were mapped to the parameters expected in HTTP-requests and
had validation rules in them using property attributes. Response-classes were mapped
to the data that was required for the functionality of the client app. In general, these
classes are called data transfer objects (DTO) as their main responsibility is to carry data,
but not have any functionality.
An example of a model with validation attributes is shown in listing 9. The validation
required in the application was mostly limited to required fields, integer ranges and the
length of string values. The limits requirements were dictated by how the database had
been set up.
public class ExampleADDModel
{
[Required(ErrorMessage = "ObjectId is required.")]
[Range(1, int.MaxValue, ErrorMessage = "ObjectId must be a positive inte-
ger.")]
public int ObjectId { get; set; }
public string Code { get; set; }
public string Name { get; set; }
public string Description { get; set; }
[Required(ErrorMessage = "RequiredDays is Required.")]
[Range(0, int.MaxValue, ErrorMessage = "RequiredDays must be a positive
integer.")]
public int RequiredDays { get; set; }
[StringLength(512, ErrorMessage = "Info cannot be more than 512 charac-
ters long.")]
public string Info { get; set; }
public int TotalAvailable { get; set; }
}
Listing 9. A DTO model for adding a new entry.
Part of ASP.NET Core’s MVC functionality is the binding of HTTP request data to match-
ing C# objects and vice versa in the case of HTTP responses. It is a part of the MVC
Filter pipeline which was configured in the Startup-class methods using AddMVC- and
UseMVC-methods. The model binding matches the property names from a class to the
specific HTTP data’s parameter names.
In listing 10 the method parameter updateModel has been decorated with the attribute
FromBody, which tells the application to bind the ExampleCRUDModel from the data inAppendix 2
29 (49)
the HTTP request’s body. For GET requests, the data was passed in the URL of the
request.
// POST: api/Example/Update
[HttpPost("api/[controller]/[action]")]
public ActionResult Update([FromBody]ExampleUPDModel updateModel)
Listing 10.
A total of 15 DTO models were created for the application as shown in figure 6. The
classes were named using a convention where the classname told the user the purpose
of the class. The classes are used either for the HTTP Request or the HTTP Response,
but never both.
Figure 6. Implemented DTO models.
A few common types of implemented models and their description is explained in the
Table 2. Some models, such as rows and cells were used as a part of a collection or a
batch.Appendix 2
30 (49)
Table 2. Naming conventions and the descriptions for DTO Models
Class naming convention Description Valida-
tion
AddModel Used for adding a new entry. Yes
UpdateModel Used for updating an existing entry. Yes
DeleteModel Used for deleting an existing entry. Yes
RevertModel Special case where an external process had to be Yes
reverted.
BatchAddModel Special case where multiple entries had to be Yes
added. Consists of Rows which have Cells.
ViewModel Used for showing only the required fields for the cli- No
ent.
4.6 Data-access layer
Regarding the overall architecture, the most problematic and difficult part ended up being
the data-access layer. The four main parts are the services, the repositories, the DbCon-
text-class, and the entities. The division between services and repositories – or the re-
pository pattern - was somewhat agreed upon to be a best practice in Entity Framework
but in Entity Framework Core it is seen as an anti-pattern.
Most of the data access layer was written using generics. Generics enables to write code
that does not know the exact type of the objects that are used. The declaration for a
generic class is written using angle brackets (‘’). For the actual implementation,
another block of code specifies the type which then is passed onto the generic imple-
mentation.[18]
4.6.1 Entity classes
Entity classes are a central part of Entity Framework that are used by the framework to
build a model which is used when accessing a database. They are C# classes that have
properties reflecting the database tables and columns when using a relational database,
respectively. For example, a User-class will be mapped to the Users-table and its prop-
erties such as Name, would be mapped to their respective columns in the Users-table.Appendix 2
31 (49)
These mappings could be overwritten, but Entity Framework Core’s default conventions
were used in most cases. The entities could be configured using a Fluent API in the
DbContext-class or using Data annotation attributes in the entities themselves. The latter
was used in the thesis. Some exceptions and unconventional solutions were used in the
entities.[19]
The model that was created in the thesis consisted of 14 classes and an abstract
BaseEntity-class was created to be used only to tie together all entities. There were three
different kinds of entities:
• Simplest entities were only used for fetching data.
• Half of the entities had a dependency to a List-table and were subclasses
of a ListEntity-class
• Entities that were used in stored procedure calls had to implement a
ISprocCallingEntity-interface
Figure 7 shows the first half of the entities that inherit directly from the BaseEntity. Two
of these entities also implement an ISprocCalling-interface.
Figure 7. Implemented entities which inherit directly from BaseEntity.Appendix 2
32 (49)
The other half of the entities required a property to a dependency of a table key which
was not available to be modeled. These entities inherited from ListEntity as shown in
figure 8. Five ListEntity-classes also implemented an ISprocCalling-interface.
Figure 8. Implemented entities which inherit from ListEntity-class
There were differences in the names between the entities and the actual SQL Database
views and their columns, so the Table- and Column-annotations were used to explicitly
declare these. The ObjectId-property was annotated as being the primary key for the
entity and its value was generated by the database.
An example implementation of an entity inheriting from the BaseEntity that was only used
to fetch data is seen in listing 11. Both the class and its properties are decorated using
Data annotations from the System.ComponentModel.DataAnnotations-namespace.Appendix 2
33 (49)
using System.Collections.Generic;
using System.ComponentModel.DataAnnotations;
using System.ComponentModel.DataAnnotations.Schema;
namespace JaakkoHe.Thesis.Data.Model.Entities
{
///
/// This class and its properties form the data for the table on the
frontpage
///
[Table("vInterface_Example")]
public class ExampleEntity : BaseEntity
{
[Key]
[Column("ObjectID")]
public int ObjectId { get; set; }
[Column("AccentColor")]
public string AccentColor { get; set; }
[Column("RowOrder")]
public long RowOrder { get; set; }
[Column("Channel")]
public string Channel { get; set; }
[Column("ObjectCode")]
public string ObjectCode { get; set; }
}
}
Listing 11. Example Entity implementation
4.6.2 Updating the database through entity’s methods
At the time of the implementation, Entity Framework Core’s features were only partially
complete and were missing functionality to call SQL Server’s stored procedures. The
classes which were used for inserting, updating or deleting rows from the database were
made to include the the related stored procedure’s parameters.
These entities implemented the ISprocCallingEntity-interface shown in listing 12. The
interface declares a method for fetching the name of the stored procedure and the pa-
rameters used for the stored procedure. As an argument the methods accept an enu-
meration of DbOperationTypes which defines the type of a procedure that is to be called.You can also read
