   This how to document describes a method of using Xcinerama to enable display of
   presentations and other documentation under Linux.

   Copyright and trademark information
   The contents of this Documentation are subject to the Public Documentation License, Version
   1.0 (the "License"); you may only use this Documentation if you comply with the terms of this
   License. A copy of the License is available at:
   http://www.openoffice.org/licenses/PDL.rtf
   The Original Documentation is How to Setup Multiple Screens under Linux. The Initial
   Writer(s) of the Original Documentation is/are Chris Tyler  © 2005. All
   Rights Reserved. (Initial Writer contact(s): Chris Tyler .)
   Contributor(s): grsingleton@openoffice.org ____________________.
   Portions created by G. Roderick Singleton are Copyright © 2005. All Rights Reserved.
   (Contributor contact(s):grsingelton@openoffice.org ).
   All trademarks within this guide belong to legitimate owners.
   [Note: a copy of the PDL is included in this template and is also available at:
   http://www.openoffice.org/licenses/PDL.rtf.]

   Feedback
   Please direct any comments or suggestions about this document to:
   grsingleton@openoffice.org and Chris Tyler

   Acknowledgments
   Chris Tyler  for his orginal work and for letting us publish it for the
   OpenOffice.org community.

   Modifications and updates
        Version             Date            Description of Change
           [0.1]         [2005-07-25]       [ct::   http://www.oooforum.org/forum/viewtopic.phtml?p=86445#86445]

           [0.2]         [2005-11-06]       [grs: Initial edition issued for comment]

How to Setup Multiple Screens under Linux                                                                            ii
How to Setup Multiple Screens under Linux

How to Setup Multiple Screens under Linux
   While researching the Internet for a some idea of how to display Impress presentations using
   two differenent screens, I discovered a webpage that described how to use Xinerama to do this
   in Linux. I cannot find the name of the originator but acknowlege my debt to his work.
   I have since tested the procedure using my laptop with an external monitor and it works well,
   but is somewhat limited.
   This method uses the "Normal" slide view and two displays of different resolutions. The
   control screen displays the entire OpenOffice.org Impress display, and the projector displays
   an enlargement of just the slide portion of the window. This permits previewing the available
   slides and then selecting the one for display by double-clicking it.

   Setup
   (1) Configure a Xinerama display. This is a display where a virtual screen is divided into two
       or more areas which are displayed on separate monitors.
Note: If you have an nVidia card with two outputs (or a laptop with an nVidia card), you can use Twinview
instead of the standard Xinerama configuration.

   (2) Configure the projected screen to have a lower resolution than the control screen. I used
       1024x768 (native resolution) on the laptop LCD and 800x600 on the external display.
   (3) Set the offsets of the control screen to "0 0" and the offsets of the projected screen to (say)
       "200 200". What this does is cause the projected screen to show a subset of the control
       screen. Your xorg.conf ServerLayout section will look like this:
            Screen 0 "Screen0" 0 0
            Screen 1 "Screen1" 200 200
   Or if you're using Twinview with an nVidia chipset, the Device section of xorg.conf will
   contain a line something like this:
            MetaModes "800x600 +200+200, 1400x1050 +0+0"
   (4) Start the X server, then start Impress. (If you're using Gnome and nVidia TwinView, the
   panel bars will be in the middle of the screen, since the smaller projector screen is considered
   Primary. Drag the panel bars to the bottom of the screen). Use the "Normal" Impress view,
   with the slide pane down the left and the Tasks pane on the right. Adjust the width of the
   middle plane by dragging the dividers between the panes until the image is the correct width
   for the projector. Scroll the middle pane until the slide fills the screen.
   You can now scroll through the available slides on the left-hand side of the screen and select
   the one you with to view, and then activate it with a double-click.
   This solution is not elegant, but it does provide a workaround until the necessary feature is
   implemented in OOo.

How to Setup Multiple Screens under Linux                                                                   1
How to Setup Multiple Screens under Linux

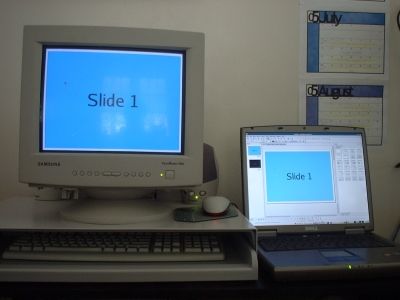

   Here is an image of a system courtesy of Chris Tyler  with this
