How to Meet the New 2018 Standards
for Lighting Shiftwork Operations
November 7, 2018
CIRCADIAN® Mission
Protecting 100 million people working the night shift in the 24/7 economy
Global leader in 24/7 London St Petersburg
workforce performance, Toronto Amsterdam
health and safety
Boston
solutions for 30 years Osaka
Serves over 50% of the Bangalore
Fortune 500 and many
international 24/7
companies
Helps establish
government policy and
Santiago Brisbane
industry standards for the
24/7 workforce
© 2018 CIRCADIAN Light
Webinar Agenda
1. Revolution in Lighting for the 24-Hour Workplace
2. Adverse Health Effects of Light at Night (LAN)
3. How does Light Impact Health? It is all about Eye level Blue Dosage
4. Evidence Based ROI for the Optimal Light Spectrum for Night vs Day
5. New 2018 Standards, potential liability and emerging regulations
6. Specifying Lights for the 24/7 World: True vs Fake Circadian Lighting
© 2018 CIRCADIAN Light
New API-RP755 ANSI Standard for Lighting
© 2018 CIRCADIAN Light
New API-RP755 ANSI Standard for Lighting
© 2018 CIRCADIAN Light
Revolution in Lighting for the 24- Hour Workplace
© 2018 CIRCADIAN Light
Pathway towards government regulations
2011
Evaluation Commenced
2018 - August
Draft Report based on 650
research studies
2018 - October
Scientific Peer review completed
2019
Expected Publication
© 2018 CIRCADIAN Light
New 2018 API-RP755 ANSI Standard for Lighting
© 2018 CIRCADIAN Light
New technologies providing Safe and Healthy Light for 24 Hour Operations
© 2018 CIRCADIAN Light
Adverse Health Effects of Light at Night
© 2018 CIRCADIAN LightHarmful Effects of Light Exposure at Night

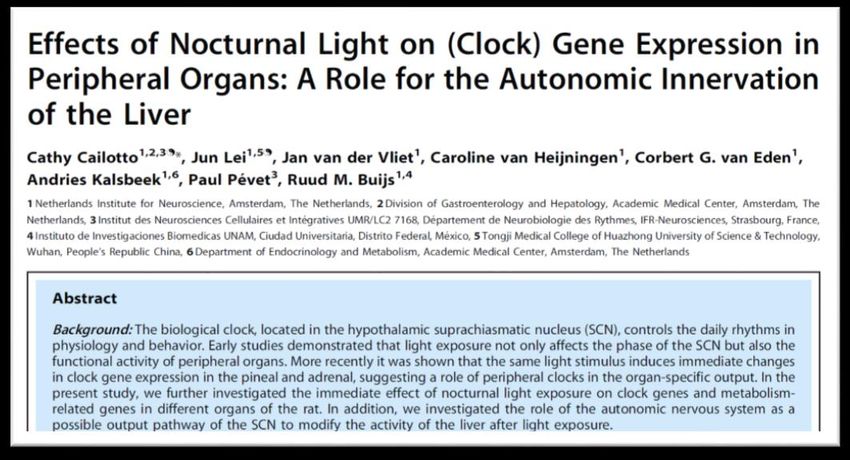

The Dark Side of Light at Night (2001-Present)
© 2018 CIRCADIAN LightLight at Night Disrupts the Circadian Clock and Impairs Health
2007 2012 2018
Shiftwork that involves
circadian disruption is

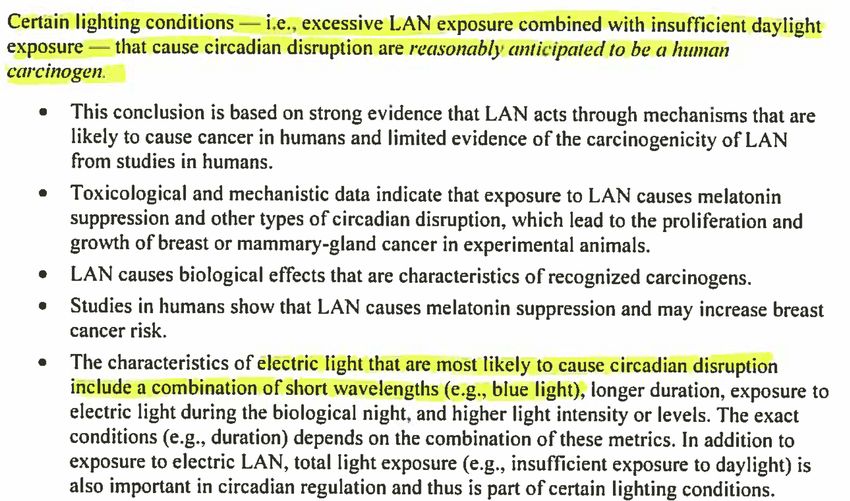

“probably carcinogenic Risk of Carcinogen Report : 2018
to humans” The carcinogenic effects of blue-rich light
at night that causes circadian disruption in
“Epidemiological studies have found that long- shiftworkers and others is now officially
term night-workers have a higher risk of breast The primary human concern with nighttime recognized as a major health issue by the
cancer risk than women who do not work at night. lighting include… NIH National Toxicology Program
potential carcinogenic effects related to
melatonin suppression, especially breast • Night shift work that causes circadian
These studies have involved mainly nurses and
cancer. disruption is known to be a human
flight attendants. The studies are consistent with carcinogen based on sufficient
animal studies that demonstrate that constant evidence of carcinogenicity from
light, dim light at night, or simulated Chronic jet Other diseases that may be exacerbated by
studies in humans.
lag can substantially increase tumour circadian disruption include:
development. • Excessive light at night exposure (with
• Obesity blue wavelengths) combined with
Other experimental studies show that reducing • Diabetes insufficient daylight exposure that
• Depression cause circadian disruption are
melatonin levels at night increases the incidence or reasonably anticipated to be a
growth of tumours.” • Mood Disorders
• Reproductive problems human carcinogen.
© 2018 CIRCADIAN® Light circadianlight.com
• Based on 650 scientific studies
© 2018 CIRCADIAN Light2018 Update: 28 Independent studies show increased risk of obesity and
diabetes with light exposure at night
• 9.3% of the US
population is
diabetic, costing
$245 Billion per year
• Exposure to blue-
rich light at night is
an avoidable cause
• Harmful effects seen
in 1-2 days
Selvin E, et al (2014) Trends in prevalence and control
of diabetes in the United States, 1988-1994 &1999-
2010. Ann Intern Med 160: 517-525.
© 2018 CIRCADIAN® Light circadianlight.com
© 2018 CIRCADIAN LightInsulin Resistance develops in only two night shifts with 4000K blue-pump LEDs
Glucose Insulin
Post (Prandial Test) CONVENTIONAL Post (Prandial Test)
LED TROFFER
400
Glucose [mg/dL] - AUC (2 hours)
Insulin [IU/ml] - AUC (2 hours)
n=11 n=11
**
200
** *
300
Pre-Diabetic
100
200
100 0
Morning 1 Morning 2 Morning 3 Morning 1 Morning 2 Morning 3
(Night Sleep) (Night Shift 1) (Night Shift 2) (Night Sleep) (Night Shift 1) (Night Shift 2)
Glucose and insulin response to a 8AM breakfast glucose tolerance test
© 2018 CIRCADIAN Light2018 Update: Over 60 Independent studies show increased risk of breast,
prostate & other cancers with light at night
58% Increase
Breast Cancer
© 2018 CIRCADIAN® Light circadianlight.com
© 2018 CIRCADIAN LightHow does Light Impact Performance and Health
It is all about blue dosage at the eye
and time of day
© 2018 CIRCADIAN LightKey Discovery: Blue-Rich Light disrupts Circadian Clock at Night
Daytime blue is healthy Millions of Years Nightime blue is disruptive
Sleep Disruption & “Jet Lag” ↑
Appetite ↑
Obesity ↑
Pineal
Melatonin
Diabetes ↑
SUPPRESSION Hormone Sensitive Cancers
SCN
White 440-490 nm Circadian Clock
• Breast Cancer ↑
Light Bio-Active Blue Light DISRUPTION • Prostate Cancer ↑
Spectrum Blue Light ipRGC • Colon Cancer ↑
Photoreceptors
in Eyes
© 2018 CIRCADIAN® Light circadianlight.com
© 2018 Circadian LightFor billions of years blue has been the day/night signal
• When life evolved in the oceans it only
saw blue
Millions light.
of Years
• All the other colors of the white light
spectrum are absorbed by sea water
• Detecting Blue as day, Black as night was
critical to feeding, health and survival
• Virtually all living creatures including
humans have:
• Blue Light detectors
• Circadian Clocks 480nm
• Melatonin released as the night
© 2018 CIRCADIAN® Light signal to all the cells of the animal circadianlight.com
© 2018 CIRCADIAN LightThe Drive for Energy Efficiency has immersed us in Blue-Rich LED Light
440-490
WORKPLACE HOME
20%
10%Blue Light Exposure for Today’s Workforce
We lived
Now we live and outdoors
work in twilight
exposed to
conditions during the day
blue-rich sunlight
during the day…
And we have 20% blue light content at night
Deprived of Blue Light Excessive Exposure to Blue Light
© 2018 CIRCADIAN LightSources of blue-rich light
• Blue rich light can come from
• Sky or indoor ceiling lighting
• Computer screens
• Mobile devices (phones, tablets etc.)
• Largest impact from overhead lighting as blue-
sensitive photoreceptors (ipRGCs) are densest in
lower retina of eye
Denser clustering of
ipRGCs in lower retina
© 2018 CIRCADIAN LightMechanism of Action of Blue Light at Night
Blue Light (430-500nm)
Corneal Irradiance BLUE-DEPLETED LIGHT
µW/cm2
BLUE-RICH LIGHT
Traditional Metrics: Lux, Lumens, Foot-candles, CCT, CRI do not measure Circadian Disruption
© 2018 CIRCADIAN® Light circadianlight.com
© 2018 CIRCADIAN LightBlue-Rich Light Falling on the Eyes Disrupts the Circadian Clock
• Jet-Lag Like Effects
CIRCADIAN
µW/cm2 DISRUPTION
440-490nm
• Sleep Disruption
• Fatigue
• Impaired Attention and Performance
• Increased Errors and Injuries
• Increased Absenteeism and
Employee Turnover
• Reduced Productivity
© 2018 CIRCADIAN LightSleep and Health Researchers on Risk & Solution for Blue Light
"The more research we do, the more evidence we have that
excess artificial light at night can have a profound, deleterious
effect on many aspects of human health. It is a growing public
health concern.”
-Charles Czeisler, PhD, MD,
Professor of sleep medicine at Harvard Medical School
"As opposed to the many other kinds of harmful environmental
pollutants out there, we are rapidly figuring out exactly what to
do about this one... tone down that blue.”
-Richard Stevens, PhD,
University of Connecticut Cancer Epidemiologist
© 2018 CIRCADIAN LightBlue Light Exposure for Most of Human History
We lived outdoors And virtually no
exposed to blue light at night
blue-rich sunlight while we slept
during the day…
© 2018 CIRCADIAN LightIt’s Not “Good Blue” vs. “Bad Blue”
- It is Time of Day!
Daytime Electric Light Nocturnal Electric Light
Blue Blue
Benefits Costs
• Increased Alertness • Sleep Disruption
• Increased Vigilance • Breast/prostate/colon cancers
• Increased Productivity • Obesity/diabetes Type 2
• Sleep Improvement metabolic syndrome
• Mood Improvement • Cardiovascular disease
• Health Improvement • Depression/mood disorder
© 2018 CIRCADIAN LightOptimal Light Spectrum for Night vs Day
© 2018 CIRCADIAN LightKey Question: Precisely which spectral wavelengths must be controlled?
Circadian Potency
???????
Wavelength (nm)
The $130 Billion lighting industry needs to know the answer
• To design circadian healthy light engines, fixtures and bulbs
• To specify lighting for customers that is safe and healthy, and not harmful
• To optimize color and performance of circadian safe light
© 2018 Circadian LightDetermining the“Circadian Potency” of White Light for Real World Application
√ Polychromatic White Light (CIE 1931 White Color)
√ Freely Moving and Working Human Occupants
√ Typical workplace light intensities (200-1,000 lux)
√ Normal work shift light exposure duration (8-12 hours)
√ Typical CCT range (2700 – 5000 K)
√ Color Rendering Index >80
√ Measured Response relevant to health impact of light
© 2018 Circadian LightQuick Method for Lighting Specifiers to Assess Circadian Potency
440-490nm Blue Irradiance as Percent of Total Visible Light (380-780nm)
CIRCADIAN POTENCY
80% of Circadian Potency lies between 440-490nm OPTIMIZED NIGHT LIGHT
*
80%
*440-490nm
• This is a UL verification not
certification.
• Blue Light is defined as 440-
490nm based on the
Circadian Potency Model
© 2018 CIRCADIAN® LightWhat is Threshold for Circadian Disruption for Blue Corneal (Eye-Level) Irradiance?
CIRCADIAN
µW/cm2 DISRUPTION
440-490nm
CIRCADIAN
DISRUPTION
CIRCADIAN
THRESHOLD STABILITY
31
© 2018 Circadian LightEvidence-Based Effectiveness & ROI
© 2018 Circadian LightCIRCADIAN Light Medical Research Center: Validating Product Effectiveness
Human volunteers live and work 24/7 in a light controlled CONTROLLED LABORATORY STUDIES
facility
• Sleep Lab facility including EEG
• Blood tests (lipids, cardiac markers)
• Glucose Tolerance tests (Diabetes)
• 24 hour urine melatonin collection
• Salivary Melatonin 30 minute intervals
• Blood pressure
• Alertness & performance tests
• Mood and Depression scale test
• Human Subject testing under IRB approval
MISSION CRITICAL
WORKPLACE STUDIES
(PRE-INSTALLATION vs.
1 YEAR POST-INSTALL)
© 2018 CIRCADIAN® Light circadianlight.com
© 2018 Circadian LightCIRCADIAN® Light Installations: Evidence-Based ROI Outcomes
DynamicBlu™ Spectrum Control
© 2018 Circadian LightCIRCADIAN Lights Reduce Human Error Rate
CONTROLLED LABORATORY STUDIES MISSION CRITICAL WORKPLACE (1 YEAR STUDY)
25
Light at Night:
Blue-Depleted Night LED (540 lux)
20 Blue-Rich Conventional LED (540 lux)
Incandescent Dim (10 lux)
PVT - Lapses
Yellow Dim
15 Light
Impairs
Performance
10 Blue-Rich
Light
Impairs
5 Health
Blue-Depleted Light
Protects both Health
0 & Performance
04:00 06:00
42% Reduction in PVT
Time Vigilance Task Errors
of Night 67% Reduction in Control Room Operator Errors
© 2018 Circadian ZircLight IncCIRCADIAN Lights Reduce Employee Fatigue
50% reduction in excessive sleepiness on the Epworth Scale 50% increase in alertness at 5 AM - hardest time
to stay awake on night shift
© 2018 Circadian ZircLight Inc.Blue-Rich LED Light Increases Appetite at Night: Reversed by CIRCADIAN LEDs
CONTROLLED LABORATORY STUDIES MISSION CRITICAL WORKPLACE (1 YEAR STUDY)
100
Appetite Light at Night:
Blue-Depleted Night LED
80 Blue-Rich Conventional LED
Appetite (VAS)
60 *
*
40
20
0
04:00 06:00
33% Reduction in Appetite
Time of Night 45% Reduction in Control Room Operator Night Snacks
© 2018 Circadian ZircLight IncBlue-Rich LEDs Increase Diabetic Insulin Resistance & Obesity:
Reversed by CIRCADIAN LEDs
CONTROLLED LABORATORY STUDIES MISSION CRITICAL WORKPLACE (1 YEAR STUDY)
Insulin [IU/mL] - AUC (2 hours)
300
Light at Night:
Blue-Depleted Night LED
Blue-Rich Conventional LED
Dark (Sleep)
200
**
100
0
Morning After Morning After
Night Sleep 2nd Night Shift
(Baseline)
Morning Glucose Tolerance Tests after Conventional LED Light, Body Mass Index (BMI) calculated from height and weight of same
and after
© 2018 CIRCADIAN® Light Circadian LED Light at Night group of employees before and 1-year after Circadian Light installation
circadianlight.com
© 2018 Circadian ZircLight Inc.ROI CASE STUDY: One Year Assessment of ROI of Circadian Lights
at Fortune 500 Company 24/7 Mission Critical Operations Center
• Real-world results confirmed sustained productivity and alertness claims
• 50% Reduction of Excessive Sleepiness
• 67% Reduction in Mistakes and Errors by Employees
• Demonstrated sustained health benefits
• 28% Reduction in Obese or Overweight Employees as Measured by Body Mass
Index (BMI)
• 20% Reduction in Gastrointestinal Disorders
• 43% Reduction in Frequent Used of Over the Counter (OTC) Pain Medications
• 29% Reduction in Use of Alcohol
• Demonstrated Productivity and Health Gains Support
Return on Investment (ROI) of less than One Year
© 2018 Circadian ZircLight Inc.Potential Liabilities and Emerging Regulations
© 2018 CIRCADIAN Light2011
Evaluation Commenced
2018 - August
Draft Report based on 650
research studies
2018 - October
Scientific Peer review completed
2019
Expected Publication
© 2018 CIRCADIAN Light© 2018 CIRCADIAN Light
Pathway towards Regulation
World Health NIH National OSHA
Organization Toxicology
ASBESTOS Regulations
IARC Program 1986
1977 1980
Report on
Carcinogens
World Health NIH National OSHA
BLUE-RICH Organization Toxicology Regulations
LIGHT AT NIGHT IARC Program ??
2007 2018
Report on
Carcinogens
© 2017 CIRCADIAN LightHow the Petrochemical Industry addressed lighting in
their new 2018 standards
Dr Steve Lerman MD, MPH, FACOEM
formerly ExxonMobil Medicine and Occupational Health
Department
Chairman of API ANSI Committee on RP755 Fatigue Risk
Management Standards
© 2018 CIRCADIAN LightRP-755 Background
• Developed in response a CSB recommendation after BP TX City’s
2005 incident
• CSB concluded that worker fatigue likely played a role in the
incident
• Urged the API & USW to develop an ANSI standard to “to
develop fatigue prevention guidelines that would, at a minimum,
limit hours and days of work and address shift work”
• API convened a committee, following ANSI Guidelines
• Members included representatives from refining & chemical industries,
the USW and experts in the area of fatigue management
• RP-755; the first industry standard to utilize a comprehensive Fatigue
Risk Management System (FRMS) approach was issued in 2010
© 2018 CIRCADIAN LightLighting in RP-755
• Called for the use of bright light to enhance alertness, using indirect
lighting to minimize glare
• IARC had recently issued a monograph calling shiftwork a “probable
carcinogen” due to circadian disruption
• Balancing this recent statement against the known risks of fatigue and
the known alertness benefits of lighting, this recommendation was
retained
© 2018 CIRCADIAN LightLighting in RP-755
• Since then:
• The connection between circadian disruption has been strengthened
• Technology can now offer the fatigue-related benefits of bright light while
minimizing circadian disruption
• As a result, the second edition of RP-755, to be issued by YE 2018 will
include:
• “… light sources at night should be selected to minimize circadian system
disruption”
• RP-755 will be the first standard addressing the issue of circadian disruption
due to work at night
© 2018 CIRCADIAN LightNew API-RP755 ANSI Standard for Lighting
© 2018 CIRCADIAN LightAPI-RP 755 covers FRMS Defenses in Depth: including Workplace Lighting
SLEEP ALERTNESS
Defense 1 Defense 2 Defense 3 Defense 4 Defense 5
Sufficient Sufficient Sufficient Sufficient Sufficient
Workplace Alertness
Goals
Staffing Sleep Sleep
Levels Opportunity Obtained Environment Behavior
& Accidents
Workload- Shift and Employee Workplace Fitness for
Incidents
Staffing overtime training design duty - Peer
monitoring
Actions
Balance scheduling,
Sleep Bio-Active
Proportional Fatigue risk disorder Fatigue
Blue Light monitoring
24/7 staffing models treatment Exposure
Excessive Schedule Sleep Workplace Fatigue-
related
Metrics
overtime Driven Deprivation Environment
Staffing Fatigue Risk Lifestyle Fatigue Errors
Imbalance stress
Risk Root Cause Analysis
© 2017 CIRCADIAN LightSpecifying Lights for the 24/7 World
True vs Fake “circadian” lighting
© 2018 CIRCADIAN LightAccelerated ROI when Lights are for people, not buildings! FALSE LED ECONOMY
Lumens per watt can
reduce costs from
0.8% to 0.2% but at
enormous productivity
& health cost.
Human Costs of
Conventional Blue-Rich
Energy Efficient LEDs far
exceed any energy savings
during evenings or nights
$$
Chart from Economics of Biophilia
© 2018 Circadian ZircLight Inc.True & Fake circadian: Buyer Beware
“Merely adjusting CCT, light intensity, or even SPD with time
of day does not qualify a lighting system as “circadian”
CCT color tuning products …should not be labelled “circadian”
unless they have been demonstrated through properly
designed clinical trials to be capable of optimizing the phase,
amplitude and/or entrainment of the circadian system to
promote human health and wellbeing.”
Feb 2018: Illumination Engineering Society (IES) and Rensselaer Polytechnic Institute LESA
Workshop Report on Lighting Systems for Healthcare Environments
© 2018 CIRCADIAN LightRequirements for True Circadian Light
• Prevent circadian disruption and health consequences
• Removal of 440-490nm blue light at night
• Providing blue-rich 440-490nm light during day
• Sustain human alertness and performance
• Provide sufficient illumination levels for work
• Deliver white light with good color rendering
© 2018 CIRCADIAN LightUL Verified Less Than 2% Blue Metric is a Better Predictor than CCT
Fake “circadian”
26.2%
26.2% 2700K 3000K 4000K 5000K
Color tuning Blue Pump LEDs creates large color
changes without removing sufficient blue
9%
9%
2%Conclusion
• Traditional lighting negatively impacts health, well-being and performance
• Too little blue-rich light during the day
• Too much blue-rich light at night
• The solution is here today
• Dynamic circadian lighting that provides high blue-content during the day and less
than 2% blue-content at night
• Adopted by over a dozen 24/7 operations and Fortune 500 companies
• Circadian lighting provides your workforce with:
• Improved performance: reduced fatigue, reduction in errors
• Improved health: Decreased obesity (BMI), reduced diabetes risk
• Avoid future liability risk of conventional lighting
© 2018 CIRCADIAN LightYou can also read
