GEMINI                    an ultra-stable interferometer
GEMINI is a novel and compact interferometer that can guarantee very high robustness
and stability between the two generated replicas of light.
The exceptional performances of this device can be exploited in many different
applications, such as time- and frequency-resolved fluorescence, coherent Raman,
pump-probe, two-dimensional spectroscopy and studies on single molecules.

Key Features                                                  Applications
                                                              • Interferometry
• High throughput that allows high sensitivities              • Generation of pulse pairs
• ≈1 attosecond stability between the two replicas of light
• Fast scans (
GEMINI an ultra-stable interferometer - nireos
Time- and frequency-resolved fluorescence with a single
               TCSPC detector
             Sample

                                                                                                                        SPAD or
                                                                                                                                                                                        Experimental setup: GEMINI interferometer is placed in
                                                                       GEMINI                                             PMT                                                           collection before the detector (a SPAD or PMT) connected
                                                                   Interferometer
                                                                                                                                                                                        to a TCSPC. This allows one to resolve the fluorescence
                                                                                                                              TCSPC                                                     wavelength axis while preserving the temporal resolution.

                                                             The GEMINI can
 Narrowband                                                   be placed as a
pulsed excitation                                            turn-key add-on
                                                                  device

                     800                                                                                                                                                                                                                            0.9
                                                         Rhodamine B + Nile Red
                                                                                                                                                                        1                                                                           0.8
                     750
                                                                                                                                                                                                                                                    0.7
                                                                                                                                                                                                                                                    0.6                             t=4.2 ns

                                                                                                                                                                                                                                 Intensity (a.u.)
                     700
  Wavelength (nm)

                                                                                                                                                Intensity (a.u.)

                                                                                                                                                                                                                                                    0.5
                     650                                                                                                                                               0.1
                                                                                                                                                                                                                                                    0.4

                     600                                                                                                                                                                                                                            0.3
                                                                                                                                                                                                                                                    0.2                  t=1.8 ns
                     550
                                                                                                                                                                                                                                                    0.1
                     500                                                                                                                                           0.01                                                                             0
                                  -1 0       1       2    3 4 5             6       7       8               9                                                                -1 0   1   2   3 4 5 6          7         8   9                              540     580 620 660 700              740
                                                         Time (ns)                                                                                                                          Time (ns)                                                                Wavelength (nm)
                     Fluorescence maps as a function of                                                                                                                  Semi-log plots of fluorescence decay                                        Integrated     spectra of   the   two
                     detection wavelength and emission time for                                                                                                          traces at ≈575 nm (green curve) and ≈675                                    fluorophores computed from the
                     a mixture of Rhodamine B and Nile Red in                                                                                                            nm (purple curve).                                                          correspondent Decay Associated Spectra
                     acetone solution.                                                                                                                                                                                                               (DAS) and lifetimes.

                         1

                       0.9

                                                                                            (c)
 Intensity

                       0.8

                       0.7
   (a.u.)

                       0.6

                                                                                                                  Intensity
                       0.5

                       0.4

                       0.3

                       0.2

                                                                                                                    (a.u.)
                    800
                       0.1
                                                                                                  008

                                                                                                                                                                                                             Standard grating-based                                          GEMINI + single PMT
                         0
                             -1     0    1       2       3    4    5    6       7       8               9

                                                                  LHCS3R complex
                                                                                                                                                                                                                      spectrometer                                                       detector
 Wavelength (nm)

                    750
                                                                                                  057

                                                                                                                                                                                              0                                                               0
                    700
                                                                                                  007

                                                                                            (a)                                                       (b)
                    650                                                                                                                                                                              550     600 650 700                            750            550    600 650 700          750
                                                                                                  056

                                                                                                                                                                                               500    550        600       650   700                    750

                          -1 0           1       2       3 4 5          6       7       8         9
                                                                                                    0

                                                                                                                                                                   1
                                                                                                            1.0

                                                                                                                  2.0

                                                                                                                        3.0

                                                                                                                              4.0

                                                                                                                                    5.0

                                                                                                                                          6.0

                                                                                                                                                7.0

                                                                                                                                                      8.0

                                                                                                                                                             9.0

                                                                                                                                                                                                            Wavelength (nm)                                              Wavelength (nm)
                                                         Time (ns)

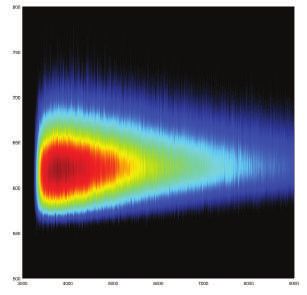

                    (a) Fluorescence map of the LHCSR3 complex from C.                                                                                                                       Comparison of fluorescence emission spectra of Rhodamine B, measured in
                    reinhardtii; (b-c) Marginals of (a), obtained by integrat-                                                                                                               the same experimental conditions. Excitation laser: =530 nm, P=1 W.
                    ing the map along the horizontal and vertical directions,
                    respectively, showing the overall fluorescence spectrum
                    and decay dynamics.

                    A. Perri et al., Opt. Express 26, 2270-2279 (2018).
GEMINI an ultra-stable interferometer - nireos
Coherent Raman (Stimulated Raman Scattering - SRS)
    and Pump-Probe Spectroscopy
     Broadband                                Sample
    Probe/Stokes                                                                                            Experimental setup: GEMINI interferometer is
                                                                                              Photo-        placed in the probe/Stokes beam after the
                                                                    GEMINI                    diode
                                                                   Interferometer
                                                                                                            sample, allowing one to measure SRS or
                                                                                                            pump-probe spectra up to MHz modulation
            lated    p                                                                         Lock-in
       Modu band Pum                                                                          Amplifier     frequencies.
             w
       Narro
                      1400
                                      1400         (a)                       (b)

                      1300
    Wavelength (nm)

                      1200

                      1100

                                        5

                                       -5

                                                   (c)

       (a) Two-dimensional ΔT⁄T(λ,τ) map for a graphite sample prepared by                            Chemometric analysis of the acquired dataset. (a) SRS spectra for
       liquid phase exfoliation. (b) ΔT⁄T spectra at selected probe delays; (c) Δ                     PMMA (solid black line) and PS (dotted red line). (b) False-color image
       T⁄T dynamics at 1270-nm probe wavelength (red circles) together with                           of the sample, showing a central bead of PMMA (in red), surrounded
       a bi-exponential fit (black solid line). Inset: zoom of the signal for                         by smaller beads of PS (in green). (c) and (d): concentrations maps of
       negative delays.                                                                               PMMA and PS.
                                                                                                                                F. Preda et al., Opt. Lett. 41, 2970-2973 (2016).
                                                                                                                        J. Réhault et al., Opt. Express 23, 25235-25246 (2015).

   Comparison with Monochromators
      The GEMINI is designed to be added to your setup to extract the spectrum of any light source, coherent or not.
  It can replace monochromators, since it overcomes their main drawbacks in terms of low throughput, fixed spectral
                                       resolution and limited spectral coverage

                                              Excitation
                                                                                                                                                          o m ator
                                                  Laser                                                                                              och r
                                                                                                                                              Mon
                                                                              Monochromator

 PMT                                                                                            PMT                                                 GEMINI
detector                                                                                       detector
                              GEMINI                Fluorescent
                             Interferometer
                                                      Sample

COMPARISON between GEMINI and a monochromator. The fluorescence of a sample is collected at 90° and measured
with PMT detectors. The GEMINI and the monochromator enable to spectrally resolve the fluorescence. With the GEMINI,
one can obtain the same S/N obtained with a monochromator with ~100 times lower excitation light power.
GEMINI an ultra-stable interferometer - nireos
Excitation-Emission Maps (EEMs) of Single Molecules
                                                   The GEMINI can be placed as a
                                                       turn-key add-on device

                                                                                                                        Sample
                                                  Short Pass
                                                    Filter
                                                                                                                                                                        GEMINI interferometer
                                                                                                                                 Objective                           allows the characterization
                                   White
                                    Light                            GEMINI
                                                                                                                                 Beam Splitter                        of single molecules with
                                   Source         Broadband
                                                                   Interferometer
                                                                                                                                 Long Pass Filter                    low acquisition times and
                                                  excitation
                                                                                                                                                                     exceptional accuracy and
                                                            Spectrograph
                                                                                                                                                                             sensitivity
                                                                                                                                 Flip Mirror

                                                                                                                                     Photodiode and                                   Single molecule: Terrylene diimide derivative
                                                                                                                                         TCSPC
                             EXCITATION-EMISSION MAP                                                                                                                             TIME and FREQUENCY-RESOLVED MAP

                                                                                        FT
                                    0

                                        A                                                                                       B                                                               GEMINI in Excitation
Detection Wavenumber /103 [cm-1]

                                                                                         Detection Wavenumber /103 [cm-1]

                                                                                                                                                                                           Photodiode+TCSPC in Detection
       (from Spectrograph)

                                                                                                                                                                        Decay Time [ns]

                                                                                                                                        GEMINI in Excitation
                                                                                                                                     Spectrograph in Detection                             C

                                        GEMINI Interferometer Position [mm]                                                      Excitation Wavenumber /103 [cm-1]                             Excitation Wavenumber /103 [cm-1]
                                                                                                                                       Thyrhaug et al., “Single-molecule excitation–emission spectroscopy”, PNAS 201808290 (2019).

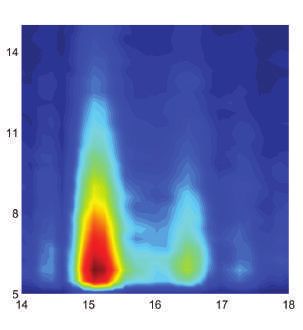

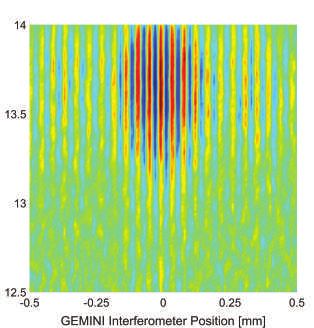

Single Molecule interferogram (A) and relative Excitation-Emission Map (B) obtained via Fourier Transform (FT) along the x-axis.
(C) Excitation-energy versus emission-intensity decay for a single molecule constructed from an interferometric TCSPC experiment.

Technical Specifications

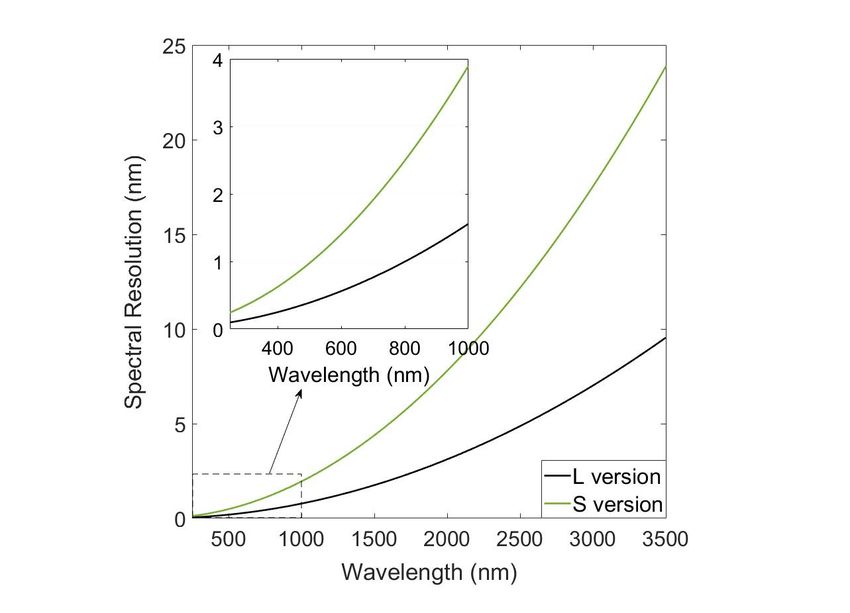

                                                                                                                                                                                                    Spectral Resolution
                                                                                                                                                                                          50

                                            VERSION                                     S                                                      L
                                                                                                                                                                                          40
       Spectral range [nm]                                                          250 - 2300 (Standard)
                                                                                    250 - 3500 (Ultra-broadband)
                                                                                    500 - 4200 (On request)                                                                               30

        Max. Delay τ [fs @ λ=600 nm]                                                -100 → 700                                           -100 → 2000
                                                                                                                                                                                          20
       Delay τ Stability                                                                                                    < 1 a�osecond

       Dimensions [mm]                                                                                                      100 x 110 x 65                                                10
       Weight [kg]                                                                                                               1

                                                                     Specifications can be subject to change without notice.
                                            For more information, please contact us via e-mail at info@nireos.com or visit our website www.nireos.com
