EASY EASYMIX EASYSTAND EASYMOBILE - HIGH-QUALITY USER-FRIENDLY PRODUCTS FOR PROFESSIONAL CATERING CENTRES
Easy
 EasyMix
EasyStand
EasyMobile
High-quality user-friendly products for professional catering centres
EASY EASYMIX EASYSTAND EASYMOBILE - HIGH-QUALITY USER-FRIENDLY PRODUCTS FOR PROFESSIONAL CATERING CENTRES
RELIABLE, ERGONOMIC, HYGIENIC

                                                         Index
                                                         Explanation of symbols                                  4
                                                         Overview                                                5
                                                         Easy                                                  6-7
                                                         EasyMix                                               8-9
                                                         EasyStand                                         10-11
                                                         EasyMobile                                        12-13
                                                         Details                                           14-17
                                                         Options and accessories                           18-21

                                                         Controls
                                                         AutoTemp 02e                                           22
                                                         AutoTemp 32                                            22
                                                         AutoTemp 36                                            23
                                                         Explanation of symbols                            24-25
                                                         Overview of kettles
                                                         and controls                                           27

    Jøni A/S is a Danish manufacturing company which has manufactured equipment for the catering industry since 1973. We now have 45 staff and supply tilting
    kettles, tilting frying pans and cooking ranges. We sell through competent, local dealers who provide users with the services they need before, during and
    after their purchase.

    We accept no liability for printing errors. We reserve the right to make alterations without prior notice. Products may be shown with options.

2
EASY EASYMIX EASYSTAND EASYMOBILE - HIGH-QUALITY USER-FRIENDLY PRODUCTS FOR PROFESSIONAL CATERING CENTRES
INNOVATION AND FLEXIBILITY

           Our Vision
           It is our goal to be the preferred manufacturer of tilting
           kettles, tilting frying pans and cooking ranges for catering
           centres.
           Our products are designed with a special focus on easy and
           ergonomic use, hygiene, reliability and durability. It is also
           our goal for our product range to have an inbuilt flexibility,
           which enables solutions to be offered which meet the speci-
           fic needs of individual customers.

           I hope our products will help to make your catering centre
           a better workplace, enabling you to prepare high quality
           meals efficiently.

           Lars U. Jørgensen
           Managing Director

                                                                            3
EASY EASYMIX EASYSTAND EASYMOBILE - HIGH-QUALITY USER-FRIENDLY PRODUCTS FOR PROFESSIONAL CATERING CENTRES
EXPLANATION OF SYMBOLS

          Power and speed of the stirrer                        Adjustable, upright control panel
          A powerful stirrer is essential for the effective     This makes operating the kettle more ergonomic
          stirring of viscous products. A lower stirring        and enables the display to be read from a
          speed treats the product gently, while a high         distance. This gives a better overview of several
          speed will make it light and airy.                    kettles and eliminates awkward light reflections.

          Weight of the stirrer                                 Error codes
          A light stirrer reduces heavy lifting and is more     This makes servicing easier and faster. Common
          ergonomic.                                            user errors are also indicated.

          No screws/joints around the food                      Tilt height
          A kettle bowl made from strong sheet material         A greater tilt height is more ergonomic and
          without any joints or screws around the food          enables easier serving and cleaning.
          maximises hygiene and durability.

          Inspection hatch                                      WaterLevelAutomatic
          This saves many lifts of the lid and enables          The control system ensures that the water level in
           ingredients to be added while the stirrer is         the kettle’s steam generator is always correct, even
          rotating.                                             after a chilling process.

          Chilling using water from the mains                   Water flow meter
          supply                                                Electronic metering of the quantity of water that
          This makes chilling the product in the kettle easy.   is added to the kettle. The quantity is measured in
          The chilling water is not recycled.                   litres/gallons to one decimal place.

          Drip stop                                             Access code
          Water refilling with a drip stop makes cleaning       The kettle can be set so that entry of an access
          easier and reduces water spillage on the floor.       code is required before the kettle can be used.

4
EASY EASYMIX EASYSTAND EASYMOBILE - HIGH-QUALITY USER-FRIENDLY PRODUCTS FOR PROFESSIONAL CATERING CENTRES
– A WORLD OF KETTLES

             Jøni’s product range ranges from simple tilting kettles, through traditional multifunction kettles to
                                   advanced kettles with a stirrer. Examples of the broad product range include
                                           kettles mounted on a four-legged stand, mobile versions and kettles
                                                              with a 600 mm tilting height and efficient chilling.

                                            With all our kettles, no compromises have been made on quality, and
                                              the different models therefore only reflect differences in functions.

                                           The kettles operate with 1 bar of steam pressure, equivalent to 120˚C.
                                                           The kettles can be supplied for electric heating or for
                                                                        connection to an external steam system.

                                                                 Easy and EasyMix
                                                                 These models are simple tilting kettles with or
                                                                 without an integrated stirrer. They are the choi-
                                                                 ce of kitchens with moderate needs for cooking
                                                                 and stirring.
    Easy

                                  EasyMix

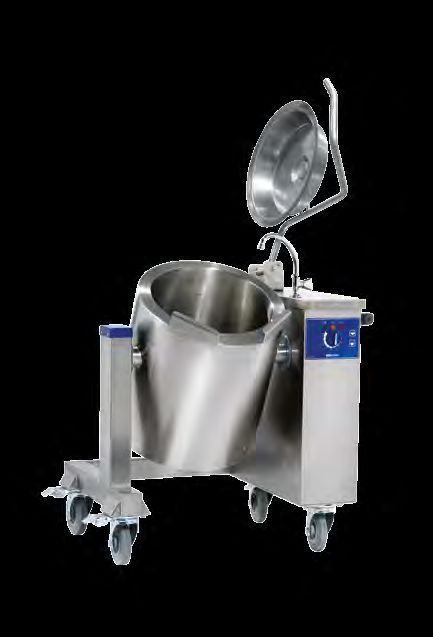

                                                                 EasyMobile
                                                                 This kettle on wheels is ideal for use when mo-
                                                                 bility is important for the smooth running of
                                                                 the kitchen.

                                                                 EasyStand
                                                                 This model on four legs is preferred, when a
                                                                 simple installation is required without any ma-
                                                                 jor work being required to the floor.
EasyMobile

                                                                 Find other kettles in a separate
                               EasyStand                         brochure.

                                                                                                                      5
EASY EASYMIX EASYSTAND EASYMOBILE - HIGH-QUALITY USER-FRIENDLY PRODUCTS FOR PROFESSIONAL CATERING CENTRES

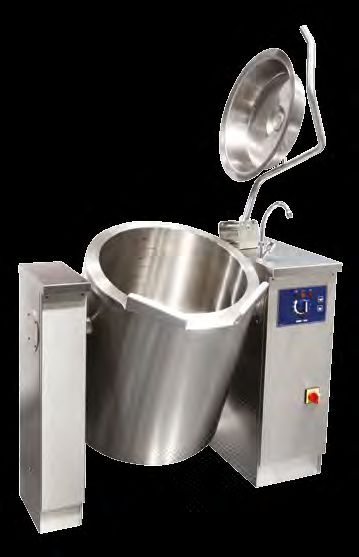

EASY              The classic tilting kettle

    • Electric tilt

    • Easy to use

    • Unheated top

    • Easy to clean

    • 40-300 litres nominal volume

              Unheated and insulated top

                                                   400-467mm   WaterLevel
                                                               Automatic

6
EASY EASYMIX EASYSTAND EASYMOBILE - HIGH-QUALITY USER-FRIENDLY PRODUCTS FOR PROFESSIONAL CATERING CENTRES
Options                         The simple kettle with electric tilt
• Spray gun                     The Easy model is a simple kettle         The steam generator is filled auto-
                                with electric tilt. It combines the       matically with the right amount of
• Drain valve/Butterfly valve   advantages of the tilting kettle with     water, which protects the heating
                                convenient and simple use.                elements against overheating and
• Sieve plate
                                                                          unexpected interruptions of the
• Pouring plate                 The kettle is available with nominal      production can be avoided.
                                volumes of 40, 60, 80, 100, 120, 150,
• Measuring rod                 200, 250 or 300 litres and the electric   The Easy model is supplied as stan-
                                tilt function enables the kettle to be    dard with a stainless steel lid hinged
• Cooking basket                emptied quickly and easily.               on the pillar with the control panel.
• GN-support
                                Easy-kettles are supplied                 Several kettles can be linked to-
• Rotatable lid                 as standard with AutoTemp 02e             gether and the control panel placed
                                control, which includes electric tilt,    optionally on either the right- or the
• Manual chilling with          heating is infinitely variable using a    left-hand pillar. The Easy kettle can
  water from mains supply       dial and a cold water tap for filling     be linked with the EasyMix model.
                                the kettle with water.

                                                                                                                   7

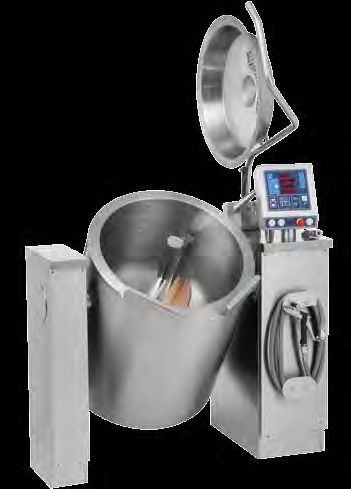

EASYMIX                     The simple kettle with a stirrer

    • Integrated stirrer with 7 stirring
      patterns

    • Stepless stirring speed

    • Time controlled waterfilling

    • PowerMix

    • Timer

    • Digital control and display
      of inner kettle temperature

    • WaterLevelAutomatic

    • Electric tilt with TiltBack

    • Adjustable control box

    • Inspection hatch

    • Unheated top

    • 40-300 litres nominal volume

                                                     *    152-358 Nm   2,3-5,5 kg   Errorcode   400-467mm   WaterLevel
                                                           5-140 rpm                                        Automatic

8                                                                                                                    *Option
Options                         Economical solution with stirrer
• Cleaning tool                 The EasyMix is a simple kettle with      can be set to any speed between 5
                                an integrated stirrer. Mechanising       and 140 rpm. A slow rotation speed
• Watermeter                    the stirring in the kettle simplifies    distributes the heat and treats the
                                food preparation and saves labour.       food gently, while a fast rotation
• Spray gun
                                It also ensures a better result, as      speed mixes effectively and makes
• Drain valve/Butterfly valve   the heat is distributed more evenly      certain dishes lighter.
                                throughout the entire contents of
• Sieve plate                   the kettle and prevents burning.         The powerful stirrer motor can also
                                                                         stir thick dishes. Mashed potato
• Pouring plate                 The kettle is available with nominal     made from fresh potatoes can for
                                volumes of 40, 60, 80, 100, 120, 150,    example be prepared in the kettle.
• GN-support
                                200, 250 or 300 litres and is fitted
• Measuring rod                 with 36 control. This control system     For safety reasons, the stirrer will
                                includes electric tilt with TiltBack,    stop when the lid is opened, but
• SlowMix                       digital control and display of the       thickeners, spices, etc. can be added
                                inner kettle temperature, stirrer        through the inspection hatch.
• Tool trolley                  control, pushbutton-operated water
                                filling on time, clock with alarm        Flexibility
• Manual chilling with water
                                function and WaterLevelAutomatic.        With the SlowMix accessory, the
  from mains supply             The control panel is located on an       stirrer can rotate slowly with an open
                                adjustable control box on the pillar.    lid while a key is pushed. This can
• Rotatable lid
                                                                         be used to mix the contents of the
                                As an option EasyMix can be fitted       kettle during serving. The speed can
                                with an electronic water flow meter      in the display be adjusted between
                                too.                                     5 and 20 rpm.

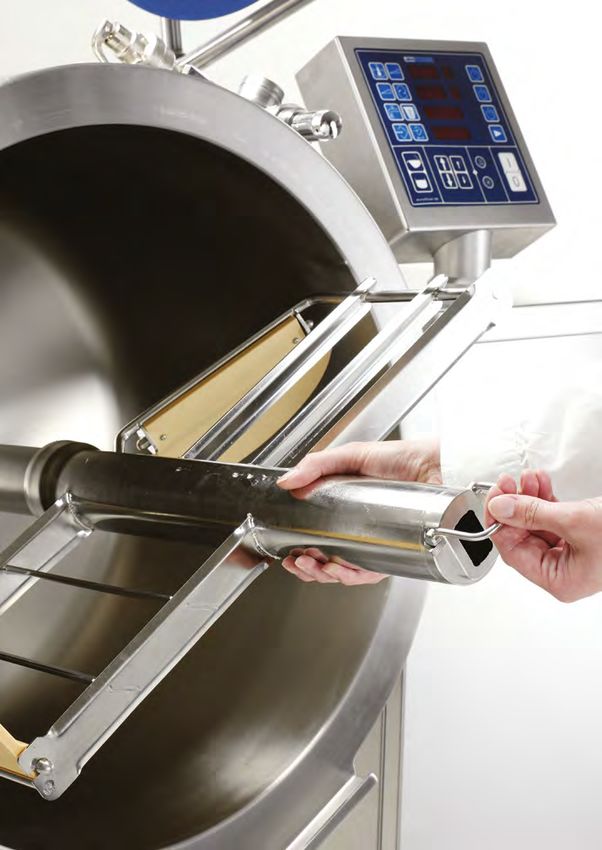

                                The stirrer                              The stirrer also enables the Mul-
                                With its fully penetrating stirrer       tiClean cleaning tool to be fitted,
                                shaft, the kettle has no unhygienic      which saves both water, time and
                                joints around the food and the lifting   labour when cleaning the kettle.
                                handle on the stirrer is always clean
                                and easily accessible.                   Several kettles can be linked to-
                                                                         gether and the control panel can
                                The stirrer has seven dynamic stir-      be placed on either the right- or
                                ring patterns, which automatically       the left-hand pillar. The EasyMix
                                adapt to the speed selected and          model can also be linked with the
                                therefore always operate optimally.      Easy model.
                                The speed

                                                                                                                  9

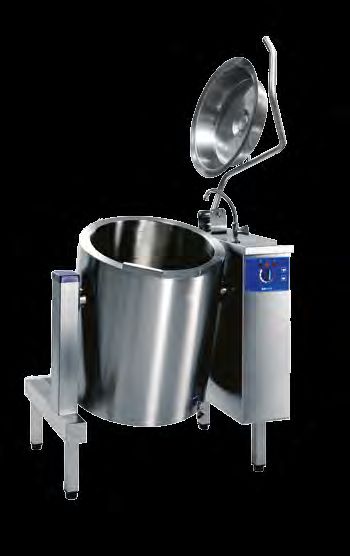

EASYSTAND                        The four-legged kettle

     • Easy set-up

     • Electric tilt

     • Easy to use

     • Unheated top

     • Easy to clean

     • 40-100 litres nominal volume

                                                               *   Errorcode*    383-447mm   WaterLevel   *
                                                                                             Automatic

10                                                                              *Only with AutoTemp 32
Options                         Stable stand and easy set-up
• Spray gun

• Drain valve/Butterfly valve   The EasyStand model is a kettle on          elements against overheating and
                                four legs. It can be used to avoid          unexpected interruptions of the
• Sieve plate                   fixed installation in the floor, e.g. in    production can be avoided.
• Pouring plate                 rented premises or for temporary
                                use.                                        Also the AutoTemp 32 control can
• GN-support                                                                be fitted as an option and includes
                                The kettle is available with a nominal      electric tilt with TiltBack, digital con-
• Measuring rod                 volume of 40, 60, 80 or 100 litres and      trol and display of the inner kettle
                                is supplied with a lightweight, stain-      temperature, an electronic water
• Cooking basket                less steel lid hinged on the pillar. As     flow meter, a clock with an alarm
• Control AutoTemp 32           an option the kettle can be delivered       function and WaterLevelAutomatic.
                                with a rotatable lid.                       The control panel is located on an
• Rotatable lid                                                             adjustable control box on the pillar.
                                EasyStand model kettles are sup-
• Chilling with                 plied as standard with AutoTemp             The EasyStand is mounted on a solid,
  water from mains supply       02e control, which includes electric        stable underframe with four legs,
                                tilt, heating is infinitely variable with   enabling the kettle to be tilted safely.
                                a dial and a cold water tap for ad-
                                ding water to the kettle.                   The kettle is available as an electri-
                                                                            cally heated version and the power
                                The steam generator is filled auto-         and water connections are placed on
                                matically with the right amount of          the underside of the pillar.
                                water, which protects the heating

                                                                                                                        11
EASYMOBILE                                The mobile alternative

     • Mobile kettle on four castors

     • Electric tilt

     • Easy to use

     • Unheated top

     • Easy to clean

     • 40-100 litres nominal volume

          All four castors can be rotated.
          Two wheels are fitted with a rota-
          tion brake and two wheels have a
          direction brake.

                                                                        *   Errorcode*   433-447 mm   WaterLevel    *
                                                                                                      Automatic

12                                                                                              *only for AutoTemp 32
Options                         The mobile kettle
• Spray gun

• Drain valve/Butterfly valve   The EasyMobile model is mounted            with a dial and a cold water tap for
                                on four castors, giving it a mobility      filling the kettle with water. The
• Sieve plate                   which opens up new possibilities for       steam generator is filled automati-
• Pouring plate                 the use of tilting kettles. It could for   cally with the right amount of water,
                                example be used to provide tem-            which protects the heating elements
• Measuring rod                 porary additional capacity, or it          against overheating and unexpected
                                could be shared between several            interruptions of the production can
• GN-support                    kitchens/departments or used to            be avoided.
                                transport prepared food in.
• Cocking basket                                                           Also the AutoTemp 32 control can
• Control AutoTemp 32           In kitchens where space is limited,        be fitted as an option and includes
                                the kettle could be brought in from        electric tilt with TiltBack, digital con-
• Rotatable lid                 a storeroom when the need arises.          trol and display of the inner kettle
                                From there, it could be moved to           temperature, an electronic water
• Chilling with                 where the food is to be served and         flow meter, a clock with an alarm
  water from mains supply       then back again to the kitchen for         function and WaterLevelAutomatic.
                                cleaning. This saves space in the          The control panel is located on an
                                kitchen and gives the kettle more          adjustable control box on the pillar.
                                flexibility in terms of its use, without
                                compromising functionality.                The EasyMobile is mounted on a
                                                                           solid underframe, enabling it to be
                                The kettle is available with nominal       moved and tilted safely. A handle
                                volumes of 40, 60, 80 or 100 litres        and rotating castors make handling
                                and is supplied with a lightweight,        the kettle easy.
                                stainless steel lid hinged on the
                                pillar. As an option the kettle can be     EasyMobile is available with electric
                                delivered with a rotatable lid that        heating. Power and water connec-
                                makes cleaning easier.                     tions are located on the back of the
                                                                           pillar.

                                EasyMobile model kettles are sup-          The working height is 950 mm.
                                plied as standard with AutoTemp
                                02e control, which includes electric
                                tilt, heating is infinitely variable

                                                                                                                       13
DETAILS – KETTLES

             Unheated and insulated top                        Drip-free spout                               Base plate

     Unheated top                                 Fresh water from a                         Tight construction
     The top of the kettle is unheated and        drip-free spout                            The position of the kettle’s base plate
                                                                                             and its seal slightly up inside the outer
     insulated from the steam jacket. This re-    Water is added to the kettle from a
                                                                                             jacket gives a natural drip lip, allowing
     duces heat radiation and saves energy,       dripfree spout which is mounted on the
                                                                                             overboiled liquids and cleaning water
     and also minimises the risk of burns to      pillar. This minimises the distance from
                                                                                             to drain. This prevents liquids from
     the operator. This design also ensures       the connection to the tapping point, so
                                                                                             seeping in under the base plate and
     that the food does not burn in the           that the water is always fresh and cold.
                                                                                             causing damage. The kettle is also sea-
     kettle spout when the kettle is emptied,     The water is not fed through the kettle
                                                                                             led to prevent the ingress of water and
     which would reduce the quality of the        bowl, where it would be heated.
                                                                                             steam from the floor and floor drains.
     food and cause cleaning to take longer.

                                                  Solid construction                         Fast heating
     Large pouring lip
                                                  The strong plating used in the kettle
                                                                                             A patented steam generator means
     All kettles are fitted with a large pou-     bowl and the reinforcements in the
                                                                                             that the kettle can be used with only a
     ring lip, so that the kettle can always be   base of the kettle and around the
                                                                                             small amount of water around the he-
     emptied safely. A sieve plate or pouring     shafts make the kettle stable in every
                                                                                             ating elements. This speeds up heating
     plate can also be used as an additional      situation. Both the kettle and the
                                                                                             and reaction times and reduces energy
     aid.                                         pillars are made entirely from stainless
                                                                                             wastage.
                                                  steel and the inner kettle is made from
     Liter markings                               acid-proof steel.
                                                                                             Low surface
     The kettle bowl has liter markings
     etched into the surface of the kettle.
                                                                                             temperature
                                                                                             All kettle bowls are well insulated
                                                                                             across their entire exterior, making
                                                                                             them even safer to use and giving a
                                                                                             better climate around the kettle, as
                                                                                             well as saving energy.

14
˚C

      95
      80
      65

      10
                                    Min.
           0     5     15     25

     Heating sequence for a 100 l kettle           Ergonomically designed lid arm                   TiltBack function

Protection of heating                       WaterLevelAutomatic                        Advanced software
elements                                    WaterLevelAutomatic ensures that           The specially designed software covers
All heating elements are fitted at the      the water level in the kettle’s steam      all the kettle’s functions and is very
front of the kettle, so that there is no    generator is correct. This prevents        flexible, allowing it to be adapted to
risk of overheating when the kettle         unnecessary stoppages and also             suit the needs of most users. There is
is tilted. They are also protected by a     tops the kettle from boiling dry. Water­   an option to set the temperature in
dry-boil thermostat.                        LevelAutomatic works regardless            degrees Celsius or Fahrenheit and the
                                            of the water quality. On kettles with      water quantity in Litres, UK gallons or
                                            automatic chilling, the correct water      US gallons. The control system conti-
Protection against                          level in the steam generator is auto-      nually monitors the kettle’s operation
overpressure                                matically restored after chilling.         and shows an error code in the display
All kettles are fitted with a comprehen-                                               in the event of a fault. This covers
sive safety system to prevent overpres-                                                both operating errors and component
sure in the kettle. In addition to the
                                            Ergonomic lid design                       faults. This enables any problems to be
                                            The lid is easily opened using the
control systems, this includes a safety                                                quickly resolved.
                                            ergonomically designed lid arm.
temperature limiter, pressure gauge,
                                            During opening, the lid is moved
safety valve and double contactors.
                                            backwards so that it is not in the
                                            way of the user in the open position.
TiltBack                                    A gas spring helps the user to lift the
All kettles have an optional TiltBack       lid, so reducing the effort required
function, which enables the user to de-     to a minimum.
termine whether and, if so, how much
the kettle should tilt back after a tilt.
This reduces dripping during emptying
and makes pouring easier.

                                                                                                                                 15
DETAILS – KETTLES

               Adjustable control box                  Environmentally friendly design                    Integrated stirrer

     Control box                                 Environmentally                             Integrated stirrer
     The control box is placed at a good         friendly                                    The stirrer in the kettle saves both
     working height and can be read easily.      During the development of the pro-          time and effort, partly because stirring
     The control box can be orientated so        duct, a focus was placed on producing       can be performed automatically, but
     that it faces in towards the kettle. This   environmentally friendly design, so         also because more stirring eases the
     ensures that the user is in no doubt        that the consumption of electricity and     preparation of many dishes.
     as to which control box belongs to          water is minimised when the kettle          The integrated stirrer makes it possible
     which kettle, and also minimises any        is in use. The manufacturing process        to keep the lid closed and keep the
     reflections. This makes operating the       is carried out giving every possible        heat and steam inside. This reduces
     kettle easy and fast, and enables the       consideration to the environment, and       energy consumption and steam in the
     user to quickly gain an overview of the     the long lifetime of the product ensures    kitchen.
     condition of each of the kettles, even at   that the natural resources that are used    The mixertool is always accessible and
     a distance.                                 are exploited optimally.                    by openening the lid the contents of
                                                 As the kettle is primarily made from        the kettle can be checked or ingre-
     The on and off buttons for the kettle       recyclable materials, it is also environ-   dients added.
     are easy to reach so the kettle can be      mentally friendly after it has reached      The scrapers reduce the risk of the
     switched off after use. By switching off    the end of its working life.                food burning and sticking to the kettle
     the standby consumption is reduced.                                                     sides and eases the cleaning.

16
Hygienic kettle                        Practical inspection hatch                          Stirrer

Fully penetrating shaft                   Inspection hatch                             Ergonomic fitting
The rotating components of the stirrer    All kettles with a stirrer are fitted with   The stirrer is fitted in an ergonomical-
shaft are located above the food area,    a practical inspection hatch and asso-       ly correct way. The fully penetrating
so that there are no unhygienic joints    ciated lid as standard.                      shaft makes it possible and easy to fit
or seals which could start to leak. The   This is used when adding ingredients         the stirrer in the horizontal position,
stirrer does only require a minimum of    while the stirrer is operating, e.g.         so avoiding lifting away from the
maintenance, and the stirrer’s lifting    when thickening. This is unavoidable         body.
handle is clean and easily accessible     in virtually every kitchen.
even when the kettle is full.
                                                                                       Lightweight stirrer
                                          Slow stirring                                The special design makes the stirrer
Hygienic kettle                           The option to reduce the speed of the        both light and extremely stable. The
The body of the kettle itself is fully    stirrer to as low as 5 rpm also makes        high torque of the stirrer motor allows
welded, so that even on kettles with an   it possible to gently stir casserole         the tool to be fitted with a wide
integrated stirrer there are no unhygi-   dishes for example. This is particularly     variety of broad oblique blades, which
enic joints in the food area or around    important when the food remains in           ensures effective mixing, even at low
the kettle’s upper rim and exterior.      the kettle for a long time, e.g. when        speeds.
                                          warming or chilling, as the food could
                                          otherwise be broken up.

                                                                                                                                  17
ACCESSORY

                  SlowMix                              Drain valve                        Butterfly valve                       Cooking basket

     SlowMix                               Drain valve                          Butterfly valve                       Cooking basket
                                           The traditional drain valve is       The sanitary butterfly valve is       The cooking basket is used
     For safety reasons, the stirrer
                                           fitted to the front of the kettle    fitted to the front of the kettle,    to cook products that you do
     will stop as soon as the lid is
                                           and enables the kettle to be         enabling liquid products to           not want to leave loose in the
     opened. With SlowMix the
                                           emptied of liquid products.          be pumped out of the kettle           water. This could for example
     stirrer can however rotate
                                           The drain valve is available in      through this valve. This makes        be the case with fragile foods or
     slowly as long as the key is
                                           2” versions.                         emptying quick and easy. If an        foods that you will want to lift
     pressed. The speed can be
                                                                                elbow is fitted, the valve can        out of the kettle in order to
     adjusted between 5 and 20
                                                                                also be used as a drain valve.        leave the water in the kettle.
     rpm in the display. This gives
                                                                                The valve can be disassembled         The baskets are available
     more consistent results during
                                                                                for cleaning purposes.                for kettles without mixer in
     serving. The pedal can give
                                                                                The butterfly valve is available in   the sizes between 40-200 l.
     handfree operation of the
                                                                                2” or 3” versions and with an ISO     Depending on its size, the
     SlowMix function.
                                                                                Clamp, DS or SMS connection.          cooking basket is divided into
                                                                                                                      several layers and into halves or
                                                                                                                      quarters.

                  Sieve plate                         Pouring plate                         Tool trolley                         Rotatable lid

     Sieve plate                           Pouring plate                        Tool trolley                          Rotatable lid
     The sieve plates are practical        The pouring plate is easily fitted   The tool trolley is used to store     The rotatable lid eases the
     aids for use when emptying the        to the kettle’s spout, where it      loose accessories for up to two       working procedures while
     kettles.                              will remain while the kettle is      kettles such as the stirrer, clea-    cleaning the lid. Small persons
     They are easily fitted to the kett-   emptied.                             ning tool and sieve plate.            who can have difficulties rea-
     le’s spout, where it will remain      The pouring plate is used for                                              ching the top and the very back
     while the kettle is emptied.          controlling the emptying.            For a fixed storrage of the           of the lid, can rotate it and clean
     The sieve plate is used when                                               accessory a wallbracket can be        it without problems.
     water in the kettle is to be                                               used.
     drained from potatoes, pasta,
     etc.

18
Embedding fixtures                     Measuring rod                       Separate bearing                        Tube cleaner

Embedding                            Measuring rod                        Separate bearing                      Tube cleaner
fixtures                             The measuring rod is suspen-         This is a fitting for attaching the   The tube cleaner makes it easy
The fixture is embedded into         ded over the lip of the kettle       kettle’s supporting shaft and         to clean the middle tubes of the
the floor and the pillars are then   and is a practical aid for use       replaces a supporting pillar.         stirrer. The brush has a 60 cm
secured directly to the fixture.     when measuring the kettle            A separate bearing is fitted to       long shaft and can therefore be
Embedding fixtures are an al-        contents.                            anything which can support            used for all sizes of kettle. The
ternative to securing the kettle     A fine scale makes an acurate        the weight of the kettle, such as     head of the brush can be remo-
using bolts.                         messurement possible and             an existing pillar, other equip-      ved from the shaft and cleaned
The fixtures are supplied com-       reduces in this way food wast.       ment or a wall. The solution is       by boiling in water, ensuring
plete with spacers.                                                       ideal when replacing part of a        optimal hygiene.
                                                                          series of kettles.

                                                                                                                Sensor for food
                                                                                                                temperature data
                                                                                                                collection

                                                                                                                If data collection is required
                                                                                                                concerning the temperature of
                                                                                                                the food, all kettles can be fitted
                                                                                                                with an additional sensor. The
            Spray gun                            GN-support                           Whipping tool             temperature is measured on
                                                                                                                the steel jacket immediately on
                                                                                                                the other side of the food.
Spray gun                            GN-support                           Whipping tool
This solid spray gun is designed     The arm for the GN-support                                                 Readings from this sensor can
                                                                          The whipping tool can be used         be recorded using commonly
for cleaning the kettle.             is mounted in the spout and
                                                                          for whipping egg white or             available programs. Often
The robust design of the spray       the movable shelf just hung in.
                                                                          creme. It is easy to mount and        programs which are already in
gun means that it will tolerate      GN-containers can be placed
                                                                          gives even more possibilities for     use in the kitchen can be used,
rough handling or being drop-        on the shelf so the GN-support
                                                                          the use of the kettle.                so avoiding further software
ped. The spray can easily be set     is following the kettle and splas-
from concentrated to spread.         hing and lifting is avoided.                                               installation and maintenance.
The spray gun is fitted to a         By turning the shelf it can be
hose, which is supplied from a       used as a support for filling the
separate mixer tap.                  kettle.

                                                                                                                                                      19
ACCESSORY

     MultiClean
     The effective cleaning tool
     The MultiClean is a particularly effecti-    things. The tool is fitted in the same   The brushes are fitted to special rails,
     ve and very user-friendly cleaning tool,     way as the stirrer.                      so that they can be quickly removed
     which is easily fitted to all kettles with                                            for cleaning or replacement with
     an integrated stirrer.                       The patented MultiClean cleaning         softer or harder brushes. On the sides,
                                                  tool also saves water, as soaking can    four brushes clean the entire surface,
     The MultiClean’s brushes quickly clean       usually be avoided. The double, stiff    and the base is cleaned by two brus-
     the food areas of the kettle, even           brushes are spring-loaded and follow     hes with a contoured shape.
     removing engrained dirt, so saving the       the shape of the kettle, making clea-
     user time which can be spent on other        ning effective.

                 • User-friendly

                 • Time-saving

                 • Water-saving

20
Chilling using water from the mains
                          supply

For chilling in the kettle, jacket chilling   manually opening and closing valves.       on the control panel and the function
using water from the mains supply             When the chilling process has finished,    automatically optimises the quantity of
is available. Water is fed through the        the excess water is drained off from the   water in relation to the chosen chilling
steam jacket, where it chills the content     jacket by opening a valve.                 step and food temperature. When the
of the kettle and afterwards drained                                                     chilling process finishes, the correct
via the floor grate. This is a simple way     AutoTemp 36                                water level in the steam generator will
of chilling, but the water consumption        With this control water consumption        automatically be restored.
is relatively high and the chilling effect    can be reduced by choosing a preset
depends on the temperature of the             level in the users menu, which determine
water.                                        the intensity of the chilling process.
                                              The lower the value that is selected,
AutoTemp 02e and                              the smaller the quantity of water that
AutoTemp 32                                   will pass through the steam jacket and
These control systems use the simplest        the longer the chilling process will
chilling process and is operated by           take. The chilling step is set directly

                                                                                                                                    21
CONTROLS

     AutoTemp 02e                                                AutoTemp 32

     AutoTemp 02e                                      rows change the setting by 10°C, while the
                                                       small arrows change the setting by 1°C. The
                                                                                                         drip-free spout on the pillar.

     The heating power is infinitely variable          heating power is controlled automatically         The timer function stops the heating supply
     using a dial and water is added to the            to ensure that the temperature setpoint is        and activates an alarm at a set time or after
     kettle via a tap. The kettle’s tilt function is   achieved.                                         a set period of time. The time is shown in
     operated using keys on the control panel                                                            the display.
     and the steam generator is filled with            The control has an integrated water flow
     water automatically.                              meter and water is added to the kettle by         The kettle’s tilt function is operated using
                                                       setting the required quantity and starting        keys on the control panel and the TiltBack
     An excessive pressure in the kettle or            the filling process. Filling stops automatical-   function means that the kettle will automa-
     overheating of the heating elements is            ly when the required quantity of water has        tically return slightly after tilting is stopped.
     indicated by a red warning light.                 been added. The required quantity can be          This minimises overrun during emptying
                                                       set to one decimal place. The remaining qu-       and makes pouring easier.
                                                       antity is displayed while the water is being
                                                       added. The user can easily stop the filling       WaterLevelAutomatic ensures that the
     AutoTemp 32                                       process and adjust the required quantity.         water level in the kettle’s steam generator
                                                                                                         is correct. This prevents unnecessary stop-
     The display normally shows the actual             Small quantities of water are best added          pages and also prevents the kettle from
     temperature of the inner kettle, but a key-       manually. Water is added to the kettle when       boiling dry.
     press gives access to display and alter the       the key is held down and the quantity ad-
     temperature setpoint. This is set quickly and     ded is shown in the display to one decimal
     precisely between 1-120°C. The large ar-          place. The water passes through a large

22
AutoTemp 36

AutoTemp 36                                      with the option to set the speed from 5
                                                 to 140 RPM, this unique function gives
                                                                                                   The timer function stops the heating supply
                                                                                                   and activates an alarm at a set time or after
The display normally shows the actual            excellent results, regardless of whether you      a set period of time. The time is shown in the
temperature of the inner kettle, but a key-      need effective, fast and powerful stirring or     display and a visual or audible alarm can be
press gives access to display and alter the      gentle, slow stirring.                            connected if desired.
temperature setpoint. This is set quickly and
precisely between 1-120°C. The large ar-         For safety reasons, the stirrer will stop when    The kettle’s tilt function is operated using
rows change the setting by 10°C, while the       the lid is opened. When the SlowMix option        keys on the control panel and the TiltBack
small arrows change the setting by 1°C. The      is selected, the stirrer can however rotate       function means that the kettle will automa-
heating power is controlled automatically        slowly with an open lid while a key is held       tically return slightly after tilting is stopped.
to ensure that the temperature setpoint is       down and the kettle is tilted. This simplifies    This minimises overrun during emptying and
achieved.                                        emptying and gives more uniform results           makes pouring easier.
                                                 if the food is to be divided between several
The speed and stirring pattern of the stirrer    containers.                                       WaterLevelAutomatic ensures that the
are easily controlled using the keys on the                                                        water level in the kettle’s steam generator
second line of the control panel. 7 dynamic      The control has a time based waterfilling         is correct. This prevents unnecessary stop-
stirring patterns are available and the speed    integrated water flow meter and water is          pages and also prevents the kettle from
can be adjusted to between 5 and 140 RPM.        added to the kettle by setting the required       boiling dry.
Certain stirring patterns have a limited         quantity and starting the filling process. Fil-
speed, determined by the purpose of the          ling stops automatically when the required        As an option, the kettle can be set up so
stirring pattern.                                quantity of water has been added. If the          that the food is chilled in the kettle after
                                                 water pressure is constant the amount can         preparation.
The stirring patterns available include conti-   be calculated from the time. This is done in      The chilling process uses water from the
nuous stirring in both directions and several    the users menu.                                   mains supply.
stirring patterns with variable reversals and                                                      Considerable water savings can be made
pauses. These stirring patterns are intended     Is a more accurate measurement deman-             with the static chilling steps from 1 to 9,
for                                              ded, the kettle can as an accessory be fitted     which are selected in the user menu. If a low
normal stirring, gentle stirring and powerful    with a water meter.                               value is set, the chilling process will save
stirring/mashing. One stirring pattern is op-                                                      water but it will also be slower.
timised for cleaning using the cleaning tool.    Small quantities of water are best added          Operation of the chilling function is inte-
                                                 manually. Water is added to the kettle when       grated into the control panel and after the
The stirring patterns are designed to auto-      the key is held down and the quantity ad-         completion of chilling the kettle’s steam
matically adjust to the set stirring speed       ded is shown in the display to one decimal        chamber is emptied of excess water and the
and therefore always operate optimally.          place. The water passes through a large           kettle is automatically readied for heating
Slow stirring gives fewer reversals and          drip-free spout on the pillar.                    again. The user must therefore not operate
longer pauses, while fast stirring gives more                                                      any handles or valves when starting/stop-
reversals and shorter pauses. Combined                                                             ping chilling.

                                                                                                                                                       23
TECHNICAL SPECIFICATIONS

     Easy                                                   EasyMix                                                    Stirrer
                                                                                                                       • Integrated stirrer with no joints in the food
     • Nominal volume 40, 60, 80, 100, 120, 150, 200,       • Nominal volume: 40, 60, 80, 100, 120 150 , 200,            area
       250 and 300 litres                                     250 or 300 litres                                        • Solid, lightweight stainless steel stirrer
     • Can be freely integrated with the EasyMix and        • Can be freely integrated with the Easy and               • Scrapers made from synthetic food-approved
       Easy                                                   EasyMix                                                    and heat-resistant materials
     • Control pillar can be placed on the right or left-   • Control pillar can be placed on the right or left-       • Weight of stirrer: 2.3 - 5.5 kg*
       hand side                                              hand side
                                                                                                                       • RPM: 5-140
     • Kettle bowl made from acid resistant steel           • Kettle bowl made from acid resistant steel
                                                                                                                       • Min. peripheral speed: 0.12-0.25 m/s*
     • Fully welded, insulated kettle bowl                  • Fully welded, insulated kettle bowl
                                                                                                                       • Max. peripheral speed: 3.2-7.2 m/s*
     • Litre markings on kettle                             • Litre markings on kettle
                                                                                                                       • Maximum stirring torque: 152-358 Nm*
     • Pillar made from stainless steel                     • Pillar made from stainless steel
                                                                                                                       • Slow acceleration/deceleration for improved
     • Heating: Electric                                    • Heating: Electric                                          safety
     • Power output: In accordance with the datas-          • Power output: In accordance with the datas-              • Fast stopping of stirrer when lid is opened
       heet*                                                  heet*
                                                                                                                       • Stirrer protected against overloading
     • Boiling time: In accordance with the datas-          • Boiling time: In accordance with the datas-
                                                                                                                       • Noise level in use: under 55 dB.
       heet*                                                  heet*
     • Working pressure: 1.0 bar                            • Working pressure: 1.0 bar
     • Max. steam temperature: 120˚ C                       • Max. steam temperature: 120˚ C                           Control AutoTemp 36
     • Small quantity of water in steam generator           • Adjustable, vertical control panel                       • Electronic control of jacket temperature

     • Heating elements at front of kettle                  • Small quantity of water in steam generator               • Seven dynamic stirring patterns with reversal
                                                                                                                         and variable speeds
     • Base plate with seals inside the outer jacket of     • Heating elements at front of kettle
       the kettle                                                                                                      • Time controlled waterfilling
                                                            • Base plate with seals inside the outer jacket of
     • Integrated isolator switch                             the kettle                                               • Timer for cooking time

     • Pressure gauge                                       • Integrated isolator switch                               • Clock

     • Unheated top                                         • Pressure gauge                                           • PowerMix

     • Hinged easy open/close lid with ergonomic            • Unheated top                                             • SlowMix (Option)
       lid arm,                                             • Hinged easy open/close lid with ergonomic lid            • Watermeter (Option)
     • Tight-closing lid made from stainless steel            arm, gasspring as option                                 • WaterLevelAutomatic
     • Electric tilt                                        • Tight-closing lid made from stainless steel with         • Access code can be selected
     • Maximum temperature on outside of kettle               an inspection hatch and associated lid                   • Two sets of arrow keys for fast, precise setting
       bowl after three hours’ cooking
TECHNICAL SPECIFICATIONS

EasyStand                                                  Option:
                                                           Control AutoTemp 32
                                                                                                                • Unheated top
                                                                                                                • Hinged easy open/close lid with ergonomic
                                                                                                                  lid arm
• Nominal volume 40, 60, 80 or 100 litres                  • Electronic control of jacket temperature
                                                                                                                • Tight-closing lid made from stainless steel
• Control pillar is fitted on the right-hand side          • Timer for cooking time/time
                                                                                                                • Electric tilt
• Kettle bowl made from acid resistant steel               • Clock
                                                                                                                • Maximum temperature on outside of kettle
• Fully welded, insulated kettle bowl                      • WaterLevelAutomatic
                                                                                                                  bowl after three hours’ cooking
26
Overview – Kettles
                                    Easy               EasyMix               EasyMobile                EasyStand
Volume                              40-300 liter       40-300 liter          40-100 liter              40-100 liter
 Controller standard                AutoTemp 02e       AutoTemp 36           AutoTemp 02e              AutoTemp 02e
 Controller optional                -                  -                     AutoTemp 32               AutoTemp 32
 Electric tilt                      +                  +                     +                         +
 Tilting height                     400-467 mm*        400-467 mm*           433-497 mm*               438-447 mm*
 Location of the controller         Right or left      Right or left         Right hand side           Right hand side
                                    hand side          hand side
 Stirrer                            -                  +                     -                         -
 RMP                                -                  5-140                 -                         -
 Hinged steel lid                   +                  +                     +                         +
 Lid with gas spring hinged for     +                  +                     +                         +
 easy opertaion
 Inspection hatch                   -                  +                     -                         -
 Chillling using water from the     o                  o                     o                         o
 mains supply possible
 Chilling using ice-chilled water   -                  -                     -                         -

 Isolator switch                    +                  +                     +                         +
 Sensor for foodtemperature         -                  o                     -                         -
 data colletion possible
 Type of heating                    Electric           Electric              Electric                  Electric

+ Standard          o Option        -   Not possible                                           *depending on the kettle size

Overview - Controls
                                    AutoTemp 02e       AutoTemp 32           AutoTemp 36
 Adjustable, upright control        -                  +                     +
 panel
 TiltBack                           -                  +                     +
 WaterLevelAutomatic                -                  +                     +
 Time controlled filling            -                  -                     +
 Watermeter                         -                  +                     o
 Controlling by the temperature     -                  +                     +
 of the jacket
 Clock/timer                        -                  +                     +

+ Standard          o Option        -   Not possible                   *depending on the kettle size

                                                                                                                               27
Right in the middle of Denmark
              and always there for you

                  Find more kettles, frying pans and ranges on our website
                                         www.joeni.dk

    C.F. Tietgens Boulevard 28 • DK-5220 Odense SØ • joeni@joeni.dk • +45 6597 4815 • www.joeni.dk
You can also read
