DTI and Speckle Tracking Current Application - Dr Pio Caso MD, FESC Non Invasive Cardiology,Naples,Italy
EUROECHO 2010
                  Teaching Course
                Specialized Technique
                  Advanced Course

DTI and Speckle Tracking Current Application

                  Dr Pio Caso MD, FESC
        Non Invasive Cardiology,Naples,Italy

       Copenhagen Friday ,10 December 2010
DTI and Speckle Tracking Current Application - Dr Pio Caso MD, FESC Non Invasive Cardiology,Naples,Italy
Tissue Velocity Imaging from
                             Doppler to Grey Scale

 PW-DMI
1989    2D-Color DMI

       2001          Color M-Mode

              2003         Strain/S-Rate

                         2005       Speckle tracking

                                2007       Speckle tracking
DTI and Speckle Tracking Current Application - Dr Pio Caso MD, FESC Non Invasive Cardiology,Naples,Italy
The First Paper on Velocity Motion
 “ Doppler echocardiographic measurement of low
velocity motion of the left ventricular posterior wall ”
          Mitral annulus
       Sample vol 10 mm
           Filter 100 Hz
             Gain - 4 dB

           Posterior wall

                                                 Isaaz K et al,
                                  Am J Cardiol 1989; 64: 66-75
DTI and Speckle Tracking Current Application - Dr Pio Caso MD, FESC Non Invasive Cardiology,Naples,Italy
DMI :European Technique
                                                                                                     Out of Europes
                                                                                                     Gorcsan USA

                                         •Hatle
                                                                                                     Yu Hong-Kong
                                       •Sutherland                                               Quinones,Garcia USA
                                        •Stoylen                                                  Marwick AustraliaWA
             •Sutherland                                                                              Zoghbi USA
                                        Sogaard
             •Mc Dickens                                    Trondheim
                                                                                                     Vannan USA
               •Palka                        Sutherland
                                                  Hatle                                          Sanderson Hong-Kong
  Fraser                   Edinburgh                                      Brodin
 Fraser                                        Bijnens
                                                                          Eriksonn
  Vinereau
Vinereanu
                         Cardiff               D’hoodge
                                               Kukulski       Von Bibra
                                   London
                                                               Voight
                    Sutherland         LeuvenMertens
  Azevedo                                      Herbots        Strotman
                        Pellerin
   Pinto                                    Dambrauskaite     Weidmann
                 Nihoyannopoulos
                                                  Eroglu        Vogel
                        Bijnens
                                             Rademekers
                                                                                       Caso
 Lisbon                            Derumeaux
                                                                                     Galderisi
                                                                                       Mele
                                    Pellerin
                                                                                     Di Salvo
                                                                                   D ‘Andrea
                   Ga rcia Fernandez                                                  Tonti
                           Desco                                                Trambaiolo
                         Azevedo                                                      Citro
DTI and Speckle Tracking Current Application - Dr Pio Caso MD, FESC Non Invasive Cardiology,Naples,Italy

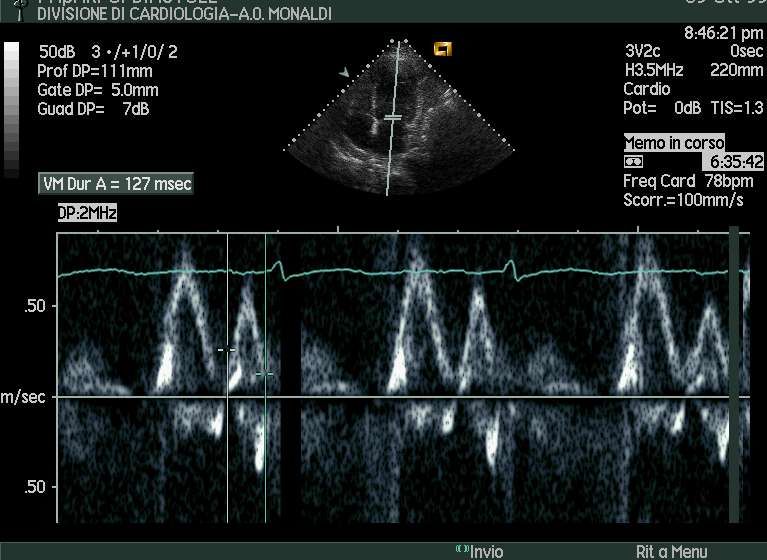

Hardware Modifications
                                  Doppler Myocardial
  Doppler Flow Setting
                                   Imaging Setting

•To eliminate high pass filter
•To reduce the range of velocity encoded
•To reduce the overall gain
                              MA Garcia-Fernandez 1998
DTI and Speckle Tracking Current Application - Dr Pio Caso MD, FESC Non Invasive Cardiology,Naples,Italy
PW DMI
                                         QUANTIFICATION

                                               Sm

                                                                Am

                                                           Em
•Garcia-Fernandez MA
 Eur Heart J 1999
•Galderisi M Am J Cardiol 2002
•Tuchnitz J. J Am Soc Echo 1999   PCTm   ATm         RTm
                                               CTm
DTI and Speckle Tracking Current Application - Dr Pio Caso MD, FESC Non Invasive Cardiology,Naples,Italy
PW DMI CORRELATION

REGIONAL
INFORMATION

GLOBAL
INFORMATION

                MA Garcia-Fernandez et al
   Doppler Tissue Imaging Echocardiographic 1998
DTI and Speckle Tracking Current Application - Dr Pio Caso MD, FESC Non Invasive Cardiology,Naples,Italy

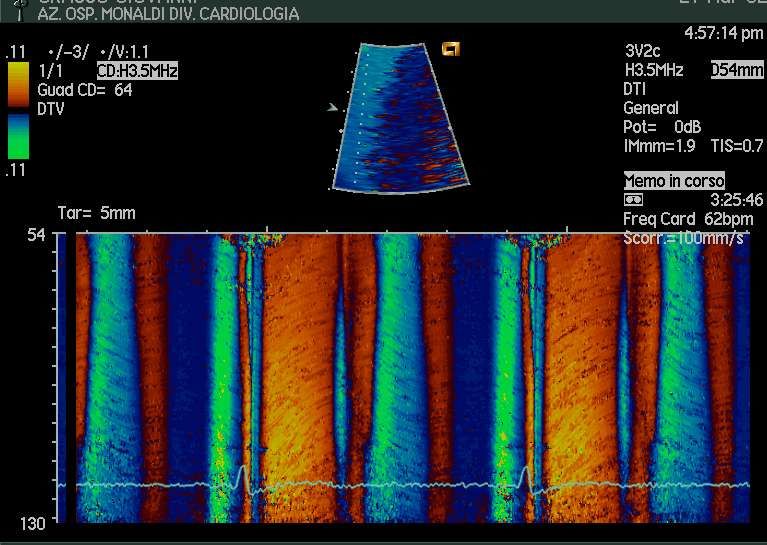

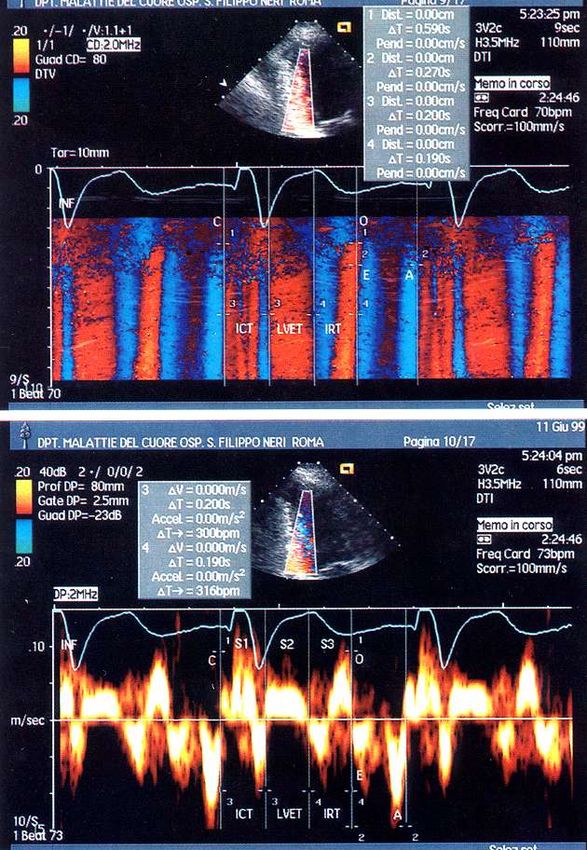

Higher Frame Rate with PW-DMI and M-Mode DMI
                                                                  Temporal
                                                                  Resolution
                                                                  3-5 msec
                                                                  Q-S:     85 msec
                                                                  Q-PEAK: 140 msec
                                                                  ET:     287 msec
                                                                  IRT:    53 msec
                                                                  ICT:    67 msec
                                                                  DIAST:  590 msec
                                                                  C-O:     447 msec

                                7 msec                    14 msec                     28 msec           50 msec

                                                                              Sutherland Doppler Myocardial Imaging Book
Sutherland Doppler Myocardial Imaging Book Hasselt Belgium 2006
DTI and Speckle Tracking Current Application - Dr Pio Caso MD, FESC Non Invasive Cardiology,Naples,Italy
Third Generation Machine

                                                  All Information in one beat

           Septal                                           Lateral Wall

Mean
Velocity

                    Mon-Avi V ASE /EAE Consensus Statment for Quantitative Evaluation of Cardiac Mechanics
                    in pRess in Textbook on Echocardiography. Ed . Oxford: Oxford University Press; 2010
DTI and Speckle Tracking Current Application - Dr Pio Caso MD, FESC Non Invasive Cardiology,Naples,Italy
ANGLE DEPENDENCY OF TDI
                                                                      •     Doppler signal is analyzed only
                                                                            along the scanline

                                                                      •     Measured velocities are
                                                                            understimated if us beam is not
                                                                            adequately aligned with the
                                                                            movement direction of the
                                                                            examined structure

                                                                      •     Narrow sector single wall
                                                                            acquisition may help minimizing
                                                                            this problem

                                                                      •     3 components of myocardial
                                                                            motion can be interrogated by
                                                                            Doppler techniques
                                                                                   Longitudinal
                                                                                   Radial
                                                                                   Cinrcumferential

                                                               Velocity: traslocation ,rotation ,thetering
Galiuto et al. EAE Textbook on Echocardiography. (in press) ed. Oxford: Oxford University Press; 2010
Strain Rate Imaging
                                     Strain Rate
                Velocidad             regional

                    v2
                d                         SR
                    v1

              V 2 – V1 V    cm/sec        1
Strain Rate =         =   =           =
                 d      d    cm           sec      (JUV-98)
Strain / Strain Rate - Timing
                                                   Velocity
 Septum

                                                    Strain
                                                    Rate

                                                    Strain
   4-
                                 Diastasi
chamber
  view                              s
                              Early        Late
          ICT Systole   IVRT
                             filling      filling
                    Sutherland J Am Soc Echo 2004;17:788-802
Definiciònes

   Regional
                      La velocidad
  Strain Rate
                           de
                      deformaciòn
   integral
                                                          dP/dt

   Regional
    Strain             La % local
                      deformaciòn
                                               Ejection Fraction (%)
(Weidemann et al. Am J Physiol Heart Circ Physiol 2002)
Summary
Normal Velocity and Strain-Strain Rate
                                           Limitations

                                           •pw/color
                                           • frame rate
                                           • angle
                                           • optimal image
                                           • roy
                                           • noise
                                           • reverberations
                                           • artifacts

Sutherland J Am Soc Echo 2004;17:788-802
Clinical Applications
                               Apex
   Regional
   Function
                                 Left
                              Ventricular
                               Function

Intramural
 Function                     CRT

                                    LAA
    Right                         Function
  Ventricular
   function
                Left Atrial      Global
                 Function        Strain

                                             Trambaiolo P Salustri A, JASE
Clinical Applications
                                 Subclinical Heart Failure
Clinical Heart Disesase
• Diastolic function           •Amyloidosis
• End diastolic pressure       •Fabry Disease
• Ischaemic Heart Disease      •Diastolic Heart failure
• Atrial Function              •Thalassemia
• Atrial Fibrillation          •Heart Transplant
• Right Ventricular function   •Diabetes
• CRT                          •Hypertension
                               •Hypertrophic Card.
                               •Valvulopathy
                               •Cardiotoxicity
Patterns of Mitral Inflow and Mitral Annulus
Velocity from Normal to Restrictive Physiology

                        Sohn DW et al. JACC 1997;30:474-80
Relation Myocardial Velocities with
Beta Adrenergic
 Normal Dysfuctional Receptor and Fibrosis

          beta -
         adrenoreceptors
           fibrosis

                 Shan K et al. JACC 2000; 36:884-90
Difference in Early Diastolic Velocity in
Pathological and Phisioloical Hypertrophy

      NORMAL                       ATHLET

                                              HCM
   HYPERTENSION         D‟Andrea A. abs Italian Heart Journal 2000
Diastolic Heart Failure

                                  TDI Derived Myocardial Velocity
        Definition
Signs or symptoms heart
failure

Left ventricular systolic
function normal or mild
reduced

 Evidence of abnormal LV
relaxation, filling, and
distensibility indices

                            Cheuk-Man Yu.Circulation 2002;1195-1201
LV Systolic Dysfunction of the LV Muscular
 Pump in Heart Failure with Preserved EF

Brutsaert et Al.Curr Opin Cardiol 21:240–248. 2006
Correlation:E flow/Em ratio
         and PCWP
          Nagheh SF et al. JACC 1997;30:1527-33

              Relation Confirmed in:
• Hypertrophic cardiomyopathy
                        Nagueh Circulation1999
• Sinus tachicardia
                        Nagueh Circulation 1998
• Atrial fibrilation
                        Sohn J Am Soc Echo 1999
• Heart Transpl.         Sundereswaran Am J Cardiol 1998
Estimation of left Ventricular Diastolic
 Pressure by Tissue Doppler Imaging
Estimation of left ventricular filling pressures with
             Tissue Doppler Imaging

              E Mitral Flow/ E‟ Septal Annulus

        Black Circles EF>50% ; White Circles EF< 50%
                    Ommen SR Circulation 2000;102:1788-1794
B-Type natriuretic Peptide
Comparative Accuracy of BNP and Tissue Doppler Echo in the Diagnosis
                    of Congestive Heart Failure

     Relation
    Beetween
  BNP ed E/Ea
    Ratio
      BNP or
Echocardiography
  for Monitoring
 Heart Failure ?
   Sanderson J
   E Eur Heart J
 2004;25,1263-1264    (Dokainish H, Am J Cardiol 2004;93:1130–1135)
Clinical Applications
                                 Subclinical Heart Failure
Clinical Heart Disesase
• Diastolic function
• End diastolic pressure       •Amyloidosis
• Ischaemic Heart Disease      •Fabry Disease
• Atrial Function
                               •Diastolic Heart failure
                               •Thalassemia
• Atrial Fibrillation
                               •Heart Transplant
• Right Ventricular function   •Diabetes
• CRT                          •Hypertension
                               •Hypertrophic Card.
                               •Valvulopathy
                               •Cardiotoxicity
PW-DMI
                      Acute Ischemia
      S

          E       A

     Normale

Peak Velocities           Ischemia
Strain Rate: Anterior Infarction
PRE
                                  Septal
                                   Wall

              E    A
                        Lateral            Apical delayed
                         Wall               Deformation
          S
                  PSS
Sutherland J Am Soc Echo 2004;17:788-802
Clinical Applications
                                 Subclinical Heart Failure
Clinical Heart Disesase
• Diastolic function           •Amyloidosis
• End diastolic pressure       •Fabry Disease
• Ischaemic Heart Disease      •Diastolic Heart failure
• Atrial Function              •Thalassemia
• Atrial Fibrillation          •Heart Transplant
                               •Diabetes
• Right Ventricular function
                               •Hypertension
• CRT                          •Hypertrophic Card.
                               •Valvulopathy
                               •Cardiotoxicity
Normal Atrial Strain

The measurement of changes in atrial strain rate during passive
  atrial filling could provide an index of atrial compliance

                    Sutherland. Doppler Myocardial Imaging 2004
SINUS RYTHMN
Recurrence of Atrial Fibrillation
                                          LA       STRAIN
                                                   CURVES

                                    LV

                                          ATRIAL FIBRILLATION

                                           LA

                                     LV
Normals           STRAIN %    Atrial Fibrillation
   (n=40)
                                     (n=68)

                   79±16                     26±21*
165±61     98±31           44±26*   26±18*

*p
Strain < 22% has Sensibility 76.9% and Spec 85.7% in
discovering PTS with Recurrence of Atrial Fibrillation

    MSR          AFR

       MSR: Maintenance of
             Synus Rithm
      AFR: Atrial Fibrillation                               ROC CURVE
              Recurrence

                                 Di Salvo,Caso,D „Onofrio et al Circulation 2005;112:387-393
Clinical Applications
                                   Subclinical Heart Failure
Clinical Heart Disesase          •Amyloidosis
                                 •Fabry Disease
•   Ischaemic Heart Disease      •Diastolic Heart failure
•   End diastolic pressure       •Thalassemia
•   Atrial Function              •Heart Transplant
•   Atrial Fibrillation          •Diabetes
•   Right Ventricular function   •Hypertension
•   CRT                          •Hypertrophic Card.
                                 •Valvulopathy
                                 •Cardiotoxicity
PW-TISSUE DOPPLER OF THE RIGHT
          VENTRICLE IN HEART FAILURE
      Università Federico II

                         S
                         m

                               Em
                                 Am

Sm < 11.5 cm/s is predictive of RV
systolic dysfunction (RV EF < 45 %)
                                      Correlation between right ventricular ejection fraction (EF) and

     Sensitivity = 90 %               the peak tricuspid annular systolicvelocity   (Sa)

     Specificity = 85 %

                                              Meluzin J, Eur Heart J 2001;22:340
Mean Right Atrial Pressure using Tissue Doppler
                   Imaging

                                     E/Ea ratio >6 for
                                     mean RAP10mmHg

                       Nagueh et al Am J Cardiol 1999,84 :1448-50
Estimated Right Ventricular Filling Pressure

                 Utsunomiya et al . J Am Soc Echocardiogr 2009;22:1368-74
CORREALION BETWEEN RIGHT
  VENTRICULAR SYSTOLIC
PRESSURE AND PW DMI IVRT                                  NORMAL

                                   Sm

                                              Am
                                         Em
                                                        Em

                    MILD
                 PULMONARY                           PULMONARY
                HYPERTENSION                        HYPERTENSION
                                 Sm
   Sm

                                        Em
        Em Am                              Am
 RTm = 50 ms                   RTm = 136 ms Caso P et al. JASE 2001
Right
Ventricular
Dyslasia

         Herbots L Eur J Echo 2003;4:101-107
Clinical Applications
Clinical Heart Disesase      Subclinical Heart Failure
• Ischaemic Heart          •Amyloidosis
  Disease                  •Fabry Disease
                           •Diastolic Heart failure
• End diastolic pressure   •Thalassemia
• Atrial Function          •Heart Transplant
• Atrial Fibrillation      •Diabetes
• Right Ventricular        •Hypertension
  function                 •Hypertrophic Card.
• CRT                      •Valvulopathy
                           •Cardiotoxicity
Babel tower rivisited: The Prospec Effect

   CRT

                    Marwick Circulation 2008;117;2573-2576
INTER-VENTRICULAR DALAY in LBBB: 80 msec

Q(ecg) Sist Wave Tricuspid 120 msec   -   Q(ecg) Sist wave in Inferior 200
Time to Peak and Standard Deviation of Time to Peak

                                               Time to
                                                Peak
                                              After CRT
                                                Before
                                                 CRT

             Cheuk-Man Yu et al Circulation 2002;105:438-445
PITFALLS: “WHERE IS THE PEAK?”

                      peak

optimal cutoff value of 65 ms for LV
           dyssynchrony
Color-M-mode and PW-DTI
   Intraventricular
                                                                   21 pts nonisch
     asynchrony
                                                                    QRS 120ms
                                                                       10/21

 CO                                                                  Better LV
                                                                     Synchrony
                                                                         =

CO :590 msec                                                        Improvement
                                                                   LV performance
EA :270 msec
                                                                   Ansalone
ICT:200 msec                                                       Am Heart J
                                                                   2001;142:881-96
IRT:190 msec

                      LBBB : Inf. Wall unsynchronised pattern II
PROSPECT :Sensitivity and Specificity of
 Echocardiographic Predictors to CRT

                                                           PRE CRT

                                                    POST CRT

           Chung et al. Circulation.2008; 117: 2608-2616
PROSPECT

     Chung et al. Circulation.2008; 117: 2608-2616
           Gorcsan et al J Am Soc Echo 2008
“… a study of laboratory error
                         rather than a test of a hypothesis

1) training DTI eco: one day (!!)

2)   “Core” echo Lab selcted on numer of implanted PM and not in
       experience on DTI or un Papers on CRT( !)

3) Variability expression of low experience in measures on CRT.

4) Variability of EVS (14.5%), mesured only in 286/426 patients

5) Differents echo machine((GE 37%, Philips 50% , Siemens 12%) !

6) EF of core lab 29% in local Lab 23%

7) 20% of Patients in core Lab had EF > 35%( out of Guidelines) !

8) Not Used data by Speckle tracking and 3D
                                         JACC 2009 Vol.53,1960-64
Cardiac Mechanism
“exceedling simple in principle but wonderfully complicated in detail”

•   Radial Contraction
•   Longitudinal Contraction
•   Circumferential Contraction
•   Rotation Apex
                                                                        Single
•   Rotation Base                                                       myocardial
                                                                        ventricular band
•   Torsion
                                            Francisco (Paco)
                                            Torrent-Guasp
                                            (1931-2005)

                             (da Kocica ML. Eur J Cardio-Thorac Surg 2006; 29:221-40).
Speckle Tracking and
                Transmurality

Chan J JACC 2006
Gray Scale Velocity Estimation by
                    Speckle Tracking

Speckle:
many small
elements,
natural      fingerprints
acoustic
markers
Difference between Myocardial Velocity
  by Doppler and by Speckle tracking
• Higher frame rate
• Great experience in many studies
• Angle Dependence
                                         Doppler
• Higher temporal resolution
• No angle dependence
• Possibility to analyze the apex
• Better lateral resolution
• More automated and applied
                                       2D Speckle
• More reproducible
• Usable on previous exams stored(Grey scale)
What kind of informations does give us 2D Strain?

                                   •Strain
                                   •Strain Rate
                                   •Displacement
                                   •Rotational
                                   (Twist)
                                   •Rotational
                                   Rate
2D Strain Interventricular Device
C. Rost et al. Eur J Echocardiogr 2010: 11, 584-589
Limitations of 2D Speckle Tracking
                                                             Hypertrophic Cardiomyopathy
 •   The optimal frame rate for speckle tracking seems to
     be 50-70 frame per seconds which is lower
     compared to TDI(>180 frame).this could result in
     undersampling especially in patients with
     tachicardia

 •   Rapid events during the cardiac cycle (ICT,IVRT)
     may disappear all together and peak SR and vel
     values may be reduced due to under sampling
     especially in isovolumic phases and in early diastole

 •   Calculated parametres are averaged over the
     myocardial segment when using the result page of
     the software.
                                                              Right Ventricular Dysplasia
 •   Small regions of myocardial dysfunction such as
     early stages of hypertrophic cardiomyopathy or
     arrhythmogenic right ventricular dysplasia the
     averaging could result in normal deformation

 •   Software programs designed for speckle tracking
     are new and are subjected to periodical improvment

 •   Different tracking algorithms produce different
     results
Strain 2D -HCM

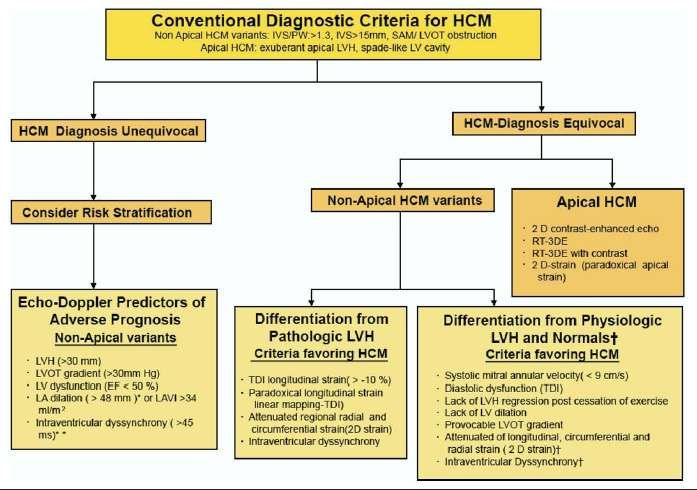

Speckle Tracking and HCM
2D Speckle Tracking to Calculate
                                                         Bull’s eye plots generated
Strain in Infarction                                     by semiautomated strain
                                                         analysis using 2-
                                                         dimensional speckle
                                                         tracking technique to
                                                         calculate strain

                                                     A : Normal Volunteer
                                                     B: Antero-lateral infarction
                                                     C: Infero-lateral Infarction
                                                     D: non ischemic cardiomyopathy

                Abraham TP et al Circulation 2007;
                        116: 2597-2609

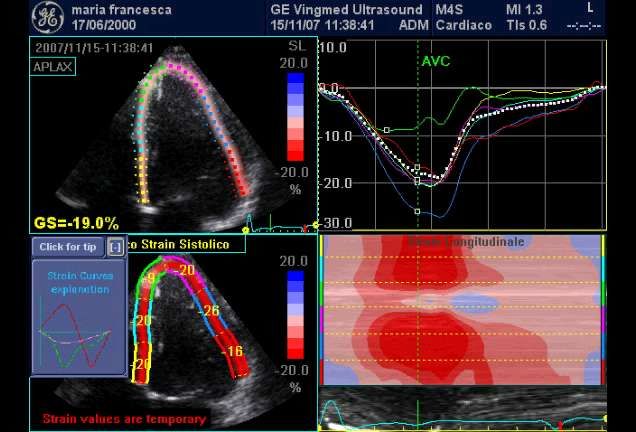

Global Strain:Acute Infarct

1° gg                2° gg

5° gg
Anterior Infarctus
24 h             48 h
Angio-Coro
ESORDIO 24h

AFTER 48h
Presentation   AFTER 24h

                               Peak
AFTER 48h
                               Systolic
                               strain
Presentation            AFTER 24h

                      AFTER 48h

Time to Peak
Longitudinal Strain
Presentation    AFTER 24h

       AFTER 48h

Post Systolic Index
LBBB
LBBB-HF
CMI-HF
Metodi Ecocardiografici per la Valutazione del
Dissincronismo Speckle Tracking Echocardiography
    PRE CRT                 POST CRT

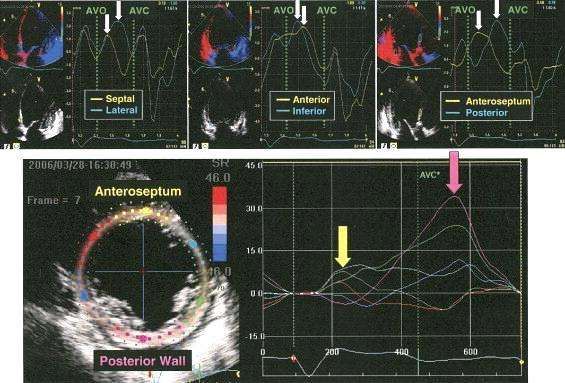

Combined Longitudinal and Radial Dyssynchrony
Predicts Ventricular Response After Resynchronization Therapy

                      Bax J J Am Coll Cardiol 2007 ;50:1476-1483
What kind of informations does give us
      Velocity Vectors Imaging?
                          • Velocities
                          • Strain Rate
                          • Strain
                          • Displacement
                          • Twist and untwist
                          • Volumes
                          • Ejection fraction
We can Study: Asinchrony and Asinergy

Sinchrony for repetitive events is a fixed time relationship to a corresponding instant in another event;\
Sinergy refers to the phenomenon in which two or more segments create an effect greater than the sum of
the effects each
Velocity Vectors Imaging in patient with suspected
               sistemic amylodosis
Strain

   Normal subject

 Patient with amiloidosys
Tangential
Displacement

   Normal subject

  Patient with amiloidosys
Normal Strain and Torsion

            P
 S                  L     Contraction
            A

Counter-clockwise                       Apical

                    Contraction          Basal
Rotation
as viewed                                        Time
from apex

      Clockwise
                        Systole     Diastole

                Notomi et al. Circulation March, 2005
TORSION
Torsion from 2D Echo   Rotation Apex

                                     8°
                                             7°

  Rest                                      Apical twist

                                            18°
                                      18°

Exercise
                                            Apical twist

Notomi et al. JACC or
Velocity Vectors Imaging and Twist
                                  Torsion VS=
                                   21+10=31°

                                divided for 8 cm
                                (LV max lenght)
                                 Torsion =31/8=
                                     3,9°/cm

            Base                                                Apex
         Clockwise                                      Counter-Clockwise
                         Tor VS= Q apex-Q base
Twist angle of the apex (Q apex°) – twist angle of the base (Qbase°)
PHYSIOLOGICAL VARIABLES
INFLUENCING LEFT VENTRICULAR
TWIST MECHANICS

 Sengupta PP JACC IMG 2008
Systole-Twist and Diastole-Untwist

                                                                                    • MVC mitral valve
                                                                                    closure
                                                                                    • AVO aortic
                                                                                    valve opening
                                                                                    • AVC aortic
                                                                                    valve closure
                                                                                    • MVO mitral
                                                                                    valve opening
                                                                      Late
                                                                      filling

• PSTV peak systolic torsional velocity
• PUV peak untwisting velocity
• Red line: systole (2 peaks, early and late)
• Blue line: diastole (peak untwist, peak early filling, peak of late filling)

                               (modified from Borg AN et al. Heart 2007;10:1136.)
LEFT VENTRICULAR TWIST DYNAMICS IN
       DIFFERENT PATHOLOGIES

Mor-Avi V, Lang RM, Badano L et al. Eur J of Echo (in press) 2010.
                                                   EUROECHO CONGRESS - COPENHAGEN -
                                                         TEACHING COURSE 2010
CIRCONFERENTIAL ROTATION STRAIN
  NORMAL                     IMA
NORMAL LBBB-HF

     BASE

   VELOCITY
    VECTOR
   IMAGING

  Sinchrony and
  Sinergy

     APEX
CIRCONFERENTIAN ROTATION STRAIN

   CMI
3D Displacement
3D - STRAIN
3D - STRAIN

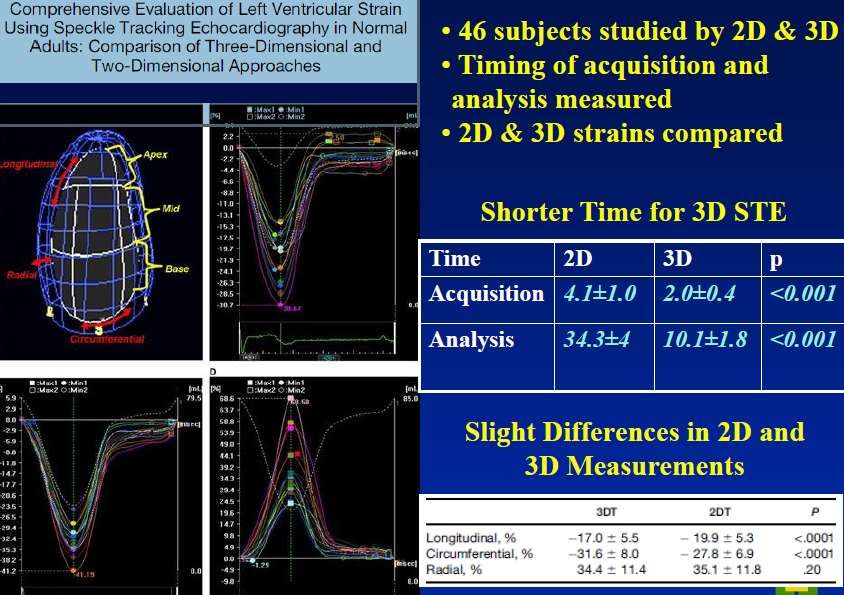

Left Ventricular Strain by
Speckle Tracking 3D and 2D
You can also read
