DISCOVER THE HIDDEN STRENGTH
kl
PLY | BLOCKBOARD | DOOR | SHUTTERING PLY
kl
PLY | BLOCKBOARD | DOOR | SHUTTERING PLY
kl
kl
Make an impact with
ZODIAC
Plywood, now lining the retail houses and living rooms, forming the kitchen cabinetry, tiling
the floors, and even providing comfort as bedheads in millions of India's homes as well as
commercial establishments, has finally come of age with Zodiac!
FUTURE OF WOOD
We aim to create a new industry standard for exceeding customer expectations through
quality and service the Zodiac way!
kl
kl
It is more
POWERFUL than YOU THINK
To us, commitment means responsibility and is an integral part of our everyday work and
everything we do. As part of one of the biggest groups in the country to produce and supply timber
products, Zodiac Plywood has become one of the most diversified companies in the industry.
We owe that growth to our strong environmental stewardship, customer partnerships, and
achievements in wood products manufacturing. Our commitment to innovative manufacturing
solutions leads to greater efficiency, less waste, and more beautiful products. We believe it should be
simple and easy to find the right products.
kl
As India is unique because of the magnificence of the Red Fort; Zodiac Plywood is matchless because of its natural durability & strength.
kl
ABOUT ZODIAC
Founded with the vision of Shri. Radha Krishan Khurana, Zodiac Plywood has been harbinger and
pioneer of many firsts, Zodiac is renowned for its rock-hard reputation in retail and wholesale
network for providing assured quality products and great value for money to customers and
dealers.

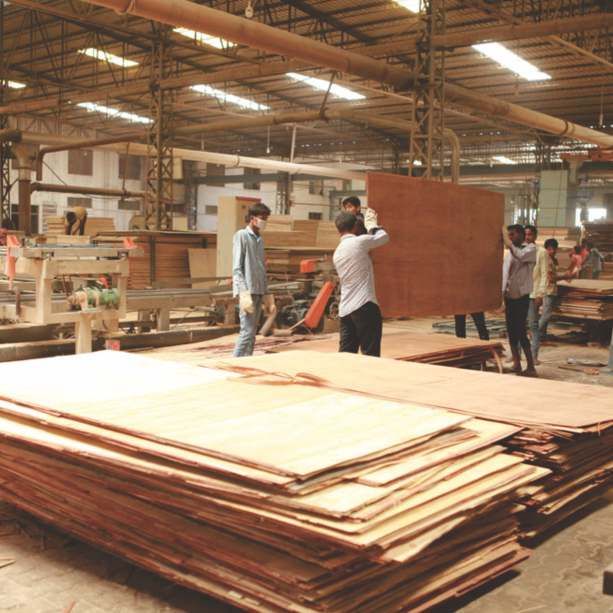

We owe this success to our fully integrated approach to the manufacturing process. As a company
with extensive resources, we control the quality of each product from start to finish. This means
you have access to a full line of cost-effective, high-quality products from one convenient source.
STRONG & BEAUTIFUL
Zodiac Plywood defines choice, quality and sustainability. Perfected by experience, Zodiac has
today established itself as a premium brand, which has a varied portfolio of products - General
Purpose Plywood, Block Board, Flush Doors, Marine Plywood, Shuttering Ply, Flexi Ply,
Chequered Ply, Calibrated Ply and plywood meant for truck & container flooring - widely
acclaimed for high strength, durability, reliability and longevity.
Each product is diverse yet fabricated to the same foundation for achieving the highest standards of
excellence.
kl
As India is famed as the embodiment of beauty because
of the Taj Mahal;
Zodiac Plywood is renowned because of its
quality, sustainability, & reliability.
kl
WHY ZODIAC
Zodiac Plywood sources its wood from tree farms built on an Eco-
friendly environment. We select from an abundant array of indigenous
wood species to form the perfect combination of core and face veneers
for the highest quality plywood product.
Indian trees are exceptional sources of plywood material with uniform
grade and colour throughout, grow quickly, and are relatively hard.
When formed into plywood sheets, raw material from these trees has
unmatched natural durability and strength.
Our combination of knowledge of locally sourced hardwoods and a
highly skilled workforce allow us to offer high volumes of uniform grade
plywood for our customers.
kl
As the triumphal arc; The Gateway of India represents India’s dignity; Zodiac’s green deeds towards the environment epitomize its identity.
kl
STRONG ENOUGH TO HANDLE ANYTHING
• Manufactured and designed using best quality raw material under the supervision
of experts
• State-of-the-art machinery, cutting-edge technology and best practices ensure
top quality products
• All products are treated with unique Hot and Cold Diffusing Technology to make
them safe against warping
• The resins are produced in a modern resin plant supervised by a team of chemists
• All products boast of excellent bonding quality, exceptional durability, hassle-free
installation, uniform thickness, colour fastness, minimal maintenance
• All products are termite and borer resistant, anti-fungal and anti-bacterial,
corrosion resistant, waterproof
klAs India stands tall in the world because of its tallest brick minaret;
The Qutub Minar; Zodiac Plywood stands apart as a premium brand
because of its diverse product portfolio.kl
OUR COMMITMENT TO NATURE
Zodiac Plywood has the most comprehensive 'green' product mix
and experience available in the country. We were in the game before
the subject became politically correct, which is why we are
especially concerned with topics regarding environmental
sustainability. As part of our bit towards the environment, we plant
a large number of trees every year to meet the growing needs of
plywood and panel industry. Our attempt at massive afforestation is
also aimed at creating an oxygen pool, minimising environmental
hazards and supporting rural livelihood.
Our products have minimum emissions of formaldehyde, a gas that
can cause potential health hazards for you and your family. They are
environment friendly, safe for children, non-toxic and durable.
klAs India is renowned for its rich architectural history because of its prominent landmark Hawa Mahal; Zodiac Plywood is the coveted brand with their innovative manufacturing solutions and beautiful wood works.
kl
ZODIAC BOUQUET
kl01 GENERAL PURPOSE PLYWOOD
(i) MR Grade Plywood
(ii) BWR Grade Plywood
02 MARINE PLYWOOD
03 SHUTTERING PLYWOOD
04 FLEXI PLYWOOD
05 FLUSH DOORS
06 BLOCKBOARD
(I) MR Grade Blockboard
(ii) BWP Grade Blockboard
07 CHEQUERED PLYWOOD
08 FIRE RETARDANT PLYWOOD
09 CALIBRATED PLYWOOD
10 TRUCK/ CONTAINER FLOORING PLYWOOD
11 PRODUCTION PALLETS
12 COMPREG PLYWOOD01
kl
ZODIAC GENERAL PURPOSE PLYWOOD
Zodiac General Purpose Plywood is special grade plywood manufactured as per IS 303. Our plywood is
made from selected veneers of unmatched quality, designed to maintain its original shape for years,
resist rotting in high moisture, and has excellent durability.
(I) MR Grade General Purpose Plywood (IS 303: 1989)
Zodiac MR Grade General Purpose Plywood is manufactured by use of high density hardwood
timber, which is strong and resistant to the attack of borers and termites. Superior quality melamine
urea formaldehyde resin is used for manufacturing MR grade plywood. It is moisture resistant and is
bonded under intense heat. It has more internal density and is devoid of any warping effect, which
ensures longevity of the product.
USP of MR Grade General Purpose Plywood
• Special grade ply manufactured as per IS 303
• Higher tolerance to moisture and humidity
• Resistant to twisting, warping, termites and borers
• High internal strength
• Strong core bonding that can withstand tough handling and rough environments
Applications
It is mainly used in office interiors, hotel interiors, interiors of residential and commercial
establishments, partition and paneling, ceilings in public rooms and corridors, floor
underlayment, furniture, bus bodies, railway coaches, sign boards, insert in panel doors,
storage racks.Size (in feet) = 6×3, 6×4, 7×3, 7×4, 8×3, 8×4
Thickness (in mm) = 4, 6, 9, 12, 16, 19, 22, 25, 28
TECHNICAL SPECIFICATIONS
TEST ISI REQUIREMENTS
1. Grade MR
2. Moisture Content Dimension 5% - 15%
Length +5mm, width +2mm
thickness 6mm - ±5%,
< 6mm - ± 10%
3. Sp. gravity -
4. Resistance to Water
(3 cycles of 8 hr boiling & 16 hr Drying at 65°c)- Adhesion to plies Min pass standard
5. Resistance to Micro Organism-
Adhesion to Plies Min pass standard
6. Static bending test
(a) Modulus of elasticity
- along the grain Avg. Min 5000 N/sq. mm
- across the grain Avg. Min 2500 N/sq. mm
(b) Modulus rupture
- along the grain Avg. Min 40 N/sq. mm
- across the grain Avg. Min 20 N/sq. mmkl (ii) BWR Grade General Purpose Plywood (IS 303: 1989) Zodiac BWR Grade General Purpose Plywood is manufactured from hand-picked timber, seasoned and chemically treated by the use of in-house resins making it durable, long-lasting and resistant to termite and borers. USP of BWR Grade General Purpose Plywood • Special grade plywood manufactured as per IS 303 • High water resistivity • High load bearing capacity • High density and tenacity Applications This grade is ideal for inclement weather and is used for interior and exterior wood working. It is widely used for making outdoor furniture, kitchen cabinets and in places where the plywood gets prolonged exposure to moisture and direct sunlight, in homes, offices, business centres and hotels etc.
Size (in feet) = 6 × 3, 6 × 4, 7 × 3, 7 × 4, 8 × 3, 8 × 4
Thickness (in mm) = 4, 6, 9, 12, 16, 19, 22, 25, 28
Technical Specifications
TEST ISI REQUIREMENTS
1. Grade BWP
2. Moisture Content Dimension 5% - 15%
Length +5mm, width +2mm
thickness 6mm - ±5%,
< 6mm - ± 10%
3. Sp. gravity -
4. Resistance to Water
(3 cycles of 8 hr boiling & 16 hr Drying at 65°c)- Adhesion to plies Min pass standard
5. Resistance to Micro Organism-
Adhesion to Plies Min pass standard
6. Static bending test
(a) Modulus of elasticity
- along the grain Avg. Min 5000 N/sq. mm
- across the grain Avg. Min 2500 N/sq. mm
(b) Modulus rupture
- along the grain Avg. Min 40 N/sq. mm
- across the grain Avg. Min 20 N/sq. mm02
kl
ZODIAC MARINE PLYWOOD (IS 710: 2010)
Zodiac Marine Plywood is one of the most authentic plywoods manufactured that conforms
to IS 710: 2010. Our Marine Plywood is BWP grade, certified by the Bureau of Indian
Standards (BIS). It is durable, resistant to borer and termite attack, can endure extreme
weather conditions and is dimensionally stable in both, excessively wet or dry conditions,
throughout its life.
USP of Marine Plywood
• Special grade Marine Ply manufactured as per IS 710 guidelines
• Microbial decay resistant
• Termite and borer resistant
• Dimensionally stable
• Marine grade glue used for durability
• Power bond technology used (Cross Linked Polymer Bond)
• Excellent screw and nail holding strength
Applications
Marine Plywood is most ideal for marine setting, such as on ships or at docks as it performs
well in humid conditions or anywhere it will receive prolonged exposure to moisture. It is also
used in bathroom and kitchen walls and sub-flooring, door/ window panels, luggage racks,
false ceilings, bus body building.
Size (in feet) = 6×3, 6×4, 7×3, 7×4, 8×3, 8×4
Thickness (in mm) = 4, 6, 9, 12, 16, 19, 25, 28Technical Specifications
Dimensions ISI Requirements
1. Length 2440+6
0
2. Width 1220+3
0
3. Thickness 19 mm ± 5%
4. Squareness 2 mm/ 1000 mm.
5. Edge Straightness 2 mm/ 1000 mm.
Physical Properties
6. Density 0.65
7. Moisture Content 5-15%
8. Adhesion Of Plies (in Dry State) Some Adherent Fibre Distributed More or Less Uniformly
9. Adhesion Of Plies (in Wet State) Do
10. Glue Shear Strength (in Dry State) Avg. - 1350 n.
Ind. - 1100 n.
11. Glue Shear Strength (in Wet State) Avg. - 1000 n.
Ind. - 800 n.
12. Tensile Strength Along The Grain 42.0 n/ mm²
Across The Grain 25.0 n/ mm²
Total 84.5 n/mm²
13. Static Bending Strength (Dry State)
Along The Grain M.O.E. Avg. - 7500 n/ mm²
Ind. - 6700 n/ mm²
Across The Grain M.O.E. Avg. - 4000 n/ mm²
Ind. - 3600 n/ mm²
Along The Grain M.O.R. Avg. - 50
Ind. - 45
Across The Grain M.O.R. Avg. - 30
Ind. - 27
14. Static Bending Strength (Wet State)
Along The Grain M.O.E. Avg. - 3570 n/ mm²
Ind. - 3400 n/ mm²
Across The Grain M.O.E. Avg. - 2000 n/ mm²
Ind. - 1800 n/ mm²
Along The Grain M.O.R. Avg. - 25
Ind. - 22
Across The Grain M.O.R. Avg. - 15
Ind. - 13
15. Retention of Preservatives (acc) 12 kg/m²
16. Mycological Test
A) Shoe No Separation Sign Avg. - 1000 n
B) Glue Shear Strength Ind. 800 n
C) Adhesion of Plies Adherent Fibre Distributed More Or Less Uniformly03
kl
ZODIAC SHUTTERING PLYWOOD (IS 4990: 2011)
Zodiac Shuttering Plywood offers high quality Film Face Densified Shuttering Plywood and
Plain Coated Shuttering Plywood that conforms to IS: 4990. Shuttering Plywood is
manufactured using high density timber in state-of-the-art hot presses. It is manufactured
with CPGL technology to add to the product an extra strength as compared to the ordinary
film face ply. The different treatment makes it structurally strong and better bonded.
USP of Zodiac Shuttering Plywood
• Special grade Shuttering Plywood manufactured as per IS 4990 specifications
• Cost effective as it can be utilised repeatedly
• 100% boiling water proof
• Higher GSM phenolic film
• Uniform and mirror surface smooth finish
• Scores over steel sheet in extreme hot and cold climate
• Excellent nail and screw holding capacity
Applications
Zodiac Shuttering Plywood is widely used in the construction of bridges, flyovers, metro
projects, ship building, water tanks, cooling towers and high-rise buildings requiring
maximum strength and security.
Size (in mm) = 1840 x 1220, 2440 x 1220, 2745 x 1525,
3050 x 1525, 3200 x 1675
Thickness (in mm) = 12, 19, 25Technical Specifications
Dimensions ISI Requirements
1. Length 2440+6
0
2. Width 1220+3
0
3. Thickness 12 mm ± 5%
4. Squareness 2 mm/ 1000 mm
5. Edge Straightness 2 mm/ 1000 mm
Physical Properties
6. Density 0.95
7. Moisture Content 5- 15%
8. Adhesion of Plies (in dry state) Some adherent fibre distributed more or less uniformly
9. Adhesion of Plies (in wet state) do
10. Glue Shear Strength (in dry state) Avg. - 1350N
Ind. - 1100N
11. Glue shear strength (in wet state) Avg. - 1000N
Ind. - 800N
12. Tensile Strength Along the grain 480 kg./cm2
Across the grain 340 kg./cm2
Total 820 kg./cm2
13. Static Bending Strength (Dry State)
Along the grain M.O.E. Avg. - 7500 N/mm²
Ind. - 6700 N/mm²
Across the grain M.O.E. Avg. - 4000 N/mm²
Ind. - 3600 N/mm²
Along the grain M.O.R. Avg. - 50
Ind. - 45
Across the grain M.O.R. Avg. - 30
Ind. - 27
14. Retention of Preservative (ACC) 12 kg/m2
15. Mycological Test (a) Show no separation sign
a) Visual inspection Avg. - 1000 N
b) Glue shear strength Ind. - 800 N
c) Adhesion of plies Adherent fibre distributed more or less uniformly04
kl
ZODIAC FLEXI PLYWOOD (IS 303)
Zodiac flexi ply is a strong and durable plywood made exclusively from Gurjan wood that can
be used in bent or curved structures. Plywood with this flexible characteristic is manufactured
from specially treated veneers, usually with a thinner central core veneer and two thicker
'tenderised' outer veneers. The special construction of particular species of veneers gives an
unusually large degree of flexibility and offers a most cost-effective way of producing rounded
columns and other curved structures of very small radius in rounded or S-shaped structures
without water or the need for heat-forming.
USP of Flexi Plywood
• More convenient than other pre-wood structures
• Heat forming or water treatment not required
• Self-supporting structure, which does not need special support
Applications
Flexible plywood panel or 'flexiply', and is used extensively in furniture and shop fitting,
wherever curves are desirable, thus demanding a panel that is extremely flexible.Size (in mm) = 2500x1200, 3120x1850, 1220x2500, 1850x3120
Thickness (in mm) = 3, 5, 7, 12
Technical Specifications
Composition Tropical wood, hot pressed with synthetic resin
1. Density 700 kg/m3 (approx)
2. Bending Radius For 1.5 mm thickness, 6”
For 4 mm thickness, 6”
For 6 mm thickness, 9”
For 7.5 mm thickness, 16”
For 10.5 mm thickness, 24”
3. Elasticity Cross grain 210 N/mm2
Along the grain 6300 N/mm205
kl
ZODIAC BLOCKBOARD (IS 1659: 2004)
Zodiac Blackboards are one of the finest MR and BWP grade blockboards manufactured in
accordance with IS 1659. Our superior quality boards are dimensionally stable, high on
strength, have excellent bend resistance, strong screw holding capacity and are resistant to
termite and borer attacks.
(I) MR Grade Blockboard (IS 1659: 2004)
MR Grade (moisture resistant) block board is also known as commercial grade block board. It
is manufactured from a combination of select seasoned, durable hardwood, timber battens,
veneers and adhesives. These are bonded with Urea Formaldehyde Resin under high pressure
and temperature.
USP of Mr Grade Blockboard
• Special grade blockboard manufactured as per IS 1659
• Moisture resistant
• Static bending strength
• Kiln seasoned planks and frames used
• High density
• Excellent screw/ nail holding strength
Applications
It has a very high internal strength and is used mainly in the interiors of a home or office. It is
also used for furniture, partitions, racks and shelves, shutters, under layer for decorative
laminates.Size (in feet) = 8×4, 8x3, 7x4, 6x4, 6x3
Thickness (in mm) = 19, 25
Technical Specifications
Test ISI Requirements
1. Dimensional changes caused by humidity
a) Changes, mm
from 65% RH to 90% RH +1mm Max
from 65% RH to 40% RH -1mm Max
b) Local Planeness No de-lamination at the extreme range of humidity
c) At the extreme range of humidity
2. Adhesion of the plies Minimum pass standard
3. Resistance to water (72 hours boiling) No de-lamination after 72 hours boiling
4. Resistance to micro organism No appreciable sign of separation at edges
5. Modulus of elasticity Min. 5000 N/sq.mm
6. Modulus of rupture Min. 50 N/sq.mm
7. Spot test Entire penetration of preservative chemicals through battenkl (ii) BWP Grade Blockboard (IS 1659: 2004) Zodiac BWP Block Board conforms to industry standards, is boiling water proof and termite resistant. With high dimensional stability and mechanical strength, Zodiac BWP Block Board makes for a product that is cost effective and highly durable. It is made using phenol formaldehyde resin and has all the superior qualities that are inherent in phenol as a resin. USP of MR Grade Blockboard • Special grade blockboard manufactured as per IS 1659 • Waterproof resistant • Excellent screw and nail holding strength • Termites and borer resistant • Dimensionally stable with anti-warp properties • Kiln seasoned planks and frames used Applications It is ideal for applications in partitions, cupboards, shelves, shutters, kitchen, load bearing and horizontal panels.
Size (in feet) = 8×4, 8x3, 7x4, 6x4, 6x3
Thickness (in mm) = 19, 25
Technical Specifications
Test ISI Requirements
1. Dimensional changes caused by humidity
a) Changes, mm
from 65% RH to 90% RH +1mm Max
from 65% RH to 40% RH -1mm Max
b) Local Planeness No de-lamination at the extreme range of humidity
c) At the extreme range of humidity
2. Adhesion of the plies Minimum pass standard
3. Resistance to water (72 hours boiling) No de-lamination after 72 hours boiling
4. Resistance to micro organism No appreciable sign of separation at edges
5. Modulus of elasticity Min. 5000 N/sq.mm
6. Modulus of rupture Min. 50 N/sq.mm
7. Spot test Entire penetration of preservative chemicals through batten06
kl
WOODEN FLUSH DOOR SHUTTERS
(Solid Core Type) IS 2202: Part 1: 1999
Zodiac Wooden Plywood Shutters are made-to-order doors, manufactured using seasoned
timber, guaranteed to be exceptionally durable and dimensionally stable. The wooden
shutters are chemically treated, bonded with Phenol Formaldehyde resin and have excellent
tooling and finishing properties. BWP Grade Wooden Plywood Shutters offer dimensional
accuracy and stability in varying humidity with high screw holding capacity, guarantee
against warping, bulging and shrinkage. Suited for both, classic and modern interiors, Zodiac
Wooden Plywood Shutters can be customised as per specifications of the client.
USP of Wooden Flush Door Shutters
• Superior looks
• Highly durable and dimensionally stable
• Waterproof and weather resistant
• Termite resistant
• Excellent finish
Applications
Zodiac Wooden Plywood Shutters are used as doors for exterior and interiors of buildings.Size (in feet) = *These can also be customised as per client's requirements.
Thickness (in mm) = 25, 30, 35
Technical Specifications
Test ISI Requirements
1. Dimension Length, width - + 5mm | Thickness - + 1mm
2. Squareness Deviation not more than 1mm on a length of 500mm
3. General flatness Twist, cupping, warping not to exceed 6mm
4. Local planeness Depth of deviation at any point to be less than 0.5mm
5. Impact indentation test Depth of indentation not to exceed 0.2mm
6. Flexure test The deflection at the maximum load shall not be more
than 1/30 of length and 1/15 of width and the residual
deflection should not be more than 1/10
7. Edge loading test Deflection of edge to be less than 5mm
8. Shock resistance test No visible defect after test
9. Bucking test Initial defection - < 50mm | residual deflection - < 5mm
10. Slamming test No visible damage after test
11. Misuse test No deformation after test
12. Varying humidity test No visible warping, twisting or de-lamination
13. End immersion test No de-lemination at the end
14. Knife test Minimum pass standard
15. Glue adhesion test No de-lamination
16. Screw withdrawal test Load to withdraw the screw shall not be less 1000 N07
kl
ZODIAC CHEQUERED PLYWOOD (IS 4990: 1993)
Zodiac offers a high quality Chequered Plywood, which is a multi-functional product, and
can be used in paneling, flooring and decorative purpose etc. Extra impression leads to better
ridges and lifelong holding properties. Its load bearing capacity is also enhanced due to extra
compression. It is chemically treated to prevent adverse effects of harsh climatic conditions
and enhance its resistance to heat, boiling water, chemicals and moisture.
USP of Zodiac Chequered Plywood
• Excellent strength • Anti-skid surface
• Immaculate finish • High tensile strength
• Improved dimensional stability • Durable
Applications
Zodiac Chequered Plywood is a multi-functional product, which can be used in paneling,
flooring and for decorative and industrial purposes etc. The chequered surface provides anti-
slippage and high strength, thus finds application in flooring of heavy vehicles and large
containers.
Size (in feet) = 5.5 x 2.5 to 10.5 x 5.5
Thickness (in mm) = 12, 19 & 25Technical Specifications
Dimensions ISI Requirements
1. Length 2440+6
-0
2. Width 1220+3
-0
3. Thickness 12mm
4. Squareness 2mm/1000mm
5. Edge Straightness 2mm/1000mm
6. Workmanship & finish Clause
Physical Properties
7. Density 0.84
8. Moisture Content 5- 15%
9. Bond Quality Test a) No Visible de-lamination in glue line and plywood face
Boiling - Drying @ 60+_2°c b) No forcible separation & fibre should be adhered b/w plies
4 Hrs. - 20 Hrs.
Three Cycles
10. Breaking Strength 200 kgf
250 x 50 x Thickness (mm)
11. Static Bending Strength
Along the grain M.O.E. Avg. -7500 N/mm²
Ind. - 6700 N/mm²
Across the grain M.O.E. Avg. - 4000 N/mm²
Ind. - 3600 N/mm²
Along the grain M.O.R. Avg. - 50N
Ind. - 45
Across the grain M.O.R. Avg. - 30
Ind. - 27
12. Tensile Strength as per ASRTU Along 420kg/cm²
Across 325kg/c²
Total 745kg/cm²08
kl
FIRE RETARDANT PLYWOOD (IS 5509: 2010)
Zodiac Fire Retardant Plywood is special grade plywood that is manufactured from
carefully selected hardwood panels, which undergo vacuum-cum-pressure. This plywood
has been impregnated with chemicals, which gives the product an inflammability level of at
least 30 minutes. The revolutionary product forms a protective fire shield when it comes in
contact with fire. In addition, it is boiling water proof and termite resistant.
USP of Fire Retardant Plywood
• Special Grade Plywood manufactured as per IS 5509 : 2010 specifications
• Boiling water proof
• Termite and insect resistant
• Ignition and flame penetration proof
• Easy maintenance
Applications
Zodiac Fire Retardant Plywood is one of the most widely used wood products in
construction industry. Because of its fire resistance properties, resistance to splitting,
cracking, and other wear and tear, it is the perfect choice to safeguard your valuables and a
great investment for all building projects.
Size (in mm) = 1840x1220, 2440x1220, 2745x1525, 3050x1525, 3200x1675
*These can also be customised as per client's requirements.
Thickness (in mm) = 3, 4, 5, 6, 8, 9, 12, 15,19, 22, 25Technical Specifications
Dimensions ISI Requirements
1. Length 2440+6
-0
2. Width 1220+3
-0
3. Thickness 12mm ±5%
4. Squareness 2 mm/1000 mm
5. Edge Straightness 2 mm/1000 mm
6. Workmanship & finish As Per Clause 9.1 to 9.2
Physical Properties
7. Density 0.60 - 0.65
8. Moisture Content 5-20%
9. Water resistance test
Cyclic test
8 hours - 16 hours Pass standard
Boiling - drying
3 Cycles
10. Mycological Test Pass standard
11. Static Bending Strength
Along the grain M.O.E. Avg. - 5000 N/mm²
Ind. - 4500 N/mm²
Across the grain M.O.E. Avg. - 2500 N/mm²
Ind. - 2200 N/mm²
Along the grain M.O.R. Avg. - 40
Ind. - 36
Across the grain M.O.R. Avg. - 20
Ind. - 18
Fire Retardant Tests IS : 5509:2000
12. Flammability 30 Min.
13. Flame penetration 30 Min.
14. Rate of burning 20 Min. (Wt. loss 30 to 70%)09
kl
ZODIAC CALIBRATED PLYWOOD (IS 303: 1989)
Zodiac Calibrated Plywood is one of the finest plywoods with uniform thickness, which is
achieved by calibrating the veneers in modern, high-end machines. The premium plywood is
made with innovative techniques and advanced equipments that result in quality of the
product, longer service life, resistance to moisture and chemicals.
USP of Zodiac Calibrated Plywood
• Special Grade Plywood that conforms to IS 303: 1989 standards
• Strong screw holding capacity
• Moisture proof
• Environmental friendly
• Wear resistant
• Anti cracking
• Anti acid and alkaline resistant
Applications
Zodiac Calibrated Plywood is used in residential buildings for making of kitchen cabinets,
cupboards, expensive furniture. It is also used in commercial complexes for building
partitions, paneling, and in exteriors. It can also be used for shuttering work as its equal
thickness makes shutter work easy.Size (in feet) = 6x3, 7x3, 8x3, 6x4, 7x4, 8x4
Thickness (in mm) = 4, 6, 9, 12, 16, 19, 25
Technical Specifications
Test ISI Requirements
1 Grade BWR, MR
2. Moisture Content 5-15%
3. Density 0.65 TO 0.70 GM/CM3
4. Resistance to Water (3 cycles of hr Min Pass
Boiling & 16 hr Drying at 650C)- adhesion to plies
5. Resistance to Micro Organism Adhesion to plies Min Pass
A Modulus of Elasticity
- Along The Grain Avg. Min 5000 N/mm2
- Across The Grain Avg. Min 2500 N/mm2
B Modulus of Rupture
- Along The Grain Avg. Min 40 N/mm2
- Across The Grain Avg. Min 20 N/mm2
6 Tensile Strength
- Along The Grain Avg. Min 42.00 N/mm2
- Across The Grain Avg. Min 25.00 N/mm2
- Sum of Tensile Strength Avg. Min 84.50 N/mm210
kl
CONTAINER FLOORING PLYWOOD (IICL TB 001)
Zodiac Container Flooring Plywood is produced by selected hardwood veneers. It is
extremely durable transportation flooring that withstands the movement of heavy vehicles
continually driving over the surface while loading and unloading containers.
USP of Zodiac Container Flooring Plywood
• Excellent strength
• High tensile strength
• High resistance to shearing forces
• High resistance to cracking, shrinkage, twisting and warping
• Long lasting properties
Applications
Zodiac Container Flooring Plywood is extensively used in floors of cargo containers, heavy
load carrying vehicles and in other industrial set ups due to its highly durable nature.Size (in feet) = 6x3, 7x3, 8x3, 6x4, 7x4, 8x4
Thickness (in mm) = 19, 25, 28
Technical Specifications
Dimensions BIS Requirements - IICL TB-001
1. Length 2440 mm
2. Width 1220 mm
3. Squareness 2%
4. Edge Straightness 2%
5. Thickness 28 mm
6. Density 0.65 to 1.0 gm/cm²
7. Plies 19
8. Moisture contents Not to Exceed 14%
9. Physical properties
a) Breaking Load 690kg.
10. Bond quality test
a) Boiling for hours & dry at 60 ± 2° C
for 20 hours (3 cycles) a) No Visible Delimitation
11. Compressive strength
a) Parallel to grain 35 N/mm2
b) Perpendicular to grain ad
parallel to laminate 35 N/mm2
c) Perpendicular to grain ad parallel
to laminate 50 N/mm211
kl
ZODIAC PRODUCTION PALLETS
Zodiac's Production Pallets are the synonym for industrial revolution. These are specially
designed with selected hardwood veneer and high polymerized resol type thermosetting
plastic resin. The product has high density with thermoset added black plastic overlay of 270
GSM making it high abrasion resistant. Zodiac's Production Pallets are highly suitable for a
variety of construction materials.
USP of Zodiac Production Pallets
• High abrasion resistant
• Free from external damage
• Fine appeal
• Supreme longevity
• Enhanced load bearing capacity
• High resistance to Moisture absorption
Applications
AAC block, concrete blocks, chemical treatment blocks, soil bricks, concrete bricks, pavers,
tiles, ceramic tiles and automobile sectors.
Thickness (In mm) :- 25, 30, 35, 40, 50, 62.5, 75
Length (In mm) :- 305, 610, 920, 1220, 1525Width (In mm) :- 305, 610, 920, 1220, 1525
Density (In feet) :- 0.95 to 1.15 gm/cm3
Technical Specifications
Dimensions ISI Requirements
1. Length 1525 + 3
-0
2. Width 1525 + 3
-0
3. Thickness 26 mm
4. Squareness 2mm/ 1000mm
5. Edge Straightness 2mm/ 1000mm
6. Workmanship & finish Clause 7
Physical properties
7. Density 0.95 gm/cm3
8. Moisture contents 5-15%
9. Bond quality test a) No visible delamination in glue line & plywood face
Boiling-drying @ 60 _+ 2oc b) No Forcible separation and fibre should be adhered
4 hours - 20 hrs. between piles.
three cycles.
10. Break strength Along - 550 kgf
250 x 50 x thickness (mm) Across - 400 kgf
11. Static bending strength
Along the grain M.O.E. Avg. - 7500 N/mm2
Ind. - 6700 N/mm2
Along the grain M.O.E. Avg. - 4000 N/mm2
Ind. - 3600 N/mm2
Along the grain M.O.E. Avg. - 50
Ind. - 45
Along the grain M.O.E. Avg. - 30
Ind. - 27
12. Tensile strength Along - 55 mpa
Across - 50 mpa12
kl
ZODIAC COMPREG PLYWOOD (IS 3513)
The difference between ordinary and extraordinary is that little extra. Zodiac's Compreg
plywood is the extraordinary premium grade plywood that emerges from a manufacturing
process that involves extremely high pressure in a high tonnage hydraulic pressure. The result
is a product suitable for high wear and tear. The product has a strong screw holding capability.
Compreg plywood can be used for manufacturing of pallets for industrial applications
USP of Zodiac Compreg Plywood
• Suitable for high wear and tear
• Strong screw holding capacity
• Durable
• Good mechanical properties
• Corrosion resistant
• Termite proof
Applications
Boxes for heavy equipment, electrical transformers, fish storage, industrial pallets, railway
berths and seats, marine decks and cabins and more.
Thickness (In mm) :- 4 to 100 mm
Length (In mm) :- 600 to 3200
Width (In mm) :- 600 to 1675
Density (In feet) :- 0.95 to 1.4 gm/cm3Technical Specifications
Test ISI Requirements
1. Specific gravity test
(i) Medium density 0.95 to 1.25
(ii) High Density 1.25 to 1.35
Adhesive IS 848-2006
2. Moisture Contents 6 to 12%
3. Tensile strength (High density) GH (V) 155 Mpa
(VI) 90 Mpa
(Medium Density) GH (V) 108 Mpa
(VI) 59 Mpa
4. Static Banding Strength (High density) GH (V) 145 Mpa
(VI) 100 Mpa
(Medium Density) GH (V) 88 Mpa
(VI) 59 Mpa
5. Compressive Strength
a) Parallel to laminates (High Density) GH (V) 130 Mpa
(VI) 90 Mpa
(Medium Density) GH (V) 55 Mpa
(VI) 75 Mpa
b) Perpendicular to laminates (High Density) GH (V) 70 Mpa
(VI) 160 Mpa
(Medium Density) GH (V) 70 Mpa
(VI) 130 Mpa
6. Shear Strength (High Density) GH (V) 14 Mpa
(Medium Density) GH (VI) 14 Mpa
7. Perpendicular to laminate (V) 60 Mpa
(VI) 45 Mpa
8. Hardness (rockwell ‘H’ scale) (High Density) GH (VI) 80 Mpa
(Medium Density) GH (VI) 60 Mpa
Impact strength (Kgm/ cm3) (High Density) GH
Parallel to laminates (VI) 0.5
Perpendicular to laminates (VI) 0.3
(Medium Density) GH
Parallel to laminates (VI) 0.5
Perpendicular to laminates (VI) 0.2Factory : Yamuna Nagar Jammu & Kashmir
Himachal
Pradesh
Punjab
Dealers Network Haryana
Chandigarh
Uttarakhand
Jammu & Kashmir : Sri Nagar
Delhi
Himachal Pradesh : Hamirpur, Kangra
Chandigarh : Chandigarh Rajasthan Uttar Pradesh
Haryana : Yamina Nagar, Hisar, Bihar
Gurgaon, Narwana
Punjab : Ludhiana, Amritsar,
Jharkhand
Gujrat West Bengal
Bhatinda, Jalandhar Madhya Preadesh
Rajasthan : Jaipur, Jodhpur, Ganga Chhattisgarh
Nagar
Uttarakhand : Dehradun Maharashtra
Uttar Pradesh : Agra, Meerut, Kanpur,
Aligarh, Lucknow, Telangana
Varanasi
Delhi : Delhi
Gujrat : Surat Karnatak
Madhya Preadesh : Indore, Bhopal,
Gwalior, Jabalpur
Chhattisgarh : Raipur
Bihar : Patna Tamil Nadu
Jharkhand : Deoghar
Maharashtra : Mumbai, Pune,
Kolapur, Amrawati
Karnatak : Bangalore
Telangana : Hyderabad
Tamil Nadu : Chennai
West Bengal : SiliguriOur Quality Assurance Zodiac Ply has been repeated recognised for its superior quality. Our commitment and attention to manufacturing and marketing quality products that with today's environmental sustainability and health protection regulation is demonstrated by the systematic and constant certification of all products, that are analysed, tested and monitored by organisations, test laboratories and independent certificate bodies whose reliability and professional reputation are internationally-recognised like the FSC & ISI. In line with our commitment to creating greener & healthier environment Zodiac Ply products will comply with E1 formaldehyde Emission standards effects April 2012.
kl
Our Quality Assurance
Zodiac Ply has been repeated recognised for its superior quality. Our
commitment and attention to manufacturing and marketing quality
products that with today's environmental sustainability and health
protection regulation is demonstrated by the systematic and constant
certification of all products, that are analysed, tested and monitored by
organisations, test laboratories and independent certificate bodies whose
reliability and professional reputation are internationally-recognised like
the FSC & ISI.
In line with our commitment to creating greener & healthier
environment Zodiac Ply products will comply with E1 formaldehyde
Emission standards effects April 2012.Design & Print brandtoniq.com, 9988066099
BADI MAJRA, YAMUNA NAGAR (HARYANA), PIN-135001
Toll Free No - 1800-103-0249
Email: radhakrishnaplyboard@yahoo.com | Website: www.radhakrishnaplywood.comYou can also read
