Coordinate Measuring Machines CNC Coordinate Measuring Machine CRYSTA-Apex V Series Catalog No. E16026(2)
To t h e n e x t l e v e l C R Y S TA - A p e x V SERIES 500/ 700/900/1200/1600/2000 Series Introducing a new generation CN C coordinate measuring machine focused on accurac y, speed, and ver s atilit y. We are proud to unveil o ur CRYS TA - A p e x V S er i e s that d eli ver s fas ter m easurem ent of small - to larg e size d p ar t s w it h o u t co m pro mising t h e m easur ing ma chin e’s inh erent a ccura c y, and help s make th e smar t fa c to r y a realit y. 2

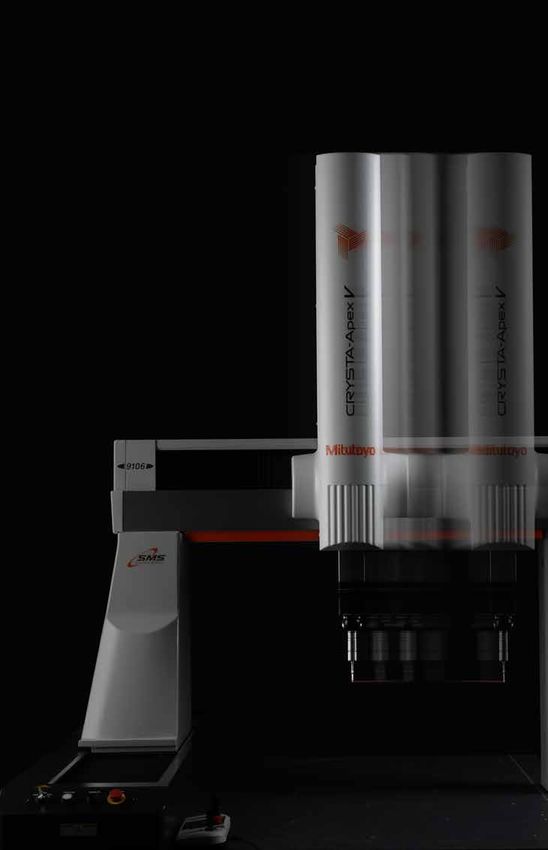

A brand new CMM design that provides cutting-edge capability in an extensive series of models that covers practically any measurement application in the small- to large sized part range. T h e a e s t h et ic d e sign sp o r t s b o ld co l o ur s t hat b ef it s a pre cisio n m easur ing ins tr um ent of th e I oT ag e. O f fer ing a cho ice of m o d els fo r m easur ing fro m small to larg e size d wo r k p i e ce s , th e CRYS TA - A p e x V S er i e s d eli ver s a d vance s in a ccura c y, sp e e d and ver s at ilit y in t his clas s of CM M . C RY S TA - A p e x V 5 4 4 C RY S TA - A p e x V 7 7 6 Measuring range Measuring range X : 500 mm X : 700 mm Y : 400 mm Y : 700 mm Z : 400 mm Z : 600 mm 4
C RY S TA - A p e x V 1 6 2 0 1 2 C RY S TA - A p e x V 2 0 3 0 1 6 C RY S TA - A p e x V 9 1 0 6 C RY S TA - A p e x V 1 2 2 0 1 0 Measuring range Measuring range X : 900 mm X : 1200 mm Y : 1000 mm Y : 2000 mm Z : 600 mm Z : 1000 mm Note: A ll models incorporate a main unit Startup system (relocation detection system), which disables operation when an unexpected vibration is applied or the machine is relocated. Be sure to contact your nearest Mitutoyo Sales Office prior to relocating this machine after initial installation. 5
HIGH PRECISION A b solute qualit y P rov id e s a p er fo r mance sp e ci f i c at i o n unmatch e d by any prev i ous CM M of t his clas s t hro ugh feature s t hat includ e an a d vance d real -t im e t h er mal co m p ens at i o n s y s tem w hich make s m ea surem ent a ccura c y pra c t i c all y ind e p end ent of tem p erature chang e s in t h e env iro nm ent. T his is in s t ar k co nt ra s t to ear li er g en erat i o n CM M s w h ere a ccura c y could not b e guarante e d unl e s s t h e ma chin e was ins t all e d in th e co nt ro ll e d env iro nm ent of a m easur ing ro o m h eld a s cl o s e l y a s p o s sib l e at t h e s t andard tem p erature of 20 ° C. 6
Real -time temperature compens ation Mitutoyo’s thermal compensation system technology Temperature sensor enables the CRYSTA-Apex V Series to maintain specified (for Scale) accuracy over the wide temperature range of 16-26 °C. The system operates by continuously tracking the temperature of the workpiece and every scale on the CMM and using this data to calculate and apply Temperature Temperature corrections to the measurement output. Thus the CMM Temperature sensor sensor (for Scale) (for Workpiece) appears to be performing as if it is always operating at sensor (for Scale) a constant temperature of precisely 20 °C. Workpiece 6.0 Controller 4.0 2.0 16 °C 26 °C Error (µm) 20 °C Temperature 0.0 measuring and -2.0 E0,MPE accuracy specification limits at 20±2 °C compensating device -4.0 E0,MPE accuracy specification limits at 16 to 26 °C -6.0 0 100 200 300 400 500 600 700 Measured length (mm) Graph showing the effectiveness of temperature compensation High accurac y in the 1.7 µm class CMM accuracy comparison The CRYSTA-Apex V Series guarantees a 0.008 Maximum permissible Length measurement error (mm) maximum permissible length measurement error 0.006 Accuracy envelope of CMM with E0,MPE=(2.5 + 4L/1000) µm (E 0,MPE ) of 1.7 + 3L /1000 μm, a specification that 0.004 compares very favourably with a standard CMM 0.002 offering an E 0,MPE of 2.5 + 4L /1000 μm, which Accuracy envelope of the CRYSTA-Apex V Series would generally be considered high accuracy. 0 100 200 300 400 500 600 700 800 900 To illustrate the practical advantage of the -0.002 375 766 higher specification of the CRYSTA-Apex V -0.004 Series, consider the case where the tolerance on -0.006 a dimension is ±0.02 mm: the measurement -0.008 uncertainty of the standard machine exceeds Measuring length (mm) one-fifth of this tolerance* for any length over 375 mm. In contrast, the V Series uncertainty remains within one-fifth of the tolerance for measured lengths up to 766 mm. Hence the V Series actually offers guaranteed accuracy over more than double the measuring range of the * A ssuming an acceptable working ratio between component less accurate standard machine. tolerance and accuracy of measurement is 5:1 minimum. Repeat abilit y Excellent measurement repeatability is essential for high accuracy and this is especially true when using scanning probes to measure complex 3D surfaces, an application where dynamic errors can occur if precautions are not taken. In this scenario the data from the scanning probe is stabilised by holding the probe stationary for a short time whenever the stylus tip contacts the workpiece, thereby ensuring that inertial causes of dynamic error are eliminated, making it possible to deliver the best possible level of repeatability obtainable from the CRYSTA-Apex V Series machines. 7

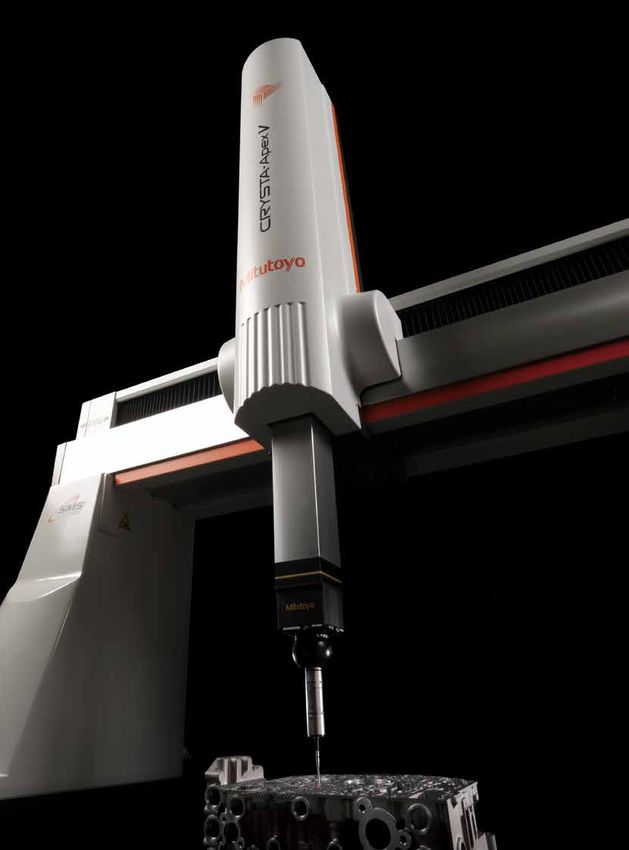

HIGH SPEED Dramatic ally re duce s measurement time with high - sp eed measurement s T he V S erie s enable s us er s to fre el y s et m easurem ent p aths al o ng t hre e - dim ensio nal sur fa ce s , enab ling co m p l e x wo r k p i e ce s to b e m ea sure d m o s t ef f i ci ent l y. H igh - sp e e d m ea surem ent is unaf fe c te d by pro ce s sing accurac y through real -t im e co r re c t io n of p at h er ro r s c aus e d by di f ference s b et we en wo r k p i e ce and d e sign valu e s . T h e V S er i e s , w ith it s high dr i ve sp e e d and acceleration combine d w ith a ma x imum m easuring sp e e d of 8 mm /s, dramatic all y re duce s tot al m ea sur ing t im e. 8
Speed and acceleration to reduce measurement time The CRYSTA-Apex V Series offers a maximum drive speed of 519 mm/s and a maximum acceleration of 2,309 mm/s 2. Compared with conventional CNC CMMs (typically around 430 mm/s and 1,650 mm/s 2), this amounts to about 100 mm more traverse distance one second after starting movement. This faster movement capability, combined with a maximum measuring speed (the speed with which the stylus traces over the workpiece) of 8 mm/s, much faster than conventional CNC CMMs (typically around 5 mm/s), cuts total measuring time significantly. The more the number of measurement locations, the greater this margin grows, which in turn results in significant cost savings. High -speed optimum path scanning The V Series is equipped with a measurement feature that allows users to specify scanning measurement paths (design values). This feature allows for high speed, high-accuracy scanning by correcting dynamic errors that would otherwise be produced by acceleration and deceleration stresses. Measurement paths can be freely specified for three-dimensional forms as well, which enables intricate workpieces to be measured by tracking precisely along their curved surfaces and contours. Ac tive scanning feature Enables high-speed measurement by accommodating discrepancies between design values and the actual workpiece. The 3D optimal path scanning advantages are retained whilst allowing for manufacturing or alignment deviations. The complexity of some workpieces. (e.g. turbine blades, fan blades and impellers) makes measurement difficult as their manufacturing variation fluctuates more than most machined parts. The V Series can tolerate these differences and still perform accurate measurement. 9
DIVERSITY Ef ficient , high -accurac y measurement of prac tic ally any par t shap e T h e CRYS TA - A p e x V S er i e s is suit ab l e fo r a w id e rang e of a p p li c at io ns using to uch -t r ig g er, s c anning and n o n - co nt a c t pro b e s in full y au to mat i c p ar t- pro gram m easurem ent c ycl e s . 10
Probes for Coordinate Measuring Machines Compac t high -accurac y scanning probe SP25M The SP25M is a compact, high-accuracy scanning probe with a 25-mm outside diameter. It is a multi-function CNC CMM probe that can collect data not only from scanning measurements, where the probe moves while in contact with the workpiece to collect a point-cloud of coordinate values, but from high-accuracy single-point measurements as well. N on - cont ac t laser probe Sur faceM easure SurfaceMeasure is a non-contact probe that collects coordinate values of the surface of a workpiece by using laser light. It can quickly obtain a point-cloud of 3D surface data. Measuring color sample Measuring glossy workpieces boards Automatic probe changer ACR 3 This fixture is necessary when using probes that do not support automatic stylus exchange for fully automated measurements that require changes in stylus diameter and /or length. It is also needed for part programs that require switching between contact and non-contact probes. Newly designed with a simpler structure and increased durability due to a new mechanism that uses the drive of the CMM for automatic exchange. Unlock Lock 11
Ef ficient , high -accurac y measurement in a variet y of applic ations T h e CRYS TA - A p e x V S er i e s is suit ab l e fo r a w id e rang e of a p p lic at io ns using to uch -t r ig g er, s c anning and no n - co nt a c t pro b e s in full y au to mat i c Electric-cell separator moulds El e c tr ic vehi cl e p ar t- pro gram m ea surem ent c ycl e s . Surface and cross-section measurements on precision moulds for the separators used in electric cells can be made using a low measuring force, high-accuracy scanning probe. Three-dimensional error and cross-sectional form analyses may be performed using the measurement data obtained. Pump impeller s Au to m o b il e Complex shapes such as pump impellers can be measured using a robust non-contact laser probe that produces huge amounts of data in the form of a point cloud to provide highly detailed measurement data for excellent characterisation of the part. 12
Elec tric motor cores El e c t r i c vehicl e Turbine and fan blades A ircraf t Surface and cross-section measurements on precision moulds for The cross-section of aircraft engine aerofoil components can be the separators used in electric cells can be made using a low measured using a compact, high-accuracy scanning probe. Even measuring force, high-accuracy scanning probe. workpieces susceptible to large errors, such as castings, can be Three-dimensional error and cross-sectional form analyses may be measured quickly and reliably. performed using the measurement data obtained. Ar tificial joint s M e di c al c are Transmission cases P ower t rains Freeform surface measurement of artificial joints can be made Non-contact laser probes require dramatically less measurement using a compact, high-accuracy scanning probe. time compared to contact (scanning) probes. Scanning from three Three-dimensional error analysis can be performed using the directions enables simultaneous measurement of the top and side measurement data obtained. faces, which means less repositioning and efficient measurement of even the most intricate parts. 13
SOFTWARE A pplic ation sof t ware that of fer s func tionalit y and ease of u se M itu toyo of fer s an e x tensi ve ch o i ce of ap p li c at i o n s of t ware fo r au to matic all y g en erat ing p ar t pro grams to p er fo r m m easurem ent and evaluatio n of sim p l e o r co mp l e x co m p o n ent s , including g ear s and a erofo ils . P ra c tic all y any m easurem ent chall eng e s t hat o ur cus to m er s may enco unter c an b e t a ck l e d by V S er i e s ma chine s . 14
MCOSMOS Data processing MCOSMOS is Mitutoyo’s suite of PC-based CMM software applications that consists of optional modules to support fully automated measurement of all kinds. M i C AT P l a n n e r Au to m a ti c p a r t- p r o g ra m g e n e ra ti n g This software package dramatically reduces part-programming creation time by automatically generating the part program. Tolerance information from a 3D CAD model is read to determine which features of the part should be measured to verify conformance to specification. Compared to conventional methods (teaching), this method creates more-efficient measurement programs as well as saving time. MSURF S c a n ni n g a n d e va l u a ti o n b y la s e r p r o b e The MSURF software package comprises MSURF-S for scanning measurement of a part and MSURF-I for comparing the resulting measurement data against the master model data. 15
SMART FACTORY From s t atu s management to preventive maintenance. Kick s t ar t your smar t fac tor y through visualization. M itu toyo ha s d eve lo p e d n e w feature s t hat us e a n et wo r k to cent rall y mana g e manu fa c tur ing pro ce s s info r mat i o n. T h e M ea sur L ink s of t ware p a ckag e h elp s prevent d efe c t i ve p ar t s by co ll e c t ing and anal y zing m easurem ent dat a in real tim e. T h e St atus M o nito r (Smar t M easur ing Sy s tem, o r SMS), w hi ch indic ate s t he o p erat i o nal s t atus of t h e m easur ing ma chin e; and t h e Co ndit io n M o nito r, w hi ch indi c ate s t h e p hy sic al co ndit i o n of t h e ma chin e it s el f, h elp maint ain m easurem ent a ccura c y, increa s e pro duc t i v it y, and im prove maintenance manag em ent. Status Monitor R e m o t e m a c hi n e m o ni to r i n g Server • C ollects and visualizes operational status data • Supports MT Connect communication 16
Condition Monitor MeasurLink C o n d u c t p r e v e n ti v e m a i n t e n a n c e t h r o u g h C M M R e d u c e s d e f e c ti v e p r o d u c t s b y s t a t u s m o ni to r i n g v i s u a lizi n g q u a li t y CNC Coordinate Server Measuring Machine Output information • Slideway distance travelled • Temperature log Preventive maintenance through • Number of probe inputs status monitoring • Other selectable information 17
USABILITY Ef fe c tively re duces op eration and measurement time through enhanced convenience and u s abilit y T h e V S er i e s is e quip p e d w it h t h e Q ui ck L aunch er to im prove o p erab ilit y and a j oy s tick b ox that l et s us er s rem ote l y co nt ro l t h eir m easur ing ma chin e as t h o ugh it were r ight in fro nt of them. T he s e enhancem ent s in us a b ilit y ena b l e t h e wo r k f l ow to b e s t reamlin e d by re ducing m easurem ent tim e. Part program execution Joystick box The Quick Launcher enables simple and intuitive operation for easy The joystick box allows users to part program execution. The touch-panel monitor further improves easily operate their operability, making operations practically effortless for anyone. CRYSTA-Apex V Series CMM Part programs can also be executed via barcodes and QR codes. from a remote location. It comes with control buttons marked with user-friendly icons and an override knob for changing speed. MiCAT Planner This software package dramatically reduces part-programming creation time by automatically generating the part program. Tolerance information from a 3D CAD model is read to determine which features of the part should be measured to verify conformance to specification. Compared to conventional methods (teaching), this method creates more-efficient measurement programs as well as saving time. 18
OPTIONS To suppor t fully au tomate d measurement and ef ficient setup s O pt io ns t hat sup p o r t full y au to mate d m easurem ent to c ap it alize o n the a d vant ag e s of CN C CM M s , and t hat pro m ote ef f i ci ent s etup s to re duce c ycl e tim e. Automation example Clamping system Eco-Fix Kit The V Series’ ability to deliver high-accuracy measurements across Mitutoyo clamping tools a wide temperature range eliminates the need for a dedicated comprise of a clamping system measuring room. This allows for the automation of in-line and where elements can be put line-side measurements within the manufacturing process to together like toy construction significantly reduce measurement time and streamline the blocks to easily fix workpieces workflow. in place on the measuring table. Rotary table This is a precision orientation device for CNC CMMs to aid efficient and high-accuracy measurement of rotational-form components such as gears, impellers, screw rotors and cams. Can be synchronized with a scanning probe to enable a wide range of contour measurements to broaden the application range of a CMM. 19
