CONTROL, YOUR WAY Guide to Keypads, Touch Screens, and Remotes for your Crestron® smart home
LUXURY LIVING AT YOUR COMMAND Why is Crestron the leader of the smart home industry? Simple. We give you the best
experience by far. We’re the only company that designs, manufactures, and supports
every single product that makes up your smart home solution. That’s how we ensure
the unparalleled performance and reliability that are the hallmarks of Crestron.
With our extensive collection of intuitive control options, the Crestron smart home
experience is always at your command. Between customisable designer keypads,
sleek and brilliant touch screens, and ergonomic handheld remotes, you’ll find an
elegant Crestron control device to suit every space and need in your home.
1
KEYPADS
Crestron keypads bring sophistication and
customisable control to complement the
HorizonTM keypad with illuminated custom etching
most luxurious and contemporary interiors.
Available in an expansive variety of finishes, materials,
and button configurations, Crestron keypads deliver simple,
on-the-spot control of audio, video, lighting, shades,
temperature, security, and more.
2 3
HORIZON KEYPADS Because perfect control is different for everyone
YOUR PERFECT LIFESTYLE, RIGHT ON THE BUTTON MAKE THEM YOUR OWN
Inviting to the touch and appealing to the eye, HorizonTM keypads give you custom control to accentuate your lifestyle. Top and bottom trim pieces are interchangeable and customisable to complement any décor and provide
Buttons are fully programmable, generously proportioned for easy access and excellent visibility, and meticulously the ultimate in style and elegance. For enhanced readability under any lighting conditions, programmable
engineered to deliver a pleasing tactile response with each press. colour backlighting illuminates the high-quality custom laser engraved text on the buttons.
FEATURES
• Highly configurable • Custom engraving • Smooth, textured, • Four different button styles
• Multi-colour backlighting • Superior button feel and custom trims • Designer aesthetics
WHITE ALMOND BLACK
HZ-KPCN-W HZ-KPCN-A HZ-KPCN-B
Availability Configurable Custom Engraving LED Backlit LED Indicators Light Sensor Backbox Dimensions (H x W x D) Colours
Global 5 Available separately Yes Yes Yes 1-gang U.S. 120 mm x 78 mm x 16.25 mm 3
Showing illumination
4 5
HORIZON KEYPADS Because perfect control is different for everyone
VERSATILE CONFIGURATION OPTIONS A WORLD OF POSSIBLE BUTTON COMBINATIONS EVEN MORE OPTIONS
Choose the number of buttons, button type, and button configuration that best suits the needs of the space and your personal preferences. How do you like your buttons? With Horizon keypads, it’s up to you. Need keystone plates or AC power outlets to match?
Choose from basic pushbutton, horizontal rocker, or vertical rocker. We’ve got those, too.
Dual Keystone
Single push buttons Single side-to-side rocker 3-button vertical rocker Full button vertical rocker
White Almond Black
MULTI-GANG HORIZON LAYOUTS Dual AC Outlets
White Almond Black
2 gang 3 gang 4 gang
6 7
CAMEO® FLUSH MOUNT KEYPADS Full functionality, tiny footprint
A MORE SUBTLE, STYLISTIC APPROACH TO CONTROL C2N-CBF-P series MODERN DESIGN MEETS MODERN FUNCTION
The C2N-CBF-P series deliver a truly advanced custom keypad control solution in an incredibly compact, slim profile design. It provides The most luxurious or contemporary interiors are perfect candidates for Cameo flush mount keypads, available in a wide array of button
a clean, flush finish, so there are no protruding edges. Choose from the optional Ascent® collection of solid metal faceplates for a configurations to suit your specific needs. Choose from four textured, colour-matched faceplates, or step up to the Ascent collection.
contemporary appearance in a range of luxurious designer finishes.
FEATURES COLOUR-MATCHED CRESTRON VERSATILE CONFIGURATION Many more options available
• Stylish, versatile • Choice of 4 button sizes TEXTURED FINISHES
• Slim, inconspicuous appearance • Customisable backlit button engraving
• Five colour-matched textured finishes • Ambient light sensor
• Versatile combinations of 2 – 8 pushbuttons
SATIN POLISHED ANODIZED
White Almond
Silver
Brass Latte Dusk Black
Availability Configurable Custom Engraving LED Backlit LED Indicators Light Sensor Backbox Finishes
Global 2–8 Available separately Yes Yes Yes BB-CBF 5 colour / 7 Ascent
Nickel Gold Nickel Gray Black
This page shown with Ascent Faceplate finishes See size comparison chart on pages 18-21 for dimensions
8 9
CAMEO FLUSH MOUNT KEYPADS Elegance Faceplates and Finishes
LOW-PROFILE AND ENGINEERED TO EXCEED THE HIGHEST STANDARDS FPE-C2N-CBF Series ELEGANCE FACEPLATES, ELEGANT FINISHES
The name says it all. Stylish Elegance faceplates for Cameo flush mount keypads are so slim they practically hug the wall. Precisely engineered from solid With such a breadth of lustrous options to choose from, you’re sure to find an Elegance faceplate
metal, Elegance faceplates are available in a variety of lustrous finishes, each formulated to meet the demands of the most discerning homeowner.
finish that perfectly reflects your personal aesthetic and complements your home décor.
FEATURES
• Solid metal designer faceplates • Mix and match with any colour buttons • Exceptional fit and finish INCREDIBLY THIN FINISHING OPTIONS
for Cameo flush mount keypads • One-piece bezel completely • Easy to install for new
Prefer a more subtle, lower profile Choose from a variety of metals and plated finishes to add the right balance in the most opulent
• Low-profile design surrounds the buttons and LEDs or retrofit applications
appearance? At just 1.2mm, Elegance of spaces. The Satin Nickel finish furnishes a more industrial look befitting a contemporary
faceplates are less than one-third the kitchen, while Antique Bronze, Brass, White, and Primer finishes each lend an eye-pleasing accent
thickness of Ascent faceplates. of brushed alloy to any modern or traditional interior.
EU US SLIM
Ascent Elegance Polished Satin
Brass Nickel Chrome Stainless Brass Nickel Chrome
Steel
Antique Brushed White Paintable
4 mm 1.2 mm Brass Bronze Light Bronze Dark Forbes & Lomax Stainless Silk Paintable
Stainless Steel, Brushed Satin Brass Antique Bronze Light Bronze Dark Steel White Primer
Faceplates not shown to scale. See comparison chart on pages 18-21 for proportional comparison.
10 11
CAMEO KEYPADS Simple. Functional. Configurable.
A FAVOURITE CHOICE FOR ALL TYPES OF LIGHTING AND AV CONTROL C2N-CBD Series MAKE THEM YOUR OWN VERSATILE CONFIGURATION
Exquisitely simple, yet highly customisable, Cameo keypads easily install alongside other standard low-voltage in-wall devices. The option of Choose from textured or smooth decorator-style faceplates, available in a wide Many more options available
wired or wireless connectivity allows easy, flexible installation in both new and existing homes. Optional Ascent* solid metal faceplates offer variety of colours, or upgrade to the elegant Ascent collection of metal faceplates.
a contemporary appearance in a range of luxurious designer finishes.
FEATURES
COLOUR-MATCHED CRESTRON FINISHES
• Stylish, versatile • Ascent metal faceplates available • Customisable backlit button engraving Textured Smooth
• 12 colour-matched smooth and • Versatile pushbuttons combinations • White LED feedback indicators
textured finishes • Choice of 4 button sizes • Ambient light sensor
White
SATIN POLISHED ANODIZED
Almond Ivory Black
Silver
Latte Almond White
Brass
Black Dusk Dark Almond Brown Gray
Availability Configurable Custom Engraving LED Backlit LED Indicators Light Sensor Backbox Finishes
Global 2–8 Available separately Yes Yes Yes 1-gang U.S. 12 colour / 7 Ascent
Nickel Gold Nickel Gray Black
This page shown with Ascent Faceplate finishes *Ascent faceplates only available on low voltage wired keypads. See size comparison chart on pages 18-21 for dimensions
12 13
CAMEO KEYPADS – INTERNATIONAL For European and UK style wall boxes ELEGANCE FACEPLATES For Cameo International Keypads
TASTEFUL, ATTRACTIVE APPEARANCE FOR EVERY ENVIRONMENT C2NI-CB Series DESIGNS THAT MAKE A STATEMENT FPE-C2NI-CB Series
These flexible keypads are designed for installation in UK and European style wall boxes, and can also be mounted into furniture Looking to make the keypad more of a focal point of your interior design? Look no further than
without requiring a backbox. Optional architectural faceplates offer a metallic accent for a sophisticated appearance. handmade Elegance faceplates with their standout designs and high-quality, solid metal, clean structure.
FEATURES FEATURES
• Architectural Series faceplates available • Choice of button sizes • White LED feedback indicators • Cutting edge designs • Mix and match with any colour buttons • Exceptional fit and finish
• Versatile pushbutton combinations • Customisable backlit button engraving • Ambient light sensor • Choice of lustrous finishes • One-piece bezel completely • Easy to install for new
surrounds buttons and LEDs or retrofit applications
WHITE ALMOND BLACK
C2NI-CB-W-T C2NI-CB-A-T C2NI-CB-B-T POLISHED ANTIQUE SATIN
Chrome Bronze Lt.
Nickel Bronze Dk. Chrome
Stainless Steel Brass Forbes & Lomax Bronze Dark Brass Nickel Brass
Availability Configurable Custom Engraving LED Backlit LED Indicators Light Sensor Backbox Colours
Global 2–5 Available separately Yes Yes Yes 1-gang U.K. or European 3
See size comparison chart on pages 18-21 for dimensions
14 15
CAMEO KEYPADS – INTERNATIONAL Architectural Series Faceplates & Finishes IN-WALL KEYPADS, DIMMERS, AND SWITCHES
METALLIC ACCENTS FOR A SOPHISTICATED APPEARANCE C2NI/INETI-FPB Series VERSATILE. FUNCTIONAL. CUSTOMISABLE. CLWI Series
Architectural Series faceplates bring a clean, updated look to Cameo International Keypads. The CLWI Series of keypads, dimmers, and switches all share the exact same beautiful aesthetics. They provide everything
They feature an elegant stainless steel finish inset within black or white plastic trim. from lighting control to audio control (depending on the model chosen) from more than one location around the home.
Their customisable button layout can be set to recall scenes, dim up and down, adjust volume, and more.
FEATURES
• Aluminium and plastic faceplates for Cameo international keypads • Exceptional fit and finish FEATURES
• One-piece bezel completely surrounds the buttons and LEDs • Easy to install for new or retrofit applications • Versatile control of lighting and audio • Optional battery powered keypad • Combinations of up to 6 pushbuttons
• Custom engravable buttons • Optional Niko faceplates available • Customisable button layout
STAINLESS STEEL w/Black Trim STAINLESS STEEL w/White Trim
ANTHRACITE NIKO FACEPLATES Make a statement with these premium finishes
C2NI/INETI-FPB-T-S/STEEL C2NI/INETI-FPW-T-S/STEEL
WHITE
Availability Configurable Custom Engraving LED Backlit LED Indicators Light Sensor Backbox Finishes
Global 1-6 Available separately No Yes No 1-gang U.K. or European 2 colour / 20+ Niko
See size comparison chart on pages 18-21 for dimensions
16 17SIZE COMPARISON Rightsized keypads and faceplates for every space
When it comes to
keypads, one size and
shape does not fit all.
That’s why Crestron
offers keypads in a
variety of shapes and
sizes to match the décor
and specific control
needs of any space.
Products shown actual size.
HZ-KCPN C2N-CBD C2N-CBF-P FPE-C2N-CBF-US FPE-C2NI-CB
78 mm x 120 mm 75 mm x 120 mm 51 mm x 89 mm 70 mm x 114 mm 87 mm x 88 mm
18 19SIZE COMPARISON Rightsized keypads and faceplates for every space
C2NI-CB C2NI/INETI-FPB FPE-C2N-CBF-SL FPE-C2N-CBF-EU CLWI
87 mm x 87 mm 87 mm x 87 mm 45 mm x 86 mm 86 mm x 86 mm 84 mm x 84 mm
20 21TOUCH SCREENS
Control of everything in your home should be simple. It
is, with beautiful, best-in-class Crestron touch screens,

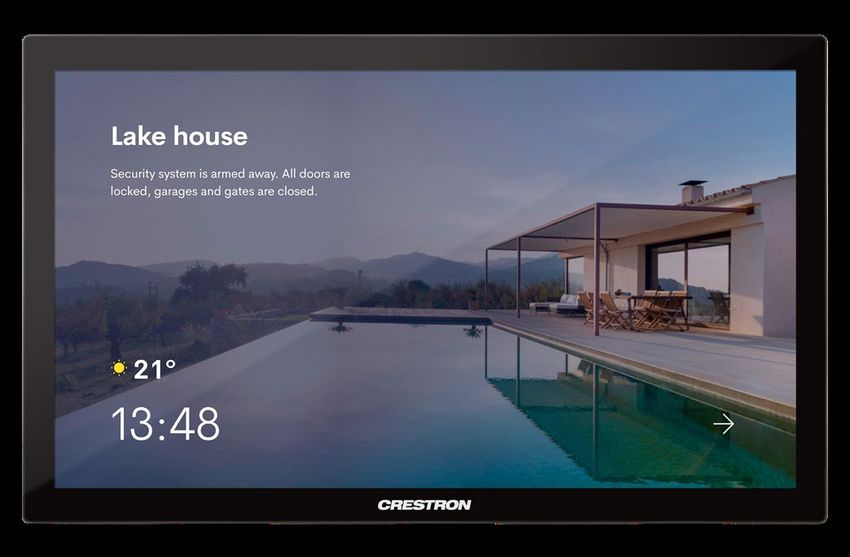

Wall-mount 10” Touch Screen
available in a wide array of wall-mount and tabletop models.
A Crestron touch screen does away with unsightly piles of remotes and wall
switch clutter, as well as the confusion of multiple disparate control apps.
Instead, you’ll enjoy fully-customised, intuitive controls and icons, true feedback,
real-time status display, streaming video, voice command recognition, web
browsing, and a full-featured media player for an enhanced multi-room
entertainment experience.
22 23TOUCH SCREENS
5” PORTRAIT
5”, 7”, AND 10” TOUCH SCREENS TSW Series TOUCH SCREEN 7” TOUCH SCREEN
TSW-560P TSW-760
Space-saving wall or tabletop TSW Series touch screens boast a clean, contemporary appearance with edge-to-edge glass, stunning high-
definition graphics, and backlit capacitive buttons. Available in 5”, 7”, and 10” screen sizes, the TSW Series delivers the ultimate touch screen
experience. They’re designed to meet the specific needs of your home, either through customisation or the Crestron Home operating system.
ADVANCED BUILT-IN CAPABILITIES
• Voice command recognition • Web browsing
• Streaming video • Automatic screen brightness
• Native Sonos wireless audio integration
® with ambient light sensor
• HD camera and microphone to support • High-gloss black
high-quality video intercom or white finish
5” TOUCH SCREEN 10” TOUCH SCREEN
TSW-560 TSW-1060
7” Touch Screen with Tabletop Kit and
Wall-mount 10” Touch Screen
5” Portrait Touch Screen (shown actual size)
24 25EXTRA LARGE TOUCH SCREENS BIG TOUCH SCREEN, BIG PERFORMANCE
SUPERSIZED CONTROL
21.5” TOUCH SCREEN TSD-2220
Prefer a more spacious control interface? Want to watch stunning HD streaming
video and browse the web? Step up to the TS-1542 or TSD-2220. Go big or go home? Go big at home with the TSD-2220, with its striking and spacious 21.5” full HD capacitive touch screen display. Paired with
a Crestron digital graphics engine, sold separately, you’ll enjoy advanced control of audio, video, lighting, shades, climate, security, and more.
15” TOUCH SCREEN TS-1542
The TS-1542 integrates a brilliant 15.6” full HD touch screen display and high-performance digital graphics. Premium
metallic construction and edge-to-edge glass provide a contemporary look that’s perfectly at home in your luxury
residence. Upgrade to the Signature Series to personalise your TS-1542 in one of 15 standard colours. Or create
something as unique as you by providing your own colour scheme or artwork. We’ll do the rest.
FEATURES
• Smooth-tilt adjustable base from 23° to 45° FEATURES
• Built-in microphone and speakers • Built-in stereo speakers
• Dual-window HD streaming video display • Ultra-wide 178° viewing angle
• Available in white, dark grey, 15 Signature Series • Full HD 1920 x 1080 resolution
colours, or fully customisable finishes
• Dustproof and water resistant
TS-1542 shown with Union Jack Blue
Signature Series finish and custom finish.
26 27REMOTES
Slim and stylish in every detail, and custom engraved
for your lifestyle, Crestron handheld remotes take
TSR-310 Touch Screen Remote entertainment control to a luxurious and personalised
new level everywhere inside – and outside – your home.
With consistent, thoughtfully designed navigation and dependable wireless
performance, you’ll never miss a beat as you roam about your home.
Everyone can easily access his or her favourite entertainment from the
same remote with MyCrestron Favourites. (TSR-310 and HR-310 only.)
28 29TOUCH SCREEN REMOTE HANDHELD REMOTES
TSR-310 HANDHELD TOUCH SCREEN REMOTE HR-310 HR-150
Handheld Remote Handheld Remote
Our flagship model, the Crestron TSR-310 is a remote actually worth fighting over. It combines
all the best elements of the previous generation of Crestron remotes with: even more advanced The HR-310 Handheld Remote Ruggedised for durability and
functionality; superb ergonomic design; incredible button feel; voice control; custom engravable offers most of the same high-end wrapped in a silky smooth, easy-
buttons; movement sensor; profiles settings; multi-colour buttons; and more. Ruggedised for features of the TSR-310 including grip housing, the HR-150 is perfectly
durability and wrapped in a satiny smooth easy-grip housing, it delivers exceptional comfort superb ergonomic design, incredible balanced to deliver exceptional
and ergonomics for hours of one-handed use. button feel, engravable buttons, comfort and ergonomics. Backlit,
movement sensor, and more. soft-feel buttons provide positive
FEATURES Also, like the TSR-310, it’s built tactile response and easy visibility
• Built-in 3” touch screen display for durability and wrapped in a under all lighting conditions.
• Stunning resolution satiny smooth easy-grip housing to High-powered Crestron wireless
• Rechargeable battery that lasts 3 – 4 days between charges provide extraordinary comfort for performance assures dependable
hours of use. connectivity throughout your home.
• Incredible processing power
• Wi-Fi® connectivity for high-bandwidth communications FEATURES FEATURES
• Voice control • Backlit tactile buttons • Backlit soft-feel buttons
• Elegant, discreet charging station • Long battery life utilizing • Fingerprint-resistant silk finish
standard AAA batteries • Fully programmable
• Nine custom engravable buttons functionality
to display the most frequently • 75’ wireless range
used functions
• Ultra-reliable Crestron wireless
communications
30 31AUDIO
Crestron makes entertaining truly effortless. Set the mood for the party with one touch.
Want different music playing in the kitchen than in the dining area? Crestron has everything
you need to deliver audiophile grade performance everywhere in your home, both inside and out.
VIDEO
Crestron takes your viewing experience to a whole new level. Whether you’re watching your favourite
show on cable TV, streaming a blockbuster movie, or gaming in 4K Ultra HD, one touch ensures the
screen you’re viewing is optimised for all content.
UNPARALLELED PERFORMANCE, LIGHTING CONTROL
RELIABILITY, AND PERSONALISATION Once the day’s done, set the perfect scene for a family dinner or to snuggle up for a movie,
as the screen drops, the lights dim and you settle in for a perfect evening.
Crestron is the only company that designs, manufactures and
SHADES
supports all of the products in your complete smart home system Crestron motorized shades and drapery systems transform any room into a more spectacular space.
Our stunning designer fabrics, elegant hardware, and world-class technology offer the perfect shading
solution for all the windows in your home.
CLIMATE
With Crestron, your home is always at the perfect temperature. With support for multiple heating and
cooling zones you can adjust the temperature of different areas of your home independently. Everyone’s
comfortable, wherever they are. It’s intuitive, sophisticated climate control for every room and season.
SECURITY
Keep a closer eye on your home. Crestron gives you the freedom to control your security
and monitor cameras remotely, promising ultimate peace of mind.
32For more information go to: crestron.com/home
World Headquarters New Zealand China
15 Volvo Drive West Plaza Business Centre 487 Tian Lin Road Gems Park
Rockleigh, NJ 07647 Level 8, 3 Albert Street Block 25 Xu Hui District
800.237.2041 Auckland 1060 P.R.C. Shanghai 200233
201.767.3400 New Zealand Toll Free Phone: 400.880.9700
crestron.com +64.800.273.787
ANZHQ@crestron.com
SE Asia
crestron.com
Latin America 31 Kaki Bukit Road 3
Blvd. Manuel Avila Camacho 37-1A #01-04 & #01-05
Col. Lomas de Chapultepec Israel Techlink
CP 11560 14 Hata’as Street Singapore 417818
México Kfar Saba, 4442514 +65.6394.9380
+52 (55) 9159.5900 Israel crestron.com
+ (305) 290.4978 +972.9.7685556
crestron.com.mx crestron.co.il
Japan
1736-3 Higashitsuda-Cho
Crestron Europe B.V.B.A. India Matsue City 690-0011
Oude Keerbergsebaan 2 Unit 101 & 102 RMZ Ecoworld Japan
B-2820 Campus 6B Sarjapur Marathalli +81.852.60.5185
Rijmenam Outer Ring Road crestronjapan.com
Belgium Bangalore 560103
+32.15.50.99.50 1.800.3005.8822
crestron.com INDIAsalessupport@crestron.com
crestron.com
Australia
Level 5 NE Asia
15 Help Street Suite 3101-02, 31/F Oxford House,
Chatswood NSW 2067 Taikoo Place 979 Kings Road
Australia Hong Kong
+61.1800.555.040 +852 800 969 996
ANZHQ@crestron.com NEAsalessupport@crestron.com
crestron.com crestron.com
All brand names, product names, and trademarks are the property of their respective owners. Certain trademarks, registered trademarks, and trade names may be used to refer to either the entities claiming the
marks and names or their products. Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography or photography. ©2019 Crestron Electronics, Inc.You can also read
