Original Research yggdrasil: a Python package for integrating computational models across languages and scales - Oxford Journals
Original Research

yggdrasil: a Python package for integrating
computational models across languages and scales

                                                                                                                                                   Downloaded from https://academic.oup.com/insilicoplants/article-abstract/1/1/diz001/5479575 by guest on 12 October 2019
Meagan Lang*
National Center for Supercomputing Application, University of Illinois, Urbana-Champaign, IL
Received: 24 October 2018       Editorial decision: 25 January 2019      Accepted: 12 February 2019
Citation: Lang M. 2019. yggdrasil: a Python package for integrating computational models across languages and scales. In Silico
Plants 2019: diz001; doi: 10.1093/insilicoplants/diz001

Abstract.    Thousands of computational models have been created within both the plant biology community and
broader scientific communities in the past two decades that have the potential to be combined into complex integra-
tion networks capable of capturing more complex biological processes than possible with isolated models. However,
the technological barriers introduced by differences in language and data formats have slowed this progress. We
present yggdrasil (previously cis_interface), a Python package for running integration networks with connec-
tions between models across languages and scales. yggdrasil coordinates parallel execution of models in Python,
C, C++, and Matlab on Linux, Mac OS, and Windows operating systems, and handles communication in a number of
data formats common to computational plant modelling. yggdrasil is designed to be user-friendly and can be
accessed at https://github.com/cropsinsilico/yggdrasil. Although originally developed for plant mod-
els, yggdrasil can be used to connect computational models from any domain.

Keywords:         Communication; computational framework; model integration; modelling; parallel processing; plant
modelling

Introduction                                                               advances in computational power, it should be possi-
                                                                           ble to link biologically related models to create com-
Plant biologists have produced a wealth of compu-
                                                                           plex integration networks capable of capturing the
tational models to describe the biological processes
                                                                           response of entire plants, fields or regions. However,
governing plant growth and development, cover-
                                                                           independently developed computational models often
ing scales from atomistic to global. Although usually
                                                                           have compatibility issues resulting from differences in
developed independently to address questions specific
                                                                           programming language or data format that make such
to an organ, species or growth process, computational
                                                                           collaborations difficult.
plant models can also have applications beyond their
                                                                              Consider the task of integrating a simple root growth
original scope. Many biological processes are the same
                                                                           model with a shoot growth model. Our example root
across different species of plants, allowing models
                                                                           growth model is written in C (see Listing 1) and can be
developed for one species to be adapted for another
                                                                           expressed as
by modifying input parameters. In addition, computa-
tional models for different scales, organs or processes
are often related via biological dependencies. With                        (1)
                                                                           Rt+1 = Rt × rr × dt + Rt .

*Corresponding author’s e-mail address: langmm@illinois.edu

© The Author(s) 2019. Published by Oxford University Press on behalf of the Annals of Botany Company.
This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/
licenses/by/4.0/), which permits unrestricted reuse, distribution, and reproduction in any medium, provided the original work is properly cited.

IN SILICO PLANTS https://academic.oup.com/insilicoplants                                                                © The Author(s) 2019       1
Original Research yggdrasil: a Python package for integrating computational models across languages and scales - Oxford Journals
Lang — yggdrasil: a Python package for integrating computational models

    The inputs to the root growth model are: Rt the root           integration, the Methods section describes the methods
    mass at time t (g), rr the relative root growth rate (h−1)     used by the yggdrasil package to integrate models,
    and dt the time step (h), and the output of the root           the Worked ­example section provides an example of inte-
    growth model is Rt + 1, the root mass at the next time         grating the two models presented above, the Results and
    step. The shoot growth model is written in Python (see         ­discussion section presents several tests demonstrating
    Listing 2) and can be expressed as                              the ­performance of message passing between integrated
                                                                    models and the final section describes a few use cases for
    (2)
    St+1 = St × rs × dt + St − (Rt+1 − Rt ).
                                                                    yggdrasil, summarizes the features and limitations of
    The inputs to the shoot model are: St the shoot mass at         the yggdrasil package and also outlines areas of ongo-

                                                                                                                                  Downloaded from https://academic.oup.com/insilicoplants/article-abstract/1/1/diz001/5479575 by guest on 12 October 2019
    time t (kg), rs the relative shoot growth rate (d−1), dt the    ing and future development.
    time step (days), Rt the root mass at time t (kg), and Rt+1
    the root mass at time t + 1 (kg), and the output of the
    shoot growth model is St + 1, the shoot mass at the next
                                                                   Background
    time step. Although it is possible to run both models in       Computational plant models are usually written with
    isolation if all of the appropriate input variables are pro-   a very specific research question in mind (e.g. describ-
    vided, the value of Rt + 1 calculated by the root growth       ing a specific metabolic pathway in C4 photosynthesis,
    model could be used as input to the shoot growth               Wang et al. 2014). The resulting model codes are often
    model. However, because the two models are written in          highly tuned for this one purpose and are written spe-
    different languages, the two models cannot be directly         cifically for scientists within an isolated group of collab-
    integrated. To integrate the models, a scientist must ei-      orators. As a result, it is unlikely that models produced
    ther ‘manually’ integrate them by running one model            by two independent groups will be directly compatible
    and then the other or translate one of the models into         in terms of language, data format or units (Marshall-
    the language of the other so that it can be called dir-        Colon et al. 2017).
    ectly. For a tightly coupled set of models such as these          There are models written in Matlab (Zhu et al. 2013;
    where one model depends directly on the result from            Wang et al. 2014), Python (Pradal et al. 2009), C++ (Merks
    the other at the current time step, manual integration         et al. 2011; Postma et al. 2017), Microsoft Excel (Sharkey
    is very inefficient for more than a handful of time steps      2016), Visual Basic (Humphries and Long 1995; Hall and
    even when done using a script. Although translating one        Minchin 2013), R (Wang et al. 2015), Java (Kappas et al.
    or both of these simple toy models would be relatively         2013; Song et al. 2013), Fortran (Goudriaan and Laar
    straight forward, actual plant models are much more            1994) and several domain-specific languages (DSLs,
    complex and could contain thousands of lines of code           e.g. Systems Biology Markup Language (SBML), Hucka
    that would be time consuming to translate and result in        et al. 2003). The variety of data formats used by these
    unnecessary duplication of model algorithms.                   codes is just as diverse. While some specific subfields
       We present an Open Source Python package, ygg-              have settled on standards for things like microarray
    drasil, for creating and running integration networks          gene expression data (e.g. MINiML, GEO 2017), many
    by connecting existing computational models written            models use unique data formats that may or may not
    in different programming languages. yggdrasil was              include metadata such as the data types, field names
    developed as part of the Crops in Silico (Marshall-Colon       or units. For example, while LPy (Boudon et al. 2012)
    et al. 2017) initiative to build a complete crop in silico     and Houdini FX (Houdini 2018) both allow users to spe-
    from the level of the genes to the level of the field. ygg-    cify plant structures via L-systems, they differ slightly
    drasil is available on Github (https://github.com/             in their syntax and so are not directly compatible. Or,
    cropsinsilico/yggdrasil) with full documenta-                  as another example, 3D canopy structures can be gen-
    tion     (https://cropsinsilico.github.io/ygg-                 erated in any unit and standard 3D geometry formats
    drasil/) and can be installed from PyPI (https://              like Ply (Turk 1994) and Obj (.obj 1994) do not include
    pypi.org/project/yggdrasil/) via pip install                   units in their metadata. As a result, if an LPy model pro-
    yggdrasil-framework or conda-forge (https://                   duces a canopy in Ply format with units of centimetres,
    github.com/conda-forge/yggdrasil-feedstock)                    the photosynthetic photon flux density output by a ray
    via conda -c conda-forge install yggdrasil.                    tracer like fastTracer (Song et al. 2013) (which expects a
    Although developed for the purpose of integrating plant        geometry in units of metres) would be incorrect.
    biology models, yggdrasil can be applied to any situation         As a result, integrating the two biological models
    requiring coordination between models in the supported         such as the root and shoot models discussed in the
    languages. The following section provides background           Introduction section requires that the following ques-
    information on existing efforts for cross-language model       tions be addressed first:

2   IN SILICO PLANTS https://academic.oup.com/insilicoplants                                             © The Author(s) 2019
Original Research yggdrasil: a Python package for integrating computational models across languages and scales - Oxford Journals
Lang — yggdrasil: a Python package for integrating computational models

1. Orchestration: How will models be executed?                   are powerful for organizing complex work flows, it is
2. Communication: How will information be passed                 the user’s onus to make sure that the components they
   from one model to the next across languages?                  connect are compatible and handle any data transform-
3. Translation: How will data output by one model be             ation that might be necessary, e.g. unit conversion or
   translated into a format understood by the next               field selection.
   model?                                                            There are also domain-specific frameworks for con-
                                                                 necting biological models. For example, OpenAlea
These three questions can be addressed through manual
                                                                 (Pradal et al. 2015) allows users to compose networks
integration (e.g. running the root model, converting the
                                                                 from different components, including plant models,

                                                                                                                               Downloaded from https://academic.oup.com/insilicoplants/article-abstract/1/1/diz001/5479575 by guest on 12 October 2019
output root mass into the units expected by the shoot
                                                                 analysis tools and visualization tools. Domain-specific
model, and then running the shoot model). However,
                                                                 frameworks are more intuitive and ultimately more
manual integration is (i) computationally inefficient
                                                                 flexible than DSLs in the types of operations they allow
when many iterations are necessary, such as during par-
                                                                 models to perform since they have access to the full
ameter searches or steady-state convergence tests, (ii)
                                                                 power of a programming language. However, they are
unique to every integration, requiring the production of
                                                                 stricter in several respects: (i) the model must be written
new scripts, (iii) time consuming, (iv) prone to error and
                                                                 in (or exposable to) the language of the framework and
(v) complex when more than three models are being
                                                                 (ii) the model must be written in a way that is aware of
integrated. Within both computational biology and the
                                                                 the framework and/or the format of models with which
larger scientific computing community, groups have
                                                                 it will interact. Like DSLs, frameworks also often provided
developed around different solutions to the problem of
                                                                 limited support for models written without the frame-
connecting models. These solutions can generally be
                                                                 work in mind.
grouped into two categories: DSLs and frameworks.
                                                                     yggdrasil is an example of a framework that over-
                                                                 comes these issues by exposing simple and easily ac-
Domain-specific languages
                                                                 cessible interfaces in the languages of the models (see
One solution is to agree upon a language. The ques-              Interface section) that permit messages to be passed
tions of orchestration, communication and translation            between the model processes as they run in parallel
become trivial when models are all written in the same           (see Communication section). As a result, models’ writ-
language. Beyond selecting a single programming lan-             ers only need knowledge of the language in which their
guage, many communities have developed dedicated                 model is written.
DSLs for model representation. For example, SBML is an
XML-based format for representing models of biological
processes (Hucka et al. 2003). Scientists can compose            Methods
their models using SBML mark-up and then run their               yggdrasil was designed to transform models into
model using software designed to parse SBML files.               building blocks that can be easily combined with other
Other DSLs for biological models include LPy (Boudon             blocks to build complex structures, thus promoting
et al. 2012), CellML (Cuellar et al. 2003), FLAME (Coakley       model reuse and collaboration between scientists
et al. 2012) and BioPAX (Demir et al. 2010). Dedicated           with varying degrees of overlapping expertise. ygg-
model DSLs improve the reusability of models written             drasil does so by addressing the questions from the
in the DSL and have the advantage of often implicitly            Background section while being:
handling data transformation. However, they provide no
help for existing models that are not written in the DSL         • Easy to use. Require as little modification to the model
or those that cannot be expressed within the constraints           source code as possible and only in the language of
of the DSL. Furthermore, learning a new DSL, in addition           the model itself.
to a programming language, can be daunting.                      • Efficient. Allow models to run in parallel with asyn-
                                                                   chronous communication that does not block model
                                                                   execution when a message is sent, but has yet to be
Workflow/data flow/framework
                                                                   received.
Another approach is a workflow/data flow/framework
                                                                 • Flexible. Provide the same interface to the user, re-
tool for models that are written in the same program-
                                                                   gardless of the communication mechanism being
ming language or can be wrapped using an intermediary
                                                                   used or the platform the model is being executed on.
(e.g. Cython, Behnel et al. 2011). For example, there
are many generic tools in Python for co-ordinating the           yggdrasil is built upon several well-established
execution of tasks in parallel or serial (e.g. Babuji et al.     open-source software packages (see below) along with
2018; Celery 2018; Luigi 2018). Although these tools             new tools developed explicitly for yggdrasil including

IN SILICO PLANTS https://academic.oup.com/insilicoplants                                               © The Author(s) 2019    3
Original Research yggdrasil: a Python package for integrating computational models across languages and scales - Oxford Journals
Lang — yggdrasil: a Python package for integrating computational models

    utilities for running and monitoring models written in         of another model. The yggdrasil CLI sets up the ne-
    other languages from Python, dynamically creating and         cessary communication mechanisms to then direct data
    managing communication networks, data-type conver-            from one model to the next in the specified pattern.
    sions between languages and asynchronous message              Models can have as many input and/or output variables
    passing with variable underlying communication mech-          as is desired and connections between models are spe-
    anisms. yggdrasil currently support models written in         cified by references to the input/output variables asso-
    Python, Matlab, C and C++ with additional DSL support         ciated with each model. In addition, input and output
    for LPy models (Boudon et al. 2012). Support for add-         variables can also be connected to files. This format al-
    itional languages is planned for future development (see      lows users the flexibility to create complex integration

                                                                                                                              Downloaded from https://academic.oup.com/insilicoplants/article-abstract/1/1/diz001/5479575 by guest on 12 October 2019
    Language support section).                                    networks and test models in isolation before running
                                                                  the entire integration network as will be seen in Worked
    Orchestration                                                 ­example section.
    yggdrasil is executed via a command line interface
    (CLI), yggrun with specification files (see Specification     Model execution. yggdrasil launches each model in
    files section) as input. On the basis of the information      an integration in its own process, allowing models to
    contained in the specification files, yggdrasil dynam-        complete independent operations in parallel and com-
    ically establishes a network of asynchronous commu-           plete tasks more quickly. For example, the root and shoot
    nication channels (see Communication section) and             growth models from the Introduction section (described
    launches the models on new processes (see Model exe-          further in the Worked example section) require 10.28
    cution section). Although written in Python, yggdrasil        and 10.40 s, respectively, to run for 100 time steps in
    was written such that users need not have any know-           isolation with direct input/output from/to files in their
    ledge of the Python language and can interact with            native language. If these two models were manually
    yggdrasil solely through the CLI. In addition to the          integrated in serial via the command line, the integra-
    CLI, more advanced capabilities are also exposed via the      tion would require a total of 20.68 s. However, because
    Python API including access to more detailed informa-         yggdrasil offers parallel execution of the models,
    tion about the running integration.                           the same integration requires only 16.03 s when using
                                                                  yggdrasil, a speed-up of 1.29. The exact speedup pro-
    Specification files. Users specify information about mod-     vided by parallel integration using yggdrasil depends
    els and integration networks via declarative YAML files       on how independent the models are and how equally
    (Ben-Kiki et al. 2009). The YAML file format was selected     distributed the work is between the models. If the mod-
    because it is human readable and there are many exist-        els are fully independent, the speedup is limited by the
    ing tools for parsing YAML formats in different program-      time required to execute the slowest model. If the mod-
    ming languages (e.g. PyYAML 2006; Simonov 2006;               els are dependent on one another, the models may have
    JS-YAML 2011). The declarative format allows users to         to wait to receive messages and the speedup will not be

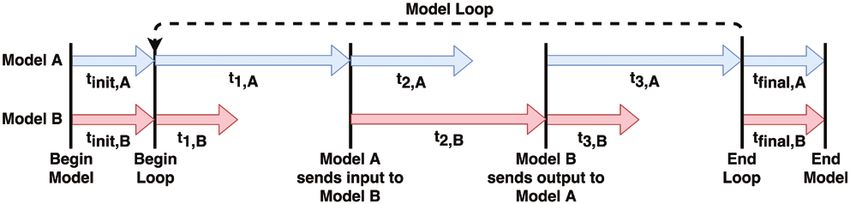

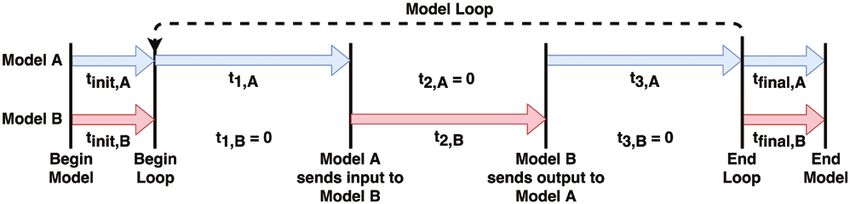

    specify exactly what they want to do, without describing      as great. The Speedup from parallelism section provides
    how it should be done. Although the information about         additional information about the speedups achievable
    models and integration networks can be contained in a         through yggdrasil parallel integration and how model
    single YAML file, the information can naturally be split      structure influences the size of the performance boost.
    between two or more files, one (or more) containing              Although every model is executed in a new process,
    information about the model(s) and one containing the         how the model is handled depends on the language it
    connections comprising the integration network. This          is written in. yggdrasil has a dedicated driver for each
    separation is advantageous because the model YAML             of the supported languages with utilities that allow
    can be re-used, unchanged, in conjunction with other          yggdrasil to launch and monitor executables written
    integration networks.                                         in that language from Python. Models written in inter-
       Model YAMLs include information about the location         preted languages (Python and Matlab) are executed
    of the model source code, the language the model is           on the command line via the interpreter. In the case of
    written in, how the model should be run and any input         Matlab, where a significant amount of time is required
    or output variables including their data type (e.g. array,    to start the Matlab interpreter (see Language), Matlab
    scalar, mesh) and physical units. Integration networks        shared engines are used to execute Matlab models.
    are specified by declaring the connections between            Matlab shared engines are Matlab instances that other
    models, and connections are declared by pairing an            processes can submit Matlab code to for execution.
    output variable from one model with the input variable        While shared engines also require the same amount of

4   IN SILICO PLANTS https://academic.oup.com/insilicoplants                                          © The Author(s) 2019
Original Research yggdrasil: a Python package for integrating computational models across languages and scales - Oxford Journals
Lang — yggdrasil: a Python package for integrating computational models

time to start as a standard instance of the Matlab inter-        number of routines that users need to use for integra-
preter, they can be started in advance and then reused.          tion (see Interface section).
   For the compiled languages (C and C++), there are                yggdrasil includes its own implementation of asyn-
a few options. The user can compile the model them-              chronous communication via each of the communica-
selves, provided they include the source code for the ap-        tion mechanisms that are supported. While there are
propriate dependencies at compilation and link against           existing tools for asynchronous communication using
the appropriate yggdrasil interface library. ygg-                each of these communication mechanisms, using a
drasil provides several command line tools for deter-            tool developed specifically for yggdrasil allows for a
mining the locations of the necessary libraries and any          more uniform treatment of the different communica-

                                                                                                                                 Downloaded from https://academic.oup.com/insilicoplants/article-abstract/1/1/diz001/5479575 by guest on 12 October 2019
required compilation/linking flags. Alternatively, users         tion mechanisms, greater control over how threads are
can provide the location of the model source code and            managed (e.g. killing a thread when messages cannot
let one of the several yggdrasil drivers handle the              be interpreted), and a more seamless coordination with
compilation, including linking against the appropriate           other yggdrasil processes (e.g. enforcing dependen-
yggdrasil interface library. yggdrasil also has sup-             cies on other model and connection threads).
port for compiling models using Make (Stallman et al.
2004) and CMake (Martin and Hoffman 2006) for models             System V interprocess communication queues. The first
that already have a Makefile or CMakeLists.txt. To use           communication mechanism used by yggdrasil was
these tools to compile a model, lines are added to the           System V interprocess communication (IPC) message
recipe in order to allow linking against yggdrasil.              queues (Rusling 1999) on Posix (Linux and Mac OS X) sys-
   Once the models are running, yggdrasil uses                   tems. IPC message queues allow messages to be passed
threads on the master process to monitor the progress            between models running on separate processes on the
of the model and report back model output (e.g. log              same machine. While IPC message queues are simple,

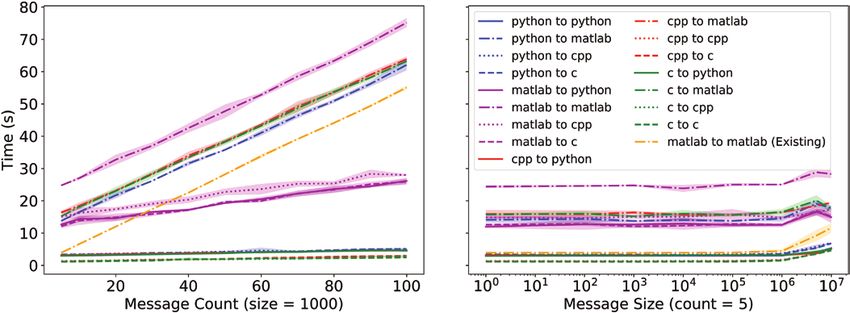

messages printed to stdout or stderr) and any status             fast (see Communication mechanism section) and are
changes. If a model issues any errors, the master pro-           built into most Posix operating systems, they do not work
cess will shut down any model processes that are still           in all situations. IPC queues are not natively supported by
running and close any connections, discarding any un-            Windows operating systems and do not allow communi-
processed messages. If a model completes without any             cation between remote processes. In addition, IPC queues
errors, the master process will cleanup any connections          also have relatively low default message size limits on Mac
that are no longer required after waiting for all mes-           OS X systems (2048 bytes or 256 64-bit numbers). Once
sages to be processed. The master process will only              the queue is full or if the message is larger than the limit,
complete once an error is encountered or all model pro-          any process attempting to send an additional message
cesses have completed.                                           will stop until a sufficient number of messages has been
   The algorithms for a generic model driver and the             removed from the queue to accommodate the new mes-
master thread are provided as Algorithms 4 and 5, re-            sage. For messages larger than the limit, the sending pro-
spectively, in the Appendix, Algorithms.                         cess will stop indefinitely. This bottleneck can be handled
                                                                 by splitting large messages into multiple smaller mes-
Communication                                                    sages (see Sending/receiving large messages section);
Integrating models requires that they are able to send           however, the time required to send a message increases
and receive information to and from other models                 with the number of message it must be broken into (see
written in different languages via some communication            Communication mechanism section). These limits make
mechanism. Communication within yggdrasil inte-                  sending large messages relatively inefficient when com-
gration networks was designed to be flexible in terms            pared with other communications mechanisms. As a
of the languages, platforms and data types available.            result, IPC queues are used by yggdrasil only as a fall-
To accomplish this, yggdrasil leverages three dif-               back on Posix systems if none of the other supported com-
ferent tools for communication, System V IPC Queues              munication libraries have not been installed.
(see System V IPC Queues section), ZeroMQ (see ZeroMQ
section) and RabbitMQ (see RabbitMQ section), which              ZeroMQ. The preferred communication mechanism used
each have their own strengths and weaknesses. The par-           by yggdrasil are ZeroMQ sockets (ZMQ; Akgul (2013)).
ticular communication mechanism used by yggdrasil                ZMQ provides broker-less communication via a number
is determined by the platform, available libraries and in-       of protocols and patterns with bindings in a wide variety
tegration strategy. However, regardless of the commu-            of languages that can be installed on Posix and Windows
nication mechanisms, the user will always use the same           operating systems. ZMQ was adopted by yggdrasil in
interface in the language of their model, simplifying the        order to allow support on Windows and for future target

IN SILICO PLANTS https://academic.oup.com/insilicoplants                                                © The Author(s) 2019     5
Original Research yggdrasil: a Python package for integrating computational models across languages and scales - Oxford Journals
Lang — yggdrasil: a Python package for integrating computational models

    languages (see Ongoing/future improvements section)                   to dropped messages, while not as necessary for inte-
    that could not be accomplished using IPC queues. In                   grations running entirely on a local machine, will be
    addition, while ZMQ allows interprocess communication                 more important for integrations running on distributed
    via IPC message queues, ZMQ also supports protocols                   resources with less reliable connections. As a result,
    for distributed communication via an Internet Protocol                yggdrasil includes support for brokered communi-
    (IP) network. While yggdrasil does not currently sup-                 cation via RabbitMQ (RMQ; RabbitMQ 2007) that will be
    port using these protocols for distributed integration                used during future development to allow integrations
    networks, this is an avenue of future development that                to run on distributed resources or include remote mod-
    has been prepared for.                                                els run as services (see Distributed systems section).

                                                                                                                                           Downloaded from https://academic.oup.com/insilicoplants/article-abstract/1/1/diz001/5479575 by guest on 12 October 2019
       In addition to using the default ZMQ libraries, ygg-               Due to the slower message speed, yggdrasil does not
    drasil also includes supporting routines for allowing                 currently use RMQ for communication unless explicitly
    received messages to be confirmed. Because ZMQ is broker-             specified by the user in their integration network YAML.
    less, a socket has no way of knowing if the message it sent
    was successfully received. This lack of confirmation makes            Asynchronous message passing. The same asyn-
    it harder to determine whether there is was error some-               chronous communication strategy is used with each of
    where along the network. yggdrasil overcomes this by                  the communication mechanisms supported by ygg-
    generating two ZMQ sockets for every connection: one for              drasil. Models do not block on sending messages to
    passing the messages and one for confirming them. Each                output channels; the model is free to continue working
    time a message is received, the receiving socket confirm-             on its task while an output driver waits for the message
    ation thread will send a confirmation including a unique              to be routed and received on a separate master process
    ID for the received message and then wait for a reply to              thread. Similarly, an input driver continuously checks
    that confirmation. The sending socket confirmation thread             input channels on another thread, moving received mes-
    will continuously check the confirmation sockets for mes-             sages into a intermediate buffer queue so that they are
    sages indicating that sent messages were received. Once               ready and waiting for the receiving model when it asks
    a confirmation message is received, it will send a reply              for input. These drivers work together to move m  ­ essages
    to the receiving confirmation socket and record the ID of             along from one model to the next like a conveyor belt. As
    the message that was confirmed. This handshake oper-                  a result, models in complex integration networks are not
    ation ensures that all messages are accounted for so ygg-             affected by the rate at which dependent model consume
    drasil knows if a message is lost and where it was lost.              their output and the speedup offered by running the
                                                                          models in parallel is improved. Fig. 1 describes the general
    RabbitMQ. While broker-less communication like ZMQ                    flow of messages, Algorithms 6 and 7 in the Appendix,
    is light weight and fast, it is not as fault tolerant as              Algorithms describe the asynchronous output and input
    brokered messaging systems that confirm message                       channel procedures and Algorithm 8 describes the pro-
    delivery and can resend dropped messages. Resilience                  cedure followed by input and output connection drivers.

    Fig. 1. Diagram of how messages are passed asynchronously using input/output drivers and an intermediate channel.
