Atrium double focus –
Sophisticated light for high
rooms
The lighting tool for perfectly looking into the luminaire. Con-
glare-free light from the ceiling centrated general lighting is thus
Atrium double focus down- created in low rooms. For rooms
lights are especially suitable for with inclined ceilings, a recessed
high rooms thanks to their high version is available that compen-
luminous flux and specific light sates for inclination angles up to
distributions. The lens systems 30°.
consisting of a collimator and
Spherolit lens generate narrow
downlight distributions, or as wall-
washers create efficient, precise
and highly uniform vertical lighting
even at small distances to the wall.
The black anti-glare cone achieves
a discreet appearance with all
versions, and also minimizes the
glare for high visual comfort when
E Technical region: 120V/60Hz, 277V/
60Hz
We reserve the right to make technical
Edition: 11.02.2020
Current version under
www.erco.com/atrium-df
2/10
and design changes.
Atrium double focus Recessed luminaires Atrium double focus Recessed luminaires
5
2
1
Outstanding uniformity Very high visual comfort Wallwashing for high rooms
To meet the stringent standards ERCO has developed luminaires Multi-storey spaces pose specific
of vertical illuminance, ERCO has with special housing designs and lighting challenges. Previously,
developed luminaires specifically highquality optical components wallwashers had to be mounted
6 to produce exceptionally uniform specifically for demanding visual in very high-ceilinged rooms at a
levels of illuminance. tasks to provide enhanced visual disproportionately great distance
comfort. from the wall; however, the ideal
position for the recently developed
Atrium double-focus wallwashers is
now at a distance of only one fifth
4 of the height of the room.
3
Also suitable for sloping ceilings Covered or flush mounting detail
As variants with a pivot angle of As standard, all recessed lumi-
up to 30°, double focus downlights naires have overlapping installation
can also be mounted in sloping details. Flush mounting rings are
ceilings. available as accessories.

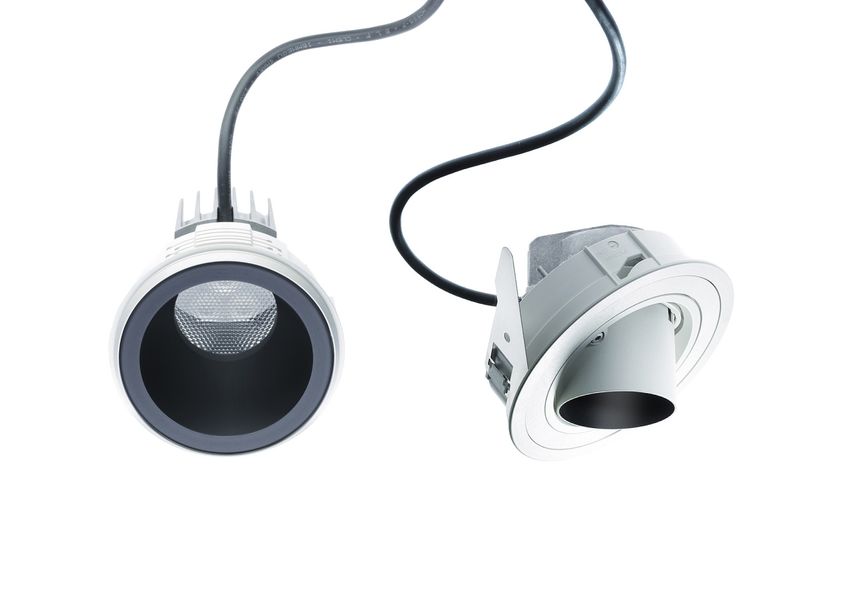

Structure and characteristics 1 ERCO Spherolit lens 4 Mounting ring 6 Control gear
The features described here are typical – Light distributions: flood, wide flood – Covered mounting detail – Switchable, trailing edge dimmable
of products in this range. Special ver- or wallwash – Fixing for ceiling thicknesses of or 0-10V dimmable
sions may offer additional or varying 1-25mm (size 3-4) or 1-30mm (size Trailing edge dimmable version:
features. A comprehensive description 2 ERCO LED-module 5-10) – Operation at 120V: Dimming with
of the features of individual products – High-power LEDs: warm white – Polymer, white external dimmers possible
can be found on our website. (2700K or 3000K) or neutral white – For flush mounting: mounting ring
(3500K or 4000K) to be ordered separately, fixing for Variants on request
– Collimating lens made of optical ceiling thicknesses of 12.5–25mm – Anti-glare cone: coated matt gold,
polymer matt silver or matt champagne
5 Housing – Mounting ring: 10,000 further colors
3 Anti-glare cone – Cast aluminum, designed as heat – Control: Lutron
– Optical cut-off 40° from horizontal sink Please contact your ERCO consultant.
– Black lacquered – Rotatable through 360°
– For inclined ceilings: 0°-30° tilt.
or Lockable angles of tilt and rotation
Special characteristics ERCO high-power LEDs Excellent thermal manage- Switchable
Anti-glare ring (double-focus for ment
inclined ceilings)
– Cast aluminum or polymer, external
white, internal black Excellent visual comfort Efficient Spherolit technol- EMC-optimized Trailing edge dimmable
ogy
Outstanding uniformity Optical cut-off 40° from Various construction sizes 0–10V 0-10V dimmable
horizontal
Wallwashing for high rooms Different light colors Lockable
Design and application: For inclined ceilings Tool-free mounting
www.erco.com/atrium-df
Flush or covered mounting
detail
E Technical region: 120V/60Hz, 277V/
60Hz
We reserve the right to make technical
Edition: 11.02.2020
Current version under
www.erco.com/atrium-df
3/10
E Technical region: 120V/60Hz, 277V/
60Hz
We reserve the right to make technical
Edition: 11.02.2020
Current version under
www.erco.com/atrium-df
4/10
and design changes. and design changes.
Atrium double focus Recessed luminaires – Luminaire arrangement
Downlights General lighting Tessmar recording
Flood, Wide flood For uniform general lighting, the studio, Hanover.
luminaire spacing (d) between two Lighting design:
PFE – planning
Atrium double focus downlights company for
can be half the height (h) of the electrical engi-
luminaire above the working plane neering, Hanover.
(rough guide). Erich Rusch, Elek-
trotechnische
Arrangement: d = h / 2 Anlagen GmbH,
Hanover. Photo-
graphy: Sebastian
Application area: rooms with high Mayer, Berlin.
ceilings, e.g. foyers or event halls.
The wall offset should be half the
luminaire spacing.
Arrangement: a = d / 2
Lens wallwashers Wallwashing
Wallwash Atrium double-focus wallwashers
enable uniform illumination of
high walls. The ideal spacing to the
wall (a) is a fifth of the room height
(h).
Arrangement: a = 1/5 x h
Application area: positioned close
to the wall, these luminaires are
ideal for atriums and foyers with
room heights above 6m, but work
just as well in rooms with lower
ceilings.
For wallwashing with good and
uniform horizontal illuminance,
the spacing (d) of double-focus
wallwashers may be up to 1.3 times
the offset from the wall (a).
Arrangement: a ≤ d x 1.3
E Technical region: 120V/60Hz, 277V/
60Hz
We reserve the right to make technical
Edition: 11.02.2020
Current version under
www.erco.com/atrium-df
5/10
E Technical region: 120V/60Hz, 277V/
60Hz
We reserve the right to make technical
Edition: 11.02.2020
Current version under
www.erco.com/atrium-df
6/10
and design changes. and design changes.
Atrium double focus Recessed luminaires
Construction size Size 3 Size 5 Size 7
7 3/16"
9 9/16"
183mm
243mm
160mm
6 5/16"
4 7/16" 6 15/16" 6 15/16"
d113mm d177mm d177mm
LED module
Maximum value 6W/825lm 18W/2475lm 24W/3300lm
at 4000K CRI 82
10W/1230lm 28W/3690lm 38W/4920lm
Light color
2700K CRI 92 3500K CRI 92 2700K CRI 92 3500K CRI 92 2700K CRI 92 3500K CRI 92
3000K CRI 92 4000K CRI 82 3000K CRI 92 4000K CRI 82 3000K CRI 92 4000K CRI 82
3000K CRI 97 4000K CRI 92 3000K CRI 97 4000K CRI 92 3000K CRI 97 4000K CRI 92
Light
distribution Downlights Lens wallwashers Downlights Lens wallwashers Downlights Lens wallwashers
Flood Wallwash Flood Wallwash Flood Wallwash
Wide flood Wide flood Wide flood
Control
Switchable Switchable Switchable
Trailing edge Trailing edge Trailing edge
dimmable dimmable dimmable
0–10V 0–10V 0–10V
Accessories
Junction box Mounting ring
Flexible metal Cover ring
conduit Article numbers and planning data:
www.erco.com/014930-us
Plaster frame
Design and application:
Ultra airtight www.erco.com/atrium-df
I.C. box
E Technical region: 120V/60Hz, 277V/
60Hz
We reserve the right to make technical
Edition: 11.02.2020
Current version under
www.erco.com/atrium-df
7/10
E Technical region: 120V/60Hz, 277V/
60Hz
We reserve the right to make technical
Edition: 11.02.2020
Current version under
www.erco.com/atrium-df
8/10
and design changes. and design changes.
Atrium double focus Recessed luminaires
Construction size Size 2 Size 4
m
m
115m
2"
107m
4 1/
4"
16" /16"
4 1/
5 9/ 8 11
2mm 1mm
d14 d22
LED module
Maximum value 6W/825lm 24W/3300lm
at 4000K CRI 82
10W/1230lm 38W/4920lm
Light color
2700K CRI 92 3500K CRI 92 2700K CRI 92 3500K CRI 92
3000K CRI 92 4000K CRI 82 3000K CRI 92 4000K CRI 82
3000K CRI 97 4000K CRI 92 3000K CRI 97 4000K CRI 92
Light CCK Centro
distribution Downlights Downlights Cultural Kirchner,
Buenos Aires.
Architecture: B4FS
Flood Flood - Federico Bares,
Enrique Bares,
Nicolás Bares,
Wide flood Wide flood Daniel Becker,
Claudio Ferrari,
Florencia Schnack,
Buenos Aires.
Photography:
Edgar Zippel,
Berlin.
Control
Switchable Switchable
Trailing edge Trailing edge
dimmable dimmable
0–10V 0–10V
Accessories
Junction box Mounting ring
Flexible metal Cover ring
conduit Article numbers and planning data:
www.erco.com/014930-us
Plaster frame
Design and application:
Ultra airtight www.erco.com/atrium-df
I.C. box
