Airlie sliding and stacker doors - bradnams enhanced living - Bradnam's NEW sliding and stacker door range
Airlie sliding
 and stacker
 doors
 bradnams enhanced living

Bradnam’s NEW
sliding and stacker door range
Airlie sliding and stacker doors - bradnams enhanced living - Bradnam's NEW sliding and stacker door range

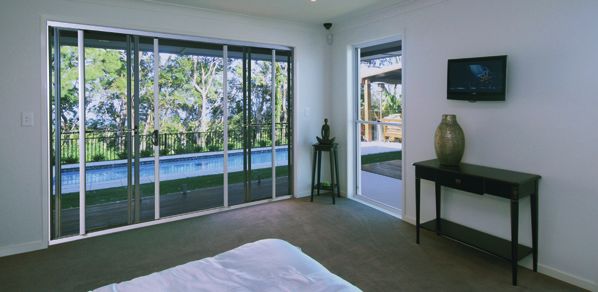

Airlie essential
      Enhance your home with Bradnam’s NEW Airlie Essential                                 Through their wide openings, Airlie Essential sliding and stacker
      sliding and stacker doors.                                                            doors can open your home to the great outdoors, giving you
                                                                                            easy access to patios, sundecks, courtyards and gardens.
      With their uncluttered lines and large glass areas, Airlie Essential
      doors bring optimum natural light and a sense of space into                           Superior assembly, materials and fittings ensures ease of use,
      any room.                                                                             long life and excellent security. Available in a wide range of sizes
                                                                                            and configurations, Airlie Essential doors are suitable for both
                                                                                            contemporary and traditional designs.
key features

                          Improved key positioning                                 Integrated tracks for insect,                  Rounded box section interlocks and
                            for easier operation                                      safety and Bradnam’s                        mullions prevent curtains from being
                                                                                    Stainless View™ screens                             damaged by sharp edges

      essential door                                                                        options
                                                                                            n	Accessibility sill for wheelchair access (sliding door only)
      other features and benefits                                                           n	Available with sidelites
      n	Clean, uncluttered profile for a modern, streamlined look
      n	Santoprene carbon seals for improved sealing and UV stability                      performance parameters
      n	Enhanced acoustic and energy performance                                           Maximum door height           2450mm
      n	New handle with mortice lock for superior security                                 Maximum door width            6246mm
      n	Tested to Australian standards (AS1288, AS2047)                                    Maximum panel width           1350mm
                                                                                            Maximum panel weight          50kg
      applications
                                                                                            Maximum water rating          300pa
      n	Residential construction
                                                                                            Maximum wind rating	N4 (as per AS4055 – Wind loads for housing)
      n	Renovation
                                                                                            Maximum glass thickness       6.76mm (single glazed)
      n	Unit complexes
                                                                                            Maximum acoustic rating       Rw30 (estimate only)

                                                                                            note: Subject to local variations, climate requirements,
                                                                                            and confirmation of structural performance
      All Airlie Doors come with Bradnam’s 7 Year Warranty*
      and a 3 Year Moving Part Guarantee
      * Workmanship and Material – Subject to standard warranty terms and conditions
Airlie sliding and stacker doors - bradnams enhanced living - Bradnam's NEW sliding and stacker door range

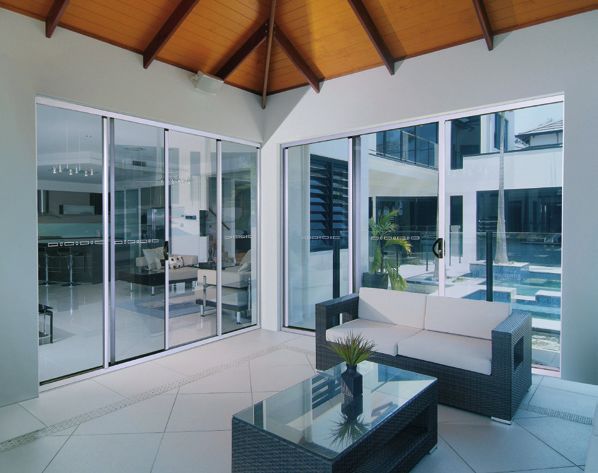

Airlie signature
 Airlie Signature sliding and stacker doors have been                         With a maximum height of 2850mm and corner stacking
 designed in response to emerging architectural trends and                    configurations available (90° and 135°), Airlie Signature doors
 performance requirements.                                                    allow expansive openings to be achieved.
 These premium doors offer superior features that set them                    Combine this with superior weather, acoustic and energy
 apart from competitors’ products for durability, performance                 capabilities, Airlie Signature sliding and stacker doors open up a
 and design excellence.                                                       whole new world of design and performance options for discerning
                                                                              renovators, homeowners, builders and designers.

Euro Track roller system and roller guard                      90° and 135° sliding                        5 track system allows for 11 different sliding
     ensures smooth sliding action                            configurations available                     configurations – 5 standard / 6 non standard
      Essential and Signature only                        Signature and Commercial only                          Signature and Commercial only

 signature door                                                               options
                                                                              n	Available with sidelites and hilites
 other features and benefits                                                      (subject to confirmation of structural performance)
 n	Clean, uncluttered profile for a modern, streamlined look                 n	Upgrade to 600pa sill for improved performance
 n	Inside and outside sliding panels available
 n	Santoprene carbon seals for improved sealing and UV stability             performance parameters
 n	New handle with mortice lock for superior security                        Maximum door height          2850mm
 n	Tested to Australian standards (AS1288, AS2047)                           Maximum door width           6246mm
                                                                              Maximum panel width          1350mm
 applications                                                                 Maximum panel weight         100kg
 n	Residential construction                                                  Maximum water rating	Standard sill = 360pa
 n	Renovation                                                                                      High performance sill = 600pa*
 n	High-rise / Unit complexes                                                Maximum wind rating	N6 (as per AS4055 – Wind loads for housing)
 n	Low-rise buildings                                                        Maximum glass thickness      12.76mm (single glazed) / 20mm (IGUs)
                                                                              Maximum acoustic rating      Rw33 (single glazed) (estimate only)
                                                                                                           Rw44 (full secondary glazing)^

                                            * Does not apply to 166mm frame   note: Subject to local variations, climate requirements,
                                            ^ Based on 166mm frame            and confirmation of structural performance
Airlie sliding and stacker doors - bradnams enhanced living - Bradnam's NEW sliding and stacker door range

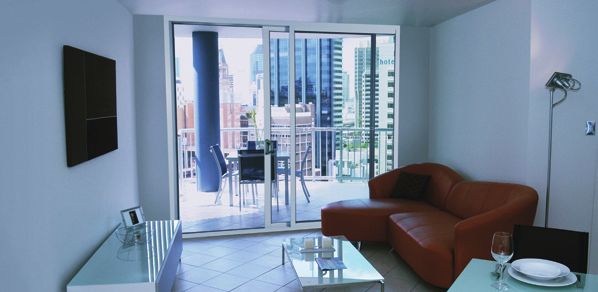

Airlie commercial
 For shop fronts, commercial buildings and ‘special’ residential          With functional capabilities such as 900pa water penetration,
 projects, Airlie Commercial sliding and stacker doors are the            N6 wind rating and 28mm IGUs, Airlie Commercial doors are
 natural choice.                                                          designed to meet the highest performance requirements.
 They have a maximum height of 3300mm and a maximum panel                 Like all of Bradnam’s commercial products, Airlie Commercial
 width of 1800mm. Their modular sills connect together to form            sliding and stacker doors are ‘custom made’ to suit each project,
 multi-track systems allowing for multiple sliding configurations.        allowing for outstanding flexibility in design and application.

Wider glazing pockets allow for greater             Multiple bogey roller options for smooth                   Modular sills connect together
 acoustic and thermal performance                    rolling up to sash weight of 200kgs                       to create multi-track systems
   Signature and Commercial only                               Commercial only                                       Commercial only

 commercial door                                                          options
                                                                          n	Available with sidelites and hilites
 other features and benefits                                                  (subject to confirmation of structural performance)
 n	Clean, uncluttered profile for a modern, streamlined look             n	Upgrade to 900pa sill for improved performance
 n	Inside and outside sliding panels available
 n	Santoprene carbon seals for improved sealing and UV stability         performance parameters
 n	Variety of different handles available                                Maximum door height          3300mm
 n	Tested to Australian standards (AS1288, AS2047)                       Maximum door width           6450mm
                                                                          Maximum panel width          1800mm
 applications                                                             Maximum panel weight         200kg
 n	Residential construction                                              Maximum water rating	Standard sill = 360pa
 n	Renovation                                                                                  High performance sill = 900pa
 n	High-rise / Unit complexes                                            Maximum wind rating	N6 (as per AS4055 – Wind loads for housing)
 n	Low-rise buildings                                                    Maximum glass thickness      10.76mm (single glazed) / 28mm (IGUs)
 n	Shop fronts / Commercial buildings                                    Maximum acoustic rating      Rw33 (single glazed)

                                                                          note: Subject to local variations, climate requirements,
                                                                          and confirmation of structural performance
Airlie essential and signature stacker                                                        doors                       610Pa

                          standard size range
Standard sizes will vary for products performing to higher wind pressures                                  Upgraded performance products available

     OPENING             2208mm                2748mm                  3288mm                     3648mm                      4098mm
    STUD

           DOOR SIZE    2148mm                  2688mm                 3228mm                     3588mm                      4038mm

 2130mm    2100mm

                        XXO2122                XXO2127                XXO2132                    XXO2136                     XXO2140
                                                                                                                 note: Also available as OXX configuration
     OPENING            2208mm                 2748mm                  3288mm                    3648mm                      4098mm
    STUD

           DOOR SIZE    2148mm                  2688mm                 3228mm                    3588mm                      4038mm

 2430mm    2400mm

                        XXO2422                XXO2427                XXO2432                   XXO2436                      XXO2440
                                                                                                                 note: Also available as OXX configuration
     OPENING                        4326mm                                        5406mm                                               6306mm
    STUD

           DOOR SIZE                4266mm                                        5346mm                                               6246mm

 2130mm    2100mm

                                  OXXXXO2143                                    OXXXXO2153                                         OXXXXO2162

     OPENING                        4326mm                                        5406mm                                               6306mm
    STUD

           DOOR SIZE                4266mm                                        5346mm                                               6246mm

 2430mm    2400mm

                                  OXXXXO2443                                    OXXXXO2453                                         OXXXXO2462

                                                                                                X = Sliding Panel O = Fixed Panel (Viewed from exterior)
non standard configurations available
(Availability subject to local variations or climate requirements. Screening not available in these non standard configurations)

sliding door and stacker door information
n   All door diagrams shown above are viewed from the exterior
n   All standard sliding doors are fitted with safety glass complete with motif
n   Reveal lining is not fitted to the door sill
n   Black hardware standard                                                                                               motifs
                                                                                                                          Bradnam’s complies with the
note: Airlie sliding and stacker doors may be subject to local variation or climate requirements.                         Building Code of Australia (BCA)
For more information call 1300 WINDOWS to check with your nearest Bradnam’s branch.
Airlie essential and signature sliding                                                     doors                      610Pa

                         standard size range
Standard sizes will vary for products performing to higher wind pressures                              Upgraded performance products available

    OPENING            1510mm      1870mm              2230mm           2470mm              2770mm
   STUD

          FRAME SIZE   1450mm      1810mm              2170mm           2410mm              2710mm

 2130mm   2100mm

                       XO2115      XO2118              XO2122           XO2124              XO2127

 2430mm   2400mm

                       XO2415      XO2418              XO2421          XO2424               XO2427
                                                                                                                note: Also available as OX configuration
    OPENING            2208mm        2748mm                 3288mm                3648mm                   4098mm
   STUD

          FRAME SIZE   2148mm        2688mm                 3228mm                3588mm                   4038mm

 2130mm   2100mm

                       OXO2122      OXO2127                OXO2132                OXO2136                 OXO2140

 2430mm   2400mm

                       OXO2422      OXO2427                OXO2432                OXO2436                 OXO2440

    OPENING              2924mm              3644mm                     4364mm                       4844mm                          5444mm
   STUD

          FRAME SIZE     2864mm              3584mm                     4304mm                        4784mm                         5384mm

2130mm    2100mm

                        OXXO2129            OXXO2136                   OXXO2143                      OXXO2148                       OXXO2154

2430mm    2400mm

                        OXXO2429            OXXO2436                   OXXO2443                      OXXO2448                       OXXO2454

                                                                                             X = Sliding Panel O = Fixed Panel (Viewed from exterior)

                                                                                                                     © Bradnam’s Windows and Doors 2009

                                                                     Australian owned and made
