Aircrete Blocks Product Guide - Forterra
Aircrete
Blocks
Product Guide
Aircrete Blocks Product Guide - Forterra

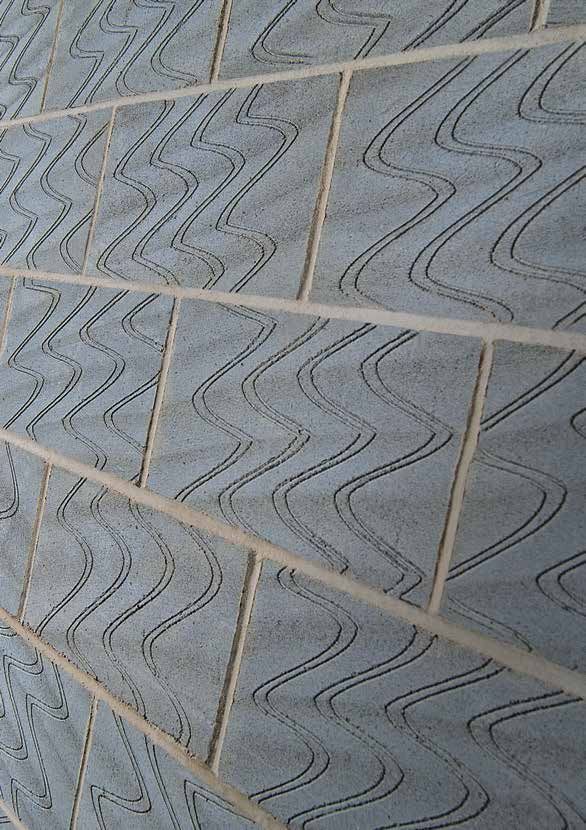

Thermalite blocks are manufactured with scratch marks to identify
                                                  the different range of densities in which they are produced.
                                                  The products and corresponding scratch marks are shown below.

               Turbo:                                         Shield and Trenchblock/                             Hi-Strength 7 and          Hi-Strength 9:              Hi-Strength Paint Grade:           Party Wall and Floorblock:
               6 scratch marks - page 8                       Tongue & Groove:                                    Hi-Strength Trenchblock:   2 scratch marks - page 11   0 scratch marks - page 12          9 scratch marks - pages 13 and 14
                                                              4 pairs of scratch marks -                          4 scratch marks -
                                                              pages 9 and 15                                      pages 10 and 16

    Introduction                                                                                                                                                                                     Contents
                                                                                                                                                                                                     Product identification                2
    Thermalite aircrete blocks from Forterra offer cost-effective solutions                                                                                                                          Thermalite benefits                   4
    for a wide range of applications. The closed micro-cellular structure of                                                                                                                         Applications                          6
    Thermalite, featuring millions of tiny pockets of trapped air, gives this                                                                                                                        Products                          8-18
    product its distinctive features: high compressive strength, lightness                                                                                                                           Thin joint masonry                  20

    for handling, high thermal insulation and moisture resistance.                                                                                                                                   Performance                         24
                                                                                                                                                                                                     Sound insulation                    26
    Continual research and development has resulted in a range of building                                                                                                                           Mortar and finishes                 32
    blocks that meet the demands of the modern construction industry.                                                                                                                                Thermal insulation and U-values     34
    With up to 80% recycled content, Thermalite blocks are a lightweight, sustainable                                                                                                                Sustainability                      42
    building material that are not only easy to handle, but are extremely workable, and                                                                                                              Pack and load data                  46
    easily cut, sawn and chased accurately with ordinary hand tools.                                                                                                                                 Material safety data                48
                                                                                                                                                                                                     CDM Regulations                     50

2   All product and technical information contained in this brochure is considered correct at the time of publication.                                                                                                                          3
Aircrete Blocks Product Guide - Forterra
Benefits

    Forterra’s aircrete blocks are stocked by       Properties                                         Workability                                        Services
    a large network of builders merchants
    across the UK, ensuring easy availability.      High insulation                                    One hand lift                                      Customer service
    The extensive product range means that          The excellent thermal performance of               The light weight of Thermalite blocks ensures     Forterra has a reputation for first class
    a variety of tried and tested, cost-effective   Thermalite aircrete blocks can reduce the           that they can be laid more quickly, leading to    customer care. Wherever you are, our
    solutions can be offered for wall, floor and    need for additional insulation materials.           significant productivity gains for the builder.   dedicated Thermalite team will be able to
    below-ground constructions.                                                                                                                           help you with product information, quotations,
                                                    Moisture resistant                                 Easily worked
                                                                                                                                                          orders, distribution facilities and stockist
    Forterra manufactures its Thermalite            Each Thermalite block contains millions of tiny   There is no need for special tools because
                                                                                                                                                          information.
    products to a quality-assured system in          pockets of trapped air, preventing the passage    Thermalite blocks can be easily sawn, cut,
    accordance with EN ISO 9001 and BS EN            of water.                                         chased and drilled using ordinary hand tools.      Technical service
    771-4, ensuring compliance with all relevant                                                                                                          Forterra provides a full technical advisory service
                                                    Fire resistant                                     Easily fixed to
    standards and codes of practice. In addition,                                                                                                         staffed by a qualified team with specialist,
                                                    All Thermalite products provide excellent fire     Generally, no special fixings need to be used
    Thermalite products have independent                                                                                                                  knowledge on the use of Thermalite products.
                                                    protection. They are classified as A1, non-         with Thermalite products, which provide an
    certification from the British Board of                                                                                                               Technical advice can be provided on Building
                                                    combustible in accordance with BS EN 771-4.         ideal background for fixing household fittings
    Agrément (BBA).                                                                                                                                       Regulations, including thermal calculations.
                                                                                                        using ordinary cut nails, direct screwing or
                                                    Frost resistant
    All manufacturing locations are certified to                                                        screws with plugs.                                Website
                                                    Thermalite blocks offer superior protection
    the environmental standard EN IS0 14001.                                                                                                              For up-to-date information regarding our
                                                     against the effects of frost.                     Easy to finish
                                                                                                                                                          products and services visit our website at:
    All Thermalite blocks are certified as                                                             Thermalite blocks provide an excellent
                                                    Strong                                                                                                forterra.co.uk
    ‘Very Good’ under BES 6001, Responsible                                                             background for the use of internal and
                                                    Thermalite products are very strong, as well as
    Sourcing of Materials.                                                                              external finishes, such as plaster, render,
                                                     lightweight, and may be used in loadbearing
                                                                                                        painting or tiling.
                                                     walls for a structurally sound building.

                                                                                                                                                                                                 0640

4                                                                                                                                                                                                               5
Aircrete Blocks Product Guide - Forterra
Applications

    The high level of             Foundations                                          Cavity walls                                      Partitions
    performance achieved          • Trenchblock/Tongue & Groove                        • Shield • Turbo • Hi-Strength                    • Shield • Party Wall
                                                                                       • Hi-Strength Paint Grade                         • Hi-Strength Paint Grade
    by Thermalite blocks,         Trenchblock and Trenchblock Tongue &
                                  Groove have been specifically developed for          Shield and Turbo are most often used for the      Thermalite blocks are suitable for the
    combined with the             use in the construction of solid foundation          construction of inner leaves in conjunction       construction of partition walls above and
    extensive product range       walls. By combining light weight with a large        with a cavity and a brick or block outer leaf.    below dpc level. The use of Shield in
    offered, ensures that         modular size, Trenchblock is a popular choice
                                                                                       As an alternative, Thermalite Hi-Strength 7
                                                                                                                                         single leaf partitions will greatly reduce
                                  with builders. Trenchblock Tongue & Groove                                                             sound transmission, and provides an ideal
    cost-effective solutions      offers the addition of hand holds for even
                                                                                       and Hi-Strength 9 are available for situations
                                                                                                                                         background for fixing shelves, radiators
                                                                                       where loading conditions require 7.3N/mm2
    for wall, floor and below     easier lifting, along with tongue and groove
                                                                                       and 9.0N/mm2 respectively. Additionally,
                                                                                                                                         and bathroom fittings.
                                  joints which avoid the need for mortar in the
    ground constructions can                                                           Hi-Strength Paint Grade is available for
                                  perpends. Suitable for below ground level only.                                                        Separating walls
    be achieved. Thermalite                                                            situations in which the builder wishes to
                                                                                       achieve a painted finish.                         • Party Wall • Shield
    products are available for    Beam and block floors                                                                                  • Hi-Strength 7 • Hi-Strength 9
                                                                                       Even higher thermal insulation values can
    use in all of the following   • Floorblock
                                                                                       be achieved by specifying Shield for the          Thermalite Party Wall, Shield, Hi-Strength 7
    applications:                 The Thermalite Floorblock system is designed         construction of the external leaf of a cavity     and Hi-Strength 9 blocks can be used in
                                  for use with all proprietary T-beams. The use        wall, which can be either rendered or clad with   all types of sound insulating separating walls
                                  of Floorblock in conjunction with Trenchblock        systems such as tile hanging or brick slips.      between dwellings.
                                  will effectively contribute to meeting the thermal
                                  requirements of the Building Regulations.
                                                                                       Solid walls                                       Detailing
                                                                                       • Shield • Turbo • Hi-Strength                    • Coursing Brick and Coursing Block
                                                                                                                                         Thermalite Coursing Bricks and Blocks
                                                                                       Solid walls are a tried and tested, fast and
                                                                                                                                         are produced especially for coursing and
                                                                                       efficient way of constructing walls which
                                                                                                                                         bonding-in to enable walls to be constructed
                                                                                       offer higher U-values. Shield and Turbo are
                                                                                                                                         from uniform materials and reduce cold bridging.
                                                                                       produced in thicknesses suitable for solid
                                                                                       wall construction. Alternatively, Hi-Strength
                                                                                       7 or Hi-Strength 9 may be used to meet            External Finish
                                                                                       special requirements.                             Thermalite blocks require a moisture resistant
                                                                                                                                         finish or impervious cladding applied when
                                                                                                                                         used on the external skin of a cavity wall or
                                                                                                                                         solid wall, blocks should not be left fair-faced.

6                                                                                                                                                                                            7
Aircrete Blocks Product Guide - Forterra
Turbo                                                                                                                                        Shield
    • External Walls                                                                                                                             • External Walls
    • Foundations                                                                                                                                • Foundations
    • Partitions                                                                                                                                 • Partitions
                                                                                                                                                 • Separating Walls

    Turbo offers very high thermal                                                                                                               Shield combines all the normal
    insulation properties and is therefore                                                                                                       qualities of Thermalite blocks with
    ideal for external solid wall applications                                                                                                   extremely high moisture resistance.
    (min. block thickness of 215mm
    required for solid wall**) where low                                                                                                         • Available in large format
    U-values are required.                                                             Key Data                                                  • For use with thin layer mortar                                                  Key Data
    • Available in large format                                                        Strength 2.9N/mm2                                                                                                                           Strength 3.6N/mm2
    •	For use with thin layer mortar
    •	Use only in soils up to Design                                                  Thermal conductivity 0.11W/m.K                                                                                                              Thermal conductivity 0.15W/m.K
       Sulfate Class DS 3* below ground                                                Density 470Kg/m3                                                                                                                            Density 600Kg/m3

    Thermalite blocks require a moisture resistant finish or impervious cladding applied when                                                    Thermalite blocks require a moisture resistant finish or impervious cladding applied when
    used on the external skin of a cavity wall or solid wall, blocks should not be left fair-faced.                                              used on the external skin of a cavity wall or solid wall, blocks should not be left fair-faced.

        Specifications                                                                                                                               Specifications
        Working dimensions                                                                                                                           Working dimensions
        Face dimensions (mm) 440 x 215                                                                                                               Face dimensions (mm) 440 x 215
        Thicknesses and weights                                                                                                                      Thicknesses and weights
        Block thicknesses and weights at equilibrium density (for 440 x 215mm)                                                                       Block thicknesses and weights at equilibrium density (for 440 x 215mm)
        Thickness (mm)                           100              140              150†             190†             200†              215           Thickness (mm)                       50             75           100            140           150           200    215†
        Weight1      3% (kg)                     4.6               6.4              6.9              8.7               9.2                 9.8       Weight1      3% (kg)                 2.9           4.4            5.8           8.2            8.8          11.7   12.6
        Weight2 23% (kg)                         5.5               7.7              8.2             10.4              10.9             11.8          Weight2 23% (kg)                     3.5           5.2            7.0           9.8           10.5          14.0   15.0
        Properties                                                                                                                                   Properties
        Mean compressive strength not less than 2.9N/mm2                                                                                             Mean compressive strength not less than 3.6N/mm2
        Design thermal conductivity (λ) 0.11W/m.K                                                                                                    Design thermal conductivity (λ) 0.15W/m.K
        Dry thermal conductivity value: (λ10,dry, unit ) 0.10W/m.K                                                                                   Dry thermal conductivity value: (λ10,dry, unit ) 0.13W/m.K
        Specified gross dry density 470kg/m3                                                                                                         Specified gross dry density 600kg/m3

    1 Weights based equilibrium moisture content.                                                                                                1 Weights based equilibrium moisture content.
    2 Typical as received weights, the percentage can vary depending on climatic and storage conditions.                                         2 Typical as received weights, the percentage can vary depending on climatic and storage conditions.
    * May be used in situations described in Table 13 of BS 5628: Part 3 A1, A2 but not in situations described in A3                            † Manufactured to special order only.
       (no longer current but still cited in the Building Regulations).                                                                          ‡	Only available in 100mm thickness with a compressive strength of 3N/mm2, manufactured to special order only.
    † Manufactured to special order only.
    ** Thermalite Turbo blocks must be a minimum of 215mm thick to accept a traditional sand / cement render coat.
       This is to minimise the risk of failure caused by the differences in tensile strength between the finish and background material.

8                                                                                                                                                                                                                                                                              9
Aircrete Blocks Product Guide - Forterra
Hi-Strength 7                                                                                                        Hi-Strength 9
     • External Walls                                                                                                     • External Walls
     • Foundations                                                                                                        • Foundations
     • Partitions                                                                                                         • Partitions
     • Separating Walls                                                                                                   • Separating walls

     Hi-Strength 7 has been specifically                                                                                  Hi-Strength 9 has been specifically
     designed for applications such as flats                                                                              developed for structural applications
     of three storeys and above, offices,                                                                                 such as three and four storey buildings
     supermarkets and retail parks, where                                                                                 where loading conditions require a
     loading conditions require a 7.3N/mm2                                                                                higher compressive strength block.
     building block.                                                                  Key Data                            Hi-Strength 9 blocks are available in
                                                                                                                                                                                                             Key Data
     • Available in large format                                                     Strength 7.3N/mm2                   a range of thicknesses as a special                                                Strength 9.0N/mm2 *
     • For use with thin layer mortar                                                                                    order item.                                                                        at Category I manufacture.
                                                                                      Thermal conductivity 0.18W/m.K                                                                                         Equivalent compressive strength
                                                                                                                                                                                                             10.4N/mm² Category II block (when
                                                                                      Density 730Kg/m3                                                                                                       calculated in accordance with EC6)
                                                                                                                          Thermalite blocks require a moisture resistant                                     Thermal conductivity 0.19W/m.K
                                                                                                                          finish or impervious cladding applied when used
     Thermalite blocks require a moisture resistant finish or impervious cladding applied when                            on the external skin of a cavity wall or solid wall,                               Density 770Kg/m3
     used on the external skin of a cavity wall or solid wall, blocks should not be left fair-faced.                      blocks should not be left fair-faced.

         Specifications                                                                                                       Specifications
         Working dimensions                                                                                                   Working dimensions
         Face dimensions (mm) 440 x 215                                                                                       Face dimensions (mm) 440 x 215
         Thicknesses and weights                                                                                              Thicknesses and weights
         Block thicknesses and weights at equilibrium density (for 440 x 215mm)                                               Block thicknesses and weights at equilibrium density (for 440 x 215mm)
         Thickness (mm)                      100              140              150†             190†        200†   215        Thickness (mm)                       100†           140†              190†             200†        215       355‡
         Weight1      3% (kg)                 7.1             10.0             10.7             13.5        14.2   15.3       Weight1      3% (kg)                 7.5             10.5             14.3             15.0        16.1      26.6
         Weight2 22% (kg)                     8.4             11.8             12.6             16.0        16.9   18.1       Weight2 22% (kg)                     8.9             12.4             16.9              17.8       19.1      31.5
         Properties                                                                                                           Properties
         Mean compressive strength not less than 7.3N/mm2                                                                     Mean compressive strength 9.0N/mm2 *
         Design thermal conductivity (λ) 0.18W/m.K                                                                            Design thermal conductivity (λ) 0.19W/m.K
         Dry thermal conductivity value: (λ10,dry, unit ) 0.16W/m.K                                                           Design thermal conductivity below ground (λ) 0.31W/m.K
         Specified gross dry density 730kg/m3                                                                                 Dry thermal conductivity value: (λ10,dry, unit ) 0.17W/m.K
                                                                                                                              Specified gross dry density 770kg/m3
     1 Weights based equilibrium moisture content.
     2 Typical as received weights, the percentage can vary depending on climatic and storage conditions.                 1 Weights based equilibrium moisture content.
     † Manufactured to special order only.		                                                                              2 Typical as received weights, the percentage can vary depending on climatic and storage conditions.
                                                                                                                          † Manufactured to special order only.
                                                                                                                          * Blocks are manufactured to BS EN 771-4, Category 1.
                                                                                                                          ‡ Available in tongue and groove only.

10                                                                                                                                                                                                                                                11
Aircrete Blocks Product Guide - Forterra
Hi-Strength                                                                                                         Party Wall
     Paint Grade                                                                                                         • Separating Walls
                                                                                                                         • External Walls
     • Inner Leaves of External Walls                                                                                    • Partitions
     • Partitions                                                                                                        • Foundations

     Hi-Strength Paint Grade combines a high                                                                             Party Wall gives very high levels of
     quality appearance with the compressive                                                                             sound reduction in separating walls
     strength of Thermalite Hi-Strength blocks.                                                                          between buildings.
     Note: If required, Hi-Strength Paint Grade can also be
     laid fair-faced. However, consideration should be given
                                                                                                                         •A
                                                                                                                           vailable in large format
     to the fact that colour variation can occur.                                                                        •F
                                                                                                                           or use with thin layer mortar
     It is recommended that a Hi-Strength Paint Grade                                   Key Data                                                                                                          Key Data
     sample panel is erected for comparison purposes
     before construction commences, and that selection                                  Strength 7.3N/mm2                                                                                                 Strength 4.0N/mm2
     is undertaken during construction. It may also be
     necessary to fill small blow holes before decoration.
                                                                                        Thermal conductivity 0.18W/m.K                                                                                    Thermal conductivity 0.16W/m.K
     Due to thickness variations within manufacturing
     tolerances, it may be difficult to build solid partition walls                     Density 730Kg/m3                                                                                                  Density 660Kg/m3
     which have a smooth and even surface on both sides.

     Thermalite blocks require a moisture resistant finish or impervious cladding applied when                           Thermalite blocks require a moisture resistant finish or impervious cladding applied when
     used on the external skin of a cavity wall or solid wall, blocks should not be left fair-faced.                     used on the external skin of a cavity wall or solid wall, blocks should not be left fair-faced.

         Specifications                                                                                                      Specifications
         Working dimensions                                                                                                  Working dimensions
         Face dimensions (mm) 440 x 215                                                                                      Face dimensions (mm) 440 x 215
         Thicknesses and weights                                                                                             Thicknesses and weights
         Block thicknesses and weights at equilibrium density (for 440 x 215mm)                                              Block thicknesses and weights at equilibrium density (for 440 x 215mm)
         Thickness (mm)                                100†                140†                      190†       215†         Thickness (mm)                                       100†                                          215
         Weight1        3% (kg)                         7.1                 10.0                     13.5       15.3         Weight1      3% (kg)                                   6.4                                         13.8
         Weight2 22% (kg)                               8.4                 11.8                     16.0       18.1         Weight2 23% (kg)                                       7.7                                         16.5
         Properties                                                                                                          Properties
         Mean compressive strength not less than 7.3N/mm2                                                                    Mean compressive strength not less than 4.0N/mm2
         Design thermal conductivity (λ) 0.18W/m.K                                                                           Design thermal conductivity (λ) 0.16W/m.K
         Dry thermal conductivity value: (λ10,dry, unit ) 0.16W/m.K                                                          Dry thermal conductivity value: (λ10,dry, unit ) 0.14W/m.K
         Specified gross dry density 730kg/m3                                                                                Specified gross dry density 660kg/m3

     1 Weights based equilibrium moisture content.                                                                       1 Weights based equilibrium moisture content.
     2 Typical as received weights, the percentage can vary depending on climatic and storage conditions.                2 Typical as received weights, the percentage can vary depending on climatic and storage conditions.
     † Manufactured to special order only.		                                                                             † Manufactured to special order only.

12                                                                                                                                                                                                                                         13
Aircrete Blocks Product Guide - Forterra
Floorblock                                                                                                           Trenchblock /
     • Beam & Block Floors                                                                                                Tongue & Groove
                                                                                                                          • Foundations

     Floorblock is an efficient method of                                                                                 Thermalite Trenchblock is a tried and
     providing insulated floors. It is light in                                                                           tested, economical alternative to the
     weight and is designed for use with all                                                                              construction of cavity walls with concrete
     proprietary T-beams and can improve the                                                                              infill, engineering bricks or heavy aggregate
     thermal performance of the floor.                                                                                    blocks for foundations.
     Note: After the Floorblocks have been positioned, before
                                                                                        Key Data                          •	For use in soils of up to
                                                                                                                                                                                                           Key Data
     any traffic or loading is allowed and before any floor finish
     is commenced, the floor must be grouted with a                                     Strength 4.0N/mm2                    Design Sulfate Class DS 4                                                     Strength 3.6N/mm2
     1:4 cement/sharp sand composition.                                                                                   •	Available with tongue and
                                                                                        Thermal conductivity 0.16W/m.K       groove joints and handholds                                                   Thermal conductivity
                                                                                                                                                                                                           Below ground: 0.24W/m.K
                                                                                        Density 660Kg/m3                  •	Improves thermal performance
                                                                                                                          • Eliminates the need to mortar perpends                                         Density 600Kg/m3
                                                                                                                          • For use below ground level only

         Specifications                                                                                                       Specifications
         Face dimensions (mm)                           440 x 215†                    440 x 350†            540 x 440*†       Working dimensions
         Block Thickness                                     100                           100                 100            Face dimensions (mm) 440 x 215, 440 x 140*
         Weight1 3% (kg)                                      6.4                         10.5                 16.2           Thicknesses and weights
                                                                                                                              Block thicknesses and weights at equilibrium density (for 440 x 215mm)
         Weight2       22% (kg)                               7.7                         12.5                 19.3
                                                                                                                              Thickness (mm)                                       300‡                                          355
         Properties
                                                                                                                              Weight1      3% (kg)                                  17.5                                         20.9
         Mean compressive strength not less than 4.0N/mm2
         Design thermal conductivity (λ) 0.16W/m.K                                                                            Weight2 22% (kg)                                      20.8                                         24.8
         Dry thermal conductivity value: (λ10,dry, unit ) 0.14W/m.K                                                           Properties
         Specified gross dry density 660kg/m3                                                                                 Mean compressive strength not less than 3.6N/mm2
                                                                                                                              Design thermal conductivity (λ) 0.15W/m.K (above dpc), 0.24W/m.K (below ground)
                                                                                                                              Dry thermal conductivity value: (λ10,dry, unit ) 0.13W/m.K
     1 Weights based equilibrium moisture content.
                                                                                                                              Specified gross dry density 600kg/m3
     2 Typical as received weights, the percentage can vary depending on climatic and storage conditions.
     † Manufactured to special order only.
     * Blocks can be laid to correspond with 540mm beam spacing (660Kg/m³ density only).
                                                                                                                          1 Weights based equilibrium moisture content.
                                                                                                                          2 Typical as received weights, the percentage can vary depending on climatic and storage conditions.
                                                                                                                          * Not available with tongue and groove joints
                                                                                                                          † Manufactured to special order only.
                                                                                                                          ‡ Manufactured to special order only at 140mm high.

14                                                                                                                                                                                                                                      15
Aircrete Blocks Product Guide - Forterra
Hi-Strength Trenchblock /                                                                                     Coursing Brick
     Tongue & Groove                                                                                               • Bonding
                                                                                                                   • Coursing
     • Foundations
                                                                                                                   • Infill
                                                                                                                   • Making up

     Thermalite Hi-Strength Trenchblock                                                                            Coursing Bricks are autoclaved
     provides all the benefits of                                                                                  aerated units produced in standard
     Trenchblock, together with the                                                                                brick sizes for use in bonding and
     7.3N/mm2 compressive strength of                                                                              infill to ensure that a uniform thermal
     Thermalite Hi-Strength.                                                                                       performance is achieved throughout                                               Key Data
     • For use in soils of up to Design
                                                                                        Key Data                   the wall.
                                                                                                                                                                                                    Strength 2.9N/mm2
       Sulfate Class DS 4                                                               Strength 7.3N/mm2          • Protect against pattern staining                                               Thermal conductivity
     • Available with tongue and groove		                                                                          •	Infill above doors and windows                                                Standard: 0.15W/m.K
       joints and handholds                                                             Thermal conductivity       • Coursing at floor and ceiling level
                                                                                        Below ground: 0.29W/m.K
     • For use below ground level only                                                                             • Making up between joists                                                       Note: Thermalite Coursing Bricks are suitable
                                                                                                                                                                                                    for use externally (with an impervious finish) and
                                                                                        Density 730Kg/m3                                                                                            internally, above or below dpc level, in loadbearing
                                                                                                                                                                                                    or non-loadbearing applications.
                                                                                                                                                                                                    Loadbearing walls should not be constructed with
                                                                                                                                                                                                    Thermalite Coursing Bricks as the sole masonry unit.
                                                                                                                                                                                                    Additionally, standard Coursing Bricks should not
                                                                                                                                                                                                    be used in walls where the compressive strength
                                                                                                                                                                                                    requirement for the blockwork is in excess of 2.9N/mm2.

         Specifications
         Working dimensions
         Face dimensions (mm) 440 x 215                                                                                Specifications
         Thicknesses and weights                                                                                       Working dimensions
         Block thicknesses and weights at equilibrium density (for 440 x 215mm)                                        Face dimensions (mm) 215 x 65
         Thickness (mm)                                        300                                          355        Thicknesses and weights
         Weight1 3% (kg)                                       21.3                                         25.5       Thickness (mm)                        100                 115†                 125†                  140                  150†
         Weight2 23% (kg)                                      25.3                                         30.2       Weight1      3% (kg)                   0.9                 1.0                  1.1                   1.2                   1.3
         Properties                                                                                                    Weight2 23% (kg)                       1.0                 1.2                  1.3                   1.4                   1.5
         Mean compressive strength not less than 7.3N/mm2                                                              Properties
         Design thermal conductivity (λ) 0.18W/m.K (above dpc), 0.29W/m.K (below ground)                               Mean compressive strength 2.9N/mm2
         Dry thermal conductivity value: (λ10,dry, unit ) 0.16W/m.K                                                    Design thermal conductivity (λ) 0.15W/m.K
         Specified gross dry density 730kg/m3                                                                          Dry thermal conductivity value: (λ10,dry, unit ) 0.13W/m.K

     1 Weights based equilibrium moisture content.                                                                 1 Weights based equilibrium moisture content.
     2 Typical as received weights, the percentage can vary depending on climatic and storage conditions.          2 Typical as received weights, the percentage can vary depending on climatic and storage conditions.
     * Not available with tongue and groove joints.                                                                † Manufactured to special order only.
     † Manufactured to special order only.

16                                                                                                                                                                                                                                                            17
Aircrete Blocks Product Guide - Forterra
Hi-Strength 7 & 9
     Coursing Block
     • Bonding • Coursing
     • Infill  • Making up

     Hi-Strength Coursing Blocks are
     autoclaved aerated masonry units produced
     to a standard brick height while retaining the
     length of a standard block. They are used for
     bonding and infill to ensure that a uniform                                           Key Data
     thermal performance is achieved throughout                                            Strength 7.3N/mm2 , 9.0N/mm2
     the wall. The Coursing Block reduces the                                              (10.4N/mm2 equivalent) †
     number of mortar joints required when
     detailing, and therefore provides time savings.                                       Thermal conductivity
                                                                                           Hi-Strength 7: 0.18W/m.K
     •   Protect against pattern staining                                                  Hi-Strength 9: 0.19W/m.K
     •   Infill above doors and windows
                                                                                           Note: Thermalite Hi-Strength Coursing Blocks are suitable
     •   Coursing at floor and ceiling level                                               for use externally (with an impervious finish)
     •   Making up between joists                                                          and internally, above or blow dpc level, in loadbearing
                                                                                           or non-loadbearing applications.
     •   For use with general purpose mortar                                               Loadbearing walls should not be constructed with Thermalite
         and thin layer mortar                                                             Hi-Strength Coursing Blocks as the sole masonry unit.

          Specifications
          7.3N/mm2 working dimensions
          Face dimensions (mm) 440 x 65                                                      Pack Size
          Thickness (mm)            100                        140‡                          100mm     180 blocks 6.0m2*
          Weight1 3% (kg)           2.2                        3.0                           140mm     126 blocks 4.26m2*
          Weight2 23% (kg)          2.6                        3.6
          9.0N/mm2 working dimensions
          Face dimensions (mm) 440 x 65                                                      Pack Size
          Thickness (mm)            100                        140‡                          100mm     180 blocks 6.0m2*
          Weight1 3% (kg)           2.3                        3.2                           140mm     126 blocks 4.26m2*
          Weight2 23% (kg)          2.7                        3.8
          Properties
          Mean compressive strength 7.3N/mm2 and 9.0N/mm2
          Design thermal conductivity (λ) 0.18W/m.K for Hi-Strength 7 and 0.19W/m.K for Hi-Strength 9
          Dry thermal conductivity value: (λ10,dry, unit ) 0.16W/m.K for Hi-Strength 7
          and 0.17W/m.K for Hi-Strength 9

     1 Weights based equilibrium moisture content. 2 Typical as received weights, the percentage can vary depending on climatic and storage conditions.
     * Using traditional coordinating work face size i.e. 450mm x 75mm.
     † Blocks are manufactured to BS EN 771-4, Category 1.
       This provides the equivalent of 10.4N/mm2 compressive strength - manufactured to special order only.
     ‡ Manufactured to special order only - Hi strength 7
18                                                                                                                                                        19
Thin joint masonry

     Thermalite Thin Joint                             Benefits                                           Typically, Thermalite blocks built with thin
                                                                                                          layer mortar will be stable after 60 minutes.
                                                                                                                                                              Airtightness test results for Thermalite
                                                                                                                                                              100mm blockwork and thin layer mortar, as
     Masonry is a fast,                                Faster build speed                                 This means that the amount of walling that          conducted by the Building Services Research

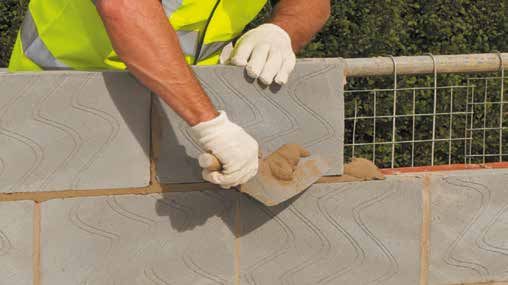

                                                       The application of a thin layer mortar to          can be built will increase and enables the          and Information Association (BSRIA) were
     clean and accurate                                Thermalite blocks is achieved by the use           earlier installation of other components, such      better than < 0.10m3/(h.m2), the lowest
     construction system                               of a serrated scoop applicator, which allows
                                                       mortar to be quickly and accurately applied to
                                                                                                          as floors and roof timbers. The completion of
                                                                                                          a weathertight envelope allows brickwork to
                                                                                                                                                              possible score.

     using Thermalite blocks                           the bed joint of the wall. The full benefits can   be taken off the critical path and for internal
                                                                                                                                                              Reduced site wastage
                                                                                                                                                              A key benefit of Thermalite blocks is that they
                                                       be realised on long runs of walling.               work, such as plastering, service installation
     manufactured to a high                                                                               and partitioning to progress.
                                                                                                                                                              can be easily cut, sawn and worked accurately
                                                       Independent speed trials, conducted by Percy                                                           on site. The precision cutting of blocks for use
     degree of dimensional                             Howes & Co. Chartered Surveyors, have              Improved thermal performance                        with thin layer mortar allows greater utilisation
     accuracy and a thin                               indicated that a wall of Thermalite blocks and
                                                       thin layer mortar can be laid twice as fast as
                                                                                                          The thermal insulation requirements of the
                                                                                                          Building Regulations call for attention to
                                                                                                                                                              of the blocks, which can substantially reduce
                                                                                                                                                              site wastage.
     layer of mortar.                                  that built with aggregate blocks and general       be given to the effects of cold bridging.
                                                       purpose mortar.                                    Consequently, when calculating U-values
     The increasing demands of the UK
                                                                                                          for walls, heat loss through mortar joints
     construction industry for higher build quality,   This speed of construction can be further
                                                                                                          must be taken into consideration.
     greater productivity, and improved thermal        enhanced when using Thermalite Large
     performance, airtightness and waste               Format blocks, which have a face size              By reducing the amount of mortar in any
     reduction, mean that the benefits offered         equivalent to two traditional concrete blocks.     given area of wall by at least 70% compared
     by thin layer mortar are becoming                                                                    to a traditional mortar joint, heat loss through
                                                       Increased productivity
     increasingly relevant.                                                                               the mortar joints is reduced.
                                                       Thin layer mortar is different from general
                                                       purpose mortar in that it sets far more rapidly.   Improved airtightness of construction
                                                       The same high levels of productivity are not       The thermal performance of the wall is also
                                                       achievable with masonry built using general        improved by the effect of thin layer mortar on
                                                       purpose mortar, which requires more time to        the airtightness of the construction. Reducing
                                                       attain sufficient strength to support further      the air infiltration rate of the masonry will, in
                                                       construction, thus limiting the height that        turn, decrease ventilation heat loss through
                                                       can be built in one day.                           the fabric.

20                                                                                                                                                                                                                21

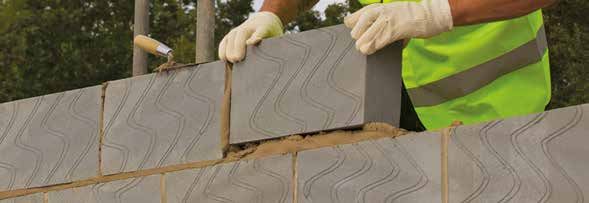

Thin joint masonry

     Thin layer mortar                                                          Thermalite Large Format blocks                 Ancillary components                            The Thermalite House
     Thin layer mortar is a pre-mixed cement                                    Thermalite Large Format blocks offer           Due to the increasing use of thin joint         The Thermalite thin joint masonry system, has
     based product that only requires the addition                              considerable productivity gains. They          masonry there is a widening choice of           been used to construct a detached house
     of water to make an easily applied mortar. It                              are produced with face dimensions of           suitable ancillary products. Many components    from a design made available by a national
     differs from general purpose mortar in that it                             440 x 430mm in a range of thicknesses.         are available through builders merchants        house builder. The main objective of this
     sets more rapidly, thus giving early stability to                          This is equivalent to two normal concrete      or specialist fixings suppliers. When buying    project was to demonstrate that the thin joint
     the construction. It provides an alternative to                            blocks, or twelve bricks.                      products for use with thin layer mortar,        system could be safely used to construct
     traditional sand/cement mortar and allows the                                                                             customers should ensure that they are fit for   the load bearing inner leaf of masonry up to
                                                                                Independent tests by Percy Howes & Co.
     depth of mortar to be reduced from 10mm to                                                                                purpose and, preferably, supported by third     roof plate level, without the stabilising effect
                                                                                Chartered Surveyors have found that the
     3mm or less.                                                                                                              party certification.                            of the brickwork outer leaf, and to complete
                                                                                use of Large Format blocks in thin joint
                                                                                                                                                                               the process quickly and accurately. The inner
                                                                                construction can lead to at least a 50% time
                                                                                                                                                                               leaf of this three-bedroom detached house,
                                                                                saving, compared with the use of aggregate
                                                                                                                                                                               including floor and roof truss installation, was
                                                                                blocks and general purpose mortar.
                                                                                                                                                                               completed in just 16 hours using a standard
                                                                                                                                                                               team of two block layers and one labourer.

     Rate of laying

               20                                                                                 21.26
                                                                        20.66

               15
     m2/hour

               10                                 11.01
                            9.72

                5

                0
                      Aggregate blocks       Shield blocks and     Shield blocks and       Large Format blocks
                    and traditional mortar   traditional mortar    thin layer mortar       and thin layer mortar

     Note: In a thin joint masonry construction, the joints at maximum are only 3mm thick. Consequently, when blocks with a
     face size of 440 x 215mm are selected an additional 3.55% blocks will be required to complete a m2 of walling.
     When Large Format blocks with a face size of 440 x 430mm are selected for use in thin joint walling, an additional 4.3%
     blocks will be required to complete a m2 of walling.

22                                                                                                                                                                                                                                23
Performance

     Fire resistance                                   There are currently 7 Robust Details for                   Frost resistance                                 Workability
     All Thermalite products provide excellent         aircrete separating walls, referenced E-WM-6,              Thermalite blocks offer superior protection      All Thermalite products can be easily cut,
     fire protection. They are classified as A1,       E-WM-10, E-WM-13, E-WM-15, E-WM-23,                        against the effects of frost. Independent         sawn, chased and worked accurately with
     non-combustible in accordance with                E-WM-24 and E-WM-30. These Robust                          comparative frost resistance tests have been      ordinary hand tools. A straight cut ensures less
     BS EN 771-4.                                      Details are detailed on pages 28-31.                       carried out on facing bricks, common bricks       wastage, reducing the need to make good.
                                                                                                                  and Thermalite blocks. After 20 freeze/
     Loadbearing                                       Please refer to the Robust Details                                                                          Fixings
                                                                                                                  thaw cycles, the facing bricks were severely
     Thermalite blocks with a thickness of 90mm        Handbook for full guidance.                                                                                 The majority of general purpose fixings
                                                                                                                  cracked. At 61 cycles, the Thermalite blocks
     or more may be used in the construction                                                                                                                        give excellent performance in Thermalite.
                                                       Moisture penetration                                       showed no signs of cracking. Thermalite
     of loadbearing walls. Where the loading                                                                                                                        Examples of such fixings include:
                                                       Thanks to their closed micro-cellular                      blocks require an external finish and should
     conditions require a 7.3N/mm2 block,
                                                       structure, all Thermalite products provide                 not be left fair faced.                          • Cut nails, with a minimum penetration
     Thermalite Hi-Strength 7 may be used.
                                                       good resistance to the passage of moisture.                                                                   of 50mm
                                                                                                                  Wall ties
     Sound insulation                                  Independent tests have indicated that
                                                                                                                  Wall ties should be of Building Regulations      •	Wood screws - No. 12 or No.14 screws
     Forterra offers a range of solutions to achieve   Thermalite blocks make water penetration
                                                                                                                  Part E, Type A for separating and flanking          fixed directly into Shield or Hi-Strength
     the performance standards of Part E of the        extremely difficult.
                                                                                                                  walls; and Type B for where a Type A tie is         7 with a minimum penetration of 50mm
     Building Regulations. When employing these
                                                        alls which contain an insulating material
                                                       W                                                          not suitable.
     solutions, pre-completion testing (PCT) will be                                                                                                               • Plastic or fibre plugs for screws into a
                                                       with the capacity to store heat, such
     necessary to prove compliance.                                                                               Movement joints                                    pre-drilled hole
                                                       as Thermalite blocks, can help reduce
                                                                                                                  In common with all cement-based products,
     As an alternative to PCT, the use of Robust       condensation, because the temperature                                                                       Certain structural situations may require the
                                                                                                                   Thermalite walls are subject to movement
     Details* will also demonstrate compliance.        drop across the wall is gradual.                                                                            use of special fixing methods such as a spiral
                                                                                                                   as the walls dry out. Movement joints should
                                                       * For further details, please refer to robustdetails.com                                                    plug, grouted fixing, spiral nail or ‘sleeved’ nail.
                                                                                                                   be located at 6m centres, although this may
                                                                                                                   vary depending on the building layout, as       * No longer current but still cited in the Building Regulations.

                                                                                                                   specified in BS EN1996-2: 2006.
                                                                                                                  Movement joints may or may not be necessary
                                                                                                                  in the internal walls of dwellings, subject to
                                                                                                                  the size of the dwelling, although bed joint
                                                                                                                  reinforcement may be recommended in
                                                                                                                  specific situations.

24                                                                                                                                                                                                                                    25
Sound insulation

     Forterra offers a wide range of Thermalite block solutions                                           As an alternative to pre-completion testing                represent minimum performance standards
                                                                                                          in purpose built dwelling-houses and flats,                far superior to those in the Approved
     for walls and floors to satisfy the performance standards
                                                                                                          separating walls and floors shall be designed              Document, and eliminate the need for
     of Part E of the Building Regulations, as well as the specific                                       and constructed as specified in the Robust                 pre-completion testing.
     needs of builders and designers.                                                                     Details Handbook. These approved designs
     Forterra's solutions to Part E offer high levels of
     performance and can achieve compliance through                                                       E1 Performance requirements for pre-completion testing
     Robust Details and pre-completion testing.                                                           Dwelling-houses and flats - performance standards for separating walls,
                                                                                                          separating floors, and stairs that have a separating function

     Background                                        As an alternative to pre-completion testing,                                                  Airborne sound insulation   Impact sound insulation
                                                                                                                                                          (DnT,w+Ctr)dB                (L'nT,w)dB
     Unwanted sound, particularly in dwellings         the use of Robust Details will demonstrate                                                        (minimum values)          (maximum values)
     has in recent years given rise to an increasing   compliance with AD E for new dwellings.
                                                                                                           Purpose built dwelling-houses and flats
     number of complaints by occupiers. It was         Robust Details are high-performance
     recognised that existing standards, of both       separating wall and floor constructions that are    Separating walls                                     45                         –
     regulation and workmanship, were failing to       expected to be sufficiently reliable not to need    Separating floors and stairs                         45                         62
     protect residents adequately. Rising housing      the check provided by pre-completion testing.       Dwelling-houses and flats formed by
     densities, changes of lifestyle, technology,                                                          material change of use
                                                       AD E Requirements
     perception and tolerance had all contributed                                                          Separating walls                                     43                         –
                                                       E1: Protection against sound
     to the pressure for change. Therefore,
                                                       from other parts of the building                    Separating floors and stairs                         43                         64
     Approved Document E (AD E) was amended
                                                       and adjoining buildings.
     in 2003, 2010, 2013 and 2015.
                                                                                                          Rooms for residential purposes - performance standards for separating walls,
                                                       E1 states:
     The overall aim of the amendments to AD E                                                            separating floors and stairs that have a separating function
     was to improve the sound insulation, through      "Dwelling-houses, flats and rooms for
                                                                                                                                                     Airborne sound insulation   Impact sound insulation
     better specification and workmanship,             residential purposes shall be designed and                                                         (DnT,w+Ctr)dB                (L'nT,w)dB
     both between and within dwellings, as well        constructed in such a way that they provide                                                       (minimum values)          (maximum values)

     as between rooms in hostels, hotels and           reasonable resistance to sound from other           Purpose built rooms for residential
     residential homes. The scope was also             parts of the same building and from                 purposes
     extended to cover reverberation in common         adjoining buildings."                               Separating walls                                     43                         –
     parts of blocks of flats and acoustic                                                                 Separating floors and stairs                         45                         62
                                                       As part of the construction process, sound
     conditions in schools.
                                                       insulation testing (pre-completion testing) to      Rooms for residential purposes formed
                                                       demonstrate compliance with Requirement             by material change of use
     AD E provides some of the technical
     specifications and solutions that might be        E1 should be carried out on site and is the         Separating walls                                     43                         –
     adopted to satisfy the statutory requirements.    responsibility of the builder.                      Separating floors and stairs                         43                         64

26                                                                                                                                                                                                             27
Sound insulation

     Thermalite Robust Details separating walls, no pre-completion
     testing required (applies to purpose built dwelling-houses and flats)

       Robust Detail            E-WM-6                                   E-WM-10                        E-WM-13                             E-WM-15                      E-WM-23                  E-WM-24                  E-WM-30

       Block density            600-800                                  600-800                        600-800                             600-800                      600-800                  600-800                  600-800
       range (kg/m3)

       Thermalite               Shield                                   Shield                         Shield                              Shield                       Shield                   Shield                   Shield
       products                 Party Wall                               Party Wall                     Party Wall                          Party Wall                   Party Wall               Party Wall               Party Wall
                                Hi-Strength 7                            Hi-Strength 7                  Hi-Strength 7                       Hi-Strength 7                Hi-Strength 7            Hi-Strength 7            Hi-Strength 7
                                Hi-Strength 9                            Hi-Strength 9                  Hi-Strength 9                       Hi-Strength 9                Hi-Strength 9            Hi-Strength 9            Hi-Strength 9

       Block thickness          100mm (min.)                             100mm (min.)                   100mm (min.)                        100mm (min.)                 100mm (min.)             100mm (min.)             100mm (min.)

       Mortar type              General purpose mortar                   Thin layer mortar              Thin layer mortar                   General purpose mortar       General purpose and      General purpose and      General purpose and
                                                                                                                                                                         thin layer mortar        thin layer mortar        thin layer mortar

       Wall tie                 Type 'A'                                 Ancon Staifix HRT4             No wall ties – the structural       Type 'A'                     Type 'A' for general     Type 'A' for general     Type 'A' for general
                                                                         or Clan PWT4                   adequacy of the wall should                                      purpose mortar. Ancon    purpose mortar. Ancon    purpose mortar. Ancon
                                                                                                        be assessed by a structural                                      Staifix HRT4 or Clan     Staifix HRT4 or Clan     Staifix HRT4 or Clan
                                                                                                        engineer                                                         PWT4 for thin            PWT4 for thin            PWT4 for thin
                                                                                                                                                                         layer mortar             layer mortar             layer mortar

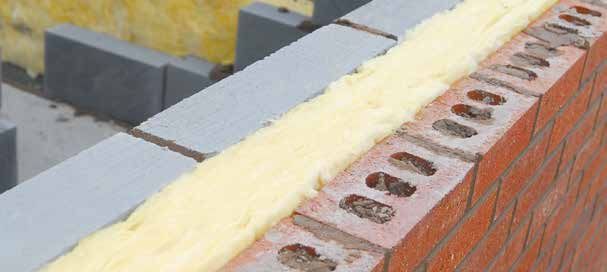

       Cavity                   75mm (min.) clear cavity or              75mm (min.) clear cavity or    75mm (min.) clear cavity or         75mm (min.) leaf-to-leaf,    100mm (min.) leaf to     100mm (min.) leaf to     100mm (min.) leaf to
                                option of insulating with                option of insulating with      option of insulating with mineral   partially filled with 35mm   leaf fully filled with   leaf fully filled with   leaf fully filled with
                                mineral wool with a maximum              mineral wool with a maximum    wool with a maximum density         Saint Gobain Isover          100mm Superglass         100mm Isover RD Party    100mm Knauf Supafill®
                                density of 40kg/m3. This                 density of 40kg/m3. This       of 40kg/m3. This includes           RD35 mineral wool            Party Wall Roll          Wall Roll
                                                                                                                                                                                                                           Party wall blown glass
                                includes mineral wool batts,             includes mineral wool batts,   mineral wool batts, rolls and       acoustic batt
                                                                                                                                                                                                                           mineral wool insulation
                                rolls and blown mineral wool             rolls and blown mineral wool   blown mineral wool

       Internal finish          Gypsum-based board (nominal              Gypsum-based board (nominal    Gypsum-based board (nominal         Gypsum-based board           Gypsum-based board       Gypsum-based board       Gypsum-based board
                                8 kg/m2) on dabs on nominal              8 kg/m2) on dabs on nominal    8 kg/m2) on dabs on nominal         (nominal 9.8 kg/m2)          (nominal 8.0 kg/m2)      (nominal 8.0 kg/m2)      (nominal 8.0 kg/m2)
                                8mm render coat with scratch             8mm render coat with scratch   8mm render coat with scratch        on dabs                      on dabs                  on dabs                  on dabs
                                finish (or British Gypsum                finish (or British Gypsum      finish (or British Gypsum
                                Gyproc Soundcoat Plus)                   Gyproc Soundcoat Plus)         Gyproc Soundcoat Plus)

     Notes:
     All constructions require the external (flanking) walls to be masonry with 50mm (min.) cavity.
     All plots to be pre-registered with Robust Details Limited.
     All constructions should be built in accordance with the Robust Details Handbook.

28                                                                                                                                                                                                                                                   29
Sound insulation

     Use of Thermalite Robust Details in flats/apartments using
     Robust Detail separating floors

                               E-FC-1      E-FC-4         E-FC-5         E-FC-6       E-FC-7       E-FC-8          E-FC-9        E-FC-10        E-FC-11         E-FC-12          E-FC-13           E-FC-14           E-FC-15                E-FC-16              E-FC-17
                               (pre-cast   (pre-cast      (pre-cast      (beam &      (beam &      (pre-cast       (pre-cast     ('Isorubber    (pre-cast       (pre-cast        (pre-cast         (pre-cast         (pre-cast plank        (pre-cast plank      (pre-cast plank
                               plank &     plank,         plank,         aggregate    aggregate    plank, bonded   plank,        Top' on        plank           plank            plank             plank             'Regupol               'Thermal             'Cellecta®
                               screed)     screed on      screed on      block,       block,       floor cover     Isorubber     in-situ        screed on       'Thermal         Instacoustic      'Thermal          Quietlay',             Economics            YELOfon®
                                           'Thermal       'Cellecta      screed on    screed       on screed       Top' on       concrete)      'Icopal-        Economics        Instalay 65)      Economics         Tekfloor or            Isorubber CC3'       HD10+
                                           Economics      Yelofon        'Regupol     floating     on resilient    screed)                      Monarfloor      Isorubber                          Isorubber         Tekrubber layer        bonded               resilient layer
                                           Isorubber')    HD10+')        E48')        floor)       layers)                                      Tranquilt')     Base HP3')                         Code' layer       and floating           resilient            with Cellecta®
      Separating wall                                                                                                                                                                              and floating      screed)                floor covering)      ULTRA ceiling
      construction                                                                                                                                                                                 screed)                                                       treatment

      E-WM-6 see note 1
      (Shield, Party Wall,         F                         2             F            F                                                       F               F                F                  F                   F                     F                    F
      Hi-Strength 7 or 9)
      E-WM-10 see note 1
      (Shield, Party Wall,         F                         2             F            F                                                       F               F                F                  F                   F                     F                    F
      Hi-Strength 7 or 9)
      E-WM-13 see note 1
      (Shield, Party Wall,         F                         2             F            F                                                       F               F                F                  F                   F                     F                    F
      Hi-Strength 7 or 9)
      E-WM-15 see note 1
      (Shield, Party Wall,         F                         2             F            F                                                       F               F                F                  F                   F                     F                    F
      Hi-Strength 7 or 9)
      E-WM-23 see note 1
      (Shield, Party Wall,         F                         2             F            F                                                       F               F                F                  F                   F                     F                    F
      Hi-Strength 7 or 9)
      E-WM-24 see note 1
      (Shield, Party Wall,         F                         2             F            F                                                       F               F                F                  F                   F                     F                    F
      Hi-Strength 7 or 9)
      E-WM-30 see note 1
      (Shield, Party Wall,         F                         2             F            F                                                       F               F                F                  F                   F                     F                    F
      Hi-Strength 7 or 9)
      Inner leaf of external (flanking) wall construction (subject to structural requirements)
      Turbo
      (density 470kg/m3)                                                                                                                                                                                                                                  
      Shield
      (density 600kg/m3)                                                                                                                                                                                                                                  
      Party Wall
      (density 660kg/m3)                                                                                                                                                                                                                                  
      Hi-Strength 7
      (density 730kg/m3)                                                                                                                                                                                                                                  
      Hi-Strength 9
      (density 770kg/m3)                                                                                                                                                                                                                                  

     Key:  Permissible wall and floor combinations for flats/apartments which do not require pre-completion sound testing.    Notes:   1. At least one storey of the separating wall flanking the separating floor must be built with Hi-Strength 7 or Hi-Strength 9 -
           Wall may not be used with floor.                                                                                            typically for two-storey flats this will consist of Hi-Strength 7 or 9 on the ground floor as a minimum, with a lower density
          F Only the separating floor requires pre-completion sound testing.                                                            product (if required) on the first floor. For three storey flats Hi-Strength 7 or 9 on the ground and first floor as a minimum, with
                                                                                                                                        a lower density product (if required) on the second floor.
                                                                                                                               		2. 200mm (min.) thick precast concrete planks and CT5 ceiling treatment must be used.
30                                                                                                                                                                                                                                                                                 31
Mortar & finishes

     Mortar                                                                                                            Finishes
     Selection of a suitable mortar is important to                    The following recommendations for general       Thermalite blocks provide an excellent              Plaster finishes
     ensure that the composition is compatible in                      purpose mortar with Thermalite take this into   background for the use of internal and              The following plaster undercoats are
     relation to the blocks being used.                                account and are based on the requirements       external finishes to walls.                         recommended:
                                                                       of BS EN1996-1-1: 2005 + A1: 2012 and
                                                                                                                        lthough the scratch finish is primarily
                                                                                                                       A                                                   • 1 : 1 : 6 cement : lime : sand
                                                                       PD 6678: 2005.
                                                                                                                       an identification characteristic, it helps          • 	Pre-mixed gypsum-bound or
     Above dpc (externally and internally)               Below dpc                                                     provide a key and should be augmented by                 cement-lime-bound lightweight aggregate
                                                                                                                       recessing the mortar joint, to assist during
     Ratio         Material                              Ratio         Material                                                                                            The undercoats may be plaster finished
                                                                                                                       the application of direct finishes.
     1: 1: 6       cement : lime : sand                  1:4           cement : sand                                                                                       with neat gypsum Class B finish coat, or
                                                                                                                        lockwork should be allowed to dry out
                                                                                                                       B                                                   with a lightweight pre-mixed gypsum, or
     1: 6          cement : sand with a plasticiser      1 : 1/2 : 4   cement : lime : sand
                                                                                                                       thoroughly before rendering or plastering, in       gypsum-lime-bound coat.
     1: 5          masonry cement : sand                                                                               accordance with relevant codes of practice.
                                                                                                                                                                           Dry lining
     Below dpc sulfate resisting cement may be required, depending on ground and groundwater conditions.
                                                                                                                       External rendering                                  The following systems are suitable

                                                                                                                       The finishes suitable for external rendering       for use on Thermalite blocks:
                                                                                                                        onto Thermalite blocks are classified by           • Plaster dab method
                                                                                                                        BS EN13914-1: 2005 as follows:                     • Timber batten method
                                                                                                                       •   Float finish                                    • Metal framing systems
                                                                                                                       •   Scraped or textured, hand applied               Painting direct
                                                                                                                       •   Dry-dash, dry-thrown by hand                    Hi-Strength Paint Grade blocks built fair-
                                                                                                                       •   Machine applied, Tyrolean or power spray         faced are particularly suitable for the direct
                                                                                                                       The rate of drying will vary with conditions         application of paint (please refer to paint
                                                                                                                       of temperature, humidity and ventilation. If         manufacturers’ advice on suitability) using a
                                                                                                                       necessary, precautions should be taken to            brush, roller or spray gun.
                                                                                                                       retain sufficient moisture throughout curing.       Tiling*
                                                                                                                       It is recommended to seal the blockwork             Thermalite is ideal for external tile hanging
                                                                                                                       before applying the scratch coat.                    because it readily accepts fixing direct by
                                                                                                                                                                            cut nails and screws. Thermalite blocks
                                                                                                                                                                            also provide a suitable background for the
                                                                                                                       * For further details, please contact our
                                                                                                                         Technical Services Department on 0330 123 1018.    application of ceramic wall tiles. Proprietary
                                                                                                                                                                            adhesives should be used to fix ceramic tiles
                                                                                                                                                                            to rendered or plastered Thermalite walls.

32                                                                                                                                                                                                                           33
Thermal insulation
     and U-values

     The thermal performance of the building fabric is becoming                                                   Thermal mass                                      Other useful sources of information and
                                                                                                                  The heat capacity of the external wall is         accredited constructions can be obtained
     increasingly reliant upon the considered combination of                                                      used in the SAP calculation and the use of        from the NHBC Foundation and LABC,
     structural components, specialist insulation products, finishes                                              Thermalite blocks can offer benefits in this      details can be accessed via their websites:
     and workmanship. The high level of thermal performance                                                       respect. Increasing the effective thermal         nhbcfoundation.org and labc.co.uk
                                                                                                                  mass reduces the need for heating and
     of Thermalite blocks, coupled with excellent thermal mass                                                    cooling. However, the rules for calculating
                                                                                                                                                                    Air permeability
                                                                                                                                                                    The average air permeability of new
     qualities and inherent airtightness, ensures that cost-effective                                             heat capacity mean that items such as             masonry dwellings has steadily decreased in
                                                                                                                  internal dry-lining, thermal lining and
     solutions can be achieved to satisfy the Building Regulations.                                                                                                 recent years as knowledge gained through
                                                                                                                  lightweight construction will reduce the          pressure testing has informed the design
                                                                                                                  effective thermal mass.                           and construction process. An air permeability
     The Building Regulations                             Thermal solutions                                       Linear thermal bridges                            rate in the region of 5.0 m3/hr/m2 is now
     Devolved government has resulted in England,         Pages 36-41 show a comprehensive                        Linear thermal bridging is where heat loss        fairly standard, with lower values achieved
     Scotland and Wales formulating their own             range of thermal solutions to satisfy the               occurs through the junction of building           as required. In fact, results from pressure
     approach and set of standards for the                individual requirements of each country using           elements such as the wall and the floor,          testing wet plastered or parge coated walls
     conservation of fuel and power. Therefore,           Thermalite blocks in the following common               where the continuity of the insulation is         consistently return results in the region of
     across the nation each country has set its           types of constructions:                                 interrupted. These heat losses are significant,   3.0 m3/hr/m2, as this layer provides a highly
     own limiting backstop U-values for new build,                                                                but can be reduced by adopting Enhanced           effective air barrier.
     extensions and conversions.                                                                                  Construction Details (ECD’s).                     The effect of thin joint masonry
                                                                                                                  Thermalite can offer a range of high-             The use of thin joint masonry with a bed joint
                                                                                                                  performance construction details that have        thickness of approximately 2.5mm in lieu of
                                                                                                                  recently been developed within the masonry        conventional general purpose mortar can
                                                                                                                  sector, covering all the usual methods of         provide a significant contribution to improving
                                                                                                                  construction and materials used. The use of       the overall U-value of a masonry wall, without
                                                                                                                  these generic details is recommended.             the need to increase the amount of insulation.
                                                                                                                  The Aircrete Products Association (APA)           This is seen at its most effective on internally
                                                                                                                  developed the details in partnership with         insulated solid wall constructions as shown
                                                                                                                  Constructive Details Ltd. These include a         on page 40.
                                                                                                                  useful construction checklist to help ensure
                                                                                                                  the details are built correctly.
                                                                                                                  The details can be downloaded at
                                                                                                                  constructivedetails.co.uk
     Full fill constructions -        Partial fill constructions -          External solid wall constructions -
     pages 36-37                      pages 38-39                           pages 40-41

34                                                                                                                                                                                                                     35
Thermal performance Full fill construction

     Full fill construction - table 1                               Full fill construction - table 2                    Full fill construction - table 3                              Full fill construction - table 4
                                           Plasterboard                                                   Lightweight   Hi-Strength 7                                                 Hi-Strength 7
                                           on dabs                                                        plaster       outer leaf                                                    outer leaf
     Brick                                                          Brick                                                                                       Inner                                                           Inner
     outer leaf                                                     outer leaf                                                                                  leaf block                                                      leaf block
                                                                                                                        Full fill                                                     Full fill
     Full fill                                                      Full fill                                           insulation                                                    insulation
                                           100mm                                                          100mm
     insulation                            inner leaf               insulation                            inner leaf                                                                                                            Lightweight
                                                                                                                        Render                                  Plasterboard          Render                                    plaster
                                                                                                                                                                on dabs

     Table 1: Minimum thickness of insulation (in mm) required to achieve illustrated U-values                          Table 3: Minimum thickness of insulation (in mm) required to achieve illustrated U-values
     (W/m2K) in conjunction with clay brickwork externally.                                                             (W/m2K) in conjunction with 100mm Hi-Strength 7 blockwork externally.
                                                                        U-value (W/m2K)                                                                                                        U-value (W/m2K)
       Inner leaf      Insulation Conductivity                                                                            Inner leaf      Insulation Conductivity
       block                   (W/m.K)              0.3   0.28   0.25     0.22    0.2     0.18     0.15      0.13         block                   (W/m.K)             0.3      0.28   0.25         0.22   0.2    0.18    0.15      0.13

                               0.018                 -     40     45       55     70       75      100       120                                  0.018               26       31      39           49     58     68      90       111
                               0.021                46     51     61       73     81       96      114       140                                  0.021               38       43      53           63     75     88     114       141
       Turbo                   0.032                68     75     88      108    122      142      185        -           Turbo                   0.032               57       65      78           96    111    130     173        -
                               0.037                79     88    104      125    142      169       -         -                                   0.037               66       75      90          111    129    150     198        -
                                0.04                85     95    112      135    159      182       -         -                                    0.04               71       81      98          120    139    166       -        -
                               0.018                36     40     45       59     70       79      101       122                                  0.018               29       34      42           52     61     72      94       115
                               0.021                50     55     65       77     87      100      129       154                                  0.021               42       47      57           69     79     92     118       145
       Shield                  0.032                74     82     95      113    129      147      191        -           Shield                  0.032               62       70      84          101    116    135     179        -
                               0.037                85     94    110      132    154      176       -         -                                   0.037               72       80      97          117    135    161       -        -
                                0.04                92    102    119      142    166      189       -         -                                    0.04               78       87     105          128    151    174       -        -
                               0.018                37     42     50       61     70       81      103       127                                  0.018               31       35      43           54     63     73      96       119
                               0.021                52     57     67       79     89      102      131       166                                  0.021               44       49      59           71     81     94     120       156
       Hi-Strength 7           0.032                77     84     98      116    132      156      194        -           Hi-Strength 7           0.032               65       73      86          104    119    138     181        -
                               0.037                89     97    113      135    157      179       -         -                                   0.037               75       84     100          120    138    165       -        -
                               0.04                 96    105    124      150    169      193       -         -                                   0.04                81       91     108          131    154    177       -        -

     Table 2: Minimum thickness of insulation (in mm) required to achieve illustrated U-values                          Table 4: Minimum thickness of insulation (in mm) required to achieve illustrated U-values
     (W/m2K) in conjunction with clay brickwork externally.                                                             (W/m2K) in conjunction with 100mm Hi-Strength 7 blockwork externally.
                                                                        U-value (W/m2K)                                                                                                        U-value (W/m2K)
       Inner leaf      Insulation Conductivity                                                                            Inner leaf      Insulation Conductivity
       block                   (W/m.K)              0.3   0.28   0.25     0.22    0.2     0.18     0.15      0.13         block                   (W/m.K)             0.3      0.28   0.25         0.22   0.2    0.18    0.15      0.13

                               0.018                35     39     48       58     67       78      100       124                                  0.018               28       33      41           51     60     71      93       113
                               0.021                49     54     63       76     86       99      125       162                                  0.021               41       46      55           67     78     90     116       143
       Turbo                   0.032                72     80     93      111    127      151      189        -           Turbo                   0.032               60       68      82           99    114    133     177        -
                               0.037                83     92    108      129    147      173       -         -                                   0.037               70       79      94          115    133    159     200        -
                                0.04                90     95    117      140    163      186       -         -                                    0.04               75       85     102          124    143    171       -        -
                               0.018                38     43     51       61     70       81      104       128                                  0.018               31       36      44           54     63     74      96       119
                               0.021                52     58     67       77     90      103      140       166                                  0.021               44       50      59           71     82     94     120       148
       Shield                  0.032                78     85     99      117    133      157      195        -           Shield                  0.032               66       74      87          105    119    139     182        -
                               0.037                89     98    114      136    158      180       -         -                                   0.037               76       85     101          121    139    166       -        -
                                0.04                97    106    125      151    170      194       -         -                                    0.04               82       92     109          132    150    179       -        -
                               0.018                40     44     52       63     72       83      105       129                                  0.018               32       37      46           56     65     76      98       121
                               0.021                54     60     69       82     92      105      143       169                                  0.021               46       51      61           73     84     96     122       150
       Hi-Strength 7           0.032                80     88    102      119    135      160      197        -           Hi-Strength 7           0.032               69       76      90          108    122    142     185        -
                               0.037                93    101    117      139    162      183       -         -                                   0.037               79       88     104          124    142    169       -        -
                               0.04                100    110    128      155    174      197       -         -                                   0.04                85       95     112          135    159    182       -        -
36                                                                                                                                                                                                                                            37
Thermal performance Partial fill construction

     Partial fill construction - table 5                            Partial fill construction - table 6                   Partial fill construction - table 7                               Partial fill construction - table 8
     Low-emissivity cavity resistance 0.644m2K/W                    Low-emissivity cavity resistance 0.644m2K/W           Low-emissivity cavity resistance 0.644m2K/W                       Low-emissivity cavity resistance 0.644m2K/W

                                             Plasterboard                                                   Lightweight   Render                                      Plasterboard          Render                                   Lightweight
     Brick                                                          Brick                                   plaster
                                             on dabs                                                                                                                  on dabs                                                        plaster
     outer leaf                                                     outer leaf

     50mm                                                           50mm
                                                                    clear cavity                                          Hi-Strength 7                               Inner leaf            Hi-Strength 7                            Inner leaf
     clear cavity                            Inner leaf                                                     Inner leaf    outer leaf                                  block                 outer leaf                               block
     Partial fill                            block                  Partial fill                            block
     insulation                                                     insulation
                                                                                                                          50mm                                        Partial fill          50mm                                     Partial fill
                                                                                                                          clear cavity                                insulation            clear cavity                             insulation

     Table 5: Minimum thickness of insulation (in mm) required to achieve illustrated U-values                            Table 7: Minimum thickness of insulation (in mm) required to achieve illustrated U-values
     (W/m2K) in conjunction with clay brickwork externally.                                                               (W/m2K) in conjunction with 100mm Hi-Strength 7 blockwork externally.
                                                                            U-value (W/m2K)                                                                                                          U-value (W/m2K)
       Inner leaf      Insulation Conductivity                                                                              Inner leaf      Insulation Conductivity
       block                   (W/m.K)             0.3      0.28   0.25       0.22      0.2   0.18   0.15      0.13         block                   (W/m.K)                0.3       0.28   0.25      0.22    0.2      0.18   0.15       0.13

                               0.018               28       32     40              51   59    70     94        124                                  0.018                  21        25     33         44     52       65     87         115
       Turbo                    0.02               31       36     45              56   66    79     111       136          Turbo                    0.02                  23        28     37         48     58       70     102        127
                               0.022               34       39     49              62   72    87     121       149                                  0.022                  25        31     41         53     64       78     111        139
                               0.018               31       35     43              54   63    75     105       128                                  0.018                  24        29     37         47     56       66     91         120
       Shield                   0.02               34       39     48              60   70    83     115       140          Shield                   0.02                  27        32     40         52     62       74     106        131
                               0.022               37       43     53              66   78    91     126         -                                  0.022                  29        35     44         57     68       82     116        144
                               0.018               32       37     45              56   64    75     99        130                                  0.018                  26        30     38         48     57       68     92         122
       Hi-Strength 7            0.02               36       41     50              62   71    85     117       143          Hi-Strength 7            0.02                  28        33     42         54     63       77     108        134
                               0.022               39       45     55              68   80    93     128         -                                  0.022                  31        37     46         59     70       84     118        146

     Table 6: Minimum thickness of insulation (in mm) required to achieve illustrated U-values                            Table 8: Minimum thickness of insulation (in mm) required to achieve illustrated U-values
     (W/m2K) in conjunction with clay brickwork externally.                                                               (W/m2K) in conjunction with 100mm Hi-Strength 7 blockwork externally.

                                                                            U-value (W/m2K)                                                                                                          U-value (W/m2K)
       Inner leaf      Insulation Conductivity                                                                              Inner leaf      Insulation Conductivity
       block                   (W/m.K)             0.3      0.28   0.25       0.22      0.2   0.18   0.15      0.13         block                   (W/m.K)                0.3       0.28   0.25      0.22    0.2      0.18   0.15       0.13

                               0.018               30       34     42              53   62    72     96        126                                  0.018                  23        27     35         46     54       67     89         118
       Turbo                    0.02               33       38     47              58   68    82     114       139          Turbo                    0.02                  25        30     39         49     60       72     98         130
                               0.022               36       42     51              64   75    90     124       150                                  0.022                  28        33     43         56     66       81     114        142
                               0.018               33       37     46              56   65    77     107       131                                  0.018                  26        31     39         49     58       70     92         122
       Shield                   0.02               36       41     50              62   72    86     118       144          Shield                   0.02                  29        34     43         54     64       77     109        134
                               0.022               40       45     55              68   79    94     129         -                                  0.022                  32        37     47         60     70       85     119        146
                               0.018               34       39     47              58   67    79     109       133                                  0.018                  28        32     40         51     59       70     94         124
       Hi-Strength 7            0.02               38       43     52              64   75    87     120       146          Hi-Strength 7            0.02                  31        36     45         56     66       79     111        136
                               0.022               42       47     57              70   82    96     131         -                                  0.022                  34        39     49         62     72       87     121        149

38                                                                                                                                                                                                                                                  39
Thermal performance Solid wall construction

     External solid wall construction - table 9                     External solid wall construction - table 10        External solid wall construction - table 11                External solid wall construction - table 12
     20mm external render                                           20mm external render                               Plasterboard on dabs internally                            Plasterboard on dabs internally
     Traditional mortar                                             Thin layer mortar                                  Traditional mortar                                         Thin layer mortar

     Render                                                                                                              External                                                    External
                                                                    Render
                                                                                                                         wall board                                                  wall board
                                                                                                                         & render                                                    & render

                                            Insulated                                                  Insulated                                                Plasterboard                                             Plasterboard
                                            plaster board                                              plaster board                                            on dabs                                                  on dabs

     Table 9: Thickness of Thermaline Super insulated plasterboard located internally                                  Table 11: Thickness of Kingspan Kooltherm K5 located externally (in mm)
     on timber battens (in mm) required to achieve illustrated U-values (W/m²K).                                       required to achieve illustrated U-values (W/m²K).

                                                            Insulated plasterboard thickness                                                                         Insulated plasterboard thickness
                                    50mm              60mm              70mm             80mm         90mm                                               25mm      35mm            50mm           60mm        70mm      100mm
      Inner leaf block                                             U-value (W/m2K)                                      Inner leaf block                                       U-value (W/m2K)
      215mm Turbo                    0.31               0.27             0.25              0.23        0.21             215mm Turbo                      0.38        0.32           0.25          0.22         0.20       0.15
      265mm Turbo                    0.28               0.25             0.23              0.21        0.19             265mm Turbo                      0.34        0.29           0.23          0.21         0.19       0.15
      300mm Turbo                    0.26               0.24             0.22              0.20        0.19             300mm Turbo                      0.32        0.28           0.22          0.20         0.18       0.14
      190mm Shield                   0.36               0.31             0.28              0.25        0.23             190mm Shield                     0.40        0.33           0.26          0.23         0.20       0.16
      200mm Shield                   0.35               0.30             0.27              0.25        0.23             200mm Shield                     0.39        0.32           0.25          0.23         0.20       0.16
      200mm Hi-Strength 7            0.37               0.32             0.29              0.26        0.24             200mm Hi-Strength 7              0.41        0.34           0.26          0.23         0.21       0.16
      215mm Hi- Strength 7           0.36               0.31             0.28              0.25        0.23             215mm Hi- Strength 7             0.40        0.33           0.26          0.23         0.21       0.16

     Table 10: Thickness of Thermaline Super insulated plasterboard located internally                                 Table 12: Thickness of Kingspan Kooltherm K5 located externally (in mm)
     on timber battens (in mm) required to achieve illustrated U-values (W/m²K).                                       required to achieve illustrated U-values (W/m²K).

                                                            Insulated plasterboard thickness                                                                         Insulated plasterboard thickness
                                    50mm              60mm              70mm             80mm         90mm                                               25mm      35mm            50mm           60mm        70mm      100mm
      Inner leaf block                                             U-value (W/m2K)                                      Inner leaf block                                       U-value (W/m2K)
      215mm Turbo                    0.35               0.26             0.24              0.22        0.20             215mm Turbo                      0.31        0.27           0.22          0.20         0.18       0.14
      265mm Turbo                    0.26               0.23             0.22              0.20        0.19             265mm Turbo                      0.28        0.25           0.20          0.18         0.17       0.13
      300mm Turbo                    0.24               0.22             0.20              0.19        0.18             300mm Turbo                      0.26        0.23           0.19          0.18         0.16       0.13
      190mm Shield                   0.34               0.30             0.27              0.25        0.22             190mm Shield                     0.38        0.32           0.25          0.22         0.20       0.15
      200mm Shield                   0.34               0.29             0.27              0.24        0.22             200mm Shield                     0.37        0.31           0.25          0.22         0.20       0.15
      200mm Hi-Strength 7            0.36               0.31             0.28              0.25        0.23             200mm Hi-Strength 7              0.39        0.33           0.26          0.23         0.20       0.16
      215mm Hi- Strength 7           0.35               0.30             0.27              0.25        0.23             215mm Hi- Strength 7             0.38        0.32           0.25          0.22         0.20       0.15

40                                                                                                                                                                                                                                      41
You can also read
