At Temperzone, quality is more than a policy, it’s the basic philosophy underpinning our business.
Air Conditioning Solutions for Telecommunications, Mining and Industry - January 2009
Introduction

For over 50 years Temperzone has established itself as a world class                            • Temperzone is the only Australian manufacturer that builds its own
manufacturer of commercial, industrial and domestic air conditioning                              coils. This brings flexibility from a 1 to 6 row coil.
equipment based on a philosophy of quality, technical excellence and                            • Regular quality checks during critical stages of manufacture.
value through ongoing investment in research, development and                                   • All metal is cut, punched and folded before painting so that the
production technology.                                                                            integrity of the powder coat finish is not ruined.

For our customers this philosophy translates into benefits including:                            • All systems are fully run tested, including control logic and running
                                                                                                  amps. When your equipment leaves our factory, we know it works!
      • Excellent reliability.
                                                                                                • Strict evacuation standards of 200 microns for 5 minutes must
      • Our ability to design and produce custom solutions.
                                                                                                  be achieved before the systerm is charged with refrigerants.
      • High efficiency designs.
                                                                                                • Well known reliable brands of component parts.
      • Excellent technical support.
                                                                                                • Inward goods inspection to ensure quality is maintained on all
      • Spare parts available for up to 30 years.                                                  outsourced components.
      • ISO 9001 accredited.                                                                    • Standard corrosion features include:
      • On time delivery.                                                                          i. Stainless steel fixings
The bottom line is you can rely on our quality even in the most                                    ii. Powder coated galvanised steel casings
extreme ambient conditions. Our systems won’t let you down when you                                iii. Epoxy coated condenser coils.
need them most. Our technical expertise will ensure we can deliver                                 iv. Other corrosion options are available on request.
solutions to your most difficult structural or acoustic challenges on
                                                                                            Temperzone has a substantial and ongoing commitment to research
time and on budget.
                                                                                           and development. Current development work includes:
Quality, technical expertise and value are the outcome of a process                                i. Energy efficiency improvements.
with many steps.                                                                                   ii. Changing to R410A refrigerant.
      • From the moment your specification enters our system it is                                  iii. Variable output compressors.
         managed collaboratively by sales, engineering and production teams.
         In fact the senior management from these three sections of
         Temperzone, meet daily to ensure orders are on track and on time.
                                                                                                                                                                          1.

                                                                          At Temperzone, quality is more than a policy, it’s the basic philosophy underpinning our business.
Air Conditioning Solutions for Telecommunications, Mining and Industry - January 2009
Equipment Selection Philosophy

        a. Request for information.                                                                            b. Review specification conditions and requirements
                                                                                                                  to interface with ductwork and controls system to
                                                                                                                  match equipment to application requirements.

                                                                 c. Select equipment at Specified conditions,
                                                                    review at extreme ambient conditions and
                                                                    low load conditions to ensure selecting
                                                                    matches ALL CONDITIONS.

        d. Project specification transferred in Temperzone                                                      e. Review delivery requirements, Reviewed by
           unit specification - Design equipment and review                                                        management team to ensure resources can be
           unit handings, nominate on QF22-1 form all                                                             brought together to achieve request.
     2.    custom unit details.

At Temperzone, quality is more than a policy, it’s the basic philosophy underpinning our business.
Air Conditioning Solutions for Telecommunications, Mining and Industry - January 2009
f. Receipt of order: Produce factory works                                 g. Order reviewed at daily production meeting,
   order which allocates production and                                       to ensure we can achieve the clients requirements.
   engineering resources.

h. Quality testing throughout the manufacturing                           i. Final test and inspection Signed off by engineer.
   process.                                                                  Record of test results retained for 10 years.

                                                                                                                                              3.

                                                  At Temperzone, quality is more than a policy, it’s the basic philosophy underpinning our business.
Air Conditioning Solutions for Telecommunications, Mining and Industry - January 2009
The Real Cost of Air Conditioning

                                                                                     Nominated Conditions
                                                                                                              100kW
                    80kW
           Pro’s - lower initial costs - smaller physical size                                              Pro’s - life span - temperature control (4 compressors)
           Con’s - limited ability to function in extreme ambient conditions                                       - ability to function in extreme ambient conditions
                   - temperature control (only 2 compressors)                                               Con’s - higher initial cost
                   - life span                                                                                      - larger physical size

                                                                                  Life Span
                                                                                  Initial Cost
     4.

At Temperzone, quality is more than a policy, it’s the basic philosophy underpinning our business.
Air Conditioning Solutions for Telecommunications, Mining and Industry - January 2009
Best equipment for all environmental conditions.

Copes with high ambient, meets accoustic requirements.

Corrosion Protection.

                                                                                                                    5.

                        At Temperzone, quality is more than a policy, it’s the basic philosophy underpinning our business.
Air Conditioning Solutions for Telecommunications, Mining and Industry - January 2009
Specifications vs. Delivery Times

                Standard Product                                Minor Modifications                   Customer Specification
                Product generally available                     Product generally available          Product available in
                ex stock.                                       4 – 6 working weeks –                8 to 10 working weeks
                Temperzone standard inclusions:                 minor modifications carried out in    (dependant on current factory load).
                                                                the factory which include            Options include, but are not limited to:
                • Stainless steel fixings
                                                                • Compressor Acoustic Hoods          • Painted evap. fan deck
                • Epoxy coated condenser coil
                                                                • High Static condenser fans         • Powdercoated fan coil cabinet
                • R410A on most standard products                 up to 100Pa
                Options available for field                                                           • Sight glass / filter drier
                                                                • Condenser coil guards
                installation include:                                                                • Lead / Lag arrangement
                                                                • Economy Cycle
                • Head Pressure Control                                                              • (OPA & BD series only)
                • Common Fault Relay                                                                 • Hot Gas By-Pass
                • Stainless steel fixings                                                             • High Ambient Applications
                • Epoxy coated condenser coil                                                        • Low Noise Applications
                • R22 refrigerant, will be changing                                                  • Corrosion Treatment
                  to R410A by March 2008

     6.

At Temperzone, quality is more than a policy, it’s the basic philosophy underpinning our business.
Air Conditioning Solutions for Telecommunications, Mining and Industry - January 2009
Standard Product              Minor Modifications                       Customer Specification

        Readily available          4 - 6 working weeks                      8 – 10 working weeks

Product generally available   Product generally available              Product available in
ex stock                      4 – 6 working weeks                      8 - 10 working weeks
(standard inclusions)         (minor modifications)                     (dependant on current factory load)

                                                                                                                              7.

                                  At Temperzone, quality is more than a policy, it’s the basic philosophy underpinning our business.
Air Conditioning Solutions for Telecommunications, Mining and Industry - January 2009
Product Range

                                                                      Air Cooled Split System
                                                                         4.5kW to 160kW

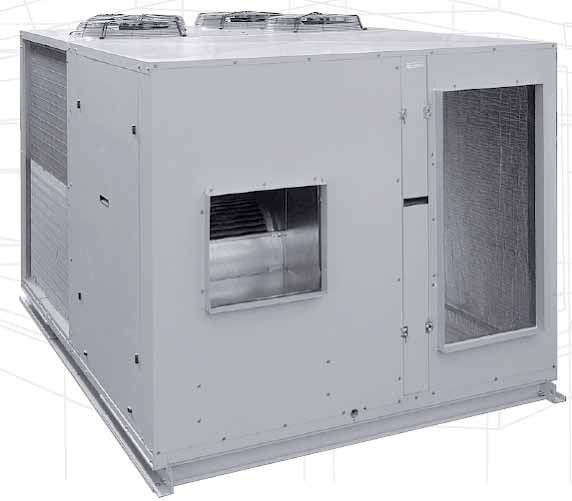

                Roof Mounted Package Unit                                                            Plantroom Packaged Units
                     10kW to 160kW                                                                        25kW to 190kW

     8.

At Temperzone, quality is more than a policy, it’s the basic philosophy underpinning our business.
Chilled Water
                                                                          3kW to 240kW

      Water Cooled
3.3kW to 44kW (Horizontal)
4.5kW to 180kW (Vertical)

                                                                                                                         9.

                             At Temperzone, quality is more than a policy, it’s the basic philosophy underpinning our business.
High Ambient Applications

          Temperzone has a range of High Ambient models specifically designed to           Standard unit features
          operate in a 45°C ambient a temperature for cooling of electrical equipment          • R22
          in a switch room. These units are designed for continuous operation at 52°C.
                                                                                               • TX valves
          They are available in both split and package unit versions.
                                                                                               • Zeihl condenser fans
          The design principle is that we have moved to a larger cabinet size to enable
          us to upgrade the condenser coils and condenser air flows, enabling the               • OUC providing head pressure control and refrigeration system protection
          continuous operation at extreme ambient.                                             • Fault indication
          There are three models in this range 40, 60 & 100kw, with detailed cooling           • Stainless steel external fixings
          capacities shown based upon 45°C ambient, EAT28/18.
                                                                                               • Galvanised steel casing finished in polyester powder coat
          The selections show at 45 and 50 degree ambient, you will note only a small
                                                                                               • Epoxy treated condenser coil for corrosion protection
          change in capacity, however an increase in head pressure and current draw.
                                                                                               • Circuit breakers and overloads on all three phase motors
          Condenser coil fin spacings have been selected to ensure that coils cope with
          the dusty environment, where the maximum finn spacing used is 520 fpm.                • Condenser coil guards
                                                                                          Custom unit options
                                                                                               • Transformer fitted for no neutral power supply
                                                                                               • Handing changes
                                                                                               • 50mm panel filters on the two OPA models
                                                                                               • Factory fitting of controllers
                                                                                               • Painted fans
                                                                                               • Stainless steel drain trays
                                                                                               • Stainless steel cabinets, OPA models only.
                                                                                               • Epoxy treated evaporator coil
                                                                                               • Hot gas bypass
                                                                                               • Backward curved fans with variable air flow
                                                                                               • “Rotaurau” treatment, protection against atmospheric sulphides

    10.                                                                                        • Electronic Expansion Valves components.

At Temperzone, quality is more than a policy, it’s the basic philosophy underpinning our business.
Temperzone also has a high ambient range of equipment, selected at a
          45 degree ambient and designed to provide cooling at 52 degrees.

          The range includes units covering 40, 60, 80 & 100kw.

                                                                                            11.

At Temperzone, quality is more than a policy, it’s the basic philosophy underpinning our business.
High Ambient Applications

                                      BD1000High
                                      BD1000 High Ambient
                                                  ambient unit.
                                                           Unit

                                                             *               INDOOR *     *      OUTDOOR *      * OTHER *
                                      AIRFLOW   L/sec                         5500                10355      Comp.CAP kW    94.8
                                      Entering WET/DRY                       18 / 28              0 / 45     Comp.REJ kW 128.3
                                      WET BULB Depr. Ratio                   0.107                --         Comp.INPUT kW 33.47
                                      EFF.Fact./Tube-Fin Fact.               1 / 1.18            1 / 1.1     Eff.Comp 1.02 Inpt 1.00
                                      Air VELOCITY m/sec                     2.44                1.74        RCV PD [No R.C.Valve]
          Temperzone                  ENTHALPY-ENT/LEAV.AIR                  50.99 / 36.5                    P.D. LOW SIDE     1 °
          manufactures                Vel/Row CORR. FACTOR                   1.60                1.24        P.D. HIGH SIDE    1 °
                                      FIN CORR. FACTOR                       0.98                1.04
          units specially             Coil Air P.D.(Wet/Dry)                 73 / 54             49 / 36
          for high ambient            FACE AREA m²/ROWS DEEP                 2.257 / 4           5.963 / 4
          applications                TUBE Dia. Code/ Fins/m                 15 / 450            15 / 520    Head.kPa(Abs/G)2280/2179
                                      REFRIGERANT TEMP                       7.8                 56.4        Suct.kPa(Abs/G) 618/ 517
                                      LEAVING WET / DRY                      12.9 14.0           --- 55.2    Subcool     1.1 LAprF .9
                                                                                                             Liquid Temp     55.35
                                                                                                             SST/SDT   6.9 57.4
                                      Engineer is ds                                                         Comp. ZR108KC x 4
                                      TOTAL COOLING CAPACITY kW                94.9 -Loss 0 = 94.9           S.H.R.= .98    COP.= 2.83
                                      SENSIBLE COOLING CAPACITY                93.4 -Loss 0 = 93.4           SHeat 18 S.H.Fact1.0000

                                                                                    OPERATION @ 45 AMBIENT
                                                                         *             *   *        *           *       *

    12.

At Temperzone, quality is more than a policy, it’s the basic philosophy underpinning our business.
BD1000 High Ambient Unit
                                          * INDOOR *     * OUTDOOR *                       * OTHER *
                   AIRFLOW   L/sec           5500           10355                       Comp.CAP kW    93.7
                   Entering WET/DRY         18 / 28         0 / 50                      Comp.REJ kW 130.5
                   WET BULB Depr. Ratio     0.107           --                          Comp.INPUT kW 36.80
                   EFF.Fact./Tube-Fin Fact. 1 / 1.18       1 / 1.1                      Eff.Comp 1.02 Inpt 1.00
                   Air VELOCITY m/sec       2.44           1.74                         RCV PD [No R.C.Valve]
                   ENTHALPY-ENT/LEAV.AIR    50.99 / 36.6                                P.D. LOW SIDE     1 °
                   Vel/Row CORR. FACTOR     1.54           1.24                         P.D. HIGH SIDE    1 °
Temperzone         FIN CORR. FACTOR         0.98           1.04
manufactures       Coil Air P.D.(Wet/Dry)   73 / 54        49 / 36
                   FACE AREA m²/ROWS DEEP   2.257 / 4      5.963 / 4
units specially    TUBE Dia. Code/ Fins/m    15 / 450      15 / 520                     Head.kPa(Abs/G)2546/2445
for high ambient   REFRIGERANT TEMP          9.3           61.6                         Suct.kPa(Abs/G) 646/ 545
applications       LEAVING WET / DRY      13.0 13.9      --- 60.4                       Subcool     1.1 LAprF .9
                                                                                        Liquid Temp     60.53
                                                                                        SST/SDT   8.3 62.6
                   Engineer is ds                                                       Comp. ZR108KC x 4
                   TOTAL COOLING CAPACITY kW   94.0 -Loss 0 = 94.0                      S.H.R.= .98    COP.= 2.55
                   SENSIBLE COOLING CAPACITY   93.0 -Loss 0 = 93.0                      SHeat 18 S.H.Fact1.0000

                                                 OPERATION @ 50 AMBIENT
                   Dimensions

                                                                                                                                           13.

                                               At Temperzone, quality is more than a policy, it’s the basic philosophy underpinning our business.
Acoustic Options – There’s normally more than one solution!

                               Acoustic Options 1:
                         Roof Mounted Compressor Hoods
                                                                                                     Acoustic Options 2: mounted below roof line
                                                                                                       Hi Static Condenser Fans ducted through roof

    14.

At Temperzone, quality is more than a policy, it’s the basic philosophy underpinning our business.
Acoustic Options 3:                                                           Acoustic Options 4:
Plantroom Package Unit with Roof Mounted Condenser                            Plantroom Mounted Condenser ducted to outside

                                                                                                                                                 15.

                                                     At Temperzone, quality is more than a policy, it’s the basic philosophy underpinning our business.
Contacts

                                                               Sydney                  Adelaide              Newcastle             Wellington
                                                               Ph: (02) 8822 5700      Ph: (08) 8333 1833    Ph: (02) 4962 1155    Ph: 64-4-569 3262
                                                               Fax: (02) 8822 5701     Fax: (08) 8333 1844   Fax: (02) 4961 5101   Fax: 64-4-566 6249
                                                               Melbourne               Perth                 Townsville            Singapore
                                                               Ph: (03) 9551 7422      Ph: (08) 9314 3844    Ph: (07) 4773 9566    Ph: 065-6733 4292
                                                               Fax: (03) 9551 8550     Fax: (08) 9314 3855   Fax: (07) 4773 9166   Fax: 065-6235 7180
                                                               Brisbane                Hobart                Auckland
                                                               Ph: (07) 3399 2544      Ph: (03) 6272 0066    Ph: 64-9-279 5250     Commercial: www.temperzone.biz
                                                               Fax: (07) 3399 2577     Fax: (03) 6272 0506   Fax: 64-9-275 5637

    16.

At Temperzone, quality is more than a policy, it’s the basic philosophy underpinning our business.
Supporting our equipment out in the field

  Heating &
                Cooling So
                          lutions                                                                                                                                                       Online Info
                                                                                                                                                                                                                            rmation
                                                                                                                                                                                                     Visit our w
                                                                                                                                                    ases                      www.tempeebsite at
                                                                                                             Pres
                                                                                                             Pressure Temperaturee                                             for online
                                                                                                                                                                                          informat
                                                                                                                                                                                                   rzone.biz
                                                                                                                                                                                                                   ion on the
                                                                                                                                                                                                                                     following:
   3ER VICE                                                         Centre exp
                                                                               anded                         andd Technical Service                                  Home

                                                   00  ervice
                                                                                                                                                                                     • Wiring Di

                                                  8
                                                                                                                                                                Locations
                                       National S
                                                                                                                                                                                                  agrams

                                              1 1                                                                 Information                                                        • Water an                           • Installation

                                            2
                                                                                                                                                                                                d Air Flow Da                            an
                                                                                                                                                                                                                            Instructions d Maintenance

   4RAINING
                                       1800
                                                                                                                                                                                    • Air Hand                 ta
                                                                                                                                                               Company                         ling Informati
                                                                                                                                                                                                              on         • Technical
                                                                                                                                                                Profile             • Capacity
                                                                                                                                                                                               Performance                             Specification
                                                                                                                                                                                                                                                    s and Data
                                                                                                                                                                                                             Data        • Electrical
                                                                                                                                                                                                                                      Spec
                                                                                                                                                               Product                                                    Requirements ifications and
                                                                                                             A handy pocket guide to air conditioning
                                                                                                                                                    g
   -ANUAL                                              upport,                                                                                                Overview

                                            Technical Snd Warranty
                                                                                                                                                                                  • Parts Lis
                                                                                                                                                                                              ts for most
                                                                                                                                                                                                            models includ
                                                                                                                                                              Contact                                                     ing Part Nu
                                                                                                                                                                                                                                       mbers and
                                                    sa                                                                                                                                                                                              Descriptions

                                         Spare Part                                                          Technical
                                                                                                             Te
                                                                                                              echnica Support, Service & Parts hotline:
                                                                                                              ec                                     e:      Detailed
                                                                                                                                                             Product
                                                                                                                                                                                • Superheat
                                                                                                                                                                               • Refrigera
                                                                                                                                                                                                Measureme
                                                                                                                                                                                                            nt        • High Sens

                                                                  r t                                                 1800 211 800
                                                                                                                                                                                             nt Pipe Sizes                          ible Heat Ap
      AU*U
         GLY
           UST
                2007

                                                i c a l S u p p o                                                                                            Spare
                                                                                                                                                                               • Evacuatio
                                                                                                                                                                                             n Procedure
                                                                                                                                                                                                          s
                                                                                                                                                                                                                      • Water So
                                                                                                                                                                                                                                  urced
                                                                                                                                                                                                                       Applications Units
                                                                                                                                                                                                                                                  plications

                                          Techn
                                                                                                                                                                              • Commiss                                               Manual
                                                                                                                                                                                            ioning Inform
                                                                                                                                                             Parts            • Commiss                    ation • Operating
                                                                                                                                                                                                                                   Lim
                                                                                                                                                                                           ioning Shee
                                                                                                                                                                                                        ts            Economiser its with
                                                                                                                                                                                                                                    Damper Fitted
                                                                                                       ort                                                                   • Refrigera
                                                                                          nical supp                                                       Technical                     nt Charging                • Split Syste
                                                                   ov id in g better tech       fie ld .                                                   Support
                                                                                                                                                                             • Oil Traps
                                                                                                                                                                                         (if or when               • Reverse Cy
                                                                                                                                                                                                                                  ms Installat
                                                                                                                                                                                                                                               ion Guide
                                                      staff now pr                            e                                                                                                       req uir
                                                                                  those in th                                                                               • Trouble Sh                      ed)                 cle
                                                                                                                                                                                                                     Low Ambie Heating in
                                         Additional                  oducts to
                                                                                                                                                                                          ooting Inform                          nts
                                                                                                                                                                                                         ati
                                                          perzone pr                                                                                       Updates          • High Perce                     on
                                                                                                                                                                                         nta                      • Fresh Air
                                           fo r al l Te m                                                                                                                    Air Systems ge Fresh                             Tempering
                                                                                                                                                                                                                                           Applications
                                                                                                                                                                                                                  • Flexible Du
                                                                                                                                                                                                                                cting Installat
                                                                                                                                                                                                                                                ion Guide
                                                                            ebsite at
                             ISSUE 2

                                                     w .t e m p e rzonee.bfoillzowing:
                                                           visit our w
                                                  ww        mation on
                                                                      th
                                                            infor                                    rt
                                          for online            Info, Spare Parts an
                                                                                    d Techni
                                                                                            cal Suppo

                                                        Product
                                               Detailed

                                                                                                                                                                                                                                                                   17.

                                                                                   At Temperzone, quality is more than a policy, it’s the basic philosophy underpinning our business.
Telecommunication, Mining & Industry Sites

      Project                           Location                    Equipment                        Comments
      Telephone exchange                North Parramatta            Air Cooled Splits
      Oki Tedi Mine                     New Guinea                  Air Cooled Splits                Switch room
      Telephone exchange                Tahmoor                     Air Cooled Splits                Tandem Compressors
      Telephone exchange                New Lambton                 Air Cooled Splits                Includes Plantroom Series Condenser
      Alcan Gove G3 Project             Gove NT                     Air Cooled Splits                Switch room
      Telephone exchange                Broken Hill                 Air Cooled Splits                Plantroom Series Condenser / High Ambient Application
      Red Bank Power Station            Singleton NSW               Air Cooled Package               Switch room
      Telephone exchange                Glebe                       Air Cooled Splits                Plantroom Series Condenser
      Capcoal                           QLD                         Air Cooled Splits & Package      Switch room
      Telephone exchange                Lidcombe                    Air Cooled Splits & Packages     Rooftop Series
      Control Centre                    Singleton NSW               Chilled Water Fan Coil           Switch room
      Telephone exchange                Helensburgh                 Air Cooled Splits                Tandem Compressors
      Snow Town                         SA                          Air Cooled Splits                Switch room
      Telephone exchange                Kellyville                  Air Cooled Splits                Low Noise Application
      Honiara                           Solomon Islands             Air Cooled Package               Switch room
      Telephone exchange                Kurnell                     Air Cooled Splits                Tandem Compressors
      Telephone exchange                Wyong                       Air Cooled Splits                Low Noise Application
      Mine site                         Roxby Downs                 Air Cooled Splits                Admin Buildings
      Telephone exchange                Parkes                      Air Cooled Splits                Plantroom Series Condenser
      QAL                               Gladstone                   Air Cooled Package               Process cooling
      Telephone exchange                Forbes                      Air Cooled Splits                Plantroom Series Condenser
      Telephone exchange                Brooklyn                    Air Cooled Splits                Economy Cycle Application Built In
      Telephone exchange                Alstonville                 Air Cooled Splits                Tandem Compressors, Low Noise Application
    18.

At Temperzone, quality is more than a policy, it’s the basic philosophy underpinning our business.
Telecommunication, Mining & Industry Sites

   Project                     Location         Equipment                           Comments
   Bolereo, Santos             QLD              Plantroom package units             Switch room
   Telephone exchange          Coonabarrabran   Air Cooled Splits                   Plantroom Series Condenser, Low Noise Application
   Al Smelter                  Pt Pirie         Air Cooled Package                  Demag blower room
   Telephone exchange          Avalon           Air Cooled Splits                   Low Noise Application
   Telephone exchange          Burwood (NSW)    Air Cooled Splits
   Telephone exchange          Como             Air Cooled Splits                   Plantroom Series Condenser
   Yambuk Wind Farm            VIC              Air Cooled Package                  Switch room
   Telephone exchange          Leppington       Air Cooled Splits                   Tandem Compressors, Low Noise Application
   Hallett Wind Farm           SA               Air Cooled Splits                   Switch room
   Telephone exchange          Randwick         Air Cooled Splits                   Plantroom Series Condenser
   Telephone exchange          Glenbrook        Air Cooled Split                    Plantroom Series Condenser
   Telephone exchange          Hurstville       Air Cooled Splits                   Plantroom Series Condenser
   Telephone exchange          Kent St Sydney   Chill. Water                        Air Handling Units
   Broadwater Sugar Mill       Broadwater NSW   Air Cooled Splits                   Switch room
   Telephone exchange          Albion Park      Air Cooled Package                  Plantroom Series
   Condong Gem Plant           NSW              Air Cooled Splits                   Switch room
   Telephone exchange          Warilla          Air Cooled Splits                   Plantroom Series Condenser
   Telephone exchange          Kogorah          Air Cooled Splits & Packages        Plantroom Series Condenser & Rooftop Series
   Telephone exchange          Thirroul         Air Cooled Splits                   Plantroom Series Condenser
   Sepon Copper/Gold Project   Laos Cambodia    Air Cooled Package                  Portable cooling application to enclosed work site
   Telephone exchange          Dapto            Air Cooled Splits
   Minara Resources            WA               Air Cooled Package                  Switch room
   Telephone exchange          Lakemba          Air Cooled Splits
                                                                                                                                             19.

                                                 At Temperzone, quality is more than a policy, it’s the basic philosophy underpinning our business.
Telecommunication, Mining & Industry Sites

      Project                          Location                    Equipment                         Comments
      Telephone exchange               Lithgow                     Air Cooled Splits                 Plantroom Series Condensers
      Telephone exchange               Petersham                   Air Cooled Splits                 Plantroom Series Condensers
      Telephone exchange               Riverstone                  Air Cooled Splits                 Plantroom Series Condensers
      Telephone exchange               Silverwater                 Air Cooled Splits
      Moranbah North                   QLD                         Air Cooled Splits & Package       Switch room
      Telephone exchange               Castle Hill                 Air Cooled Splits & Packages      Rooftop Series
      Liddell Power Station            Singleton NSW               Water Cooled Splits & Package     Switch room
      Telephone exchange               Bathurst                    Air Cooled Package                Low Noise Application
      Telephone exchange               Melton                      Air Cooled Package                Low Noise Application
      Telephone exchange               Frankston                   Air Cooled Splits                 Low Noise Application, Compressors in Evaporator Unit
      Telephone exchange               Highett                     Air Cooled Splits                 Low Noise Application
      Telephone exchange               Mandurah                    Air Cooled Splits                 Low Noise Application
      Telephone exchange               Wanneroo                    Air Cooled Splits                 Low Noise Application
      Telephone exchange               Hammersley                  Air Cooled Splits                 Low Noise Application
      Telephone exchange               Midland                     Air Cooled Splits                 Low Noise Application
      Telephone exchange               Rockingham                  Air Cooled Package                Low Noise Application
      Telephone exchange               Hilton                      Air Cooled Split                  Low Noise Application, Compressors in Evaporator Unit
      Telephone exchange               Cannington                  Air Cooled Package                Low Noise Application
      Gromor Entreprises               Singleton NSW               Air Cooled Package                Mushroom farm
      Telephone exchange               Kingsgrove                  Air Cooled Splits                 Plantroon Series Condenser
      Munmorah Power Station           Lake Munmorah NSW           Air Cooled Splits                 Switch room
      Telephone exchange               Rydalmere                   Air Cooled Splits
      Mt. Thorley Mines                Singleton NSW               Air Cooled Package                Drag line operators cabin
    20.

At Temperzone, quality is more than a policy, it’s the basic philosophy underpinning our business.
Telecommunication, Mining & Industry Sites

   Project                Location                 Equipment                        Comments
   Telephone exchange     Port Kembla              Air Cooled Splits                Tandem Compressors
   Telephone exchange     Merrimac                 Air Cooled Split                 Low Noise Application
   Telephone exchange     Lutwyche                 Air Cooled Splits                Plantroom Series Condenser, Low noise Application
   Telephone exchange     Salisbury                Air Cooled Splits                Low Noise Application
   Telephone exchange     Capalaba                 Air Cooled Package               Low Noise Application
   Telephone exchange     Sunshine                 Air Cooled Splits                Low Noise Application
   Emu Plains Wind Farm   Cervantes WA             Air Cooled Package               Switch room
   Telephone exchange     Nowra                    Air Cooled Splits
   Tomago TAC Facility    Tomago NSW               Air Cooled Splits                Switch room
   Telephone exchange     Vaucluse                 Air Cooled Splits                Compressor Hoods / Residential Application
   Goro Nickle Project    Noumea New Caledonia     Air Cooled Package               Switch room
   Telephone exchange     Dandenong                Air Cooled Splits                Low Noise Application
   Telephone exchange     Oakleigh                 Air Cooled Splits                Low Noise Application
   Telephone exchange     Greensborough            Air Cooled Splits                Low Noise Application
   Telephone exchange     Werribee                 Air Cooled Splits                Low Noise Application
   Telephone exchange     Box Hill                 Air Cooled Splits                Low Noise Application
   Telephone exchange     Tullamarine              Air Cooled Package               Low Noise Application
   Telephone exchange     Unley                    Air Cooled Package               Low Noise Application
   Telephone exchange     Prospect (S.A.)          Air Cooled Package               Low Noise Application
   Telephone exchange     Lonsdale                 Air Cooled Package               Low Noise Application
   Telephone exchange     Salisbury                Air Cooled Package               Low Noise Application

                                                                                                                                             21.

                                                 At Temperzone, quality is more than a policy, it’s the basic philosophy underpinning our business.
Appendices

                                                                 1. Overview
                                                                      a. Local Manufacturers
                                                                      b. 50 Year History Brochure

                                                                 2. Equipment Selection Philosophy
                                                                      a. Specification Summary
                                                                      b. Unit Selection Program
                                                                      c. Handing Chart
                                                                      d. Works Order 1, 2 & 3
                                                                      e. Factory Quality Check Points
                                                                      f. Final Test and Inspection

At Temperzone, quality is more than a policy, it’s the basic philosophy underpinning our business.
Appendix 1

                   Overview
     a. Local Manufacturers
b. 50 Year History Brochure

        At Temperzone, quality is more than a policy, it’s the basic philosophy underpinning our business.
Appendix 1 a. - Overview - Local Manufactiurers

                                                                                                                                        At Temperzone, we know we can’t be beaten for quality, back-
                                                                                                                                        up and service. And it all starts at our Sydney manufacturing
                                                                                                                                        plant. That’s why we’re always delighted to show you around.

        Australian Manufacturing,                                                                                            • Sydney manufacturing facility
                                                                                                                             • Daily production meetings

         let us prove to you the
                 benefits
                                                              IFTY YEAR
                                                           •F           S
                                                      CE                         O
                                                  N

                                                                                     F
                                                LE

                                                                                     MA
                                              EXCEL

                                                                                         N U FA C T U R

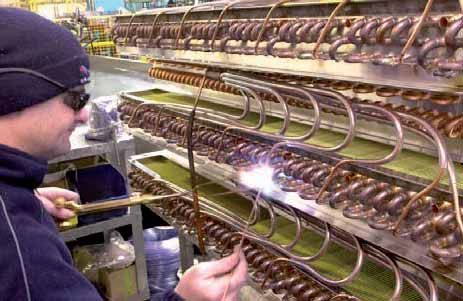

                                                                                                                                                               PIPE WORK
                                               VICE

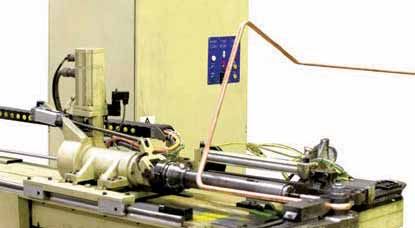

                                                                                                                                                               • 3 d pipe bending eliminates joints and

                                                            y
                                                            years                                                                                                the risk of leaks
                                                                                                                                                               • Braizing with nitrogen, eliminating scale
                                                    R

                                                                                     IN
                                                 SE

                                                                                     G

                                                                             ,I
                                                                         D      NN
                                                        O V AT I O N A N

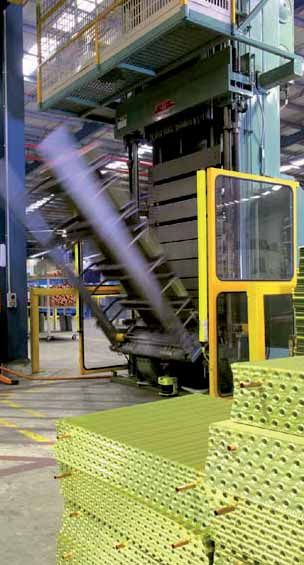

                                                                                                          COIL MANUFACTURING
                                                                                                          • Temperzone is the only Australian
                                                                                                            manufacturer building their own coil, this
                                                                                                            brings flexibility from a 1 to 6 row coil.
                                                                                                          • Corrosion options
                                                                                                          • DX, chilled water and condenser water coils
                                                                                                          • Consume 20 tonnes of copper per month

At Temperzone, quality is more than a policy, it’s the basic philosophy underpinning our business.
Appendix 1 a. - Overview - Local Manufactiurers

                                                                                                                                                           EVACUATION TESTING & PACKING
                                                                                                                                                           • Full run tested, control logic, running amps,
                                                                                                                                                             when it leaves the factory we know it works!
                                                                                                                                                           • Strict standards of 200 microns for 5 minutes
                                                                                                                                                             must be achieved
                                                                                                                                                           • Refrigerants, R22, R407C, R410A

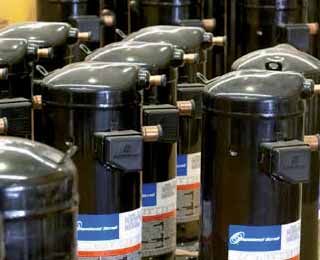

                                                                                                                                                                                                                                                 COMPONENTS
                                                                                                                                                                                                                                                • Well known reliable brands
                                                                                                                                                                                                                                                • Inward goods inspection to
                                                                                                                                                                                                                                                  ensure quality is maintaied

SHEET METAL PROCESSING
• Consume 100 tonnes per month galvanised sheet metal
• Fully automated, the night-shift is unmanned

                                                                                                                                                                                                              DAILY PRODUCTION MEETINGS
                                                                                                                                                                                                             • Every day sales, engineering, production and
                                                                                                                                                                                                               management meet to solve any issue to
                                                                                                                                                                                                               ensure on time deliveries

                                                                                                                                                                                                              SPARE PARTS & WARRANTY
                                                                                                                                                                                                             • Staffed by experienced
                                                                                                                                                                                                               trades people
                                                                                                                                                                                                             • Phone 1800 21 1800
                                                                                                                                                                                                               and choose from options 3 & 4
                                                                                                                                                                                                                                                              WAREHOUSE
                                                                                                    POWDER COATING                                                                                                                                            • Because of changing market place
                                                                                                                                                                                                                                                              we always have in stock the following:
ASSEMBLY                                                                                            • All metal is cut punched and folded before
                                                                                                                                                                                                                                                                - Air cooled splits to 92kW
                                                                                                      painting so that you do not ruin the integrity
• Regular quality checks during critical stages                                                       of the powder coat finish                                                                                                                                  - Air cooled package to 160kW
  of manufacture                                                                                    • Range of colours
                                                                                                                                                                                                                                                                - Water cooled to 44kW
• Pride in their work                                                                                                                                                                                                                                           - Chilled water to 55kW
                                                                                                    • 200ºC for 10 minutes
• Testing and quality control

                                                                                                                                                       STOCK MANUFACTURING
                                                                                                                                                       • Large capacity units
                                                                                                                                                       • Economies of scale

                                                        ENGINEERING
                                                        • R&D and custom manufacturing
                                                        • 8 Engineers controlling the product
                                                        • Custom engineered product to suit all applications

                                                                                                                                       At Temperzone, quality is more than a policy, it’s the basic philosophy underpinning our business.
Appendix 1 a. - Overview - Local Manufactiurers

                             We hope you’ve                                                                                                                NEW ZEALAND FACTORY

                            enjoyed this tour
                                                                                                                                                    •   Corporate head office
                                                                                                                                                    •   High volume manufacturing
                                                                                                                                                    •   Twice the size of Sydney factory
                                                                                                                                                    •   Operates 24 hours per day
                                                                                                                                                    •   R&D facility, capacity, sound, fan testing

                                     FTY YEAR
                                 F I invite
                               •We          you to visit
                                                    S our factory to
                            C E experience it for yourself.
                                                       O
                    EN

                                                                F
                                                                MA
               ICE EXCELL

                                                                    N U FA C T U R
                     V

                                                                                                                As Australia’s ducted air specialists, Temperzone offers the winning combination of a wide product range
                  ER

                                                                IN

                                                                                                                supported by unmatched technical backup, a comprehensive warranty, and manufacturing facilities that
                            S

                                                                G

                                                         ,I                                                     are unequalled in Australia. Remember, ducted air conditioning isn’t one of the things we do, it’s the only
                                D              N   NOV      N                                                                     thing we do, and we’ve been doing it better than anyone since 1956.
                                    AT I O N A
                                                                                                                Temperzone air conditioning is designed for Australian conditions – not Asian or European climates – and
                                                                                                                  the scale of our manufacturing facility is further testimony to our commitment to our home market.

                                                                                                                You may not have realised that at a time when others have moved offshore, we’ve expanded our Sydney
                                                                                                                plant creating local jobs and acquiring in-depth local knowledge. Is it any wonder that we’re proud of our
                                                                                                                                                              achievements?
                                                                                                                                     That’s why you can specify Temperzone with total confidence!

At Temperzone, quality is more than a policy, it’s the basic philosophy underpinning our business.
Appendix 1 b. - Overview - 50 Year History Brochure

                                                                                                                                                                        By the 1990s, the company is a major        Singapore, Malaysia, South East Asia at      Our water-cooled products are well
                                                                                                                                                                        manufacturer and international              large, and China.                            suited, and our manufacturing facilities
                                                                                                                                                                        supplier of commercial and industrial       Temperzone International continues to        and product range expand.
A young, single-minded and gifted                                                                                                                                       air conditioning with a ‘preferred          live up to its name and reputation for
engineer, Mr. Eric L. Kendall, pioneers the                                                                                                                                                                                                                      Being well placed to service this
                                                                                                                                                                        supplier status’ in many market             technical excellence, quality and value.
local production of heat transfer coils                                                                                                                                                                                                                          booming market, many more
                                                                                                                                                                        segments.                                   Temperzone is accredited with quality
for local manufacturing and industrial                                                                                                                                                                                                                           architects, builders, consultants
                                                                                                                                                                        Respected and established throughout        assurance scheme ISO9001 further             and mechanical contractors are
processing applications, to replace                                                                                                                                                                                 acknowledging product quality.
European             sourced coils.                                                                                                                                     the eastern hemisphere, the company’s                                                    exposed to the emerging strength of
                                                                                                                                                                        market embraces the Pacific Nations,        The high-rise residential boom arrives       Temperzone.
Together with the introduction of new                                                                                                                                   New Zealand, Australia, Indonesia,          - an exciting period for Temperzone.
technology, the new company makes its
mark and develops to dominate its market.

                                                                                                                                                           The 21st century
                                                                                                                                                           brings a major
                                                                                                                                                           expansion of our
                                                                                                                                                           Sydney and Auckland
                                                                                                                                                           manufacturing
                                                                                                                                                           facilities.Staffnumbers     Temperzone “Selling Ice to Eskimos”,      with the introduction of television     is supported by our consumer
                      Building on success the company begins        the company consolidates its position as                                                                           exporting thousands of quality air        advertising.                            DVD and brochure, and television
                                                                                                                                                           grow to over 500, and
                      a new era of expansion. With a policy of      an industrial leader.                                                                                              conditioning products to China as                                                 advertising.
                                                                                                                                                           our expanded list of
                      employing and training the most talented                                                                                                                                                                   Commercial work blossoms through
                                                                    Manufacturing facilities are expanded with                                             corporate customers         the preferred choice to poor quality
                      people in the industry, the introduction of                                                                                                                                                                stocking of standard products           Temperzone works hard to support
                                                                    the introduction of fans and packaged air                                              includes Meriton,                          local product which
                      new technologies and innovations, plus an                                                                                                                                                                  including split ducted up to 92kw,      the trade with comprehensive
                                                                    conditioners to the product range.                                                     Mirvac, Shell, Aldi,                         is often imported
                      expanding range of products and services,                                                                                                                                                                  roof top package units up to 160kw,     technical and marketing support
                                                                                                                                                           Woolworths, The                              into Australia.
                                                                                                                                                                                                                                 and chilled water fan coils up to       which is well supported by our sales
                                                                                                                                                           Warehouse, and
                                                                                                                                                                                                        Temperzone builds        55kw.                                   and service teams and domestic and
                                                                                                                                                           Telstra.
                                                                                                                                                                                                        brand awareness                                                  commercial web sites.
                                                                                                                                                                                                                                 Meanwhile, we continue to expand
                                                                                                                                                                                                       with increased
                                                                                                                                                                                                                                 our engineering capabilities to
                                                                                                                                                                                                       activity at trade
                                                                                                                                                                                                                                 support our custom built products.
                                                                                                                                                                                                       and home shows,
                                                                                                                                                                                                                                 Domestic sales flourish through
                                                                                                                                                                                                      and increased
                                                                                                                                                                                                                                 a commitment to support and
                                                                                                                                                                                                      promotion to the
                                                                                                                                                                                                                                 grow our dealer network, which
                                                                                                                                                                                                      domestic consumer

    New style buildings change the face of our cities          Manufacturing is moved to the Tidal Rd. facilities
    creating a new and urgent demand for advanced              allowing for further expansion of coil manufacturing
    commercial air conditioning.                               with the purchase of our first Burr Oak coil line.
                                                               These new facilities provide the manufacturing
    Having anticipated the market, the company is
                                                               capacity that enables the sales network to be
    ideally positioned to service that need, designing and
                                                               expanded to include Australia.
    building the sophisticated custom-built air handling
    and air conditioningg systems
                           y        required.
                                      q

                                                      As a pioneer in the early introduction     national sales and warehouse
                                                      and application of CNC production          distribution facilities.
                                                      machinery, the company continues to
                                                                                                 The company’s R&D facilities are                                                                local manufacturing facility
                                                      invest in the latest CNC technology.                                                                                                                                        dynamic, customer oriented       A recent upgrade of our
                                                                                                 expanded, and now include capacity,
                                                      At this time, Temperzone is the                                                                                                            that is positioned to serve      approach to its market.          R&D facilities has created
                                                                                                 sound and fan testing giving us further
                                                      regions largest CNC manufacturing                                                                                                          the Australian and Asian         We will maintain a policy        the platform for our future
                                                                                                 confidence in the product we design
                                                      installation.                                                                                                                              markets for many more            of excellence, quality and       product development where
                                                                                                 and build.
                                                                                                                                                                                                 years to come.                   value through an ongoing         energy efficiency, Inverter
                                                      Together with the introduction of
                                                                                                 A “one stop shop” philosophy is                                                                                                  re-investment into research,     and digital scroll compressor
                                                      sophisticated computer aided design                                                                                                        Still inspired by the
                                                                                                 adopted as the basis for developing a                                                                                            developmentandproduction         technology are high on our
                                                      and computer aided manufacturing                                                                                                           pioneering vision of
                                                                                                 full service and product merchandising                                                                                           technology, and never stop       priority lists.
                                                      (CAD/CAM) enormous gains in                                                                                                                its founder, governing
                                                                                                 network.                                                        Temperzone has established                                       looking for new ways of
                                                      productivity result, reducing lead                                                                                                         director Eric L. Kendall, the
                                                      times, and improving customer                                                                              a successful air conditioning                                    being of service to our
                                                                                                 South East Asian offices are opened                                                             company will continue its
                                                      service.                                                                                                   business, with a world class                                     clients.
                                                                                                 in Hong Kong and Singapore servicing
                                                                                                 this major commercial market with
                                                      Sydney manufacturing facilities are
                                                                                                 high quality products that are well
                                                      established with the purchase of
                                                                                                 received in a competitive environment
                                                      Bradway Engineering, and the sales
                                                                                                 from day one.
                                                      network is expanded providing

                                                                                                                                           At Temperzone, quality is more than a policy, it’s the basic philosophy underpinning our business.
Appendix 2

                                                               Equipment Selection Philosophy
                                                               a. Specification Summary
                                                               b. Unit Selection Program
                                                               c. Handing Chart
                                                               d. Works Order
                                                               e. Factory Quality Check Points
                                                               f. Final Test and Inspection

At Temperzone, quality is more than a policy, it’s the basic philosophy underpinning our business.
Appendix 2 a. - Equipment Selection Philosophy - Specification Summary

                                                                        SCHEDULE FOR TRANSFIELD NGN SITES

                                                                               COMMERCIAL SCHEDULE INCLUDING OPTIONS
                                                                                                                                       DATE              26/03/2007
               SITE NAME :-                TELEPHONE EXCHANGE                                                                          PAGE             1   OF     1
                                                                                                                                       SALES ENG.

                                                                                                               INCLUDED OPTIONS                      CUSTOM
                       UNIT TYPE                  MODEL           1       2      3      4      5     6     7       8    9    10   11     12   QTY   UNIT PRICE $
Summary        SPLIT DUCTED                 ISD920Q/OSA920RB      INC    INC    INC    INC    INC   INC   INC    INC   INC                      1
of Technical
Requirements

                                                                                                                                                      TOTAL INC GST
               Note / Comments
               Install & Maintenance Sheets Existing
                                            Need to be compiled                To Be Prepared by Temperzone Marketing Dept.

               Wiring Diagrams             Existing
                                           Need to be compiled                 Prepared by Engineering

               Dimension Drawings          Existing
                                           Need to be compiled                 Prepared by Engineering

               INDEX OF OPTIONS
               1                           PAINTED EVAPORATOR CABINET                        7 R407C REFRIGERANT CONVERSION
               2                           EPOXY COATED EVAPORATOR COILS                     8 TOP SUPPLY INDOOR UNIT
               3                           STAINLESS STEEL CONDENSATE TRAY                   9 CONDENSER FAN / HEAD PRESSURE CONTROL
               4                           MANUAL HP CONTROL
               5                           FIRE RELAY
               6                           COMMON FAULT / RUN SIGNAL

                                                                      At Temperzone, quality is more than a policy, it’s the basic philosophy underpinning our business.
Appendix 2 b. - Equipment Selection Philosophy - Unit Selection Program

                                        WET    COIL                                                                      Final Balance
                                                               * INDOOR *    * OUTDOOR *                                 * OTHER *
                                        AIRFLOW   l/sec           4000          7400                                    Comp.CAP kW    78.89
                                        Entering WET/DRY         18.5 / 26.9 0 / 45                                     Comp.REJ kW    114.91
                                        WET BULB DEP.            0.103          --                                      Comp.INPUT kW 36.01
                                        EFFICIENCY FACTOR         1.15          1.2                                     Eff.Comp 1.05 Inpt 1.05
                                        Air VELOCITY m/sec       1.77          2.71                                     RCV PD [NO R.C.Valve]
                                        ENTHALPY-ENT/LEAV.AIR   52.58 / 36.0                                            P.D. LOW SIDE     1 deg
         Checking                       Vel/Row CORR. FACTOR     1.34          1.65                                     P.D. HIGH SIDE    1 deg
         Operation at                   FIN CORR. FACTOR         0.94          1.01
         Extreme                        Air P.Drop Pa.          35.4          96.6
                                        FACE AREA m²/ROWS DEEP   2.257 / 4     2.728 / 4
         Ambients                       TUBE Dia. Code/ Fins/m    15 / 400     15 / 480         HEAD.P. kPa(Abs) 2537
                                        REFRIGERANT TEMP          7.8          60.9             SUCT.P. kPa(Abs) 616
                                        LEAVING WET / DRY      12.7 13.6      0.0 57.8          SUBCOOL 2.7 LApr .9
                                                                                                Liquid Temp    58.13
                                                                                                SST/SDT   6.8 61.9
                                        Engineer is G.Stewart                                   Comp. mt100r6 x 4
                                        TOTAL COOLING CAPACITY kW 78.8 -Loss 0 = 78.8           S.H.R.= .81 COP.= 2.18
                                        SENSIBLE COOLING CAPACITY 64.4 -Loss 0 = 64.4           SHeat 18 S.H.Factor 1
                                          = continue  = HARD COPY  = COMMENT  = schematic

                                                                         BROKEN HILL @ 45 AMBIENT
                                        ASHP2.4       by   AIRSOFT for BRADWAY. COOLING MODE      TIME 15:41                        12-02-2002

At Temperzone, quality is more than a policy, it’s the basic philosophy underpinning our business.
Appendix 2 b. - Equipment Selection Philosophy - Unit Selection Program

                 WET    COIL                                                                        Final Balance
                                        * INDOOR *    * OUTDOOR *                                   * OTHER *
                 AIRFLOW   l/sec           4000          7400                                      Comp.CAP kW    88.58
                 Entering WET/DRY         18.5 / 26.9 0 / 35                                       Comp.REJ kW    120.78
                 WET BULB DEP.            0.103          --                                        Comp.INPUT kW 32.20
                 EFFICIENCY FACTOR         1.15          1.2                                       Eff.Comp 1.05 Inpt 1.05
                 Air VELOCITY m/sec       1.77          2.71                                       RCV PD [NO R.C.Valve]
                 ENTHALPY-ENT/LEAV.AIR   52.58 / 34.0                                              P.D. LOW SIDE     1 deg
Checking         Vel/Row CORR. FACTOR     1.34          1.65                                       P.D. HIGH SIDE    1 deg
Operation of     FIN CORR. FACTOR         0.94          1.01
Specified         Air P.Drop Pa.          35.4          96.6
                 FACE AREA m²/ROWS DEEP   2.257 / 4     2.728 / 4
Conditions       TUBE Dia. Code/ Fins/m    15 / 400     15 / 480         HEAD.P. kPa(Abs) 2059
                 REFRIGERANT TEMP          6.5          51.7             SUCT.P. kPa(Abs) 591
                 LEAVING WET / DRY      11.9 12.8      0.0 48.5          SUBCOOL 2.9 LApr .9
                                                                         Liquid Temp    48.83
                                                                         SST/SDT   5.5 52.7
                 Engineer is G.Stewart                                   Comp. mt100r6 x 4
                 TOTAL COOLING CAPACITY kW 88.5 -Loss 0 = 88.5           S.H.R.= .77 COP.= 2.74
                 SENSIBLE COOLING CAPACITY 68.3 -Loss 0 = 68.3           SHeat 18 S.H.Factor 1
                   = continue  = HARD COPY  = COMMENT  = schematic

                                                       BROKEN HILL @ 35 AMBIENT
                 ASHP2.4       by   AIRSOFT for BRADWAY. COOLING MODE      TIME 15:45                            12-02-2002

                                                       At Temperzone, quality is more than a policy, it’s the basic philosophy underpinning our business.
Appendix 2 b. - Equipment Selection Philosophy - Unit Selection Program

                                       WET    COIL                                                                 Final Balance
                                                              * INDOOR *    * OUTDOOR *                            * OTHER *
                                       AIRFLOW   l/sec           4000          7400                               Comp.CAP kW    102.33
                                       Entering WET/DRY         18.5 / 26.9 0 / 20                                Comp.REJ kW    129.2
                                       WET BULB DEP.            0.103          --                                 Comp.INPUT kW 26.87
                                       EFFICIENCY FACTOR         1.15          1.2                                Eff.Comp 1.05 Inpt 1.05
                                       Air VELOCITY m/sec       1.77          2.71                                RCV PD [NO R.C.Valve]
                                       ENTHALPY-ENT/LEAV.AIR   52.58 / 31.1                                       P.D. LOW SIDE     1 deg
                                       Vel/Row CORR. FACTOR     1.34          1.65                                P.D. HIGH SIDE    1 deg
         Checking                      FIN CORR. FACTOR         0.94          1.01
         Operation at                  Air P.Drop Pa.          35.4          96.6
         Low Ambients                  FACE AREA m²/ROWS DEEP   2.257 / 4     2.728 / 4
                                       TUBE Dia. Code/ Fins/m    15 / 400     15 / 480         HEAD.P. kPa(Abs) 1502
                                       REFRIGERANT TEMP          4.7          37.8             SUCT.P. kPa(Abs) 559
                                       LEAVING WET / DRY      10.7 11.6      0.0 34.5          SUBCOOL 3.1 LApr .9
                                                                                               Liquid Temp    34.77
                                                                                               SST/SDT   3.7 38.9
                                       Engineer is G.Stewart                                   Comp. mt100r6 x 4
                                       TOTAL COOLING CAPACITY kW 102.1 -Loss 0 =102.1          S.H.R.= .72 COP.= 3.79
                                       SENSIBLE COOLING CAPACITY 74.0 -Loss 0 = 74.0           SHeat 18 S.H.Factor 1
                                         = continue  = HARD COPY  = COMMENT  = schematic

                                       Due to LOW REFRIG. P.DROP avail at liquid refrig control STARVING MAY OCCUR

                                                                              BROKEN HILLHILL
                                                                                  BROKEN   @ 20 AMBIENT
                                                                                              @ 20 AMBIENT

                                       ASHP2.4       by   AIRSOFT for BRADWAY.           COOLING MODE       TIME 17:05        12-02-2002

At Temperzone, quality is more than a policy, it’s the basic philosophy underpinning our business.
Appendix 2 c. - Equipment Selection Philosophy - Handing Chart

Matching unit configurations
to project requirements

                                              At Temperzone, quality is more than a policy, it’s the basic philosophy underpinning our business.
Appendix 2 c. - Equipment Selection Philosophy - Site Specific Drawing

         Site Specific
         Drawing

At Temperzone, quality is more than a policy, it’s the basic philosophy underpinning our business.
Appendix 2 e. - Equipment Selection Philosophy - Site Specific Wiring Diagram

Site Specific
Wiring Diagram

                                                              At Temperzone, quality is more than a policy, it’s the basic philosophy underpinning our business.
Appendix 2 e. - Equipment Selection Philosophy - Works Order

                     Production Details

At Temperzone, quality is more than a policy, it’s the basic philosophy underpinning our business.
Appendix 2 e. - Equipment Selection Philosophy - Works Order

                             At Temperzone, quality is more than a policy, it’s the basic philosophy underpinning our business.
Appendix 2 e. - Equipment Selection Philosophy - Factory Quality Check Points

                                                         temperzone australia pty ltd                                                                                         ISSUE 2
                                                         FORM : QF6                                                                                                     JANUARY, 2000

                                                                                        INSPECTION LABEL GUIDE

                                                         Vacuum         Electrical     Performance      Sound                  Leak           Internal                 Final
                                                         Leak Check     Test           Test             Test                   Test          Appearance              Appearance

                                                                 (1)          (2)       (3)      (4)        (5)          (6)                                              (7)
                                                                             WHEN CORRESPONDING ABOUT THIS UNIT PLEASE INCLUDE
                                                                                  THE MODEL NUMBER AND SERIAL NUMBER.

                                                         Vacuum          All units are to be put on the vacuum pumps. The vacuum test is to hold 200 microns for 5
                  Quality check                          Leak Check      minutes. At this point units can be charged with refrigerant.
                  points during                                1

                  manufacturing                          Electrical      All electrical circuits are to be tested to prove that they conform to the requirements of the
                                                         Test            wiring diagram.
                  process                                        2

                                                         Performance     All units are to be test run to ensure that they conform to the Standard Test Sheets.
                                                         Test            Standard Unit test sheets are located and filed in the Production Office.
                                                                3        Special and Modified Standard Unit Test Sheets are held and filed in the Drawing Office.

                                                         Sound           During the performance test the tester will undertake a sound test. This test will consist of
                                                         Test            listening to the unit operating and confirming that there is no undue noise through vibration,
                                                                 4       rattles or rubbing of moving parts.

                                                            Leak Test    All units are to be Pressure/Leak Tested to a minimum of 600KPA. Evaporators are checked at
                                                                         600KPA plus with soapy water on each joint. Condensers are to hold at 600KPA for a minimum
                                                                 5       of 1 hour and 30 minutes.

                                                         Internal        The nominated person on the Finishing line is to check the unit for tidy wiring, piping, secure
                                                         Appearance      capillaries and that all internal parts of the unit are clean and free of any loose matter.
                                                                 6

                                                         Final           The finishing line senior or nominated person for production units and the engineer or
                                                         Appearance      nominated person for custom built products shall approve the final appearance. This is to
                                                               7         ensure that the unit is clean, paint work is acceptable and all appropriate labels have been
                                                                         attached to the unit.

At Temperzone, quality is more than a policy, it’s the basic philosophy underpinning our business.
Appendix 2 f. - Equipment Selection Philosophy - Final Test and Inspection

                                                                                                                                                                                                                                                                            specification
                                                                                                                                                                                                                             Ass’y piping

                                                                                                                                                                                                                                                               Appearance

                                                                                                                                                                                                                                                                                                                                   Design fault
                                                                                                                                                                                                                                                                                                                       Component
                                                                                                                                                                                Elect. panel

                                                                                                                                                                                                                                                                                                         Sheet metal
                                                                                                                                                                                                                                                 Cleanliness
                                                                                                            Unit Serial No.

                                                                                                                                                                                                Ass’y elect.

                                                                                                                                                                                                               Ass’y loose

                                                                                                                                                                                                                                                                                            incomplete
                                                                   FACTORY TEST

                                                                                                                                                                                                                                                 Tidiness \

                                                                                                                                                                                                                                                                                            Inspect’

                                                                                                                                                                                                                                                                                                                       failure
                                                                                                                                                                                                                                                                            Not as
                                                                                                                                                                                                               screw.
                                                                    PROCEDURE

                                                                                                                                                                                                                                                                                            label
        Procedure :    QP05
             Issue :
         Published:
                       12
                       08/Nov/2005
                                                             Non – Standard Packaged Units Test Sheet                                                            Fault Code     1               2                 3          4                      5          6               7               8         9             10          11             12   13   14   15
     Tested By:                                Assy Line :                                                    Job No.:                                           Qty Faults

Date Tested:                                Wiring Diag. :                                          Rev.:   Model No.:
                                                                                                                                                                                                                                     If any result answers were ‘NO’,
                                                                 Compressor Serial Number(s)                                                                                                                                         attach completed reject label and
1.                                     2.                                    3.                                               4.
                                                                                                                                                                                                                                  return unit to appropriate Supervisor.
                                                                                                                                                                                               Return to Assy Line for repair (Y/N)                                         Hrs & Minutes Spent repairing in Test section.

                                     Test Description                                           Result                              Type of
No                                                                                                          Record Readings
                        APD = AS PER DWG                    = N/A ; = Yes : = No .                                                Component
                                                                                               T1    T2                                                      No.     Comments
 1        a) Is the QL01 Label attached to unit and Vacuum Leak Test section
             signed.
 2        a) Are Wiring and pipe work acceptable
          b) Set timers and overloads to correct setting as per wiring diagram
 3        a) Is the current draw of each indoor fan less than maximum rating
          b) Is current draw of each outdoor fan less than maximum rating.
          c) Is rotation correct, vibration and noise level acceptable.
 4        Cooling Mode Test (Switch unit to cooling)
          a) Is current draw of each compressor less than maximum rating
          b) Is unit cooling satisfactorily?
 5        Heating Mode Test (Skip to next Section if unit not Reverse Cycle)
          a) Switch unit to heating & check if heating satisfactorily?
          b) Are Crank Case Heaters operating correctly?
          c) Is unit running with acceptable vibration and noise level
 6        Non Standard Features Testing

          a) Does the unit contain all additional components list in the Works
             Order Bill of Material?

          b) Do all extra control features operate as per wiring diagram?

          c) Are Modifications Designed by Engineering
          d) If modifications by Production describe in comments section.
 7        Post test shutdown
          a) Set test unit main switch and control switches to ‘OFF’ and                                                                                                                                                                    Signature                                                                  Date
             disconnect                                                                                                                                      Reject Rectified

          b) Confirm no leaks in all refrigeration piping connections using leak                                                                                                                                                            Signature                                                                  Date
             detector.                                                                                                                                       Unit Approved

          c) If modifications include R407C refrigerant, has the ‘R407C                                                                                      Engineer (Sign for Final Approval)                                             Signature                                                                  Date
             Checklist’ been filled out?                                                                                                                     Conforms to Specification

                                                                             Final Test and inspection                                         • Full run test          • Signed off by engineer

                                                                                                                                     At Temperzone, quality is more than a policy, it’s the basic philosophy underpinning our business.
You can also read
