UV-C and Pool equipment www.bluelagoonuvc.com PRODUCT CATALOGUE 2018/2019 MEMBER OF:
2
Company Introduction
VGE International B.V.
VGE International B.V. is a prominent company focused on improving people’s lives through timely
innovations. As a manufacturer of a unique range of swimming pool equipment, we provide high-quality
products and harmonious collaboration with customers from our premises at the Ekkersrijt industrial area in
Son, the Netherlands. We’re proud to be a part of Holland’s top technology region, the Brainport Region.
VGE International B.V. is a worldwide leading player in Environmental friendliness and saving energy are
development and production of UV-C equipment for major points of interest at VGE International B.V..
all kinds of water treatment. We regularly introduce
new products and we continuously improve our Years of experience (since 1982) have resulted in
existing products. Our customers get the best technically advanced products that are in use in
price-quality rated products due to large scale more than 70 countries around the globe. Our sales
production — while sustainable thinking is at the team is looking forward to provide you with smooth
heart of our production and development process. order processing and the best service and advice.
VGE International B.V.
Ekkersrijt 4304
5692 DH Son & Breugel
The Netherlands
www.facebook.com/bluelagoonuvc
Tel. +31(0) 499 461 099 www.facebook.com/VGEBV
info@vgebv.nl
www.vgebv.com www.bluelagoonuvc.com
CATALOGUE 3
2 018 / 2 019
UV-C and Pool equipment
www.bluelagoonuvc.com
Index
Products
UV-C Disinfection 4 Blue Lagoon Spa UV-C 21
Blue Lagoon UV-C 5 Blue Lagoon Spa Inox UV-C 22
Installation examples 6 Private label 23
Blue Lagoon Tech UV-C 8 Blue Lagoon Promotional activities 24
Blue Lagoon Saltwater UV-C 9 UV-C lamps 28 - 29 On the product pages
you can find technical
Blue Lagoon Signal UV-C 10 VGE Pro assortment 30 - 34
information about
Blue Lagoon Timer UV-C 11 Blue Lagoon Copper Electrolyzer 35 the Blue Lagoon
Blue Lagoon Saltwater Timer UV-C 12 Blue Lagoon Flow Switch Plus 36 products. You can
recognize it by the
Blue Lagoon Xpose UV-C 13 2- & 3-Way Cylinder valve 37
symbol as you can
Blue Lagoon Inox UV-C 14 Blue Lagoon ProfiHeater 3 kW 38 see above. Besides
Blue Lagoon Buster UV-C 15 Blue Lagoon Compact Pool System 39 the product pages,
Blue Lagoon AOP Compact Ozone & UV-C 16 - 17 Blue Lagoon Dosatech 40 the Blue Lagoon
catalogue has spare
Blue Lagoon AOP Compact Ozone & UV-C Saltwater 18 Blue Lagoon Peristaltic Dosage Pumps 41 parts pages at the
Blue Lagoon Copper Ionizer UV-C 19 Pool bonding 42 - 43 back of the catalogue.
Blue Lagoon Tech Spa UV-C 20
Spare parts
Products 44 - 54
General terms and conditions 55
STAINLESS
STEEL
Stainless steel housing UL certified
A stainless steel interior provides a reflection of UV UL is a world leader in product safety testing and certification. For more
radiation and this increases the efficiency of the than 100 years, manufacturers have had their merchandise evaluated
radiation by up to 35%. In addition, the stainless steel and tested for safety risks by an independent, third-party safety
ensures a longer life of the housing. certification organization.
PVC ETL certified
PVC A PVC housing is highly resistant to corrosive water, The ETL Listed Mark is proof that your product had been independently
and therefore very suitable for salt chlorinated pools. tested and meets the applicable published standard. The ETL Mark is
proof of product compliance to North American safety standards.
4
UV-C disinfection
General information on the use of
UV-C disinfection for pool water
UV-C light at a particular wavelength (253,7nm) is a combines with bathers body fluids in the pool
very powerful germicide. It deactivates and renders water and forms chloramines. Chloramines are
harmless waterborne pathogens that are completely unpleasant substances that cause eye, skin and nose
unaffected by chlorine based disinfectants. Examples irritation, breathing difficulties for young children,
of dangerous pathogens (viruses and cysts) an unpleasant swimming pool ”chlorine” smell and
neutralised by UV-C light are Cryptosporidium parvum last but not least, damage to the fabric of the pool
and Giardia lamblia; chlorine will not affect these. such as tiles, grouts, handrails and other fittings.
UV-C cannot, however, be used on its own. A second advantage of the treatment of pool
This is because after the pool water has been water with UV light is that it destroys chloramines,
subjected to treatment with UV-C, it is disinfected thus reducing or even practically eliminating
but not disinfectant. A secondary disinfectant the undesirable side effects mentioned above
must be added to the water to ensure that the of the use of chlorine based disinfectants.
water actually in the pool is disinfectant as well as
disinfected. The most commonly used secondary VGE’s ”Blue Lagoon” range offers the solutions
disinfectants are chlorine based chemicals. mentioned above. The economical comparison of
the various solutions depends very much on pool
Although chlorine is a good disinfectant (however size, design and usage. The capital and running costs
not as powerful as UV-C), it has one major drawback. and capital costs of disinfection systems should be
As a by-product of the disinfection process, chlorine considered for every pool on a case by case basis.
Viruses
Moulds
Bacteria
X-rays Ultraviolet Visible Light Infrared
Vacuum- UV-C UV UV-A
UV -B
100 200 280 315 400 780 Wavelength (nm)
Blue Lagoon UV-C UV-C and Pool equipment
5
DISTANCE BETWEEN INLET / OUTLET IN CM ±
RECOMMENDED FLOW RATE FOR 30MJ/CM2
MAX. WORKING PRESSURE IN BAR
INLET/OUTLET DIAMETER (MM)
MAXIMUM FLOW RATE IN M³/H
HEIGHT OF REACTOR IN CM ±
WEIGHT IN KG ±
BRAND LAMP
UV-C LAMP
MODEL
BE02162 Tech UV-C 16W 5 2 23 1 x 16W VGE - LightTech 63 56 34 2,8
BE02402 Tech UV-C 40W 11 2 23 1 x 40W VGE - LightTech 63 100 77 3,6
BE02752 Tech UV-C 75W 16 2 23 1 x 75W VGE - LightTech 63 100 77 3,9
BE03132 Tech UV-C 130W 22 2 23 1 x 130W Amalgam Philips 63 100 77 5,0
BE06402 Saltwater UV-C 40W 9 2 23 1 x 40W Philips Smart Cap 63 100 77 3,0
BE06752 Saltwater UV-C 75W 14 2 23 1 x 75W Philips Smart Cap 63 100 77 3,2
BE07402 Saltwater short UV-C 40W 8 2 23 1 x 40W VGE - LightTech 63 48 37 2,5
BE06402 Signal UV-C 40W 11 2 23 1 x 40W VGE - LightTech 63 100 77 4,1
BH11752 Signal UV-C 75W 16 2 23 1 x 75W VGE - LightTech 63 100 77 4,3
BH11402 Signal UV-C 130W 22 2 23 1 x 130W Amalgam VGE - LightTech 63 100 77 4,5
BH01402 Timer UV-C 40W 11 2 23 1 x 40W Philips 63 100 77 4,1
BH01752 Timer UV-C 75W 16 2 23 1 x 75W Philips 63 100 77 4,3
BH01132 Timer UV-C 130W 22 2 23 1 x 130W Amalgam Philips 63 100 77 4,5
BH10402 Saltwater Timer UV-C 40W 9 2 23 1 x 40W Philips 63 100 77 4,0
BH10752 Saltwater Timer UV-C 75W 14 2 23 1 x 75W Philips 63 100 77 4,2
BP02752 Inox UV-C 75W 18 5 23 1 x 75W Philips 2" 100 78,5 7,2
BP02132 Inox UV-C 130W 22 5 23 1 x 130W Amalgam Philips 2" 100 78,5 7,3
BP07132 Buster UV-C 130W 22 2,5 22 1 x 130W Amalgam VGE - LightTech 2" 100 70,5 9,3
BP07392 Buster UV-C 390W 49* 2,5 49 3 x 130W Amalgam VGE - LightTech 3" 100 73,5 21
BH03752 AOP Compact Ozone & 18 2 23 1 x 75W / Ozone VGE - LightTech 63 100 77 6,0
UV-C 75W
BH09752 AOP Compact Ozone & 18 2 23 1 x 75W / Ozone VGE - LightTech 63 100 77 6,0
UV-C Saltwater 75W
BE09302 Xpose UV-C 30W 13,5 1,5 20 1 x 30W VGE 1½" 87,5 87,5/82,1 4,6
BE09552 Xpose UV-C 55W 18 1,5 20 1 x 55W VGE 1½" 87,5 87,5/82,1 4,6
BH04402 Copper Ionizer UV-C 40W 11 2 23 1 x 40W Blue Lagoon - LightTech 63 100 77 5,0
BH04752 Copper Ionizer UV-C 75W 16 2 23 1 x 75W Blue Lagoon - LightTech 63 100 77 5,2
BE21122 Tech Spa UV-C 12W 3 2 23 1 x 12W Philips 63 42 24,5 2,5
BE21121 Tech Spa UV-C 15W 3 2 23 1 x 15W Philips 63 42 24,5 2,5
BE01122 Spa UV-C 12W 3 1 13 1 x 12W Philips 50 40,5 17 1,6
BE01151 Spa UV-C 15W 4 1 13 1 x 15W Philips 50 40,5 17 1,6
BH07122 Spa Inox UV-C 12W 3 2 13 1 x 12W Philips 3/4” 40,5 14,3 2,6
BH07151 Spa Inox UV-C 15W 4 2 13 1 x 15W Philips 3/4” 40,5 14,3 2,6
* Recommended flow rate for 40 mJ/cm²
6
Installation examples
Possible installation
BLUE LAGOON UV-C
SKIMMER
HEATER
PH CHLORINE
DOSING FILTER
BOTTOM DRAIN PUMP
Possible installation and flow direction:
New products 2019 NEW UV-C and Pool equipment
7
Signal UV-C
page 10
Buster UV-C
page 15
8

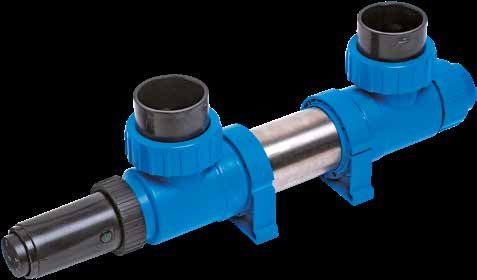

Tech UV-C
STAINLESS
STEEL
Because of its compact size, the Blue Lagoon Tech is ideal for all
filter installations where space is limited but a high disinfection
The amalgam version efficiency is required.
includes a flow switch that
will turn off the lamp when
the flow is too low. The
Advantages of the Blue Lagoon Tech UV-C
UV-C Amalgam lamp is less • A built-in electronic ballast to ensure an efficient and stable power supply
affected by temperature • Up to 35% more UV-C yield as a result of reflection by the stainless steel reactor
fluctuations in the water
• 316L stainless steel housing
and generates a constant,
powerful radiation. Amalgam • Easy to install and easy to maintain
UV-C light is known as being • Including adapters Ø 63mm to Ø 50mm, 1½” female threaded
the most powerful UV-C light • Made in the Netherlands
available on the UV-C market.
Please notice the Operation
correct grounding! The Blue Lagoon Tech UV-C will ensure that efficiently and safely and the quality of your water
your pool water is disinfected in an efficient will remain excellent. The Tech UV-C 16W, 40W and
and environmentally-friendly manner. The UV-C 75W are equipped with a special T5 UV lamp with
radiation inactivates bacteria, viruses and other a unique socket. The amalgam version (Tech UV-C
microorganisms and stops them from multiplying. 130W) includes a flow switch that will turn off the
This device is able to reduce the chlorine lamp when the flow is too low. The UV-C Amalgam
concentration up to 50-80%! In addition, the lamp is less affected by temperature fluctuations
stainless steel reactor ensures the reflection of the in the water and generates a constant, powerful
UV-C rays, thereby increasing the efficiency up radiation. Amalgam UV-C light is known as the most
to 35%. Thanks to the Blue Lagoon Tech UV-C, powerful UV-C light available on the UV-C market.
your swimming pool water will be disinfected
Technical specifications
TECH UV-C 16W TECH UV-C 40W TECH UV-C 75W TECH UV-C 130W
Type 15.000 /16W 40.000 /40W 75.000 /75W 150.000 /130W
Item code BE02162 BE02402 BE02752 BE03132
Barcode 8714404034456 8714404034234 8714404034166 8714404029988
Rec. flow for 30 mJ/cm2 5 m³/h 11 m³/h 16 m³/h 22 m³/h
Max. pressure 2 bar 2 bar 2 bar 2 bar
Max. flow 23 m³/h 23 m³/h 23 m³/h 23 m³/h
Diameter unit Ø 70 mm 70 mm 70 mm 70 mm
Length unit 56 cm 100 cm 100 cm 100 cm
Diameter in-outlet Ø 63mm / 50mm / 1 1/2" 63mm / 50mm / 1 1/2" 63mm / 50mm / 1 1/2" 63mm / 50mm / 1 1/2"
Stainless steel 316L 316L 316L 316L
Electronic ballast 230V AC 50/60Hz 230V AC 50/60Hz 230V AC 50/60Hz 230V AC 50/60Hz
Maximum current 0,29A 0,29A 0,57A 1,1A
Lamp power 16W 40W 75W 130W
Lamp VGE T5 16W 4P VGE T5 40W 4P VGE T5 75W 4P Philips 130W Amalgam lamp
Lifespan lamp 9.000 h 9.000 h 9.000 h 12.000 h
Weight 2,8 Kg 3,6 Kg 3,9 Kg 5,0 Kg
Packing size 32,5 x 12 x 55 cm 106 x 26 x 11 cm 106 x 26 x 11 cm 106 x 26 x 11 cm
Please refer to Quantity full pallet 40 pcs 30 pcs 30 pcs 30 pcs
page 44 for Flow Switch - - -
spare parts ETL certified -
Saltwater UV-C UV-C and Pool equipment
9
PVC
The Blue Lagoon Saltwater is especially developed for disinfection
of saltwater. Therefore, the disinfection system is besides
chlorinated water also very suitable for salt- and seawater pools.
Advantages of the Blue Lagoon Saltwater UV-C
• A built-in electronic ballast to ensure an efficient and stable power supply
• Especially developed for saltwater pools
• Philips T5 Smart Cap lamp included
• PVC-housing
• Easy installation and maintenance
• Including adapters Ø 63mm to Ø 50mm, 1½” female threaded
• Made in the Netherlands
Operation
The Blue Lagoon Saltwater UV-C is especially Lagoon Saltwater UV-C you can disinfect your water
developed for saltwater and seawater pools (salt in an efficient and save way. The result is an excellent
electrolysis). Thanks to the special white PVC-housing water quality. The connection at the bottom allows
the salt has no corrosive influence. The device comes 360° connection flexibility. This is ideal for corner
with an electronic ballast which minimizes current installations, or for combination with other lamps.
fluctuations to protect the lamp. With the Blue
Installation examples
Technical specifications
SALT WATER SHORT 40W SALTWATER UV-C 40W SALTWATER UV-C 75W
Type 40.000/40W 40.000 /40W 75.000 /75W
Item code BE07402 BE06402 BE06752
Barcode 8714404044394 8714404043489 8714404043496
Rec. flow for 30 mJ/cm2 8 m³/h 9 m³/h 14 m³/h
Max. pressure 2 bar 2 bar 2 bar
Max. flow 23 m³/h 23 m³/h 23 m³/h
Diameter unit Ø 70 mm 70 mm 70 mm
Length unit 48 cm 100 cm 100 cm
Diameter in-outlet Ø 63mm / 50mm / 1 1/2" 63mm / 50mm / 1 1/2" 63mm / 50mm / 1 1/2"
Housing PVC PVC PVC
Electronic ballast 230V 230V AC 50/60Hz 230V AC 50/60Hz
Maximum current 0,8 A 0,42A 0,8A
Lamp power 40W 40W 75W
Lamp VGE T5 40W 365mm Philips Smart Cap 40W Philips Smart Cap 75W
Lifespan lamp 9.000 h 9.000 h 9.000 h
Weight 2,5 Kg 3,0 Kg 3,2 Kg Please refer to
Packing size 33 x 12 x 55 cm 106 x 26 x 11 cm 106 x 26 x 11 cm page 45 for
Quantity full pallet 40 pcs 30 pcs 30 pcs spare parts
10
Signal UV-C NEW
STAINLESS
STEEL
The Blue Lagoon Signal UV-C is equipped with an integrated
LED-timer which accurately monitors and visualizes the remaining
operating hours by changing colour! An warning will be given by a
blinking LED light when the lamp needs to be replaced.
Advantages of the Blue Lagoon Signal UV-C
• LED-function to Visualise the remaining lifetime of the lamp
The amalgam version • A built-in electronic ballast to ensure an efficient and stable power supply
includes a flow switch that
• Up to 35% more UV-C yield as a result of reflection by the Stainless Steel reactor
will turn off the lamp when
the flow is too low. The • 316L stainless steel housing
UV-C Amalgam lamp is less • Easy to install and easy to maintain
affected by temperature
• Comes with Ø63mm to Ø50mm fittings, 1½” female threaded
fluctuations in the water
and generates a constant, • Made in the Netherlands
powerful radiation. Amalgam
UV-C light is known as being Operation
the most powerful UV-C light
available on the UV-C market.
The Blue Lagoon Signal UV-C has a built in High- and stops them from multiplying. This device is
frequency electronic ballast. This ballast will capture able to reduce the chlorine concentration up to
Please notice the voltage fluctuations to protect the lamp. In addition, 50-80%! Max. pressure: 2 bar. Connections: 63mm /
correct grounding!
the device contains an integrated timer that accurately 50mm / 1 ½". The amalgam version includes a flow
monitors and visualises the hours by changing colour! switch that will turn off the lamp when the flow is
A warning will be given by a blinking LED when too low. Amalgam UV-C light is known as the most
the lamp needs to be replaced. Thanks to the Blue powerful UV-C light available on the UV-C market.
Lagoon Signal UV-C your swimming pool water will The UV-C Amalgam lamp is less affected by
be disinfected efficiently, safely and the quality of temperature fluctuations of the water and
your water will remain excellent. The UV-C radiation generates a constant, powerful radiation.
inactivates bacteria, viruses and other microorganisms
Technical specifications
SIGNAL UV-C 40W SIGNAL UV-C 75W SIGNAL UV-C 130W
Type 40.000 /40W 75.000 /75W 150.000 /130W
Item code BH11402 BH11752 BH11132
Barcode 8714404045193 8714404045261 8714404045124
Rec. flow for 30 mJ/cm2 11 m³/h 16 m³/h 22 m³/h
Max. pressure 2 bar 2 bar 2 bar
Max. flow 23 m³/h 23 m³/h 23 m³/h
Diameter unit Ø 70 mm 70 mm 70 mm
Length unit 100 cm 100 cm 100 cm
Diameter in-outlet Ø 63mm / 50mm / 1 ½” 63mm / 50mm / 1 ½” 63mm / 50mm / 1 ½”
Housing 316L 316L 316L
Electronic ballast 230V AC 50/60Hz 230V AC 50/60Hz 230V AC 50/60Hz
Maximum current 0,29A 0,57A 1,1A
Lamp power 40W 75W 130W
Lamp LightTech T5 40W LightTech T5 75W LightTech T6 130W Amalgam
Lifespan lamp 9.000 h 9.000 h 16.000 h
Indicator ü ü ü
Replace lamp alert ü ü ü
Flow switch - - ü
Please refer to Weight 4,1 Kg 4,3 Kg 4,5 Kg
page 45 for Packing size 107 x 26 x 16 cm 107 x 26 x 16 cm 107 x 26 x 16 cm
spare parts Quantity full pallet 25 pcs 25 pcs. 25 pcs.Timer UV-C UV-C and Pool equipment
11
STAINLESS
STEEL
The Blue Lagoon Timer is equipped with an integrated timer
which accurately monitors the number of operating hours. You
can therefore see exactly when the lamp must be replaced. The amalgam version
includes a flow switch that
will turn off the lamp when
Advantages of the Blue Lagoon Timer UV-C the flow is too low. The
UV-C Amalgam lamp is less
• Timer function that indicates the remaining lifetime of the lamp
affected by temperature
• A built-in electronic ballast to ensure an efficient and stable power supply fluctuations in the water
• Up to 35% more UV-C yield as a result of reflection by the Stainless Steel reactor and generates a constant,
powerful radiation. Amalgam
• 316L stainless steel housing
UV-C light is known as being
• Easy to install and easy to maintain the most powerful UV-C light
• Comes with Ø63mm to Ø50mm fittings, 1½” female threaded available on the UV-C market.
• Made in the Netherlands
Please notice the
correct grounding!
Operation
The Blue Lagoon Timer UV-C has a built in High- remain excellent. The UV-C radiation inactivates
frequency electronic ballast. This ballast will bacteria, viruses and other microorganisms and
capture voltage fluctuations to protect the lamp. stops them from multiplying. This device is able to
In addition, the device contains an integrated timer reduce the chlorine concentration up to 50-80%!
that accurately monitors the number of operating Max. pressure: 2 bar. Connections: 63mm / 50mm /
hours. You can therefore see exactly when the lamp 1 ½". The amalgam version includes a flow switch
must be replaced. Thanks to the Blue Lagoon Timer that will turn off the lamp when the flow is too
UV-C your swimming pool water will be disinfected low. Amalgam UV-C light is known as the most
efficiently, safely and the quality of your water will powerful UV-C light available on the UV-C market.
Technical specifications
TIMER UV-C 40W TIMER UV-C 75W TIMER UV-C 130W
Type 40.000 /40W 75.000 /75W 150.000 /130W
Item code BH01402 BH01752 BH01132
Barcode 8714404034319 8714404034388 8714404034654
Rec. flow for 30 mJ/cm2 11 m³/h 16 m³/h 22 m³/h
Max. pressure 2 bar 2 bar 2 bar
Max. flow 23 m³/h 23 m³/h 23 m³/h
Diameter unit Ø 70 mm 70 mm 70 mm
Length unit 100 cm 100 cm 100 cm
Diameter in-outlet Ø 63mm / 50mm / 1 1/2" 63mm / 50mm / 1 1/2" 63mm / 50mm / 1 1/2"
Stainless steel 316L 316L 316L
Electronic ballast 230V AC 50/60Hz 230V AC 50/60Hz 230V AC 50/60Hz
Maximum current 0,29A 0,57A 1,1A
Lamp power 40W 75W 130W
Lamp Philips TUV 36T5 4P-SE (40 Watt) Philips TUV 36T5 HO 4P-SE (75 Watt) Philips TUV 130 Watt 4P-SE Amalgam
Lifespan lamp 9.000 h 9.000 h 12.000 h
Timer
Replace lamp alert
Flow switch - -
Weight 4,1 Kg 4,3 Kg 4,5 Kg Please refer to
Packing size 106 x 26 x 16 cm 106 x 26 x 16 cm 106 x 26 x 16 cm page 46 for
Quantity full pallet 25 pcs 25 pcs 25 pcs spare parts12
Saltwater Timer UV-C
PVC
PVC
The Blue Lagoon Saltwater Timer is especially developed for
disinfection of saltwater. Therefore, the disinfection system is
besides chlorinated water also very suitable for salt- and seawater
pools. The unit is equipped with an integrated timer which
accurately monitors the number of operating hours. You can
therefore see exactly when the lamp must be replaced.
Advantages of the Blue Lagoon Saltwater UV-C
• Timer function that indicates the remaining lifetime of the lamp
• A built-in electronic ballast to ensure an efficient and stable power supply
• Especially developed for saltwater pools
• PVC-housing
• Easy to install and easy to maintain
• Comes with Ø63mm to Ø50mm fittings, 1.” female threaded
• Made in the Netherlands
Operation
The Blue Lagoon Saltwater Timer UV-C is especially hours. You can therefore see exactly when the lamp
developed for saltwater and seawater pools (salt must be replaced. With the Blue Lagoon Saltwater
electrolysis). Thanks to the special white PVC housing Timer UV-C you can disinfect your water in an
the salt has no corrosive influence. The device efficient and save way. The result is an excellent
comes with an electronic ballast. This ballast will water quality. The connection at the bottom allows
capture voltage fluctuations to protect the lamp. 360° connection flexibility. This is ideal for corner
In addition, the device contains an integrated timer installations, or for combination with other lamps.
that accurately monitors the number of operating
Technical specifications
SALTWATER TIMER SALTWATER TIMER SALTWATER TIMER SALTWATER TIMER
UV-C 40W UV-C 75W UV-C 40W UV-C 75W
Type 40.000 /40W 75.000 /75W Maximum current 0,42 A 0,8 A
Item code BH10402 BH10752 Lamp power 40W 75W
Barcode 8714404046718 8714404046787 Lamp Philips TUV 36T5 Philips TUV 36T5 HO
4P-SE (40 Watt) 4P-SE (75 Watt)
Rec. flow for 30 mJ/cm2 9 m³/h 14 m³/h Lifespan lamp 9.000 h 9.000 h
Max. pressure 2 bar 2 bar Timer
Max. flow 23 m³/h 23 m³/h Replace lamp alert
Diameter unit Ø 70 mm 70 mm Flow switch - -
Length unit 100 cm 100 cm Weight 4,0 Kg 4,2 Kg
Please refer to Diameter in-outlet Ø 63mm / 50mm / 1½" 63mm / 50mm / 1½" Packing size 106x26x15 cm 106x26x15 cm
page 47 for Housing PVC PVC Quantity full pallet 25 pcs 25 pcs
spare parts Electronic ballast 230V AC 50/60Hz 230V AC 50/60HzwXpose UV-C UV-C and Pool equipment
13
PE
Because of its large reactor diameter, the new Xpose UV-C provides the poolwater a long exposure
time to UV-C radiation. Ideal for swimming pools where a high disinfection efficiency is needed.
Advantages of the Blue Lagoon Xpose UV-C
• A built-in (replaceable) electronic ballast to ensure an efficient and stable power supply
• Large reactor diameter for long exposure time to UV-C radiation
• High quality PE housing, which is perfectly suitable for chlorinated and saltwater pools
• Easy to install and to maintain
• Made in the Netherlands
Operation
Blue Lagoon introduces a new high quality UV-C position of the inlet and return (left or
TL unit with a 30 watt and a 55 watt lamp. The right) is therefore free to choose. The
disinfection system has a large reactor diameter Xpose UV-C has a complete PE reactor,
for a long exposure time to the UV-C radiation. what makes the device perfectly
Besides that, the Xpose UV-C has a special water suitable for chlorinated and saltwater
guidance inside the house for an optimal exposure. pools. The inlet has 2 x 1½” female
Your pool water will be disinfected efficiently, safely threaded connections. The remaining
and the quality of your water will remain excellent. opening will be used for the supplied
The special water guidance inside the house will transparent plug as lamp indicator.
also guide the quartz sleeve for easy replacement. The Xpose UV-C comes standard with
The disinfection systems have splash waterproof hose tails 25/32/40 mm. The reactor is grounded
rubber end caps for fast lamp (re)placement. The for human and pet safety. The unit can also be
unit can also be mounted in the opposite way. The installed with a socket nipple (not included).
Technical specifications
XPOSE UV-C 30 WATT XPOSE UV-C 55 WATT
Item code BE09302 Item code BE09552
Barcode 8714404046008 Barcode 8714404046077
Rec. flow for 30 mJ/cm2 13,5 m³/h Rec. flow for 30 mJ/cm2 18 m³/h
Max. pressure 1,5 bar Max. pressure 1,5 bar
Max. flow 20 m³/h Max. flow 20 m³/h
Diameter unit Ø 130 mm Diameter unit Ø 130 mm
Length unit 875 mm Length unit 875 mm
Diameter in-outlet Ø 1 ½” fem. thr. Diameter in-outlet Ø 1 ½” fem. thr.
Housing PE Housing PE
Electronic ballast √ Electronic ballast √
Maximum current 0,15 A Maximum current 0,25 A
Lamp power 30 Watt Lamp power 55 Watt
Lamp TL 30W T8 Base I Lamp TL 55W T8 Base I
Lifespan lamp 9.000 h Lifespan lamp 9.000 h
Weight 4,6 kg Weight 4,6 kg Please refer to
Packing size 103x25x15 Packing size 103x25x15 page 50 for
Quantity full pallet 24 pcs Quantity full pallet 24 pcs spare parts14

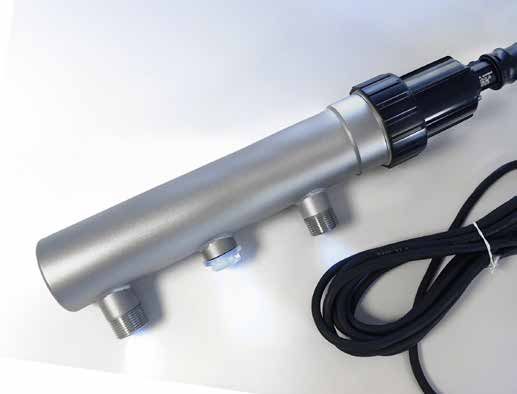

Inox UV-C
STAINLESS
STEEL
The Inox UV-C 130 watt
amalgam includes a flow
switch that will turn off the The housing of the Inox UV-C is completely made of 316L stainless
lamp when the flow is too
steel and is the driving disinfection force for (high-end) pools.
low. The Inox UV-C 130W
includes an amalgam lamp.
The UV-C Amalgam lamp is
less affected by temperature Advantages of the Blue Lagoon Inox UV-C
fluctuations in the water
• A built-in electronic ballast to ensure an efficient and stable power supply
and generates a constant,
powerful radiation. Amalgam • Up to 35% more UV-C yield as a result of
UV-C light is known as being reflection by the Stainless Steel reactor
the most powerful UV-C light • Philips UV-C lamp
available on the UV-C market.
• A flow switch will turn off the lamp at insufficient water flow
Please notice the • Integrated adjustable time meter for the UV-C lamp
correct grounding! • Digital indication when the lamp needs replacing
• Complete 316L stainless steel housing
• Easy installation and maintenance
• Made in the Netherlands
Operation
The Blue Lagoon Inox UV-C has a built-in high- and other microorganisms and stops them from
frequency electronic ballast, which absorbs current multiplying. This device is able to reduce chlorine
fluctuations, thereby protecting the lamp. Thanks concentration up to 50-80%! The Inox UV-C includes
to the Blue Lagoon Inox UV-C, your swimming a flow switch that will turn off the lamp when the
pool water will be disinfected efficiently and safely flow is too low. Amalgam UV-C light is known as the
and the quality of your water will remain excellent. most powerful low pressure UV-C light available on
The UV-C radiation inactivates bacteria, viruses the UV-C market. Connection: 2” male threaded.
Technical specifications
INOX UV-C 75W INOX UV-C 130W INOX UV-C 75W INOX UV-C 130W
Type 75.000 /75W 150.000 /130W Maximum current 0,57A 1,1A
Item code BP02752 BP02132 Lamp power 75W 130W
Barcode 8714404038669 8714404038676 Lamp Philips TUV 36T5 HO Philips TUV 130 Watt
Rec. flow for 30 mJ/cm2 18 m³/h 22 m³/h 4P-SE (75 Watt) 4P-SE Amalgam
Max. pressure 5 bar 5 bar Lifespan lamp 9.000 h 12.000 h
Max. flow 23 m³/h 23 m³/h Timer
Diameter unit Ø 114 mm 114 mm Replace lamp alert
Length unit 100 cm 100 cm Flow switch
Please refer to Diameter in-outlet Ø 2” Male thr. 2” Male thr. Weight 7,2 Kg 7,3 Kg
page 47 for Stainless steel 316L 316L Packing size 26,5x19x106,5 cm 26,5x19x106,5 cm
spare parts Electronic ballast 230V AC 50/60Hz 230V AC 50/60Hz Quantity full pallet 21 pcs 21 pcsONL
Buster UV-C NEW POOY
L 15
PRO UV-C and Pool equipment
STAINLESS
STEEL
The housing of the Buster UV-C has been made out of 316L stainless
steel with a 3cm thick -UV-C resistant- PVC lid and bottom. Which
makes it the perfect disinfection solution for (higher-end) pools.
Advantages of the Blue
Lagoon Buster UV-C
• A built-in electronic ballast to ensure an efficient
130 watt
and stable power supply
• Up to 35% more UV-C yield as a result of reflection
by the Stainless Steel reactor
• A flow switch integrated in the lid of the unit
(390W version) will turn off the lamp at insufficient
water flow 390 watt
• Integrated LED-Timer for the UV-C lamp(s) with
visual indication when the lamp needs replacing.
• Transparent lamphead for easy visual lamp
inspection
• 316L stainless steel housing The Buster UV-C includes a
• Interchangable supports allow for easy installation flow switch that will turn off
the lamp when the flow is
horizontally and vertically
too low. The UV-C Amalgam
• Easy installation and maintenance lamp is less affected by
• Made in the Netherlands temperature fluctuations in
the water and generates a
constant, powerful radiation.
Operation Amalgam UV-C light is
The Blue Lagoon Buster UV-C has a built-in high- This device is able to reduce chlorine concentration known as being the most
frequency electronic ballast, which absorbs voltage up to 50-80%! The Buster UV-C includes a flow powerful UV-C light available
on the UV-C market.
fluctuations, thereby protecting the lamp. Thanks to switch that will turn off the lamp when the flow is
the Blue Lagoon Buster UV-C, your swimming pool too low and a LED-timer which warns in advance
water will be disinfected efficiently and safely and (visually) when lamps need to be changed. Amalgam Transparent lamphead for
easy visual lamp inspection.
the quality of your water will remain excellent. The UV-C light is known as the most powerful low
UV-C radiation inactivates bacteria, viruses and other pressure UV-C light available on the UV-C market.
microorganisms and stops them from multiplying.
Technical specifications
BUSTER UV-C 130W BUSTER UV-C 390W
Type 130W 390W
Item code BP07132 BP07392
Barcode 8714404045216 8714404045285
Rec. flow for 30 mJ/cm² 22 m³/h 49 m³/h (for 40 mJ/cm²)
Max. pressure 2,5 bar 2,5 bar
Max. flow 22 m³/h 49 m³/h
Diameter unit Ø 114 mm 219mm
Length unit 930 mm 930 mm
Diameter in-outlet Ø 2” male thr. 3” male thr.
Housing 316L 316L
Distance between in-outlet 735mm 705mm
Shape U U
Electronic ballast 230V AC 50/60Hz 230V AC 50/60Hz
Maximum current 1,1A 1,1A
Lamp power 130W 130W
Lamp VGE LightTech T6 130W Amalgam 3x VGE LightTech T6 130W Amalgam
Lifespan lamp 16.000 h 16.000 h
Indicator
Replace lamp alert Please refer to
Flow switch page 48 for
Quantity full pallet 24 10 spare parts16
AOP Compact Ozone & UV-C
STAINLESS
STEEL
The combination of ozone and UV-C, integrated in this smart designed
disinfection system, ensures fresh and healthy pool water with the possibility of
providing a minimum use of chlorine.
The lamp has a double
function, producing ozone Advantages of the Blue Lagoon
and UV-C light at the same
time. The ozone in the water
AOP Compact Ozone & UV-C
will be completely broken • This unit provides triple disinfection: ozone, OH
down by the UV-C light, radicals and UV-C!
because of this so called OH-
• A built-in electronic ballast to ensure an efficient and
radicals are being produced
which have a high oxidation stable power supply
potential. This result in • Up to 35% more UV-C yield as a result of reflection
oxidation of the organic
• 100% effective and constant operation
polution in the water and the
UV-C light will also disinfect • 316L Stainless steel housing
the water at the same time. • The ozone UV-C lamp produces ozone for 4.500
hours and produces UV-C for 9.000 hours
Please notice the
correct grounding!
• The device will indicate when the lamp needs replacing
• Easy installation and maintenance
• Made in the Netherlands
Operation
This revolutionary combination of ozone and UV-C oxygen into ozone. The produced ozone (max. 0,6
makes it possible to have a pool with minimal g/h) is mixed with water through the venturi to
chloride usage. Through the supplied venturi, air is perform its disinfecting/oxidising job. Inside the
sucked in from the outside into the space between UV-C housing, any residual ozone will be converted
the UV-C lamp and the quartz sleeve. The special by the 254nm UV-C radiation into OH radicals (the
UV-C lamp generates radiation of both 254nm and so called Advanced Oxidation Process) that have
185nm. The 185nm radiation converts the available an even stronger oxidising power than ozone.
Technical specifications
AOP COMPACT OZONE & UV-C 75W AOP COMPACT OZONE & UV-C 75W
Type 75.000 /75W Maximum current 0,57A
Item code BH03752 Lamp power 75W
Barcode 8714404034944 Lamp VGE T5 75W Ozone
Rec. flow for 30 mJ/cm2 18 m³/h Lifespan lamp 4.500 hours ozone - 9.000 hours UV-C
Max. pressure 2 bar Ozone 0,6 gr/h
Max. flow 23 m³/h Timer
Diameter unit Ø 70 mm Replace lamp alert
Length unit 100 cm Weight 6,0 Kg
Please refer to Diameter in-outlet Ø 63mm / 50mm / 1 1/2" Packing size 37x13x111 cm
page 49 for Stainless steel 316L Quantity full pallet 24 pcs
spare parts Electronic ballast 230V AC 50/60Hz0,5
0
bar
1,5
1,0
17
UV-C and Pool equipment
STAINLESS
STEEL
Air + 20% oxygen
PUMP
Air + 20% oxygen
Water
UV-C
radiation
Ozone producing
with hydroxide
Air + ozone (O3)
Air + ozone (O3)
Water
Air + 20% oxygen
A
Air +Water
ozone (O3) Air + 20% oxygen
Air + 20% oxygen
Water A
Air +Air
ozone (O3) (O3)
Air + ozone (O3) Water
+ ozone OUT
with hydroxide Air + ozone (O3)
0,5
0
with hydroxide
bar
Ozone producing
Air + ozone (O3)
OzoneAirproducing
radiation
1,5
1,0
+ ozone (O3) UV-C
radiation
with hydroxide
UV-COzone producing Air + ozone (O3)
with hydroxide Ozone UV-C
radiation 0,5 1,0 0,5 1,0
O3
Ozone producing
UV-C
0 bar 1,5
radiation
0 bar 1,5
UV-C C UV-C Ozone
PUMP B The expected life-span
O3
75W Ozone UV-C lamp
of the T5 lamp regarding
0,5 1,0
O3 IN Quartz glass
UV-C is 9000 hours. For the
0 bar 1,5
ozone producing part this is
about 4500 hours. After this
O3
0,5 1,0
Air + 20% oxygen
O3 period of time the intensity
0,5 1,0 0,5 1,0
Water
O3
0 bar 1,5
Air + ozone (O3)
0 bar 1,5
Air + ozone (O ) 3
OUT 0 bar 1,5 decreases. When you replace
with hydroxide
Air + 20% oxygen
Ozone producing
radiation the lamp (for example) in
B C
UV-C
March there will be enough
Water
PUMP Ozone UV-C ozone-production for the
O3
whole season (for example
0,5 1,0 0,5 1,0
Air + ozone (O3) 75W Ozone U
0 bar 1,5 0 bar 1,5
UV-C Ozone March to September) and
PUMP PUMP there will be enough UV-C
Air + ozone (O3) PUMP
IN
with hydroxide
75W Ozone UV-C lamp
radiation for a whole year.
Quartz glass 7
IN
Ozone producing IN Quartz glass
radiation
UV-C
O3
IN I
Q
O3
What is AOP? 0,5
O combines the
1,0
3 O3
The Advanced Oxidation Process (AOP) resistant organism like Cryptosporidium and Giardia are
0 bar 1,5
benefits of ozone and UV-C into one device. When being inactivated) but it also reduces the chloramines in
ozone is used in combination with UV-C light in water, the water. Because UV-C light will destroy the residual
O3 The Advanced Oxidation
hydroxyl radicals (OH-) are created. These radicals are ozone in the water, there is no deozonation device Process (AOP) is the
very effective in oxidizing the water and therefore needed. AOP is a very effective and efficient way of best available water
reduction the organic pollution in the water, also sanitizing and disinfecting your pool. As a result the treatment technology
PUMP
at this moment.
chlorine disinfection by-products such as THM and amount of chlorine in a pool can be kept to a minimum. 75Wwith
AOP uses OH- radicals Ozone UV-C lam
chloramines are being reduced. The UV-C light not a considerably higher
Quartz glass
75W Ozone UV-C lamp
only disinfects the water very effectively (also chlorine oxidation potential
IN compared to other Quartz glass
oxidants
for water treatment. When
Benefits AOP: dissolved ozone (1) is
• Strong combination of ozone (oxidation) and irradiated by UV radiation
in a UV reactor (2), then
UV-C (disinfection) UVC 2 2 2
OUT
2 2 OH- radicals are created.
• Improves the disinfection efficiency Lifetime of OH- radicals
• Makes a pool with a minimal amount of chlorine possible is extremely short, the
entire treatment process
• Effective against chlorine-resistant microorganisms
O3 takes place insde of the
• Prevents skin and eye irritation UV reactor, Treated water
• Can be quickly added to existing filtration systems (3) is without OH- radicals.18
AOP Compact Ozone & UV-C Saltwater
PVC
The combination of ozone and UV-C, integrated in this smart designed disinfection
system, ensures fresh and healthy pool water with the possibility of providing a
minimum use of chlorine. The Blue Lagoon AOP Compact Ozone & UV-C Saltwater is
especially developed for disinfection of saltwater.
The lamp has a double
function, producing ozone
and UV-C light at the same Advantages of the Blue Lagoon
time. The ozone in the water AOP Compact Ozone & UV-C Saltwater
will be completely broken
• This unit provides triple disinfection: ozone, OH radicals and UV-C!
down by the UV-C light,
because of this so called OH- A built-in electronic ballast to ensure an efficient and stable power supply
radicals are being produced • Especially developed for saltwater pools
which have a high oxidation • 100% effective and constant operation
potential. This result in
oxidation of the organic
• The ozone UV-C lamp produces ozone for 4.500 hours
polution in the water and the and produces UV-C for 9.000 hours
UV-C light will also disinfect • The device will indicate when the lamp
the water at the same time.
needs replacing
Please notice the • Easy installation and maintenance
correct grounding! • Made in the Netherlands
Operation
The Ozone & UV-C Saltwater is especially developed The 185nm radiation converts the available oxygen
for saltwater and seawater pools. This revolutionary into ozone. The produced ozone (max. 0,6 g/h) is
combination of ozone and UV-C makes it possible mixed with water through the venturi to perform
to have a pool with minimal chloride usage! its disinfecting/oxidising job. Inside the UV-C
Through the supplied venturi, air is sucked in from housing, any residual ozone will be converted by
the outside into the space between the UV-C the 254nm UV-C radiation into OH radicals (the
lamp and the quartz sleeve. The special UV-C lamp so called Advanced Oxidation Process) that have
generates radiation of both 254nm and 185nm. an even stronger oxidising power than ozone.
Technical specifications
AOP COMPACT OZONE & UV-C 75W AOP COMPACT OZONE & UV-C 75W
Type 75.000 /75W Maximum current 0,57A
Item code BH09752 Lamp power 75W
Barcode 8714404987349 Lamp VGE T5 75W Ozone
Rec. flow for 30 mJ/cm2 18 m³/h Lifespan lamp 4.500 hours ozone - 9.000 hours UV-C
Max. pressure 2 bar Ozone 0,6 gr/h
Max. flow 23 m³/h Timer
Diameter unit Ø 70 mm Replace lamp alert
Length unit 100 cm Weight 6,0 Kg
Please refer to Diameter in-outlet Ø 63mm / 50mm / 1 1/2" Packing size 37x13x111 cm
page 49 for Housing PVC Quantity full pallet 24 pcs
spare parts Electronic ballast 230V AC 50/60HzCopper Ionizer UV-C UV-C and Pool equipment
19
STAINLESS
STEEL
Water
UV-C
FILTER Copper diode
This revolutionary combination of UV-C and Electrolysis
What is the disinfection
PUMP
Copper particles (Cu2+)
copper electrolysis in one disinfection system, mechanism of copper
minimizing the use of chlorine. ionization?
Electrically charged copper
ions (Cu2+) in the water
Advantages of the Blue Lagoon Copper Ionizer UV-C search for particles of
• A built-in electronic ballast to ensure an efficient and stable power supply opposite polarity, such as
• Enables swimming without the use of chlorine bacteria, viruses and fungi.
Positively charged copper
• Up to 35% more UV-C yield as a result of reflection
ions form electrostatic
• Easy installation and maintenance compounds with negatively
• Comes with Ø63mm to Ø50mm fittings, 1½” female threaded charged cell walls of
• Made in the Netherlands microorganisms. These
compounds disturb cell
wall permeability and
Operation cause nutrient uptake to
This revolutionary combination of UV-C and copper dose approximately 2 ppm copper in your pool fail. As a result, bacteria
are no longer able to
electrolysis means you can have a chlorine-free water. With Blue Lagoon Copper Ionizer UV-C, a
multiply and eventually
pool! With the Blue Lagoon Copper Ionizer UV-C dose of 0,7 ppm will be enough to fully and safely die. The ions remain active
you have to test your pool water once every two disinfect your pool. This device is able to reduce the until they are absorbed
by a microorganism.
weeks. You only need to test your water values with chlorine concentration up to 100%! Max. copper:
the supplied test strips and, if necessary, adjust the 0,7 ppm. Connections: Ø63mm / 50mm / 1½". Please notice the
device to the correct level. Other ionizer systems correct grounding!
Technical specifications
COPPER IONIZER COPPER IONIZER COPPER IONIZER COPPER IONIZER
UV-C 40W UV-C 75W UV-C 40W UV-C 75W
Type 40.000 /40W 75.000 /75W Maximum current 0,29A 0,57A
Item code BH04402 BH04752 Lamp power 40W 75W
Barcode 8714404034241 8714404036689 Lamp Blue Lagoon T5 Blue Lagoon T5
Rec. flow for 30 mJ/cm2 11 m³/h 16 m³/h 40W Ionizer 75W Ionizer
Max. pressure 2 bar 2 bar Lifespan lamp 9.000 h 9.000 h
Max. flow 23 m³/h 23 m³/h Copper ionizer 0,7 ppm 0,7 ppm
Diameter unit Ø 70 mm 70 mm Replace lamp alert
Length unit 100 cm 100 cm Weight 5,0 Kg 5,2 Kg
Diameter in-outlet Ø 63mm / 50mm / 1½" 63mm / 50mm / 1½" Packing size 28x15x101 cm 28x15x101 cm Please refer to
Stainless steel 316L 316L Quantity full pallet 25 pcs 25 pcs page 51 for
Electronic ballast 230V AC 50/60Hz 230V AC 50/60Hz spare parts20
Tech Spa UV-C
STAINLESS
STAINLESS
STEEL
STEEL
Because of its compact size, the Blue Lagoon Tech Spa UV-C
is ideal for all filter installations where space is limited but a
high disinfection efficiency is needed.
Advantages of the Blue Lagoon Tech Spa UV-C
• Integrated electronic ballast to ensure an efficient and stable power supply
• Includes a special Philips UV-C lamp with integrated electronic ballast
• UV-C lamp specially designed for high-temperatures (±40°C / ±104°F)
• Compact in size
• 316L stainless steel housing
• 2 bar working pressure
• Multiple size connection materials included
• Easy installation and maintenance
• Made in the Netherlands
Operation
The used UV-C lamp is specially designed by Philips efficiency. Thanks to the Blue Lagoon Tech Spa UV-C ,
for high temperatures (±40°C/±104°F). The Blue your spa water will be disinfected efficiently and safely
Lagoon Tech Spa UV-C has a built in electronic ballast and the quality of your water will remain excellent. The
to ensure an efficient and stable power supply. In UV-C radiation inactivates bacteria, viruses and other
addition, the stainless steel (316L) reactor ensures the microorganisms and stops them from multiplying. This
reflection of the UV-C rays, thereby increasing the can reduce your chlorine concentration up to 50-80%!
Technical specifications
TECH SPA UV-C TECH SPA UV-C TECH SPA UV-C TECH SPA UV-C
12W 230V 15W 120V 12W 230V 15W 120V
Type 10.000/12W 10.000/15W Electronic ballast 230V AC 50 Hz 120V AC 60 Hz
Item code BE21122 BE21121 Maximum current 0,2 A 0,3 A
Barcode 8714404044318 8714404044325 Lamp power 12W 15W
Rec. flow for 30 mJ/cm2 3 m³/h 3 m³/h Lamp Philips PLS module Philips PLS module
Max. pressure 2 bar 2 bar Lifespan lamp 9.000 h 9.000 h
Max. flow 23 m³/h 23 m³/h Weight 2,5 Kg 2,5 Kg
Please refer to Diameter unit Ø 70 mm 70 mm Packing size 33 x 12 x 55 cm 33 x 12 x 55 cm
page 52 for Length unit 42 cm 42 cm Quantity full pallet 40 pcs 40 pcs
spare parts Diameter in-outlet Ø 63mm / 50mm / 1½" 2" / 1 ½" KEMA Spa UV-C UV-C and Pool equipment
21
STAINLESS
STEEL
The Blue Lagoon Spa is specially designed for water with
high-temperatures (±40°C/±104°F), such as spas and hot tubs.
Also because of its short length and compact size, the Blue Lagoon
Spa UV-C is ideal for filter installations where space is limited and a
high disinfection efficiency is required. The Spa UV-C has a plastic
housing.
Advantages of the Blue Lagoon Spa UV-C
• A built-in electronic ballast to ensure an efficient and stable power supply
• Includes a special Philips UV-C lamp with integrated electronic ballast
• UV-C lamp specially designed for high-temperatures (±40°C / ±104°F)
• Compact in size
• Easy installation and maintenance
• Made in the Netherlands
Operation
This UV-lamp is specially designed by Philips for of your water will remain excellent. The UV-C
high-temperatures (±40°C/±104°F). The Blue Lagoon radiation inactivates bacteria, viruses and other
Spa UV-C has a built-in electronic ballast to ensure microorganisms and stops them from multiplying.
an efficient and stable power supply. Thanks to This can reduce your chlorine concentration up to
the Blue Lagoon Spa UV-C, your spa water will be 50-80%! Max. pressure: 1 bar. 50mm connections
disinfected efficiently and safely and the quality included. The Spa UV-C has a plastic housing.
Technical specifications
SPA UV-C 12W 230V SPA UV-C 15W 120V SPA UV-C 12W 230V SPA UV-C 15W 120V
Type 10.000/12W 10.000/15W Maximum current 0,25A 0,25A
Item code BE01122 BE01151 Lamp power 12W 15W
Barcode 8714404038966 8714404039642 Lamp Philips PLS module Philips PLS module
Rec. flow for 30 mJ/cm2 3 m³/h 4 m³/h 12W 230V 15W 120V
Max. pressure 1 bar 1 bar Lifespan lamp 9.000 h 9.000 h
Max. flow 13 m³/h 13 m³/h Replace lamp alert
Diameter unit Ø 59 mm 59 mm Weight 1,6 Kg 1,6 Kg
Length unit 40,5 cm 40,5 cm Packing size 26x11x55 cm 26x11x55 cm
Diameter in-outlet Ø 50 mm 50 mm Quantity full pallet 60 pcs 60 pcs Please refer
Stainless steel - - UL certified - to page 52 for
Electronic ballast 230V AC 50Hz 120V AC 60Hz KEMA spare parts22
Spa Inox UV-C
STAINLESSSTAINLESS
STEELSTEEL
The Blue Lagoon Spa Inox is specially
designed for water with high-
temperatures (±40°C/±104°F), such as spas
and hot tubs. Also because of its short
length and compact size, the Blue Lagoon
Spa Inox is ideal for filter installations where
space is limited and a high disinfection
efficiency is required. The Spa Inox has a
stainless steel housing.
Advantages of the Blue Lagoon Spa Inox
• A built-in electronic ballast to ensure an efficient and stable power supply
• Includes a special Philips UV-C lamp with integrated electronic ballast
• Complete stainless steel treatment chamber
• UV-C lamp specially designed for high-temperatures (±40°C / ±104°F)
• Compact in size
• Easy installation and maintenance
• Made in the Netherlands
Operation
This UV-lamp is specially designed by Philips for of your water will remain excellent. The UV-C
high-temperatures (±40°C/±104°F). The Blue Lagoon radiation inactivates bacteria, viruses and other
Spa Inox has a built-in electronic ballast to ensure microorganisms and stops them from multiplying.
an efficient and stable power supply. Thanks to This can reduce your chlorine concentration up to
the Blue Lagoon Spa Inox, your spa water will be 50-80%! The Spa Inox has a stainless steel housing.
disinfected efficiently and safely and the quality
Technical specifications
SPA INOX 12W 230V SPA INOX 15W 120V SPA INOX 12W 230V SPA INOX 15W 120V
Type 10.000/12W 10.000/15W Electronic ballast 230V AC 50HZ 120V AC 60Hz
Item code BH07122 BH07151 Maximum current 0,25A 0,25A
Barcode 8714404044240 8714404044479 Lamp power 12W 15W
Rec. flow for 30 mJ/cm2 3 m³/h 4 m³/h Lamp type Philips PLS Philips PLS
Max. pressure 2 bar 2 bar module 12W 230V module 15W 120V
Max. flow 13 m³/h 13 m³/h Lifespan lamp 9.000 h 9.000 h
Diameter unit Ø 60,3 mm 60,3 mm Weight 2,6 Kg 2,6 Kg
Please refer to Length unit 40,5 cm 40,5 cm Packing size 26x11x55 cm 26x11x55 cm
page 53 for Diameter in-outlet Ø 3/4" Male thr. 3/4" Male thr. Quantity full pallet 60 pcs 60 pcs
spare parts Stainless steel 316L 316L KEMA Your own private label UV-C units UV-C and Pool equipment
23
Private label terms and conditions Investment
VGE International B.V. The customer must make a down payment for
Your product assortment can be easily extended the purchase of deviant parts and packaging,
with your own UV-C equipment. Your own depending on the chosen options. This down
packing, your own commercial appearance payment will be deducted from the product
and your own brand development! retail price. The investment will be fully settled
after the complete purchase of the private
Options label products has been made. This means
Private label basic package: that there will not be any additional costs.
• Blank packing with your own
designed product sticker Minimum purchase
• Neutral manual The minimum purchase per order depends on the
• Your own product labels device type and the chosen package. The minimum
• Standard lamp and spare parts order and purchase schedule is to be agreed on.
Basic package can be extended with: UV-C lamp choice
• Full colour packing The choice of the UV-C lamp for the device is
• Customized product colour very important for future aftersales. A UV-C lamp
• Your own manual needs to be changed regularly. By choosing
• Private label UV-C lamp (fitting colour / logo) a UV-C lamp with a unique fitting, you assure
• Private label UV-C lamp (with own fitting) yourself with returning revenue and new sales
• Other wishes negotiable opportunities. You will be the only retailer that sells
the lamp. It is possible to choose for a UV-C lamp
with a unique fitting or fitting colour and it is also
possible to have your logo printed on the lamp.
‘ Your own private label UV-C units ’24
Blue Lagoon supports promotional activities
www.bluelagoonuvc.com
Blue Lagoon promotional Blue Lagoon accelerates
activities support your delivery time
At VGE International B.V., we realize it’s not always As a professional in the pool industry, your
easy for wholesalers to convince (potential) challenge is to deliver products in time, all
customers of new technologies and the latest the time. Your challenge is to minimize the
products they have in stock. New and improved time between receipt of a customer order and
technologies emerge at a high pace. It can receipt of the goods from the manufacturer or
be difficult to stay up-to-date of the latest supplier. That’s why at Blue Lagoon, our goal is to
innovations of UV-C pool disinfection systems accelerate your delivery time and therefore your
and pool supplies - let alone convince customers customer service. One of the top priorities is the
why they should buy them. That’s why VGE continuous increase of our performances. One
International B.V. came up with Marketing Packages. way to enable this is by constantly improving
our time to market. This way you are able to:
To fully prepare for the upcoming pool season
and to support promotional activities, Blue • Control your planning more adequately
Lagoon provides her customers with Marketing • Manage your stock better
Packages. Customers receive files which contain
the Blue Lagoon catalogue 2018-2019, UV-C Currently, we do this in more than 70 countries
marketing pack and the Pool supplies worldwide. As transparency is highly valuated
marketing pack. In the files they can find: with Blue Lagoon, appointments considering
delivery and service are always predetermined.
• Brochures
• Catalogue text and pictures in order Our service benefits are clear, now it’s time
to update catalogue/website content to share them with the world! If you require
• Product flyers to share with the public any other information, knowledge of our
• Product sheets to understand the technology products or other promotional material,
• The 6 benefits of UV-C disinfection simply contact us and let us know.
systems for pools
• Spare part overviews
• Video’s
‘ If you are curious how an
informative seminar from a
UV-C specialist can benefit
the sale of your product
assortment, please don’t
hesitate to contact us. ’25
UV-C and Pool equipment
www.bluelagoonuvc.com
Promote Blue Lagoon UV in your store!
B300004 B300005
B300007 + B300007 + B300007 +
BE02752DUMMY BH01752DUMMY BH01752DUMMY
ARTICLE NUMBER ART. DESCRIPTION SIZE PRICE DUMMY
BE02752DUMMY Blue Lagoon Tech UV-C 75W (Dummy) - € 50,00
BH01752DUMMY Blue Lagoon Timer UV-C 75W (Dummy) - € 65,00
BH11752DUMMY Blue Lagoon Signal UV-C 75W (Dummy) - € 60,00
B300007 Informative mounting plate for dummy 60x120 cm € 35,00
B300004 Blue Lagoon Roll up banner 2018 85x200 cm € 40,00
B300005 VGE Pro Roll up banner 2018 85x200 cm € 40,00
COMBINATIONS PRICE
Dummy Tech + Informative mounting plate + banner Blue lagoon € 110,00
Dummy Timer + Informative mounting plate + banner Blue lagoon € 125,00
Dummy Signal + Informative mounting plate + banner Blue lagoon € 120,00ADVERTORIAL
26
xx UV-C and Pool equipment
26
STAINLESS
STEEL
Pure pleasure
Swimming pools and spas are the perfect places
for sports, fun and relaxing. Unfortunately they
are also the perfect breeding place for bacteria,
viruses and other primitive organisms. Clean
swimming pool water doesn’t have to mean high
doses of chlorine. With UV treatment the chlorine
level can be kept as low as possible, decreasing
the unpleasant side effects of it. So you can fully
enjoy every swim. up to 12,000 hours of clean pool water. And with very low
levels of mercury, they’re clearly better for the environment
The clear choice when they’re disposed of.
Our UV-C lamps significantly reduce the required
concentration of chemicals needed to keep the pool clean. You’re safe with us
So there’s no red eyes or skin irritations to worry about. Philips has been lighting your world for more than 100 years.
Also unpleasantly intense chlorine aromas that affect hair Our comprehensive range of UV-C solutions covers water,
and skin are avoided, making UV-C treated pools the air and surface disinfection using low and medium pressure
preferred choice with swimmers. mercury lamps.
Pure innovation
With a long and reliable lifetime, low energy and maintenance
costs and high end of life output, Philips UV-C lamps provide
To find out more dive into our website at
www.philips.com/uvpurificationUVC Germicidal Lamps
Global Leaders
Light Sources and Lighttech, global leaders in UVC Germicidal
Lamps, offer unmatched innovation in the design and manufacture
of our lamp products. With both of our state of the art
manufacturing facilities, we can supply the world market with
high-quality standard lamp designs as well as custom designed
lamp solutions for your specific applications.
- Amalgam Lamps - Compact Lamps
- Soft Glass - Standard Output
- U Shaped - High Output
- Cell Lamps - Ozone Producing
- Medium Pressure (MPUV/MPHO)
- OEM - Proprietary Base Solutions
- Custom Lamp Configurations28
UV-C Lamps
STAINLESS
STEEL
For the professional PL-S lamps are compact UV-C (germicidal) The Philips Smart Cap technology is an
market it’s also
lamps used in residential water and air innovative development for optimal safety!
possible to deliver
special high quality disinfection units. The compact size of the The lamp base and the fitting, that goes
lamps with a higher lamp allows for a small system design and into the housing of the lamp, are both
wattage. design flexibility. Thanks to the single-ended provided with a safety switch. As soon
For example lamps
of 325 and 400 watt.
lamp base, lamp replacement is easy. as the lamp is taken out of the housing,
Please contact us at the power supply is interrupted causing
+31 499 461 099 or by PL-L lamps are compact UV-C (germicidal) the lamp to switch off. This guarantees
e-mail: info@vgebv.nl lamps used in water and air disinfection optimal safety during maintenance.
for the actual prices
and delivery times.
units. The compact size of the lamp allows
for a small system design and design
flexibility. Thanks to the single-ended
Philips T6 TUV Amalgam XPT system
lamp base, lamp replacement is easy.
consists of an electronic driver that
operates one TUV Amalgam XPT lamp,
TL Mini lamps are slim double-ended
mounted in a sleeve. The electrical
UV-C (germicidal) lamps used in residential
specifications are tailored to the lamp,
water and air disinfection units. The small
ensuring an optimized performance of
Lifespan UV-C 16 mm diameter of the lamp allows for a
and Amalgam
the Philips TUV Amalgam XPT system.
small system design and design flexibility.
replacement lamps Thanks to extensive testing before a
To make sure a UV-C lamp system is released, we can ensure
disinfection system
TL lamps (T8) are double-ended UV-C maximum reliability and long lifetime.
keeps protecting
bathers against (germicidal) lamps used in professional
pathogens such air disinfection units. Moreover, they have VGE Smart pin technology SPT makes it
as moulds, viruses
a long and reliable lifetime, which allows possible to replace the lamp safely, although
and bacteria, it
is important to maintenance to be planned for in advance. the system remains filled with water. If the
replace a UV-C
lamp is mistakenly not turned off during the
lamp in time. The
average effective T5 lamps are single ended UV-C (germicidal) replacement, it will switch off automatically
lifespan of a UV-C
lamps used in professional water and air as soon as it is removed from the socket. Due
lamp is 9,000 hours. to the seal between the lamp socket and
An amalgam lamp disinfection units. The small 16 mm diameter
has a longer lifespan of the lamp allows for a small system lamp, the system can be used in situations
of approximately design and design flexibility. T5 lamps where IPx4 is required. The high-quality
16.000 hours. ceramic is an excellent electrical isolator and
offer almost constant UV output over their
Although the lamp
complete lifetime, for maximum security of is resistant to corrosion. A visual observation
will still continue
to work after disinfection and high system efficiency. of the operation of the lamp is no problem
this period, its through various transparent parts.
disinfecting value
will rapidly decline
from then on. To
still guarantee TL bulbs
the health of ITEM. NR. BRAND MODEL BOX TYPE BASE
the bathers, it 3903556 Philips TUV TL-MINI 4W FAM 25 TL I
is important to 3903557 Philips TUV TL-MINI 6W FAM 25 TL I
replace the UV-C 3903558 Philips TUV TL-MINI 8W FAM 25 TL I
lamp in time. 3903559 Philips TUV TL 10W 1SL T8 25 TL I
3903563 Philips TUV TL-MINI 11W FAM 25 TL I
3903560 Philips TUV TL 15W 1SL T8 25 TL I
3903574 Philips TUV TL-MINI 16W 25 TL I
3903561 Philips TUV TL 25W 1SL T8 25 TL I
3903564 Philips TUV TL 30W 1SL T8 25 TL I
3903565 Philips TUV TL 36W SLV 6 TL I
3903562 Philips TUV TL 55W 1SL HO T8 6 TL I
3903570 Philips TUV TL 75W HO T8 6 TL I
3903070 VGE TL 25W T8 25 TL I
3903071 VGE TL 30W T8 25 TL I
3903072 VGE TL 55W T8 25 TL IYou can also read
