BROCHURE DHW AND AEROTHERMY 2021
INNOVATIVE AIR
CONDITIONING,
AEROTHERMAL AND
DOMESTIC HOT WATER
SOLUTIONS
2
DHW AND AEROTHERMY BROCHURE 2021
ABOUT US
GIA GROUP. MAKE YOUR LIFE EASY.
WHO WE ARE 4
WHERE WE ARE 5
AQUA RANGE
BOILERS
PACIFIC Seriess. Condensing boiler. 10
Boiler accessories. Flue pipe kit 10
Boiler accessories. Thermostats. 11
GAS WATER HEATER
UAN series. Closed chamber GWH. 16
ECO series. Open chamber GWH. 16
OBI series. Closed chamber GWH. 17
GWH accessories . Flue pipe kit 17
ELECTRIC WATER HEATER
SMART Series. Vertical electric water heater. 20
GÉMINIS Series. Reversible electric water heater. 21
ESSENTIAL DIGITAL Series. Vertical electric water heater. 21
ESSENTIAL Series. Vertical electric water heater. 22
AEROTHERMY RANGE
ALL-IN-ONE HEAT PUMP
VA1 / VA2 Series. All-in-one heat pump. 30
VAX 300 Series. All-in-one heat pump. 30
VAX 500 Series. All-in-one heat pump. 31
ECO-THERMAL
MONOBLOCK PLUS Series. 34
BIBLOCK PLUS Series. 35
DHW DEPOSIT
ASF Series 37
FANCOILS
MKG Series. Wall mounted split. 40
MKT2 Series. Duct. 40
MKD / MKA Series. Cassette. 41
MKH2 Series. Floor-Ceiling. 42
MKH3 Series. Floor-Ceiling. 43
SWIMMING POOL HEAT PUMP
LION Series. Swimming pool heat pump. 46
3
GIA GROUP
make your life easy
About us
GIA GROUP was founded in 2010 by professionals with extensive
experience in the air conditioning sector.
100% Spanish capital, with headquarters and operational offices in
Barcelona, GIA GROUP is committed to a new business model by developing
the manufacture of highly efficient air conditioning, aerothermal and
domestic hot water products within everyone’s reach.
Since its inception, it has focused all its efforts on offering innovative
products, with the highest quality and respectful of the environment. This
premise has placed the company among one of the leading manufacturers
in the HVAC and DHW equipment sector, in Spain and in the main
European countries.
4
We are present throughout Europe
Headquarters located in Barcelona, Spain.
We are present in more than 35 countries, with our own subsidiaries in
Spain, France, Portugal and Italy.
5 logistics centres in Spain with more than 18,000 m2, 2 logistics centres
in Portugal and 2 logistics centres in Italy. A total of more than 40,000 m2
to be able to give a premium service to our customers.
Our values
QUALITY
COMMITMENT
TRUST
TECHNOLOGY
SUSTAINABILITY
5
BOILERS
GAS WATER HEATER
ELECTRIC WATER HEATERS
AQUA
RANGE
6
7
aqua range

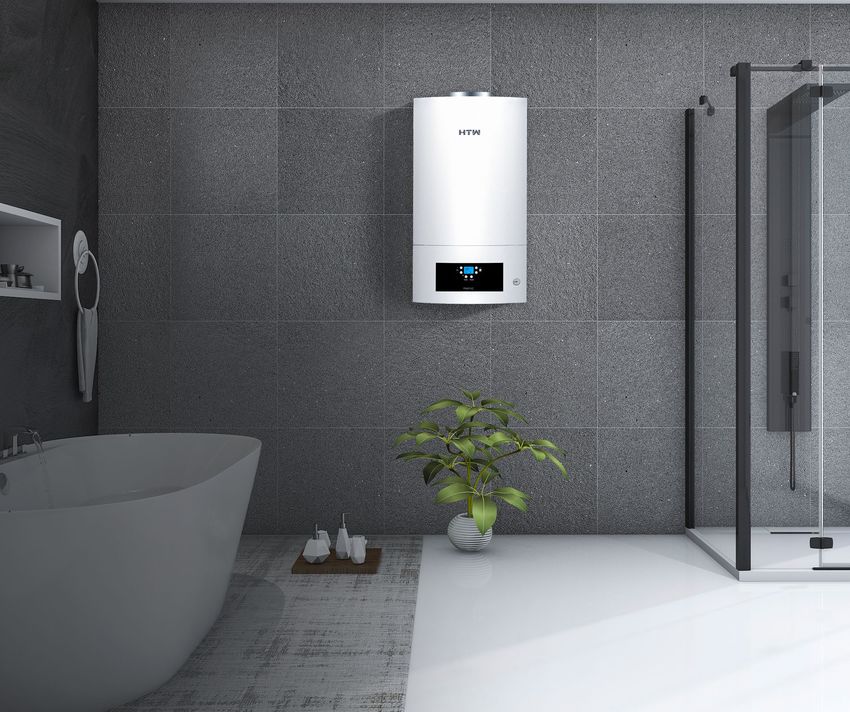

pacific BOILERS
Latest generation condensing boilers, exclusive design and
maximum efficiency. Suitable for any type of installation,
whether DHW, radiators or underfloor heating.
8Made-to-measure
thermal comfort
Pacific is a highly energy-efficient, European-
manufactured condensing boiler that complies with ErP
regulations and provides an efficiency of up to 107%
thanks to condensing technology.
It is characterised by incorporating a stainless steel
exchanger that notably extends the useful life of the
boiler, thanks to its resistance to corrosion, as well as
helping to maintain the desired temperature of the water
at a constant level.
A DHW system that guarantees immediate thermal
comfort and is tailor-made according to the user’s needs.
High energy efficiency
Heating savings of up to 96.6%, thanks to its stainless steel
heat exchanger. A classification.
Adjustable pump
The pump adjusts to the installation requirements,
guaranteeing savings on electricity bills.
Smart heating system
It analyses the consumption needs and regulates the flame
intensity. Its precise regulation not only ensures that the
energy input is perfectly matched to the heat demand at all
times, but also further minimises the cost of the gas bill.
HTW reserves the right to modify models and technical data without prior notice.
Information is valid except in the case of typographical or printing errors. AQUA RANGE 9DHW AND AEROTHERMY BROCHURE 2021
boiler
NEW PACIFIC
XL PROFILE
A ACS
Intercambiador
de acero
inoxidable
Alta eficiencia
107%
Bomba de agua
regulable
Ventilador
modulante según
temperatura
Funcionamiento
inteligente
DHW rápido Protección contra
alta presión en la
instalación
HTWCQ24PACIFIC-GN
Nominal power input (Qn) kW 22,50
Nominal power output (Pn) kW 24
Performance (30-50ºC) % 107
Declared profile XL
Energy classification DHW / A/A
Heating
Gas type Natural Gas G20 / LPG conversion
2 TOTAL
Water flow rate (Δ T= 25 Cº) L/min 3 ~13,5
YEARS
WARRANTY Heating temperature ºC 30 ~ 85
DHW temperature ºC 35 ~ 60
QUALITY COMMITMENT
Net dimensions (W×H×xD) mm 400×717×330
Net weight Kg 29
boiler accessories
Flue pipe kit
Model
HTWSGPACIFIC Horizontal flue pipe kit 60/100 Pacific series
KITSGVERT Vertical flue pipe kit for boilers
KITBIFLUJOCALD Biflow boiler adapter
10 AQUA RANGE HTW reserves the right to modify models and technical data without prior notice.
Information is valid except in the case of typographical or printing errors.DHW AND AEROTHERMY BROCHURE 2021
boiler thermostats
Wireless chronothermostat with radio frequency and Wi-Fi
Programmable
Model Power supply Receiver Frequency (Mhz)
HTW-GBCRT-B-RFWIFIKA 2 x AAA batteries / USB Type C 5V AA 10A voltage free output from the boiler control system 868
Wireless chronothermostat with radio frequency
Programmable
Model Power supply Receiver Frequency (Mhz)
HTW-GBCRT-B-RFKA 2 x AAA batteries 10A voltage free output from the boiler control system 868
Wired digital chronothermostat
Programmable
Model Power supply Voltage free contact Temperature range
HTW-GBCRT-B-KA 2 x AAA batteries 0,5A (max.) 5-30º in 0,5º
Wired analog thermostat
ON
OFF
Model Power supply Charging current
HTW-GBTE-C-KA 230V~50Hz 3A
HTW reserves the right to modify models and technical data without prior notice.
Information is valid except in the case of typographical or printing errors. AQUA RANGE 11Efficient
consumption and
energy saving
The Pacific boiler achieves high
levels of efficiency while achieving
high savings in gas consumption,
thanks to condensing technology
and its rated- A energy
classification.
12 AQUA RANGE HTW reserves the right to modify models and technical data without prior notice.
Information is valid except in the case of typographical or printing errors.Instant
hot water
The technology behind the Pacific
boiler is a step forward in thermal
comfort. It offers immediate
availability of hot water, keeping
it constant from the first moment
even with simultaneous demands.
• Savings in water consumption
• Total stability in hot water
temperature, even in cases of
simultaneous consumption or
sudden drops in flow rate.
• Hot water at minimum flow rates
• Immediate availability of hot water
HTW reserves the right to modify models and technical data without prior notice.
Information is valid except in the case of typographical or printing errors. AQUA RANGE 13aqua range
GAS
WATER
uan
eco
obi HEATERS
HTW gas water heaters have a high DHW production
capacity, prepared to work at low water pressure. Their
designs fit into any environment thanks to their dimensions
and avant-garde aesthetics.
14Innovation and
Low NOx technology
Redesigned down to the last component
and built around an efficient and durable
low NOx burner, HTW gas water heaters
are the answer to the needs of the most
demanding user.
• Low pressure start-up (0.2 bar)
• The UAN gas water heater automatically
regulates the temperature and keeps it constant,
thus increasing its efficiency.
Maximum safety and Eco-Friendly
The technology behind the burners of HTW gas water heaters
reduces NOx emissions and environmental pollution.
Designed for a demanding user
The UAN gas water heater has a multifunctional touch
screen: DHW temperature setting and display, flame intensity
indicator, error code display and multiple safety protections.
More stable combustion
Thanks to the additional reinforcement of the baffle, the
combustion condition is more stable.
HTW reserves the right to modify models and technical data without prior notice.
Information is valid except in the case of typographical or printing errors. AQUA RANGE 15DHW AND AEROTHERMY BROCHURE 2021
closed chamber GWH
NEW
UAN
*depending on model
M PROFILE
* 11
L/min
A ACS
High DHW
production
No pilot
flame
Multi-functional
touch display
Closed
chamber
Gas and temp.
sensor
Multiple
protection
Gas outlet
included
(C13, C33)
Forced draft
ready
(B23, B53)
5 NOx Class
HTW-CLE-11NOXUAGN HTW-CLE-11NOXUAGLP
Power supply V,Ph,HZ 220-240V (1 Phase~ 50Hz)
Power input kW 22 22
Declared profile M M
Gas type Natural Gas G20 Gas Butane G30 / Propane G31
Water pressure bar 0,2-10 0,2-10
Water flow rate L/min 8-11 8-11
Water temperature ºC 35 ~ 60 35 ~ 60
2 TOTAL
YEARS Dimensions (ØxH) mm 370×660×213 370×660×213
WARRANTY
Net weight Kg 13.4 13.4
QUALITY COMMITMENT
closed chamber GWH
ECO
*depending on model
XL PROFILE
* 12 14
L/min L/min
M PROFILE
* High DHW
production
High DHW
production
No pilot
flame
Super slim Solar energy
compatible
Oxygen-free
copper heat
exchanger
Gas outlet
included
(C13, C33)
Forced draft
ready
(B23, B53)
A ACS
HTW-CLE-12NOXGN HTW-CLE-12NOXGLP HTW-CLE-14NOXGN HTW-CLE-14NOXGLP
Power supply Eléctrica V,Ph,HZ 220-240V (1 Phase~ 50Hz)
Power input kW 24 24 28 28
Declared profile — M M XL XL
Gas Butane G30 / Gas Butane G30 /
Gas type — Natural Gas G20 Natural Gas G20
Propane G31 Propane G31
Water pressure bar 0,2-10 0,2-10 0,2-10 0,2-10
Water flow rate L/min 8-12 8-12 8-14 8-14
Water temperature Cº 35 ~ 65 35~65 35~65 35~65
2 TOTAL
YEARS
WARRANTY Dimensions (W×H×D) mm 345×570×150 345×570×150 345×570×170 345×570×170
Peso Kg 12,3 12,3 14,7 14,7
QUALITY COMMITMENT
16 AQUA RANGE HTW reserves the right to modify models and technical data without prior notice.
Information is valid except in the case of typographical or printing errors.DHW AND AEROTHERMY BROCHURE 2021
open chamber GWH
OBI
*depending on model
XL PROFILE
* 11 14
L/min L/min
M PROFILE
* High DHW
production
High DHW
production
No pilot
flame
Super slim Led Display Gas and temp.
sensor
Multiple
protection
5 NOx Class
A ACS
HTW-CLA HTW-CLA HTW-CLA HTW-CLA
11NOXOBIGN 11NOXOBIGLP 14NOXOBIGN 14NOXOBIGLP
Power supply V,Ph,HZ 220-240V (1 Phase~ 50Hz)
Power input kW 22 22 28 28
Declared profile M M XL XL
Gas Butane G30 / Gas Butane G30 /
Gas type Natural Gas G20 Natural Gas G20
Propane G31 Propane G31
Water pressure bar 0,5-10 0,5-10 0,5-10 0,5-10
Max. flow rate ΔT = 25ºC L/min 5-10,7 5-10,7 5-14,2 5-14,2
2 TOTAL
Water temperature ºC 35~85 35~85 30~85 30~85
YEARS
WARRANTY Net dimensions (W×H×xD) mm 330×679×213 330×679×213 330×679×213 370×679×213
Net weight Kg 10,5 10,5 10,9 10,9
QUALITY COMMITMENT
GWH accessories
gas water
Flue pipe kit
calentadores
heaters
SGCLC11M
Model
SGCLC11M Type C flue pipe 60/100 for 11L GWH closed chamber with gas sampling
KITCLB11 Type B flue pipe for 11 L GWH closed chamber forced draft
HTWADPVERCLE Vertical outlet adapter for GWH closed chamber
SGCLB11 Type B flue pipe for 11 L GWH closed chamber forced draft
HTWCLSGBIF Biflow adapter
HTW reserves the right to modify models and technical data without prior notice.
Information is valid except in the case of typographical or printing errors. AQUA RANGE 17aqua range
ELECTRIC
WATER
HEATERS
smart
géminis
essential digital
essential
HTW has a wide range of thermos flasks with capacities
from 15 to 150 litres. They have great power and enviable
protections, with unique features in the market. In addition to
vertical water heaters, the series also includes reversible water
heaters that can be installed both vertically and horizontally.
18More comfort and
less consumption
HTW electric water heaters are durable,
reliable and energy efficient.
• Temperature regulator
• Enamelled tank for longer life
• Electronic sleeves are included which act as an
insulator to prevent corrosion and increase the
durability of the electric electri water heater.
• Safety valve to protect against possible
overpressure of water
WiFi connection
WiFi connectivity has been added to the Smart electric water
heater to facilitate its control and contribute to energy saving:
on/off control, precise regulation of the set temperature,
current temperature indicator, among other functions.
High-quality resistance
HTW electric water heaters are available with sheathed or
enamelled heating elements, depending on the model.
Multiposition
The Géminis electric water heaters can be installed both
vertically and horizontally.
HTW reserves the right to modify models and technical data without prior notice.
Information is valid except in the case of typographical or printing errors. AQUA RANGE 19DHW AND AEROTHERMY BROCHURE 2021
vertical electric water heater
NEW
SMART
*depending on model
L PROFILE
*
INCLUDED
A DHW
Enamelled
resistance
Electronic
anode
Insulation
polyurethane
high density
Tank
enamelled
sapphire
Dry
overheating
protection
B DHW
HTW-TV-30SMART HTW-TV-50SMART HTW-TV-80SMART HTW-TV-100SMART
Power supply V,Ph,HZ 220–240V (1 Phase~ 50/60Hz)
Power input W 2000 2000 2000 2000
Current A 8,6 8,6 8,6 8,6
Declared profile - L L L L
Energy classification - A B B B
Capacity L 30 50 80 100
Operation temp. ºC 30-75 30-75 30-75 30-75
2 TOTAL 5 CUBA
YEARS YEARS Net dimensions (ØxAl) mm Ø380x555 Ø380x763 Ø410x1010 Ø410x1160
WARRANTY WARRANTY
Net weight Kg 12,9 25 30 50
QUALITY COMMITMENT QUALITY COMMITMENT
NOTES:
1. The heating capacity is tested in a standardised environment with an external temperature of 20ºC (DB) / 15ºC (BM), the initial temperature of the water in the unit is 15ºC, to
stop heating when the temperature is 55ºC.
Smart
connectivity
WIFI connectivity comes to the
Smart electric water heater to
facilitate its control and contribute
to energy saving.
• Perfect temperature from your
mobile phone: turn the boiler on and
off from anywhere.
• Includes the ECO Smart system
for greater savings and comfort of
hot water needs.
• Temperature regulation and touch
control via digital display.
• Electronic anode. No maintenance
required.
20 AQUA RANGE HTW reserves the right to modify models and technical data without prior notice.
Information is valid except in the case of typographical or printing errors.DHW AND AEROTHERMY BROCHURE 2021
reversible electric water heater
GÉMINIS
*depending on model
M PROFILE
*
C ACS
Safety valve Insulation
polyurethane
high density
Reversible
installation
Magnesium
anticorrosive
anode
Diamond
enamelled
tank
Sheathed
resistance
1 single
welding line
HTW-TR- HTW-TR- HTW-TR- HTW-TR- HTW-TR-
30GEM 50GEM 80GEM 100GEM 150GEM
Power supply V,Ph,HZ 220-240V (1 Phase ~ 50/60Hz)
Power input W 1500 1500 1500 1500 1500
Current A 6,5 6,5 6,5 6,5 6,5
Declared profile S M M M M
Energy classification C C C C C
Capacity L 30 50 80 100 150
Operation temp. ºC 20-75 20-75 20-75 20-75 20-75
2 TOTAL 5 CUBA
YEARS YEARS Dimensions (ØxH) mm Ø410x465 Ø410x615 Ø410x865 Ø410x1.045 Ø530x1.014
WARRANTY WARRANTY
Net weight Kg 12,4 15,7 21,1 25,9 42,5
QUALITY COMMITMENT QUALITY COMMITMENT
NOTES:
electric water heater
1. 5 years warranty on the tank (by performing the required maintenance).
vertical electric water heater
ESSENTIAL DIGITAL
*depending on model
M PROFILE
*
A ACS
Selectable Magnesium
temperature anticorrosive
anode
Electronic
sleeves
Sheathed
resistance
Digital Insulation
thermometer polyurethane
high density
Tank
enamelled
sapphire
Dry
overheating
protection
B ACS
HTWTV30ESSDIG HTWTV50ESSDIG HTWTV80ESSDIG HTWTV100ESSDIG
Power supply V,Ph,HZ 220-240V (1 Phase ~ 50/60Hz)
Power input W 1500 1500 1500 1500
Current A 6,5 6,5 6,5 6,5
Declared profile S S M M
Energy classification A A B B
Capacity L 30 50 80 100
Operation temp. ºC 30-75 30-75 30-75 30-75
2 TOTAL 5 CUBA
YEARS YEARS Dimensions (ØxH) mm Ø350x655 Ø390x778 Ø460x848 Ø460x1003
WARRANTY WARRANTY
Net weight Kg 14,8 18,9 25,3 30,6
QUALITY COMMITMENT QUALITY COMMITMENT
NOTES:
1. 5 years warranty on the tank (by performing the required maintenance).
HTW reserves the right to modify models and technical data without prior notice.
Information is valid except in the case of typographical or printing errors. AQUA RANGE 21DHW AND AEROTHERMY BROCHURE 2021
vertical electric water heater
NEW ESSENTIAL
*depending on model
L PROFILE
*
C ACS
Adjustable Magnesium
temperature anticorrosive
anode
Electronic
sleeves
Incoly 840
resistance
Insulation
polyurethane
high density
Tank
enamelled
sapphire
Dry
overheating
protection
HTW-TV-15ESS HTW-TV-30ESS HTW-TV-50ESS HTW-TV-80ESS HTW-TV-100ESS
Power supply V,Ph,HZ 220-240V (1 Phase ~ 50/60Hz)
Power input kW 1500 1500 1500 1500 1500
Current 6,5 6,5 6,5 6,5 6,4
Declared profile S S L L L
Energy classification C C C C C
Capacity L 15 30 50 80 100
Operation temp. ºC 30-75 30-75 30-75 30-75 30-75
2 TOTAL 5 CUBA
YEARS YEARS Dimensions (ØxH) mm Ø380x386x305 Ø340x618 Ø380x735 Ø450x808 Ø450x963
WARRANTY WARRANTY
Net weight Kg 9 13,6 17,5 23,7 26,9
QUALITY COMMITMENT QUALITY COMMITMENT
NOTES:
1. 5 years warranty on the tank (by performing the required maintenance).
22 AQUA RANGE HTW reserves the right to modify models and technical data without prior notice.
Information is valid except in the case of typographical or printing errors.Modern and
practical design
The elegantly designed 15L electric
water heater is ideal for installation in
small spaces. It has an anti-corrosive
magnesium anode and a temperature
regulator.
HTW reserves the right to modify models and technical data without prior notice.
Information is valid except in the case of typographical or printing errors. AQUA RANGE 23ALL-IN-ONE HEAT PUMP
ECO-THERMAL
DHW DEPOSIT
FANCOILS
SWIMMING POOL HEAT
AEROTHERMY
RANGE
2425
Efficient and environmentally
friendly energy
Aerothermic energy is that which takes the thermal energy from the outside
environment and transfers it to heat the water needed to obtain heat in the
home. It can be used to produce DHW and even to cool the house if necessary.
26Converts thermal
energy from the
outside into heat
inside
Heating, cooling and DHW for a
greener future
• Safer, no fumes, no waste
• More efficient
• Saves on energy bills
• No CO2 emissions
• Sustainable
• Easy to install and maintain
27aerothermy range
ALL-IN-ONE
HEAT PUMP
VA 1
VA 2
VAX 300
VAX 500
Enjoy the best solution for obtaining DHW. HTW all-in-one heat pumps are
the most efficient and environmentally friendly alternative, as they generate
great energy savings by using energy from the outside and transforming it
into domestic hot water. Ideal for residential or commercial use.
28Solutions for high
DHW demands
HTW all-in-one heat pumps are the perfect solution to
satisfy high hot water flow rates at several points of
consumption at the same time.
Particularly suitable for large areas, homes, sports
centres, etc.
• Energy savings of 70% compared to a
conventional electric water heater
• Solar energy compatible and Eco-Friendly
• Anti-legionella function
• Easy installation
High efficiency, energy saving
Low consumption, as it absorbs a large amount of energy
from the air. High efficiency and low operational cost.
Easy to use
It can produce hot water in a temperature range of 15° C to
43° C, regardless of external weather conditions.
Smart control
It incorporates a computerized control unit, very easy to
operate and with automatic memory function.
HTW reserves the right to modify models and technical data without prior notice.
Information is valid except in the case of typographical or printing errors. AEROTHERMY RANGE 29DHW AND AEROTHERMY BROCHURE 2021
all-in-one heat pump
VA 1 / VA 2
*depending on model
L PROFILE
* 28~75
A+ COP
Refrigerant
gas
Refrigerant
gas
Automatic
restart
function
Anti-legionella Water outlet
function temperature
Solar energy
compatible (V2
model)
Wide
operating
range
Tubular
condenser
around tank
Replaces gas
and electric
water heaters
HTW-AT-O-200VA1 HTW-ATS-O-200VA2
Power supply V,Ph,HZ 220-240V (1 Phase ~ 50Hz)
Heating capacity kW 2,3 2
Hot water capacity L/h 49 49
COP 3,29 3,73
Capacity L 200 200
Energy classification A+ A+
3 TOTAL
YEARS Declared profile L L
WARRANTY
Net dimensions (Ø x Al) mm Ø580×1.860 Ø580×1.910
QUALITY COMMITMENT Net weight Kg 95 / 115 98 / 108
NOTES:
1. Test conditions: 20°C dry tank, 15°C wet tank, 10°C water inlet temperature, 52°C water outlet temperature.
2. Operating range: -15ºC / 43ºC, heat pump operating range -7ºC / 43ºC.
3. Product parameters are subject to change without notice and the nameplate always prevails.
all-in-one heat pump
VAX 300
COP
A+ ACS
Refrigerant
gas
Easy
installation
Anti-legionella Water outlet Solar energy com-
function temperature patible (depending
on model)
Defrost
function
Stainless
steel tank
Replaces gas
and electric
water heaters
HTW-ATS-O-300VAX
Power supply V,Ph,HZ 220-240V (1 Phase ~ 50Hz)
Heating capacity kW 2,02
Water production L/h 45
COP 4,16
Capacity L 300
Energy classification A+
3 TOTAL
Net dimensions (Ø x Al) mm Ø640×1.845
YEARS
WARRANTY Net weight Kg 110
QUALITY COMMITMENT
NOTES:
1. *Condition 1: A: 20ºC DB/15ºC WB, W: 15ºC-55ºC
2. *Condition 2: EN16147, XL, A: 7ºC DB/6ºC WB, W_Ç: 10ºC-53ºC
3. During the disinfection action, the maximum temperature can reach 70ºC through electrical heating.
4. *With a ∆T of 40ºC.
30 AEROTHERMY RANGE HTW reserves the right to modify models and technical data without prior notice.
Information is valid except in the case of typographical or printing errors.DHW AND AEROTHERMY BROCHURE 2021
all-in-one heat pump
VAX 500
COP
Refrigerant Easy Anti-legionella Water outlet Solar energy com- Defrost Stainless Replaces gas
gas installation function temperature patible (depending function steel tank and electric
on model) water heaters
HTW-ATS-O-500VAX
Power supply V,Ph,HZ 220-240V (1 Phase ~ 50Hz)
Heating capacity kW 4
Water production L/h 82
COP 4,02
Capacity L 500
Energy classification A
3 TOTAL
Net dimensions (Ø x Al) mm Ø700×2.250
YEARS
WARRANTY Net weight Kg 122
QUALITY COMMITMENT
NOTES:
1. *Condition 1: A: 20ºC DB/15ºC WB, W: 15ºC-55ºC
all-in-one heat pump
2. *Condition 2: EN16147, XL, A: 7ºC DB/6ºC WB, W_Ç: 10ºC-53ºC
3. During the disinfection action, the maximum temperature can reach 70ºC through electrical heating.
4. *With a ∆T of 40ºC.
HTW reserves the right to modify models and technical data without prior notice.
Information is valid except in the case of typographical or printing errors. AEROTHERMY RANGE 31monoblock plus
biblock plus
aerothermy range
ECO-THERMAL Eco-Thermal heats the home effectively and efficiently, even
in extreme outdoor temperatures. It can also cool the space
in summer and provide hot water all year round with low
consumption.
32Integrated system of
air conditioning
and DHW
Eco-Thermal is an integrated system that provides
heating, cooling and DHW. It offers a complete
integrated solution all year round. It can be combined
with underfloor heating, fan coil and radiators. A solar
heater can also be connected to provide DHW.
• Renewable energy source
• Heating, cooling and DHW
• DC Inverter water pump, high efficiency
• Built-in WiFi and APP control
Eco-Friendly, with R-32 refrigerant
R-32 has an Ozone Depletion Potential (ODP) of 0 and its Global
Warming Potential (GWP) is -77% compared to R-410A. In
addition, R-32 is a single component refrigerant, which makes
it easy to recycle.
Easy installation and maintenance
Eco-Thermal is easy to install and maintain.
Energy saving
Eco-Thermal can use electricity from different sources, such as
solar, to satisfy different operating modes, which is beneficial
for energy saving.
HTW reserves the right to modify models and technical data without prior notice.
Information is valid except in the case of typographical or printing errors. AEROTHERMY RANGE 33DHW AND AEROTHERMY BROCHURE 2021
eco-thermal
MONOBLOCK PLUS
NEW
5,5
EER
3 TOTAL
YEARS
5,1
WARRANTY
COP
QUALITY COMMITMENT Depending on model
MODE
INCLUDED
Modbus Wired control Compressor Various High
gateway and fans DC operating protection
Inverter modes
ºC ºC
5~60
Anti-legionella Cascade Intelligent Compact Hot and cold Wide operating Greater Selectable
function assembly network design mode range efficiency temperature
at low temp. range
HTW-V8WD2N8PLUS HTW-V12WD2N8PLUS HTW-V16WD2N8PLUS
Power supply V,Ph,HZ 220-240V (1 Phase ~ 50Hz)
Heating capacity kW 8,40 12,10 15,90
Cooling capacity kW 8,30 12,00 14,90
Water outlet 35ºC A+++
Energy classification
Water outlet 55ºC A++
Cooling 5 ~ 30 ºC
Water outlet temperature Heating 12 ~ 65 ºC
DHW (tank) 10 ~ 60 ºC
Gas type / charge R32 / Kg 1.4 1.75 1.75
Net dimensions (W×H×xD) mm 1385×945×526 1385×945×526 1385×945×526
Net weight Kg 121/148 144/170 144/170
HTW-V16WD2RN8PLUS HTW-V22WD2RN8PLUS HTW-V30WD2RN8PLUS
Power supply V,Ph,HZ 380-415V (3 Phases ~ 50Hz)
Heating capacity kW 15,9 22 30,1
Cooling capacity kW 14,90 23 31
Water outlet 35ºC A+++ A++
Energy classification
Water outlet 55ºC A++ A+
Cooling 5 ~ 30 ºC 5 ~ 25 ºC
Water outlet temperature Heating 12 ~ 65 ºC 26 ~ 60 ºC
DHW (tank) 10 ~ 66 ºC 40 ~ 60 ºC
Gas type / charge R32 / Kg 1,75 5
Net dimensions (W×H×xD) mm 1385×945×526 1129x1558x440
Net weight Kg 160 177
NOTES:
1. Relevant EU standards and legislation: EN14511; EN14825; EN50564; EN12102; (EU) No 811/2013; (EU) No 813/2013; OJ 2014 / C 207/02.
2. Outdoor air temperature 7ºC DB, 85% R.H .; EWT 30ºC, LWT 35ºC.
3. Outdoor air temperature 7ºC DB, 85% R.H .; EWT 40ºC, LWT 45ºC.
4. Outside air temperature 7ºC DB, 85% R.H .; EWT 47ºC, LWT 55ºC.
5. Outside air temperature 35ºC DB; EWT 23ºC, LWT 18ºC.
6. Outside air temperature 35ºC DB; EWT 12ºC, LWT 7ºC.
7. Seasonal energy efficiency class testing of space heating under average climatic conditions.
8. Test standard: EN12102-1
34 AEROTHERMY RANGE HTW reserves the right to modify models and technical data without prior notice.
Information is valid except in the case of typographical or printing errors.DHW AND AEROTHERMY BROCHURE 2021
eco-thermal
BIBLOCK PLUS
NEW
5,5
EER
3 TOTAL
YEARS
5,1
WARRANTY
COP
QUALITY COMMITMENT Depending on model
MODE
INCLUDED
Modbus Wired control Compressor Various High
gateway and fans DC operating protection
Inverter modes
ºC ºC
5~60
Anti-legionella Intelligent Compact Hot and cold Wide operating Greater Selectable
function network design mode range efficiency temperature
at low temp. range
HTW-A60CGN8PLUS HTW-A100CGN8PLUS HTW-A160CGN8PLUS
HTW-AV12WD2N8PLUS
HTW-AV4WD2N8PLUS HTW-AV8WD2N8PLUS HTW-AV16WD2N8PLUS
HTW-AV16WD2RN8PLUS
Power supply V,P,HZ 220-240V (1 Phase ~ 50Hz)
Space heating °C 5 ~ 25
Ambient temperature range Heating °C 25 ~ 65
DHW tank °C 40 ~ 60
eco-thermal
Sound power level dB(A) 38 42 43
Net dimensions (W×H×xD) mm 420×790×270 420×790×270 420×790×270
Gross dimensions (W×H×xD) mm 525×1050×360 525×1050×360 525×1050×360
Net weight / gross Kg 37/43 37/43 39/45
Pipeline connections Pulg. R1” R1” R1”
Safety relief valve set pressure Mpa 0,3 0,3 0,3
Drainage pipe connection mm Ø25 Ø25 Ø25
Volume L 8,0 8,0 8,0
Water circuit
Expansion tank Max. water pressure Mpa 0,3 0,3 0,3
Pre-pressure Mpa 0,1 0,1 0,1
Heat exchanger Type Plate type
(water)
Water pump head m 9 9 9
Liquid diameter (OD) mm Ø6,35 Ø9,52 Ø9,52
Refrigeration circuit
Liquid diameter (OD) mm Ø15,9 Ø15,9 Ø15,9
Notes. External model:
1. Relevant EU standards and legislation: EN14511; EN14825; EN50564; EN12102; (EU) No 811: 2013; (EU) No 813: 2013;
DO 2014 / C 207/02: 2014.
2. Outside air temperature 7ºC DB, 85% R.H.; EWT 30ºC / LWT 35ºC.
3. Outdoor air temperature 7ºC DB, 85% R.H.; EWT 40ºC / LWT 45ºC.
4. Outside air temperature 7ºC DB, 85% R.H.; EWT 47ºC / LWT 55ºC.
5. Outside air temperature 35ºC DB, EWT 23ºC / LWT 18ºC.
6. Outside air temperature 35ºC DB, EWT 12ºC / LWT 7ºC.
7. Seasonal space heating energy efficiency class tested under average climatic conditions.
8. Test standard: EN12102-1.
Notes. Indoor model:
Standard test: EN12102-1.
HTW reserves the right to modify models and technical data without prior notice.
Information is valid except in the case of typographical or printing errors. AEROTHERMY RANGE 35aerothermy range
DHW
ASF DEPOSIT
HTW has 150, 200, 300 and 500 litre DWH desposits for do-
mestic and industrial use.
36DHW AND AEROTHERMY BROCHURE 2021
DHW deposit
ASF
C ACS
2 TOTAL
YEARS
WARRANTY
Anticorrosion Insulation Vitrified Saving
magnesium polyurethane ceramic space and
QUALITY COMMITMENT anode coating consumption
HTW-IVSF-150ASF HTW-IVSF-200ASF HTW-IVSF-300ASF HTW-IVSF-500ASF
Power supply V,Ph,HZ 220–240V (1 Phase ~ 50Hz)
Heat loss W 73 81 90 99
Energy classification C C C C
Coil area m 2
1,4 1,9 3,3 4,6
Power input kW 36 49 86 119
Production L/h 893 1.212 2.105 2.935
Design pressure bar 10 10 10 10
Design temperature ºC 95 95 95 95
Net dimensions (Ø x Al) mm Ø560/1070 Ø560/1340 Ø610/1695 Ø750/1895
Net weight Kg 60 69 107 145
DHW deposit
Energy efficiency
High heat transfer efficiency at low temperatures. Complies with
eco-design requirements according to regulation 814/2013 and
energy labelling according to regulation 812/2013.
Steel tank with ceramic vitrified coating.
Tank made of carbon steel ST 37.2 and coated on the inside with
a high-quality ceramic vitrified coating.
Recommended resistance
We recommend support resistaance for 3kW 1”1/4 DHW
deposit. Ref. HTW-RMCTI1140300.
HTW reserves the right to modify models and technical data without prior notice.
Information is valid except in the case of typographical or printing errors. AEROTHERMY RANGE 37mkg
aerothermy range
FANCOILS
mkd / mka
mkt 2
mkh2
mkh3
User-oriented design, they adapt perfectly to any installation. Wall
mounted split, duct, cassettes and ceiling floor.
38Create a sophisticated
and efficient space
With multiple capacities, high performance and a
variety of designs, HTW Fan Coils are suitable for a
variety of spaces, whether residential or commercial.
• High performance without forgetting
sustainability
• Low energy consumption
• Low noise level
• Flexible installation
DC Inverter Technology
The DC Fancoil unit with Brushless motor improves energy
efficiency, offers low noise levels and precise temperature
control.
Reduced energy consumption
The energy consumption of DC Fancoil units can be reduced
by up to 30% compared to AC Fancoil units.
Wide range of products
HTW offers a wide range of products to cover all needs:
cassettes, duct, ceiling floor and wall-mounted split.
HTW reserves the right to modify models and technical data without prior notice.
Information is valid except in the case of typographical or printing errors. AEROTHERMY RANGE 39DHW AND AEROTHERMY BROCHURE 2021
wall mounted split
MKG
3 TOTAL
YEARS
WARRANTY
QUALITY COMMITMENT Compressor 3-way valve 2 pipes
and fans DC included
Inverter
Remote Display Auto Swing Easy
control LED Function installation and
maintenance
HTW-MKG-V300B HTW-MKG-V400B HTW-MKG-V600B
Power supply V,Ph,HZ 220-240V (1 Phase ~ 50Hz)
Capacity (cold / hot) kW 2,91/3,23 3,81/4,3 4,87/5,26
Sound pressure 32/27/23 45/39/35 44/40/35
Air flow m3/h 585 825 979
Net dimensions (W×H×xD) 915x290x230 915x290x230 1072x315x230
Net weight 12,7 12,7 14,9
NOTES:
Based on Eurovent conditions:
H: High fan speed; M: Medium fan speed; L: Low fan speed.
1: Cooling mode (2-pipe and 4-pipe coil): incoming air temperature 27°C dB/19°C WB, incoming/outgoing water temperature 7°C/12°C, high fan speed.
2: Heating mode (1) (2-pipe coil): incoming air temperature 20ºC dB, incoming/outgoing water temperature 45/50ºC, high fan speed.
duct
MKT2
3 TOTAL
YEARS
WARRANTY
OPTIONAL 3-WAY VALVE Compressor
HTW-FCU3VKITF01 QUALITY COMMITMENT and fans DC
Inverter
2 pipes Optional Fresh air Removable Easy
wiring inlet filter installation and
control maintenance
HTW-MKT2-V200 HTW-MKT2-V300 HTW-MKT2-V500 HTW-MKT2-V800 HTW-MKT2-V1200
Power supply V,Ph,HZ 220–240V (1 Phase~ 50Hz)
Cooling capacity kW 2,82 2,82 3,83 6,70 9,83
Heating capacity kW 3,56 3,56 4,84 8,93 12,58
Air Flow m3/h 615 615 887 1.492 2.327
Sound pressure dB (A) 27 27 27 31 34
Net dimensions (W×H×xD) mm 841x241x522 841x241x522 941x241x522 1461x241x522 1856x241x522
Net weight Un. Exterior Kg 18,5 18,5 20 31,4 37,5
40 AEROTHERMY RANGE HTW reserves the right to modify models and technical data without prior notice.
Information is valid except in the case of typographical or printing errors.DHW AND AEROTHERMY BROCHURE 2021
cassette
MKD / MKA
3 TOTAL
YEARS
WARRANTY
QUALITY COMMITMENT Compressor 2 pipes Removable
and fans DC panel
Inverter
OPTIONAL 3-WAY VALVE Condensate Wireless 3D Air Fresh air 4 air outlets
HTW-FCU3VKITF01 pump control inlet
HTW-MKD-V400 HTW-MKD-V500 HTW-MKA-V750R
Power supply V,Ph,HZ 220–240V (1 Phase~ 50Hz)
Cooling capacity kW 3,96 4,2 6,12
Heating capacity kW 4,63 4,95 6,27
Air Flow m3/h 719 781 1.229
Sound pressure dB (A) 30 32 34
575x261x575 575x261x575 840x230x840
Net dimensions (W×H×xD) mm
647x50x647 (panel) 647x50x647 (panel) 950x45x950 (panel)
16,5 16,5 23,0
Net weight Un. Exterior Kg
2,5 (panel) 2,5 (panel) 6,0 (panel)
HTW-MKA-V950R HTW-MKA-V1200R HTW-MKA-V1500R
fancoils
Power supply V,Ph,HZ 220–240V (1 Phase~ 50Hz)
Cooling capacity kW 7,84 7,87 11,19
Heating capacity kW 8,49 9,16 10,07
Air Flow m3/h 1.530 1.581 1.871
Sound pressure dB (A) 39 41 39
840x300x840 840x300x840 840x300x840
Net dimensions (W×H×xD) mm
950x45x950 (panel) 950x45x950 (panel) 950x45x950 (panel)
27 27 27
Net weight Un. Exterior Kg
6 (panel) 6 (panel) 6 (panel)
NOTES:
Based on Eurovent conditions:
H: High fan speed; M: Medium fan speed; L: Low fan speed.
1: Cooling mode (2-pipe and 4-pipe coil): incoming air temperature 27ºC dB/19ºC WB, incoming/outgoing water temperature 7ºC/12ºC, high fan speed.
2: Heating mode (1) (2-pipe coil): incoming air temperature 20ºC dB, incoming/outgoing water temperature 45/50ºC, high fan speed.
3: Heating mode (2) (2-pipe coil): incoming air temperature 20ºC dB, incoming water temperature/water flow 50ºC/* (same water flow as in standard cooling condition).
DC Brushless
fan motor
The advanced technology of DC Brushless fan
convectors offers low noise levels and perfect
temperature control. Their precision makes them ideal
for hospitals, office buildings and hotels.
HTW reserves the right to modify models and technical data without prior notice.
Information is valid except in the case of typographical or printing errors. AEROTHERMY RANGE 41DHW AND AEROTHERMY BROCHURE 2021
suelo-techo
MKH2
3 TOTAL
YEARS
WARRANTY
OPTIONAL 3-WAY VALVE Compressor 2 pipes Optional
QUALITY COMMITMENT and fans DC wiring
HTW-FCU3VKITF01 Inverter control
HTW-KJRP75ABKE
HTW-MKH2-V250-R3 HTW-MKH2-V350-R3 HTW-MKH2-V500-R3 HTW-MKH2-V800-R3
Power supply V,Ph,HZ 220–240V (1 Phase~ 50Hz)
Cooling capacity kW 2.35 3.50 4.30 7.35
Heating capacity kW 2.60 3.50 4.30 8.05
Air Flow m3/h 400 595 790 1.360
Nivel sonoro dB (A) 29 37 43 49
Net dimensions (W×H×xD) mm 495×200×1020 495×200×1240 495×200×1240 591×200×1360
Net weight Kg 21.5 25.5 25.5 32.5
42 AEROTHERMY RANGE HTW reserves the right to modify models and technical data without prior notice.
Information is valid except in the case of typographical or printing errors.DHW AND AEROTHERMY BROCHURE 2021
suelo-techo
NEW
MKH3
3 TOTAL
YEARS
WARRANTY
OPTIONAL 3-WAY VALVE Compressor 2 pipes Optional
QUALITY COMMITMENT and fans DC wiring
HTW-FCU3VKITF01 Inverter control
HTW-KJRP75ABKE
HTW-MKH3-V250-R3 HTW-MKH3-V350-R3 HTW-MKH3-V500-R3 HTW-MKH3-V800-R3
Power supply V,Ph,HZ 220–240V (1 Phase~ 50Hz)
Cooling capacity kW 2.35 3.50 4.30 7.35
Heating capacity kW 2.60 3.50 4.30 8.05
Air Flow m3/h 400 595 790 1.360
Nivel sonoro dB (A) 29 37 43 49
Net dimensions (W×H×xD) mm 495×200×1020 495×200×1240 495×200×1240 591×200×1360
Net weight Kg 21.5 25.5 25.5 32.5
fancoils
WiFi connection
and app control
Eco-Thermal Monoblock Plus includes a
WiFi module. It allows dual zone control,
system status monitoring, energy
consumption, programming and timer
adjustment.
HTW reserves the right to modify models and technical data without prior notice.
Information is valid except in the case of typographical or printing errors. AEROTHERMY RANGE 43aerothermy range
SWIMMING
POOL HEAT
lion PUMPS
Swimming pool heat pumps make it possible to extend the swimming season
by raising the water temperature to suit the user’s needs.
44Swimming pool with
ideal temperature all
year round
The Lion heat pump stands out for its ability to
integrate into any environment. It incorporates three
operating modes: cooling, heating and automatic
mode, as well as multiple safety features.
• High component protection
• High efficiency in heating and cooling
• WiFi Ready
• Runs on R32 gas
LCD touch screen
The Lion pool pump includes a microcomputer control, allowing
all operating parameters to be easily set and controlled. The
operation status is displayed on the LCD touch screen at all
times.
Titanium heat exchanger
The advanced titanium hot exchanger protects against
corrosion and rust, allowing it to be used with all types of
water treatment, such as chlorine, iodine, bromine and even
salt water (up to 15 kg/m3 salt concentration).
Environmentally friendly
Lion incorporates R32 refrigerant gas, reducing the impact on
global warming.
HTW reserves the right to modify models and technical data without prior notice.
Information is valid except in the case of typographical or printing errors. AEROTHERMY RANGE 45DHW AND AEROTHERMY BROCHURE 2021
swimming pool heat pumpp
LION
3 TOTAL
YEARS
WARRANTY
QUALITY COMMITMENT
MITSUBISHI
OPTIONAL
Compressor Display 70 & 110 kW Quick defrost High Wired control
and fan LED compressor protection
DC Inverter
Amplio ºC
Ti 10~35
1,5 5,8 38dB
COP
EER
Titanium Hot and cold Wide Adjustable Timer 24h Self-diagnosis Compact
DEPENDING ON MODEL exchanger mode operating temperature design
range range
HTW-SWP-O-070LIO HTW-SWP-O-110LIO HTW-SWP-O-160LIO HTW-SWP-O-190LIO
Ambient 27ºC / Water 26ºC / Humidity 80%.
Power supply V,Ph,HZ 220–240V (1 Phase ~ 50Hz)
Cooling capacity kW 2.07 3.12 4.9 5.64
Heating capacity kW 7.24 11.66 16.0 18.7
Recommended pool VOLUME m3 18-35 30-60 40-75 50-90
Net dimensions (W×H×xD) mm 1.000×605×418 1.000×605×418 1.046×767×453 1.160×862×490
Net weight/gross Kg 42/51 51/62 66/79 74/88
WiFi connection
and app control
App compatible with Android and
IOS, for smartphone or tablet.
• Mode selection: Cooling, heating
and automatic
• Temperature setting and timer
46 AEROTHERMY RANGE HTW reserves the right to modify models and technical data without prior notice.
Information is valid except in the case of typographical or printing errors.C/ Industria, 13, Polígono Industrial El Pedregar
08160 Montmeló. Barcelona (España)
Tel (0034) 93 390 42 20 / Fax (0034) 93 390 42 05
info@htwspain.com - www.htwspain.com
PORTUGAL ITALY FRANCE
info@htw.pt info.it@htwspain.com info@htwfrance.comYou can also read
