Linux Systems Capacity Planning Rodrigo Campos camposr@gmail.com - @xinu USENIX LISA ’11 - Boston, MA
Agenda Where, what, why? Performance monitoring Capacity Planning Putting it all together
Where, what, why ?
75 million internet users
1,419.6% growth (2000-2011)
29% increase in unique IPv4 addresses (2010-2011)
37% population penetration
Sources:
Internet World Stats - http://www.internetworldstats.com/stats15.htm
Akamai’s State of the Internet 2nd Quarter 2011 report - http://www.akamai.com/stateoftheinternet/
Where, what, why ? High taxes Shrinking budgets High Infrastructure costs Complicated (immature?) procurement processes Lack of economically feasible hardware options Lack of technically qualified professionals
Where, what, why ? Do more with the same infrastructure Move away from tactical fire fighting While at it, handle: Unpredicted traffic spikes High demand events Organic growth
Performance Monitoring Typical system performance metrics CPU usage IO rates Memory usage Network traffic
Performance Monitoring
Commonly used tools:
Sysstat package - iostat, mpstat et al
Bundled command line utilities - ps, top, uptime
Time series charts (orcallator’s offspring)
Many are based on RRD (cacti, torrus, ganglia,
collectd)Performance Monitoring Time series performance data is useful for: Troubleshooting Simplistic forecasting Find trends and seasonal behavior
Performance Monitoring
Performance Monitoring "Correlation does not imply causation" Time series methods won’t help you much for: Create what-if scenarios Fully understand application behavior Identify non obvious bottlenecks
Monitoring vs. Modeling
“The difference between performance
modeling and performance monitoring is
like the difference between weather
prediction and simply watching a weather-
vane twist in the wind”
Source: http://www,perfdynamics,com/Manifesto/gcaprules,htmlCapacity Planning Not exactly something new... Can we apply the very same techniques to modern, distributed systems ? Should we ?
What’s in a queue ? Agner Krarup Erlang Invented the fields of traffic engineering and queuing theory 1909 - Published “The theory of Probabilities and Telephone Conversations”
What’s in a queue ? Allan Scherr (1967) used the machine repairman problem to represent a timesharing system with n terminals
What’s in a queue ? Dr. Leonard Kleinrock “Queueing Systems” (1975) - ISBN 0471491101 Created the basic principles of packet switching while at MIT
What’s in a queue ?
(A) λ X (C)
S
Open/Closed W
Network R
A Arrival Count
λ Arrival Rate (A/T)
W Time spent in Queue
R Residence Time (W+S)
S Service Time
X System Throughput (C/T)
C Completed tasks countService Time Time spent in processing (S) Web server response time Total Query time Time spent in IO operation
System Throughput Arrival rate (λ) and system throughput (X) are the same in a steady queue system (i.e. stable queue size) Hits per second Queries per second IOPS
Utilization
Utilization (ρ) is the amount of time that a queuing node
(e.g. a server) is busy (B) during the measurement
period (T)
Pretty simple, but helps us to get processor share of an
application using getrusage() output
Important when you have multicore systems
ρ = B/TUtilization CPU bound HPC application running in a two core virtualized system Every 10 seconds it prints resource utilization data to a log file
Utilization
(void)getrusage(RUSAGE_SELF, &ru);
(void)printRusage(&ru);
...
static void printRusage(struct rusage *ru)
{
fprintf(stderr, "user time = %lf\n",
(double)ru->ru_utime.tv_sec + (double)ru->ru_utime.tv_usec / 1000000);
fprintf(stderr, "system time = %lf\n",
(double)ru->ru_stime.tv_sec + (double)ru->ru_stime.tv_usec / 1000000);
} // end of printRusage
10 seconds wallclock time
377,632 jobs done
user time = 7.028439
system time = 0.008000Utilization
We have 2 cores so we
can run 3 application
instances in each server
(200/70.36) = 2.84
ρ = B/T
ρ = (7.028+0.008) / 10
ρ = 70.36%Little’s Law Named after MIT professor John Dutton Conant Little The long-term average number of customers in a stable system L is equal to the long-term average effective arrival rate, λ, multiplied by the average time a customer spends in the system, W; or expressed algebraically: L = λW You can use this to calculate the minimum amount of spare workers in any application
Little’s Law
L = λW
tcpdump -vttttt
λ = 120 hits/s
W = Round-trip delay + service time
W = 0.01594 + 0.07834 = 0.09428
L = 120 * 0.09428 = 11,31Utilization and Little’s Law
By substitution, we can get the utilization by multiplying
the arrival rate and the mean service time
ρ = λSPutting it all together Applications write in a log file the service time and throughput for most operations For Apache: %D in mod_log_config (microseconds) “ExtendedStatus On” whenever it’s possible For nginx: $request_time in HttpLogModule (milliseconds)
Putting it all together

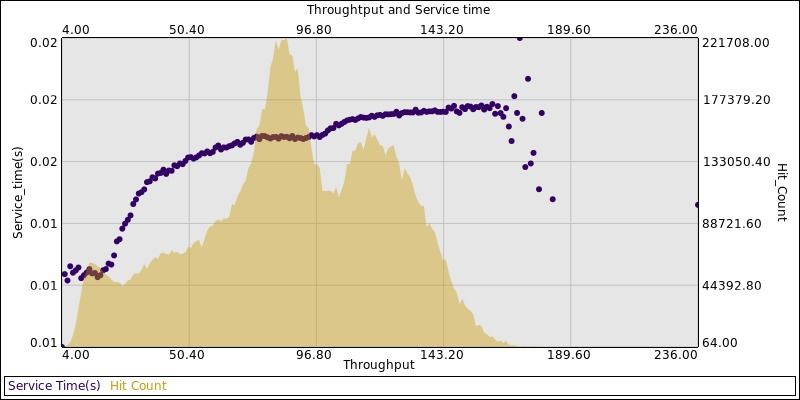

Putting it all together Generated with HPA: https://github.com/camposr/HTTP-Performance-Analyzer
Putting it all together
A simple tag collection data store
For each data operation:
A 64 bit counter for the number of calls
An average counter for the service timePutting it all together
Method Call Count Service Time (ms)
dbConnect 1,876 11.2
fetchDatum 19,987,182 12.4
postDatum 1,285,765 98.4
deleteDatum 312,873 31.1
fetchKeys 27,334,983 278.3
fetchCollection 34,873,194 211.9
createCollection 118,853 219.4Putting it all together
Call Count x Service Time
fetchKeys
createCollection
Service Time (ms)
fetchCollection
deleteDatum
postDatum
dbConnect fetchDatum
Call CountModeling An abstraction of a complex system Allows us to observe phenomena that can not be easily replicated “Models come from God, data comes from the devil” - Neil Gunther, PhD.
Modeling
Clients
Requests Replies
Web Server Application DatabaseModeling
Clients
Requests Replies
Cache Web Server Application DatabaseModeling We’re using PDQ in order to model queue circuits Freely available at: http://www.perfdynamics.com/Tools/PDQ.html Pretty Damn Quick (PDQ) analytically solves queueing network models of computer and manufacturing systems, data networks, etc., written in conventional programming languages.
Modeling
CreateNode() Define a queuing center
Define a traffic stream of an
CreateOpen()
open circuit
Define a traffic stream of a
CreateClosed()
closed circuit
Define the service demand for
SetDemand()
each of the queuing centersModeling
$httpServiceTime = 0.00019;
$appServiceTime = 0.0012;
$dbServiceTime = 0.00099;
$arrivalRate = 18.762;
pdq::Init("Tag Service");
$pdq::nodes = pdq::CreateNode('HTTP Server',
$pdq::CEN, $pdq::FCFS);
$pdq::nodes = pdq::CreateNode('Application Server',
$pdq::CEN, $pdq::FCFS);
$pdq::nodes = pdq::CreateNode('Database Server',
$pdq::CEN, $pdq::FCFS);Modeling
=======================================
****** PDQ Model OUTPUTS *******
=======================================
Solution Method: CANON
****** SYSTEM Performance *******
Metric Value Unit
------ ----- ----
Workload: "Application"
Number in system 1.3379 Requests
Mean throughput 18.7620 Requests/Seconds
Response time 0.0713 Seconds
Stretch factor 1.5970
Bounds Analysis:
Max throughput 44.4160 Requests/Seconds
Min response 0.0447 SecondsSystemwide*Requests*/*second*
0"
10"
20"
30"
40"
50"
60"
0.0
009
8"
0.0
010
3"
0.0
010
8"
0.0
011
3"
0.0
011
8"
0.0
012
3"
0.0
012
8"
0.0
013
3"
0.0
013
Modeling
8"
0.0
014
3"
0.0
014
8"
0.0
015
3"
0.0
015
8"
0.0
016
3"
0.0
016
8"
0.0
017
3"
0.0
017
8"
0.0
018
3"
0.0
018
8"
0.0
019
3"
0.0
Database*Service*7me*(seconds)*
019
8"
0.0
020
3"
0.0
020
8"
0.0
021
3"
0.0
021
8"
0.0
022
3"
System*Throughput*based*on*Database*Service*Time*
0.0
022
8"
0.0
023
3"
0.0
023
8"
0.0
024
3"
0.0
024
8"
0.0
025
3"Modeling Complete makeover of a web collaborative portal Moving from a commercial-of-the-shelf platform to a fully customized in-house solution How high it will fly?
Modeling Customer Behavior Model Graph (CBMG) Analyze user behavior using session logs Understand user activity and optimize hotspots Optimize application cache algorithms
Modeling
0.08
Initial Create
Page 0.73 New Topic
User
Login
Active
Topics
0.3
0.8
Control
0.6
Panel
Private
Messages 0.2
Unanswer
ed Topics
Answer
Topic
0.1
User
Logout Read
TopicModeling Now we can mimic the user behavior in the newly developed system The application was instrumented so we know the service time for every method Each node in the CBMG is mapped to the application methods it is related
References Using a Queuing Model to Analyze the Performance of Web Servers - Khaled M. ELLEITHY and Anantha KOMARALINGAM A capacity planning / queueing theory primer - Ethan D. Bolker Analyzing Computer System Performance with Perl::PDQ - N. J. Gunther Computer Measurement Group Public Proceedings
Questions answered here
Thanks for attending !
