WP 4 - Tailored precursors and
active electrode materials

Research highlights of the University of Oulu
Research group: U. Lassi, M. Hietaniemi, P. Tynjälä, P. Laine, T. Hu,
Y. Wang, I. Kervinen, T. Kauppinen, T. Vielma, Y. Lin, T. Tuovinen

Organization: University Of Oulu
BATCircle final seminar 11.3.2021
WP 4 - Tailored precursors and active electrode materials - BATCircle
Overview of research activities

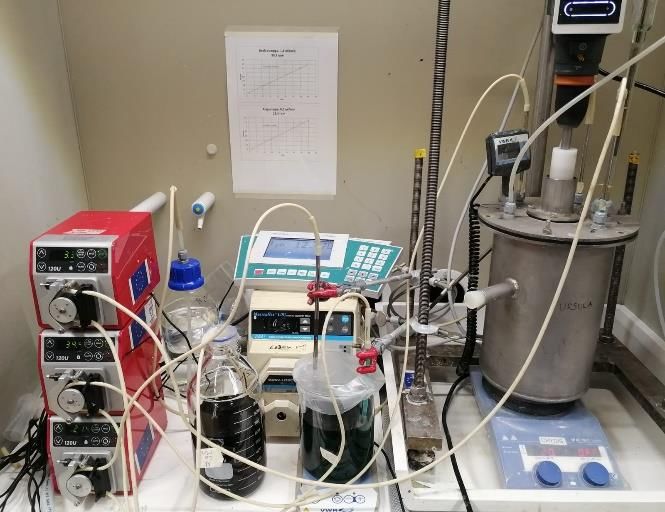

 Co-precipitation of high-nickel precursors or lithium-     Improved characterization tools for precursors
 rich cathodes                                              and electrodes

 Improved lithiation processes for high-nickel NMCs,        Use of secondary material flows in co-
 precursor effect on lithiation, role of washing, wet/dry   precipitation, role of impurities, reuse of
 lithiation                                                 sodium sulphate

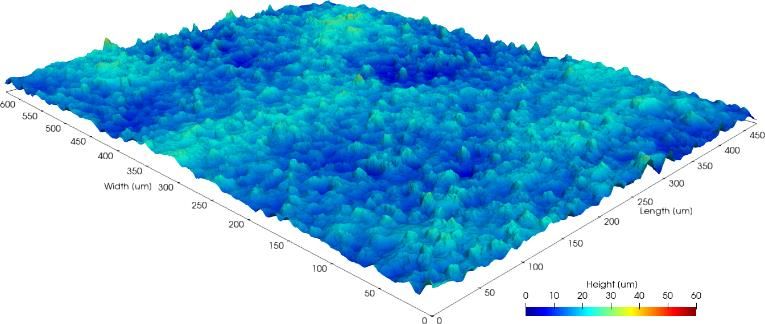

                                                Sustainable pouch cell assembling
                                                -new approaches to material-efficient coating
                                                -use of greener solvents, additives and binders
WP 4 - Tailored precursors and active electrode materials - BATCircle
Improved characterization tools for precursors and electrodes
• Energy filtered transmission electron microscopy (EFTEM) with scanning transmission
  electron microscopy (STEM)
  Samples preparation by FEI Helios DualBeam FIB+FESEM+STEM+EDS

                                                                          720000

                                                                                               OKa
         0. 5 µm   IMG1   0. 5 µmIMG1(frame1)   0. 5 µm    C K            640000

                                                                                            NiLa
                                                                          560000

                                                                                                                                                                    NiKa
                                                                          480000

                                                                 Counts
                                                                          400000

                                                                                                                     PtMr
                                                                          320000

                                                                                                                                                                              NiKb PtLl
                                                                                                              PtMa PtMb
                                                                          240000

                                                                                              NiLl

                                                                                                                                                   NiKesc
                                                                                      CKa

                                                                                                      PtMz

                                                                                                                            PtM1

                                                                                                                                                                                                 PtLa
                                                                          160000

                                                                           80000

         0. 5 µm    O K   0. 5 µm       Ni K    0. 5 µm   Pt M                 0
                                                                                   0.00        1.00          2.00            3.00   4.00   5.00       6.00   7.00          8.00           9.00          10.00

                                                                                                                                             keV
WP 4 - Tailored precursors and active electrode materials - BATCircle
Improved characterization tools for precursors and electrodes
 • Energy filtered transmission electron microscopy (EFTEM) with scanning
   transmission electron microscopy (STEM)
 TEM JEOL JEM-2200FS

                                           2

                                                           1                2

                                                     3
                                   4
                                               1
                                                            3           4
WP 4 - Tailored precursors and active electrode materials - BATCircle
Improved characterization tools for precursors and electrodes

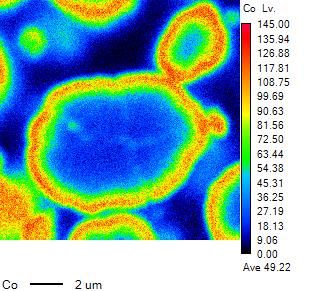

 • XPS (X-ray Photoelectron Spectroscopy), also known as ESCA (Electron Spectroscopy
   for Chemical Analysis)
 Thermo Fisher Scientific ESCALAB 250Xi XPS System

   MHLSC 17 and MHHSC 17 WD
           Column1       Li/Me O/Me Ni mol% Co mol% Mn mol% Co(III)/Co(II)   Mn(IV)/Mn(II)   Ni(II)/Ni(I)
           MHLSC-17          2,3  5,4    35,9    18,6    45,5            0,8             0,4            0,3
           MHLSC-17 WD       0,7  1,8    40,0    17,8    42,2            0,9             0,3            0,3

       Washing process dramatically decreased the Li concentration at the surface.
WP 4 - Tailored precursors and active electrode materials - BATCircle
Task 4.1
Co-precipitation of lithium-rich layered oxide materials
• M.Sc. thesis of Yufan Wang
• Objective: This work was expected to synthesis layered Li-rich Mn-based cathode material by two-step co-
  precipitation and to understand the structure, morphology, and electrochemical performance of LLOs.
• Approach
• Li1.2Mn0.54Ni0.13Co0.13O2 (= 0.5Li2MnO3 • 0.5 LiNi1/3Co1/3Mn1/3O2) as target material.
• To synthesis precursors by hydroxide co-precipitation
• The sample was prepared using lithium sources Li2CO3 and LiOH,
reaction temperature and time in lithiation process had been studied.
• The effect of lithium content on structure and electrochemical
performance of LLOs was investigated.

WP 4 Presenter: Prof. Ulla Lassi, University of Oulu
WP 4 - Tailored precursors and active electrode materials - BATCircle
Task 4.1
    Co-precipitation of lithium-rich layered oxide materials
Highlights
• Layered lithium-rich oxides are one of the most                                    350
  potential cathode materials for future LIBs, if                                                                       L10-W Charge
  synthesis can be done in the industrial-scale.                                     300                                L10-W Discharge

                                                       Specific capacity (mAh g-1)
• Layered Li1.2Mn0.54Ni0.13Co0.13O2 was successfully
                                                                                     250
  synthesized.
• High specific capacity reached 279.65 mAh g-1,                                     200
  and Coulombic efficiency was 82.8% at 2.0-4.8V.
• After 30 cycles, capacity retention was 82.9%                                      150

  (231.92 mAh g-1 at 0.1C) at 2.0-4.8V
                                                                                     100
• Optimized synthesis conditions:
    - Dense, spherical particles, high tap density                                    50
                                                                                           0   5   10      15      20       25        30
    - Chemical composition
                                                                                                        Cycle number
    - Detailed understand electrochemical
      performance of LLOs, e.g., rate capability,      Yufan Wang, Co-precipitation of lithium-rich layered oxide
      voltage decay, etc.                              materials, M.Sc. thesis, University of Oulu, 2021
WP 4 - Tailored precursors and active electrode materials - BATCircle
Task 4.1
Effect of precursor particle size and morphology on
lithiation of NMC622
Highlights
• Key issue affecting the capacity and cyclability
  of NMC622 is the Li/Me ratio
• Effect of precursor quality on the energy
  density was also studied
• Low density precursor does not lower the
  capacity (if sufficiently lithiated)
• Highly porous precursor can be lithiated faster
  than traditional large wide span materials
• It has also low cation mixing and good
  crystallinity
• However, the volumetric energy density of
  porous material is low after lithiation

 Hietaniemi, M., Hu, T., Välikangas, J., Niittykoski, J., Lassi, U. (2021) Effect of precursor particle size and morphology on
 lithiation of Ni0.6Mn0.2Co0.2(OH)2, revised
WP 4 - Tailored precursors and active electrode materials - BATCircle
Task 4.1
Comparing single-crystal and polycrystalline NCM622
      Single crystal                    Polycrystalline
                                                                              • Several precursors were successfully
                                                                                lithiated (one-step or two-step) to single
                                                                                crystal morphology which has been
                                                                                claimed in the literature to improve the
                                                                                capacity of NMC.
                                                                              • PC materials have higher initial capacity
                                                                              • Electrode density is better for SC except
                                                                                for large wide span
                                                                              • Washing process dramatically decreased
                                                                                the Li concentration at the surface.
                                                                              • There is a precursor effect in single crystal
                                                                                lithiation. Two step heating only beneficial
                                                                                for low density precursor.

Hietaniemi, M., Hu, T., Välikangas, J., Niittykoski, J., Singh, H., Lassi, U. (2021) Effect of NMC622 precursor in single crystal
lithiation, manuscript
WP 4 - Tailored precursors and active electrode materials - BATCircle
Task 4.1
Long term cycling comparison of SC and PC

                                                                                                                  Pouch cell cycling of single crystal and polycrystalline
Highlights                                                                                                                               samples
• Successful single crystal lithiation of NMC622                                                        180

                                                                                                        160
• Contrary to earlier literature observations, single

                                                                           Discharge capacity (mAh/g)
                                                                                                        140
  crystal lithiation seems not to improve the
                                                                                                        120
  capacity or cyclability of NMC622
                                                                                                        100                                                            PC-12 (10h)
• Washing has clear effect on the electrochemical                                                        80                                                            PC-7 (10 h)

  properties of NMC622                                                                                   60
                                                                                                                                                                       SC-12 (10 h)
                                                                                                                                                                       SC-13 (3h+7.7h)
                                                                                                         40

                                                                                                         20

                                                                                                          0
                                                                                                              0       100   200   300   400    500   600   700   800
                                                                                                                                    Cycle number

 Hietaniemi, M., Hu, T., Välikangas, J., Niittykoski, J., Singh, H., Lassi, U. (2021) Effect of NMC622 precursor in single crystal
 lithiation, manuscript
Task 4.1
    Precipitation of cobalt-free Ni(OH)2 precursor; Effect of temperature

 - The most homogeneous particle size distribution was achieved by
 using precipitation temperature of 40°C.

  - Higher precipitation temperatures resulted in decreased homogeneity
 of the particles as well as the breakage of the particles (60°C)

 - The highest tap density value of the lithiated product was achieved
 by using precursor precipitated at 40 °C.

         Precip.       D10       D50        D90          Tap density
         temp.         (µm)      (µm)       (µm)           (g/cm3)
          40 °C        7.68      10.9       15.5             2.69
          50 °C        6.31      9.45       14.1             2.38
          60 °C        7.61      11.3       16.8             2.40
Välikangas, Juho; Laine, Petteri; Hietaniemi, Marianna; Hu, Tao; Tynjälä, Pekka; Lassi, Ulla (2020) Precipitation and Calcination
of High-Capacity LiNiO2 Cathode Material for Lithium-Ion Batteries. Applied sciences 10 (24), 8988.
https://doi.org/10.3390/app10248988
Task 4.1
       Synthesis of LNO with improved electrochemical performance

                                                  Highlights
                                                  • The LiNiO2 calcination temperature was optimized to achieve a
                                                    high initial discharge capacity of 231.7 mAh/g (0.1 C/2.6 V) with the
                                                    first cycle efficiency of 91.3%.
                                                  • This was one of the best results reported for LNO

Välikangas, Juho; Laine, Petteri; Hietaniemi, Marianna; Hu, Tao; Tynjälä, Pekka; Lassi, Ulla (2020) Precipitation and Calcination
of High-Capacity LiNiO2 Cathode Material for Lithium-Ion Batteries. Applied sciences 10 (24), 8988.
https://doi.org/10.3390/app10248988
Task 4.1

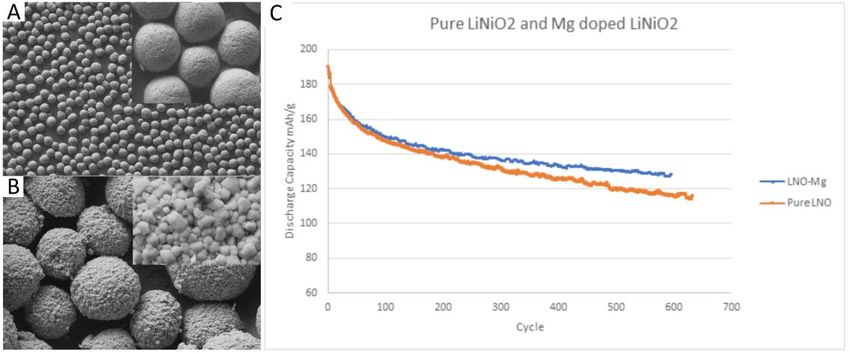

 Coating and doping of LNO and NMC811
- Well controlled particle morphology and particle size
  distribution during co-precipitation                                                            Highlights
- Desired tap density of the precursor                                                            • Highly homogeneous spherical precursor material with
- Effect of washing                                                                                 good electrochemical performance was synthetized.
- Several (bimetallic) dopings/coatings were done for                                             • Low-level coating (1 wt%) has the larger influence on
  NMC811 and LNO                                                                                    the battery cell performance than the low-level doping (1
                                                                                                    wt%).
- Coatings were done with 0.1-5 wt% for LNO

 Laine, Petteri; Välikangas, Juho; Kauppinen, Toni; Hu, Tao Tynjälä, Pekka; Lassi, Ulla (2021) Synergistic effects of low-
 level magnesium and chromium doping on the electrochemical performance of LiNiO2 material, manuscript.
Task 4.1
    Coating and doping of LNO and NMC811
 - Titanium oxide and zirconium oxide co-precipitated from isopropoxide/propoxide on the surface of
   Ni(OH)2 precursor material
 - The aim is to form a protective surface layer during the lithiation
 - Near full encapsulation at 2 mol-% (4 and 8)

Laine, Petteri; Välikangas, Juho; Kauppinen, Toni; Hu, Tao Tynjälä, Pekka; Lassi, Ulla (2021) The influence of titanium and
zirconium doping and coating methods on the electrochemical performance of LiNiO2, manuscript.
Task 4.1
      Coating and doping of LNO and NMC811

       Highlights

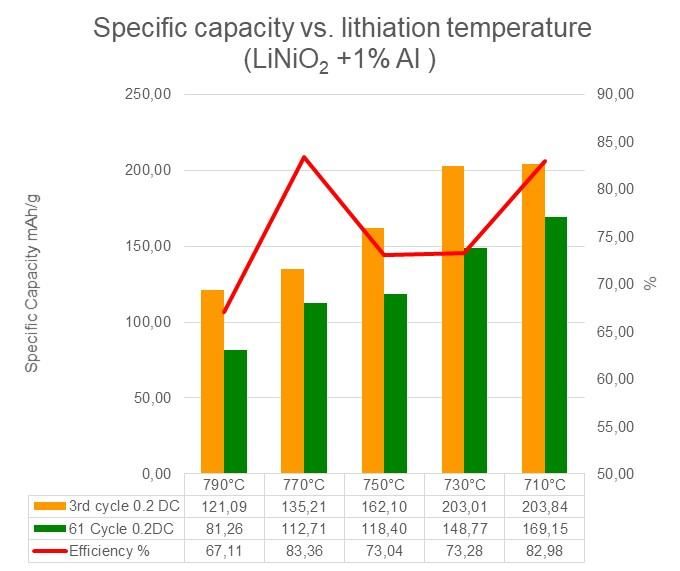

       • LiNiO2 (LNO) was coated with Al2O3 (and other coatings) with 1-5
         wt%. Coating improved the stability and cyclability of LNO.
       • Results showed that high nickel material cyclability can
         be improved by optimization of lithiation process (temperature),
         which can be done clearly at lower temperatures.
       • Coated, cobalt-free LNO is one of the most potential cathode
         materials for future LIBs, and it can be produced in the industrial-
         scale.

Välikangas, Juho; Laine, Petteri; Tanskanen, Pekka; Hu, Tao; Tynjälä, Pekka; Lassi, Ulla (2021)
Effect of coating (Al, Sc etc.) on the capacity and cyclability of LNO, manuscript
Task 4.1

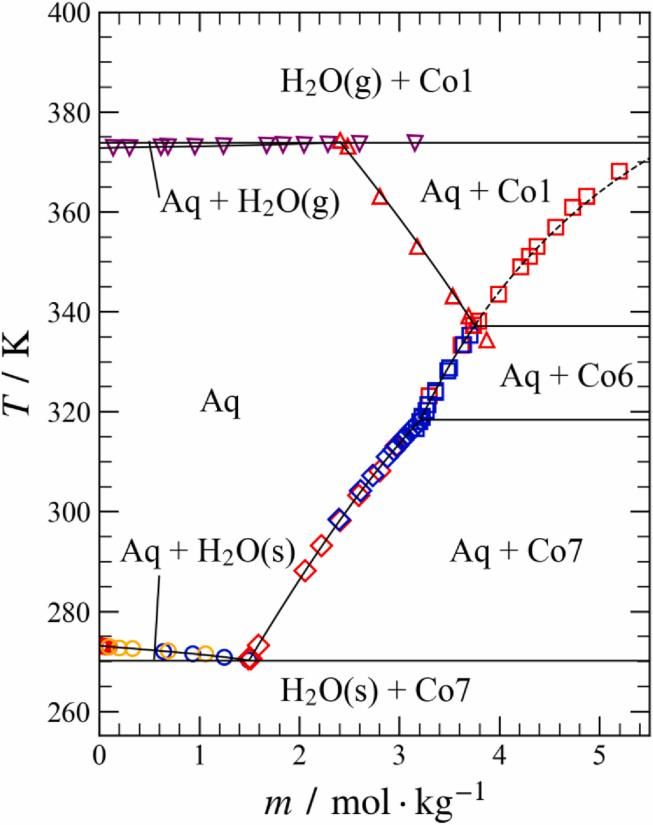

 Fundamental knowledge related to solubilities of
 CoSO4 (aq) and NiSO4 (aq) and related solid hydrates

Akilan, Vielma et al. (2020) Volumes and Heat Capacities of the Cobalt(II), Nickel(II), and Copper(II) Sulfates in Aqueous Solution, J.
Chem Eng Data 65(9), 4575-4581
Vielma, T. (2021) Thermodynamic model for CoSO4(aq) and the related solid hydrates in the temperature range from 270 to 374 K and
at atmospheric pressure, Calphad 72, 102230
Task 4.3
    Reuse of sodium sulphate residue

                                                                       Metal concentrations of the pickling solutions
                                                                         Sample         Ni (mg/L)     Fe (mg/L)   Cr (mg/L)     Pb (mg/L)

                                                                       SE (Undil.)       175 ± 5          -            -            -

                                                                       SE (after p.)     44 ± 1        24 ± 1     0.73 ± 0.04   7.5 ± 0.4

                                                                       PE (after p.)   0.44 ± 0.1       21± 1     0.63 ± 0.03   8.9 ± 0.5

                                                                       Average current efficiency of the pickling
                                                                         Sample        Average Ieff    STDev

    1)                                           2)                        SE             42.2 3)       ± 0.2
    • Comparison of sulfate solution from nickel hydroxide                 PE             36.5          ± 1.1
      co-precipitation process (SE) and pure sodium
      sulfate (PE) at pH 4.                                            Average decrease in surface O/Cr m-%
    • Slightly better pickling results in all measurements               Sample        Average         Average
                                                                                       ΔO (m-%)       ΔCr (m-%)
      for recycled sulfate solution.
                                                                           SE              -4            -7
    • Possible increase due to ammonia residue in the SE
      used to control pH.                                                  PE              -3            -4

Tuovinen T., Tynjälä P., Vielma T. & Lassi, U. (2021) Utilization of sodium sulphate side stream
from battery chemical production in the neutral electrolytic pickling, manuscript
Task 4.3
      Use of secondary material flows

   • Impurities in feed solutions                                       Impurity concentrations of the precursor precipitates
          • 1 (Ca 3.5 mg/l, Fe 1.4 mg/l, Zn
Task 4.3
                   Use of secondary material flows

                                                              MPNCM-3                           First cycle charge and discharge
                                                              MPNCM-2                4,5
                                                              MPNCM-1

                                                                                      4
Intensity (a.u.)

                                                                                     3,5

                                                                        Voltage V
                                                                                                                                         MPNCM-1
                                                                                                                                         MPNCM-2
                                                                                      3
                                                                                                                                         MPNCM-3

                                                                                     2,5

                    0   20   40      60     80    100   120    140
                                                                                      2
                                  2 Theta (deg)                                -30         20        70             120      170   220
                                                                                                   Specific capacity mAh/g

Kauppinen T., Laine, P., Välikangas, J., Salminen, J., Lassi, U. (2020), Co-
precipitation of NCM 811 from manganese sulfate obtained from anode
sludge: Effect of impurities on the battery cell performance, manuscript
Task 4.3
                                     Use of secondary material flows

                             190,0

                             185,0

                             180,0                                              MPNCM-1
 Specific capacity (mAh/g)

                             175,0                                              MPNCM-2

                             170,0                                              MPNCM-3

                             165,0

                             160,0

                             155,0

                             150,0

                             145,0
                                     0       200     400          600     800    1000
                                                           Cycle number

Kauppinen T., Laine, P., Välikangas, J., Salminen, J., Lassi, U. (2020), Co-
precipitation of NCM 811 from manganese sulfate obtained from anode
sludge: Effect of impurities on the battery cell performance, manuscript
Conclusions
•   Co-precipitation of different NMC precursors was studied
•   For high-nickel precursors, coating/doping would be needed
•   Lithiation procedure is also different and should be optimized
•   Development of high-voltage cathode materials require new type of
    electrolytes
Thanks for Your attention!
Thanks to researchers and collaborators!
You can also read
