Environmental monitoring
systems and remote controls
NESA Srl si riserva di apportare eventuali modifiche al presente prodotto senza obbligo di preavviso / NESA Srl reserves the right to make changes and improvements to any of this products without prior notice
WIRELESS System for verification and
certification of ENERGY YIELD of
photovoltaic plants
NESA Srl - Via Sartori, 6/8 - 31020 - Vidor (TV) - Italy - Tel+39.0423.985209 - Fax+39.0423.985305 - E-mail: info@nesasrl.it - www.nesasrl.it
Determination of the % Yield of Photovoltaic system with certified process.
Determination of the Energy yield (produced Energy and radiated Energy).
NESA Srl si riserva di apportare eventuali modifiche al presente prodotto senza obbligo di preavviso / NESA Srl reserves the right to make changes and improvements to any of this products without prior notice
Print of the Verification Report with results of the monitoring campaign.
Customizable and Configurable System trough simple keyboard and via web.
Data recording on USB memory (2GB) with Numeric and Graphic Visualization.
Monitoring according to directives IEC 61724, CEI 82.15 and EN60904.
Pyranometers according to directives WMO (World Meteorological Organization), WRR (World
Radiometric Reference), ISO 9060 class II, Class I or Secondary Standard.
Possibility of alarm and data management also from remote with GPRS connection.
No necessary connection, immediate installation thanks to wireless transmission up to 150m, with the
possibility of expansion up to 100 sensors.
Monitoring of Solar Detection of Produced
Radiation and Module’s Energy from Photovoltaic
Temperature Plant
Data Acquisition,
Registration and Print of
the Report
NESA Srl - Via Sartori, 6/8 - 31020 - Vidor (TV) - Italy - Tel+39.0423.985209 - Fax+39.0423.985305 - E-mail: info@nesasrl.it - www.nesasrl.it
System
The radiometric system Nesa, Belenos, is designed for monitoring campaigns of solar radiation of plants for the
production of electric energy from photovoltaic source and for a simple determination of the effective yield of
the plant, comparing the energy that the plant should theoretically produces with that really produced. The
system is provided “ready to use”, thanks to the use of wireless technology which requires no connection.
NESA Srl si riserva di apportare eventuali modifiche al presente prodotto senza obbligo di preavviso / NESA Srl reserves the right to make changes and improvements to any of this products without prior notice
Belenos basic version consists of:

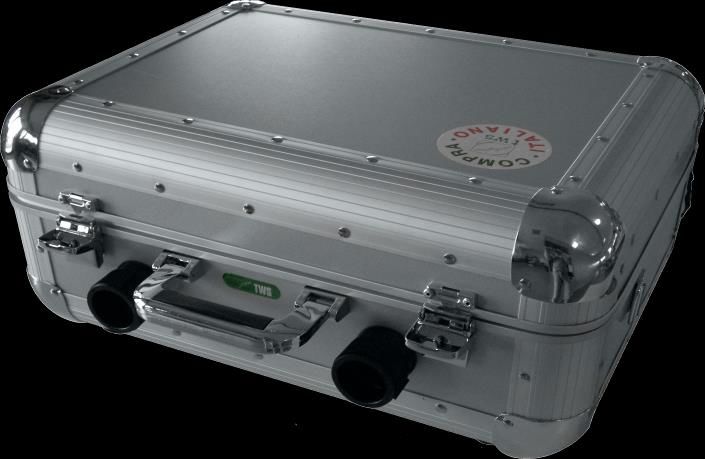

- Robust aluminium Case containing the unit (datalogger) of data acquisition and registration on USB memory,
the printer for printing the monitoring report at the end of the measurement campaign and the wireless
unit for the communication with sensors.
- A couple of wireless sensors to measure the global and diffuse solar radiation from which calculate the
incident direct radiation on photovoltaic modules.
- A couple of wireless sensors to measure the surface temperature of photovoltaic modules Pt100 1/3 DIN.
- A wireless unit to detect the produced energy directly from the meter (option).
- Bag with pole tripod for positioning and support of radiometric sensors.
System’s Operation
Belenos is configured to acquire radiometric and meteorological data according to WMO (radiation sensors on
horizontal plane) and current regulations, in particular, IEC 60904.
Every system requires few specific configuration parameters for every plant as:
Plant position (Latitude and Longitude)
Inclination angle of photovoltaic modules
Plant direction (degrees West)
Nominal power of the plant
Every parameter is easily inserted from the operator at the beginning of every measurement campaign
in order to calibrate the monitoring on the specific plant, by keyboard setting.
Belenos, one time started, records measures, manages communications and makes the astronomical
calculation of the sun position (azimut & zenit) to match exactly the measure of solar radiation acquired and
that incident on photovoltaic modules. In this way it is able to accurately estimate the effective radiated energy on
the analyzed plant.
Detecting at the same time also the energy really produced (KW) output from the plant directly from the
meter (option), it’s able to estimate the really yield of the plant instant by instant.
Azimut, zenit, tilt angle
γs = Zenit
αs = Azimut
NESA Srl - Via Sartori, 6/8 - 31020 - Vidor (TV) - Italy - Tel+39.0423.985209 - Fax+39.0423.985305 - E-mail: info@nesasrl.it - www.nesasrl.it
All measures are continuously recorded at programmable intervals (minimum 1 time per minute) and are
available both internal to datalogger and in USB removable memory. Data are easily converted in Excel format
(via web application supplied) to be then managed and processed.
Trough a simple web link, it’s also possible monitor the state of measures in real time in numeric and
graphic format. At the end of the measurement campaign, pressing just a button it’s possible to obtain
the print of the monitoring report in the form of a slip of paper which contains all relevant data of the plant:
NESA Srl si riserva di apportare eventuali modifiche al presente prodotto senza obbligo di preavviso / NESA Srl reserves the right to make changes and improvements to any of this products without prior notice
Verification Photovoltaic System n.125
Date April 2010, 02 Time: 10.45
Plant Data
Plant name: PRATO VERDE
Power: 4,2KW
Lat.: 12°02'21.0"N Long.: 45°51'46.0"E
Inclination: 32° Directing: 15°Ovest
Verification Results
Produced Energy: 11.38 KW/h
Calculated Energy: 11.55 KW/h
% Yield: 98.52%
Data obtained by NESA system Belenos
with certified instrumentation
Data registration is done on 2 separate memory supports:
1. Fixed support, internal to control unit, from min. 32MB of capacity.
2. Removable support (USB memory) with more capacity from 2GB to 4GB which guarantees additional safety
copy of historical data. These data could be archived in encrypted form (option) to guarantee their integrity
and durability up to the verification of the real plant performance. Then, data content in files are not
interpretable if the user hasn’t a private key and a software provided by Nesa to remove the protection.
Belenos becomes so a real black box of the photovoltaic plant, as provides all information about the radiation
received, the yield and environmental measures that have influenced the performance.
Programming
The system is totally configurable from internet browser both in local than from remote (tele programming),
after authentication with user-name and password to access.
The data download happens mainly in 3 ways:
- On site: via LAN connecting a portable PC with internet browser (ex. Internet Explorer) with standard
protocols TCP/IP.
- On site: taking the USB memory and linking it directly to a PC.
- From distance: via a module of data transmission GPRS (optional) linked to the serial port RS232 from the
control unit, through FTP protocol (file transfer protocol) after user authentication with user-name and
password.

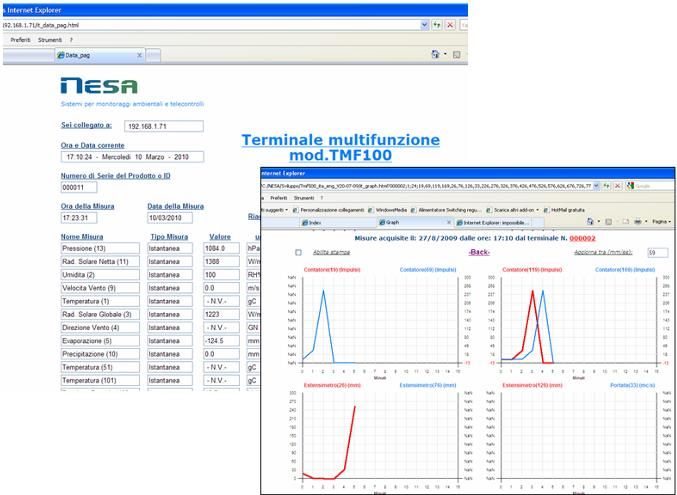

Instant data visualization
Instant data could be displayed in real time on the display of the system, on the web page of datalogger (web
server on-board) where it’s possibile obtain data in tabular and graphic format with tracking in real time of
acquired measures, or connecting on FTP remote area (optional).
NESA Srl - Via Sartori, 6/8 - 31020 - Vidor (TV) - Italy - Tel+39.0423.985209 - Fax+39.0423.985305 - E-mail: info@nesasrl.it - www.nesasrl.it
NESA Srl si riserva di apportare eventuali modifiche al presente prodotto senza obbligo di preavviso / NESA Srl reserves the right to make changes and improvements to any of this products without prior notice The system is able to manage independently also alarms and pre-alarms that, according to the programmable thresholds, can activate relays command, does regulations of analog outputs, send a signal from distance via SMS, via mail, or directly to a remote operating centre (optional). Available options: - Certificate of calibration for solar radiation sensors accordino to ISO 9847 Type II C. - UTA Combined sensor to measure temperature and air humidity. - DV-A Wind direction sensor. - BAR-A Sensor to measure the atmospheric pressure. - PL400-N Sensor to measure the atmospheric precipitation. - ZBS2 Wireless interface unit for Nesa sensors. - RSG1 Solar radiation sensor First Class. - RSG2STD Solar radiation sensor Secondary Standard. - GPRS Transmission data unit from GPRS remote. Another options can be provided or activated on demand. NESA Srl - Via Sartori, 6/8 - 31020 - Vidor (TV) - Italy - Tel+39.0423.985209 - Fax+39.0423.985305 - E-mail: info@nesasrl.it - www.nesasrl.it
Technical Data
Datalogger
NESA Srl si riserva di apportare eventuali modifiche al presente prodotto senza obbligo di preavviso / NESA Srl reserves the right to make changes and improvements to any of this products without prior notice
Terminale TMF100 TMF100 Terminal Unit
Tecnologia Technology 32bit processor with Embedded Linux operative system
on board
Ingressi Analog/Pt100/0÷2Vdc/4÷20mA n. 4 @ 12bit channels (Vmax 0÷2Vdc ; I 4÷20mA)
analogici/Pt100/0÷2Vdc/4÷20mA Inputs n. 4 @ 24bit channels (Vmax 0÷2Vdc ; I 4÷20mA)
Ingressi digitali Digital Inputs n. 5 ingressi digitali in frequenza (max 1000Hz)
n. 5 digital frequency input (max 1000Hz)
Uscite analogiche programmabili Programmable Analogic outputs n. 4 @ 12bit channels 0÷2Vdc
Uscite digitali Digital outputs n. 8 open drain channels for relais command
(Vmax=50V, Imax=200mA)
Porte di comunicazione Communication ports n. 2 RS232
n. 2 USB Host
n. 1 LAN Ethernet 10/100Mb
Memoria dati interna Internal Data storage A partire da 32MB / Min 32MB
Memoria dati esterna External Data storage Pen-drive industriale USB 256MB÷4GB
Orologio datario Data-clock Sistema al quarzo e aggiornamento automatico via NTP
Quartz management and automatic NTP connection
Watch dog Watch dog Reset hardware della Cpu / Cpu hardware reset
Protezioni Protections Contro corto circuiti e scariche indirette
Polarity reverse and transient
Programmabilità e Programmability & Remote Localmente, rete LAN e da remoto tramite modem,
Teleprogrammazione di: control of: GPRS, GSM, wireless, satellite, FTP. radio
In local via serial port, LAN, from remote via modem,
GPRS, GSM, wireless, satellite, FTP. Radio
display LCD
Interfaccia locale operatore User interface
LCD display
Consumo Current Consumption < 1W in funzionamento/full operation
Alimentazione Power supply 24Vac, 110Vac, 220Vac (con trasformatore esterno),
10,5 18Vdc, Pannello Solare, Generatore eolico /
24Vac, 110Vac, 220Vac (with external voltage
transformer) , 10,5 18Vdc, Solar Panel, Aeolian supply
Temperatura operativa Operative temperature -45 70 C
Peso weight 0,8 Kg
Dimensioni Dimensions 177x118x60mm
Marcatura Norms CE, SIT (on request)
300x400x220mm (altre dim. Su richiesta)
Contenitore (opzionale) IP65 – IP68 (optional) IP65 Box – IP68
300x400x220mm (other dim. on request)
Trasmettitore Wireless ZBS Wireless transmitter ZBS
Compatible IEEE 802.15.4 ZigBee stack
Caratteristiche generali General characteristics
Device address software or internal dip-switch settable
Frequency: 2405 MHz ÷ 2480 MHz
Caratteristiche RF RF characteristics Nominal transmission power: 2mW
Coverage outdoor: 150m, indoor : 50m
High energy lithium battery 3,6V inside
Alimentazione Supply voltage
2 years battery life with 6 second sampling rate
Norma ECC di riferimento: Compliant with ECC Norms: ETSI EN 300 238, ETSI EN 301 489, EN 61000-6-2, EN
direttive 2006/95/ECC, 89/336/EEC, 2006/95/ECC, 89/336/EEC, 61000-6-3, EN 60950-1
99/5/EC 99/5/EC directives
NESA Srl - Via Sartori, 6/8 - 31020 - Vidor (TV) - Italy - Tel+39.0423.985209 - Fax+39.0423.985305 - E-mail: info@nesasrl.it - www.nesasrl.it
Pyranometers
RSG-N Radiazione solare
Global solar radiation
Globale
campo di misura tipico typical measurement range 0…2000 W/m2
NESA Srl si riserva di apportare eventuali modifiche al presente prodotto senza obbligo di preavviso / NESA Srl reserves the right to make changes and improvements to any of this products without prior notice
Range spettrale spectral range 0,3µm ÷ 3µm
segnale di uscita standard standard signal output 10µV/(W/m2)
RSG2STD-N: Secondary Standard
Classe di Precisione conforme Accuracy Class conforming to
RSG1-N: First Class
ISO9060 ISO9060
RSG-N: Second class
ISO 9847 Metodo II C - ref. WRR (World Radiometric
Certificazioni/Calibrazioni Certifications/Calibrations
Reference)
RSG-A: 0…2Vdc (typical range 0…1300 W/m2)
Altre uscite disponibili Other avilable outputs
RSG-B: 4…20mA (typical range 0…1300 W/m2)
RSD Radiazione solare Diffusa Diffuse solar radiation
RSG2STD-N: Secondary Standard
Sensori utilizzabili Usable sensors RSG1-N: First Class Diffuse
RSGD-N: Second class Diffuse
Peso/weight: 6kg
Diametro/diameter: ø570mm
Caratteristiche anello di schermo Features shadow band
Altezza/height: 55mm
Regolazione/regulation: manuale/manual
Contact temperature sensors
TA-N - Temperatura Temperature
campo di misura tipico typical range -30 ÷ +70°C
precisione accuracy DIN 43760 1/3 DIN class
segnale di uscita standard standard signal output Pt100 (4 fili/cables)
Optional meteorological sensors
TA-N - Temperatura Temperature
campo di misura tipico typical range -30 ÷ +70°C
precisione accuracy DIN 43760 1/3 DIN class
segnale di uscita standard standard signal output Pt100 (4 cables)
UR-A - Umidità Humidity
campo di misura tipico typical range 0 ÷ 100%
precisione accuracy ± 2%
segnale di uscita standard standard signal output 0÷1 Vdc
BAR-A Pressione Atmosferica Atmospheric Pressure
800 ÷ 1100 hPa
campo di misura tipico typical range
(600÷1100 su richiesta/on demand)
sensibilità sensibility 0.05 hPa
precisione accuracy 0.4 hPa @ 20°C
NESA Srl - Via Sartori, 6/8 - 31020 - Vidor (TV) - Italy - Tel+39.0423.985209 - Fax+39.0423.985305 - E-mail: info@nesasrl.it - www.nesasrl.itPL400-N - Pluviometro Rain gauge
Superficie orifizio 400cm2
Orifice area
max intensità misurabile max counting rate 0 ÷ 300 mm/h
sensibilità sensitivity 0.2 mm
precisione media average accuracy ±3%
NESA Srl si riserva di apportare eventuali modifiche al presente prodotto senza obbligo di preavviso / NESA Srl reserves the right to make changes and improvements to any of this products without prior notice
VV-N Velocità vento (disponibile Speed wind (available in the
anche nella versione riscaldata a basso heated version also with low
consumo 4W@12Vdc) consumption 4W@12Vdc)
campo di misura tipico typical measurement range 0 ÷ 50 m/s (raffiche/blasts >80 m/s)
precisione accuracy 0.1 m/s (0,4 ÷ 30m/s); ± 2% v.m. (>30 m/s)
Impulsi / pulses 0…150Hz
segnale di uscita standard standard signal output
(Other avilable Ouputs: 0…2Vdc or 4…20mA)
Certificazioni/Calibrazioni Certifications/Calibrations MeasNet, SIT, Dewi
DV-A Direzione vento (disponibile Wind direction (available in
anche nella versione riscaldata a basso the heated version also with low
consumo 4W@12Vdc) consumption 4W@12Vdc)
campo di misura tipico typical measurement range 0 ÷ 360° (raffiche/blasts 0 ÷ 70 m/s)
precisione accuracy ± 1°
soglia starting threshold 0.25 m/s
0…2 Vdc
segnale di uscita standard standard signal output
(Other avilable Ouput: 4…20mA)
Certificazioni/Calibrazioni Certifications/Calibrations DKD
Order Form
Stazione
Station
Belenos Measure system of energy yield of photovoltaic plants
System consists of case, sensors and bag with pole tripod, 220Vac/12vdc power pack
BELENOS
* Alimentazione/Power Supply (220Vac, 24Vac, 12Vdc, PS, EO)
AL.
PS.
PS
Trasmissione dati / Data transmission (GPRS, Modem, Cable LAN, WiLan) GP
Opzioni/
Options
Altre richieste:
Esempio di codice d’ordine / Example of order code BELENOS PS GP
* = campi obbligatori da indicare / obligatory fields to point out
NESA Srl - Via Sartori, 6/8 - 31020 - Vidor (TV) - Italy - Tel+39.0423.985209 - Fax+39.0423.985305 - E-mail: info@nesasrl.it - www.nesasrl.itYou can also read
