Introduction
Subject of the thesis
The subject of the thesis is to examine how the two well known design patterns, the MVC
(Model-View-Controller) and the MVP (Model-View-Presenter), and a quite new pattern
called MVVM (Model-View-ViewModel) can be used with Silverlight 2.0 technology. In the
following chapters I intend to examine how they can be implemented using the Silverlight‟s
markup language, the XAML (Extensible Application Markup Language), and C#. A custom
sample application (Trailer Player application) is presented, that is used as a basis for the
examination of how the mentioned patterns are used with this technology, and also I present a
study of cases, advantages and disadvantages of using them in our application. The sample
application itself is a simple web application, a video player, where the user can view the
newest movie trailers, and get some related information about them, see Figure 1.

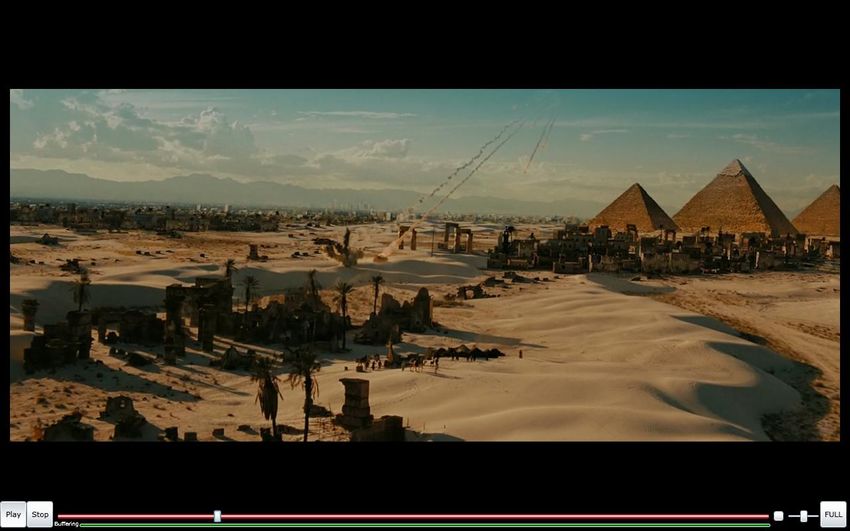

Screen Capture of the Trailer Player sample application
1
After a brief overview of current and past web application development solutions in the area
of .NET framework, the thesis details XAML and Silverlight with more technical depth. We
also lay out the minimal requirement set for the Trailer Player application in very brief use
case scenarios. Then we can discuss the implementation of the Trailer Player application
examining each application layer, their role and functionality beginning with the Model layer
and finishing with the View where we examine how each Silverlight control is implemented.
We will see how the MVVM pattern is implemented, and further discuss how things would
look like in the other two patterns. In the end of we will try to describe, how to change the
application‟s layers, to have our application implemented in another design pattern.
Web solutions of the .NET Framework
The web applications of today‟s era are often commented as Web 2.0. This term mostly
represents the collection of popular web applications for social networking and media
consumption. Sites like FaceBook, IWIW, YouTube, are the flagships of Web 2.0 movement.
Despite the 2.0 version number in the popular term all these sites evolved from traditional
web development methods and are still based on HTML and other traditional markup
languages. Since the early days of HTML, the processing capacity of computers boomed,
along with it the need of the users for more interactive experience on the web. As a result
JavaScript and other Dynamic HTML technologies emerged. Development of these rich
internet applications became increasingly difficult as the applications became richer.
ASP.NET introduced the very powerful concept of code behind that enabled developers to
treat markup elements as Classes and objects outside of the Browser‟s domain before even
rendering these objects to markup. This enhanced the link between sleek UI and intelligent
business logic. Since the demand from web users never ceases for fast interactive user
interface usage of AJAX technologies became world-wide as link between backend
processing and browser UI. On front of UI presentation technologies the Flash system of
Adobe and Microsoft‟s Silverlight platform pave the way today.
Silverlight vs. Flash
The most successful browser plug-in is Adobe Flash, which is installed on over 90 percent of
the world‟s web browsers. Flash has a long history that spans more than ten years, beginning
2
as a straightforward tool for adding animated graphics and gradually evolving into a platform
for developing interactive content. It‟s perfectly reasonable for .NET developers to create
websites that use Flash content. However, doing so requires a separate design tool, and a
completely different programming language (ActionScript) and programming environment
(Flex). Furthermore, there‟s no straightforward way to integrate Flash content with server-side
.NET code. For example, creating Flash applications that call .NET components is awkward
at best. Using server-side .NET code to render Flash content (for example, a custom
ASP.NET control that spits out a Flash content region) is far more difficult. Silverlight aims
to give .NET developers a better option for creating rich web content. Silverlight provides a
browser plug-in with many similar features to Flash, but one that‟s designed from the ground
up for .NET. Silverlight natively supports the C# language and embraces a range of .NET
concepts. As a result, developers can write client-side code for Silverlight in the same
language they use for server-side code (such as C# and VB), and use many of the same
abstractions (including streams, controls, collections, generics, and LINQ).
Silverlight
Silverlight is an exciting new technology from Microsoft for developing rich user experiences
that are accessible on a variety of platforms. It is a cross-platform Common Language
Runtime (CLR) with a strong presentation framework for compositing user interfaces and
displaying images and video, making development of rich user experiences much easier than
before. The purpose of the technology on one hand is to build Rich Internet Applications
(RIA), on the other hand though, it can be used to build business applications as well. RIAs
are web applications that have some characteristics of desktop applications, typically
delivered by web browser plug-ins. At the core of Silverlight is a new markup language called
Extensible Application Markup Language(XAML), which helps designers and developers
work more effectively with each other since it is a declarative language with tools built
around it.
The technology can be called as the web implementation of Microsoft‟s desktop platform the
Windows Presentation Foundation (WPF), and it was named earlier as Windows Presentation
Foundation/Everywhere. However the Silverlight plug-in contains only a subset of the .NET
framework, while WPF can use the entire .NET framework.
3
Silverlight’s main features:
2-D drawings: the content you draw is defined as shapes and paths, so we can manipulate
this content on the client side. We can even respond to events on the graphics, which makes it
easy to add interactivity to the UI.
2D drawings in a custom Silverlight Layout
Animation: Silverlight has a time-based animation model. It has key frame based animation
and has a more simple animation. In the first we can add multiple key frames to describe what
properties to change, when and how long does it take. In the second we just have to set the
property the value and the duration.
Networking: Silverlight applications can call ASP.NET web services or WCF (Windows
Communication Foundation) web services, and receive XML, JSON, or RSS data. They can
also send manually created XML requests over HTTP and open socket connections for fast
two-way communication.
4
Media: Silverlight provides playback of Windows Media Audio, Windows Media Video
MP3 audio, and VC-1 (which supports high definition). Silverlight 2 has a built in control for
handling videos called MediaElement.

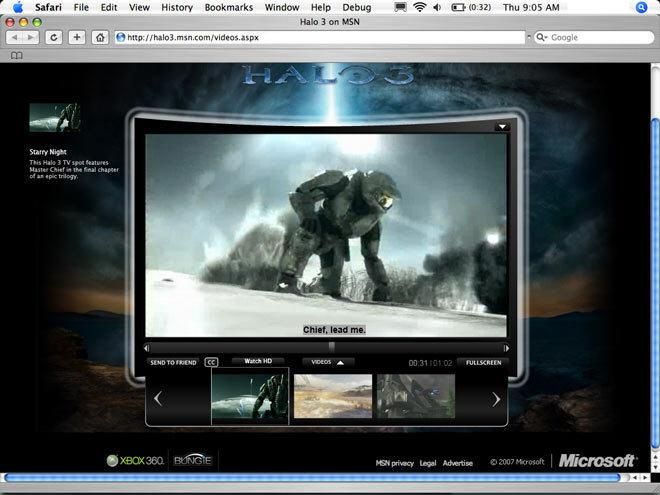

HD video playing in Silverlight
The common language runtime. Silverlight includes a scaled-down version of the CLR,
complete with an essential set of core classes, a garbage collector, a JIT (just-in-time)
compiler, support for generics, threading, etc.
Data binding: Silverlight data binding grants an easy way to display large amounts of data
with minimal code. One way and two way data binding are available with the help of the
INotifyPropertyChanged interface.
5
XAML
In Silverlight applications, user interfaces are declared in XAML and programmed using a
subset of the .NET Framework. XAML can be used for marking up the vector graphics and
animations. Textual content created with Silverlight is searchable and index-able by search
engines as it is not compiled, but represented as text.
Extensible Application Markup Language is a declarative language. It can be used to create
the user interface elements in the declarative XAML markup. The advantage of this is that we
can use a separate code-behind file to respond to events and manipulate the objects declared
in markup.
XAML files are XML files. XAML is a case-sensitive language. The names of XAML
elements and attributes are case-sensitive. The value of an attribute is potentially case-
sensitive, this will depend on how the attribute value is handled for particular properties.
Every element in a XAML document maps to an instance of a Silverlight class. The name of
the element matches the name of the class exactly. For example, the element
instructs Silverlight to create a Button object. Since XAML is an XML document, elements
can be nested inside each another. Properties of a class instances can be set through attributes.
However, in some situations an attribute isn‟t powerful enough to handle the job, like a
complex attribute, or a collection attribute. In these cases, we have to use nested tags with a
special syntax.
A XAML declared object can be referenced in the code behind only if we set up its x:Name
property. The set property will be the name of the object in C#.
There are two ways to declare objects in XAML:
Indirectly, using attribute syntax: Uses an inline value to declare an object. We can use
this syntax to set the value of a property. This is an indirect operation for the XAML
processor, because there must be something behind the scenes that knows how to
create a new object on basis of knowing what property is being set, and the supplied
string value.
6 Directly, using Object Element Syntax: Uses opening and closing tags to declare an
object as an XML element. We can use this syntax to declare root objects or to set
property values. And the two ways can be mixed.
XAML elements map directly to Common Language Runtime object instances, while XAML
attributes map to Common Language Runtime properties and events on those objects.
XAML features
The following features of XAML have been widely used in the TrailerPlayer application:
Markup Extensions
Markup extensions are a XAML language concept, used prominently in the Silverlight
XAML implementation. In XAML attribute syntax, braces ({ and }) indicate a markup
extension usage, as per the XAML specification. This usage directs the XAML processing to
escape from the general treatment of attribute values as either a literal string or a directly
string-convertible value. Instead, a parser typically calls code that backs that particular
markup extension, which assists in constructing an object tree from the markup.
Silverlight supports three markup extensions that are defined under its XML namespace and
understood by its XAML parser. These are: Binding, StaticResource, and
TemplateBinding. Binding supports data binding. StaticResource supports referencing
resources that are defined in a ResourceDictionary. TemplateBinding supports control
templates in XAML that can interact with the code properties of the templated
object. Silverlight also implements one markup extension that is defined in the XAML
namespace, x:Null.
7Typeconverter-Enabled Attribute Values
In attribute syntax the value of an attribute is be able to be set by a string. The basic, native
handling of how strings are converted into other object types or primitive values is based on
the String type itself. But many types extend the basic string attribute processing behavior, so
that the instances of a more complex object type can be specified as attribute values through a
string. At the code level, this processing is accomplished by specifying a CLR type converter
that processes the string attribute value. That means, if we want to set for example an object‟s
Margin property, we can do it like that:
Instead of something like that:
XAML Collection Properties
XAML has a language feature whereby the object element that represents a collection type
can be filled with elements from markup. When a XAML processor handles a property that
takes a collection type, the appropriate collection as defined by initialization of the owning
class is referenced implicitly, even if the object element for that collection is not present in the
markup. The relationship of parent elements and child elements in a markup page is really a
single object at the root, and every object element beneath the root is either a single instance
that provides a property value of the parent, or one of the items within a collection that is also
a collection-type property value of the parent.
Setting a collection property of a grid:
8Events and XAML Code-Behind
XAML is a declarative language for objects and their properties, but it also includes syntax
for attaching event handlers to objects in the markup. We can specify the name of the event as
an attribute name on the object where the event is handled. For the attribute value, we specify
the name of an event-handler function that we define in code. The XAML processor uses this
name to create a delegate representation in the loaded object tree and adds the specified
handler to an internal handler list.
Example:
In XAML:
Code behind: private void brnSearch_Click(object sender, RoutedEventArgs e)
Attached Properties
XAML specifies a language feature that enables certain properties to be specified on any
element, regardless of whether the property exists in the members table for the element it is
being set on. The properties version of this feature is called an attached property. Attached
properties can be imagined as global members that can be set on any element/class, regardless
of its class hierarchy.
Attached properties in XAML are typically used through attribute syntax. In attribute syntax,
we can specify an attached property in the form OwnerType.PropertyName. OwnerType is
the type that provides the accessor methods that are required by a XAML processor in order
to get or set the attached property value. Attached properties have an important role in
forming our applications layout. For example to place a button in the second row of the
previously defined Grid we have to set the properties of the button as the following.
The row is set to 1 because it starts from 0.
Dependency properties
The purpose of dependency properties is to provide a way to compute the value of a property
based on the value of other inputs. These other inputs might include external properties such
9as user preference, just-in-time property determination mechanisms such as data binding and
animations/storyboards, multiple-use templates such as resources and styles, or values known
through parent-child relationships with other elements in the object tree. In addition, a
dependency property can be implemented to provide callbacks that monitor changes to other
properties. The following example sets the text for a text block, using a binding in XAML.
The binding uses an inherited data context and an object data source (not shown).
Most of the properties that are exposed by Silverlight elements are dependency properties.
The key feature of this system is the way that these different property providers are
prioritized. To determine the current value of a property, Silverlight has to decide which one
takes precedence. This process is called dynamic value resolution.
1. Animations. If an animation is currently running, and that animation is changing the
property value, Silverlight uses the animated value.
2. Local value. If we explicitly set a value in XAML or in code, Silverlight uses the local
value. If we set a property using a data binding or a resource, it‟s considered to be a locally set
value.
3. Styles. Silverlight styles allow you to configure multiple controls with one rule. If we set a
style that applies to this control, it will get the value from the style.
4. Property value inheritance. Silverlight uses property value inheritance with a small set of
control properties, including Foreground, FontFamily, FontSize, FontStretch, FontStyle, and
FontWeight. That means if we set these properties in a higher level container, they cascade
down to the contained content elements (like the TextBlock that actually holds the text
inside).
5. Default value. If no other property setter is at work, the dependency property gets its
default value. The default value is set with the PropertyMetadata object when the dependency
property is first created.
10WCF
Windows Communication Foundation
is a programming framework used to
build applications that intercommu-
nicate. Because WCF is part of the
.NET Framework, applications that
use WCF can be developed in any
programming language that can target
the .NET runtime. The WCF unifies
the various communications
programming models supported in
.NET 2.0, into a single model.
Windows Communication Foundation combines and extends the capabilities of Distributed
Systems, Microsoft .NET Remoting, Web Services, and Web Services Enhancements (WSE),
to develop and deliver unified secured systems. The WCF framework builds loosely-coupled
applications on a service oriented architecture that interoperates more securely and reliably
across platforms.
A WCF Service is composed of three parts: a Service class that implements the service to be
provided, a host environment to host the service, and one or more endpoints to which clients
will connect.
All communications with the WCF service will happen via the endpoints. The endpoints
specify a Contract that defines which methods of the Service class will be accessible via the
endpoint; each endpoint may expose a different set of methods. The endpoints also define a
binding that specifies how a client will communicate with the service and the address where
the endpoint is hosted.
In programming code, a WCF Service is implemented as a class. The class typically
implements a Service Contract - a specially annotated interface whose methods stipulate the
operations that the service performs.
11Any class that is to be exposed as a WCF service must be either marked with the
ServiceContract attribute, or implement an interface marked with it. All methods in the class
or interface that a client can invoke using SOAP messages must be marked with
OperationContract attribute. All classes or structures that define the data to be passed into or
out of the operations are marked with the DataContract attribute. The attributes support the
automatic generation of WSDL descriptions for the exposed methods, which can then be
accessed by clients, or advertised to them.
A WCF client connects to a WCF
service via an endpoint. Each Service
exposes its Contract via one or more
endpoints. An endpoint has an address,
which is a URL specifying where the
endpoint can be accessed and binding
properties that specify how the data
will be transferred.
The mnemonic "ABC" can be used to remember Address / Binding / Contract. Binding
specifies what communication protocols are used to access the service, whether security
mechanisms are to be used, and the like. WCF includes predefined bindings for most common
communication protocols such as SOAP over HTTP, SOAP over TCP, and SOAP over
Message Queues etc.
When a client wants to access the service via an endpoint, it not only needs to know the
Contract, but it also has to adhere to the binding specified by the endpoint. Thus, both client
and server must have compatible endpoints.
A client can communicate with a WCF service using any of the Remote Procedure Call-based
mechanisms in which the service can be invoked as a method call. WCF supports non-
blocking (asynchronous) calls between client and service
We have used WCF to implement services required in the model layer and to separate
business logic from actual database functionality. It is widely accepted to use WCF in Service
Oriented Applications (SOA) and approaches.
12Standard Web application patterns in the . NET framework
Why do we three layered architectural patterns?
The purpose of many computer systems is to retrieve data from a data store and display it for
the user. After the user changes the data, the system stores the updates in the data store.
Because the key flow of information is between the data store and the user interface, it might
be inclined to tie these two pieces together to reduce the amount of coding and to improve
application performance. However, this seemingly natural approach has some significant
problems. One problem is that the user interface tends to change much more frequently than
the data storage system. Another problem with coupling the data and user interface pieces is
that business applications tend to incorporate business logic that goes far beyond data
transmission.
User interface logic tends to change more frequently than business logic, especially in Web-
based applications. Designers like to change the look of a web application from time to time,
maybe because they add a new feature, or a new skin. If presentation code and business logic
are combined in a single object, we have to modify an object containing business logic every
time we change the user interface. This will be resulting in errors, and we have to test the
business logic again when we change the user interface.
In some cases, the application displays the same data in different ways. For example, when an
analyst prefers a spreadsheet view of data whereas management prefers a pie chart of the
same data. In some rich-client user interfaces, multiple views of the same data are shown at
the same time. If the user changes data in one view, the system must update all other views of
the data automatically.
User interface code tends to be more device-dependent than business logic. For example if we
want to support browsing our application from a mobile phone we must replace much of the
user interface code, but the business logic may be unaffected.
If we have to change the business logic for any reason then if presentation code and business
logic are combined in a single object we may have to modify the presentation code of every
display.
13So how do we modularize the user interface functionality of a Web application so that we can
easily modify the individual parts? Luckily now we have three patterns to solve this problem,
and these are the following.
MVC
Model View Controller is an architectural
pattern is used in software engineering It
isolates the data(model), the
application/business logic (controller), and
the representation of the data for the user
(view), resulting an application where it is
easier to modify the visual appearance or the
business rule.
Model
The model manages the behavior and data of
the application. Some of its functions are
query methods that permit the User to get
information about the current state of the
model. Others methods permit the state to be
modified. A model must be able to register views and it must be able to notify all of its
registered views when any of its functions cause its state to be changed.
View
View is responsible for look and feel, some custom formatting, sorting, data input validation
etc. View is completely isolated from any data manipulation. View provides interface to
interact with the system. The beauty of MVC approach is that it supports any kind of view,
which is challenging in today‟s distributed and multi-platform environment.
14A MVC model can have multiple views, which are controlled by controller. View interface
can be a web page like an aspx page, a windows forms or a WPF application, or even a
Silverlight web application.
Controller
The controller interprets the mouse and keyboard inputs from the user, informing the model to
change its state if necessary. It provides business functions by implementing the business
logic by which the underlying model needs to be modified.
The control flow is generally as follows:
1. The user interacts with the user interface
2. The controller handles the input event from the user interface via event handlers
3. The controller modifies the model based on the user action, driven by the implemented
business logic possibly resulting in a change in the model's state.
4. A view uses the model indirectly to generate an appropriate user interface. The view
gets its own data from the model. The model and controller have no direct knowledge
of the view.
5. The user interface waits for further user interactions, which restarts the cycle.
Sequence Diagram of MVC
15When the data is changed, all Views are notified of the change and they can update
themselves as necessary.
Communication of layers is often defined by Interfaces. These interfaces are used inside the
Model, View and Controller components. This separation enables further decoupling by using
the Factory pattern to get the actual implementation of layer components. If Factory pattern is
coupled with IOC pattern, or with the usage of third party IOC containers, the actual
application architecture can be declaratively configured, hence making it easy to change
Views (User interfaces), Models (Database versions), and Controls (business Logic)
functions.
Advantages
Since MVC handles the multiple views using the same enterprise model it is easier to
maintain, test and upgrade the multiple system.
It will be easier to add new clients just by adding their views and controllers.
Since the Model is completely decoupled from view it allows lot of flexibilities to
design and implement the model considering reusability and modularity. This model
also can be extended for further distributed application.
It is possible to have development process in parallel for model, view and controller.
This makes the application extensible and scalable.
Disadvantages
Requires high skilled experienced professionals who can identify the requirements in
depth at the front before actual design.
It requires the significant amount of time to analyze and design.
This design approach is not suitable for smaller applications.
In case of complicated user interface with states of views related to each other and
possible workflow models, this information though not business functionality related
has to be in the Model layer. In very large systems this may be beneficial, otherwise it
is usually transferred to the control layer, somewhat breaching the pattern.
16MVP
Model-View-Presenter (MVP) is a
variation of the Model-View-Controller
(MVC) pattern but specifically geared
towards a page event model. The
primary differentiator of MVP is that the
Presenter implements an Observer
design of MVC but the basic ideas of
MVC remain the same: the model stores
the data, the view shows a represent-
tation of the model, and the presenter
coordinates communications between
the layers.
MVP implements an Observer approach
with respect to the fact that the Presenter
interprets events and performs logic necessary to map those events to the proper commands to
manipulate the model. It separates the responsibilities for the visual display and the event
handling behavior into different classes The view class manages the controls on the user
interface and forwards user events to a presenter class. The presenter contains the logic to
respond to the events, update the model (business logic and data of the application) and, in
turn, manipulate the state of the view.
To facilitate testing the presenter, the presenter has a reference to the view interface instead of
to the concrete implementation of the view. By doing this, the real view can be replaced with
a mock implementation to run tests.
Martin Fowler has suggested that MVP be split between two "new" patterns called
Supervising Controller and Passive View.
Model
The model in MVP is just the same, that is described earlier in the Model-View-Controller
pattern.
17Presenter
The Presenter‟s responsibility is to handle user input and use this to manipulate the model
data. The interactions of the User are first received by the view and then passed to the
presenter for interpretation. Often, a presenter will maintain a selection that identifies a range
of data in the model that is current, and the gestures received from the view will be used to act
on this. Sometimes a view will adapt low-level gestures into higher-level commands before
informing the presenter. The presenter is allowed to know about both its view and its model.
View
When the model is updated, the view also has to be updated to reflect the changes. View
updates can be handled in several ways. The Model-View-Presenter variants, Passive View
and Supervising Controller, specify different approaches to implementing view updates. In
Passive View, the presenter updates the view to reflect changes in the model. The interaction
with the model is handled exclusively by the presenter; the view is not aware of changes in
the model.
In Supervising Controller, the view interacts directly with the model to perform simple data-
binding that can be defined declaratively, without presenter intervention. The presenter
updates the model; it manipulates the state of the view only in cases where complex UI logic
that cannot be specified declaratively is required. .NET Databindig technologies make this
approach more appealing for many cases, although if not carefully designed it may result in
coupling between view and model.
Passive View: Supervising Controller:
The interaction with the model is The view interacts with the model
handled exclusively by the presenter for simple data binding
The View is updated exclusively by The View is updated by the
the presenter presenter and through data binding
18The control flow is generally as follows:
1. The user interacts with the user interface
2. The presenter handles the input event from the user interface via event handlers
3. The presenter performs business logic functionality on the model based on the user
action, possibly resulting in a change in the model's state.
4. Update the view:
o Passive View: The presenter is notified when the model‟s state changes, and
then it gets the data from the model, and updates the view with it.
o Supervising Controller: The presenter is notified when the model‟s state
changes, and it notifies the view, which binds the data directly from the model.
5. The user interface waits for further user interactions, which restarts the cycle.

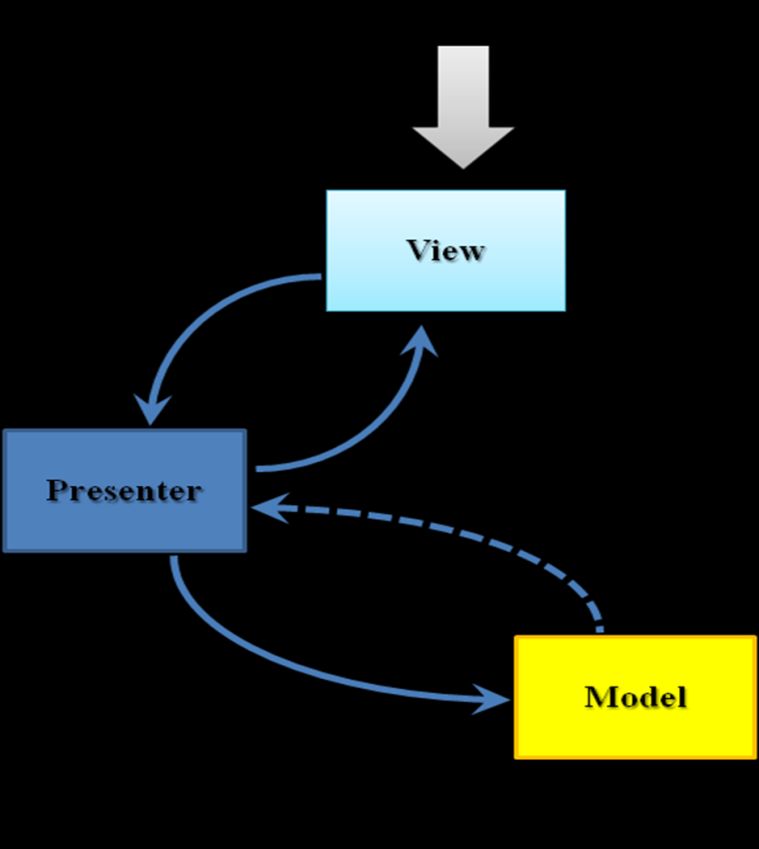

Sequence Diagram of MVP
Just like in case of MVC communication of layers is often defined by Interfaces. These
interfaces are used inside the Model, View and Presenter components. This separation enables
further decoupling by using the Factory pattern to get the actual implementation of layer
components. If Factory pattern is coupled with IOC pattern, or with the usage of third party
IOC containers, the actual application architecture can be declaratively configured, hence
19making it easy to change Views (User interfaces), Models (Database versions), Presenter
(business Logic) functions.
Advantages
As with Model-View-Controller, Model-View-Presenter has the advantage that it
clarifies the structure of our user interface code and can make it easier to maintain.
Not only do we have our data taken out of the View and put into the Model, but also
almost all complex screen logic will now reside in the Presenter.
We have almost no code in our View apart from screen drawing code Model-View-
Presenter also makes it theoretically much easier to replace user interface components,
whole screens, or even the whole user interface (Windows Forms to WPF for
example)). This makes the user opinion sensitive UI part perfectly separate of other
parts of the application, hence it‟s features can be enhanced separately with more
involvement from the customer.
In addition unit testing the user interface becomes much easier as we can test the logic
by just testing the Presenter.
Disadvantages
The disadvantages of Model-View-Presenter are similar to the disadvantages of Model-View-
Controller:
Requires high skilled experienced professionals who can identify the requirements in
depth at the front before actual design.
It requires the significant amount of time to analyze and design.
This design approach is not suitable for smaller applications. It overkills the small
applications.
It can be hard to debug events being fired in active Model-View-Presenter.
The „Passive View‟ version of Model-View-Presenter can lead to a certain amount of
boilerplate code having to be written to get the interface into the View to work.
In both MVP and MVC cases the code for supporting the proper pattern
implementation can be complex, hence it is not adviced to use in smaller projects.
20MVVM
The Model-View-ViewModel (MVVM or ViewModel) is a
pattern for separating concerns in technologies that use
databinding. For Silverlight 2, it can help to make more
maintainable applications by removing much of the code in the
code-behind files and allowing full testing of business logic.
The first two pattern the MVC and MVP does not work as well
as MVVM in declarative user interfaces like Windows
Presentation Foundation or Silverlight because the XAML that
these technologies use can define some of the interface between
the input and the view (because data binding, triggers, and states
can be declared in XAML).
The MVVM pattern is an adaptation of the MVC and MVP
patterns in which the view model provides a data model and
behavior to the view but allows the view to declaratively bind to
the view model.
The view becomes a mix of XAML and C# (as Silverlight 2
controls), the model represents the data available to the
application, and the view model prepares the model in order to
bind it to the view.
Model
The model is especially important because it wraps the access to
the data, whether access is through a set of Web services, an
ADO.NET Data Service, or some other form of data retrieval.
The model is separated from the view model so that the view's
data (the view model) can be tested in isolation from the actual
data.
21ViewModel
A ViewModel is a model for a view in the application as shown by its name. It has a
collection which contain the data from the model currently needed for the view. Unlike the
Presenter in MVP, a ViewModel does not need a reference to a view. The view binds to
properties on a ViewModel, which, in turn, exposes data contained in model objects and other
state specific to the view.
The bindings between view and ViewModel are simple to construct because a ViewModel
object is set as the DataContext of a view. If property values in the ViewModel change, those
new values automatically propagate to the view via data binding. When the user clicks a
button in the View, a command on the ViewModel executes to perform the requested action.
The ViewModel, never the View, performs all modifications made to the model data.
View
The pattern we use is to set the DataContext of a view to its ViewModel. The view classes
have no idea that the model classes exist, while the ViewModel and model are unaware of the
view. In fact, the model is completely oblivious to the fact that the ViewModel and view
exist. A View is the actual UI behind a view in the application. The elements of the UI are
implemented in XAML, and as a result of this the code behind file contains minimal code, or
in some cases it doesn‟t contain code at all, however it is different in Silverlight and WPF
The implementation MVVM pattern in WPF projects is clearer than in Silverlight. The
problem with using it in Silverlight 2 is that to make this pattern easy and seamless,
Silverlight 2 really needs to support Commands and Triggers. If that were the case, we could
have the XAML call the methods of the view model directly when the user interacts with the
application. In Silverlight 2 this requires a bit more work, but luckily it involves writing only
a little code. So finally, our View will contain some more code besides the code handling the
user interface, but maybe in later versions it will be different.
The control flow is generally as follows:
1. The user interacts with the user interface
2. The ViewModel handles the event.
3. The ViewModel notifies the model of the user action.
224. The Model calls the Data/Web Service in order to manipulate the database.
5. The database changes its state and returns data
6. The model gets the data from the service, and passes it to the ViewModel
7. The View gets the data through DataBinding, and updates itself.
8. The user interface waits for further user interactions, which restarts the cycle.

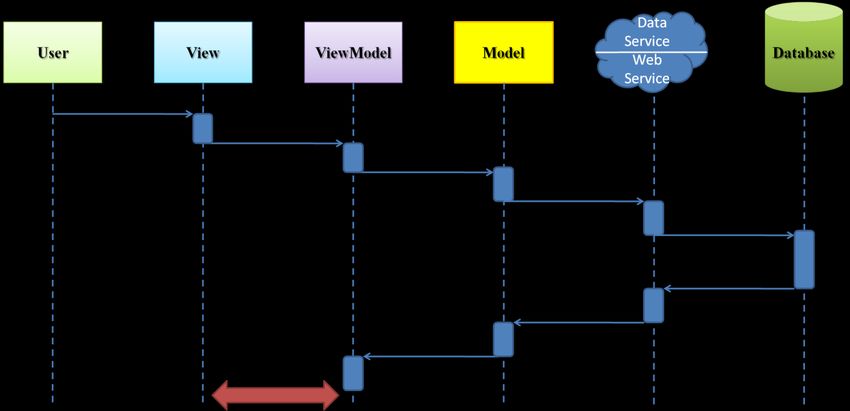

Sequence Diagram of MVVM
Advantages
Reduces the amount of code in the View‟s code behind file.
UI elements can be written in XAML
Strong Data Binding, which saves a lot of code. No need for manually refresh the
view.
Disadvantages
In bigger cases, it can be hard to design the ViewModel up front in order to get the
right amount of generality.
Data-binding for all its wonders is declarative and harder to debug than nice
imperative stuff where you just set breakpoints
23Implementation of a TrailerPlayer application
Application Use Case
In our application, the User can select a movie by clicking on it, and it will come to the center
of the screen, and become bigger than others so the User can read the text better.
When the trailer is selected, the container of it gets two buttons on the bottom of the layout.
The second button is the View Description button, and if the User clicks it, a short description
about the movie fades in below the buttons. By clicking it again, the description fades out. By
clicking the first button which is the Watch HD Trailer button, a media player floats in from
the right before the information grid.

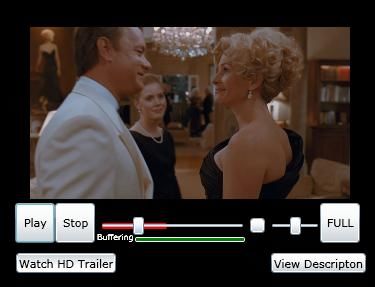

MediaPlayer in normal size
The media player has all the usual media player features, and even some more. There are the
usual play/pause and stop buttons. It contains a time seeker, a volume slider and a mute
button. There are two progress bars, one stands for the download progress, and it is behind the
time seeker. The other is below it and displays the buffering status of the video in green.
The last button of the player is a full screen button, and by clicking it, the application goes to
full screen, and the video can be enjoyed all over the screen, as it can be seen on the picture
below. When in full screen mode, only the Player is visible and the information grid is
hidden.
24MediaPlayer in full screen
The controllers of the player fade in only if the mouse cursor is over them, otherwise they
fade away, so they don‟t draw attention from the trailer. The time seeker can be dragged to
any position, and this will cause the trailer to continue playing in the desired position. It takes
some time though for the player to do (the) buffering.
Below the trailers the search control takes place. It is a simple text block and a search button.
The search function uses a simple filter. The User can type in any text and the results will be
the trailers which contain the word in the title, in the name of the director, in the cast, or in the
type of the movie. There isn‟t any kind of list or checkbox or radio button where the User has
to select the search type, like: “Title” or “Cast”, because as Steven Krug said in his book
“Don‟t make me think”, so it is not a good thing if the user has to learn how to search on a
page, or has to think about how the site‟s search engine wants him/her to phrase the question
first.
By clicking “Search”, the trailer list refreshes and will contain only the trailers, which are
containing the search phrase, and the text below the search box will show how many trailers
fulfill the search. If none of the trailers contains the search text, then the text “No Videos
Found” will appear and the list won‟t change. If no text is entered, the list will contain all the
trailers in the database.
25Architecture layers
In the following, we will examine the layers of the TrailerPlayer application implemented in
MVVM pattern.
Database
The data for the application is supplied by a Microsoft SQL Server 2008 Express Edition. It
contains the Movie database, which contains the Movie table. This has 8 columns:
Title: The title of the movie
Source: The url of the movie‟s HD trailer.
Picture: The url of the movie‟s poster picture.
Thumb: The url of the movie‟s thumb picture. This is a
picture grabbed from the trailer, it can be seen when the
playing of the trailer is stopped. The user can see
something about the movie itself instead of a black
screen.
Director: The name of the director.
Type: The Type/Genre of the movie.
Cast: The names of the actors, separated by a space.
Description: A short description of the movie.
The database is accessed from the application via
LINQ to SQL classes. LINQ (Language Integrated
Query) to SQL provides a runtime infrastructure
for managing relational data as objects without
losing the ability to query. The application is free
to manipulate the objects, while LINQ to SQL
stays in the background, tracking the changes
automatically.
26Web Service
The application is using a Windows Communication Foundation (WCF) web service to
handle the communication between the Model and the Database. For Silverlight, we have a
special WCF template named Silverlight-enabled WCF service.
In normal cases, the Service would contain an additional class, defining the Service interface;
however in Silverlight this class is not needed.
Silverlight only supports basicHttpBinding, and the template is already configured to be used
with Silverlight.
Server side
Our service is called MovieSearchService,
and it contains a class which is also named
MovieSearchService. The class is marked
with the ServiceContract attribute. It has
only one method, named Search, marked
with the OperationContract attribute, which enables the method to be called remotely.
The method creates a MovieDataContext object, which handles the communication with the
database. In C# 3.0 we can write the queries in C# using a little different syntax than usual,
but we get full intellisense support this way.
The method has a string parameter, and depending on whether it is null or not, executes a
query on the database. If it is null, the service returns all available data that from the database.
If it isn‟t null, then it returns only the movies which contains the given string in their title,
director or cast.
WCF services returns an ObservableCollection as default, but it can be changed in the
properties of the service. ObservableCollection is a collection which implements the
INotifyPropertyChanged interface.
The INotifyPropertyChanged contains an event named PropertyChanged. When used in
context of databinding, the class that implements this interface can fire the event with the
name of the property, which has changed as an argument, so the object which binds the
property can change automatically.
27Client side
In order to use the service in the Silverlight Project, we need a service reference of the
service. It can be done automatically by adding a Service Reference to the project. The only
thing needed is a name for our service reference, and the URL of the service.
The Service Reference
generates the code needed for
the Service to be used from
our Model class. We get the
Movie object, synchronous
and asynchronous methods of
the original Search method,
and events related to them.
Model
The Model layer of our application consists of three classes
and a delegate, the first is a proxy class named Movie, it has all
the properties that the other Movie class in our Service has, and
the names are the same. This class is necessary, because as it
was described before, in MVVM, only the Model communicates with the service, and if we
wouldn‟t have a proxy class, we would have to use the other Movie class in our ViewModel
through the service, which would break the architecture.
The other class named Model wraps the functionality of the MovieSearchService. It has a
Search method with a string parameter, which makes an asynchronous call to the service.
28When the model is created, it creates a MovieSearchServiceClient object, which handles the
communication with the service. The model is subscribed for the service‟s search completed
event, so when it is finished, the model can notify the ViewModel about it.
The MovieSearchCompletedEventHandler delegate in the model layer accepts a
MovieSearchCompletedEventArgs object as a parameter, which is another class in the Model
layer, and it is used to store the results of the service call. It gets an ObservableCollection as
parameter.
When the search is completed, the Model gets the results in an ObservableCollection which
contains the service reference‟s Movie objects. The Model creates a new Observable-
Collection filled with Movie objects of the Model layer, and then copies the results to this
object, and finally fires a MovieSearchCompleted event, and passes the collection as an
argument.
ViewModel
The ViewModel layer of the application
contains only one class named
ViewModel. It has a collection, which is
an ObservableCollection containing the
Model layer‟s Movie objects. The View
will bind this collection. It implements the
INotifyPropertyChanged interface. As a
result of this, the ViewModel can notify
the View when the Trailers collection
changes.
29It implements a helper method for event firing, it is the RaisePropertyChanged method. It is a
preferred implementation, because we just have to pass the properties‟ names to this method,
and then there is no need for testing whether the event is null or not every time. Moreover,
any further logic can be added to the method if necessary.
It has a Search function, which calls the model‟s search function. The ViewModel is
subscribed for the MovieSearchCompleted event of the model, so when it changes, the
ViewModel gets the results as an event argument. It changes its collection to the one got from
the model, and then it calls the RaisePropertyChanged method, which raises the
PropertyChanged event which notifies the View. It also fires a SearchCompleted event.
View
The View of the application consists of classes:
CustomSlider
CustomSlider is an extended slider
control, its base class is the slider.
The main slider does not contain
events for handling the dragging of
the thumb, and in the MediaPlayer
we have to response to that event by
positioning our video. The class captures the thumb‟s drag start and completed events, and
fires its own events that can be captured in the player.
MediaPlayer
The MediaPlayer class is a fully implemented video player. It consist of many controls:
The first one is a MediaElement. This object is responsible for handling the video, almost
every other control in this class is for manipulating the MediaElement class.
On the top of the MediaElement there is an Image control. This control displays the trailer‟s
thumb image. When the user clicks on the image, the MediaElement gets its source, the Image
fades away and the video starts.
The first button is the Play/Pause button. This is a toggle button. If the video is stopped, and
the user clicks the button, the MediaElement gets its source, the Image fades away and the
30video starts, or if it is already playing, then
pauses it. If the user clicks the button while
paused, it resumes the video.
The second one is a Stop button, when it is
clicked, it stops the video, clears the source,
and the Thumb image fades in.
The seeker control in the middle controls
the video‟s position. The User can drag it
into any position, and the video repositions
itself. The seeker follows the playback, and
when it is stopped, it jumps to the
beginning of the video.
The little button next to the seeker is a mute
button, when toggled, it mutes the video.
The second slider is for adjusting the
volume, when set to 0, it toggles the mute
button as well. The default value is 50%.
The last button is the full screen button.
When the user clicks it, the Silverlight
plug-in goes to fullscreen, and the player
adjusts its size to fit the whole screen.
The MediaPlayer has two Dependency Propoerties. These are: Source and Thumb. They are
shown in XAML, hence we can use them in declarative databind. The MediaElement‟s source
gets the value of this source property when started, and the Thumb Image control gets the
Thumb property when loaded.
TrailerControl
This control consists of an information grid, and a MediaPlayer Control. The information grid
has six columns. They contain the following information: Title, Director, Cast, Type, Picture,
the two control buttons and the Description.
31Their content set in databinding:
Text="{Binding Path=Title}" etc. This
kind of databinding means that whatever the
DataContext of its parent will be, the control
will bind the object‟s Title property, if there is
any. This control knows nothing about what
kind of object it will get. This is why the
MediaPlayer has the additional Dependency
Properties, because they are set just like the
Title above. Moreover, if the DataContext
changes, the control just rebinds it again, and
changes automatically, we don‟t need to
refresh it manually.
The Control has two control buttons, the first is the Watch HD trailer button. When toggled,
the MediaPlayer floats in from the right, over the information grid. If the User clicks again,
the MediaPlayer floats out. The second button is the View Description button, and if toggled
the description text in the bottom fades in or out.
The TrailerControl has two public methods called Selected, and Unselected. Both of them
play animations. The Selected runs when the User selects the trailer, and then the two Control
buttons fade in and become visible.
When in fullscreen mode, the control hides its information grid, and only the MediaPlayer
remains visible.
TrailerView
This control handles TrailerControl objects in a
list. In Windows Forms a ListBox control
contains listboxitem elements, while in XAML
every container control contains whatever it
gets. In this case it will contain TrailerControl
elements. The DataTemplate of the ListBox is
replaced with a TrailerControl object, and the
32ItemsPanel template is also replaced. It contains only a horizontal StackPanel. The
ConrolPanel template is bared down to a ContentPresenter object, so the default selection and
other states don‟t work (like marking the selected item with a transparent blue layer).
The Templates in Silverlight can be replaced to almost anything, and this is a very powerful
mechanism to build custom layouts in our applications. The developer and the designer has
control over everything, they can replace, modify or delete elements. Every visible control
can be used inside of an animation, and an animation has the highest precedence in
dependency properties.
The ListBox‟s ItemSource property is set to this: ItemsSource="{Binding}" This means
that we don‟t set exactly, what kind of objects it will get, but anything will be bound.
When the User selects a trailer from the list, it floats into the middle of the screen, and grows
to its full size, while the unselected objects shrink to 80%. These are animations, one is static,
the other is built-in code, depending on which trailer has been selected, and whether the plug-
in is in full screen mode or not.
This would be a clear implementation of MVVM, if we would set the DataContext of this
view to the ViewModel‟s collection, but in our case, we need to have control over the
TrailerControl objects to invoke their Selected and Unselected methods. Because if we just set
the DataContext, the ListBox would contain Movie objects, and not TrailerControl objects,
despite that this control is the DataTemplate of the ListBox.
Because of this, the TrailerView has a public method called Begin, and it simply iterates
through the DataContext, and creates a list of TrailerControl from it. Finally it sets the
DataContext of the ListBox to this collection.
Page
The main control is the Page. This control is displayed when the application is loaded. The
Page contains a TrailerView control, and a Search panel. This control is the real View in the
application, it binds the ViewModel.
When the Page is loaded, it creates an instance of the ViewModel, and invokes the Search
function of it with a null parameter to get a full list of the trailers, and sets its DataContext to
the ViewModel. The TrailerView‟s DataContext is the following:
33DataContext="{Binding Path=Trailers}"
This would be enough, if we wouldn‟t need
TrailerControl objects, but since we do, we have
to know when the Search is finished, so the page
is subscribed to the SearchCompleted event of the
ViewModel. In the handler method we set the
Search panel‟s text to the number of trailers in the
Trailers collection, and invoke the Begin method
of the TrailerView.
The Search panel is for searching, the User can
enter any text, and by clicking the Search button, the ViewModel‟s Search function is called
given the text as parameter.
We don‟t have to reset the DataContext of the Page, nor the TrailerView, because the
ViewModel is set as the DataContext of the Page, and since we implemented the
INotifyPropertyChanged interface, it changes automatically. The TrailerView‟s DataContext
changes automatically too, because DataContext inherits down in the visual tree.
Reusability of components in other patterns
MVC
The main differences between MVP and MVC patterns is, that in MVC the View gets the data
indirectly from the Model, while in MVVM, the View binds the ViewModel. If we decide to
use MVC instead of MVVM, we would have to do the following changes in the layers:
Model
Conclusion: As our current model layer conforms to the requirements of the MVC
model, in order to use this layer using MVC, we don’t have to change it.
ViewModel→Controller
We have to shift some parts of the ViewModel layer into the Controller layer, as in the MVC
pattern, that layer is responsible for the responsibilities of the ViewModel. In MVC, the
Controller only handles the View‟s events, and manipulates the model. We can do this using
the following modifications:
34You can also read
