Refrigeration and the Road to Net Zero: Water-cooled Refrigeration
INDUSTRY FOCUS
                                                                                    by
                                                                                       Stuart McLeod,
                                                                 Project Manager at Oaksmere Design

Refrigeration and the Road
to Net Zero: Water-cooled
Refrigeration
Oaksmere Design and the                         shops across the UK and Channel                 Project background
John Lewis Partnership                          Islands, including 59 convenience
                                                stores and 27 Welcome Break                     The John Lewis Partnership brought
Oaksmere Design is a                            locations. The supermarkets are                 forward its ambition to be net zero
multidisciplinary engineering                   served by a network of distribution             carbon across its entire operations
services and contracting business               centres and two head offices in                 by 15 years to 20353. To help
based in Ipswich that specialises in            Bracknell and London Victoria.                  with this commitment emissions
supporting the food retail industry.            Waitrose also operates an online                associated with refrigeration - which
Oaksmere manages a range of                     delivery service with an associated             contribute to operational C02e
energy and capital maintenance                  ecommerce store pick operation                  emissions through high energy
projects but has a particular strength          fulfilling online orders1.                      consumption and the use of high
in refrigeration engineering. The                                                               global warming potential (GWP)
following article focuses specifically          In 2020/21 the John Lewis                       refrigerant gases - are being tackled.
on Oaksmere’s design and project                Partnership consumed 799,208,795
management input to Waitrose’s                  kWh2 of electricity and gas. The                Globally the Carbon Trust estimates
                                                                                                                                         THE EMA MAGAZINE • ISSUE MAY–JUNE 2021

water-cooled refrigeration rollout.             highest area of energy consumption              that the food cold chain is
                                                across the estate are refrigeration,            responsible for 1% of GHG emissions
Waitrose is part of the employee-               HVAC, and lighting. In 2020, 97%                and that the UK food cold chain
owned John Lewis Partnership,                   of electricity consumption across               is responsible for 2-4% of GHG
which is the largest employee-                  the Partnership’s physical estate               emissions in the UK4. Due to a rising
owned business in the UK with                   was from REGO certified renewable               population and increasing food
over 80,000 employees known as                  sources and is working with landlords           demand, the Economist Intelligence
Partners. Waitrose has over 331                 to convert the remaining 3%.                    Unit predicts a 2.8% annual growth

1   John Lewis and Partners Our Business https://www.johnlewispartnership.co.uk/about.html
2   John Lewis Partnership PLC 2021 Annual Report and Accounts www.johnlewispartnership.co.uk/annualreport
3   www.johnlewispartnership.co.uk/media/press/y2020/waitrose-and-john-lewis-set-out-bold-plans-to-reach-more-customers.html
4   The Carbon Trust. Net zero cold chains for food | Carbon Trust
                                                                                                                                         25
Refrigeration and the Road to Net Zero: Water-cooled Refrigeration
rate for commercial refrigeration                in a water-chilled loop. Cascade                   reduced refrigerant charge are due
                                         between 2018 - 20305. Therefore,                 and transcritical systems introduce                to waste heat from the refrigeration
                                         solutions to tackle GHG emissions                greater complexity in design, build                cycle being rejected to a water
                                         from refrigeration play a key role               and maintenance and R744 systems                   chilled loop, which is connected to
                                         in meeting private, national, and                require two stage compression on                   cabinets and coldroom equipment
                                         international emissions targets.                 frozen food applications due to high               housing self-contained refrigeration
                                                                                          discharge temperatures.                            loops, rather than to roof mounted
                                         Since the John Lewis Partnership                                                                    condensers. There is no mechanical
                                         purchases 97% of electricity                     To summarise, water-cooled                         cooling required on the water
                                         through a renewable energy                       refrigeration systems can reduce                   chilled loop, which operates at
                                         contract this greatly reduces the                the entrained volume of gas and                    between 40⁰C and 46⁰C, only
                                         carbon emissions associated with                 the average GWP of gas entrained in                dry air coolers for heat rejection
                                         electricity consumption. The move                the system by replacing the type of                which negates the need for central
                                         to water-cooled refrigeration is                 refrigerant gas. While CO2 systems                 compressor packs. The systems are
                                         primarily to eliminate the use of                also operate with low GWP gases,                   estimated to achieve main meter
                                         high GWP refrigerant gases. Water-               systems are more complex and                       electricity savings in the region of
                                         cooled refrigeration systems can                 potentially hazardous. This article                20%.
                                         dramatically reduce the entrained
                                         volume of refrigerant gas in the
                                         system, by helping to move away
                                         from centralised direct expansion
                                         systems that require large volumes
                                         of refrigerant gas. When water-
                                         cooled refrigeration systems are
                                         designed to incorporate self-
                                         contained refrigerated cabinets
                                         operating with low GWP refrigerant
                                         gases the benefit is amplified. In this
                                         respect, the partnership states that
                                         R290 and R1270, which have GWP
                                         ratings of 3 and 2 respectively, must
                                         be used where possible in place of
                                         gases with higher GWP.
                                                                                                                            Fig. 1 - Cabinet ‘top box’
                                         Cascade and transcritical CO2
                                         (R744) refrigeration systems were                focuses on a recent replacement                    Since the water chilled loop is
                                         also considered due to the low                   scheme to help illustrate some                     piped to the ‘self-contained’
                                         GWP rating of ‘natural refrigerants’             of the challenges and benefits                     refrigerated cabinets and coldroom
THE EMA MAGAZINE • ISSUE MAY–JUNE 2021

                                         (R744 has a GWP of 1). There are,                associated with the wider project.                 equipment, less pipework is needed
                                         however, drawbacks associated                                                                       for refrigerant and therefore less
                                         with cascade and transcritical C02                                                                  refrigerant gas. Basically, creating
                                         refrigeration systems. For example,
                                                                                          Water-cooled refrigeration:                        water-cooled integralised systems.
                                         R744 systems have extremely high
                                                                                          Through the generations                            The system also operates with
                                         operating and standstill pressures,              The latest specification currently                 natural refrigerant with very low
                                         which can be hazardous if pipework               on the estate is known as                          GWP values. Figure 1 provides
                                         is damaged. In some places system                3rd generation water-cooled                        an illustrative example of the
                                         pressures can be up to 120 bar,                  refrigeration. The main benefits of                self-contained refrigeration unit,
                                         compared to just 2 or 3 bar found                reduced energy consumption and                     colloquially known as a ‘top box’,

                                         5   The Economist. The cooling imperative - forecasting the size of future cooling demand (2019) http://www.eiu.com/graphics/marketing/pdf/
                                             TheCoolingImperative2019.pdf
26
Refrigeration and the Road to Net Zero: Water-cooled Refrigeration
which sits on top of each cabinet.       The second generation of water-           Furthermore, 3rd generation
While the 3rd generation represents      cooled refrigeration chilled the          systems are less complex than
the current specification, it is worth   water and glycol mix to two               generation 2.
reviewing previous generations           separate temperatures through
to understand the journey of             a complex set of pipework.
innovation.                              HT cabinets were served by a
                                                                                   Project brief
                                         temperature between -6 and 0⁰C            At Waitrose Norwich, all existing
The first generation of water-           and LT cabinets were served by a          shopfloor LT and HT refrigerated
cooled refrigeration chilled the         temperature between 6 and 12⁰C. A         cabinets were replaced with 3rd
water and glycol mix to between          key difference between generations        generation water cooled cabinets
18 and 24⁰C, which was achieved          1 and 2 was that HT cabinets did not      and several smaller air-cooled
via hydrocarbon water chillers           have their own condensing units,          integral cabinets, each of which
providing progressive ‘free cooling’     rather they used the water glycol         were entrained with R1270. The
below 18⁰C. Ultimately this meant        mix directly in the coil of the cabinet   seven existing cold rooms were
central refrigeration plant was          to provide the required cooling           replaced with four cold rooms
required for the water chilled loop.     duty (secondary refrigeration).           that occupied a similar footprint.
Like generations 2 and 3, the system     Natural refrigerants were also used       Cold rooms incorporated into
utilised cold aisle air retrieval and    in generation 2 water chiller plant,      wider water-cooled systems had
waste heat recovery to increase          so there was also a large benefit         previously been fitted with self-
secondary benefits to store heating      for GHG emissions. Energy usage           contained air-cooled or water-
and cooling. The average annual          requirements were, however, greater       cooled units, that were housed
energy savings, when comparing           due to lower cooling requirement.         directly on top of the cold rooms.
against a standard direct expansion      Furthermore, the system was more          At the time, system design was
system, were estimated in the            complex to build and maintain.            transitioning to incorporate a new
region of £35,000. First generation                                                self-contained refrigeration unit also
water-cooled systems also displaced      The main benefits of 3rd generation       capable of rejecting heat to a water-
R404A with a significantly reduced       water-cooled refrigeration,               chilled loop. Since the new system
volume of natural refrigerant,           when compared to 1st and 2nd              was still in trial, the cold rooms were
helping to achieve large GHG             generation, is there is no need           fitted with direct expansion HFC
emissions reductions.                    to chill the water-cooled loop.           evaporators entrained with R448A.

                                                                                                                             THE EMA MAGAZINE • ISSUE MAY–JUNE 2021

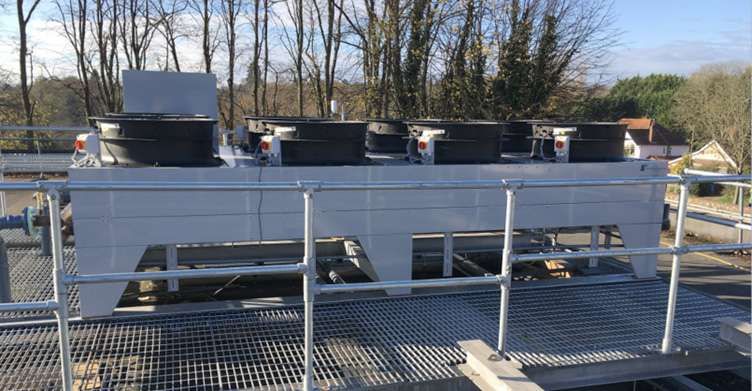

                                         Figure 2 – Roof mounted dry-air coolers
                                                                                                                             27
Refrigeration and the Road to Net Zero: Water-cooled Refrigeration

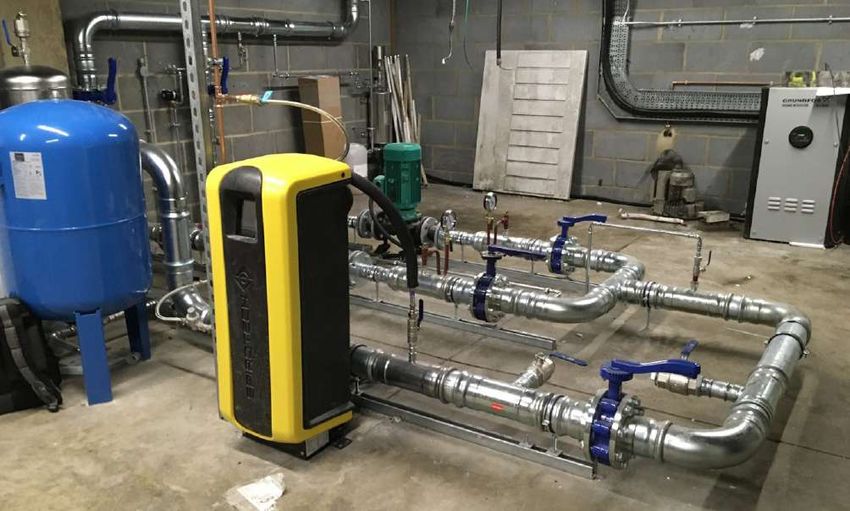

Figure 3 – Internal pump station for the water chilled loop

                                         Since the 3rd generation water-          online in a coordinated effort            stock. In the last year there has also
                                         cooled cabinets have a condensing        between the electrical, mechanical        been a rapid expansion of the store
                                         unit on each cabinet rejecting heat      and refrigeration contractors and         pick ecommerce operation, which
                                         to a water-cooled loop, the roof         Waitrose merchandising. Four new          increases foot traffic overnight as
                                         mounted condensers were rendered         direct expansion condensing units         online orders are fulfilled by in-store
                                         redundant. The same was true for         were located on the roof condenser        picking teams. To minimise disruption
                                         the central compressor packs given       platform to serve the cold room           to online orders, the Waitrose
                                         that each self-contained cabinet also    evaporators, two for the HT plant         Norwich ecommerce operation was
                                         houses its own compressor within         and 2 for the LT plant. The fluid         temporarily relocated to a nearby
                                         the ‘top box’ providing cooling for      medium for the water-cooled loop          store. Furthermore, planning for the
                                         the cabinet. Instead, centralised        was water with 15% MonoPropylene          project had to be carried out during
                                         pumps were required to circulate the     glycol. All reclaimed R404A/R407A         Covid restrictions, which introduced
                                         chilled water and glycol mix. Finally,   was removed and sent for re-              new ways of working.
                                         given that the function of the water     manufacturing and banking. All
                                         chilled loop is to act as a medium for   control panels were replaced, and         Site access presented a challenge for
THE EMA MAGAZINE • ISSUE MAY–JUNE 2021

                                         heat rejection, with all water-cooled    the frozen food, meat and dairy           the removal of existing cabinets and
                                         fixtures condensing at a suitably        chillers were fitted with a trapped       delivery of new cabinets, due to door
                                         high enough temperature, waste           man & gas leak detection system.          heights and locations. For instance,
                                         heat removal is possible by use of                                                 the front doors lead to a busy main
                                         simple roof mounted dry-air coolers.                                               road which has limited parking
                                                                                  Operational feasibility                   and is on a slight incline, while the
                                         All redundant compressors were           Waitrose stores usually remain open       warehouse shutters are obstructed
                                         decommissioned and removed in            for the duration of a replacement         by a loading dock leveller. The fire
                                         accordance with a suitable phasing       scheme and in most cases, stores are      escape doors, which lead from a
                                         plan to ensure existing packs were       operational 24 hours a day, although      ramp directly to the sales floor,
                                         unaffected by light loading. The new     not trading, and 7 days a week            provided the best access but they
                                         water-cooled plant was brought           as night teams work to replenish          are neither wide nor tall enough.
28
The solution was to remove a set of       than 4) in the air-cooled integral      net zero, innovative refrigeration
handrails next to the door, build a       cabinets.                               technology must remain at the
temporary platform and temporarily                                                forefront of system design. The
increase the height of the door.          Based on recent recorded                challenges faced at Waitrose
The new layout of the cabinets            refrigerant leak rates, water-cooled    Norwich in converting the entire
also presented a challenge in that        refrigeration at Waitrose Norwich is    system to water-cooled refrigeration
drainage had to be relocated from         forecast to save 36 tonnes of CO2e      illustrates both the scale of
a gravity fed system at the location      annually from direct emissions.         the challenge and the scale of
of the existing cabinets to a vacuum      Across all sites completed in 2020      achievement when we face issues
fed system located in the warehouse.      there is an estimated annual saving     head-on. While 3rd Generation
                                          of 2336 tonnes of CO2e. In 2021 the     water-cooled refrigeration
A crane was required to remove the        projected figure increases to 3125      represents a step on the journey
existing direct expansion condenser       tonnes of CO2e.                         to net zero in refrigeration. The
units from a roof mounted steel                                                   next step on the road to further
support structure and install the         The projected estimated energy          improvements are to utilise A2L
new dry air-coolers. Fortunately,         saving at Waitrose Norwich, based       gases in the coldroom plant.
there was sufficient space on the         on like for like savings between
roof to build a new steel structure,      January and March, is 1,039 MWh,        Continuous improvement to system
alongside the existing structure,         which represents a like for like        design has also led to the adoption
to house the new condensing unit          main meter saving of 24.5%. The         of new self-contained units, which
required for the coldrooms.               reduction in energy consumption is      provide an improved solution for
                                          mainly attributable to the removal      cold rooms. The self-contained units
To minimise disruption to                 of centralised refrigeration plant.     reject heat to the water-cooled loop
customers, sound deadening                                                        in the same manner as the current
material was placed on the roof           There is also an energy reduction       system, but they have an improved
to prevent vibrations through the         benefit in replacing fixed-speed        lifespan. The new units have been
supporting steels and into the store.     compressors with inverter-driven        incorporated into the standard
The existing compressors were             compressors, which is a benefit         specification from 2020 and they will
removed from an internal plant            specifically associated with the        be incorporated into future systems.
room by cutting up the equipment          evolution from 1st to 3rd generation    To date nearly 200 Waitrose shops
and removing piece by piece,              water cooled refrigeration. The         across the estate have undergone
making room for pumps required for        energy reductions are partly offset     a water-cooled refrigeration
the water-cooled refrigeration loop.      by an increase in consumption at        replacement. In line with the John
Installation of the new pipework          the cabinets, however the result        Lewis Partnership’s net zero 2035
was completed in the four weeks           is still an overall reduction. Aside    ambitions, the aim is to replace
leading up to the installation of the     from a 24.5% cost reduction, the        all existing direct expansion
new cabinets and cold rooms.              reduction in energy consumption         refrigeration systems with water-
                                          also translates to a 24.5% reduction    cooled refrigeration by 2030.
                                                                                                                          THE EMA MAGAZINE • ISSUE MAY–JUNE 2021

                                          in carbon emissions related to
Project evaluation                        energy production, transmission,
                                          and distribution.                       Author’s profile:
Prior to the water-cooled refrigeration
project at Waitrose Norwich, there                                                Stuart McLeod is a Project
was approximately 700kgs of R448A                                                 Manager for Oaksmere Design with
                                          Future plans
(GWP 1390) entrained in the system.                                               responsibility for delivering client
The water-cooled refrigeration project    Leveraging innovation in                energy efficiency projects. Formerly
reduced the entrained volume to           refrigeration design has led to         an Energy Manager for Morrisons
64kgs of R448A across the cold rooms,     massive reductions in energy            Supermarkets, Stuart has a range of
52.1kgs of R1270 (GWP 2) across the       consumption and GHG emissions           experience across HVAC, lighting,
main cabinets and 3.35kgs of mixed        from refrigeration. As we continually   refrigeration, demand response and
hydrocarbons (with a GWP of less          strive to meet the challenge of         sustainability reporting.
                                                                                                                          29
You can also read
