TEKLAB Product catalogue 2018
Product catalogue 2018

www.kontram.fi/en
TEKLAB Product catalogue 2018
Copyright: TEKLAB®   1
TEKLAB Product catalogue 2018
Kontram’s TEKLAB group specializes in providing modular and multipurpose electric workstations and
laboratories for education and industry.

TEKLAB solutions are used for example in following areas:

EDUCATIONAL                                                    INDUSTRIAL

   Electronics laboratories                                     Electrical industry
   Electrical engineering laboratories                          Electronics industry
   Physics laboratories                                         Process industry
   Calibration laboratories                                     Defence
   ICT laboratories                                             Pharmaceutical
   Aviation laboratories                                        Marine
   Automotive laboratories                                      Food & beverage
   Industrial training centres

More than 20 000 TEKLAB workstations have been delivered to more than 100 countries during our 35 years of
existence. Thus, our experience provides us leading knowledge of customer requirements in demanding industrial
and educational environments.

TEKLAB is world widely well known as a reliable partner with longlife quality products. We are committed to
support our customers and partners by providing industry-leading expertise with complete service all the way
from product development to turn-key delivery.

All specifications in the catalogue are subject to change without notice.

Copyright: TEKLAB®                                                                                        2
TEKLAB Product catalogue 2018
TABLE OF CONTENTS
Laboratory examples ................................................................................................................................................................................................. 4
Laboratory products ................................................................................................................................................................................................... 6
Workstations ................................................................................................................................................................................................................... 13
Accessories and fittings… ...................................................................................................................................................................................... 21
Supply units..................................................................................................................................................................................................................... 31
Variable DC power supplies ............................................................................................................................................................................... 33
Fixed DC power supplies ......................................................................................................................................................................................36
1 phase AC power supplies.................................................................................................................................................................................. 37
3 phase AC power supplies ................................................................................................................................................................................ 40
1 phase AC connections ....................................................................................................................................................................................... 42
3 phase AC connections ........................................................................................................................................................................................ 43
Connections .................................................................................................................................................................................................................. 44
Multimeters ....................................................................................................................................................................................................................47
LCR meters..................................................................................................................................................................................................................... 50
Function generators ..................................................................................................................................................................................................51
Oscilloscopes ................................................................................................................................................................................................................. 53
Power analyzers ......................................................................................................................................................................................................... 56
RF equipment.............................................................................................................................................................................................................. 58
Calibration equipment ......................................................................................................................................................................................... 59
Test equipment .......................................................................................................................................................................................................... 65
Biomedical test equipment .............................................................................................................................................................................. 68
Soldering equipment ...............................................................................................................................................................................................71

Copyright: TEKLAB®                                                                                                                                                                                                     3
TEKLAB Product catalogue 2018
Laboratory examples

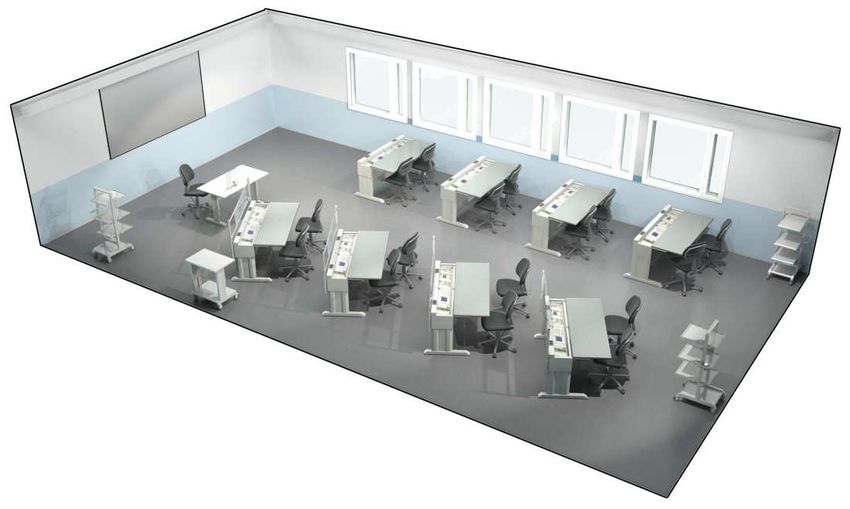

MULTIPURPOSE HELP3 LABORATORY
TEKLAB Help3 workstation is based on a unique multipurpose construction, which enables theory lessons and
practical training in one room. Thanks to the compact size, laboratories can also be built into normal classrooms
with limited space.

Help3 workstations are an excellent solution for basic electrical engineering laboratories, physics laboratories as
well as for teaching the basics of electrical systems to ICT and car technicians and engineers.

MULTIPURPOSE WORKSTATION CONCEPT

Help3 workstations have modular build-in electrical instruments
which can be selected according to customer needs. These
instruments can be hidden under sliding table top, which
enables transforming the laboratory workstation into a normal
theory table. The cover can also be locked offering a safe place
for storing the equipment.

Optionally, the workstation cover can be equipped with electric
lock with remote control via TEKLAB TLC laboratory
                                                                     Help3 workstation:        Help3 workstation:
management software.
                                                                     theory mode               practice mode

SAFE AND PRACTICAL LABORATORY

All TEKLAB workstations are equipped with electrical protection
systems for safe working.

As instruments and computer connections are integrated into
the workstation, the workspace is practical to use.

Practical design is also aesthetic.

   TYPICAL DELIVERY CONTENT
    Help3 workstations
    Integrated instruments
    Integration place for training kits
    Racks and connections for computers
    Technical furniture (cabinets, drawers,
     chairs)
    Designing
    Installation and training

Copyright: TEKLAB®                                                                                              4
TEKLAB Product catalogue 2018
Laboratory examples

MULTIPURPOSE HELP5 LABORATORY
Help5 motorised multipurpose workstations offer great flexibility for technical laboratories: motorised panels can
be driven up and down to transform a theory classroom into a technical laboratory - and vice versa. Considerable
savings are achieved thanks to the possibility to modify classrooms for different purposes.

TRAINING AREAS

Help5 motorised workstations are the right choice e.g. for electronics and telecommunication training
laboratories. Together with TLC laboratory control software, Help5 workstations convert the laboratory into a
multifunctional room.

INTEGRATED CONSTRUCTION

Help5 workstation is equipped with a modular instrument panel
for electrical instruments such as power supplies and measuring
equipment. Integration releases more space on tabletop providing
an ergonomic workplace.

Help5 workstation includes also an integrated storage space. This
storage space is suitable for storing training sets, learning materials
and accessories. When the panels are driven down and locked, the
equipment is practically stored in a safe place.

The multipurpose concept brings savings in both space and time
                                                                             Help5 workstation
because all laboratory equipment and components are always
easily available in the workstation.

UNIQUE FUNCTIONALITY

Help5 laboratory can be controlled via TEKLAB TLC software on the teacher’s computers.

Centralized software control converts the laboratory into a theory classroom in just 30 seconds. Besides this, the
teacher can for example:
                                                                          WHY LABORATORY BASED ON HELP5
 Control of the students' motorised workstations (UP / DOWN /
                                                                          WORKSTATIONS?
  LOCK)
 Control of the electricity in the students’ workstations (ON /           2 in 1 concept: laboratory work and
  OFF)                                                                      theory lessons in one room
 Limit the output voltage and current on power supplies                   All instruments and training equipment
 Supervise and lock students' computers                                    available by a press of a button
                                                                           Suitable for different types of
Students can control the instruments via TEKLAB Client                      laboratories:
software. In addition, datalogging features are available for                 • Electrical
saving measurement results.                                                   • Electronics
                                                                              • Automation etc.

Help5 laboratory in theory teaching mode. All equipment is   Help5 laboratory in practice mode. All equipment is
safely stored inside the workstations.                       practically available.

Copyright: TEKLAB®                                                                                                 5
TEKLAB Product catalogue 2018
Laboratory products

TLC
TEKLAB Laboratory Control software
TEKLAB Laboratory Control (TLC) software is especially designed for educational laboratories. With TLC software,
teacher is able to supervise and control the whole laboratory easily.

TEKLAB multifunction workstations and devices, together with TEKLAB Laboratory Control software, turn the work
premises into a genuine multipurpose laboratory.

TLC software enables teacher to control workstations and devices from a single computer. Versatile group control
functions with preset values make the software an efficient and convenient tool for the teacher.

There are three versions of the software available, TLCLITE, TLCBASIC and TLCPRO.

TLCLITE controls motorized workstations in the laboratory:

 Lifting / lowering motorized panels in Help5 workstations
 Workstation locking in Help5 workstations

TLCBASIC includes TLCLITE features adding the following:

   Connection permission for electricity
   Electricity off -control
   Electricity on -status information
   Emergency switch -status information
   Call button -status information
   Centralized safety test for RCDs

TLCPRO includes all features listed above, adding the following:

 Group control of student power supplies: settings, limitations and
  locking
 Group control of student devices: settings, two-way
  communication
 Real time supervision / locking of student computers
 Limitation of internet access / application access of student
  computers
 Display sharing for whole classroom                                                         Teacher’s laboratory
                                                                                              control software

    Software     Description
    TLCLITE      TEKLAB Laboratory
                                                                       Student workstations
                 Control, lite
                                            Local Area Network (LAN)

    TLCBASIC     TEKLAB Laboratory
                 Control, basic
    TLCPRO       TEKLAB Laboratory
                 Control, large

Copyright: TEKLAB®                                                                                            6
TEKLAB Product catalogue 2018
Laboratory products

TMLC
TEKLAB Mobile Laboratory Control
Unique TEKLAB Mobile Laboratory Control (TMLC) gives teacher a possibility to control a laboratory remotely using
a mobile device such as a tablet or a smart phone.

Teacher can for example open the laboratory for small study groups and supervise students' work via live video
broadcast from the laboratory.

With TMLC the teacher can:

 Open the laboratory by unlocking workstations and enabling
  electricity
 Close the laboratory by switching power off and driving motorised
  instruments panel down. Workstations can also be locked.
 Receive status information if emergency stop or call button is being
  pressed
 Apply voltage and current limitations to power supplies (if network
  controlled power supplies included)
 Supervise laboratory work via web camera
 Supervise and control students´ computers (if TLCPRO software
  included)

TMLC includes:

   TMLC software for a mobile device
   Tablet device
   Web camera for laboratory
   WLAN access point

    Code            Description
    TMLC            TEKLAB Mobile Laboratory Control                                                 Teacher’s or school
                                                                                                     personnel’s mobile device
                                                                                                     running TMLC software

LABORATORY 2, 3….                                      LABORATORY 1

                                                                                  WLAN access         Teacher
                                                                                  point               workstation
                       T

                S      S     S
                                                       Local Area Network (LAN)

                S      S     S                                                         Student        Student              Student
                                                                                       workstation    workstation          workstation
                S      S     S

                                                                                       Student        Student              Student
                                                                                       workstation    workstation          workstation

                                                                                       Student        Student              Student
                                                                                       workstation    workstation          workstation

Copyright: TEKLAB®                                                                                                                   7
TEKLAB Product catalogue 2018
Laboratory products

TEKLAB Client software
Software for instrument control
TEKLAB Client software including fast two-way communication and
versatile user interfaces enable e.g. automatic measurements
without programming.

TEKLAB Client devices are connected to the local network
(LAN/WLAN), which enables also central device control via TEKLAB
TLC laboratory management software.

The devices come with uniform user interfaces, both in terms of
visual look and operation, including e.g. save functions for set and
measured values. The advanced datalogging function enables e.g.
simultaneous follow-up and saving of several quantities, or saving of
an individual value by the snapshot function. The advanced TCP/IP
based LabVIEW drivers speed up making own applications. Manual
operation is also possible for all devices.

 Software               Description
 ACPETHERNET            TCP / IP interface, Client software and
                        LabVIEW driver for ACP series AC power
                        supplies
 TLPETHERNET            TCP / IP interface, Client software and
                        LabVIEW driver for TLP series DC power
                        supplies

Copyright: TEKLAB®                                                      8
TEKLAB Product catalogue 2018
Laboratory products

LABORATORY TUTORIAL
 “Introduction to electric laboratory” – PowerPoint show, duration
  approx. 2 hours
 The presentation is used to introduce electrical laboratory
  environment to new students
 The presentation includes following topics:
    • Electrical safety
    • Electrical protection systems
    • ESD
    • Electrical laboratory environment
    • Electrical workstation description

    Model                          Description
    LABTUTOR                       Laboratory tutorial

MEASURING INSTRUMENT TRAINING SET
 Tutorials for measuring equipment
   • Safe multimeter measurements DVD
   • Oscilloscope, probe and function generator tutorials in PDF
     format
   • Oscilloscope functions poster

    Model                          Description
    LABMEAS                        Measuring instrument training
                                   set

COLOUR OPTIONS FOR LABORATORY
 Choose your own colour scheme for the laboratory
 Colour scheme available for cabinet doors, drawers,
 workstation sides & back plates and chairs

    Model                          Description
    LABCOLOUR                      Colour scheme for the
                                   laboratory

LOCKING SYSTEM FOR LABORATORY FURNITURE
 Laboratory fittings can be equipped with 3-level locking system,
 which can be used to limit access from unauthorized persons

    Model                          Description
    LABLOCK                        3-level locking system for
                                   fittings

Copyright: TEKLAB®                                                    9
Laboratory products

LABORATORY TOOL PACKAGE
 High speed rotary tool, 8 pcs
   • No-load speed, 10 000 – 33 000 rpm, 10 speed levels
   • Collet lock
   • Twist Nose Cap (no wrench required for changing accessories)
   • Replaceable brushes
   • Soft grip for reduced vibration and a better handling
   • 25 pcs accessories
 Vice, 8 pcs
   • Rubber suction foot
   • Can be swivelled 360° with an adjustable tilt angle of up to 90°
 Circuit board holder, 8 pcs
   • Max. PCB size: 160 x 235 mm
   • Can be rotated by 360°; in 15° steps interlockable
   • PCB assembly with spring holders
   • Turnable arm with clamping pad for keeping the components
     in place
   • Antistatic construction
 Safety goggles, 24 pcs
   • Frameless design for distortion free vision
   • Cushioned temple pads for superior comfort and grip
   • Clear polycarbonate lens for protection against low energy
     impact

    Model                          Description
    LABTOOL                        Laboratory tool package

MAINTENANCE PACKAGE FOR LABORATORY
 Maintenance package for laboratory
 The maintenance program is designed to keep the laboratory in
  proper condition
 Regular tests once a year ensure that the work is done
  comfortably and more safely
 Maintenance program includes:
   • Test reports
   • Safety tester
   • Safety test leads
   • Schuko-plug test cable
   • Digital multimeter
 Program includes e.g. following tests:
   • PE-conductor continuity test
   • Conductor insulation resistance tests
   • Fault loop / RCD test
   • Device tests

    Model                          Description
    LABCHECK                       Laboratory maintenance
                                   program

Copyright: TEKLAB®                                                      10
Laboratory products

SAFETY PACKAGE FOR LABORATORY
 First aid cabinet
    • Cabinet to be fixed to a wall including a variety of first aid
      products. All products are easily available and protected
      against dust and moisture by transparent lids.
    • Blood stoppers
    • Protection kit
    • Triangular bandages
    • Would cleansers
    • Plaster dispenser + 85 pcs plasters
    • First aid instructions

    Model                            Description
    LABSAFE                          Laboratory safety package

ESD PACKAGE FOR LABORATORY
 ESD test station, 1 pc
   • ESD wrist strap and shoe tester
   • Instructions on the panel
   • Wall fastening set
 ESD jackets, 20 pcs
   • Unisex model
   • Semiconductive material
   • Washable without losing conductive properties
 ESD covers for shoes, 100 pairs
   • ESD shields with conducting tape for shoes

    Model                            Description
    LABESD                           Laboratory ESD package

TOOL SET FOR INSTALLING WORKBENCH
 Professional tool set for workbench installation
 10 parts
 Tools included:
    • Long arm hex key, 5.0 mm
    • Long arm hex key, 3/32 inch
    • Long arm Torx key, T10
    • Long arm Torx key, T20
    • Long arm Torx key, T25
    • Long arm Torx key, T30
    • Screwdriver, PZ3
    • Screwdriver, PZ2
    • 13 mm combination spanner, 180 mm
    • 19 mm combination spanner, 250 mm
    • Tool roll for tools, 390x320 mm

    Model                            Description
    INSTOOLSET                       Tool set for installing
                                     workbench

Copyright: TEKLAB®                                                     11
Laboratory products

ESD PROTECTION EQUIPMENT
 Electrostatic discharges cause frequently disturbances in electronic devices. Sensitive components can be
  destroyed immediately or the fault might come out later.
 TEKLAB offers ESD-protection systems for laboratories and workshops, which help to avoid ESD-based problems.

    Model                    Description
    ESDSET1                  ESD grounding set for workstation:
                             ESD connection box, workstation
                             frame ESD grounding set, ESD wrist
                             strap grounding set, 2 pcs ESD wrist
                             straps
    ESDMAT1                  ESD floor mat, 2000 x 1250 mm,
                             ESD connection wire

Copyright: TEKLAB®                                                                                     12
Workstations

Basic workstation
TABBL, EP15

Basic workstations are an economic solution for applications where only entry level instruments are needed. The
energy panel is modular and it can be equipped with electrical supply systems, compressed air outlets and data
connections.

 Workstation frame                                               • Stepless height adjustment: 650-900 mm
   • ESD-painted steel frame                                      • Load capacity 300 kg, evenly loaded
   • Four steel tube legs                                       Device panel
   • Two spacer bars between legs for stable                      • Device panel for integrated electrical instruments
     construction                                                 • Structure of the panel made of ESD-painted steel
   • Table top with laminate surface, durable rounded             • Compact design, depth and height only 150 mm
     plastic edges, colour light speckled grey                    • Panel equipped with modular device system:
   • The core of the optional ESD-table top, as well as             Devices can be easily added
     the laminate of the coating are semi-conductive              • Device panel is slanted to offer best usability
   • The frame can be equipped with uprights for                  • Installed on table top - compatible with all
     placing accessories                                            workstation models
   • Versatile and adjustable accessories facilitate
     ergonomic component storage and selection

    Workstation          Workstation      Table top size,             Panels            Panel dimensions, W x D x H
    frames,              frames,          W x D (mm)                                    (mm)
    standard table top   ESD table top                                EP15L12           1200 x 150 x 150
    TABBL12              ETABBL12         1200 x700                   EP15L15           1500 x 150 x 150
    TABBL15              ETABBL15         1500 x 700                  EP15L18           1800 x 150 x 150
    TABBL18              ETABBL18         1800 x 700

    Module               Description                                             Width, mm
    EP15SU1              1-phase supply unit                                     300
    EP15SU1E             1-phase basic supply unit                               100
    EP15SU3              3-phase supply unit                                     400
    EP15SU3E             3-phase basic supply unit                               200
    EP15PO2              Compressed air connection, 10 bar, 2 outputs            100
    EP15POA              Adjustable compressed air output, 0.5-10 bar, gauge     200
    EP15SCHUKO4          1-phase schuko socket outlets, 4 pcs                    200
    EP15BS1363           1-phase UK socket outlets, 4 pcs                        200
    EP15CEE3             3-phase socket, CEE, 16 A                               100
    EP15PS3              3-phase 4 mm safety terminal output                     200
    EP15ETH              Ethernet connection, RJ45                               100
    EP15USB2             USB connection, 2 pcs                                   100
    EP15DCA305PS         Adjustable DC power supply, 0-30 V, 0-5 A               300
    EP15DCF242           Fixed DC power supply, 24 V, 2 A                        200
    EP15DCF123           Fixed DC power supply, 12 V, 3 A                        200
    EP15DCF3355          Fixed DC power supply, 3.3 V, 5 A + 5 V, 5 A            200

Copyright: TEKLAB®                                                                                              13
Workstations

Multipurpose workstation
HELP3

TEKLAB Help3 workstation is based on a unique multipurpose construction, which enables theory lessons and
practical training in one room.

Help3 workstations are an excellent solution for basic electrical engineering laboratories, physics laboratories as
well as for teaching the basics of electrical systems to ICT and car technicians and engineers.

Help3 multifunction workstation is a cost-effective solution for training laboratories. Thanks to the compact size,
the laboratory can be built into rooms with limited space.

 Multipurpose construction: electric workstation and            Workstation frame and instrument panel made of
  theory desk in one solution                                     ESD powder painted steel
 Built-in instrument panel for integrated electrical            L-shaped ergonomic legs for more space under
  instruments, instrument panel located under a sliding           workstation
  table top                                                      Adjustable height 710-780 mm
 Sliding table top movable forwards and backwards to            Adjustment screws under the workstation to
  enable / hide the instrument panel                              eliminate the roughness of the floor
 Sliding table top can be locked to prevent access to           Table top with laminate coating, durable plastic
  the instrument panel                                            edges, colour light grey
 Modular instrument panel:                                      4 pcs sockets in the energy channel located at the
    • Devices can be added afterwards                             rear part of the workstations. Sockets are available
    • Instrument panel is slanted to achieve best                 also when the table top is in closed position.
      possible usability                                         Can be equipped with upright tubes for fixing
    • Integrated modules are covered with polyester               accessories such as shelves, display holders or frames
      film to ensure long lifetime for the markings in the        for training panels
      front panel

    Workstation frames     Table top size, W x D (mm)      Full modules max.
    HELP3L12               1210 x 580-810                  4½
    HELP3L15               1460 x 580-810                  5½
    HELP3L17               1710 x 580-810                  6½

    Options for Help3 workstations
    LOCK3M                Manual lock for cover
    LOCK3NET              LAN-controlled electric lock for cover, power on/off control
    WKS820717             Mini cabinet under the table top, lockable, dimensions:
                          255(W) x 330(D) x 189(H) mm
    HELP3SOCKEU           4 pcs schuko sockets under the workstation
    HELP3SOCKUK           4 pcs UK sockets under the workstation
    HELP3SOCKUS           4 pcs US sockets under the workstation

Copyright: TEKLAB®                                                                                                14
Workstations

Multipurpose workstation
HELP5

                                                             Help5: device panel
                                                             available

   Help5: device panel + storage space available                                        Help5: flat work surface

Help5 motorised workstation is the right choice e.g. for electronics and telecommunication training laboratories.
Considerable savings are achieved thanks to the possibility to modify classrooms for different purposes. Valuable
storing space is also saved when laboratory equipment, components and training kits are available in the
integrated storage unit.

Together with TLC laboratory control software, Help5 workstations convert the laboratory into a multifunctional
room.

 Multipurpose construction: electric workstation and           Motorized panel can be used in three positions: down
  theory desk in one solution                                    (flat work surface), middle (device panel available), up
 Construction includes a fixed table section (1806 /            (device panel + storage space available)
  2000 x 620 mm) in the front and a motorized panel             While panel is down, devices and equipment are safe
  section (1806 / 2000 x 470 mm) in the rear                     from unauthorized use
 Motorized panel section includes a built-in device            Panel can be driven either using a manual controller,
  panel for integrated electrical equipment and a                or using laboratory control software
  storage unit below it                                         Safety switch between the motorised panel and
    • Device panel is modular: devices can be added              workstation frame for finger protection
      later on. Integrated modules are covered with             Workstation body made of ESD painted steel
      polyester film to ensure long lifetime for the            L-shaped ergonomic legs in the front
      markings in the front panel                               Table tops with laminate surface, durable rounded
    • Storage space is suitable for storing training kits,       plastic edges, colour light speckled grey
      motors, soldering equipment etc. Storing space is         The core of the optional ESD table top, as well as the
      equipped with sockets and Ethernet connection.             laminate of the coating are semi-conductive
      Storage space dimensions, HELP5L20: 1780(W) x             Load capacity for workstation: 250 kg
      420(D) x 268(H) mm, HELP5L18: 1586(W) x 420(D) x          Adjustment screws to eliminate the roughness of the
      268(H) mm                                                  floor
 Motorized panel equipped with fast, silent and                Integrated connections: USB, 2 x Ethernet, 4 x socket
  service free electric motors for moving panel up /            Can be connected to LAN and used with TLC
  down                                                           software

 Workstation frames, standard     Workstation frames, ESD table      Table top size, W x D (mm)     Full modules, max.
 table top                        top
 HELP5L18                         EHELP5L18                          1806 x 1090                    6¾
 HELP5L20                         EHELP5L20                          2000 x 1090                    7¾

 Options for Help5 workstations
 HELP5PC1                         Integrated cable series for a desktop computer: Includes: opening on the panel top,
                                  HDMI signal cable, socket for powering a display
 HELP5PC2                         Integrated cable series for 2 desktop computers: Includes: 2 pcs openings on the panel
                                  top, 2 pcs HDMI signal cables, 2 pcs sockets for powering displays

Copyright: TEKLAB®                                                                                                   15
Workstations

TowerLine workstation
TABTL, PANTL

TowerLine workstation offers great flexibility for workshops and laboratories thanks to its modular construction.
Tall legs include perforated tubes that enable placing accessories to different heights. By this, the workstation can
be adjusted to meet customer specific needs. For example, when plenty of devices are used, it is possible to place
two instruments panels on top of each other.
TowerLine workstations can be attached to each other using only one leg in the middle. This enables creating
practical and aesthetic working environments.

 Workstation frame                                             Device panel
   • ESD-painted steel frame                                      • Panel for integrated electrical equipment
   • L-shaped ergonomic legs, height 1920 mm                      • Structure of the panel made of ESD powder
   • Legs equipped with perforated uprights for                     painted steel
     placing accessories to different heights                     • Panel equipped with modular device system:
   • Versatile and adjustable accessories enable                    devices can be easily added and removed
     ergonomic and practical working environment                  • Integrated modules are covered with polyester
   • Vertical cable channels inside legs                            film to ensure long lifetime for the markings in the
   • Horizontal cable channel below the table top at                front panel
     rear part                                                    • Energy saving LED lighting integrated at the
   • Spacer bar between legs for stable construction                bottom of the panel
   • Load capacity: 300 kg, evenly loaded                         • Panel top can be opened
   • Adjustment screws to eliminate the roughness of              • Height from the table top can be freely chosen
     the floor                                                    • All connectors are located at the bottom of the
   • Table top with laminate surface, durable rounded               panel, which enables placing the panel against a
     plastic edges, colour light speckled grey                      wall
   • The core of the optional ESD-table top, as well as
     the laminate of the coating are semi-conductive
    Workstation frames, standard table top    Workstation frames, ESD table top             Table top size, W x D (mm)
    TABTL16                                   ETABTL16                                      1575 x 750
    TABTL16X                                  ETABTL16X                                     1575 x 750
    TABTL19                                   ETABTL19                                      1880 x 750
    TABTL19X                                  ETABTL19X                                     1880 x 750
    TABTLC                                    ETABTLC                                       CORNER MODEL
    X = extension frame (one leg only)

    Panels                Full modules max.           Panel width (mm)
    PANTL16               6                           1550
    PANTL19               7¼                          1880
    PANTLC                4                           CORNER MODEL
    Options for TL workstations               Description
    PANSOCKETLEU                              2 x 2 pcs schuko sockets under device panel
    PANSOCKETLUK                              2 x 2 pcs UK sockets under device panel
    PANSOCKETLUS                              2 x 2 pcs US sockets under device panel

Copyright: TEKLAB®                                                                                                       16
Workstations

Concept workstation
TABSYSL, PANSYSL

Concept workstation is a good solution for rooms where it is preferred to have a direct view forward, or to allow
natural light to enter the space. The top of the panel can be used as a practical plane surface.

 Workstation frame                                             Device panel
   • ESD powder painted steel frame                               • Panel for integrated electrical equipment
   • L-shaped ergonomic legs                                      • Installed on the table top
   • Table top with laminate surface, durable                     • Structure of the panel made of ESD powder
     rounded plastic edges, colour light speckled                   painted steel
     grey                                                         • Panel equipped with modular device system:
   • Core of the ESD-table top, as well as the                      devices can be easily added and removed
     laminate of the coating are semi-conductive                  • Integrated modules are covered with polyester
   • Adjustable height: 670 – 1120 mm                               film to ensure long lifetime for the markings in
   • Adjustment screws to eliminate the roughness                   the front panel
     of the floor                                                 • Panel top can be opened
   • Load capacity 500 kg, evenly loaded                          • All connectors are located at the bottom of the
                                                                    panel which enables placing the panel against
                                                                    a wall

    Workstation frames, standard table top    Workstation frames, ESD table top      Table top size, W x D (mm)
    TABSYSL15                                 ETABSYSL15                             1500 x 900
    TABSYSL18                                 ETABSYSL18                             1800 x 900
    TABSYSL20                                 ETABSYSL20                             2000 x 900

    Panels                Full modules max.         Panel length (mm)
    PANSYSL15             5¾                        1500
    PANSYSL18             7                         1805
    PANSYSL20             7¾                        2000

Copyright: TEKLAB®                                                                                                17
Workstations

Heavy duty workstation
TABHEAVYH, PANSYSH

This model is designed to withstand heavy-duty use. It is equipped with an extra thick table top and a strong steel
frame. Also this model can be customized with a wide range of accessories.

 Workstation frame                                            Device panel
   • ESD powder painted steel frame                              • Panel for integrated electrical equipment
   • Four legs                                                   • Structure of the panel made of ESD powder
   • Three spacer bars / supports between legs for                 painted steel
     stable construction                                         • Panel equipped with modular device system:
   • Frame includes uprights for the device panel                  Devices can be easily added and removed
     and perforated 500 mm backplates between                    • Integrated modules are covered with polyester
     the uprights                                                  film to ensure long lifetime for the markings in
   • Accessories above the table top are attached to               the front panel
     perforated uprights and can be positioned to                • Energy saving LED lighting integrated at the
     suit individual needs                                         bottom of the panel
   • Versatile and adjustable accessories facilitate             • Panel top can be opened
     ergonomic component storage and selection                   • Height from the table top can be chosen
   • The tabletop has a core of plywood and                        between 370, 425 or 480 mm
     chipboard, laminate surface and plastic edges,
     thickness 50 mm
   • Adjustable height: 750-1000 mm
   • Table can be fastened to floor
   • Load capacity 500 kg, evenly loaded

    Workstation frames, standard table top      Table top size, W x D (mm)
    TABHEAVYH155                                1530 x 750
    TABHEAVYH205                                2030 x 750

    Panels                Full modules max.        Panel length (mm)
    PANSYSH15             5¾                       1530
    PANSYSH20             7¾                       2030

Copyright: TEKLAB®                                                                                           18
Workstations

Electrically / manually adjustable Concept workstation
TABSYSHE/M, PANSYSH

An easy way to adapt one workstation for several users is to have it equipped with electrical height adjustment. At
the same time, electrical height adjustment enables the workstation to be suitable for standing work –
ergonomics at its best.

 Workstation frame                                                Device panel
   • ESD powder painted steel frame                                  • Panel for integrated electrical equipment
   • L-shaped ergonomic legs                                         • Structure of the panel made of ESD powder
   • Spacer bar between legs for stable construction                   painted steel
   • Table top with laminate surface, durable                        • Panel equipped with modular device system:
     rounded plastic edges, colour light speckled                      Devices can be easily added and removed
     grey                                                            • Integrated modules are covered with polyester
   • The core of the ESD-table top, as well as the                     film to ensure long lifetime for the markings in
     laminate of the coating are semi-conductive                       the front panel
   • Electrically / manually adjustable height: 700 –                • Energy saving LED lighting integrated at the
     1100 mm                                                           bottom of the panel
   • Frame includes uprights for the device panel                    • Panel top can be opened
     and perforated 500 mm backplates between                        • Height from the table top can be chosen
     the uprights                                                      between 370, 425 or 480 mm
   • Accessories are attached to perforated uprights
     and can be positioned to suit individual needs
   • Versatile and adjustable accessories facilitate
     ergonomic component storage and selection
   • Adjustment screws to eliminate the roughness
     of the floor
   • Load capacity 200 kg, evenly loaded

    Workstation frames, standard table top       Workstation frames, ESD table top      Table top size, W x D (mm)
    TABSYSH155E                                  ETABSYSH155E                           1530 x 900
    TABSYSH155M                                  ETABSYSH155M                           1530 x 900
    TABSYSH185E                                  ETABSYSH185E                           1830 x 900
    TABSYSH185M                                  ETABSYSH185M                           1830 x 900
    E = Electrical height adjustment, M = Manual height adjustment

    Panels                 Full modules max.           Panel length (mm)
    PANSYSH15              5¾                          1530
    PANSYSH18              7                           1830

Copyright: TEKLAB®                                                                                                   19
Workstations

Trolleys
MOBILELAB

MOBILELAB4                                                MOBILELAB2

Trolleys offer great mobility for a large number of integrated devices. Trolleys can be equipped with stands and
cabinets for creating a practical mobile workplace

   ESD powder painted steel construction
   4 wheels, diameter 80 mm, two with brakes
   Handle for easy moving of the trolley
   Built-in device panel for integrated electrical equipment
   Device panel is modular: devices can be easily added and removed
   Integrated modules are covered with polyester film to ensure long lifetime for the markings in the front panel
   MOBILELAB4 model includes 4 levels for devices, max 10 ½ full modules
   MOBILELAB2 model includes 2 levels for devices, max 5 ½ full modules
   2 pcs sockets at the back
   Perforated upright tubes for fastening accessories to different heights
   Versatile and adjustable accessories enable ergonomic and practical working environment
   MOBILELAB2 includes bottom shelf
   Rubber mat on top of the surface
   Dimensions: 780(W) x 720(D) x 1630(H) mm

      Models                       Description
      MOBILELAB4                   Electric trolley, 4 levels
      MOBILELAB2                   Electric trolley, 2 levels

      Options                      Description
      MOBILELABSUK                 2 pcs UK sockets
      MOBILELABSUS                 2 pcs US sockets
      MOBILELABBH                  Holder for compressed air
                                   bottle
      MOBILELABSRW                 Soft rubber wheel set

Copyright: TEKLAB®                                                                                           20
Accessories and fittings

ACCESSORIES

TEKLAB workstations can be equipped with versatile accessories to make the workplace more practical. Different
kinds of auxiliary tops give new possibilities to combine loose instruments, tools and e.g. circuit diagrams and
drawings to the workstations ergonomically. Accessories are attached to the perforated uprights of the
workstation.

The standard colour of the workstations and fittings is light grey – RAL7035. However, there are many optional
colours available.

PC RACKS
 In TEKLAB workstations desktop
  computers can be placed under the
  table top saving workspace
 The PC racks are lockable, lock not
  included (except WHV861120)
 ESD powder painted steel
  construction
 Check the table for compatibility (X =      CPULUKIT,     CPULUKIT3     WTL820303         WHV860552,     WHV861120
  available)                                  CPULUKIT5                                     WHV860740

    Model            Description      Max size of PC    HELP5         HELP3         Concept       Heavy duty    TowerLine
                                      W x D x H, mm     workstation   workstation   workstation   workstation   workstation
    CPULUKIT         PC rack,         230 x 430 x 430                               X             X             X
                     keyboard
                     stand
    CPULUKIT3        PC rack          200 x 400 x                     X
                                      380
    CPULUKIT5        PC rack,         230 x 430 x 430   X
                     keyboard
                     stand
    CPUVTLUKITT      PC rack,         230 x 430 x 430   X                           X             X             X
                     extendable
                     shelf
    WTL820303        PC holder        >150 x 500 x 85                                                           X
    WHV860552        PC shelf, foot   100-240 x 450                   X             X
                     attachment       x 430
    WHV860740        PC shelf, foot   100-240 x 450     X                                                       X
                     attachment       x 430
    WHV861120        PC cabinet,      325 x 550 x 560   X                           X             X             X
                     extendable
                     shelf

Copyright: TEKLAB®                                                                                                  21
Accessories and fittings

DISPLAY HOLDERS
 Fixing a display to a separate holder gives more workspace on the
  table top
 Adjustable display holder improves work ergonomics

    Models                         Description
    WSA93035002                    Display holder
                                   Display holder for TL
    WTL93035002                    workstation
    WSA93035003                    Display holder with keyboard        WSA93035002   WSA93035003   LCDKANL
                                   and mouse stand
    WTL93035003                    Display holder with keyboard
                                   and mouse stand for TL
                                   workstation
    LCDKANL                        Display holder to be
                                   attached to horizontal
                                   surface

KEYBOARD TRAY
 Keyboard tray is fastened under the table top

    Model                Size, W x D, mm     Max load, kg
    WHV92535001          630 x 400           10

DRAWER UNITS 45
 Select from two models: drawer trolley or drawer to be fixed
  under the table top
 Drawers equipped with ball-rails and central locking, load
  capacity 30 kg / drawer
 Drawers open 75 %, also 100 % models are available
 In trolley model four swivel wheels, two with brakes, diameter 100
  mm
 ESD-painted steel frame, trolley model equipped with ESD-mat
  and wheels
 Standard colour light grey – RAL7035, optional colours available
  for drawer fronts, see page 19
 Dimensions: 450(W) x 520(D) x 560(H) mm
                                                                       WKL60635001            WEV60635023

    Drawer to be fixed    Trolley model       Drawers
    under table top
    WKL60635001           WEV60635021         5 x 100 mm
    WKL60635002           WEV60635022         2 x 100 mm, 2 x 150 mm
    WKL60635003           WEV60635023         3 x 100 mm, 1 x 200 mm
    WKL60635004           WEV60635024         1 x 100 mm, 2 x 200 mm
    WKL60635007           WEV60635027         2 x 150 mm, 1 x 200 mm

Copyright: TEKLAB®                                                                                     22
Accessories and fittings

DRAWER UNITS 30
 ESD-painted steel frame
 To be fixed under table top. Drawer units can also be fixed one
  below other
 Small drawers for tools etc.
 Drawers equipped with a lock
 Drawer opening 80%
 Internal drawer dimensions: 253(W) x 429(D) x 130(H) mm

    Model               Size, W x D x H, mm            Max load,
                                                       kg
    WKS859330           300 x 454 x 150, 1 drawer      10               WKS859330   WKS860918
    WKS859340           300 x 454 x 222, 2 drawers     20
    WKS860972           350 x 450 x 470, cabinet       25
    WKS860918           350 x 450 x 555, cabinet,      25
                        wheels

UPRIGHT TUBES
 Perforated upright tubes for fastening accessories to workstations
 Made of ESD painted steel, 30(W) x 60(D) mm
 Removable

    Model                          Height
    WPE860024                      1359 mm
    WPE860142                      800 mm

SHELVES
 Structure made of ESD painted steel

    Model            Size, W x D, mm                  Max load kg
    WHT860804        490 x 300                        50
    WHT860805        490 x 400                        50
    WTL854480        1167 x 300                       80
    WTL854481        1467 x 300                       80
    WTL854484        1467 x 400                       80
    WTL854482        1773 x 300                       80
    WTL854485        1773 x 400                       80
    WTL820471        600 x 200, fixed to perforated   7
                     back panel
    WTL854479        CORNER MODEL FOR TL              80
                     WORKSTATION

PERFORATED BACK PANELS
 Structure made of ESD painted steel
 Can be used to attach accessories such as hooks or suspension rails
 Standard colour, RAL7035, optional colours available

    Model             Dimensions (W) x (H)
    WPT861501         468 x 389 mm
    WPT861511         718 x 389 mm
    WPT861516         871 x 389 mm
    WTL861526         1474 x 389 mm
    WTL861531         1774 x 389 mm
    WTL890411         CORNER MODEL FOR TL WORKSTATION

Copyright: TEKLAB®                                                                              23
Accessories and fittings

SUSPENSION RAILS AND PICK-UP BOXES
 Structure made of ESD painted steel

    Model            Description                             Max load
    WHL859150        Suspension rail, 492(W) x 100(H) mm     50 kg
    WTL859154        Suspension rail, 1493(W) x 100(H) mm    50 kg
    WTL859155        Suspension rail, 1799(W) x 100(H) mm    50 kg
    WTL839086        Suspension rail, 634(W) mm, fixed to    10 kg
                     perforated back panel
    WEL806207        Pick-up box, 105(W) x 165(D) x 75(H)    2 kg
                     mm

TRAINING PANEL FRAMES
 Frame for A4 training panels
 Easily fastening and removing of panels

    Model                Description
    A4FRAME12(D)         Training panel frame, width 1200 mm, one
                         row
    A4FRAME15(D)         Training panel frame, width 1500 mm, one
                         row
    A4FRAME18(D)         Training panel frame, width 1800 mm, one
                         row
    * D model includes two rows

LIGHT / BALANCER RAILS, LIGHT
 Rails
    • Rail can be used to attach light ergonomically above the
      workstation
    • Structure made of ESD-painted steel
    • Height and depth adjustment
 Light
    • Fluorescent tube light, 28 W (WSK861928), 54 W (WSK861954)
      or 2 x 54 W (WSKOL254, WSKOL254GB)
    • Illuminance: 750 lux (WSK861928), 1350 lux (WSK861954) or
      1200 lx (WSKOL254, WSKOL254GB) 1 meter
    • Dimmer with stepless adjustment (WSK861954)
    • Prism diffuser for illuminating work surface evenly
    • Width: 1230 mm, 1200 mm (WSKOL254, WSKOL254UK)
 LED light
    • Excellent energy efficiency
    • Long lifetime upto 50 000 hours
    • Illuminance: 1800 lux, 1 meter
    • Natural white colour, colour temperature 4000 K
    • Dimmer 10-100 %

    Model               Description
    WSK91835006         Light / balancer rail, width 1500 mm
    WSK91835008         Light / balancer rail, width 1800 mm
    WSK861928           Light, fluorescent tube, 28 W
    WSK861928           Light, fluorescent tube, 28 W, UK plug adapter
    WSK861956           Light, LED
    WSK861956           Light, LED, UK plug
    WSKOL254            Light, fluorescent tube, 2 x 54 W
    WSKOL254GB          Light, fluorescent tube, 2 x 54 W, UK plug

Copyright: TEKLAB®                                                       24
Accessories and fittings

CABLE TROUGHS
 Horizontal cable trough efficiently hides cables without
  preventing maintenance access
 Structure made of ESD painted steel

    Model             Description
    WTL854556         Cable trough, 1487(W) x 97(D) x 45(H)
                      mm
    WTL854557         Cable trough, 1793(W) x 97(D) x 45(H)
                      mm

DOCUMENT HOLDER
 Documents and drawings can be easily placed on the document
  holder with two magnets included
 Structure made of ESD painted steel

    Model             Size, W x D, mm     Max load, kg
    WSI92835008       290 x 330           5
    WTL92835008       Document holder for TL workstation

TOOL PANEL
 Perforated tool panel, includes 6 pcs hooks
 Structure made of ESD painted steel

    Model             Size, W x D, mm      Max load, kg
    WST92835010       267 x 305            5
    WTL92835010       Tool panel for TL workstation

AUXILIARY TOP
 Can be rotated 360º, tilt adjustment 0-25º
 Structure made of ESD painted steel

    Models             Size, W x D, mm   Max load, kg
    WSA92735001        560 x 340         15
    WTL92735001        560 x 340 mm aux. top for TL
                       workstation
    WSA92735002        605 x 405         15
    WTL92735002        605 x 405 mm aux. top for TL
                       workstation

Copyright: TEKLAB®                                              25
Accessories and fittings

HOOK SETS
 Hook sets can be fastened to perforated plates

      Models                       Description
      WHR855001                    Series 1, 20 pcs hooks
      WHR855003                    Series 3, 69 pcs hooks

FOOT REST
 Freestanding model
 Tilt adjustment 5-30 º

      Model                          Dimensions
      WTT860947                      550 x 350 mm

INSTRUMENT SUPPORT
 Support for different types of process instruments (pressure
  transmitters, switches etc.)
 Properly fastened instrument makes calibration and repair work
  easier
 Includes a plate and a tube bracket to be compatible with
  standard size devices

      Model                          Size, W x D x H, mm
      INSTRSU                        240 x 260 x 318

ROTATING BASE
   Body made of stainless steel
   Rubber work surface, blue
   Steel bearing
   ESD-protected
   Locking screw for disabling rotation
   Diameter 475 mm
   Height 14 mm
   Load capacity 100 kg

      Model                          Description
      WEP847145                      Rotating base

Copyright: TEKLAB®                                                 26
Accessories and fittings

WHEELS FOR WORKSTATIONS
 Diameter of wheels 100 mm, two wheels with brakes

    Model                         Description
    WPP834734                     Standard
    WEP860429                     ESD

TRANSPORT SKATES FOR WORKSTATIONS
 With transport skates, one person can easily move the workstation

    Model                         Description
    TRSK                          1 pair transport skates

Copyright: TEKLAB®                                                    27
Accessories and fittings

CABINETS
 Cabinets bring tidiness, order and efficiency to the work environment
 Cabinets are made of ESD-painted steel
 Available are practical accessories such as extendable shelves and drawers with ball-race rails, steel shelves,
  perforated plates for doors and side walls etc.

    Model               Description                       Dimensions,
                                                          W x D x H, mm
    TKCABIN1            Tool cabinet, two shelves,        1024 x 500 x 2000
                        perforated panels, hook series
                        60 pcs
    TKSARJA5            Tool set to be attached to
                        TKCABIN1 cabinet, 60 tools
    TKCABIN2            General purpose cabinet, two      800 x 400 x 1000
                        shelves
    TKCABIN5            Training kit cabinet, acrylic     1024 x 500 x 2000
                        glass doors, four shelves
    WVK821465           Perforated tool cabinet           720 x 255 x 300
    WRL820800           Perforated tool cabinet           720 x 255 x 400
    WRL836273           Shelf for the perforated          715 x 175 x 15
                        cabinet

 TKCABIN1 + TKSARJA5
                                                         TKCABIN2

 TKCABIN5                                            WVK821465, WRL820800

Copyright: TEKLAB®                                                                                             28
Accessories and fittings

CHAIRS
Standard models

C15PU                C20PU                    C25PU                    C40BL                  SADDLEL

    Standard         Description
    models
    C15PU            Stool, black, polyurethane, height adjustment, castors with load-sensitive brakes.
    C20PU            Chair, black, polyurethane, height/backrest/tilt adjustment, castors with load-sensitive brakes
    C25PU            Chair, black, polyurethane, height/backrest/tilt adjustment, castors with load-sensitive brakes, high
                     version, foot ring, glides
    C40BL            Chair, black, fabric, height/backrest/tilt/depth adjustment, castors with load-sensitive brakes
    SADDLEL          Saddle chair, black, leather, height/tilt adjustment, castors with load-sensitive brakes.

ESD models

C20PU-ESD            C25PU-ESD                  C40BL-ESD

    ESD models       Description
    C20PU-ESD        ESD chair, black, polyurethane, height/backrest/tilt adjustment, castors with load-sensitive brakes
    C25PU-ESD        ESD chair, black, polyurethane, height/backrest/tilt adjustment, castors with load-sensitive brakes,
                     high version, foot ring, glides
    C40BL-ESD        ESD chair, black, fabric, height/backrest/tilt/depth adjustment, castors with load-sensitive brakes

Options

    Options          Description
    ARE              3D armrests for Cxxxx chairs, adjustment of height and width with possibility to swivel
    ARE-ESD          4D ESD armrests for Cxxxx-ESD chairs, adjustment of height, width and depth with possibility to
                     swivel.
    CRING            Chrome-plated foot ring. Foot ring can also be retrofitted to our lower chair models by attaching it to
                     the chair column. Can be used on both ESD and non-ESD models. The height can be easily
                     adjusted without any tools.

Copyright: TEKLAB®                                                                                                   29
Accessories and fittings

WORKSTOP TROLLEY
   All wheels, diameter 100 mm, with swivel, two with brakes
   Includes a lower surface
   Height adjustable between 650 - 900 mm
   Loading capacity: 150 kg

      Model                               Dimensions, W x D x H, mm
      WESSAP507                           700 x 500 x 650-900
      WESSAP507ESD                        700 x 500 x 650-900, ESD

ERGO TROLLEY
   All wheels, diameter 100 mm, with swivel, two with brakes
   ESD-protected
   Height adjustable between 650 - 900 mm
   Loading capacity: 150 kg

      Model                               Dimensions, W x D x H, mm
      WES860422                           750 x 500 x 650-900

MULTI TROLLEYS
   An ergonomic mobile workstation
   Can be equipped with additional tops, shelves etc.
   ESD-protected
   Four swivel wheels, two with brakes
   Max load: 300 kg
   Ask for a separate catalogue for more information

      Model             Description               Size, W x D x H, mm
      WES72135001       Multi trolley 1           530 x 715 x 1130
      WES72135002       Multi trolley 1           780 x 715 x 1130
      WES72135003       Multi trolley 1           935 x 715 x 1130
      WES72235001       Multi trolley 2           530 x 715 x 1630
      WES72235002       Multi trolley 2           780 x 715 x 1630
                                                                        Multitrolley 1   Multitrolley 2
      WES72235003       Multi trolley 2           935 x 715 x 1630

TEST LEAD SETS
 Safety test leads are recommended to be used in laboratories
 Leads with insulated construction, 4 mm safety connectors

      Model                               Description
      JTESTROLLER                         Test lead rack with wheels,
                                          120 pcs safety test leads
      JTESTSET1                           10 pcs safety test leads

                                                                         JTESTROLLER

Copyright: TEKLAB®                                                                                        30
Supply units

SU1
1 phase supply unit

 Main switch for the workstation with START-position
 Green indicator light
 Integrated emergency switch, reset from the main switch
 Automatic restart prevention system e.g. after power failure
 16 A thermal overload protector
 Fault current protection 0.03 A for all devices connected to the
  supply unit
 Earth terminal screw
 Outlets for the device modules
 Dimensions: ½-module, 125(W) x 200(H) mm

SU3
3 phase supply unit

   Main switch for the workstation with START-position
   Green indicators
   Integrated emergency switch, reset from the operating switch
   Automatic restart prevention system e.g. after power failure
   Protection circuit for missing phase / wrong phase order
   16A thermal overload protector for each phase
   Fault current protection 0.03 A for all devices connected to the
    supply unit
   Earth terminal screw
   Connector for 3-phase (3L+N+PE) device module
   Outlets for the device modules
   Dimensions: ½-module, 125(W) x 200(H) mm

SU332
3 phase supply unit

   Main switch for the workstation
   Green indicator light
   Emergency switch
   Automatic restart prevention system eg. after power failure
   Protection circuit for missing phase/wrong phase order
   32 A and 16 A circuit breakers
   Fault current protection 0.03 A for all devices
   3-phase 32 A socket at the front panel
   Earth terminal screw
   Outlets for the device modules in the workstation
   Dimensions: 1 ½-module, 375(W) x 200(H) mm

Copyright: TEKLAB®                                                     31
Supply units

SU363
3 phase supply unit

   Main switch for the workstation
   Green indicator light
   Emergency switch
   Automatic restart prevention system e.g. after power failure
   Protection circuit for missing phase/wrong phase order
   63 A and 16 A circuit breakers
   3-phase 63 A socket at the front panel
   Outlets for the device modules in the workstation
   Dimensions: 1 ½-module, 375(W) x 200(H) mm

Copyright: TEKLAB®                                                 32
Variable DC power supplies

TLP305COM, TLP603COM
Programmable DC power supply
 Output values:
    • TLP305COM
      TLP305COM:
              COM 0 - 30 V: 0 - 5 A
    • TLP603COM
      TLP603 COM:
              COM 0 - 30 V: 0 - 5 A, 30 - 60 V: 0 - 3 A
 Ripple: < 8 mVPP
 Output ON/OFF-button
 Current limit and voltage settings showed on the display
 MAX and MIN display (current and voltage)
 Output voltage adjustment accuracy: 0.01 V
 Current limitation adjustment accuracy: 0.001 A
 Voltage measurement accuracy: ± 0.03 V
 Current measurement accuracy: ± 0.006 A
 Short-circuit protected
 Self-test
 Test for leads / mΩ -measuring
 Voltage compensation when using long leads
 Standard languages: Finnish, English, Swedish
 Graphic backlit LCD-display
 Adjustable LCD-contrast
 Firmware-update possibility
 Output from 4 mm safety terminals
 Ethernet connection and control program
    • Fast two-way communication
    • Versatile user interface enables e.g. automatic measurements without programming
    • Advanced datalogging function enables e.g. simultaneous follow-up and saving of several quantities, or
      saving of an individual value by the snapshot function
 LabView-driver: Advanced TCP/IP based LabVIEW driver speeds up making own applications
 Dimensions: ½-module, 125(W) x 200(H) mm

TLP305DCOM, TLP603DCOM
Programmable dual DC power supply
 Output values:
    • TLP305DCOM
      TLP305DCOM:
                COM 2 x 0 - 30 V: 0 - 5 A
    • TLP603DCOM
      TLP603DCOM:
                COM 2 x 0 - 30 V: 0 - 5 A, 30 - 60 V: 0 - 3 A
 Ripple: < 8 mVPP
 Output ON/OFF-button
 Current limit and voltage settings showed on the display
 MAX and MIN display (current and voltage)
 Output voltage adjustment accuracy: 0.01 V
 Current limitation adjustment accuracy: 0.001 A
 Voltage measurement accuracy: ± 0.03 V
 Current measurement accuracy: ± 0.006 A
 Short-circuit protected
 Self-test
 Test for leads / mΩ -measuring
 Voltage compensation when using long leads
 Standard languages: Finnish, English, Swedish
 Graphic backlit LCD-display
 Adjustable LCD contrast
 Tracking mode
 Firmware-update possibility
 Output from 4 mm safety terminals
 Ethernet connection and control program
    • Fast two-way communication
    • Versatile user interface enables e.g. automatic measurements without programming
    • Advanced datalogging function enables e.g. simultaneous follow-up and saving of several quantities, or
      saving of an individual value by the snapshot function
 LabView-driver: Advanced TCP/IP based LabVIEW driver speeds up making own applications
 Dimensions: Full-module, 250(W) x 200(H) mm

Copyright: TEKLAB®                                                                                         33
Variable DC power supplies

DCAEL302R
Variable DC power supply

   Output values: 0-30 V, 0-2 A, 60 W
   Linear regulation
   Constant voltage or constant current operation
   Voltage Setting: By coarse and fine controls
   Current Setting: By single logarithmic control
   Independent digital voltage and current meters for each output
    with 4 digit resolution
   Voltage meter:
      • Resolution: 10 mV
      • Accuracy: 0.3 % of reading ± 3 digits
   Current Meter:
      • Resolution: 1 mA
      • Accuracy: 0.5 % of reading ± 3 digits
   Ripple & noise: Typically < 1 mV rms (CV mode, 20 mHz bandwidth)
   Switchable local or remote sensing
   Silent fan-free cooling
   DC output on/off switch
   All outputs are intrinsically short circuit proof, and are protected
    against external voltages and reverse currents
   Output terminals: Universal 4mm safety binding posts on 19mm
    (0.75”) spacing. Terminals can accept fixed shroud 4 mm plugs,
    standard 4 mm plugs, fork terminals and bare wires
   Dimensions: ¾ module, 187,5(W) x 200(H) mm
   Option:
      • TTICAL Calibration certificate with results

DCAEL302RD
Variable DC power supply

 Output values: 2 x 0-30 V, 0-2 A, total power 120 W
 The two outputs are independent and isolated
 The outputs can be wired in either series or parallel to provide
  voltages up to 60 volts or currents up to 4 amps
 Linear regulation
 Constant voltage or constant current operation
 Voltage Setting: By coarse and fine controls
 Current Setting: By single logarithmic control
 Independent digital voltage and current meters for each output
  with 4 digit resolution
 Voltage meter:
    • Resolution: 10 mV
    • Accuracy: 0.3 % of reading ± 3 digits
 Current Meter:
    • Resolution: 1 mA
    • Accuracy: 0.5 % of reading ± 3 digits
 Ripple & noise: Typically < 1 mV rms (CV mode, 20 mHz bandwidth)
 Switchable local or remote sensing
 Silent fan-free cooling
 DC output on/off switch
 All outputs are intrinsically short circuit proof, and are protected
  against external voltages and reverse currents
 Output terminals: Universal 4mm safety binding posts on 19mm
  (0.75”) spacing. Terminals can accept fixed shroud 4 mm plugs,
  standard 4 mm plugs, fork terminals and bare wires
 Dimensions: 1 ¼ module, 312,5(W) x 200(H) mm
 Option:
    • TTICAL Calibration certificate with results

Copyright: TEKLAB®                                                         34
Variable DC power supplies

DCAEX355R
Variable DC power supply

   Output values: 0-35 V, 0-5 A, 175 W
   Mixed-mode regulation
   Constant voltage or constant current operation
   Voltage Setting: By coarse and fine controls
   Current Setting: By single logarithmic control
   Independent digital voltage and current meters for each output
    with 4 digit resolution
   Voltage meter:
      • Resolution: 10 mV
      • Accuracy: 0.3 % of reading ± 3 digits
   Current Meter:
      • Resolution: 1 mA
      • Accuracy: 0.5 % of reading ± 3 digits
   Ripple & noise: Typically < 1 mV rms (CV mode, 20 mHz bandwidth)
   Switchable local or remote sensing
   Silent fan-free cooling
   DC output on/off switch
   All outputs are intrinsically short circuit proof, and are protected
    against external voltages and reverse currents
   Output terminals: Universal 4mm safety binding posts on 19mm
    (0.75”) spacing. Terminals can accept fixed shroud 4 mm plugs,
    standard 4 mm plugs, fork terminals and bare wires
   Dimensions: ¾-module, 187,5(W) x 200(H) mm
   Option: TTICAL Calibration certificate with results

DCACPX400S
Variable DC power supply

 Output values: 0-60 V, 0-20 A, 420 W
 PowerFlex design gives variable voltage and current combinations
  within a maximum power range
 PowerFlex or fixed-range operation plus custom limits
 Constant voltage or constant current operation
 Variable OVP trips
 True analogue controls
 Voltage Setting: By coarse and fine controls
 Current Setting: By single logarithmic control
 Settings locking
 Independent digital voltage and current meters for each output with
  4 digit resolution
 Voltage meter:
    • Resolution: 10 mV
    • Accuracy: 0.1 % of reading ± 2 digits
 Current Meter:
    • Resolution: 10 mA
    • Accuracy: 0.3 % of reading ± 20 mA
 Ripple & noise: Typically < 3 mV rms (CV mode)
 Switchable local or remote sensing
 View Settings
 LED indication of Output On, V/I Limits, CV, CI, Power Limit
 Silent fan-free cooling
 DC output on/off switch
 All outputs are intrinsically short circuit proof
 Output terminals can accept fixed shroud 4 mm plugs, standard 4
  mm plugs, fork terminals and bare wires
 Dimensions: ½ module, 125(W) x 200(H) mm
 Option: TTICAL Calibration certificate with results

Copyright: TEKLAB®                                                         35
You can also read
