Plasma and dust interaction in the magnetosphere of Saturn JONAS OLSON Doctoral Thesis Stockholm, Sweden 2012
TRITA-EE 2012:018 KTH Rymd- och plasmafysik ISSN 1653-5146 Skolan för elektro- och systemteknik ISBN 978-91-7501-343-5 SE-100 44 Stockholm Akademisk avhandling som med tillstånd av Kungl Tekniska högskolan framläg- ges till offentlig granskning för avläggande av teknologie doktorsexamen i fysikalisk elektroteknik måndagen den 28 maj 2010 klockan 10.00 i Sal F3, Lindstedtsvä- gen 26, Kungl Tekniska högskolan, Stockholm. © Jonas Olson, april 2012 Tryck: Universitetsservice US AB
iii Abstract The Cassini spacecraft orbits Saturn since 2004, carrying a multitude of instruments for studies of the plasma environment around the planet as well as the constituents of the ring system. Of particular interest to the present thesis is the large E ring, which consists mainly of water ice grains, smaller than a few micrometres, referred to as dust. The first part of the work pre- sented here is concerned with the interaction between, on the one hand, the plasma and, on the other hand, the dust, the spacecraft and the Langmuir probe carried by the spacecraft. In Paper I, dust densities along the trajectory of Cassini, as it passes through the ring, are inferred from measured electron and ion densities. In Paper II, the situation where a Langmuir probe is lo- cated in the potential well of a spacecraft is considered. The importance of knowing the potential structure around the spacecraft and probe is empha- sised and its effect on the probe’s current-voltage characteristic is illustrated with a simple analytical model. In Paper III, particle-in-cell simulations are employed to study the potential and density profiles around the Cassini as it travels through the plasma at the orbit of the moon Enceladus. The lat- ter part of the work concerns large-scale currents and convection patterns. In Paper IV, the effects of charged E-ring dust moving across the magnetic field is studied, for example in terms of what field-aligned currents it sets up, which compared to corresponding plasma currents. In Paper V, a model for the convection of the magnetospheric plasma is proposed that recreates the co-rotating density asymmetry of the plasma.
iv Sammanfattning Rymdsonden Cassini befinner sig i omloppsbana kring Saturnus sedan 2004 och bär med sig en mångfald av instrument för att studera plasmat och ringarna som omger planeten. Av särskilt intresse i denna licentiatuppsats är den stora E-ringen. Denna utgörs huvudsakligen av mikrometerstora (eller mindre) dammpartiklar, bestående av is. Den första delen av det arbete som presenteras här behandlar interaktion mellan, å ena sidan, plasmat och, å andra sidan, dammet, rymdsonden och Langmuirprob som denna är utrustad med. I den bilagda Paper I utvinns dammtätheter längs Cassinis bana genom E-ringen ur mätta elektron- och jontätheter. I Paper II betraktas situationen där en Langmuirprob befinner sig i potentialgropen som omger en rymdsond. Här betonas vikten av att ta hänsyn till potentialstrukturen kring rymdsond och prob, och en enkel analytisk modell används för att illustrera hur pro- bens ström-spänningskaraktäristik kan påverkas av denna potentialstruktur. I Paper III studeras täthets- och potentialprofilerna runt Cassini numeriskt med particle-in-cellsimuleringar för parametrar som modellerar hur rymdson- den rör sig relativt plasmat vid månen Enceladus bana. Den senare delen av arbetet behandlar storskaliga strömmar och konvektionsmönster. I Paper IV studeras effekterna av att laddat damm i E-ringen rör sig vinkelrätt mot mag- netfältet, bland annat med avseende på vilka parallellströmmar denna rörelse ger upphov till, vilka jämförs med motsvarande plasmaströmmar. I Paper V framläggs en modell för konvektionen hos magnetosfärens plasma som åter- skapar den co-roterande täthetsasymmetrin hos plasmat.
Acknowledgements A majority of the work presented herein has been carried out together with Nils Brenning, co-advisor for my doctoral studies. I have learnt a lot about physics and about how to be a good person. Nils has taught me about ths subject as well as sprinkled me with literary quotes and references. We have discussed music and we have sung together. Nils been a shining example how to be a scientist, having a scientific mind as well as being honest. Nils and has also shared his ideas on organizing one’s work and on writing. More than once, we – the two of us – have had the opportunity to discuss, or, perhaps, explore, the use of punctuation. Deep, non-obvious insights about how to present an argument to a reader, that he has confided to me during our work, is, if I remember correctly, that one is supposed to tell the truth (at least as a last resort) and that one is not supposed to write in german, or possibly the other way around. Svetlana Ratynskaia, main advisor and probe specialist among other things, has a most attentive advisor, always eager to see that no obstacles were in my way. Having great concern for the progress of her students, she has always made herself available for discussion, paperwork, pulling strings, turning the world upside-down and making other arrangements whenever necessary. Not only is she herself a great source of knowledge about the multiple subjects she is involved with, she has also been able to engage experts in different areas to be our collaborators, which have been enormously useful. I am afraid I do not speak Russian yet, but I do know more about Russia than I did before, thanks to our discussions sometimes drifting off topic. Lars Blomberg, co-advisor, has been the one to turn to when in distress or when needing to learn “how things are done” within the KTH. With a calm attitude and cheerful encouragement, he has made things work out time after time. I strongly suspect his schedule is far more full than you would think from seeing him taking his time to offer much-needed support and assistance. Several collaborators have been involved in different aspects of this work and provided very important knowledge about the state of their respective fields and insight in available techniques and current practises. I wish to acknowledge the con- tributions from Victora Yaroshenko, Wojciech Miloch, Jan-Erik Wahlund, Michiko Morooka and Herbert Gunell. I appreciate the help from Anita Kullen, Tomas Karlsson and Michael Raadu, v
vi ACKNOWLEDGEMENTS who has all provided insightsful comments on material included in this thesis. I am also very glad for my friends within the department, from other parts of KTH as well as outside it all. It has been nice to share thoughts about work, to share an interest unrelated to work or to share a sigh and a tired look with few words but much understanding. Thank you for urging me not to work too much and for cheering me on when working too much is unavoidable anyway. My dear family, you have provided me invaluable help so many times I cannot remember them all. Always so encouraging, always helping with practical matters that are in the way, always so caring, you are the best support I could have. I thank you.
List of Papers This thesis is based on the work presented in the following papers. I. V.V. Yaroshenko, S. Ratynskaia, J. Olson, N. Brenning, J.-E. Wahlund, M. Morooka, W.S. Kurth, D.A. Gurnett, G.E. Morfill “Characteristics of charged dust inferred from the Cassini RPWS measure- ments in the vicinity of Enceladus” Planetary and Space Science 57, 1807–1812 (2009). II. J. Olson, N. Brenning, J.-E. Wahlund, H. Gunell “On the interpretation of Langmuir probe data inside a spacecraft sheath” Review of Scientific Instruments 81, 105106 (2010). III. J. Olson, W. J. Miloch, S. Ratynskaia, V. Yaroshenko “Potential structure around the Cassini spacecraft near the orbit of Ence- ladus” Physics of Plasmas 17, 102904 (2010). IV. J. Olson, N. Brenning “Dust-driven and plasma-driven currents in the inner magnetosphere of Sat- urn” Physics of Plasmas 19, 042903 (2012). V. J. Olson, N. Brenning “The magnetospheric clock of Saturn: a self organized plasma dynamo” Manuscript submitted to Nature. The respondent’s contribution to the papers is as follows: Paper I: Derived analytical expressions, extracted measurement data from the database and per- formed numerical calculations. Paper II: Performed numerical calculations, ex- tracted measurement data from the database and authored article text (shared vii
viii LIST OF PAPERS with co-author). Paper III: Improved existing numerical code, performed the sim- ulations, interpreted the results (shared with co-authors) and authored article text (shared with co-authors). Paper IV: Derived analytical expressions, performed nu- merical calculations and authored part of the article text. Paper V: Constructed and ran the model.
Contents Acknowledgements v List of Papers vii Contents ix List of Figures xi 1 Introduction 1 1.1 The E ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 1.2 The Cassini spacecraft . . . . . . . . . . . . . . . . . . . . . . . . . . 2 1.3 The geysers of Enceladus . . . . . . . . . . . . . . . . . . . . . . . . 3 2 Sheaths 7 2.1 Basic principle of sheaths . . . . . . . . . . . . . . . . . . . . . . . . 7 2.2 Sheaths in different regimes . . . . . . . . . . . . . . . . . . . . . . . 8 3 Orbital motion limited model 11 3.1 Floating potential . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 3.2 Applicability to the Cassini Langmuir probe . . . . . . . . . . . . . . 15 4 Particle-in-cell simulations 19 4.1 The PIC technique . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 4.2 PIC simulations of Cassini . . . . . . . . . . . . . . . . . . . . . . . . 21 5 Magnetospheric plasma 27 5.1 Parallel currents driven by perpendicular currents . . . . . . . . . . . 27 5.2 Corotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 6 Results and discussion 31 6.1 Paper I . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 6.2 Paper II . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 6.3 Paper III . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 6.4 Paper IV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 ix
x CONTENTS 6.5 Paper V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 7 Conclusions 37 7.1 Papers I to III . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 7.2 Papers IV and V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Bibliography 39
List of Figures 1.1 Saturn, with a few of its inner rings, as seen by the Hubble Space Tele- scope. (Image credit: NASA/ESA/E. Karkoschka (University of Arizona)) 1 1.2 The ejection of material through the cracks in the surface of Enceladus is seen as a plume in this image captured by Cassini. The radius of Enceladus is 252 km. (Image credit: NASA/JPL/Space Science Institute) 2 1.3 Cassini during assembly. The large white disc antenna on top is four metres in diameter. Several booms and wire antennas, used for measure- ments, were extended from the spacecraft once in space and are thus not visible here. On the left side of Cassini, the Huygens probe can be seen with its gold-coloured, cone-shaped heat shield. (Image credit: NASA) . 4 1.4 The “tiger stripes” on the surface of Enceladus. Through these cracks, Enceladus ejects the material that makes up most of the E ring. [Image credit: NASA] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 2.1 Sketch of the sheath structure close to an infinite, conducting wall. (a) In the presheath, both electron and ion densities drop from their bulk values, but they do not differ from each other (i.e., quasi-neutrality holds). In the sheath, they continue to decrease – the electron density more rapidly than the ion density – leaving the sheath with a positive charge density. (b) The larger part of the drop in potential (in this figure called Φ) between the bulk plasma and the wall occurs in the sheath, which therefore also represents most of the ion acceleration. However, the presheath acceleration alone is enough for the ions to reach the Bohm speed. (Image credit: Ref. [1]) . . . . . . . . . . . . . . . . . . . . . . . 9 2.2 Some sheath regimes classified by the relations between characteristic probe dimension d, mean free path ` and Debye length λD . . . . . . . . 10 xi
xii List of Figures 3.1 Current to a spherical probe or other object according to the OML model (equation (3.1)) for a negative particle species. (a) The collected current as a function of the probe potential. In the repulsive region (to the left of the plasma potential), the current depends exponentially on the potential, whereas in the attractive region (to the right of the plasma potential), the dependence is a straight line. (b) The derivative of the curve in panel (a). Here, transition between the repulsive and attractive regions are more easily seen, with a “knee” arising where the probe is at the plasma potential. . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 3.2 An example of how the currents collected by a spherical object according to the OML model depends on the probe potential. For an increasingly negative potential, more and more electrons are unable to reach the surface of the object and the collected electron current decays exponen- tially (with the electron temperature as the decay constant). At the same time, the ion current increases linearly. Because the ion current is small and largely constant, compared to the dramatic variations in elec- tron current, the floating potential is found where the electron current has become small like the ion current, i.e., at a few electron tempera- tures negative. In this example, a photoelectron current has also been included. It is constant for negative potentials and thus has the same effect as stronger ion current. . . . . . . . . . . . . . . . . . . . . . . . . 14 3.3 Current-voltage characteristic of the Cassini Langmuir probe, measured near the orbit of Enceladus. From the derivative in the lower panel, it is seen that the curve deviates from the ideal OML model of figure 3.1. The glitch at −19 V of the derivative curve appears on many of the measured sweeps and is thought to be an instrumental defect. . . . . . . 16 4.1 A grid cell of a two-dimensional PIC simulation. The charge (and mass) of the simulation particle is distributed over the four grid points that are the corners of the grid cell in which the particle resides. More charge and mass goes to the closer corners. Specifically, the portion of the particle ascribed to each grid point is proportional to the area of the region with the same label, in this figure, as the grid point. Thus, in the illustrated example, most of the charge and mass is given to grid point B and C gets the least. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 4.2 Resulting potential structure from a 2D PIC simulation with the plasma flowing from left to right. The disc representing Cassini is 3.5 m in diameter. The defining parameters of this simulation case are n0 = 7 × 107 m−3 , kB Te = kB Ti = 2.5 eV and vd = 30 km/s. This parameter combination is here used as the reference case, to be compared with the other simulations, where these three parameters are varied, one at a time. Figures 4.2 to 4.6 all depict the same region, though their scales differ due to their different Debye lengths. . . . . . . . . . . . . . . . . . 23
List of Figures xiii 4.3 Potential from a simulation case with the same density and drift speed as in figure 4.2, but with a lower temperature kB Te = kB Ti = 1 eV. . . . 24 4.4 Potential from a simulation case with the same temperature and drift speed as in figure 4.2, but with a lower density n0 = 3.5 × 107 m−3 . . . . 24 4.5 Potential from a simulation case with the same density and temperature as in figure 4.2, but with a lower drift speed vd = 12 km/s. . . . . . . . . 25 4.6 Potential from a simulation case with the same density and temperature as in figure 4.2, but with a higher drift speed vd = 54 km/s. . . . . . . . 25 5.1 Parallel currents caused by spatial variations in dust density. A neg- atively charged dust slab (shaded) moves with speed vd relative to a plasma (here depicted in the plasma rest frame). Positive and negative charge densities are created at the trailing and leading edge, respectively, where the density gradient along the direction of motion is non-zero. These drive field-aligned currents which close across the magnetic field in some distant load Σload . . . . . . . . . . . . . . . . . . . . . . . . . . 28 5.2 Radial current in a corotating magnetosphere. The radial current in the equatorial plane, due to, for example, pickup of new ions, closes via the field lines and the ionosphere, and transfers momentum from the planet to the magnetosphere. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 6.1 The model of the potential structure used in Paper II, plotted along the common axis of the spacecraft and the probe. The minimum UM is proposed to play an important role for the electron collection by the probe. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Chapter 1 Introduction Of all the planets in the solar system, Saturn puts up the richest display of a ring system (figure 1.1), inspiring much awe and admiration and making it something of the prototypical illustration of a planet. Figure 1.1: Saturn, with a few of its inner rings, as seen by the Hubble Space Telescope. (Image credit: NASA/ESA/E. Karkoschka (University of Arizona)) 1.1 The E ring The large and diffuse E ring in the Saturnian ring system was not discovered until the twentieth century. For comparison, the more clearly visible rings were observed already in the seventeenth century. The inner edge of the E ring has a radius of 3RS , 1
2 CHAPTER 1. INTRODUCTION where the Saturn radius RS ≈ 6 × 107 m, and at the outer edge, one can put 8RS as the limit of its extent. The constituents of the ring are microscopic ice grains, a few micrometers or less across. These have their source on the moon Enceladus, which orbits Saturn at 4RS in the ring plane. From cracks in the surface at the south pole of Enceladus, the material that populates the E ring shoots out like a geyser. This has been photographed by the Cassini spacecraft, orbiting Saturn (figure 1.2). Figure 1.2: The ejection of material through the cracks in the surface of Enceladus is seen as a plume in this image captured by Cassini. The radius of Enceladus is 252 km. (Image credit: NASA/JPL/Space Science Institute) 1.2 The Cassini spacecraft Cassini is part of the Cassini–Huygens mission, which is a joint effort by the Amer- ican (NASA), European (ESA) and Italian (ASI) space organisations to study the
1.3. THE GEYSERS OF ENCELADUS 3 giant gas planet Saturn, along with its moons, rings and plasma environment. Cassini refers to the orbiter, currently circling Saturn, whereas Huygens is the name of a probe, carried by Cassini, that was released from its carrier to make its own way down to the surface of the Saturn moon Titan, studying its atmosphere along the way. A picture of Cassini, with the Huygens probe attached, is presented in figure 1.3. It shows the spacecraft being handled at Kennedy Space Center in preparation for its launch. Cassini is equipped with many instruments for studying different aspects of the Saturnian environment. Imaging devices take pictures in infra-red, visible, ultraviolet and even microwave wavelengths. A dust detector senses the microscopic dust grains of for example ice, that hits it. Spectrometers register the impacts of electrons, ions and neutrals and gives information on their energy spectra. A magnetometer allows Cassini to measure the magnetic field, which has its source inside Saturn and permeates the ring system and plasma disc, which lies in the equatorial plane of the planet. Yet other instruments have antennas to pick up radio and plasma waves. The spectrum of such waves can provide information about the plasma, e.g. by observing resonant frequencies [2]. The upper hybrid frequency, for example, depends on the electron density and magnetic field strength, so that by measuring the magnetic field, the electron density can be determined. Of particular interest to this thesis is the Langmuir probe [3]. It consists of a sphere, mounted at the end of a boom which holds it out about 1.5 m away from Cassini. The sphere is biased to different potentials and, at the same time, the current collected by the sphere is measured. By sweeping the potential, the current-voltage characteristic of the probe is found, from which information about the plasma can the be extracted. 1.3 The geysers of Enceladus The moon Enceladus, orbiting Saturn at a radius of 4RS , is the main source of material for the E ring as well as for the neutral gas torus at a similar distance from Saturn. Enceladus contributes to the E ring the estimated 1 kg/s of matter that is necessary to maintain it [5] through cryovolcanism. A large amount of the ejecta is also recaptured by Enceladus as the orbits of the moon and the ejecta eventually cross. This manifests itself as plumes of, for example, water (the main constituent of the ring) that erupts from cracks in the surface of the moon. [4] The plumes are faintly visible in figure 1.2 The cracks from which the plumes emanate are about 130 km long [4] and famously referred to as the “tiger stripes” (figure 1.4) due to their visual appearance.

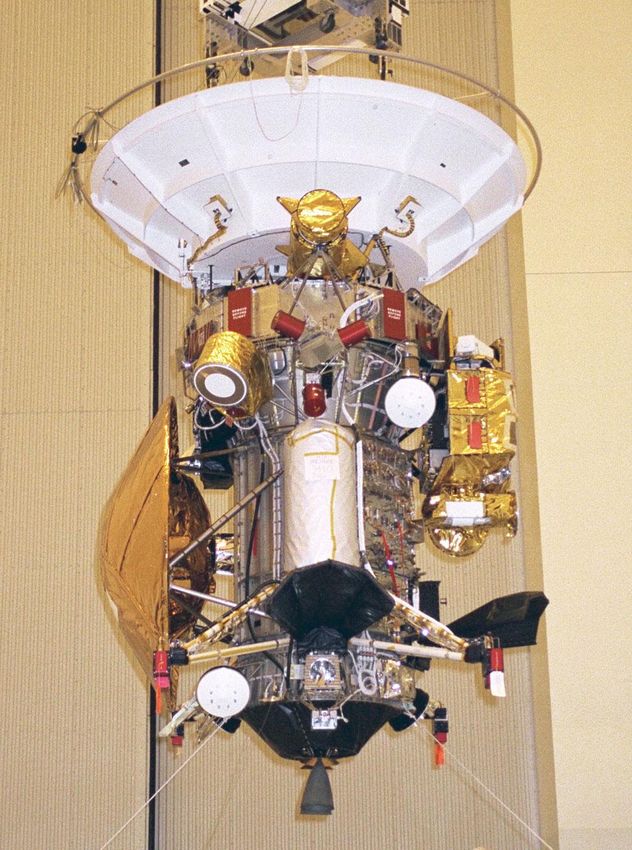

4 CHAPTER 1. INTRODUCTION Figure 1.3: Cassini during assembly. The large white disc antenna on top is four metres in diameter. Several booms and wire antennas, used for measurements, were extended from the spacecraft once in space and are thus not visible here. On the left side of Cassini, the Huygens probe can be seen with its gold-coloured, cone-shaped heat shield. (Image credit: NASA)
1.3. THE GEYSERS OF ENCELADUS 5 Figure 1.4: The “tiger stripes” on the surface of Enceladus. Through these cracks, Enceladus ejects the material that makes up most of the E ring. [Image credit: NASA]
Chapter 2 Sheaths 2.1 Basic principle of sheaths When a plasma stands in contact with an object, the plasma particles will collide with its surface and be collected by it. Such an object may be for example a wall, confining the plasma, or a probe, immersed in the plasma. As the particles are collected by the surface, and thereby removed from the plasma, they contribute their charge to the object and at the same time deprive the plasma of it. If the object is made of a conducting material, its charges will redistribute over it so as to maintain a single potential throughout it. If on the other hand the material is an insulator, charges would rather stick close to where they impacted the surface. Consider the situation where an infinite, conducting plane has just been brought into contact with an infinite plasma. If electrons and ions have the same tempera- ture, the electrons, due to being lighter, will have a much higher thermal speed than the ions. A situation where the ion temperature is much higher than the electron temperature, so that the ion thermal speed can compete with the electron thermal speed, is quite unnatural and is disregarded here. Because of their higher speed, the electrons are the first ones to collide with the wall and many of them will have done so before the ions have move significantly at all. As electrons are lost from the plasma to the wall, they leave behind a net positive charge which causes the plasma to get a positive potential compared to the wall by typically a few electron temperatures. There is of course no step-like change in potential, when going from the plasma to the wall. Rather, the potential transitions smoothly in a region near the edge of the plasma from its higher value in the bulk of the plasma to its lower value at the wall. This region is called the sheath and extends a few Debye lengths into the plasma. The potential gradient in the sheath region makes it more difficult for further electrons to reach the wall and the electron flux is therefore reduced. At the same time, it helps accelerate ions to the wall. The usual way to model the densities is for electrons to rescale the background 7
8 CHAPTER 2. SHEATHS density n0 with a Boltzmann factor, ne = n0 eeϕ/(kB Te ) , (2.1) and for ions to use conservation of energy and the continuity equation, arriving at n0 ni = q , (2.2) 2eϕ 1− mi v02 where v0 is the flow speed of the ions as they enter the sheath. In the subsequent solving for the potential from Poisson’s equation d2 ϕ e(ni − ne ) 2 =− , (2.3) dx ε0 with equations (2.1) and (2.2) in place for ne and ni , respectively, p it turns out any physically relevant solution requires v0 to be at least ekB Te /mi . The acceleration of ions to this speed, called the Bohm speed, is accomplished by the presheath region, located between the bulk plasma and the sheath. In the presheath, which can be much thicker than the actual sheath, there is thus a non-zero electric field, but the potential drop across the presheath is much less than that across the sheath. A sketch of the behaviours of densities and potential in the bulk plasma, the presheath and the sheath is shown in figure 2.1. 2.2 Sheaths in different regimes Objects like a dust grain, a probe and a satellite will all have a sheath around them when exposed to a plasma, though they will differ in their quantitative description. The precise shape of the sheath depends on the relationship between characteristic parameters such as the object’s characteristic dimension (which can be thought of as the linear size of the region disturbed by the probe and is typically similar to the size of the probe itself or a few times larger, depending on the probe shape [8]), the Debye length and the mean free path ` of the plasma particles. We can categorise the different regimes, somewhat crudely, as in figure 2.2. In the present thesis, three types of objects that interact with the plasma – Cassini, its Langmuir probe and the dust particles of the E ring – are considered. In all three cases, collisions can be neglected (i.e., l d holds). The microscopic dust further fall well into the thick sheath regime, as it is much smaller than the Debye length, which is of the order of 1 m or larger. This is also the case for the probe (whose radius is 25 mm. The Cassini spacecraft itself, however, is of the order of a Debye length and the sheath can therefore neither be considered to be thick nor thin. This intermediate case is more difficult to treat analytically, which is why numerical simulations are used for this problem in Paper III.
2.2. SHEATHS IN DIFFERENT REGIMES 9 Figure 2.1: Sketch of the sheath structure close to an infinite, conducting wall. (a) In the presheath, both electron and ion densities drop from their bulk values, but they do not differ from each other (i.e., quasi-neutrality holds). In the sheath, they continue to decrease – the electron density more rapidly than the ion density – leaving the sheath with a positive charge density. (b) The larger part of the drop in potential (in this figure called Φ) between the bulk plasma and the wall occurs in the sheath, which therefore also represents most of the ion acceleration. However, the presheath acceleration alone is enough for the ions to reach the Bohm speed. (Image credit: Ref. [1])
10 CHAPTER 2. SHEATHS Current collection regimes Frequent collisions, ℓ ≪ d Collisionless, ℓ ≫ d (fluid description applicable) Thick sheath, λD ≫ d Thin sheath, λD ≪ d Neither thick nor thin sheath (OML sometimes applicable) (analytical treatment difficult) Figure 2.2: Some sheath regimes classified by the relations between characteristic probe dimension d, mean free path ` and Debye length λD .
Chapter 3 Orbital motion limited model The orbital motion limited (OML) model [7] describes the currents collected by an isolated body in a plasma by making use of the conservation of energy and angular momentum of each electron and ion that approaches it. By isolated, we here mean that other bodies are far enough away, or otherwise insignificant enough, that their influence on the currents collected by the studied body is small. If a dust cloud is studied, for example, it should not be too dense if OML theory is to apply. In its basic formulation, OML considers a spherical body with small a radius a λD and also assumes that the mean free path of both ions and electrons are large enough that neither of them undergo collisions on their way from the undisturbed background plasma to the body. Furthermore, it disregards the possibility of an effective potential barrier or, equivalently, an absorption radius larger than the actual radius of the body. The effective potential is a concept that arises when the equations describing the three-dimensional motion of plasma particles in the potential field around the body are reformulated into a one-dimensional version, whose only coordinate is the radial distance from the body [6]. This one-dimensional motion takes place in a potential field that is called the effective potential and might set up a potential barrier outside the body, such that all plasma particles that are able to overcome this potential barrier are destined to be collected. In such a situation, there are no particles that barely miss the collecting surface, and instead, the potential barrier acts as the absorption radius [7]. By making these assumptions, and using the sign convention that current leaving the probe counts as positive, OML arrives at the following current contribution by a Maxwellian particle species with density n, charge q, mass m and temperature T [6]: ( I0 (1 − qϕ/(kB T )) qϕ < 0 I(ϕ) = (3.1) I0 e−qϕ/(kB T ) qϕ > 0 11
12 CHAPTER 3. ORBITAL MOTION LIMITED MODEL where ϕ is the potential of the body, relative to the plasma, √ I0 = q 8πa2 nvT (3.2) is the random current (collected by an uncharged body), r kB T vT = (3.3) m is the thermal speed, a is the radius of the body and kB is the Boltzmann constant. The convention used here is that a current flowing to the body is considered positive. As seen from equation (3.1), the current has an exponential dependence on the potential in the repulsive region (qϕ < 0) and a linear dependence (plus a constant term) in the attractive region (qϕ > 0). This functional shape is illustrated in figure 3.1. The equivalent current expression can also be constructed for a drifting Maxwellian distribution with drift speed vT [6]. For attraction (qϕ < 0), this becomes √ a2 nvT2 √ 2 qϕ −ξ 2 I(ϕ) = q π π 1+2 ξ + erf(ξ) + 2ξe , (3.4) vd kB T √ where ξ = vd /( 2vT ), and for repulsion (qϕ > 0), √ a2 nvT2 √ 1 2 2 I(ϕ) = π π − ξ+ ξ− (erf(ξ+ ) − erf(ξ− )) + ξ+ e−ξ− − ξ− e−ξ+ , vd 2 (3.5) p √ where ξ± = qϕ/(kB T ) ± vd /( 2vT ). 3.1 Floating potential If an uncharged body is placed in a plasma consisting of electrons and ions, it will at first collect an electron current that is larger than the ion current. When OML applies, this can be understood from equation (3.3), where the thermal speed vT will be larger for electrons than for ions. As the body collects this negative charge, however, it gets driven negative in potential, which means that fewer electrons manage to reach its surface and some extra ions are collected. This way, the body potential reaches a stable equilibrium, where the electron and ion currents cancel each other, by being equal in absolute value and opposite in sign. This potential is called the floating potential ϕ0 . In the general case with an arbitrary number of plasma species, the definition of ϕ0 can be written X Is (ϕ0 ) = 0, (3.6) s
3.1. FLOATING POTENTIAL 13 (a) I dI/dULP (b) −kB T /e 0 probe bias ULP − Upl Figure 3.1: Current to a spherical probe or other object according to the OML model (equation (3.1)) for a negative particle species. (a) The collected current as a function of the probe potential. In the repulsive region (to the left of the plasma potential), the current depends exponentially on the potential, whereas in the attractive region (to the right of the plasma potential), the dependence is a straight line. (b) The derivative of the curve in panel (a). Here, transition between the repulsive and attractive regions are more easily seen, with a “knee” arising where the probe is at the plasma potential. where Is (ϕ) is the current contribution from species s. The cases studied in this thesis involve two species: electrons and positive, singly charged ions. Furthermore, the floating potential is negative and with use of the OML model of equation (3.1), equation (3.6) becomes √ √ eϕ0 e 8πa2 nvTi 1 − − e 8πa2 nvTe eeϕ0 /(kB Te ) = 0 (3.7) kB Ti or more simply eϕ0 v Ti 1− = vTe eeϕ0 /(kB Te ) . (3.8) kB Ti
14 CHAPTER 3. ORBITAL MOTION LIMITED MODEL 5 total current 4 electron current ion current photoelectron current 3 (nA) 2 I 1 0 −1 −11 −10 −9 −8 −7 −6 −5 −4 −3 probe bias ULP − Upl (V) Figure 3.2: An example of how the currents collected by a spherical object according to the OML model depends on the probe potential. For an increasingly negative potential, more and more electrons are unable to reach the surface of the object and the collected electron current decays exponentially (with the electron temperature as the decay constant). At the same time, the ion current increases linearly. Because the ion current is small and largely constant, compared to the dramatic variations in electron current, the floating potential is found where the electron current has become small like the ion current, i.e., at a few electron temperatures negative. In this example, a photoelectron current has also been included. It is constant for negative potentials and thus has the same effect as stronger ion current. Note that both ion and electron current are proportional to a2 , which therefore disappears from the equation. The floating potential is thus independent of the size of the body, which can be a useful property when one wants to estimate the floating potential of, say, dust grains based on knowledge about the floating potential of a spacecraft or a probe. Because the electron current depends exponentially on the potential and the ion current only linearly, the floating potential will settle down at “a few electron temperatures negative”, i.e., ϕ0 ∼ −kB Te /e, for a wide range of parameters. This rule of thumb can be invalidated if there are other currents also contributing to the balance. Such currents arise for example if the body is exposed to sunlight, producing photoelectrons, or is hit by energetic electrons, knocking
3.2. APPLICABILITY TO THE CASSINI LANGMUIR PROBE 15 out secondary electrons. Both of these currents drive a body more positive than it would otherwise be and its floating potential can even become positive with respect to the ambient plasma. In figure 3.2, three types of currents collected by a probe are plotted versus the probe potential. In addition to the ordinary electron and ion currents, both modelled with OML, a photoelectron current has been included. Such a current of photoelectrons leaving the probe is constant for negative probe potentials as every electron that overcomes the work function leaves the probe surface. A set of floating potentials of an object, experiencing ion collection, electron collection and photoelectron emission has been tabulated in table 3.1, for different densities, temperatures, drift speeds and photoelectron currents. The calculations apply for a sphere of radius 25 mm and this size, as well as the photoelectron current, has been chosen to imitate the situation of the Cassini Langmuir probe. [3, 11] The first line in the table is the same case as plotted in figure 3.2 and the other lines deviate from this case in one parameter at a time. n kB T vd Iph φfloat 5 × 107 m−3 3 eV 40 km/s 500 pA −8.2 V 3 × 107 m−3 3 eV 40 km/s 500 pA −7.5 V 5 × 107 m−3 2 eV 40 km/s 500 pA −5.1 V 5 × 107 m−3 3 eV 60 km/s 500 pA −7.6 V 5 × 107 m−3 3 eV 40 km/s 1 nA −3.5 V Table 3.1: Floating potential (φfloat ) calculations for a sphere according to OML, with the addition of a photoelectron current Iph . The plasma has density n and drift speed vd . Ions and electrons share the temperature T . The first parameter combination listed here is also illustrated in figure 3.2, where we can see the de- pendence of the different currents on the considered object. The curve for the total current crosses zero when the object potential is −8.2 V, compared to the plasma potential, as indicated in this table. 3.2 Applicability to the Cassini Langmuir probe The Langmuir probe on Cassini belongs in such a parameter regime that OML theory could potentially be used to model its current-voltage characteristic. For example, it is much smaller than the Debye length and the plasma around it is collisionless on the relevant length scale. There are, however, circumstances that complicate this picture so that actual measured sweeps [9] do not follow OML in its unmodified form. Figure 3.3 shows an example of a sweep by the Langmuir probe, captured near a passage of the orbit of Enceladus at 2005-07-14 19:45:18. Though it is difficult to judge from looking at the current curve, the derivative (constructed by taking the difference between
16 CHAPTER 3. ORBITAL MOTION LIMITED MODEL consecutive points) reveals that it does not really follow plain OML. Whereas the derivative in OML has one knee, the measured curve could perhaps be said to have several of them. −7 2005−07−14 19:45:18 x 10 4 3 2 I (A) 1 0 −1 −40 −30 −20 −10 0 10 20 30 40 Ubias (V) −9 x 10 20 15 dI/dU (S) 10 5 0 −5 −40 −30 −20 −10 0 10 20 30 40 Ubias (V) Figure 3.3: Current-voltage characteristic of the Cassini Langmuir probe, measured near the orbit of Enceladus. From the derivative in the lower panel, it is seen that the curve deviates from the ideal OML model of figure 3.1. The glitch at −19 V of the derivative curve appears on many of the measured sweeps and is thought to be an instrumental defect. The interpretation of this kind of curves has involved photoelectrons emitted from the probe as well as photoelectrons emitted from the spacecraft and captured by the probe and has allowed for more than one electron population, shifted in energy relative to each other. During the present work, however, it was concluded that the precise shape of the potential structure around spacecraft and probe, would also have a significant influence on the shape of the sweep curve, and should be taken into account when interpreting the measurements. This is discussed in Paper II of
3.2. APPLICABILITY TO THE CASSINI LANGMUIR PROBE 17 this thesis.
Chapter 4 Particle-in-cell simulations 4.1 The PIC technique Simulating a plasma in the straightforward way by keeping track of every particle and letting every particle exert a force on every other works in principle, but un- fortunately, the computational resources needed quickly becomes too large. A cube with a side of a few metres, situated in the plasma disc of Saturn could contain 109 or more particles. In the laboratory, the relevant sizes are much smaller, but on the other hand, the densities is much higher. Even worse, as every particle inter- acts with every other, the number of forces to calculate scales as the square of the number of particles. To reduce the computational effort required, other simulation approaches are needed. A fluid description of the plasma, with one fluid for each particle species, is one such approach. A fluid viewpoint typically requires collisions to be frequent (i.e., the mean free path being short), though it can sometimes be substituted by some other condition that plays a similar role, such as plasma particles being tightly tied to magnetic field lines (i.e., having a small gyroradius). The simulations presented in this thesis do not involve frequent collisions. Quite contrary, collisions are completely absent, so a fluid simulation is not applicable. In- stead, a technique called a particle-in-cell (PIC) simulation has been employed. [10] In a PIC simulation, the simulation space (which may be one-, two- or three- dimensional, as the situation requires) is discretised into a grid. In the present work, this grid is two-dimensional and regular, i.e., it consists of rectangles of equal size. One can also use an unstructured grid, where the grid cells differ from each other in shape and size. An unstructured grid can therefore use small grid cells where high resolution is important and large grid cells where the spatial variation of the studied quantities are slow anyway. Each time step, the charge of every particle is divided between the grid points that enclose the grid cell the particle resides in. For a regular grid, this means in one dimension, two grid points, in two dimensions, four grid points and in three dimensions, eight grid points. The charge 19
20 CHAPTER 4. PARTICLE-IN-CELL SIMULATIONS is not distributed equally over those grid points, but more charge is given to grid points closer to the position of the particle. If the particle happens to be precisely at a grid point, for example, all of its charge will be put there. See figure 4.1 for an illustration of the two-dimensional case. With all charge concentrated to the grid points, Poisson’s equation is recast into a difference equation, which is then solved to find the electric potential φ, but again only on the grid points. On a regular grid in two dimensions, this difference equation is φi−1,j − 2φi,j + φi+1,j φi,j−1 − 2φi,j + φi,j+1 + = ρi,j , (4.1) ∆x ∆y where i and j enumerate the grid points, ∆x and ∆y are the separations between adjacent grid points in the x- and y-directions, respectively, and ρ is the charge density. Finally, the force on each particle is then found from the potentials of its neighbouring grid points, and its velocity and position are updated. grid points A B D C B A C D simulation particle Figure 4.1: A grid cell of a two-dimensional PIC simulation. The charge (and mass) of the simulation particle is distributed over the four grid points that are the corners of the grid cell in which the particle resides. More charge and mass goes to the closer corners. Specifically, the portion of the particle ascribed to each grid point is proportional to the area of the region with the same label, in this figure, as the grid point. Thus, in the illustrated example, most of the charge and mass is given to grid point B and C gets the least.
4.2. PIC SIMULATIONS OF CASSINI 21 To reduce the memory usage and the number of computations needed in the simulation, it is also often necessary to lump several particles (of the same species) together by collecting their masses and charge into a single superparticle and simu- late such particles instead. Though being heavier and more strongly charged, they retain the all-important charge-to-mass ratio. The advantage of having charge and potentials only on the grid points, however, remain the strongest point of PIC. 4.2 PIC simulations of Cassini The work presented in this thesis (in Paper III) employ particle-in-cell simulations that has been designed to be relevant for the situation where Cassini crosses plasma disc of Saturn at the orbit of Enceladus, which is embedded in the E ring. The simulation code allows for introducing an object (representing Cassini, in our case) into the simulation box and simulate an electron species and an ion species. [12, 13] Each species follows a drifting Maxwellian as their ambient distribution. The electrons and ions can be given different temperatures and drift speeds, though in the present work, they are set to be equal for the two species. Throughout the duration of the simulation, new particles are injected at the boundary of the simulation box. A particle is followed until (1) it leaves the sim- ulation box by crossing its boundary or (2) it hits the surface of the object and is collected by it. In both cases, the particle is deleted from the simulation. The po- tential of the object itself is determined by the charge it collects. To self-consistently allow the potential of the object to develop and settle at the proper floating po- tential, different approaches can be used depending on whether or not the object is insulating or conducting. For an insulating object, a simple way is to let the charges stay at the point where they struck the surface. However, Cassini, like other space- craft, are rather to be seen as conducting and thus the charge it collects should be redistributed over its surface so as to maintain a single potential throughout the body. The redistribution of charge over a conducting body is non-trivial and therefore, the code used in this work solves the problem of finding the spacecraft potential in a different way, using the fact that at the floating potential, the current collected by an object in a plasma is zero. The simulation is first run with the object potential fixed to some value, and the amount of collected charge is kept track of. At the end of this simulation run, the sign of the net charge collected by the object is studied. If the charge is positive, it is concluded that the initial guess for the potential was too negative and vice versa. The code then fixates the object at a new potential for a second run and in this way performed a binary search for the floating potential until it has been locked into a small enough interval. The majority of these simulations are made in two dimensions, rather than three, which greatly reduces the computing time. By these means, several situations, characterised by different combinations of ambient density, temperature and plasma drift speed are studied. One central parameter combination is also run as a 3D
22 CHAPTER 4. PARTICLE-IN-CELL SIMULATIONS simulation, which is then compared to its two-dimensional counterpart. We verify that the 2D setup gives results similar to those of the more trustworthy 3D case, and conclude that the 2D version is relevant for the study. In 2D, the complicated geometry of Cassini is represented by a disc-shaped object, and in 3D, by a sphere. The resulting quantities of interest, calculated by both the 2D and 3D sim- ulations, are electron density, ion density and electric potential, as functions of the position within the simulation box. Figures 4.2 to 4.6 exhibits the potential structure for five parameter combinations, illustrating how each parameter affects the situation. In all cases, the object has a diameter of 3.5 m and is placed at (x, y) = (0, 0). The object is stationary and the plasma flow is in the positive x-direction. The entire simulation box is not shown – only the region where a significant perturbation takes place. The reference case, whose potential we find in figure 4.2, is defined as having ambient density n0 = 7 × 107 m−3 , temperature kB Te = kB Ti = 2.5 eV and plasma drift speed vd = 30 km/s. This is the parameter combination that has also been simulated in three dimensions, as presented in Paper III. From these parameters we see that the directed energy of an ion is 84 eV, i.e., much larger than the thermal energy, but the directed energy of an electron is a negligible 0.0026 eV. As noted in Paper III, the potential structure resembles an ordinary Debye shielding, but with its downstream part pulled out into a tail. The length of the tail varies clearly, as can be expected, with drift speed. For the lower drift of 12 km/s, it almost vanishes. The “head” part of the shielding, i.e., that which is not the tail, changes size with the Debye length as either the density or temperature is varied. Note also that the floating potential is different between the different cases, being particularly sensitive to the temperature.
4.2. PIC SIMULATIONS OF CASSINI 23 −7 −6 −5 −4 −3 −2 −1 0 6 4 2 0 −2 −4 −6 −5 0 5 10 15 20 Figure 4.2: Resulting potential structure from a 2D PIC simulation with the plasma flowing from left to right. The disc representing Cassini is 3.5 m in diameter. The defining parameters of this simulation case are n0 = 7 × 107 m−3 , kB Te = kB Ti = 2.5 eV and vd = 30 km/s. This parameter combination is here used as the reference case, to be compared with the other simulations, where these three parameters are varied, one at a time. Figures 4.2 to 4.6 all depict the same region, though their scales differ due to their different Debye lengths.
24 CHAPTER 4. PARTICLE-IN-CELL SIMULATIONS −2 −1 0 10 5 0 −5 −10 −10 −5 0 5 10 15 20 25 30 Figure 4.3: Potential from a simulation case with the same density and drift speed as in figure 4.2, but with a lower temperature kB Te = kB Ti = 1 eV. −8 −7 −6 −5 −4 −3 −2 −1 0 5 0 −5 −5 0 5 10 15 Figure 4.4: Potential from a simulation case with the same temperature and drift speed as in figure 4.2, but with a lower density n0 = 3.5 × 107 m−3 .
4.2. PIC SIMULATIONS OF CASSINI 25 −9 −8 −7 −6 −5 −4 −3 −2 −1 0 6 4 2 0 −2 −4 −6 −5 0 5 10 15 20 Figure 4.5: Potential from a simulation case with the same density and temperature as in figure 4.2, but with a lower drift speed vd = 12 km/s. −6 −5 −4 −3 −2 −1 0 6 4 2 0 −2 −4 −6 −5 0 5 10 15 20 Figure 4.6: Potential from a simulation case with the same density and temperature as in figure 4.2, but with a higher drift speed vd = 54 km/s.
Chapter 5 Magnetospheric plasma 5.1 Parallel currents driven by perpendicular currents A charged partile in motion in a magnetic field will follow a curved trajectory, rather than a straight line. In particular, if the field is homogeneous and the velocity is perpendicular to it, the trajectory will be a circle. The radius rg of this circle is called the gyro radius and is given by mv⊥ rg = , (5.1) |q|B where m is the particle mass, v⊥ is its speed perpendicular to the field, q is its charge and B is the strength of the magnetic field. When the gyro radius of a species of plasma particles in a magnetic field is small, compared to the length scales of interest, the species is said to be magnetized. As seen from equation (5.1), this happens to a larger extent for particles with a larger charge-to-mass ratio |q|/m. Also a magnetized particle is, however, free to move along the magnetic field. A velocity component parallel to a homogeneous field thus gives a helical, rather than circular, trajectory. Despite being strongly charged, dust has a much lower |q|/m than the ions and electrons of the plasma. If a dust grain were to have the same charge-to-mass ratio as a plasma ion, it would have to consist entirely of ions, assuming that the dust consists of the same material as the free ions. The small electron mass give the electrons an even larger charge-to-mass ratio. Dust is seen as unmagnetized throughout the present thesis. Dust, moving freely across the magnetic field, carries its charge with it and thus drives cross-field currents in a way the plasma do not. If the dust charge density is not the same everywhere, this leads to a build-up of space charges. A spatially varying dust-charge density may be due to a varying dust number density or varying dust-charging conditions (e.g. ne and Te ). The plasma, being magnetized and tied to the magnetic field lines, cannot follow the dust motion to neutralize the space 27
28 CHAPTER 5. MAGNETOSPHERIC PLASMA charges. However, because they are free to move along the magnetic field, a region of, say, positive charge will attract elections along the magnetic field and repel ions. Figure 5.1 illustrates this for the case of a finite dust slab (i.e. non-homogeneous dust density) moving across a magnetic field. At the leading edge of the slab, the negative dust overlaps with the neutral plasma, creating a negative space charge. At the trailing edge, the negative dust has withdrawn from the previously neutral dust-plasma combination, leaving a positive space charge behind. Currents flow away from the positive region, along the field lines, through some distant load and to the negative region. A forced current across the magnetic field, here due to dust-carried charge, can thus set up parallel currents. This effect is central in Paper IV, where it is the mechanism that makes the dust ring in the equatorial plane drive currents along magnetic field lines and through the ionosphere. + - + - Figure 5.1: Parallel currents caused by spatial variations in dust density. A nega- tively charged dust slab (shaded) moves with speed vd relative to a plasma (here depicted in the plasma rest frame). Positive and negative charge densities are cre- ated at the trailing and leading edge, respectively, where the density gradient along the direction of motion is non-zero. These drive field-aligned currents which close across the magnetic field in some distant load Σload .
5.2. COROTATION 29 5.2 Corotation Magnetospheric corotation [14] is a central concept in the picture of Saturn studied in Papers IV and V. It refers to a magnetospheric plasma in rigid motion with the planet it belongs to. For corotation to take place, it is necessary for the neutrals in the atmosphere of the planet to exchange momentum, through collisions, with the plasma particles of the ionosphere. That way, the ionosphere is dragged along with the rotation of the atmosphere, which is assumed to follow the rotation of the rest of the planet. Furthermore, the field lines of the magnetosphere need to be frozen-in in the plasma. This enables momentum transfer to propagate from the ionosphere out to the entire magnetosphere (as far as the field is frozen-in). The rotating motion v of the plasma across the magnetic field B corresponds to an electic field E = −v × B and the motion can be seen as a drift due to this field. Because the plasma moves in a circular orbit, there is also a centrifugal force that acts upon it. It is stronger for the ions than for the electrons, due to their difference in mass. This force too contributes a (much smaller) drift in the azimuthal direction that constitutes a net current (a ring current), due to ions and electrons drifting with different speeds. When the magnetospheric plasma is in rigid rotation with the planet and there is no force acting to slow it down, no currents flow between the ionosphere and the magnetosphere. However, when the magnetospheric plasma experiences a drag from, for example, friction against neutrals or pick up of newly created ions, field- aligned currents start to flow and connect the planet with its magnetosphere. In figure 5.2, a current system of this kind is illustrated.
30 CHAPTER 5. MAGNETOSPHERIC PLASMA (a) + + + - - - + - - + - - - + + ionization + region (b) + - - + Figure 5.2: Radial current in a corotating magnetosphere. The radial current in the equatorial plane, due to, for example, pickup of new ions, closes via the field lines and the ionosphere, and transfers momentum from the planet to the magnetosphere.
Chapter 6 Results and discussion 6.1 Paper I The data obtained by the Cassini Radio and Plasma Wave Science (RPWS) in- strument during the shallow (2005-02-17) and the steep (2005-07-14) crossings of the E ring revealed a considerable electron depletion in proximity to Enceladus’s orbit (the difference between the ion and electron densities can reach ∼ 70 cm−3 ). Assuming that this depletion is a signature of the presence of charged dust particles (i.e., that the missing electrons have been captured by the dust grains), the main characteristics of dust down to sub-micron sized particles are derived. Assuming a power law size distribution, with a lower size limit amin , the index is found to be µ ∼ 5.5 − 6 for amin = 0.03 µm and µ ∼ 7.3 − 8 for amin = 0.1 µm. The calculated average integral dust number density is weakly affected by values of µ and amin , though proportional to ni − ne . For a ∼ 0.1 µm, both flybys gave the maximum dust density about 0.1 − 0.3 cm−3 in the vicinity of Enceladus. These results imply that the dust structure near Enceladus is characterized by a vertical length scale of about 8000 km. 6.2 Paper II If a Langmuir probe is located inside the sheath of a negatively charged spacecraft, the potential U1 at the probe is different from the ambient plasma potential Upl and the probe characteristic can become strongly modified. We have constructed a simplified model to study this probe-in-sheath problem in the parameter range of a small probe (with radius rLP λD ) where the orbit motion limited (OML) probe theory usually applies. We model the spacecraft and the probe as spheres at different potentials and use the resulting potential structure for reasoning about the electron collection by the probe. The potential, according to this model, along the common axis of the spacecraft and the probe is illustrated in figure 6.1. We propose that the probe characteristics I(ULP ) is suitably analysed in terms of three 31
