What Infineon has to offer for makers
With around 47,000 employees, Infineon is one of the Infineon offers a maker shield portfolio for Arduino and Besides shields for the Arduino UNO ecosystem, Infineon
largest semiconductor manufacturers worldwide; so some of the portfolio’s highlights include shields for also offers Arduino-compatible development boards
it might be a pleasant surprise for some to learn that applications like controllers for LED lighting and motors as that utilize their own popular and powerful range of
Infineon offers a robust portfolio of Maker’s products. well as drivers for resistive, capacitive, and inductive loads. microcontrollers (MCU) while bringing powerful,
Infineon4Makers provides a platform for engineers, customizable options for Makers of all experience levels.
hobbyists, and enthusiasts to help turn their ideas into
innovative designs. This line of products encompasses
a broad product portfolio that includes application and
evaluation boards, Arduino compatible shields,
and 2GO kits.
Infineon shields for Arduino
Infineon started offering shields for the widely popular
and immensely flexible and easy-to-use Arduino platform
in 2015. These shields are designed and built with the
Arduino UNO form-factor in mind to ensure that no further
configuration or assembly is required. All these shields
interface seamlessly with most standard Arduino boards
and components, and many of Infineon’s microcontroller
boards are also compatible with the Arduino IDE, which
allows developers to get started quickly and build
prototypes.
DC Motor Control Shield with BTN8982TA
Technical articles 4
Shield2Go offerings Kit2Go offerings
With the Shield2Go range of products, Infineon introduced Infineon offers a range of ready-to-use evaluation boards Highlights in the Kit2Go range include the tiny, yet powerful,
a diversified portfolio of expansion boards featuring many that contain a microcontroller and a sensor or controller XMC2Go kit, which features the XMC1100 microcontroller
different sensors, microcontrollers, and security ICs. for a specific purpose. This approach is especially interesting (MCU) on a convenient development board, the Current
This range of products was designed with the needs of for hobbyists, Makers, and small start-ups as it offers a Sensor Kit2Go, which is a cost-effective evaluation board
the developer community in mind, and they can be freely cost-effective entry-point to the world of Infineon’s extensive equipped with an XMC1100 MCU and TLI4971 current sensor,
combined to form large systems and allow developers to portfolio of Maker tools. and the H-Bridge Kit2Go (which has an XMC1100 MCU and
test a complex system in a controlled and quick manner. can drive up to 6A).
This new prototyping concept consists of a feature-rich
hardware and software package that allows developers
to set up demonstration and prototyping environments
in practically no time, making Shield2Go the number one
choice for today’s prototypers.
All products in the Shield2Go catalog are equipped with at
least one Infineon IC, and they all come with a ready-to-use
Arduino (and sometimes Raspberry Pi) library. All devices in
the Shield2Go portfolio follow a standardized form-factor
and they share the same pin-layout. Besides that, they can
be stacked and connected without soldering. Developers
are free to combine the various Shield2Go boards and
third-party boards to form a complex prototype that exactly
contains the components they need.
H-Bridge Kit2Go
Technical articles 5
Raspberry Pi offerings Software and Coding Libraries
Besides the Arduino, the Raspberry Pi is another incredibly As mentioned, all Infineon Maker shields are Arduino Uno,
popular and successful platform amongst Makers, students, Raspberry Pi or Infineon2Go layout compatible. Usually, the GUI
hobbyists, and electronics enthusiasts. To enable users of shields come with a library to allow its users to utilize the
the Raspberry Pi platform to utilize the powerful boards of Arduino IDE that they are familiar with. To further ease the evaluation process of many 2GO kits,
the Shield2Go portfolio, Infineon introduced the Shield2Go Infineon provides simple to use graphical user interfaces.
adapter for the Raspberry Pi. It helps accelerate the devel- These small programs, like the graphical user interface (GUI)
opment of an IoT system and enables engineers to use a Arduino IDE and Platform.io for Angle Sensor 2GO or the GUI for 3D Magnetic Sensor 2GO,
platform they know with various innovative, capable, and allow a user to plug a supported 2GO kit into any Windows
powerful sensor boards and shields made by Infineon. These libraries are open source, and they can be installed computer with the GUI installed and quickly evaluate the
The Shield2Go adapter enables its users to connect up to directly in the Arduino IDE (or into the even more convenient functionality of the device without having to write any code.
three Shield2Go sensors or security ICs to the Raspberry Pi Platform.io extension in Microsoft’s VSCode Editor).
without the need for complicated wiring. Learn more about the basics of programming languages and MakeRadar
coding libraries at maker.pro. With the Sense2GoL development board, the testing and
Along with the possibility to use all the Shield2Go expansion evaluation process is even more simplified and straight-
boards, Infineon also offers HATs specifically made for the forward, as it can all be done using any computer with a
40-pin Raspberry Pi models. One of them is the MERUS Github web browser. This approach assists beginners when they’re
audio amplifier HAT, which is the world’s first 100 % just getting started by providing them with an interesting
self-contained audio amplification HAT for the Raspberry Pi There are also expansive resources available for makers on experimenting and learning experience. All there is to do is
offering HD audio at boombox power levels. It’s equipped GitHub where Infineon details their supported boards and to plug a supported development board into a computer
with an MA12070P class D multilevel amplifier, and it can various wikis for supported boards. and visit the #MakeRadar Plug & play experience website.
provide up to 40 W peak power from the official Raspberry Pi The website welcomes the user with engaging experiments
power supply and up to 48kHz/24bit music playback. and interesting facts and explanations of how the technology
It’s compatible with the most popular audio streaming Development environment works, making the Sense2GoL and the #MakeRadar website
applications for the Raspberry Pi, and it can, furthermore, a great resource for experimenting and learning.
also be used in Raspbian as an Airplay client or as a In addition, Infineon offers modern software development
Bluetooth audio receiver. environments based on Eclipse for a more professional Infineon also offers a wide variety of useful professional
work-flow. DAVE™ for XMC™-powered development boards online tools (such as electrical and sensor simluation and a
and ModusToolbox™ for Infineon’s wireless controller parametric product finder) for carrying out various design
portfolio. “Let‘s get started” projects are available for a and simulation tasks, planning simple and complex projects,
variety of use cases to unleash the potential of the and ordering parts online.
embedded connected world in your projects.
Technical articles 6
Example use cases and interesting DIY projects
With all the interesting modules, shields, and kits that Infineon has to offer for Makers and professionals likewise, the possibilities of what can be done with these products are nearly endless.
The final example shows a useful real-world scenario.
It uses a 24 GHz radar sensor to detect the speed of a
Just because a project is fun, doesn’t mean that it moving object. The sensor can completely be covered
can’t be practical, as the first example shows. With by the front panel, which allows it to be useful in
The next project will bring back some of the most
the help of a camera, a Raspberry Pi, an XMC1100 many other applications ranging from security
iconic classics of gaming history. In this project,
Boot kit, and the DC Motor Control Shield with monitoring to smart-home products. Besides that,
magnetic sensors are used for the joystick and
BTN8982TA, almost any RC car can be turned into an two seven segment displays show the current speed
buttons of a Raspberry-Pi powered mini retro gaming
autonomous driving vehicle. The donkeycar projects of the monitored object, and the entire device is
station. For that purpose, the cabinet is equipped
allows the Raspberry Pi to write image-, throttle-, controlled by an XMC1100 in the form of an XMC2Go
with two XENSIV™ Hall Switch Shield2Go TLE4964-3M
and steering information to its SD card. This data will evaluation board. The complete project can be found
that read the buttons, and a magnetic 3D Hall
be used to train a neural network, which will then be on this page.
Shield2Go board that’s responsible for determining
placed on the Raspberry Pi to allow the car to drive the joystick position. The 2GO modules interface the
autonomously. The XMC1100 Boot kit is responsible Raspberry Pi via the Shield2Go Adapter for Raspberry
for controlling the DC motor and the steering servo. Pi, and the sound is coming from two speakers, which
The Arduino compatible XMC1100 Boot kit will emu- are driven by a 40W MERUS audio amplification HAT.
late the PWM shield that’s used in the official donkey- Instruction on how to build this project can be found
car project. The source code and a detailed assembly here.
guide can be found on the project page.
Technical articles 7
Conclusion
Infineon has a lot to offer, not only for industrial and
professional users, but also for makers, start-ups, students,
hobbyists, electronics enthusiasts and engineers who
quickly want to start prototyping. Infineon offers a wide
variety of different Arduino compatible shields, expansion
modules, prototyping boards and HATs, which can be used
to quickly and efficiently turn an idea into a real-world
prototype. Most products are compatible with the Arduino
UNO ecosystem, as well as many microcontroller evaluation
kits from Infineon.
An adapter allows the powerful Shield2Go devices to be
used with a Raspberry Pi. All these products can not only be
utilized for prototyping purposes. As the three showcased
DIY projects demonstrated, the products that Infineon offers
to makers are very well capable to be used in real-world
projects and small-scale productions.

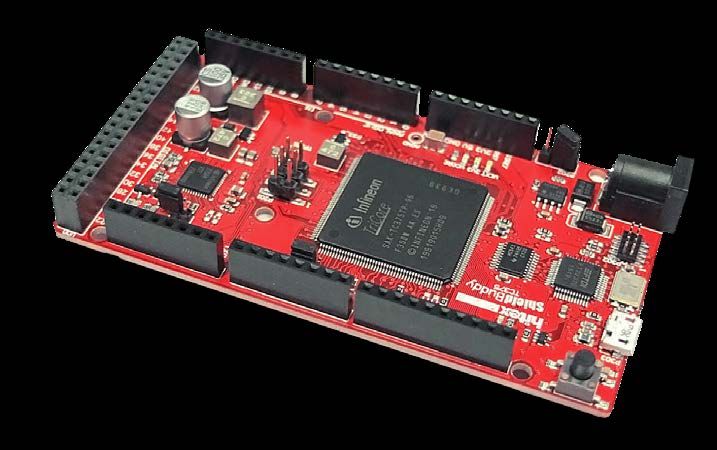

The Shield Buddy 32-bit microcontroller
development board now available
Get your projects one the road with Infineon’s AURIX™
Shield Buddy TC375 kit.
Find out more
Technical articles 8
OpenVent Open-source 3D Printable Ventilator
During the coronavirus (COVID-19) pandemic, it became
obvious that a lack of medical equipment can cause a severe
impact. Even simple equipment and designs can often be
helpful when no professional equipment is available.
This project describes an open-source ventilator device.
The main purpose of this project is to generate ventilator
design files and documentation for situations, when no
professional and medical equipment can be obtained.
Easy-to-assemble and readily available components are
used with a clear focus on simplicity, availability and
scalability. This means that local and short-notice
production is enabled wherever needed around the globe.
The material and documentation described here are How does it work?
provided as open-source with no warranties explicit or
implied. No material is intended to provide medical advice. An Ambu bag is used as pressure reservoir. It already reduce the infection risk of medical personnel (e.g. filters
All designs are intended for investigational use only. This features an O2 inlet (O2 concentration is crucial for and UV lighting applied to exhaled air) and/or enable the
article does not represent any official policies or procedures. patients with acute respiratory syndrome) and several best use of professional equipment for critical cases
The project is provided “as is”, without warranty of any safety features including e.g. overpressure and bypass (e.g. switch patient on recovery track to lower-requirements
kind, express or implied, including but not limited to the valves. Being standard for emergency help, these bags open-source ventilator). All of this is based on open-source
warranties of merchantability, fitness for a particular are available in substantial volumes. A motorized and and commonly accessible parts; especially for the mechanics
purpose and noninfringement. In no event shall the authors microcontroller+sensor controlled setup squeezes the bag the objective is to be scalable in production and hence fully
or copyright holders be liable for any claim, damages or at the right pattern, supporting assist-, pressure-, volume- 3D-printable. The only things not printed are the motor and
other liability, whether in an action of contract, tort or and flow-control ventilation and exhaled gas measurements its screws as well as the belt. BLDC motors are proposed.
otherwise, arising from, out of or in connection with the and filters. Additionally provided design files for 3D-printed Stepper motors such as NEMA 23 are another design-in
software or the use or other dealings in the software. adapters and valves also help to fill gaps in ‘accessory’ option. Design findings and results are openly shared as
Only use this design, documentation or any provided supply with professional equipment (ensuring, that all part of the open source, so other teams can easily also build
information if you accept the above disclaimer. available equipment can always be used) and/or help to upon it.
Technical articles 9
The human lung Mechanical ventilators
The human lung is a complex organ responsible for gas › Alveoli: These are located at the tip and the walls of the A mechanical ventilator is a medical device used to assist
exchange between the body and the environment. The respiratory airways. The group of alveoli form an acinus, or replace spontaneous breathing.
lung is mainly composed of two types of airways (conductive which in turn forms the sponge-like consistency of the
and respiratory airways), alveoli, and blood vessels. lung. Each alveolus is surrounded by blood vessels. Mechanical Ventilator Functionalities
The common wall between the alveolus and the blood In the following section we list the main functionalities
› Conductive airways: The main role of the conductive capillaries offers the medium for oxygen and carbon of a mechanical ventilator. We also aim to translate these
airways is to transport the bulk of air from and into the dioxide to be exchanged. Why is this important? Diseases functionalities into design requirements. Our aim in this
lung. No gas exchange (perfusion) takes place in the like COVID-19 lead to SARS (Severe Acute Respiratory work is to address the crucial need for supporting the high
conductive airways. This is why conductive airways Syndrome) or ARDS (Acute Respiratory Distress Syndrome) demand for mechanical ventilators during times of crisis.
are also called dead space. This is important because, via inflammation in the lung. This means that water starts The following functionalities aim to support the physicians
mechanically, conductive airways are responsible for the building up in the alveoli, thus reducing or preventing the with the right tools to treat patients suffering from SARS &
resistance to the flow, thus protecting the lung from high perfusion of the lung. This is a critical stage, where patients ARDS:
flow rates during inflation and from collapsing during will need to be put on assisted/mechanical ventilation.
deflation. Physicians will use different methods to keep the alveoli Tidal Volume: Is the volume of ventilated air at each
open, recruit the collapsed ones and bring the inflation respiratory cycle. An average adult at rest would need
› Respiratory airways: These airways differ from the down, all while avoiding further damage to the alveolar wall. anywhere between 500 to 800 ml of tidal volume each
conductive airways by containing alveoli on their walls. respiratory cycle to properly ventilate the lung.
Perfusion starts taking place at the respiratory airways. From requirements point of view, this means the
The air at this level is transported via diffusion rather than ventilator needs to:
conduction. Why is this important? During respiration, › pump up to 800 ml of air
the air needs to sit long enough in the lung for oxygen to › control the pumped volume
diffuse from the tips of the conductive airways into the › monitor and report if the pumped volume exceeded or
respiratory airways. The same applies for carbon dioxide dropped below the critical tidal volume
to diffuse from the respiratory airways into the conductive
airways. This determines the criteria for picking the
ventilation periods for inhaling and exhaling.
Technical articles 10Pressure: The pressure produced by the lung ventilators is Ventilation modes
responsible for driving the air into the lung and controlling
the rate of exhalation of the lung. From a requirements point In interviews with medical personnel, we noticed that
Flowrate
of view, this means ventilators need to: in most cases of intensive care, the pressure control is
› control the pumping pressure the mode chosen. That is why we will focus on this
› monitor and report if the pressure exceeds critical levels, method in the following prototype. A control loop will
Volume
to protect the lung from VALI (Ventilator-Associated Lung keep the pressure level at a preset value. A certain
Injury) volume (l/min) will arise.
Pressure
› control the PEEP (Peak End Expiratory Pressure), which
protects alveoli from collapsing If necessary, the medical personal will adjust the
pressure level to increase or lower the volume/min. Inspiration Expiration Inspiration Expiration
Fraction of Inspired Oxygen (FIO2): To protect the lung from Also the ratio of pressure to volume/min is an indi
Flowrate
VALI, the physicians could choose to ventilate the lung with cation of the human lung’s health.
lower tidal volume but higher oxygen content. For that,
the ventilator is connected to an oxygen intake. From a
Volume
requirements point of view:
The ventilator needs to control the mixture of oxygen and Peak Pressure
Plateau Pressure
air, which will be ventilated into the lung and monitor the
Pressure
concentration of oxygen in the pumped gas. This value is
used to adjust the FIO2 and to compare it with the oxygen Inspiration Expiration Inspiration Expiration
level in the blood. This in turn is an important indicator of
oxygen transfusion.
Flowrate
Expired Carbon Dioxide: Carbon dioxide is toxic for humans.
The concentration of the expired CO2 is an indicator of
Volume
whether the patient’s lung is being well perfused and
ventilated. Physicians track CO2, for example, to know if the
Pressure
patient is still alive. From the requirements point of view, this
PEEP
means:
› Monitor and report the CO2 concentration of exhaled air Inspiration Expiration Inspiration Expiration
Controlled Values Monitored Values
Technical articles 11Mechanics Electronics Closed loop motor control
All mechanical parts are either standard parts (such The electronic setup involves: In pressure-controlled mode, there can be slow
as screws) or 3D printed parts. The files can be found › Microcontroller (XMC4700 relax kit) in charge of speeds even up to 0 with still need to hold the
here. The belt is made of tape which is simply folded sensor readings, motor control and pressure control pressure in the lung. To maintain a high torque at
and therefore has no outward-facing sticky surfaces. loop lower speeds, we decided to build a sensor-based
((pls. check/confirm)) › Power stage driving the motor (IFX007 BLDC shield closed loop motor control setup. The rotor position
for Arduino) is detected by a TLE5012B magnetic angle sensor.
› Angle sensor (TLE5012B S 2GO breakout board) This way you can set the half bridges of the IFX007
monitoring the motor rotor position power stage in the right way to create the needed
› Digital pressure sensor monitoring pressure and air magnetic field to move or hold the rotor. We also use
flow (DPS368 S 2GO boards) this sensor to detect upper and lower endpoints so we
don’t turn the motor too far.
BLCD motor
Magnetic sensor
3 half-bridge power stage
Main controller
Technical articles 12Pressure and flowmeter
In our pressure and flowmeter setup, we use two DPS368
S2GO boards. The DPS368 (digital pressure sensor) is
waterproof and can monitor pressure levels as accurate as
6Pa. We placed the two sensors along a tube setup. This way
we can calculate the flow according to the pressure drop
(loss) across the tube. We tested 4 mm / 6 mm / 8 mm tubes
with a length of 80 mm between the sensor outlets. The 8
mm one shows the best result in terms of sensing accuracy
and lowest pressure drop. In addition, we can use one of the
pressure values directly for our pressure control loop.
Tubes Flow and pressure sensing setup
Control loops
Closed loop pressure control
Here you can see the two control loops running: Closed loop motor control
› the closed loop motor control using the magnetic angle
sensor DPS368 pressure
XMC4700 IFX007 Ambu
BLDC + Lung
› the closed loop pressure control using the digital pressure microcontroller power stage bag
flowmeter
sensor
TLE5012
magnetic angle
sensor
Control loop block diagram
Technical articles 13Inno.Wafer – Infineon’s startup
cooperation program
Innovation and partnerships are part of Infineon’s DNA. We
walk the talk - together with startups, we drive tomorrow’s
solutions. Our products address global challenges such as
climate and demographic change, urbanization, and digital
transformation.
Become part of our startup cooperation program Inno.Wafer.
The wafer is the symbol of the semiconductor industry.
However, the innovations we are looking for go far beyond
pure semiconductor technology. They are about the
applications that you can build with our products, the
software that complements them or the process efficiency
that we can gain as a global corporation.
Join the Inno.Wafer program now to have Infineon on your
side as your customer, supplier or business partner!
Independently and in addition to a concrete partnership, we
offer mentorships to interested startups active in hardware
or embedded systems (see more info on mentorships below).
Discover our new high-side switch
shield with BTS700x-1EPP for Arduino
For demonstrating relay and fuse replacement, the shield
www.infineon.com/startups can be used to control and protect outputs of a 12 V supply.
Get started now
Technical articles 14Blockchain Security 2GO
starter kit – meeting blockchain
security challenges
Infineon’s Blockchain Security 2GO starter kit provides a
fast and easy way to build best-in-class security into your
blockchain system design.
This generic kit supports an evaluation environment for
many different kinds of blockchain technologies. It provides
a lean feature set as well as open-source application
examples, which enable new ideas to flourish and the
generation of a secured physical link from the digital to
the real world.
The Blockchain Security 2GO starter kit includes:
› Five ready-to-use NFC cards, supporting basic blockchain
functionalities such as secure key generation, signing
methods, pin protection and many more
› On-card software that supports commands for key
management, signature creation and PIN authentication
› Access to Infineon’s blockchain GitHub: Open-source
example application code, such as a smartphone app
operating with the card
Where to buy
Either from www.infineon.com/blockchain or from
distributors’ e-Store:
The list is available on www.infineon.com
Where to get support
https://github.com/Infineon/Blockchain
Technical articles 15Key features and benefits Infineon‘s
SECORA™ Blockchain
NFC cards User
› Credit card size format (ID1)
› Infineon security controller chip Signed
transaction
› Contactless communication interface ISO 14443 Type A
On-card software commands Transaction
Miner
pool
› Key management
› Signature creation Nodes verify
› PIN authentication All blockchain
participants
Block generated
can verify
Open-source software Nodes verify
› Android example app demonstrating a crypto wallet for
Ethereum/ERC-20 tokens and a Smart Contract voting Infineon’s Blockchain
demo Security 2GO starter kit
Blockchain
› Python library abstracting the Blockchain Security 2GO API features hardware-based
protection mechanisms to
generate and store private
Customer benefits keys in a secured way.
› Starter kit for fast and easy design of blockchain
applications
› Low effort to integrate security Blockchain in a nutshell
(protection of credentials)
Basically, a blockchain is a decentralized digital ledger Why is security so important for blockchain applications?
Main features of the NFC cards that manages a continuously growing list of data points
(chain of blocks). Every block is cryptographically linked
The private key of a user plays a critical role. If the private
key is lost, all assets are lost. Moreover, if the private key is
› Creation and storage of up to 255 private/public key pairs to the previous block. The ledger records all transactions stolen and hacked, the attacker has full access to all assets,
for blockchain applications which are used to send assets (e.g. crypto currency) from which allows the creation of seemingly valid transactions.
› Loading and storing a key that is provided by the user one account to another. Each transaction is protected by a
in an encrypted form digital signature. To create such a digital signature, a secret Private key storage requires the best possible protection!
› Signature generation for signing blockchain transactions private key that corresponds to the public key of an account Hardware-based security tokens are the most effective
› User authentication with PIN is needed. defense against attacks and unauthorized access.
Technical articles 16Get inspired – learn and be part
of our social communities
Infineon concentrates on building a strong relationship
with its communities and shares dedicated expertise within
the hardware & software developer network by leveraging
the power of community platforms. Our target is to build a
strong relationship with all developers by establishing
road-tests, design challenges and sharing outstanding
stories of our makers. Follow us in our communities and
learn about Infineon’s product portfolio, projects showcases
great ideas and latest technologies.
Visit us in our communities:
Infineon on Social Media
www.facebook.com/Infineon
www.twitter.com/Infineon
www.linkedin.com/company/infineon-technologies
www.hackster.io/infineon
www.element14.com/community/groups/infineon
Technical articles 17µSD card interface
512Mb QSPI NOR Flash
Back of kit featuring the MikroBUS®
On-board debugger PDM-PCM mic Interface allowing for off-the-shelf
prgrammer (KitProg3) Thermistor Mikro Click Board expansion
PSoC 62 w/ 2MB On-board debugger Fully certified
Flash and programmer module hosting the
1 MB SRAM Murata (KitProg3) PSoC 63 BLE 5 MCU
LBEE5KL1DX Module
(WiFi/BT)
Digilent PmodT™ Linear slider,
interface touch buttons
using CapSense®
Reset button (SW1) Power selection jumper (J3)
PSoC 6 Wi-Fi-BT Prototyping kit PSoC 6 BLE Prototyping kit The ModusToolbox Software
(CY8CPROTO-062-4343W) (CY8CPROTO-063-BLE) Environment
The PSoC 6 Wi-Fi-BT Prototyping kit is a low-cost The PSoC 6 BLE Prototyping kit is a low-cost development The ModusToolbox Software Environment is the ideal
development platform featuring the PSoC 62 MCU. It also platform featuring the PSoC 63 BLE 5.0 MCU in a fully software platform to create IoT MCU and wireless designs.
features Infineon Wi-Fi/Bluetooth connectivity showcasing certified module. There is also an on-board programmer / Think about ModusToolbox as a collection of firmware
our extensive MCU + Wireless integration. On-board is a fully debugger for easy prototyping and support for the mikroBUS libraries (BSPs, middleware, examples, and more) and tools
certified 802.11n Wi-Fi + Bluetooth 5 Murata 1DX module interface, allowing expanded functionality through shields that you can easily arrange to suit the needs of your project.
hosting the CYW4343W radio. Also on-board are industry- quickly and easily. ModusToolbox allows you to bring your ideas to life. Take
leading CapSense® capacitive-sensing buttons/sliders, advantage of our intuitive configurators that allow you to
Serial NOR Flash, PDM-PCM mic and a thermistor. easily set up system functions, configure and tune CapSense
It also has a Digilent Pmod interface for the ability to hardware applications, set up and write to displays, and
expand functionality quickly and easily. configure connectivity settings for Wi-Fi, Bluetooth, and
USB. ModusToolbox also provides world-class integration
of 3rd party ecosystems such as Mbed OS and FreeRTOS
for AWS IoT cloud services. A plethora of easy-to-use code
examples can be found on the Infineon GitHub Repository
showing you how to take advantage of all these features and
development flows.
Technical articles 18Maker
Products Index
19Maker Products Index
Motor Control
Product name BLDC Motor Control with TLE9879
Ordering Code BLDCSHIELDTLE9879TOBO1
Description BLDC Shield for Arduino with TLE9879QXA40 is designed to drive BLDC motors in combination with an
Arduino-compatible baseboard. The Shield is flashed with several motor control algorithms (sensorless FOC,
Back EMF, Hall sensor based block commutation), and it is controlled from the baseboard via SPI. Additionally,
it has a 3 x 2 pin strip to easily connect the Hall pins of an electric motor.
weblink
Product name BLDC Motor Control with IFX007T
Ordering Code BLDCSHIELDIFX007TTOBO1
Description The (BL)DC motor control shield is a high current motor control board compatible with Arduino and Infineon’s
XMC4700 Boot kit. It is equipped with three smart IFX007T half-bridges. The BLDC motor control shield is
capable to drive one BLDC motor. Alternatively, it can be used to drive one or two bi-directional DC motors or
up to three uni-directional DC motors.
weblink
Product name DC Motor Control with BTN8982
Ordering Code DCMOTORCONTRBTN8982TOBO1
Description The DC motor control shield from Infineon Technologies is one of the first high current motor control boards
compatible with Arduino as well as Infineon’s boards (e.g., the XMC1100 bootkit or the 4700 Relaxkit).
The DC motor control shield is capable to drive two uni-directional DC motors (half bridge configuration) or
one bi-directional DC motor (half bridge configuaration). The implemented integrated BTN8982TA NovalithIC™
half bridges can be controlled by a PWM via the IN Pin.
weblink
Maker Products Index 20Maker Products Index
Motor Control
Product name DC Motor Control Shield with BTN7030-1EPA
Ordering Code DCSHIELDBTN7030TOBO1
Description The motor control shield with BTN7030-1EPA is designed to drive DC motors in combination with an Arduino
compatible baseboard. The shield can be controlled with the general logic IO-Ports of a microcontroller.
Either an Arduino Uno R3 or the XMC1100 Boot kit from Infineon can be used as the master. In addition, you
can control this board is via uIO port using Infineon uIO Stick.
weblink
Product name H-Bridge Kit2Go
Ordering Code HBRIDGEKIT2GOTOBO1
Description The H-Bridge Kit2Go is a ready to use evaluation kit. It is fully populated with all electronic components
equipped with the H-Bridge IFX9201 combined with an ARM® Cortex™-M0 CPU. Realize your own DC motor
control. It is designed for the control of DC motors or other inductive loads up to 6 A or up to 36 V of Supply
weblink
Product name Stepper Motor Control Shield with IFX9201 & XMC1300
Ordering Code KITXMC1300IFX9201TOBO1
Description It is capable of driving the two coils in a stepper motor featuring dual-h-bridge configuration. The
implemented integrated IFX9201 h-bridges can be controlled by a STEP-signal via the STEP Pin. Interfacing to
a microcontroller is made easy by the integrated XMC1300 microcontroller that holds the peripherals to allow
high-speed current control.
weblink
Maker Products Index 21Maker Products Index
Smart Switches
Product name 24 V Protected Switch Shield with BTT6030-2ERA and BTT6020-1ERA
Ordering Code 24VSHIELDBTT6030TOBO1
Description The 24 V Protected Switch Shield for Arduino is used to drive resistive, capacitive as well as inductive loads
(e.g. truck bulbs, car bulbs, valves, motors, relays, capacitors, LEDs) & fast prototyping and in-expensive
evaluation of the PROFET™ +24 V devices.
weblink
Product name High-Side Switch Shield with BTS7002-1EPP
Ordering Code SHIELDBTS70021EPPTOBO1
Description The High-side switch shield for Arduino is available in 4 different RDS(ON) categories: BTS7002-1EPP /
BTS7004-1EPP /BTS7006-1EPP /BTS7008-1EPP (21A, 15A, 12.5A, 10A nominal current per output)
For demonstrating relay and fuse replacement, the shield can be used to control and protect outputs of a
12 V supply, turn ON/OFF loads (e.g. bulbs, heating resistors, motor drives), measure the load current and
detect no-load condition. The PROFET™ +2 12 V family targets high current automotive applications
(e.g. ECU power feeds, auxiliary power outlets, heaters).
weblink
Product name Low-Side Switch Shield with BTF3050TE
Ordering Code SHIELDBTF3050TETOBO1
Description The Low-Side Switch Shield from Infineon consists out of three BTF3050TE low-side switches of the HITFET™+
family providing three independent power channels that can be controlled via the input pins. The shield is
compatible with microcontroller boards using the Arduino form factor for example the corresponding ARM®
powered XMC™ microcontroller kits from Infineon.
weblink
Maker Products Index 22Maker Products Index
Smart Switches
Product name Protected Switch Shield with BTS50015-1TAD or BTS50010-1TAD
Ordering Code SHIELDBTS500151TADTOBO1
Description The 12 V protected switch shield for Arduino comes with BTS50015-1TAD (RDS(ON) 1.5 mΩ), an ultra-low
ohmic smart high-side power switch from the Power PROFET™ family. Designed for relay and fuse
replacement in power distribution and junction boxes, Power PROFET™ can drive resistive, capacitive and
inductive loads (e.g. heating resistors, filter capacitors, motor, valves and pumps). The Power PROFET™
family targets high current applications (e.g. ECU power feeds, auxiliary power outlets, PTC heaters, rear
windows heaters) and applications with high switching cycles and high energy requirements (e.g. “start-stop”
weblink
systems, electric brake vacuum pumps).
Product name PROFET™ +2 12 V H-Bridge Arduino Shield
Ordering Code HBRIDGEBTS70402TOBO1
Description The H-BRIDGE_BTS7040-2 shield for Arduino is a universal development kit for Infineon’s PROFET™ +2 12 V
Smart High-Side Switch BTS7040-2EPA in combination with an Infineon IPG20N04S4-18A Dual N-channel Low
Side Switch in H-Bridge configuration which is designed for (but not limited to) the control of DC motors or
other inductive loads up to 3.5 A in industrial and home appliance applications. An Arduino Uno, XMC4700
Relax kit, XMC1100 Boot kit, or similar board connected to the shield, can control the H-BRIDGE_BTS7040-2
shield via the general IO pins (5 V).
weblink
Maker Products Index 23Maker Products Index
SBC Shield
Product name Lite DCDC SBC Shield with TLE9471-3ES
Ordering Code SBCSHIELDTLE9471TOBO1
Description This Lite DCDC SBC Shield for Arduino with TLE9471-3ES is designed drive the main functions of the System
Basis Chip and accelerates the design-in phase. It is populated with the representative product families’
superset component TLE9471-3ES, 9 pcs RGB LEDs and a microchip CAN-SPI controller. The integrated buck
converter drivers supplied the 9 LEDs, moreover you can use the SPI interface, system interrupt and reset, the
integrated charge pump, the CAN transceiver and the fail-output.
weblink
Maker Products Index 24Maker Products Index
Microcontroller
Product name XMC1100 Boot kit
Ordering Code KITXMC11BOOT001TOBO1
Description The XMC1100 CPU Card for Arduino has two rows of pin headers which fully compatible with Arduino shield.
Hence, user can buy various Arduino shield boards off-the-shelf to test the capabilities of XMC1100
microcontroller.
weblink
Product name XMC2Go with XMC1100
Ordering Code KITXMC2GOXMC1100V1TOBO1
Description The XMC2Go kit with XMC1100 is maybe the world’s smallest, fully featured microcontroller evaluation kit
showcasing, XMC1100 (ARM® Cortex™-M0 based), on-board J-Link Lite Debugger (Realized with XMC4200
microcontroller), power over USB (Micro USB),ESD and reverse current protection, 2 x user LED, pin Header
2 x 8 Pins suitable for Breadbord.
weblink
Product name XMC1400 Arduino kit
Ordering Code KITXMC1400ARDUINOTOBO1
Description Explore the most of our XMC1400 microcontroller with the XMC1400 Arduino kit. This kit utilizes Infineon’s
industry leading ARM® Cortex®-M0 microcontroller in combination with Arduino form factor. Focused on
evaluate the capabilities of the XMC1400 Microcontroller multiple applications solutions, it can be used with a
wide range of development tools including Infineon’s free of charge Eclipse based IDE, DAVE™ and much more.
weblink
Maker Products Index 25Maker Products Index
Microcontroller
Product name XMC4300 Relax EtherCAT® Kit
Ordering Code KITXMC43RELAXECATV1TOBO1
Description The new XMC4300 microcontroller series further reduces complexity in EtherCAT® implementation and cost in
factory automation, industrial motor control, I/O modules and robotics. The XMC4300 series was specifically
developed for EtherCAT® industrial applications, where cost pressure places a premium on design flexibility,
connectivity and performance without compromise to EtherCAT® communication features.
weblink
Product name XMC4700 Relax Lite Kit for 5V Shields
Ordering Code KITXMC47RELAXLITEV1TOBO1
Description XMC4700 microcontroller evaluation kit, hardware compatbile with 5V Arduino™ Shields (lite version w/o
Ethernet components assembled).
weblink
Product name XMC4700 Relax Kit for 3.3 V Shields (available in lite form)
Ordering Code KITXMC47RELAXLITEV1TOBO1
Description XMC4700 microcontroller evaluation kit, Ethernet connection, CAN node and microSD Card slot included,
Hardware compatible with compatible with 3.3 V Arduino™ Shields (lite version w/o Ethernet components
assembled).
weblink
Maker Products Index 26Maker Products Index
Microcontroller
Product name XMC4800 Relax EtherCAT® kit
Ordering Code KITXMC48RELAXECATV1TOBO1
Description XMC4800 microcontroller evaluation kit, EtherCAT® node, Ethernet connection, CAN node and microSD Card
slot included, Hardware compatible with compatible with 3.3 V Arduino Shields
weblink
Product name AURIX™ ShieldBuddy
Ordering Code KITA2GTC375ARDSBTOBO1
Description The ShieldBuddyTC375 is (currently) the world’s smallest AURIX™ development board. The Hitex
ShieldBuddyTC375 is fitted with the Infineon TC375 32-bit multicore processor on a board following the
Arduino™ standard making it compatible with many of the application shields that are available.
weblink
Product name AURIX™ TC375 lite kit
Ordering Code KITA2GTC375LITETOBO1
Description AURIX™ TC375 lite kit is equipped with a 32-Bit Single-Chip AURIX™ TriCore™ based-microcontroller Aurix™
TC375. It can be used with a range of development tools including AURIX™ Development Studio, Infineon’s
free of charge Eclipse based IDE, or the Eclipse based “FreeEntryToolchain” from Hightec/PLS/Infineon.
This kit is comparible with Arduino and AURIX™ Development Studio.
weblink
Maker Products Index 27Maker Products Index
XENSIV™ Shield2Go
Product name Shield2Go with TLE493DW2B6-A0 or TLV493D-A1B6
Ordering Code S2GO3DTLE493DW2B6A0TOBO1 / S2GO3DSENSETLV493DTOBO1
Description Infineon’s 3D magnetic sensor TLE493D-W2B6/TLV493D-A1B6 offers accurate three dimensional sensing with
extremely low power consumption. Within its small 6-pin package the sensor provides direct measurement
of the x, y and z magnetic field components, making it ideally suited for the measurement of 3D movement,
Linear travel and 360° angle rotation. TLE493D-W2B6 includes an enhanced dynamic wake up feature.
weblink
Product name Shield2Go with TLI493D-W2BW-A0
Ordering Code S2GO3DTLI493DW2BWA0TOBO1
Description Infineon’s S2GO_3D_TLI493D-W2BW-A0 boards offer a unique customer and evaluation experience – the
boards are equipped with one TLI493D-W2BW-A0 magnetic sensor and come with a ready to use Arduino
library. Customers can now develop their own system solutions by combining Shield2Go boards together
with Infineon My IoT adapters. My IoT adapters are gateways to external hardware solutions like Arduino
and Raspberry PI, which are popular IoT evaluation platforms. All this enables the fastest evaluation and
development of IoT system on the market! It can be used together with XMC2Go platform.
weblink
Product name Shield2Go with TLI4971 Current Sense
Ordering Code S2GOCURSENSETLI4971TOBO1
Description XENSIV™ magnetic current sensor TLI4971-A120T, sensor board for high current capability (≤20 A),
to be used with Arduino or XMC2Go evaluation board.
weblink
Maker Products Index 28Maker Products Index
XENSIV™ Shield2Go
Product name Shield2Go with TLE4964-3M
Ordering Code S2GOHALLTLE49643MTOBO1
Description Infineon’s XENSIV™ TLE4964-3M is an integrated Hall effect switch designed specifically for highly accurate
applications with superior supply voltage capability, operating temperature range and temperature stability
of the magnetic thresholds.
weblink
Product name Shield2Go with IM69D130
Ordering Code S2GOMEMSMICIM69DTOBO1
Description Infineon’s Shield2Go boards offer a unique customer and evaluation experience – the boards are equipped
with two High-performance digital MEMS Microphone IM69D130 and come with a ready to use Arduino library.
Customers can now develop their own system solutions by combining Shield2Go boards together with
Infineon My IoT adapters. My IoT adapters are gateways to external hardware solutions like Arduino and
Raspberry PI, which are popular IoT hardware platforms. All this enables the fastest evaluation and
development of IoT system.
weblink
Product name Shield2Go with DPS310 Pressure Sensor
Ordering Code S2GOPRESSUREDPS310TOBO1
Description Infineon’s Shield2Go boards offer a unique customer and evaluation experience – the boards are equipped
with one DPS310 barometric pressure sensor and come with a ready to use Arduino library. Customers can
now develop their own system solutions by combining Shield2Go boards together with Infineon My IoT
adapters. My IoT adapters are gateways to external hardware solutions like Arduino and Raspberry PI, which
are popular IoT hardware platforms. All this enables the fastest evaluation and development of IoT system.
weblink
Maker Products Index 29Maker Products Index
XENSIV™ Shield2Go
Product name Shield2Go with DPS368 Pressure Sensor
Ordering Code S2GOPRESSUREDPS368TOBO1
Description Infineon’s Shield2Go boards offer a unique customer and evaluation experience – the boards are equipped
with one DPS368 barometric pressure sensor and come with a ready to use Arduino library. Customers can
now develop their own system solutions by combining Shield2Go boards together with Infineon My IoT
adapters. My IoT adapters are gateways to external hardware solutions like Arduino and Raspberry PI, which
are popular IoT hardware platforms. All this enables the fastest evaluation and development of IoT system.
weblink
Maker Products Index 30Maker Products Index
XENSIV™ Sensor 2GO kit
Product name Magnetic Speed Sensor 2GO kit with TLE4922
Ordering Code TLE4922MS2GOTOBO1
Description TLE4922 MS2GO kit is a new budget-priced evaluation board that are already equipped with a sensor
combined with an ARM® Cortex®-M0 CPU. The sensor 2GO kit provide a complete set of on-board devices,
including an on-board debugger. Build your own application and gadget with the sensor 2GO kit. Our 2GO kit
are ready-to-use plug-and-play boards.
weblink
Product name Magnetic Angle Sensor 2GO kit with TLX5012B
Ordering Code TLE5012BE1000MS2GOTOBO1
Description Infineonʼs XENSIV™ TLx5012B Magnetic Angle Sensor 2GO kit is a budget-priced entry level evaluation
kit equipped with a TLE5012B /TLI5012B digital GMR angle sensor interfaced with an XMC1100 Infineon
microcontroller based on ARM Cortex M0 CPU. Build your own application and gadget with the Angle Sensor
2GO kits. The hardware & software bundle allows decoding and acquisition of all communication protocols,
access to RAM registers and soft fusing of different variants
weblink
6,8 mm Product name 3D Magnetic Hall Sensor 2GO kit with TLE493D-A2B6 or TLE493D-W2B6 or TLV493D-A1B6
Ordering Code TLE493DW2B6MS2GOTOBO1 / SP001707578 / SP001707574
Description The 3D Magnetic Sensor 2GO kit is a budget-priced evaluation board equipped with a magnetic sensor for
three dimensional measurement combined with an ARM® Cortex™-M0 CPU. It has a complete set of on-board
devices, including an on-board debugger. In addition Infineon is offering so called add-on components which
are adapters for the 3D Magnetic Sensor 2GO kits. Theses add ons (e.g. joysticks, rotation knobs, linear slider
etc.) comprise a magnet and can be directly mounted onto the 2Go kits. Together with a dedicated GUI it’s the
perfect tool for fast and easy plug-and-play systems. Build and evaluate your own application and gadget with
the 3D Magnetic Sensor 2GO kit.
weblink
Maker Products Index 31Maker Products Index
XENSIV™ Sensor 2GO kit
Product name Pressure Sensor 2GO kit with KP215 MAP
Ordering Code KP215F1701PS2GOKITTOBO1
Description Infineon’s XENSIV™ Pressure Sensor 2GO kit is a budget-priced evaluation board equipped with a pressure
sensor for pressure sensor measurement combined with an ARM® Cortex™-M0 CPU. The Pressure Sensor 2GO
kit has a complete set of on-board devices, including an on-board debugger. Build your own application and
gadget with the Pressure Sensor 2GO kits.
weblink
Product name Pressure Sensor 2GO kit with KP229E3518
Ordering Code KP229E3518PS2GOKITTOBO1
Description Infineon’s XENSIV™ Pressure Sensor 2GO kit is a budget-priced evaluation board equipped with a pressure
sensor for pressure sensor measurement combined with an ARM® Cortex™-M0 CPU. The Pressure Sensor 2GO
kit has a complete set of on-board devices, including an on-board debugger. Build your own application and
gadget with the Pressure Sensor 2GO kits. KP229E3518 MAP: Analog Turbo MAP Sensor
weblink
Product name Angle Sensor Eval kit with TLE5014CPS
Ordering Code TLE5014SPEVALKITTOBO1
Description Infineon’s XENSIV™ GMR angle sensor family has a new member of plug-and-play evaluation kits, the TLE5014
Eval kit series. The TLE5014 is a digital GMR angle sensor offering an excellent angle accuracy of less than 1°.
Customers can choose between 4 different interface variants SPC, PWM, SENT as well as SPI, which is also
reflected in the setup of the Eval kits. Infineon is offering two different TLE5014 Eval kits which are highlighting
the wide variety of interfaces, the TLE5014CPS Eval kit (featuring SPC, PWM and SENT) and the TLE5014SP
Eval kit (featuring SPI)
weblink
Maker Products Index 32Maker Products Index
XENSIV™ Sensor 2GO kit
Product name Add ons for 3D Magnetic Sensor 2GO kits and Shield2Go
Ordering Code JOYSTICKFOR3D2GOKITTOBO1
ROTATEKNOB3D2GOKITTOBO
OUTOFSHAFTFOR3D2GOTOBO1
DIRINDICATOR2GOTOBO1
MINICONTROL2GOTOBO1
POWERDRILL2GOTOBO1
LINEARSLIDER2GOTOBO1
Description Easy mounting on all 3D Magnetic Sensor 2GO kits and Shield2Go.
weblink
Product name Shield2Go Adapter – my IoT adapter
Ordering Code MYIOTADAPTERTOBO1
Description By combining Shield2Go boards with the Infineon My IoT adapter, customized system solutions can be
developed and evaluated. This Shield is compatible for 3.3 V and 5 V shields.
weblink
Maker Products Index 33Maker Products Index
Security Shield2Go
Product name Shield2Go OPTIGA™ TrustM
Ordering Code S2GOOPTIGAMCLOUDTOBO1
Description Infineon’s Shield2Go for IoT clouds comes pre-provisioned with the OPTIGA™ Trust M high-end security
solution offering a unique customer and evaluation experience on an easy-to-handle PCB.
It provides a root of trust in the form of a unique X.509 certificate coupled with hardware support to establish
a TLS (Transport Layer Security) connection between your device and a cloud, this forming a robust basis for
secured communication.
weblink
Product name Shield2Go OPTIGA™ TrustE
Ordering Code S2GOSECURITYOPTIGAETOBO1
Description This Shield2Go board is equipped with one OPTIGA™ Trust E security chip and comes with a ready-to-use
Arduino library. By combining Shield2Go boards with Infineon MyIoT adapters, customized system solutions
can be developed.
weblink
Product name Shield2Go OPTIGA™ Trust X
Ordering Code S2GOSECURITYOPTIGAXTOBO1
Description Infineon’s Shield2Go Security OPTIGA™ Trust X boards offer a unique customer and evaluation experience –
the boards are equipped with one OPTIGA™ Trust X security chip and come with a ready to use Arduino library.
weblink
Maker Products Index 34Maker Products Index
Sensor Radar
Product name Sense2GoL Development kit with 24GHz tranceiver IC BGT24LTR11, XMC1302 microcontroller and XMC4200
Debugger
Ordering Code DEMOSENSE2GOLMAKETOBO1
Description Sensor radar
Test your #MakeRadar device immediately – live and right here in the browser!
The Plug & play experience allows you to easily get started with radar and your radar device.
weblink
Product name PSoC 6 BLE Prototyping kit
Ordering Code CY8CPROTO-063-BLE
Description The PSoC 6 BLE Prototyping kit is a low-cost development platform featuring the PSoC 63 BLE 5.0 MCU in a
fully certified module. There is also an on-board programmer / debugger for easy prototyping and support
for the MikroBUS interface allowing expanded functionality through shields quickly and easily.
weblink
Product name PSoC 6 WiFi-BT Prototyping kit
Ordering Code CY8CPROTO-062-4343W
Description The PSoC 6 WiFi-BT Prototyping kit is a low-cost development platform featuring the PSoC 62 MCU. It also
features Infineon Wi-Fi/Bluetooth connectivity showcasing our extensive MCU + Wireless integration. On-board
is a fully certified 802.11n Wi-Fi + Bluetooth 5 Murata 1DX Module hosting the CYW4343W Radio. Also on-board
are industry-leading CapSense® capacitive-sensing buttons/sliders, Serial NOR Flash, PDM-PCM Mic and a
Thermistor. It also has a Digilent PMOD interface for the ability to expand functionality quickly and easily.
weblink
Maker Products Index 35Infineon Technologies AG Published by
Infineon Technologies AG
© 2021 Infineon Technologies AG.
81726 Munich All rights reserved.
Germany
Date: 03 / 2021 www.infineon.comYou can also read
