Guidelines GEONIS Data Quality Program Overview for Data Quality Optimization
Geocom Guidelines We reserve the right to make technical changes. © Copyright 2019 by Geocom Informatik AG, Burgdorf / Switzerland Conception and Design: Geocom Informatik AG, Burgdorf, Switzerland All rights reserved. This document may not be reproduced or copied in any form, in full or in part, either electronically, photo- mechanically or mechanically, without the explicit consent of Geocom Informatik AG. GEONIS is a registered trademark of Geocom Informatik AG.
Guidelines Geocom Table of contents 1. Introduction ..................................................................................................................................4 2. Mandatory quality characteristics for GEONIS .........................................................................5 2.1. GEONIS conventions .....................................................................................................................5 2.2. GEONIS system tables / Object relationships (ORM)....................................................................5 2.3. XML definitions incl. overload concept ...........................................................................................6 2.4. Mandatory attributes / Correct network topology ...........................................................................7 3. Tools for quality assurance ........................................................................................................8 3.1. GDN Studio ....................................................................................................................................8 3.2. GEONIS DB Modeler .....................................................................................................................9 3.3. GDN Database Compare .............................................................................................................10 3.4. GEONIS DB Validation Tool ........................................................................................................10 3.5. GeoDbDiff.....................................................................................................................................11 3.6. GEONIS DB Update .....................................................................................................................12 3.7. GEONIS XML Restruct ................................................................................................................12 3.8. GEONIS Validation ......................................................................................................................14 3.9. GEONIS DB Statistic ....................................................................................................................15 3.10. Graphical topology check .............................................................................................................15 3.11. Geometric Network Editing (Esri network) ...................................................................................16 3.12. Esri Topology ...............................................................................................................................17 3.13. Python ..........................................................................................................................................18 3.14. GEONIS Data Converter / FME ...................................................................................................18 4. Overview of data quality tools ..................................................................................................19 5. Added value of data quality ......................................................................................................20 6. How to enhance data quality.....................................................................................................20 7. Support ........................................................................................................................................21 8. Internet Sources .........................................................................................................................21 GEONIS_Data_Quality_EN.docx Page 3
Guidelines Geocom
1. Introduction
“Geodata is in all cases simply an incomplete image of a section of the Earth’s surface. It repro-
duces a particular topic at a particular point in time and for a particular area
(What? - When? - Where?) ”.
Within a GIS, quality is driven by its application, always targeting on a certain use.
Unlike pure master databases, which among other things should be redundancy-free and con-
sistent, topological correctness plays a very important role with GIS. The fundamental purpose
of topology is to provide the spatial relationships of objects to each other. Besides the correct
snapping, the settling of vertices is another quality characteristic to keep the data amount small
(using enough but not too many vertices).
If the GIS data is based on a complex data model, the consistency of the data model has to
be ensured by the help of rules. Missing or falsely linked elements create obsolete data that is
difficult to maintain or to be cleaned-up. A complete attributive acquisition of data provides the
GIS with information to perform profound analyses and evaluations.
The full potential of a GIS is only exploited with correct topology combined
with high-quality master data.
The quality of a data pool is based on 5 quality characteristics.
Consistency
Accuracy logical accuracy
spatial and topical
Rightness
accurate data
DATA
QUALITY
Timeliness Completeness
temporal validity of the complete record
data
However, it is not only the data itself that is significant in operating a GIS, as the availability and
reliability of this is also important.
GEONIS_Data_Quality_EN.docx Page 4
Guidelines Geocom
2. Mandatory quality characteristics for
GEONIS
For a successful use of GEONIS, following quality characteristics are important:
• Compliance with GEONIS conventions
• Correct and complete GEONIS system tables: including object relationships (ORM) and
lookup / secondary tables
• Valid XML definitions (incl. overloads) that match exactly the data model
• Correct network topology
• Complete acquisition of mandatory attributes
2.1. GEONIS conventions
The GEONIS conventions must be complied with as mandatory in the case of model expansions
or new solutions. This is the only way to ensure that the tools implemented will work properly and
that an update can be completed without losing data.
Some of the important conventions include:
• Feature datasets, tables, columns
▪ have more than 30 characters
▪ are written in capital letters
▪ all user-specific extensions must be designated with “U_...”
• Expansion of values in secondary tables → CODE ≥ 1000
• The code field as of GEONIS 5.4 is GlobalID as mandatory (previously OBJECTID)
• The CODE / subtype attribute is mandatory from data type Integer → CODE 0 = unknown
▪ IMPORTANT: Esri subtypes must be consistent with the GEONIS lookup values!
• All updates must be executed in the chronologically correct sequence (GN_VERSION)
All of the GEONIS conventions can be found on the GEONIS Online Help.
2.2. GEONIS system tables / Object relationships (ORM)
The contents in the GEONIS system tables influence the functionality of GEONIS directly. Defec-
tive system tables can result in performance losses, erroneous data, system crashes, and in the
worst cases in data loss.
The following must be noted (also see System tables of the GEONIS conventions, GDN login
required):
• GN_LOOKUP complete and updated
▪ All values are fully entered
▪ No redundancies
▪ Each lookup reference has entries in each language
• Secondary tables complete and updated
▪ Code values are defined
▪ Code values are unambiguous
▪ Code values are not NULL
• Allocate relationship type in the GNREL_DEFINITION consistently
▪ no "Undefined" relationships (Overview of relationship types, GDN login required)
▪ All relationships reference to existing field and table names
GEONIS_Data_Quality_EN.docx Page 5Guidelines Geocom
• Formulas in GNREL_RULE and GNREL_FORMULA must be server-compliant
▪ List of deprecated parser funcwtions
• GN_SPLITMERGE_DEF for all line objects with relationships must be complete and filled
in correctly
• Module-specific system tables are available and contain all necessary parameters
(GNELE_DEFINITION, GNSEW_DEFINITION, GNDH_DEFINITION, etc.)
2.3. XML definitions incl. overload concept
Many functions and configurations in GEONIS are defined using XML files. The advantage of
XML configurations is that adjustments in the solution can be done without programming know-
how. This makes the user highly flexible and they can adapt GEONIS to meet their requirements.
Of course, although this gives a certain freedom, GEONIS requires that you follow certain rules
to run your system smoothly.
Some of the XML conventions associated with GEONIS are provided below:
• Each XML file begins with and is valid with the
XSD file in the XSD folder provided
• The version in the XML ideally corresponds with the solution version
→ version=«2017.0» & ..\xsd_2017\xyz.xsd (usually in the second row in the XML)
• Enhancements to attribute screens, legends, etc. in accordance with GEONIS overload
concept
▪ media: GEONIS standard configurations (ATTENTION: No changes!
→ Get lost after an update!)
▪ customization: adjustment for each media (customer-specific for each media)
▪ datasources: adjustment for each database (customer-specific for each database)
▪ projects: adjustment for each project (customer-specific for each project)
IMPORTANT: In the event of an overload of the same file in the different overload levels,
the last one always prevails in the following sequence:
1. media
2. customization
3. datasources
4. projects
If an XML file is overloaded therefore at the projects level, then it is immaterial what is overloaded
with this file in the first 3 levels.
GEONIS_Data_Quality_EN.docx Page 6Guidelines Geocom
2.4. Mandatory attributes / Correct network topology
GIS data that is as complete and accurate as possible is crucial for wider use and for in-
depth analyses. There are different requirements related to the data and its quality depending on
the queries involved.
The rows tracked with the GIS must be defined in advance
in order to know the data requirements.
The following questions may be of assistance with the objectives:
• Which products are being generated?
▪ Plans / Legends: Work, plot, pressure area, year of construction, condition, etc.
▪ WebServices: What data is required for this?
▪ Reports / Statistics: What data is required for this?
▪ Subsequent requests: GEONIS Network Calculation
(requires both complete attributes as well as correct topology)
▪ …
• Which interfaces are being operated?
▪ Interlis: SIA, VSA, LKMap
▪ NEPLAN
▪ Youtility, CableScout
▪ Mike Urban, Dataver
▪ RESEAU
▪ IS-E, SAP
▪ …
At the next stage the attributes that must be filled in as mandatory can be determined for each
object in the acquisition guidelines. Use standard values here whenever possible (“unknown”
is better than “EMPTY”).
Graphical rules can also be recorded for certain objects / complex structures if useful. On the one
hand this ensures a consistent appearance on the map, and on the other hand it helps not to
distort assessments unnecessarily (e.g. conduits to the edge or center of the shaft?).
From experience there is a need for action with the network topology in most cases. Yet this
is only when network assessments are required, e.g. with
• Fault simulations: Who is affected by a defect?
• Automatic serial letters for maintenance work on the network
• Simulations of load flows, e.g. with GEONIS Network Calculation
• Hydraulic calculations
• NEPLAN calculations
• …
GEONIS_Data_Quality_EN.docx Page 7Guidelines Geocom
3. Tools for quality assurance
There are various tools from Geocom, Esri as well as third-party service providers for raising the
data quality to a desired level, thereby enabling GEONIS to be used to its full extent.
The individual tools are presented briefly in the following sections, with the potential usage area
highlighted with respect to data quality.
3.1. GDN Studio → Tool overview
GDN Studio allows the GEONIS administrator to make simple and efficient adjustments to exist-
ing configurations and the development of individual specialist applications. The specialist appli-
cations configured or enhanced with GDN Studio remain release-proof, i.e. they can continue to
be used in full following an update. The configurations available can be used on a desktop, a
server, and also with mobile devices (GEONIS gear).
GDN Studio is suited to the following tasks with respect to data quality:
• Language-dependent database, lookup and relationship validation
• Adjustment of XML overloads (FRM, VIEW)
GEONIS_Data_Quality_EN.docx Page 8Guidelines Geocom
3.2. GEONIS DB Modeler → Tool overview
GDN DB Modeler is installed with GDN Studio. It provides numerous possibilities to create data-
bases, to visualize and analyze them.
Regarding data quality, GDN DB Modeler provides following functions:
• Detailed view on the data model
• Comparison of two database structures (e.g. user-specific vs. standard)
• Generation of an update script based on the differences of two databases
• Validation of:
▪ Unique table names
▪ Unique column names
▪ Correct table and column names
▪ Column types
GEONIS_Data_Quality_EN.docx Page 9Guidelines Geocom
3.3. GDN Database Compare → Tool overview
GDN Database Compare is installed with GDN Studio. It provides the possibility to compare the
contents of two databases. Besides the content, the geometry can be compared as well.

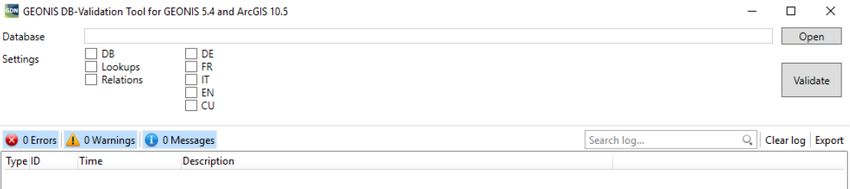

3.4. GEONIS DB Validation Tool → Tool overview
The GEONIS DB Validation Tool provides, compared to GDN Studio, only the functionality of a
database, lookup and relationship validation. This tool is explicitly available for an update from
GEONIS 5.2 to GEONIS 5.4 (ArcGIS 10.2-10.5) and can be requested from your account man-
ager and for a fix time frame only.
The GEONIS DB Validation Tool can be downloaded here (GDN license required).
An advantage of the GEONIS DB Validation Tool in comparison to GDN Studio: Enterprise Ge-
odatabases (SDE connections) can be validated as well.
GEONIS_Data_Quality_EN.docx Page 10Guidelines Geocom
3.5. GeoDbDiff → Tool overview
As of GEONIS 2017, the GeoDbDiff delivered as standard is also available for database compar-
isons in addition to the GDN DB Modeler. Although the functional scope is not comparable with
that of GDN DB Modeler, GeoDbDiff does provide an initial overview of the differences between
two databases.
The GeoDbDiff.exe can be found under C:\Program Files (x86)\Geocom\GEONIS\expert.
GEONIS_Data_Quality_EN.docx Page 11Guidelines Geocom
3.6. GEONIS DB Update → Tool overview
GEONIS DB Update is part of the GEONIS Administrator and is provided as standard with
GEONIS.
In addition to the database updates provided for this, GEONIS DB Update also enables checks
on the data and configuration quality. A few usage options are listed below:
• With execution of the update script for
the next highest GEONIS version
→ the error / warning messages in the
log provide an indication of quality de-
fects.
• gns_parserfunctions_check.xml
→ this script checks the DB for depre-
cated parser functions (download at
GEONIS DB Validation)
• Custom data check functions → see
GDN Documentation (with GDN login)
3.7. GEONIS XML Restruct → Tool overview
GEONIS XML Restruct is a component of GEONIS expert and can be accessed from the Win-
dows start menu as “XML Restruct”. GEONIS XML Restruct primarily provides functions for up-
dating the GEONIS Media directory or individual configuration files.
The validity of all XML files used for GEONIS can also be reviewed for data quality purposes.
GEONIS_Data_Quality_EN.docx Page 12Guidelines Geocom
Alternately, the XML files can get XSD validated with an XML editor. Notepad++ offers basic
validation as well. Those features are only available, if the plug-in "XML Tools" is installed.
The current XSD folder is installed with GEONIS expert and can be found under C:\Program Files
(x86)\Geocom\GEONIS\xsd_2017.
GEONIS_Data_Quality_EN.docx Page 13Guidelines Geocom
3.8. GEONIS Validation → Tool overview
GEONIS Validation is the perfect tool for reviewing the quality of the database in terms of com-
pleteness, plausibility, consistency, and topology. In addition to reviewing the data, validations
can also clean-up or modify pools of data in accordance with defined rules.
Users have comprehensive validations and functions available to them as standard. These can
be defined and parameterized in XML, and thus adjusted to individual needs.
Further information on the topic of Reviews can be found in the GDN Documentation (with GDN
login).
The benefits of GEONIS Validations are as follows:
• Review directly in GEONIS
→ Tool → Validation
• Checks of versions (sde),
selection, visible elements or all
elements possible
• Verification on write back
of work packages (no write back
without “clean” data)
• GEONIS log window with identifi-
cation and zoom function
• Both attributive as well as geo-
graphical or topological reviews
are possible (particularly in the
GEONIS ELE media)
The downsides of GEONIS Validations are as follows:
• Parameterization of the validation tasks is limited to the parameters available for the task.
• Ongoing validations block work on the desktop.
• Not batch-enabled.
GEONIS_Data_Quality_EN.docx Page 14Guidelines Geocom
3.9. GEONIS DB Statistic → Tool overview
GEONIS DB Statistic is a component of GEONIS expert and can be accessed by the GEONIS
Administrator or directly from the Windows start menu.
GEONIS DB Statistic delivers a very fast overview of the
• Number of tables in the database
• Number of objects in the tables
• Number of columns per table
• Number of attributes per column → Degree of acquisition can be deduced as a percent-
age [%]
• Values used per attribute (Value range → Plausible?)
• Data types used per attribute (String, Integer, Double, etc.)
• Sizes of selection lists → remove expanded and unused values
The degree of acquisition of the attributes per column is interesting for data quality purposes.
Meaningful statistics, reports, data exports, etc. are only possible following complete attribute
acquisition (see also Chapter "Mandatory attributes / Correct network topology").
3.10. Graphical topology check → Tool overview
The graphical check is a very practical alternative as topological errors are not obvious. The to-
pology can undergo a visual check using these tools:
• GEONIS network analysis
(scope dependent on the medium)
• Esri Utility Network Analyst
GEONIS_Data_Quality_EN.docx Page 15Guidelines Geocom
3.11. Geometric Network Editing (Esri network) → Tool overview
The tools in the “Geometric Network Editing” toolbar can be used to review, repair, or restore
objects in the geometric network. The review looks for impermissible and invalid geometries for
use of the geometric network.
What is checked and what the most common errors in a geometric network are, is described in
the ArcMap Help. More information about the toolbar "Geometric Network Editing" can be found
here.
Procedure:
• If existing, delete the [media]_[detail]_NET_BUILDERR table
• Create new network
When creating the geometric network in ArcGIS, a business table is generally created ([me-
dia]_[detail]_NET_BUILDERR), which lists the errors when building the network. The "problem"
geometries can be found using the Class ID, Object ID, and the Error Type.
• Load the project (with standard Work legend)
• Load the toolbar
• Start edit session
• Select network object in Table of Contents
• Display errors with network
creation
GEONIS_Data_Quality_EN.docx Page 16Guidelines Geocom
• Display defective features in the
Attribute Editor → zoom in
on these and rectify them
NOTE: The AV (cadastral survey) and SEW media feature no Esri network
• AV (cadastral survey): Own testing mechanisms by the AV-TOPOMODULE
• SEW: Graphical analysis with GEONIS network analysis
3.12. Esri Topology → Tool overview
The Esri Topology offers possibilities to run location-based analyses (e.g. to find coincident fea-
tures). In a topology, the arrangement constrains how point, line, and polygon features share
geometries. Besides the creation and checking of predefined topology rules, ArcGIS offers the
possibility to do automatic corrections.
An overview of the topology rules provided by Esri can be found under C:\Program Files
(x86)\ArcGIS\Desktop10.6\Documentation\topology_rules_poster.pdf.
For GEONIS Sewer System, a step-by-step guide for the Cleaning up the catchment area topol-
ogy is provided, which can be adjusted for other purposes.
GEONIS_Data_Quality_EN.docx Page 17Guidelines Geocom
3.13. Python → Tool overview
Esri has fully integrated Python for ArcGIS and considers Python the best language for meeting
the requirements of GIS users. Its “ArcPy” site package provides easy access to ArcGIS data and
functions. Python works across platforms and can be executed within or outside of ArcMap (e.g.
per batch).
On Geocom GitHub
• Geocom Database Management Tools
• MPK export
• TPK export
or the Geocom Porta (Tools)
• ClearFCnetwork
• GEONIS_net_create
you can find some examples of Python scripts for GEONIS.
Python is of course also perfect for data quality reviews with the help of the ArcPy library.
3.14. GEONIS Data Converter / FME → Tool overview
GEONIS Data Converter or FME is also ideal for reviewing data quality. Countless data tests can
be configured and carried out on the individual data records based on FME’s large functional
scope. Through the GEONIS Data Converter, which establishes the interface between GEONIS
and FME, the test results can be displayed in the GEONIS Protocol and then processed as usual.

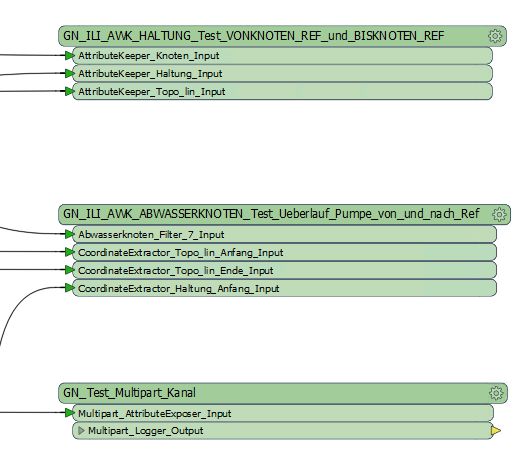

Some examples in practice are provided below:
• Check of the "from-to-node" in the SEW for the SIA export
• Network logic validation in GEONIS Sewer System
GEONIS_Data_Quality_EN.docx Page 18Guidelines Geocom
4. Overview of data quality tools
The data quality tools and their usage area can be compared in this table:
Tool / Usage DB com- Attributes DB, Lookup and Obsolete / duplicate XML check Topology Download
parison check relation validation entries (Lookup) check
*GDN Studio ⚫ ⚫ ⚫ Geocom Portal – My Software
*GDN DB Modeler ⚫ Part of GDN Studio
*GDN Database Compare ⚫ ⚫ ⚫ Part of GDN Studio
*GEONIS DB Validation ⚫ ⚫ Geocom Portal - Tools
GeoDbDiff ⚫ Part of GEONIS 2017
GEONIS DB Update ⚫ Part of GEONIS
GEONIS XML Restruct ⚫ Part of GEONIS
GEONIS Validation ⚫ ⚫ ⚫ ⚫ Part of GEONIS
GEONIS DB Statistic ⚫ ⚫ Part of GEONIS
Graph. Topology Check ⚫ Part of ArcMap
Geometric Network Editing ⚫ Part of ArcMap
Esri Topology ⚫ Part of ArcMap
Python ⚫ ⚫ ⚫ ⚫ ⚫ Part of ArcMap / Scripts1)
*GEONIS Data Converter Geocom Portal – My Software
⚫ ⚫ ⚫ ⚫
FME files1)
*Additional license for GEONIS expert required
1) Complete scripts / workbenches or support with creating these can be purchased as a service from Geocom.
GEONIS_Data_Quality_EN.docx Page 19Guidelines Geocom
5. Added value of data quality
It is very difficult to express the value of a good quality data record in figures. However, in relation
to a GIS it can be stated that data quality provides the foundation for information systems.
At Geocom we see the following added value, with this list not in any way exhaustive:
• Saved time and more effective working
• Competitive advantage through fulfilling quality standards (e.g. SIA standards)
• Simplified collaboration between offices
• Unrestricted GEONIS functionality across all platforms
(desktop, server and mobile)
• Less efforts with updates (pre / post processing)
• Less efforts when exporting data (Interlis, NEPLAN, Youtility…)
• Correct results with assessments (reports) and simulations (network tracking)
• Complex assessments possible across multiple object tables
• Faster implementation of new (GIS) functions and products in a system
• …
6. How to enhance data quality
As mentioned at the beginning, (data) quality is relative to its usage purpose in all cases. This is
why users should first of all consider the objectives pursued with the GIS. It is then much easier
to deduce the required data quality, and measures to achieve and maintain this.
On top of the data quality, the system quality that needs to be fulfilled in GEONIS also needs to
be considered from a technical point of view so that all functions work flawlessly. This gives rise
to the following general sequence aimed at improving data quality in GEONIS:
1. Ensure system quality
1.1 Rectify incorrect relationships, e.g. unequal data types
1.2 Remove duplicate code values in secondary tables (ATTENTION: obsolete entries!)
1.3 Rectify obsolete entries: re-attribute / delete
1.4 Correct extensions in accordance with GEONIS conventions → comparison with stand-
ard
1.5 Correct module-specific system tables and GN_SPLITMERGE_DEF table
1.6 Valid XML definitions
2. Ensure technical data quality
2.1 List of (desired) products in the GIS
2.2 List of the interfaces to be used
2.3 Deduction of required objective attributes based on points 2.1 and 2.2
2.4 Deduction of required topology based on points 2.1 and 2.2
2.5 Creation of acquisition guidelines based on the quality required with 2.3 and 2.4
2.6 Provision of tools aimed at complying with and improving the desired data quality
GEONIS_Data_Quality_EN.docx Page 20Guidelines Geocom
7. Support
Geocom will be pleased to support its customers in improving the data quality in GEONIS. Each
customer can select the level of support individually based on their requirements.
Geocom provides the following services within the scope of data quality improvements in
GEONIS:
• Workshops on how to enhance data quality
• Workshops on how to use the above mentioned tools
• Add-on service "GIS Data Analysis" for data analysis, reporting, and tips on the next steps
→ ideal preparation for a GEONIS update
• Data clean-ups in close collaboration with the customer → Consulting
Please get in touch with your Geocom contact with any questions for a no-obligation discussion.
8. Internet Sources
[Status Tuesday, July 2, 2019]
(GIS is it – A blog about GeoKrams) - German
Data quality and quality
URL: https://gisisit.wordpress.com
(Round table GIS) - German
Geoinformationssysteme - Leitfaden zur Datenqualität für Planungsbüros und Behörden
URL: https://rundertischgis.de
(BINEX – Business Information Excellence) - German
Datenqualität messen: Mit 11 Kriterien Datenqualität quantifizieren
URL: https://www.business-information-excellence.de
(Wikipedia) (German only)
Datenqualität GIS
URL: https://de.wikipedia.org/wiki/Datenqualitaet_(GIS)
(Produktion – Technik und Wirtschaft für die deutsche Industrie) - German
In sieben Schritten die Datenqualität verbessern
URL: https://www.produktion.de
GEONIS_Data_Quality_EN.docx Page 21You can also read
