Foreword
Enedis, European leader of Distribution Systems Operator
The medium-voltage grid already « smart » FOREWORD
The energy transition: an industrial and societal challenge As a response to the energy transition, Enedis is shifting the electricity
Enedis continues to modernise the grid distribution network into a more dynamic system where the exchanges
between production and consumption will be done at national, regional and
Enedis at the heart of demonstrators local scales.
The smart grids benefits The move towards a smart grid will provide more information to customers,
market actors and local authorities, enabling them to make the most of the
Linky, not only a smart meter but also a communication infrastructure
network that supplies them.
Towards the digitised electricity network This booklet highlights how Enedis is developing a more reliable and flexible
network, along with all its partners.
Smart grids key principles
1 Data collection by numerous sensors on the distribution network.
2 nalyses of the distribution network condition with all power flows
A
transiting on it.
3 Precise location of incidents and remote action.
4 Forecasting of local renewable energy generation.
5 reation of services that allow an optimal and controlled integration
C
of new means of production and new uses of electricity.
THE SMART GRID USES TECHNOLOGIES OF POWER
ELECTRICITY, INFORMATION AND TELECOMMUNICATION
TO OPTIMISE GENERATION, DISTRIBUTION AND
CONSUMPTION.
Its objective is to optimise all the connections of
the electricity network, from the producers to the
consumers, in order to improve the energy efficiency
of the system.
2/12 Innovating for customers, territories and their energy challenges Innovating for customers, territories and their energy challenges 3/12
Enedis, European leader of The medium-voltage grid already « smart »
Distribution Systems Operator Each day, Enedis develops, maintains and controls more than 1.3 million kilometers of power lines, including
702 000 km of LV (low-voltage) and 622 000 km of MV (medium-voltage) lines, serving 35 million customers.
Enedis, as the new name of ERDF since June 2016, manages 95% of distribution
network in continental France. Sensors and remotely controlled devices have already Today, when an incident occurs on the medium-voltage
improved the reliability of power grids over the last grid, automated software (DEMS/OMS) are able to
Enedis was created on January 1st 2008, in the wake of the liberalisation of the restore power in few minutes to 70% of the customers
twenty years. At the end of the 1980s, French customers
energy sector. affected, without human intervention.
suffered an average of 400 minutes of power cuts per
Enedis is a state company with around 1,000 sites located across France. As part of year. In 2015, this figure dropped to 61 minutes (average These advanced management processes, known as
its remit, the company frequently performs work on the grid, including the set-up of power outage per year per customer, irrespective of the self-healing functions, allow electricity to be restored
connections, commissioning, repairs and supplier switching, 24 hours a day. Enedis is cause). automatically and remotely. These terms vividly
independent from the electricity suppliers which are in charge of selling and managing describe the new qualities of power grids that are able
the power supply contract. This highlights Enedis successful investments to equip to reconfigure themselves in record time, sometimes
Its 39,000 employees control, maintain and develop some 1.3 million kilometers of medium-voltage grid with sensors and numeric devices in without customers even noticing it, with the aim of
power lines, serving 35 million customers. order to strengthen its inner connections. maintaining the quality of electricity distribution.
This makes Enedis the European leading electricity distributor. The grid is owned
by the local authorities (municipalities or joint municipalities), which award concessions
to the company and entrust it with the grid’s management through delegation of
public service.
THE MEDIUM-VOLTAGE (MV) GRID
11 million interventions are made every year.
More than € 3 billion are invested each year by Enedis throughout France.
As the organisation in charge of managing the public distribution network, Enedis
2
is responsible for ensuring that access to the power grid meets the expectations
of stakeholders. Now that the market is open to competition the service continuity
of the country’s electricity distribution network lies at the heart of a system that
requires Enedis to liaise with the government, the Energy Regulation Commission, 1 VIEW REMOTE ACTION
3
local councils, the authorities that grant concessions and the grid users (customers,
suppliers and producers).
THE LOW-VOLTAGE (LV) GRID
PUBLIC SERVICE ROLES Regional Control Centres
Support the projects Enedis’ «control towers»
of local councils
Operate and
modernise the grid

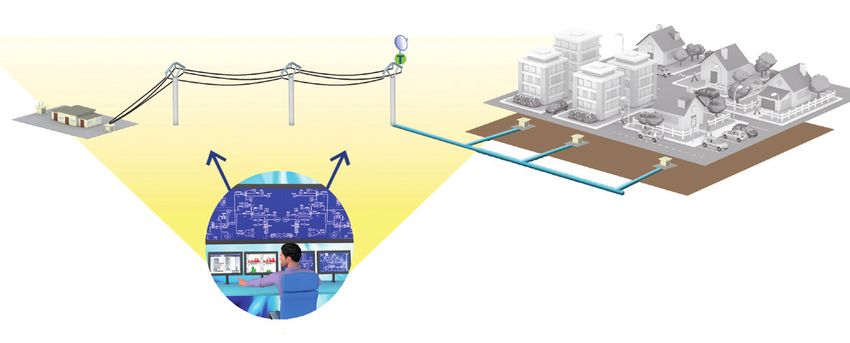

24/7 REAL-TIME MONITORING 1 2,251 source substations in France
Manage and control OF THE MEDIUM-VOLTAGE GRID
Connect customers 2
the grid remotely 500 specialists – one could call them the “air-traffic controllers” of 05,000 remote-control
1
to the grid
systems on the Enedis network
the electricity world – are posted in the 30 Regional Control Centres.
Over the last 10 years, Enedis has automa-
Effectively, these are Enedis’s control towers, i.e., the entities responsible ted the medium-voltage grids extensively.
for managing the power grids. Enedis has modernised around 600,000 The automation of these grids helped
km of power lines, which are now equipped with more than 105,000 restore power to 93% of customers less
than 1 day after Atlantic Storm Quentin,
remote-control systems supervised and operated by these 30 centres. whereas it took 10 days to achieve the
The role of the latter is to monitor the state of the medium-voltage same result in 1999.
network in real-time, 24/7, and to resolve incidents in just a few minutes.
These functions allow incidents to be located automatically and 3 774 500 distribution substations
therefore very quickly, before isolating the faulty section of the
network and reconfiguring the grid so as to minimise power outages
for customers.
Perform repairs 24/7
whatever the weather
Provide electricity
metering services to The challenge Enedis is now keen to take is to upgrade the low-voltage (LV) grid so as to
energy suppliers cater for the advent of solar power and electric vehicle. Enedis continually ensures the grid
balance and the power supply quality.
4/12 Innovating for customers, territories and their energy challenges Innovating for customers, territories and their energy challenges 5/12
The energy transition: an industrial and societal challenge Enedis continues to
Integrate renewable energy and new uses
modernise the grid
of electricity in the most efficient way, are In the wake of the energy transition, the volume of power and
number of generation sites of intermittent renewable energy Enedis has opted for new technologies and investments optimisation to
Enedis everyday challenges meet the energy challenges.
will keep up growing intensely. Furthermore, new uses of
Enedis deals with technical issues of: electricity such as the electric vehicle will involve an upgrade of
Intermittent and unpredictable production the distribution network to incorporate recharging stations. To prepare and support this major technical shift, Enedis is investing in numerous
demonstrators in France and Europe. Their aim is to design tomorrow’s « smart
Variable power demand, geographically grids », solutions combining electricity and NICT. The Linky smart metering system
ELECTRIC VEHICLE
spread linked to the recharging of electric is a core element of this new system.
5 Million
vehicle. 10 000
vehicles**
vehicles* in 2030 WIND The integration of new technologies will allow these grids to feedback information.
Injecting electricity directly into the distribu- in 2012
tion grid at multiple points tends to disrupt It will make it possible to analyse the actions of the electrical system’s various
2023 (1)
voltage levels, which in turn can place the stakeholders so as to guarantee the efficiency, reliability and security of electricity
22 GW* distribution.
electrical equipment of customers at risk.
SOLAR
Facing these new constraints, Enedis is expe- With all these technologies that come with Smart Grids, it is possible to manage
rimenting solutions that contribute perma-
20 GW* 2015
5,3 GW* in 2023
(1) 9,2 GW* the network balance in real time, by adapting consumption to production. The
Installed capacity
nently to the local balance between supply in 2015 2012 adjustment in the future will shift towards the demand side, making the consumer
and demand of electricity, with the will to 3,1 GW* 6,8 GW*
in 2012 an active player. Enedis is contributing to the development and the smooth
Installed
capacity
maintain the best quality of supply. running of the whole system.
(1) Objective of the multiannual energy programming
* 1GW equals to the power of one nuclear reactor
** electric and plug in hybrid vehicles
Smart Grids development relies on real condition experiments
95% of renewable energy sources are
YESTERDAY (equipment, software tools, telecommunications…)
connected to the distribution grid managed
by Enedis Smart Grids are the combination of advanced power network solutions and information and telecommunica-
tion technologies. The following solutions are currently tested by Enedis on its pilot projects (see next page
Today there are a vast number of producers
demonstrators map):
of renewable energy, solar in particular: while
Power stations
there were practically none in 2005, more
than 340,000 solar power producers are now Consumer

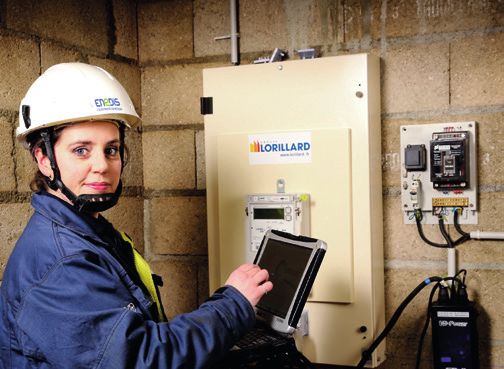

connected to the local low-voltage grid. Implementation of smart meters / Development of advanced software
sensors that give precise information (incidents location, self-healing, voltage
Objectives of the European Union: Today’s grid was initially
about the network state and control…).
designed to transmit electricity
20% of renewable energy in the EU’s energy consumption profiles.
in just one direction,
consumption by 2020 (meaning 23% for France: from power stations
33% in heat-producing, 27% in electricity and to consumers.
Solutions for active downstream meter
10,5% in transports). Implementation of data exchange management (demand and storage
Objectives of the French energy transition system with decentralised generation management).
law for the green growth:
TODAY sites.
educing by 50% the energy consumption
R
from 2012 until 2050
Development of tools to forecast local
educing by 50% the nuclear share in the
R
consumption and production, and tools
energy mix by 2025 A smart grid must allow
to simulate possible constraints on the
electricity to flow
educing by 30% the consumption of fossil
R local scale (8 days to one hour ahead
fuel from 2012 until 2030 in both directions
to cater for the
power-flow forecasts).
eaching 23% of renewable energy in the
R electricity produced
energy consumption by 2020 and 32% by using renewable
2030 energy sources.
Implementation of advanced digitised
educing by 40% the greenhouse gas
R equipment in primary substation
emission from 1990 until 2030. (transformation system from TSO
to DSO, HV to MV) and secondary
Smart grids must also allow substation (transformation system from
Electricity from power stations
the development of new
(nuclear, fossil – fired…) MV to LV): digitised controls, voltage
electrical applications,
including electric vehicles. Electricity production from decentralised sources regulation…
(renewable energy)
6/12 Innovating for customers, territories and their energy challenges Innovating for customers, territories and their energy challenges 7/12
Enedis at the heart of demonstrators Smart grids benefits
Enedis is involved in all major smart grids projects in France and Europe in order to carry out a full-scale test of much
awaited functionalities and services : contribution to the local adjustment of production* intermittency, to the demand
side management and the possible related constraints on the network, to provide support for better energy conservation.
1
* Production: development of Renewable Energies (RES).
Raising awareness among consumers and local authorities
about the energy demand management
1 – The Houat and Hoëdic
7 – Greenlys 11 – SOGRID
Islands Free, secure and instructive checking of consumption data.
Development of a PLC infrastructure
600 customers. 1,000 customers in Lyon (Power Line Communication) to roviding informations for local authorities to develop local
P
Securing power supply and and Grenoble. monitor the medium and low voltage
controlling peak load periods. A global vision of a new energy plan (PCET – Plan Climat Energie Territorial) and efficient
distribution network.
smart electrical system
in an urban area. energy policies.
2 – Smart Grid Vendée
Local management of 12 – Watt&Moi
8 – Smart Electric Lyon
the distribution network
and promotion of flexibilities Web access to electric
25,000 customers in Lyon. consumption data.
in the French Vendée Testing of offers and
department. customer services
downstream Linky
2
smart meters.
Securing the power supply
3 – Linky experimentation
13 – InfiniDrive ptimisation of the MV and LV networks control allowed
O
300,000 customers.
Touraine and Lyon - Roll out 9 – Nice Grid Paris, Nantes, Nice and Grenoble: by an observable and remotely managed network.
of smart meters. development of an electric vehicle
1,500 customers. standard charging station rovisional management of maintenance work from forecasts,
P
Smart solar district to test for companies’ fleets.
in particular the use of more simulations and priority investments thanks to data collection
photovoltaic electricity on the grid.
generation, batteries’
storage and the reduction
4 – Issy Grid of peak consumption with 14 – SOLENN
customers’ help.
1,500 customers in Lorient Agglomération -
Issy-les-Moulineaux. Contribution of smart grids to ma-
Production and consumption nage the electricity demand and to
management of a district. develop alternative to load shedding.
10 – Lyon Smart
3
Community Making the incorporation of renewable
S M A R T G R I D
Innovative technologies to
manage electrical vehicles
energy sources easier
and buildings and to develop 15 – BienVEnu
5 – Intelligent substation
photovoltaic energy. reation of new connections offers to welcome more
C
Optimization of the Enedis/ Experiment of new solutions to RES producers on the MV network enabling to maximise
RTE interface in primary optimise electric vehicle recharging
in residential housing blocks. the network potential of integration.
substations to enhance
electricity grid’s safety.
oordination with the decentralized producers to regulate
C
the voltage level on the grid.
18
roduction (wind and solar) and consumption forecasts
P
6 – Venteea 16 – SMAP to foresee the local supply-demand balance.
Aube - Direct integration 15 13 Experiment of distributed PV
growth in a rural zone based on ossibility for the electricity supplier to propose pricings
P
of wind power production 4 5
into the medium voltage
14
6 smart meters capabilities. and/or services to manage household equipment and to
network. consume when there is local generation.
1 13
3
2
17 17 - Smarter Together
7 8
10
3 7 13 Offering replicable smart solutions
16
12 at a world scale to improve citizen
life quality.
9
13
11
4
Participating in the electric and plug in hybrid vehicles
development
18 - SoMel SoConnected oordination between consumers and charging stations
C
Experiment of innovative business operators to contribute to the smart monitoring of charging.
models based on the development
InterFlex of smart grid functions in urban area. ptimisation of charging stations installations considering the
O
potential of integration of the grid.
Enedis participated in the European projects ADVANCED (Active Demand Value And Consumers Experience Discovery) and TRANSFORM (TRANSFORMation
Agenda for Low Carbon Cities) and was also leader of Grid4EU project, made up of 27 partners in 10 countries. Enedis is involved in EvolvDSO, IGreenGrid and
Smarter Together. Following Grid4EU project, Enedis coordinates a new European project, InterFlex, with a consortium of 15 partners in 5 countries. InterFlex
project brings together 5 European distribution system operators to improve the performance and the reliability of a local electric system by testing new uses of
local flexibilities and new solutions of system automation.
8/12 Innovating for customers, territories and their energy challenges Innovating for customers, territories and their energy challenges Page 9
Linky, not only a smart meter but also Towards the digitissed electricity network
a communication infrastructure The experiments of new technologies led by Enedis should be used to identify the best solutions in terms of
choice and roll-out for the local authority.
Carry on with distribution network modernisation on the low-voltage grid
Thanks to the Linky smart meter roll-out, Enedis is modernising the low-voltage electricity Even if most experiments will draw their conclusion in 2016 or 2017 only, Enedis is already on its way to prepare actively
network making grid monitoring and data processing easier and more efficient. Linky is the the roll-out of industrialised solutions.
first step on the path to smart electricity grids. It is replacing the former meter in residential From the maturity and value analysis, for the grid and the community, of the different « smart » solutions currently
and professional blocks (with a contract power
Enedis is a public company that manages the electricity distribution network.
It develops, operates and modernises the electricity network and handles the related data.
Edition november 2016
It provides client connections, a 24/7 breakdown service, and carries out meter readings
and all other technical operations. It is unconnected with the energy suppliers
who sell power and manage electricity supply contracts.
www.Enedis.fr • Design by : rougecactus.fr • illustrations © médiathèque Enedis - Rouge Cactus • Photos © médiathèque Enedis
Connect with us
You can also read
