DESIGNED WITHOUT COMPROMISE. RELIABLE, CAPABLE YET AFFORDABLE. HELPING YOUR BUSINESS GROW. Mahindra. Always up for a challenge. www.mahindra.co.za *TERMS & CONDITIONS APPLY

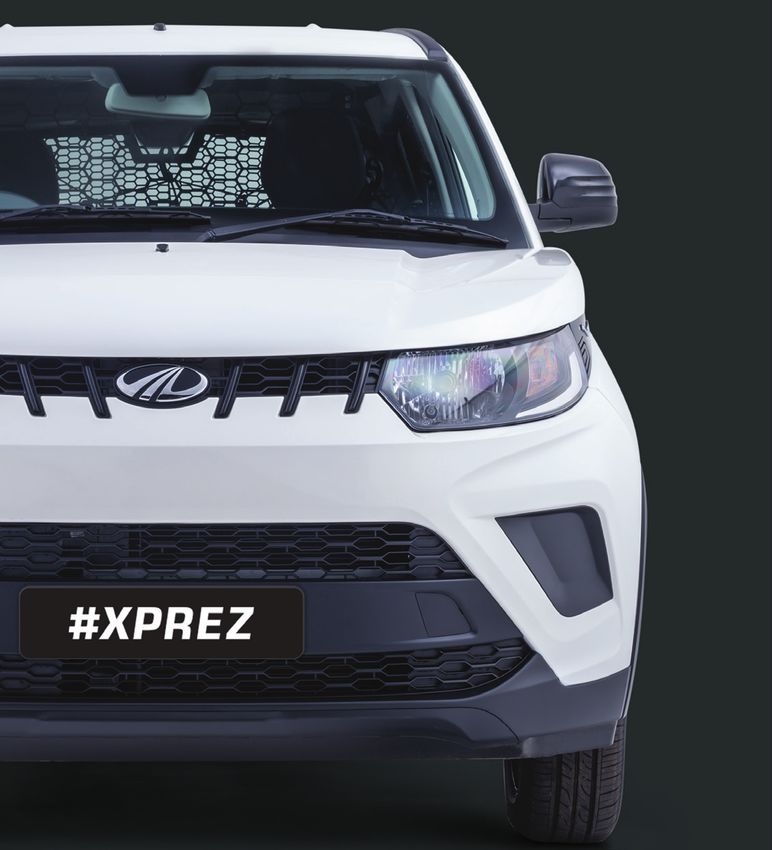

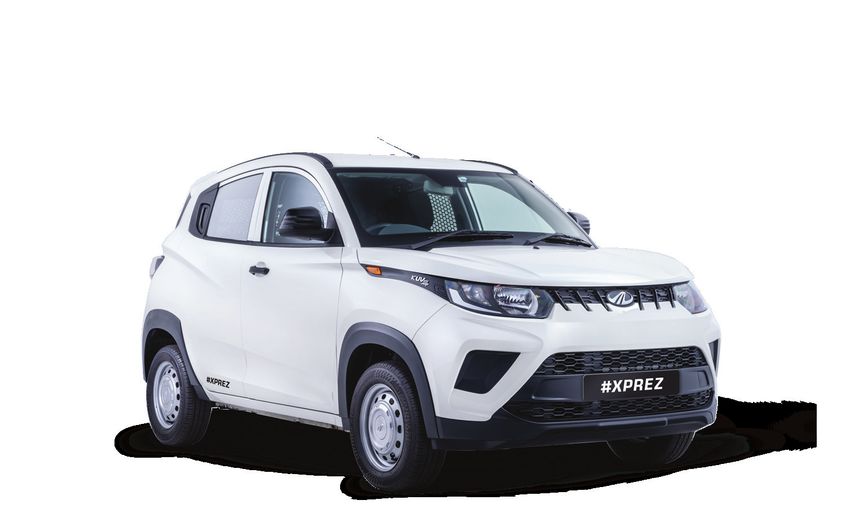

THE KUV 100NXT #XPREZ PANEL VAN
WHILE YOU TURN SOME HEADS,
TURN SOME PROFIT
Who says you can’t work in style and
comfort. Our KUV 100 XPREZ is a workhorse
that looks like a thoroughbred. It’s been
POWERED BY THE PEPPY 1.2L MFALCON PETROL
designed to not just have the looks but the ENGINE, DELIVERING 81 kW AND 115 Nm WITH A FUEL
CONSUMPTION OF 5,8L/100KM IN A COMBINED CYCLE
accessibility and convenience you need to
power your business. An impressive
load capacity and a host of safety
features means you can stay relaxed
about delivering on your business
promises. If you know where your
business is ready to go, your
fist stop should be Mahindra.
SMART DELIVERY SOLUTION
STURDY ANCHORS ARE PROVIDED 1350L/350KG LOADING CAPACITY WITH A
FOR THE CARGO NETS FIRM, FLAT HEAVY-DUTY FLOOR
DRINKS HOLDERS AND CONVENIENT FIRE EXTINGUISHER STOWED IN FRONT
STOWAGE IN THE CENTRE CONSOLE OF THE PASSENGER SEAT IS SUPPLIED AS
STANDARD
BASED ON THE KUV100 NXT K2+ THE #XPREZ IS CONVERTED AT MAHINDRAH’S SPECIAL FITMENT CENTRE IN GAUTENG, AND FEATURES COMFORTS SUCH AS POWER STEERING AND AIR CONDITIONING AS STANDARD, TO THIS HAS BEEN ADDED A RADIO AND CENTRAL LOCKING TO CREATE A COMFORTABLE AND CONVENIENT VEHICLE FOR ALL-DAY DRIVERS
KUV K2+ PANEL VAN KUV K2+ PANEL VAN KUV K2+ PANEL VAN
TECHNICAL DIMENSIONS AND CAPACITIES COMFORT
mFalcon G80, Multi point fuel injection (MPFI) Overall length 3700 mm Air-conditioner - manually operated •
Petrol engine with dual variable valve timing
Overall width (excluding ORVMs) 1727 mm (with door side cladding) Air-conditioner type Paper filter
Engine size 1.2
Overall height 1655 mm Electric power steering •
Max. gross power 61kW @ 5500 rpm
Kerb mass 1190 kg (petrol) / 1235 kg (diesel) Seat Upholstery Vinyl
Max. gross torque 115 Nm @ 3500 rpm
GVM 1610 kg (petrol) / 1650 kg (diesel) Foldable rear seat Full
Fuel consumption (Urban) 7.1 l/100km
Front track 1490 mm Driver footrest •
Fuel consumption (Extra urban) 5.3 l/100km
Rear track 1490 mm Integrated headrests (front) •
Fuel consumption (Combined cycle) 5.9 l/100km
Wheelbase 2385 mm
C02 141 g/km
Turning circle 10.1 m
Euro Stage Euro 2 CONVENIENCE
Ground clearance - Unladen 170 mm
Brakes Front Ventilated disc Internally adjustable ORVM Manual
Approach angle 20º
Rear Drum Headlight adjustment •
Breakover angle 17º
Transmission Gearbox 5- speed manual Under seat and under floor storage •
Departure angle 29º
Drivetrain Front wheel drive LED Interior lamp (Roof lamp) •
Seating capacity 2-seater
NXT K2+ Petrol, Night function internal rear view mirror •
Tyres Tubeless radials, 185/65 R14 Loading capacity 1350 litres / 350 kg
K6+ Petrol / Diesel
Spare Full size Fuel tank capacity 35 litres
SAFETY
Please note: This information is correct at the time of going to press, but performance ABS with EBD
STYLING •
(electronic brakeforce distribution)
may differ in conditions other than those in which tests were conducted. In view of our
Body coloured bumpers • Collapsible steering column •
policy of continuously improving our products, we reserve the right to alter specifications
Roof-mounted antenna Side impact protection bars •
and designs without prior notice and without liability. Please consult your local dealer for
latest specifications. Specifications, detailing and finishes differ on the various models Rear spoiler • Dual airbags (driver & passenger) •
available - please consult this specification sheet or your dealer for more information. Roof ditch seal • Central locking With remote
*Service plan and roadside assistance not applicable to vehicle sales in Botswana, Zambia Wheels Styled covers Anti-theft security alarm -
and Zimbabwe. Engine immobilizer •
TECHNOLOGY
Pioneer sound system with smartphone clip WARRANTY & SERVICE INFORMATION
•
and full integration
Speakers 2 3-Years / 100 000 km standard warranty +
Warranty 2-Years/50 000 km powertrain warranty
Power sockets Front
Service plan 3-Years / 50 000 km (Optional on K2+)
THE KUV100 #XPREZ COMES IN WHITE AS STANDARD,
WITH LOTS OF SPACE FOR YOUR COMPANY BRANDING

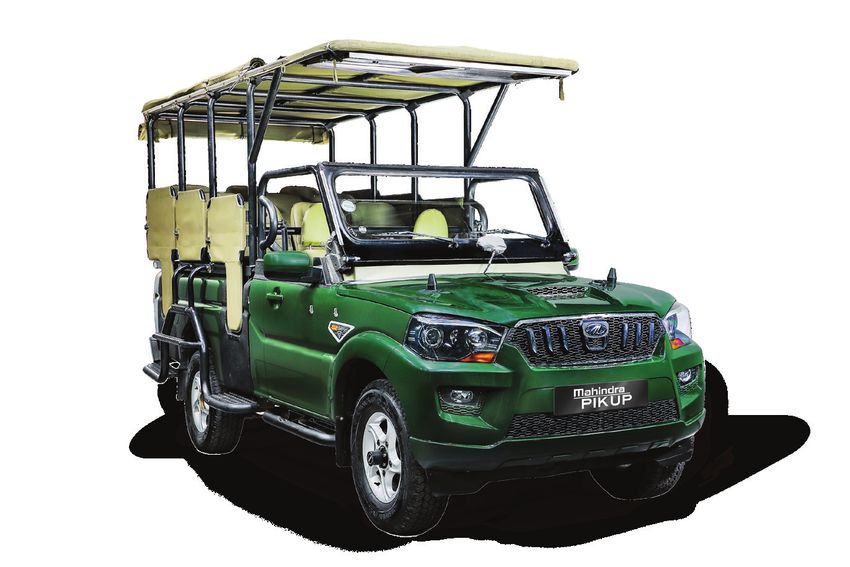

THE LEGENDARY MAHINDRA GAMEVIEWER
THE MAHINDRA GAMEVIEWER SEATS 9 (+2 FOR
DRIVER AND GUIDE) AND IS AVAILABLE IN VARIOUS
CONVERSION OPTIONS: BASIC, SECTIONAL
MEET THE GAME CHANGER ROOF CUT-OUT, FOLD-DOWN WINDSCREEN, AND
POLYCARBONATE SIDE PANELS
Superior technology and specs make our
game viewer vehicle a common sighting on
South Africa’s reserves. Check out the
specs for yourself and compare the
costs. Reliability is key when you are out
in the bush and our vehicles will always
give you the peace of mind you deserve.
Order the standard models or tell us
how you would like to customize your
vehicle to suit your business.
PIK UP SC 4X2 S4 AND PIK UP SC 4X4 S4 GAMEVIEWER PIK UP SC 4X2 S4 AND PIK UP SC 4X4 S4 GAMEVIEWER PIK UP SC 4X2 S4 AND PIK UP SC 4X4 S4 GAMEVIEWER
TECHNICAL FEATURES SPECIAL FITMENTS

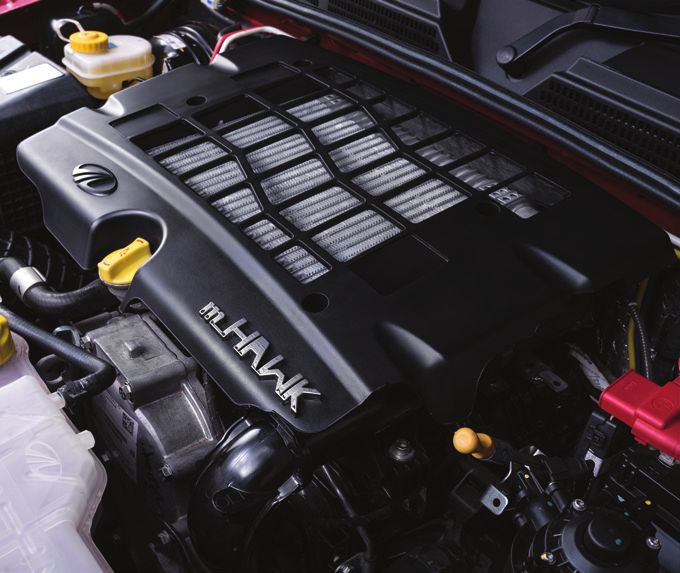

Engine type/asperation 2.2m Hawk turbo diesel Front fog lamps • Fold down windscreen
Engine capacity 2179cc Dual projector headlamps - False dashboard with riptop canvas
Displacement/number of cylinders 4 cylinders High level brake light • Door panel according to conversion
Fuel injection type Common rail Colour coded bumpers • Standard front seats trimmed with riptop canvas
Bore x stroke 85mm x 96mm Colour coded mirrors • Open front cab conversion
Compression ratio 15.5:1 Colour coded door handles Manual Rubberised the cap
Fuel type Diesel Mud flaps • Roll over compliant high roll cage
Power rating 103 kW @ 3750 rpm Side steps • One piece roof trimmed with riptop canvas
Torque rating 320 Nm @ 1500-2800rpm Internally adjusted ORVM Manual 9 separated rear bucket seats, trimmed
Drive type Optional 4X2 or 4x4 Book and binoculars pockets
Gearbox type/transmission 6 Speed manual 2 rear body cut outs
COMFORT & CONVENIENCE
Mechanical differential lock Rear axle MLD Rubberised load box
Air conditioner (Manual/electronic control) Heater only
Brake type Front - Disc Rear - Drum 9 lapbelt safety belts
Heated rear window demister n/a Fire extinguisher
Tyre size 245/75 R16
Power windows front/back - Optional: marine ply roof
Spare wheel size 245/75 R16
Power steering • Optional: riptop canvas roll down sides
Suspension front Double wishbone with torsion bar
Tiltable steering • Optional: 12V plug points inside cab
Suspension rear Rigid leaf spring
Central locking - Optional: spare wheel fitted in back of cage
Fuel tank capacity 80L
12V Charging points •
Gcm 5650
Integrated audio system with USB and AUX -
Gvm 3150 SAFETY
Door speakers -
Towing capacity - braked 2500 kg Anti-locking braking system (ABS) -
Navigation system -
Towing capacity unbraked 750 kg Electronic brake distribution (EBD) -
Tyretronics -
Overall length 5175mm Electronic stability program (ESP) -
Cruise control - Hill hold and hill descent control -
Overall width 1820mm
Steering mounted audio and cruise control - Seat belt pretensioner -
Wheel base 3040mm
Swivel interior reading lamps • Air bags (driver/passenger/side/curtain) -
Ground clearance 210mm
Remote fuel cap (electrically/key) - Seat belt reminders •
Adjustable headrests (rear/front) •
Upholstery Vinyl
WARRANTY & SERVICE INFORMATION
Illuminated keyring •
Warranty 4 years/120 000km
Service plan Optional
TECHNOLOGY Service intervals 20 000km
Reverse camera - Roadside assistance 4 years/120 000km
Digital immobiliser •
Follow me home headlamps -
USP’S
Light sensing headlamps -
Fold down windscreen
Static bending headlamps - Seating 9 + 2 with safety belts
Book and binocular pockets
One piece roof trimmed with ripstop canvas
Rubberised load box
Please note: This information is correct at the time of going to press, but performance
may differ in conditions other than those in which tests were conducted. In view of our
policy of continuously improving our products, we reserve the right to alter specifications
and designs without prior notice and without liability. Please consult your local dealer for
latest specifications. Specifications, detailing and finishes differ on the various models
available - please consult this specification sheet or your dealer for more information.
*Service plan and roadside assistance not applicable to vehicle sales in Botswana, Zambia
and Zimbabwe.

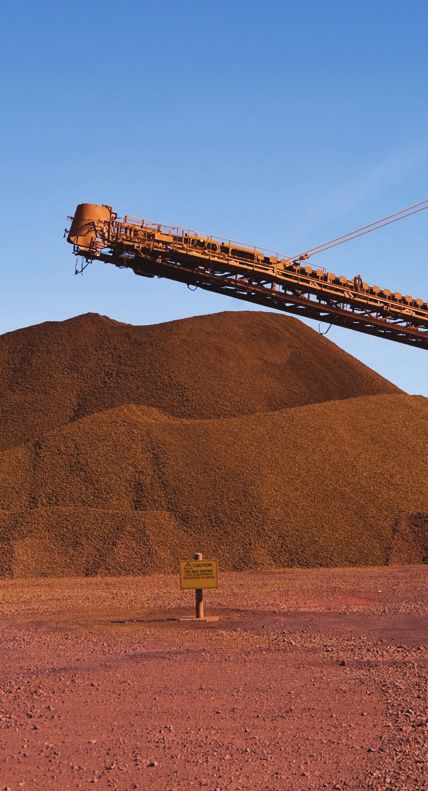

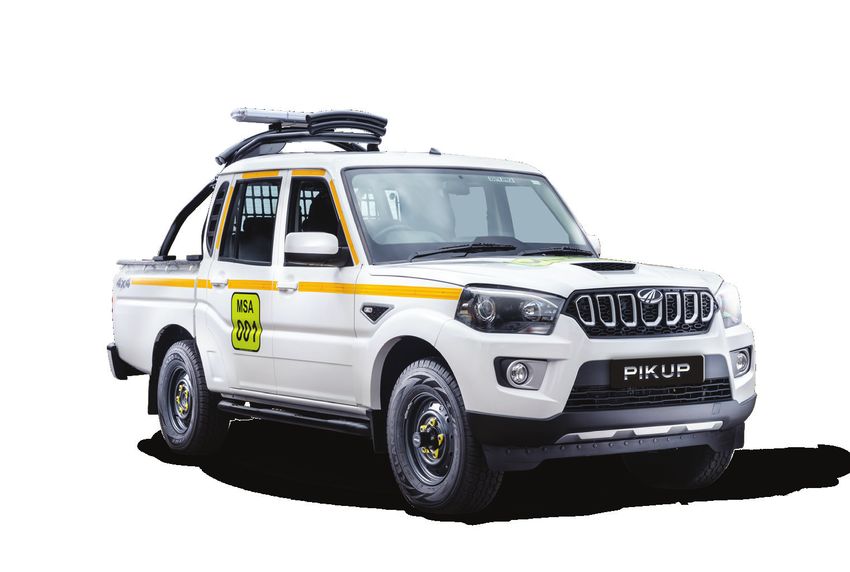

SOUTH AFRICA’S MINING VEHICLE
FITTED WITH A SET OF 24
DURABLE WHEEL NUT INDICATORS,
ALONG WITH THE RELIABILITY OF
HIT THE GROUND RUNNING THE 245/75R16 TYRE SIZE AND A
MINIMUM GROUND CLEARANCE
OF 210MM
Developed, designed and fitted to suit South
African conditions and regulations. We know
how strict the safety regulations are in our
country and every requirement has been
met in our vehicles to satisfy the needs
of open cast mining and largescale
construction operations.
Durability, reliability and
affordability combine to
make Mahindra a great
choice for commercial
mining.
CUSTOMISED AS STANDARD FOR MINING AND INDUSTRY MAHINDRA’S LEGENDARY 2.2L MHAWK TURBO- DIESEL ENGINE WITH 8-SPEED MANUAL TRANSMISSION INCREASED POWER - 103KW AND FACTORY FITTED TOWBAR 12V CHARGING POINTS IN HIGHER TORQUE - 320NM WITH TOWING CAPACITY OF 2.5T FRONT AND BACK ROWS NEW 8TH GENERATION TURBOCHARGER HEAVY DUTY SEAT COVERS FOR SAFETY FEATURES INCLUDE DRIVER DRAMATICALLY IMPROVES PERFORMANCE AND FUEL INCREASED WEAR AND TEAR AND PASSENGER AIRBAGS CONSUMPTION ON AND OFF THE ROAD (7.8L/100KM)
DESIGNED WITHOUT COMPROMISE
HEAVY-DUTY ROLL-OVER PROTECTION WITH
ROOF-MOUNTED LIGHT BAR AND LASER-CUT STEEL
PROTECTION SCREEN
COVID-19 KIT INCLUDED AT NO EXTRA COST 8KG FIRE EXTINGUISHER
SECURE, LOCKABLE FIRST AID KIT AND COVID-19 KITS
RUBBERISED LOAD BAY WITH CARGO NET REVERSE BUZZER FIRE EXTINGUISHER, FIRT-AID KIT, COVID KIT
RED, WHITE AND YELLOW SAFETY DECALING ROOF-MOUNTED LIGHT BAR WHEEL NUT INDICATORS AND STOP BLOCKSPIK UP SC 4X4 S6 AND PIK UP DC 4X4 S6 MINING PIK UP SC 4X4 S6 AND PIK UP DC 4X4 S6 MINING PIK UP SC 4X4 S6 AND PIK UP DC 4X4 S6 MINING
TECHNICAL FEATURES SAFETY
Engine capacity 2179 cc Front fog lamps • Anti-lock Braking System (ABS) •
Number of cylinders 4 Dual projector headlamps • Electronic Brake Distribution (EBD) •
Fuel type Diesel High-level brake light • Seat belt pretensioner •
Aspiration Turbocharger Heated rear window - Air-bags (driver/passenger) •
Fuel injection type Common rail Colour-coded bumpers • Side impact protection bars •
Bore x stroke 85 x 96 mm Colour-coded mirrors • Collapsible steering column •
Compression ratio 16.5:1 Colour-coded door handles • Seat belt reminder •
Power output 103 kW @ 3750 r/min Mud flaps • Auto-locking doors •
Torque output 320 Nm @ 1500-2800 r/min Side step •
Fuel consumption - combined 7.9 l/100km (4WD) Integrated bonnet scoop •
TECHNOLOGY
CO2 Emission 211 gm/km (4WD) Side mouldings •
Micro hybrid (Start/stop) •
Emission - Euro stage Euro 2 Rubberised load bin •
Digital immobilser •
Drive type 4WD External ROPS • Follow me home headlamps •
Transmission 6-speed manual Mining spec kit •
Low range on 4WD Fire Extinguisher •
Mechanical differential lock Rear axle MLD Heavy-duty seat covers • WARRANTY & SERVICE INFORMATION
Wheel rim size 6.5J X 16” First aid kit • Warranty 4-Years/120000 km
Tyre size 245/75R16 COVID-19 kit • Service plan 5-Years/90000 km
Spare wheel Full size spare Service intervals 20000 km
Spare wheel lock Yes 1st service 10000 km, thereafter every 20000 km (with Maximile Oils)
GCM 5650 kg COMFORT & CONVENIENCE
Roadside Assistance 4-Years/120000 km
GVM 3150 kg Air conditioner Manual
Payload 995 kg (4WD) Heated rear window/demister •
Legal towing weight - braked 2500 kg Power windows •
Legal towing weight - unbraked 750 kg Electric mirrors •
Overall length 5175 mm Power steering •
Overall width 1820 mm Tiltable steering •
Overall height (unladen) 1915 mm Central locking •
Minimum ground clearance 210 mm Keyless entry •
Wheelbase 3040 mm 12V charging points - front and rear •
Track - front 1450 mm Integrated audio system with USB and
•
auxiliary
Track - rear 1450 mm
Swivel interior reading lamps •
Approach angle 34º
Headrests •
Breakover angle 18º
Upholstery Fabric
Departure angle 15º
Illuminated key ring •
Fuel tank capacity 80 litres
Swivel interior reading lamps •
Turning circle radius 6.7 m
Remote fuel cap (electrically/key) •
Load area (length x width x depth) 1489 X 1520 X 550 mm
Adjustable headrests (rear/front) •
Upholstery Fabric
Please note: This information is correct at the time of going to press, but performance Illuminated keyring •
may differ in conditions other than those in which tests were conducted. In view of our
policy of continuously improving our products, we reserve the right to alter specifications DURABILITY, RELIABILITY AND AFFORDABILITY
and designs without prior notice and without liability. Please consult your local dealer for COMBINE TO MAKE MAHINDRA A GREAT CHOICE FOR
latest specifications. Specifications, detailing and finishes differ on the various models
available - please consult this specification sheet or your dealer for more information. MINING
*Service plan and roadside assistance not applicable to vehicle sales in Botswana, Zambia

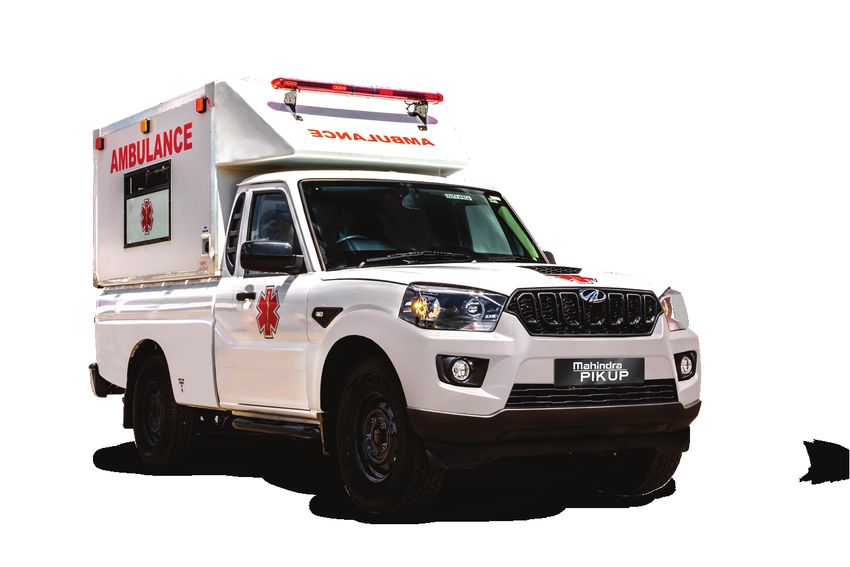

and Zimbabwe.THE SA PIK UP AMBULANCE
SAVING LIVES IS WHAT
WE AIM FOR
Saving lives is something we take
seriously. Our vehicles are specifically
designed to render the absolute
maximum capabilities in THE PATIENT COMPARTMENT IS FITTED WITH AIR
CONDITIONER, AN F-TYPE OXYGEN TANK WITH FLOW
terms of aiding paramedics METER, AND AN ELECTRICALLY OPERATED WASH
BASIN WITH FRESH WATER STORAGE
to perform their duties. Our
vehicles are customizable
to suit your requirements.
Compare our value with anyone
else and you’ll be pleasantly
surprised.DESIGNED TO HELP PARAMEDICS PERFORM
VERTICALLY STORED SPINE BOARD PA SYSTEM WITH SIREN

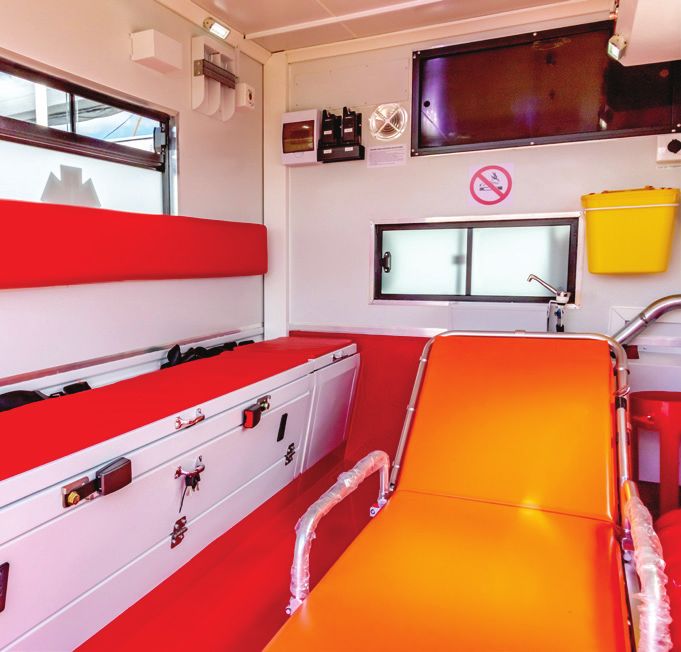

INTERIOR PATIENT CABIN FITTED WITH LIGHTING, INTERCOM BETWEEN DRIVER AND AMBULANCE DECALS AND SLIDING
SHOCK PROOF ANTI-SKID FLOORING, 12V POWER PATIENT CABIN WINDOWS WITH 4MM TOUGHENED
SUPPLY, AND SEATING WITH STORAGE CUPBOARDS FROSTED ARMOUR PLATE GLASSCUSTOMISED TO SAVE LIVES MUD FLAPS AND SIDE STEP REAR FOOTSTEP AND RAMP INTERGRATED BONNET SCOOP HEATED REAR WINDOW DEMISTER AUTO-LOCKING DOORS FOG LAMPS
PIK UP SC S6 4X2 AMBULANCE PIK UP SC S6 4X2 AMBULANCE PIK UP SC S6 4X2 AMBULANCE
TECHNICAL FEATURES SPECIAL FITMENTS
Engine type/asperation 2.2m Hawk turbo diesel Front fog lamps • Insulated and painted canopy built on exisisting load bin
Engine capacity 2179cc Dual projector headlamps No, not dual 4mm toughened and frosted side windows and rear door glass
Displacement/number of cylinders 4 cylinders High level brake light • Anti-skid shock proof flooring
Fuel injection type Common rail Colour coded bumpers Front only Beacon lights
Bore x stroke 85mm x 96mm Colour coded mirrors • PA system with siren
Compression ratio 15.5:1 Colour coded door handles • Side blinkers
Fuel type Diesel Mud flaps • Rear footstep
Power rating 103 kW @ 3750 rpm Side steps • Ramp
Torque rating 320 Nm @ 1500-2800rpm Internally adjusted ORVM • 2.5kg Fire extinguisher
Driver type 4x2 12V Power supply in patient cabin
Gearbox type/transmission 6 Speed manual Rear spot lamp
COMFORT & CONVENIENCE
Mechanical differential lock Rear axle MLD Intercom between driver and patient cabin
Air conditioner (Manual/electronic control) Manual aircon
Brake type Front - disc Rear - drum Lighting in patient cabin
Heated rear window demister •
Tyre size 245/75 R16 Ventilator fans
Power windows front/back •
Spare wheel size 245/75 R16 Roll and cot stretcher - 6ft
Power steering •
Spine board
Suspension front Double wishbone with torsion bar Tiltable steering •
Bell buzzer
Suspension rear Rigid leaf spring Central locking •
Seat for 3 people with storage
Fuel tank capacity 80L 12V Charging points •
Electrically operated wash basin with fresh water and waste storage
Gcm 5650 Integrated audio system with USB & AUX •
Auxillary battery fitted in engine bay
Gvm 3150 Door speakers •
Ambulance decals
Towing capacity - braked 2500 kg Cruise control •
Towing capacity - unbraked 750 kg Steering mounted audio & cruise control CC only
Overall length 5175 mm Swivel interior reading lamps • SAFETY
Overall width - Remote fuel cap (electrically/key) • Anti-locking braking system (ABS) •
Wheel base 3040 mm Adjustable headrests (rear/front) • Electronic brake distribution (EBD) •
Ground clearance 210 mm Upholstery Fabric Electronic stability program (ESP) -
Illuminated keyring • Hill hold and hill descent control -
Please note: This information is correct at the time of going to press, but performance Seat belt pretensioner .
may differ in conditions other than those in which tests were conducted. In view of our TECHNOLOGY Air bags (driver/passenger/side/curtain) DP
policy of continuously improving our products, we reserve the right to alter specifications Reverse camera - Seat belt reminders .
and designs without prior notice and without liability. Please consult your local dealer for
Digital immobiliser •
latest specifications. Specifications, detailing and finishes differ on the various models
available - please consult this specification sheet or your dealer for more information. Follow me home headlamps • WARRANTY & SERVICE INFORMATION
Light sensing headlamps - Warranty 4 years/120 000 km
*Service plan and roadside assistance not applicable to vehicle sales in Botswana, Zambia
and Zimbabwe. Static bending headlamps - Service plan Optional
Service intervals 20 000 km
Roadside assistance 4 years/120 000 km
USP’S
Anti skid shock proof flooring
PA system with siren
2.5 kg Fire extinguisher
Ventillation fans
Seating for three people with under storage
FULL SET OF AMBULANCE DECALS
UPPER AND LOWER STORAGE COMPARTMENTS IN
THE PATIENT CABINCustomer Care: (012) 661 3159 / (012) 661 3161
Email: customercare@mahindra.co.za
www.mahindra.co.za
First Floor Block A Southdowns Ridge Office Park
John Vorster Drive (corner Nelmapius)
Southdowns Centurion
P O Box 69079 Highveld Park
0169 South Africa
PLEASE NOTE: Some of the equipment shown in this brochure
may not be available on all models or in all markets. Some
finishes and specifications are also not available in all markets.
All specifications are subject to change without notice. Please
contact your local dealer for the latest information.
DATE OF PUBLICATION: SEPTEMBER 2021
PART NO: BROCHURE 000
MAHINDRA RECOMMENDS YOU USE ONLY
OILS
GET MOVING AGAIN
The new mzanzi app is now available
for care, maintenance and a lot more
Mahindra. Always up for a challenge.You can also read
