COPING with FLOODS and CLIMATE CHANGE
5 November 2020
Marco Favaro
maree@comune.venezia.it Tidal Forecasting and
Early Warning Centre
Tidal Forecasting and
Early Warning Centre
Tidal forecasting in Venice
Marco Favaro
Directorate Municipal Police
Tidal Forecasting and Early Warning Centre
(Centro Maree)
City of Venice

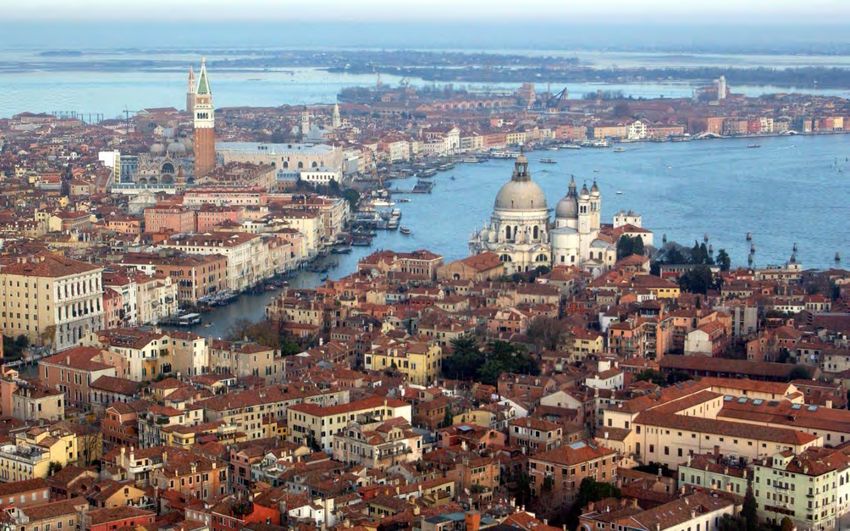

Venice and the high water
TIDES in venice
“Acqua Alta” (High Tide)
140 cm exceptional high tide
110 ÷ 139 cm very high tide
90 ÷ 109 cm high tide
-50 ÷ 89 cm NORMAL TIDE
-90 ÷ -51 cm tide under the normal level
< -90 cm exceptional low tide
“Acqua bassa” (Shallow water)
Tidal Forecasting and Early Warning Centre (Centro Maree) Tasks of Centro Maree • Meteo-mareographic monitoring in the lagoon of Venice and in the sea facing it • Calculation of the astronomical tide in Venice • Forecasting of tide level • Forecasting on the state of the sea (wave height/direction) • Information and early warning • High tide walkways system management
Tidal Forecasting and Early Warning Centre (Centro Maree)

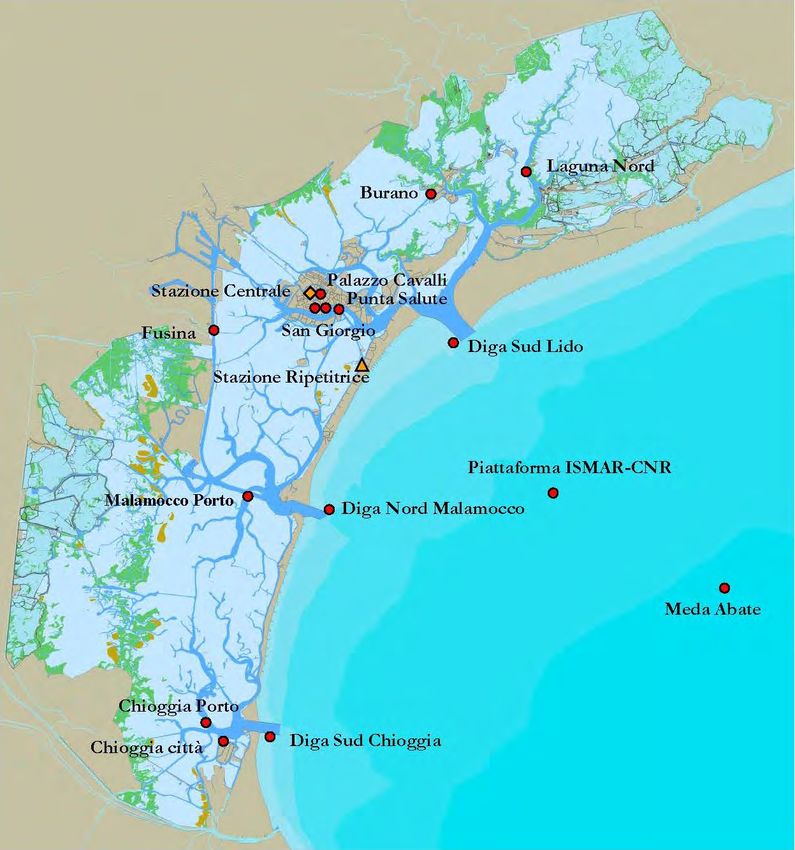

Meteo-mareographic Monitoring stations:
11 in the lagoon
Monitoring Network 3 at the inlets
2 offshore
2 repeaters
Measured parameters:
- sea level
- waves height
- atmospheric pressure
- wind speed and direction
- humidity
- air and water temperature
- solar radiation
Peripheral monitoring stations
Tidal Forecasting and Early Warning Centre (Centro Maree) Calculation of the Astronomical Tide in Venice
Tidal Forecasting and Early Warning Centre (Centro Maree)

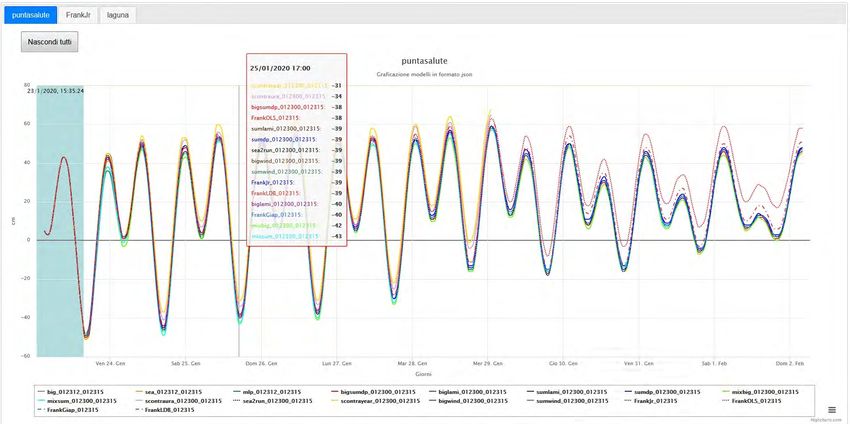

The forecast of tide level in Venice
Forecasting models:
3 deterministic models
23 statistical models
The forecast of tide level in Venice
Analysis of the current
meteorological and marine data
Saline
Burano
Murano
Misericordia
CPSM
Palazzo Cavalli
S. Nicolò
Punta Salute
Diga Sud Lido
Diga Nord Malamocco
Piattaforma CNR
Diga Sud Chioggia
Chioggia Città
Analysis of the modelling
outputsTidal Forecasting and Early Warning Centre (Centro Maree)

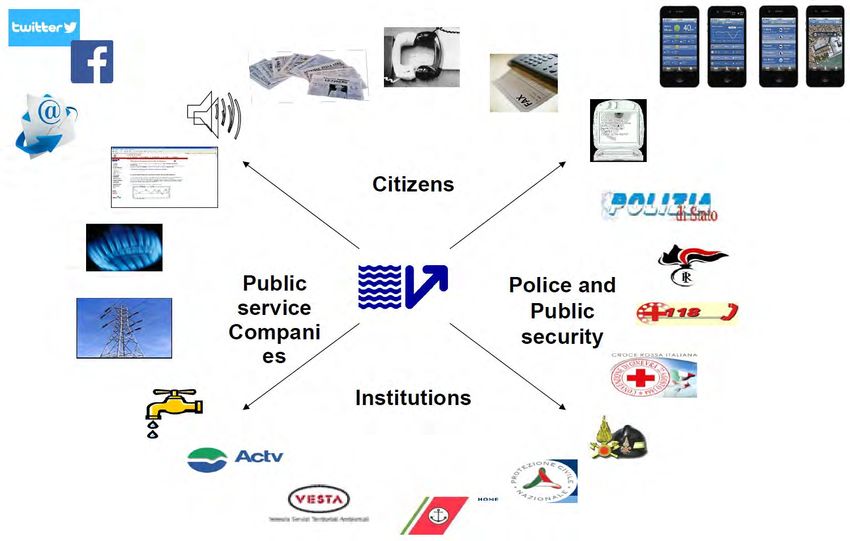

Information and early warning
app
sms
11Tidal Forecasting and Early Warning Centre (Centro Maree) Sirens warning system In the city of Venice and surrounding main islands there are 23 sirens. They are activated 3-4 hours before maximum expected >= 110 cm. The sound depends on the forecasted level
Sirens warning system

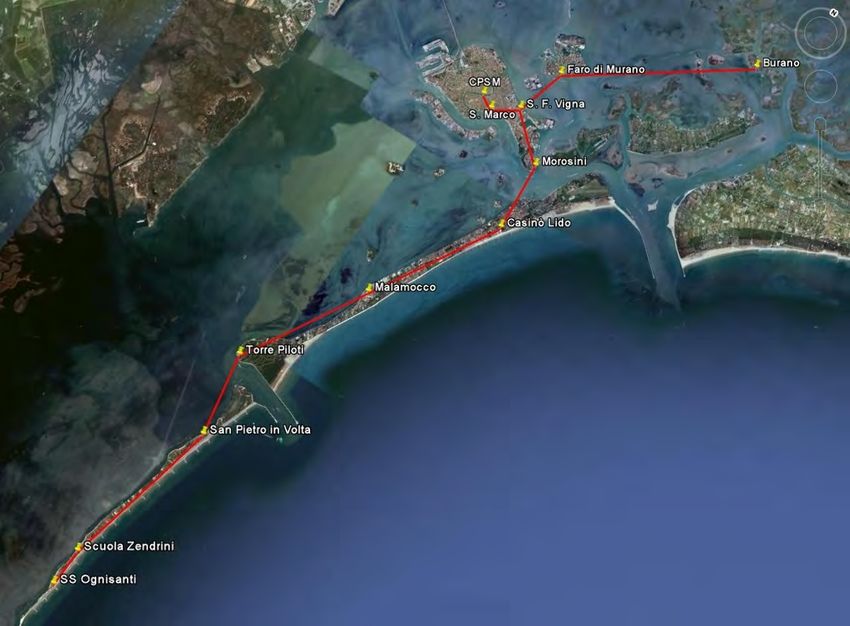

Mobile pedestrian raised walkways in case of high tide
Joint Research and Collaborations
Joint Research and Collaborations
Agenzia Regionale Prevenzione ed Ambiente del Veneto: Centro
Meteorologico Teolo (ARPAV CMT)
Agenzia Regionale Prevenzione ed Ambiente dell'Emilia Romagna:
Servizio Meteorologico Regionale (ARPAER SMR)
Agenzia Spaziale Italiana (ASI)
Agenzia Spaziale Europea (ESA)
Centro Euromediterraneo per lo studio dei Cambiamenti Climatici
(CMCC)
Centro Nazionale Meteorologia e Climatologia Applicata dell'Aeronautica
Militare Italiana (CNMCA-AM)
Consorzio Venezia Nuova (CVN), Venezia
Deutscher Wetterdienst (DWD), Offenbach, Germania
Drzavni Hidrometeoroloski Zavod (DHZ)
European Organisation for the Exploitation of Meteorological Satellites
Ente Nazionale Idrocarburi (ENI) (EUMETSAT)
Epson Meteo European Sea level Service (ESEAS)
European Centre for Medium-Range Weather Forecasts (ECMWF), Istituto Nazionale di Scienze Marine (ISMAR-CNR)
Reading, UK
Istituto Nazionale di Scienze dell'Atmosfera e del Clima (ISAC-CNR)
European Organisation for the Exploitation of Meteorological Satellites
(EUMETSAT) Istituto Nazionale di Scienze Polari (ISP-CNR)
Istituto di BioEconomia (IBE-CNR)
Istituto Nazionale di Oceanografia e Geofisica Sperimentale (OGS)
Istituto Superiore per la Protezione e la Ricerca Ambientale (ISPRA)
Koninklijk Nederlands Meteorologisch Instituut (KNMI)
Magistrato alla Acque, Venezia
Osservatorio Meteorologico dell'Arpa Friuli Venezia Giulia
Protezione Civile, Venezia
Protezione Civile Friuli Venezia Giulia
Università degli Studi di Trieste, Dipartimento di Ingegneria
Università degli Studi di Trieste, Dipartimento di Scienze
Università degli Studi di Padova, Dipartimento di ingegneria idraulica
(DICEA)The Venice “acqua granda” Venice 12-13th of November 2019
Exceptional tidal events in autumn 2019
Exceptional tidal events in autumn 2019
Exceptional tidal events in autumn 2019
Exceptional tidal events in autumn 2019
In two month (November and
December 2019) it occurred
one fifth of the cases registered in
almost 150 yearsMean sea level rise in Venice
Mean sea level rise in Venice
Mobile barriers at the lagoon inlets (MOSE) The mobile barriers at the lagoon inlets are being constructed by Ministry of Infrastructure and Transport. Work began in 2003 and it’s expected to be completed by the end of 2021.
Venice and its lagoon are on the northern Adriatic sea (immagine da Consorzio Venezia Nuova, www.istitutoveneto.it)

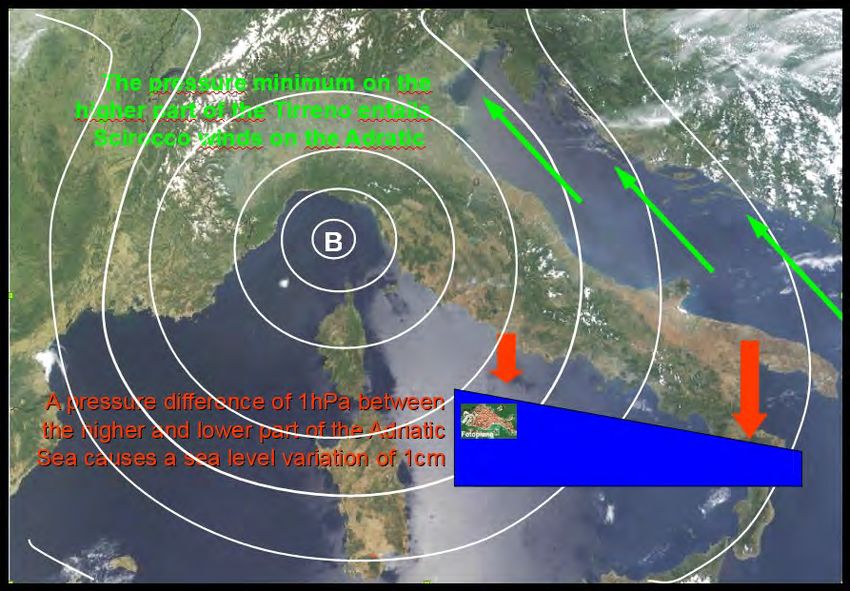

Meteorological factors and storm surges at the origin of high water in Venice
How EU projects are helping our job I-STORMS and STREAM are two integrated projects. These projects are inspired by a basin scale aproach. To increase the accuracy and reliability of sea storm forecasts is important to use the right scale, that is the adriatic-ionian area. This is only possible through the transnational cooperation.
The I-STORMS project
I-STORMS is a project co financed Common
Understanding
by the INTERREG Adrion programme
and led by the City of Venice
Increased
I-STORMS aimed at enhancing knowledge
innovative policies and develop joint
I
strategies to safeguard the ADRION Increased skills
I-STORMS Network
area from sea storm emergencies and Permanent
and Permanent
cooperation table
by: cooperation table
-fostering transnational cooperation
to by sharing knowledge, data and Increased
awareness
forecasts among involved countries
-improving their capacities in terms
of early warning and civil protection
procedures Effective early
warning systems
-increasing accuracy and reliability
of sea storm forecasts and thus be
able to improve risk preparedness in
the Adriatic-Ionian coastal areasThe STREAM project
Strategic development of flood management
STREAM aims to increase the
management capacity to promptly react
to flood disasters in the Adriatic coastal
area by developing:
●
Efficient risk monitoring tools and early
warning procedures
●
flood risk management plans
●
flood forecasting system
Data sharing, flood cadastre, flood risk
maps, exchange of practices and capacity
building schemes for the emergency
4th November 1966
Services
The project will also contribute to raise
awareness about the flood risks in the
areas involved and to people will learn
how to behave in case of flood hazards.Tidal Forecasting and Early Warning Centre Thank you!
