ARTHREX VET SYSTEMS
PRODUCT CATALOG
THE ARTHREX DIFFERENCE
Since 1984, Arthrex has been a privately held corporation
committed to one thing: providing the finest quality products
and educational services to meet the special needs of surgeons
and their patients. Arthrex is dedicated to creative product
development and medical education with an experienced,
devoted team of professionals who are truly committed to
continuing this long-term tradition. New product innovation
in less invasive surgery is the heart and soul of Arthrex, which
has resulted in the development of over 6,000 products for
arthroscopic and minimally invasive orthopaedic surgical
procedures. Our goal is to make technically demanding
surgical procedures easier, safer and reproducible. Your trust
in Arthrex products means you are backed by a company
committed to uncompromising quality and constant product
innovation, while providing you with the most competent
technical customer support in the industry.
TABLE OF CONTENTS
LIGAMENT STABILIZATION
Product Weight Chart 2
FiberWire Suture Family
®
2-4
FiberWire Accessories 5-6

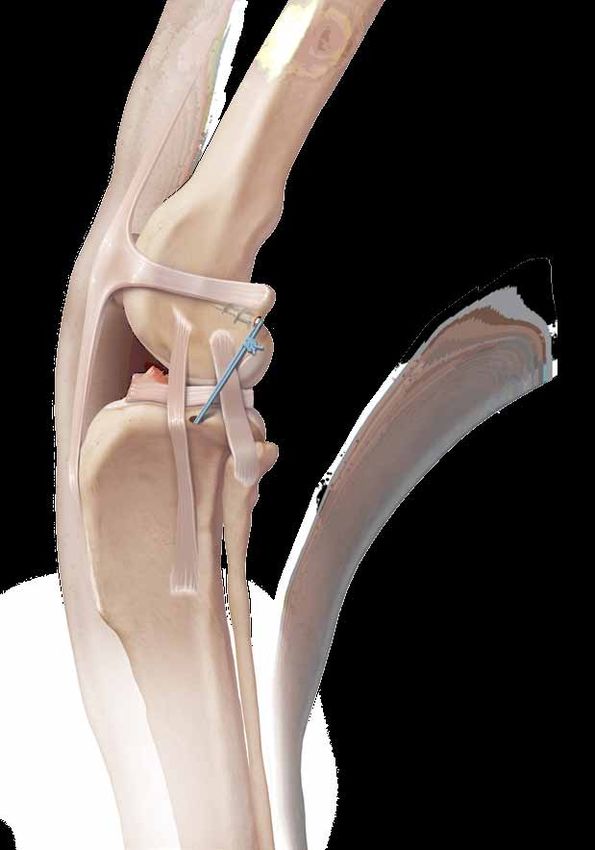

TightRope ®
7
Hip Luxation 8
SwiveLock Anchors
®
9
Titanium Anchors 10
CCL Kit, Meniscal Knives and Probes 11
CAPITAL EQUIPMENT
Fluid Management 12

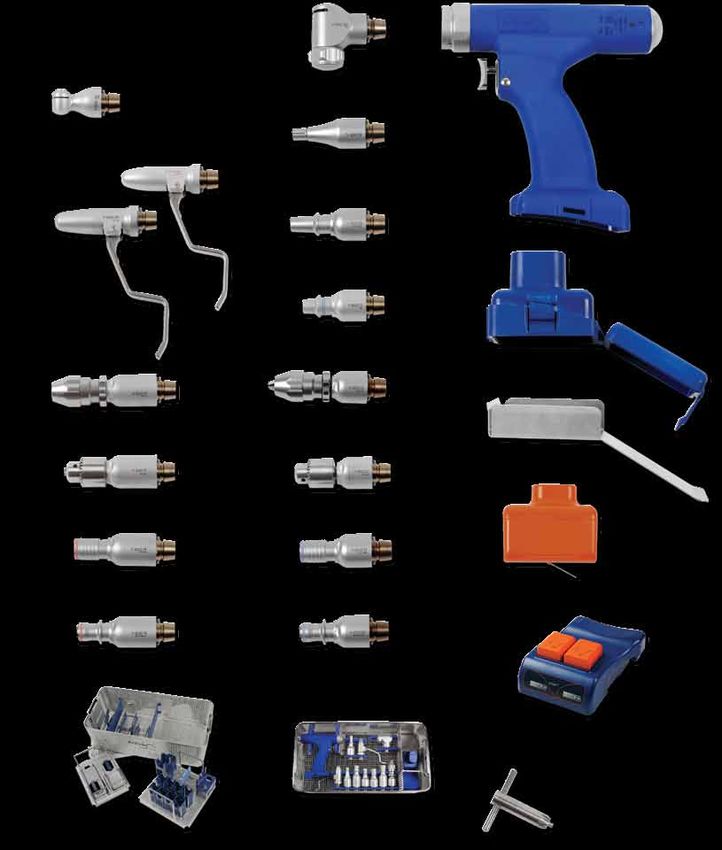

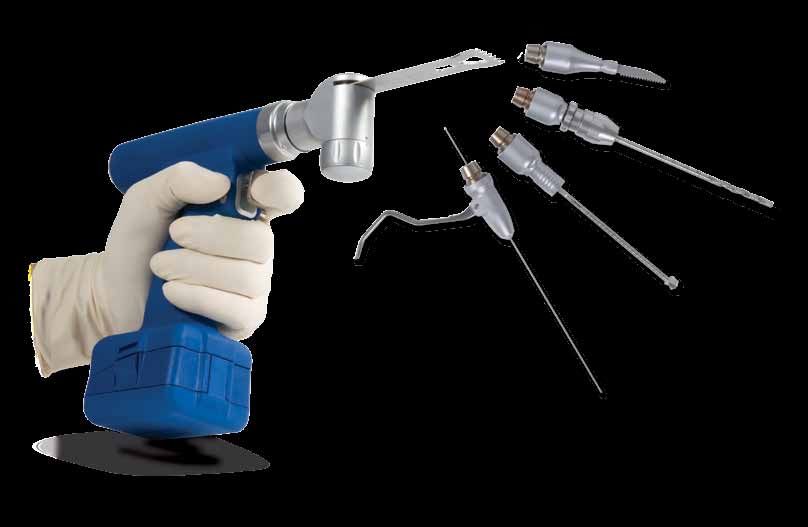

Adapteur™ Power Systems (APS II) 13
Orthopaedic Electrosurgical System 14
Arthrex CoolCut® Radio Frequency Ablation 15
Drills and Accessories 16-18
Image Management 19-22
Arthroscopy Equipment 23-28
CARTILAGE REPAIR
Canine Unicompartmental Elbow (CUE) 29
SynACART ™
30
OATS® 31
Chondro Picks/Curettes/Osteotomes 32
Bio-Compression Screws 33
Chondral Darts™ 34
BIOLOGICS
Arthrex ACP® Double Syringe Systems 35
Viscous-Gel & Viscous-Spray 36
Arthrex IRAP™ II 37
EDUCATION 38
Arthrex Vet Systems
LIGAMENT STABILIZATION
Product Weight Chart
All weight ranges are suggestions
based on the ultimate load of the
product and/or on our veterinary
consultant’s recommendation. It is
up to the veterinarian to determine
the proper product, application,
technique and weight range to
utilize the selected product.
FiberWire Suture Family
FiberWire suture is constructed of a multi-stranded long chain ultra-high molecular weight polyethylene
(UHMWPE) core with a braided jacket of polyester and UHMWPE that gives FiberWire superior strength,
soft feel and abrasion resistance that is unequaled in orthopaedic surgery. Suture breakage during knot tying
is virtually eliminated, especially critical during arthroscopic procedures. FiberWire represents a major
advancement in orthopaedic surgery.
Strength
FiberWire has greater strength than comparable size standard polyester suture. Multiple independent scientific
studies document significant increases in strength to failure, stiffness, knot strength and knot slippage with much
less elongation1.
Biocompatibility
Extensive biocompatibility, animal and clinical testing prove that FiberWire demonstrates biocompatibility
characteristics equivalent to standard polyester suture. Over two years of successful clinical outcomes in over
one million orthopaedic procedures substantiate excellent biocompatibility. Biocompatibility, strength and testing
results are available upon request2.
Tie Ability and Knot Profile
Orthopaedic surgeons enthusiastically endorse FiberWire for its feel and knot tie ability. The first throw stays down,
facilitating reproducible tissue repair. Sliding knots advance smoothly easing arthroscopic knot tying procedures.
Superior strength allows tighter loop security during knot tying, increasing knot integrity while reducing the knot
profile compared to standard polyester suture.
Abrasion Resistance
The multi-strand long chain ultra-high molecular weight polyethylene core dramatically increases FiberWire
abrasion resistance. Surgical procedures that create bone edges, tunnel edges, and articulating surface-abrasion
areas are appropriate indications for FiberWire. FiberWire is over five times more abrasion resistant than standard
polyester suture.
Variety
The FiberWire family includes sizes 4-0 - #5, including designs such as FiberStick and FiberSnare that provide
innovative solutions to arthroscopic suture passing. TigerWire has a black spiral thread for easier arthroscopic
visualization, identification, sizing and motion detection. FiberLoop is ideal for multi-strand tendon repairs.
Safety in Numbers
Trusted by leading orthopaedic surgeons worldwide since its introduction in 2002, FiberWire has contributed
to successful surgical outcomes in over 1,000,000 orthopaedic procedures ranging from Achilles tendon
repair to rotator cuff repair. Multiple scientific publications have confirmed the advantages of FiberWire in
orthopaedic surgery1,2.
1. Lo I KY, Burkhart SS, Biomechanical Principles of Arthroscopic Repair of the Rotator Cuff, Operative Techniques in Orthopaedics, 2002; 12-3:140-155.
2. Deakin M, Stubbs D, Goldberg J, Bruce W, Gillies RM, Walsh WR, Effect of Suture Type, Anchor and Testing Orientation of the Static Properties
of Suture Anchors. A Poster Presentation, #1536. (50th Annual Meeting of the Orthopaedic Research Society) 2
LIGAMENT STABILIZATION FiberWire
FiberWire is a multi-stranded long chain ultra-high molecular
weight polyethylene (UHMWPE) suture. FiberWire has greater
strength than similar sized polyester suture with superior feel,
smooth tie ability and lower knot profile. FiberWire is the ideal
suture for most orthopaedic soft tissue repairs, virtually eliminating
suture breakage during knot tying.
#5 FiberWire, 38” (blue) AR-7210
#5 FiberWire, 38” (blue) w/Conventional Cutting Needle, 48 mm 1/2 circle AR-7211
#5 FiberWire, 38” (blue) w/Conventional Cutting Needle, 48 mm 1/2 circle
and Tapered Needle, 26.5 mm 1/2 circle AR-7213
#2 FiberWire, 38” (blue) w/Tapered Needle, 26.5 mm 1/2 circle AR-7200
#2 FiberWire, 38” (1 blue, 1 white/black) AR-7201
#2 FiberWire, 38” (1 white, 1 blue/black) AR-7240
#2 FiberWire, 38” (blue) w/Reverse Cutting Needle, 36.6 mm 1/2 circle AR-7202
#2 FiberWire Loop w/Needle for NeedlePunch, 26” (green), 10 mm, straight AR-7204
#2 FiberWire, 38” (blue) w/two Tapered Needles, 26.5 mm 1/2 circle AR-7205
#2 FiberWire, 38” w/Tapered Needle (blue), 36.6 mm 1/2 circle AR-7206
#2 FiberWire w/two Needles for NeedlePunch, 38 inches (blue) AR-7207
#2 FiberWire, 38” (1 blue, 1 white/black) w/Tapered Needle,
26.5 mm 1/2 circle AR-7208
#2 FiberWire, 38 inches (blue) AR-7233
0 FiberWire, 38” (blue) w/Tapered Needle, 22.2 mm 1/2 circle AR-7250
0 FiberWire, 38” (blue) w/Diamond Point Needle, 22.2 mm 1/2 circle AR-7251
2-0 FiberWire, 18” (blue) w/Tapered Needle, 17.9 mm 3/8 circle AR-7220
2-0 FiberWire, 38” (blue) AR-7221
2-0 Suture Shuttle Loop for NeedlePunch, 40 mm AR-7224
2-0 FiberWire, 18” (blue) w/Tapered Needle, 26.5 mm 1/2 circle AR-7242
3-0 FiberWire, 18” (blue) w/Diamond Point Needle, 26.2 mm 3/8 circle AR-7225
3-0 FiberWire, 18” (blue) w/Tapered Needle, 15 mm 3/8 circle AR-7227-01
3-0 FiberWire, 18” (blue) w/Reverse Cutting Needle, 16.3 mm 3/8 circle AR-7227-02
4-0 FiberWire, 18” (blue) w/Diamond Point Needle, 18.7 mm 3/8 circle AR-7228
4-0 FiberWire, 18” (blue) w/Tapered Needle, 12.3 mm 3/8 circle AR-7230-01
4-0 FiberWire, 18” (blue) w/Reverse Cutting Needle, 11.9 mm 3/8 circle AR-7230-02
4-0 FiberWire, 18” (white) w/Tapered Needle, 12.7 mm 1/2 circle AR-7248
TigerWire®
TigerWire suture uses the same high strength construction as
FiberWire except that it contains a black marker strand in the suture
weave. This strand appears as a stripe in the suture, making suture
identification easier during joint reconstruction and soft tissue repairs.
#2 FiberWire, 38” (blue, white/black) AR-7201
#2 TigerWire, 38” (white/black) AR-7203
#2 TigerWire, 38” (white/black) w/two Tapered Needles, 26.5 mm 1/2 circle AR-7205T
#2 FiberWire, 38” (1 white, 1 blue/black) AR-7240
FiberStick™ and TigerStick®
The stiff “waxed” end of the FiberStick and TigerStick allows
convenient and easy advancement through most cannulated
instruments or spinal needles, alleviating the need for a
monofilament suture or wire suture shuttle. FiberStick and
TigerStick come with a thin plastic tube which protects the
stiffened suture end until use.
FiberStick, #2 FiberWire, 50” (blue) one end stiffened, 12” AR-7209
TigerStick, #2 TigerWire, 50” (white/black) one end stiffened, 12” AR-7209T
2-0 FiberStick, 2-0 FiberWire, 50” (blue) one end stiffened, 12” AR-7222
3
FiberTape® and TigerTape®
LIGAMENT STABILIZATION
FiberTape is an ultra-high strength 2 mm wide tape using a similar long chain
polyethylene structure as the FiberWire suture. In addition to high demand
applications like AC joint reconstruction, the broad footprint of the FiberTape is
appropriate for repairs in degenerative cuff tissue where tissue pull-through may
be a concern.
FiberTape, 2 mm, 36” (blue) each end tapered to #2 FiberWire AR-7237
FiberTape, 2 mm, 7” (blue) each end tapered to #2 FiberWire AR-7237-7
TigerTape, 2 mm, 7” (white /black) each end tapered to #2 FiberWire AR-7237-7T
FiberLoop®
FiberLoop is a suture option for multi-strand tendon repairs.
These small diameter looped FiberWire products, in 12- and
20-inch lengths, allow for strong multi-strand flexor and extensor
tendon repairs while reducing tendon damage from multiple
needle passes. FiberLoop is available with 17.9 mm tapered
needles to prevent cutting suture while stitching.
4-0 FiberLoop, 6” (white) w/Tapered Needle, 12.7 mm 1/2 circle AR-7249-12
4-0 FiberLoop, 10” (white) w/Tapered Needle, 12.7 mm 1/2 circle AR-7249-20
4-0 FiberLoop, 6” (blue) w/Tapered Needle, 17.9 mm 3/8 circle AR-7229-12
4-0 FiberLoop, 10” (blue) w/Tapered Needle, 17.9 mm 3/8 circle AR-7229-20
2-0 FiberLoop, 30” (blue) w/Diamond Point Needle, 48 mm 1/2 circle AR-7232-01
2-0 FiberLoop, 24” (blue) w/Diamond Point Needle, 26.2 mm 3/8 circle AR-7232-02
2-0 FiberLoop, 30” (blue) w/Diamond Point Straight Needle, 64.8 mm AR-7232-03
0 FiberLoop w/Straight Needle, 13” (blue), 76 mm needle w/7 mm loop AR-7253
0 TigerLoop w/Straight Needle, 13” (white/black), 76 mm needle w/7 mm loop AR-7253T
#2 FiberLoop w/Straight Needle, 20” (blue), 76 mm needle w/7 mm loop AR-7234
#2 TigerLoop w/Straight Needle, 20” w/TigerWire (white/green),
76 mm needle w/7 mm loop AR-7234T
#2 FiberLoop w/Curved Needle, 20” (blue), 1/2 circle AR-7234C
FiberSnare®
FiberSnare with closed loop provides an easy, one step approach to creating
a FiberWire loop on the tip of the Bio-Tenodesis Driver. Instead of using a
Nitinol wire, insert the stiff non-looped end retrograde through the tip of the
Bio-Tenodesis Screwdriver. Place the tip of the tendon or tendon graft into the
FiberWire loop and cinch the other end around the suture cleat on the back
end of the blue Tear Drop Handle. The FiberSnare can also be used as a suture
shuttle for passage of traction sutures through bone tunnels.
FiberSnare, #2 FiberWire, 26” (green), stiffened w/closed loop, 12” AR-7209SN
FiberChain®
FiberChain is a single-stranded #2 FiberWire suture that transitions
to chain links of interwoven FiberWire. It is intended for use with the
SwiveLock™ Suture Anchor.
FiberChain, #2 FiberWire w/ten 7 mm long loops (required w/SwiveLock) AR-7270
FiberChain, #2 FiberWire w/eight 7 mm long loops (required w/SwiveLock) AR-7271
FiberLink™
The closed loop on FiberLink is designed to facilitate the application of a
cinch stitch by simply passing the suture through tissue and feeding the free
end through the loop and tensioning. The loop length will ensure the loop
fully encapsulates the tissue prior to tapering down to the single strand.
FiberLink, #2 FiberWire, 26” (blue), w/closed loop AR-7235
TigerLink, #2 FiberWire, 26” (white/black), w/closed loop AR-7235T 4
LIGAMENT STABILIZATION Suture Cutters
The Suture Cutter’s precision jaws prevent knot cutting by leaving a length
of reproducible suture tail, 3 mm for the 4.2 mm outer diameter cutter and
1 mm for the 2.75 mm outer diameter cutters, without direct visual control.
These cutters have a special locking device to prevent premature suture
cutting. The blunt tip of the cutter is excellent for knot pushing.
The Open Ended Suture Cutter was designed to speed up the suture
cutting process. This cutter allows for quick and efficient suture tail
cutting under direct visual control through the same or alternate cannula
or portal. The notch on the side of the cutter tip automatically guides the
suture tails into the front cutting slot for an accurate cut from any angle.
The FiberTape Cutters were designed to cut two strands of FiberTape
flush to the anchor site without direct visual control.
Suture Cutter, 4.2 mm, straight VAR-12250
Suture Cutter, 4.2 mm w/WishBone Handle, straight VAR-12250W
2-0 Suture Cutter, 2.75 mm, straight VAR-11790
2-0 Suture Cutter, 2.75 mm, 15° up curve VAR-11791
Suture Cutter, Open Ended, Left Notch VAR-11794L
Suture Cutter, open ended, left notch w/WishBone Handle VAR-11794LW
Suture Cutter, 4.2 mm w/WishBone Handle VAR-12250W
FiberTape Cutter VAR-13250
FiberTape Cutter w/WishBone Handle VAR-13250W
FiberWire Scissor
The FiberWire Scissor was designed to cut any size or style suture, especially
FiberWire, in open surgical cases where an arthroscopic Suture Cutter is not
necessary. With its specially designed cutting edges, it can cut FiberWire
cleanly and effortlessly without frayed edges. The color-coded handle
facilitates instrument differentiation in large instrument packs.
FiberWire Scissor AR-11796
FiberWire Scissor, small AR-11797
FingerShield™
The FingerShield is a woven polyester sleeve with an embedded
radiopaque blue marker designed to reduce pressure-induced
lacerations to the digits of the hand caused by repetitive knot tying
during surgery. They slip right over sterile gloves when needed.
The tips are left open to allow pinch grasp of suture strands, while
still protecting the IP joint area of each digit. The soft, finger conforming
weave will stand up to repetitive hand tying during a case without
constraining the fingers. Suture slides over the FingerShield smoothly
and effortlessly.
FingerShield, 2/pk AR-7199
FiberWire Tensioner
The FiberWire Tensioner provides controlled tensioning of FiberWire loops
during knot tying when reapproximating soft tissue. The blunt tip keeps the
knot in place, while the tensioning wheel and spring mechanism gently
tension the loop to tighten the repair. It is appropriate for use in conjunction
with #5 FiberWire.
FiberWire Tensioner AR-1529
Suture Passing Wire AR-1255-18
#5 FiberWire, 38 inches (blue) AR-7210
5
LIGAMENT STABILIZATION
FiberWire Needle Reference Chart
Suture Size Needle Dimensions Reference No. Cat. Number Actual Size of Needles
#5 (7 metric) 48 mm 1/2 circle CCS-1 AR-7211
AR-7211
#5 (7 metric) 48 mm 1/2 circle and AR-7213
& 26.5 mm 1/2 circle T-5 & CCS-1 AR-7213
#2 (5 metric) 26.5 mm 1/2 circle T-5 AR-7200 AR-7213,
AR-7200,
#2 (5 metric) 26.5 mm 1/2 circle T-5 AR-7205 AR-7205,
AR-7205T,
#2 (5 metric) 26.5 mm 1/2 circle T-5 AR-7205T AR-7208, and
AR-7242
#2 (5 metric) 26.5 mm 1/2 circle T-5 AR-7208
#2 (5 metric) 36.6 mm 1/2 circle C-13 AR-7202 AR-7202
#2 (5 metric) 36.6 mm 1/2 circle T-8 AR-7206
#2 (5 metric) 10 mm NeedlePunch AR-7204 AR-7206
AR-7204
#2 (5 metric) 10 mm NeedlePunch AR-7207 and AR-7207
0 (3.5 metric) 22.2 mm 1/2 circle T-4 AR-7250
AR-7250
0 (3.5 metric) 22.2 mm 1/2 circle D-10 AR-7251
AR-7251
2-0 (3 metric) 17.9 mm 3/8 circle T-13 AR-7220
AR-7220
2-0 (3 metric) 26.5 mm 1/2 circle T-5 AR-7242
3-0 (2 metric) 15 mm 3/8 circle T-43 AR-7227-01 AR-7227-01
3-0 (2 metric) 16.3 mm 3/8 circle C-22 AR-7227-02 AR-7227-02
3-0 (2 metric) 26.2 mm 3/8 circle DE-14 AR-7225
AR-7225
4-0 (1.5 metric) 11.9 mm 3/8 circle C-17 AR-7230-02
AR-7230-01
4-0 (1.5 metric) 12.3 mm 3/8 circle T-12 AR-7230-01 AR-7230-02
4-0 (1.5 metric) 18.7 mm 3/8 circle DE-10 AR-7228 AR-7228
FiberLoop Reference Chart
#2 (5 metric) 76 mm w/7 mm loop - AR-7234
AR-7234,
#2 (5 metric) 76 mm w/7 mm loop - AR-7234T AR-7234T
AR-7253 and
#2 (5 metric) 26.5 mm 1/2 circle - AR-7234C AR-7253T
0 (3.5 metric) 76 mm w/7 mm loop - AR-7253 AR-7234C
0 (3.5 metric) 76 mm w/7 mm loop - AR-7253T
2-0 (3 metric) 48 mm 1/2 circle D-17 AR-7232-01 AR-7232-01
2-0 (3 metric) 26.2 mm 3/8 circle DE-14 AR-7232-02
2-0 (3 metric) 64.8 mm SD-2 AR-7232-03 AR-7232-02
4-0 (1.5 metric) 17.9 mm 3/8 circle T-13 AR-7229-12 AR-7229-12
and AR-7229-20
4-0 (1.5 metric) 17.9 mm 3/8 circle T-13 AR-7229-20
AR-7249-12
4-0 (1.5 metric) 12.7 mm 1/2 circle T-22 AR-7249-12 AR-7249-20
and AR-7248
4-0 (1.5 metric) 12.7 mm 1/2 circle T-22 AR-7249-20
4-0 (1.5 metric) 12.7 mm 1/2 circle T-22 AR-7248 AR-7232-03
6
LIGAMENT STABILIZATION TightRope

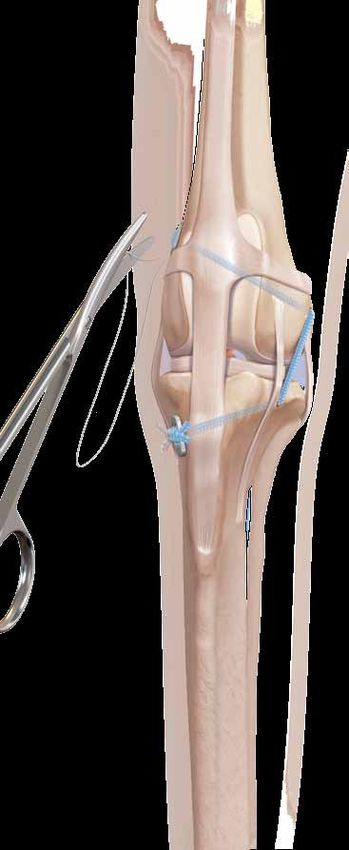

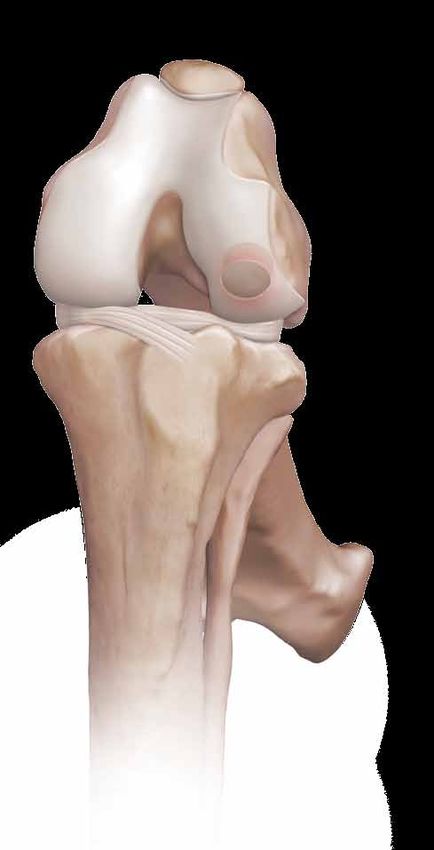

The TightRope CCL technique was developed to provide a minimally invasive method for extracapsular
stabilization of the cranial cruciate ligament-deficient canine stifle. TightRope CCL seeks to optimize the lateral
suture stabilization technique by employing bone-to-bone fixation, an implant with superior strength and stiffness
designed specifically for ligament repair, and a method for consistent isometric implant placement. As such,
TightRope CCL can counteract cranial tibial thrust, drawer, and internal rotation while providing optimal joint
range of motion.
TightRope Benefits:
• Bone-to-bone fixation
• Strength
• Minimally invasive technique
• Low profile implant
• Potential for addressing all abnormal forces
TightRope CCL VAR-2800
Cannulated Drill Bit, 3.5mm (use with VAR-2800) AR-8920DC
Mini TightRope VAR-2801
Cannulated Drill Bit, 2.7mm (use with VAR-2801) AR-8911DC
Guide Wire, .049 AR-8920P
Drill Guide AR-4162G
Tensioner with Tensiometer AR-1529
Femoral Aiming Guide VAR-2810
FiberWire Scissors AR-11796
Meniscal Probe AR-30000
Banana Knife VAR-5001
Hook Knife VAR-5003
Push Knife VAR-5005
Handle for Knives VAR-5020
TightRope CCL
VAR-2800
Autoclavable
for quick cleaning
Mini TightRope
VAR-2801
Suture Tensioner with Tensiometer
AR-1529
7
Hip Luxation
LIGAMENT STABILIZATION
The extremely durable standard TightRope and Mini TightRope Systems make stabilizing hip luxations easier
and reproducible with our toggle pins and FiberTape and FiberWire suture materials. The Femoral Aiming
Guide ensures correct placement before drilling.
TightRope CCL VAR-2800
Mini-TightRope CCL VAR-2801
Femoral Aiming Guide VAR-2810
Cannulated Drill Bit, 3.5 mm (use with AR-8920P) AR-8920DC
Cannulated Drill Bit, 2.7 mm (use with AR-8920P) AR-8911DC
Cannulated Drill Bit, 2.0 mm (use with AR-8933K) AR-8933-20C
.049 Guidewire (K-wire) AR-8920P
.045 Guidewire (K-wire) AR-8933K
Suture Passing Wire, Nitinol, 8 inches AR-1255-08
FiberWire Scissors AR-11796
FiberWire Scissors, small AR-11797
Tensioner with Tensiometer AR-1529
Guide to Drill Bit and Implant Size Based on Patient Weight
Dog Weight Implant Size Drill Bit Size
®
< 20 lbs. Mini TightRope 2.7 mm for the acetabulum
and 2.0 mm for the femoral neck*
20 - 50 lbs. Mini TightRope 2.7 mm
> 50 lbs. Standard TightRope 3.5 mm
*VAR-2810 Femoral Aiming Guide 8LIGAMENT STABILIZATION SwiveLock Anchors
SwiveLock is our newest anchor offered for CCLs and soft tissue-to-bone reattachment. Made with an
inert and nonabsorbable thermoplastic material called PEEK, this new anchoring system allows for knotless
reconstructions without the need for a tensioner. Specially designed vents in the anchor body promote
bone marrow flow and allow for bony ingrowth.
Implants:
PEEK 5.5 mm Knotless SwiveLock Kit (VAR-2323PSLK )includes:
PEEK SwiveLock, 5.5 mm x 19.1 mm, closed eyelet, qty. 5 AR-2323PSLC
FiberTape, 2 mm, 54 inches, qty. 6 AR-7237
Suture Button, 3.5 mm x 11 mm, qty. 5 AR-8920
PEEK 4.75 mm Knotless SwiveLock Kit (VAR-2324PSLK) includes:
PEEK SwiveLock, 4.75 mm x 19.1 mm, closed eyelet, qty. 5 AR-2324PSLC
FiberTape, 2 mm, 54 inches, qty. 6 AR-7237
Suture Button, 3.5 mm x 11 mm, qty. 5 AR-8920
PEEK 3.5 mm Knotless SwiveLock (VAR-2325PSLK) Kit includes:
PEEK SwiveLock, 3.5 mm x 19.1 mm, closed eyelet, qty. 5 AR-2325PSLC
FiberTape, 2 mm, 54 inches, qty. 6 AR-7237
Suture Button, 3.5 mm x 11 mm, qty. 5 AR-8920
Disposable:
Suture Passing Wire, Nitinol, 8” AR-1255-08
Instruments:
Tap for 5.5 SwiveLock Anchor AR-1927CTB
Spade Tip Drill for 5.5 SwiveLock Anchor AR-1927D
Cannulated Drill, 2.5 mm AR-1530C-25
Guide Wire, .041, qty. 4 AR-1530K
Banana Knife VAR-5001
Hook Knife VAR-5003
Push Knife VAR-5005
Handle for Knives VAR-5020
Cannulation
with bony
ingrowth
Vent
Cross section of a Vented BioComposite SwiveLock eight
weeks after implantation in a canine model showing bony
ingrowth in the vents and center cannulation. Data on file
9Titanium Anchors
LIGAMENT STABILIZATION
The Corkscrew® and FASTak™ Suture Anchors were designed to provide the highest strength possible
in all types of indications and to make technically demanding procedures simpler, safer and reproducible.
Built-in, easy-to-use features, such as laser lines on the driver shaft ensure that the anchor has been placed
at an appropriate depth and the eyelet is lined up in the correct position to pass the suture in the right
direction, are just a couple examples. Combined with the high strength characteristics and increased abrasion-
resistance of FiberWire, it gives the surgeon confidence during crucial knot tying stages where suture breakage
is virtually eliminated.
Anchor Pull-Out Data in 20/40
Suture Tensioner with Tensiometer AR-1529
FiberWire Scissor VAR-11796 Polyurethane Foam
Anchor Pull-out Block
Data*
Corkscrew Suture Anchor w/#5 FiberWire, 5 mm VAR-2100 700
FASTak Suture Anchor w/#2 FiberWire, 2.8 mm VAR-2200
FASTak Suture Anchor, 2.8 mm VAR-2201 600
Suture Passing Wire, Nitinol AR-1255-08
Suture Button, 3.5 mm x 11 mm AR-8920
Ultimate Load (N)
500
Cannulated Drill Bit, 2 mm AR-8933-20C
Guide Wire (K-wire), .045 AR-8933K
Guide Wire (K-wire), .062 AR-8941K 400
300
200
100
0
5 mm Corkscrew w/#5 FiberWire
3.5 mm Securos w/#5 OrthoFiber (3.2 mm drill)
2.8 mm FASTak w/#2 FiberWire
Anchor Pull-Out Data
160 Imex 4 mm x 10 mm w/#2 FiberWire (2.7 mm drill)
#5 BoneBiter w/#5 FiberWire (2.5 mm drill)
140
Ultimate Pull-out Force (lbf)
120
100
80
60
40
20
0
5 mm Corkscrew
5 mm Corkscrew 5 mm Corkscrew 2.8 mm FASTak
Suture Anchor w/#5 FiberWire
w/#5 FiberWire w/two #2 FiberWire w/#2 FiberWire
VAR-2100
2.8 mm FASTak
w/#2 FiberWire
VAR-2200
*Data on file at Arthrex 10LIGAMENT STABILIZATION CCL Kit, Meniscal Knives and Probes
The CCL Kits come with #2 or #5 FiberWire with swedged on curved and straight needles to allow for
easy passage of the FiberWire through bone tunnels and around the fabella. The strength, less elongation
properties, and abrasion resistance of FiberWire makes this a great suture for CCL reconstructions.
The meniscal knives are great tools for dealing with meniscal tears or soft tissue resection.
These precision-crafted knives are “must have” items. Offered are the Banana Knife, Hook Knife
and Push Knife designs. A reusable handle also provides better gripping in wet environments.
#5 CCL Kit VAR-2000
#2 CCL Kit VAR-2002
Handle Banana Knife VAR-5001
VAR-5020 Push Knife VAR-5003
Hook Knife VAR-5005
Handle VAR-5020
Banana Knife
VAR-5001
Hook Knife
VAR-5005
Push Knife
VAR-5003
The meniscal probes provide the surgeon with an excellent tool to assess the meniscus
or soft tissue. A number of different sizes and lengths are offered for your convenience.
Small Hook Probe, w/ black handle AR-30000
Graduated Black Probe, 1.5 mm Tip AR-5021
Graduated Black Probe, 2.5 mm Tip AR-5007
Stainless Steel Probe AR-10020
Graduated Black Probe,
1.5 mm Tip
AR-5021
Small Hook Probe
AR-30000
11Fluid Management
CAPITAL EQUIPMENT
Continuous Wave™ III Arthroscopy Pump
The Continuous Wave III Pump provides ideal joint
distention throughout a surgical procedure. Pressure and
flow levels can be adjusted independently, on the pump
or from the sterile field, with the autoclavable remote for
optimum control of fluid dynamics. Clear joint distention
can be maintained even with aggressive shaving, aspiration Console
and multiple arthroscopy portals. The Continuous Wave III VAR-6475S
Pump incorporates the latest safety and performance features
to meet the highest demands of surgeons, surgical nurses Autoclavable Remote
and administrators in today’s cost-conscious and performance- AR-6476
minded surgical settings.
Pump Tubing Options
Main Pump Tubing
This tubing set is for those who prefer a complete tubing set and want to replace
the fluid bags after each case. Each tube set comes with an independently packaged
press-fit luer lock to allow for tubing length adjustment – if used in conjunction with the
Extension Tubing. If used alone, the set must be discarded after each use.
Main Pump Tubing for AR-6400 or AR-6475, 16’ long, sterile, qty. 10 AR-6410
Extension Tubing
This unique tubing provides an economical option to reduce tubing costs by allowing
the Main Pump Tubing to remain in use for the entire surgical day. The exclusive backflow
valve prevents contaminated fluid from reaching the Main Pump Tubing. The Main Pump
Tubing and fluid bags no longer need to be discarded after each surgical case.
Extension Tubing, 8’ long, sterile, qty. 20 AR-6220
Y-Tubing Adapter
The optional Y-Tubing Adapter allows four fluid bags to be attached to either the Main Pump
Tubing or the ReDeuce Pump Tubing, resulting in fewer fluid bag changes.
Y-Tubing Adapter, double spike, two per set, sterile, qty. 10 AR-6215
ReDeuce™ Pump Tubing System
Features and Benefits:
• Saves fluid by not requiring the remaining
fluid to be discarded after the termination
of a surgical case.
• Saves tubing costs, as the main tubing stays
in place throughout the surgical day. Only the ReDeuce Pump Tubing ReDeuce Patient Tubing
ReDeuce Patient Tubing needs to be replaced ReDeuce Tubing is a cost-effective, The patient tubing is a two meter
two-part tubing system that allows extension set that extends from the
for each case. the pump tubing to stay in place ReDeuce Pump Tubing to the sterile
• Saves set-up time. Only the Patient ReDeuce through the surgical day. Only the field. Each ReDeuce Patient Tubing
Tubing needs to be passed off from the sterile patient tubing is replaced after each set contains a backflow restrictor
field before each case. The ReDeuce Pump case. and touch proof connector to
Tubing stays in place the entire surgical day maintain sterility from case to case.
ReDeuce Pump Tubing w/connector for AR-6400
and no additional fluid bags need to be spiked or AR-6475, 8’ long, sterile, qty. 10 ReDeuce Pump Tubing, 8’ long, sterile, qty. 20
until they are completely empty. AR-6411 AR-6421
12CAPITAL EQUIPMENT Adapteur Power System II Console and Accessories
APS II Console
This unique, versatile system is designed for multiple orthopaedic procedures. The APS II Console features
two fully functional channels that allow simultaneous handpiece operation. Both channels can be operated
with a single footswitch or individually, when a second footswitch is attached to the console. Additionally,
either channel may be operated manually using the controls on the console face.
VAR-8300
Footswitch Options: Low Profile Footswitch
The low profile footswitch design minimizes fatigue while maintaining control of all APS II
AR-8310 functions. Directional control and speed increase functions are controlled by pressing the
appropriate pad. By pressing the toggle dome-switch, control is changed between the
console’s dual channels.
Wireless and Corded Multi-Function Footswitches
AR-8315 The wireless and corded (not pictured) multi-function footswitches feature a user-selected
function mode of either the low profile footswitch or the gas pedal footswitch (not pictured).
All speed, direction, cruise and toggle controls are accessible on either of these user-friendly
accessories and the active mode is displayed on the APS II Console.
AR-8325F APS II Small Shaver Handpiece
The APS II Shaver Handpiece delivers the same speed and power as its larger predecessor.
The quick snap-lock collet accepts standard as well as small joint blades and burrs,
making it one of the most versatile handpieces available.
APS II Small Shaver Handpiece, Hand-Control
AR-8325H
Based on the design of its predecessor, the hand-control shaver handpiece offers the
same power, performance and versatility but adds increased tactile feel by placing
control at your fingertips. The two ergonomically placed multi-function buttons
control speed and directional modes. The dual-position, snap-lock collet accepts
large and small joint blades and burrs.
13Orthopaedic Electrosurgical System
CAPITAL EQUIPMENT
The Orthopaedic Procedure Electrosurgical System (OPES®) is the first-of-its kind, completely digital
platform designed to provide the surgeon and O.R. staff with greater flexibility and performance
for arthroscopic as well as open surgical procedures.
Digital Technology and Patient Safety
The OPES generator was designed with patient safety as its highest priority. The completely digital
generator provides efficient tissue cutting, coagulation and ablation at significantly reduced power
settings. The Digital Error Detection (DED) and Neutral Electrode Monitoring (NEM) ensure the highest
level of patient safety.
The Arthrex Advantage
Monopolar Ablation and Coagulation Probes
The OPES monopolar all-in-one disposable ablation probes provide greater ablation speed and efficiency,
while lowering the per procedure cost. For convenience, all probes are hand or foot controlled.
3-in-1 Electrosurgical System
With “3-in-1” system flexibility, the OPES Electrosurgical Generator is also capable of controlling a host of
different instruments, including disposable monopolar arthroscopic electrodes, reusable and disposable
monopolar open procedure pencils and tips, and reusable bipolar forceps. The need for three separate,
costly and space-occupying electrosurgical generators is eliminated.
Electrosurgical Generator Compatibility
All OPES arthroscopic probes and electrodes can be used in conjunction with standard electrosurgical
generators utilizing a 3-pin monopolar connection port. Another great option to eliminate multiple
arthroscopic ablation boxes in the O.R.
10 Blend Mode Settings
Cut Mode Coag Mode Bipolar Mode
Pinpoint or Spray Coag
Selector
Monopolar & Bipolar
Footswitch Indicator
10 Factory Power Level Presets
Bipolar Instrument
Connection Port
Cut I, Cut II &
Blend Mode Selector 3-Pin Monopolar Instrument
Connection Port
Patient Return Electrode Port
VAR-9600
14CAPITAL EQUIPMENT Arthrex CoolCut Radio Frequency Ablation
The new line of CoolCut radio frequency devices features an innovative ergonomic handle with
finger touch controls. The 90° versions have a unique shape that allows for maximum extension
from the tip of the electrode to the shaft of the device, while still fitting through a 5 mm cannula.
The new CoolCut shaft coating facilitates easy insertion through both working cannulas and
subcutaneous tissue.
The pioneering design of the CoolCut electrode tips makes it possible to operate the CoolCut
series at extremely low-power settings, thereby increasing patient safety without sacrificing
performance. The reduction of the power requirements also allows for the absence of a ceramic
ring surrounding the electrode face, reducing the size of the tip which aids in reaching target
tissue in anatomically tight spaces.
CoolCut Ablation Wands
Aspirating Ablation Probes Meniscal Probes Hook Tip Probes
CoolCut 90˚ CoolCut 50˚ CoolCut CoolCut CoolCut Hook
AR-9803A-90 AR-9803A-50 Meniscectomy 45˚ Meniscectomy 90˚ AR-9801
AR-9802M-45 AR-9802M-90
Ball Probes
CoolCut 30˚ CoolCut XL
AR-9803A-30 AR-9705A-90
CoolCut Tip CoolCut Tip 45˚
AR-9808 AR-9808-45
Non-Aspirating Ablation Probes
Accessory Devices
Arthrex Pencil Kit AR-9810
Split Ground Pad AR-9610SGP
Small Joint CoolCut Ablation Wands
CoolCut 90NA CoolCut 50NA
AR-9803-90 AR-9803-50
CoolCut SJ Ball CoolCut SJ Ball 45
AR-9808SJ AR-9808SJ-45
CoolCut 30NA CoolCut XLNA
AR-9803-30 AR-9705-90
CoolCut SJ 45˚ CoolCut SJ 90˚
15 AR-9809SJ-45 AR-9809SJ-90Drills and Accessories
CAPITAL EQUIPMENT
Arthrex 600 Power System
• Cost-efficient – one handpiece for all attachments
• Proprietary brushless motor technology – more reliable
• PEEK housing – lightweight and cools faster
• Easier, effective cleaning with washer/decontaminator
• Variable speed trigger with consistent torque from zero – max speed
• Lifetime lubricated – maintenance free
• Speed – auto detected by the attachment
• Handpiece – 2.2 lbs.
• 4.1 mm cannulation
Arthrex 300 Power System - Small Bone
• Cost-efficient – one handpiece for all attachments
• Proprietary brushless motor technology – more reliable
• PEEK housing – lightweight and cools faster
• Easier, effective cleaning with washer/decontaminator
• Variable speed trigger with consistent torque from zero – max speed
• Lifetime lubricated – maintenance free
• Speed – auto detected by the attachment
• Handpiece – 1.2 lbs.
• 2.4 mm cannulation
up to 6-inch pin
Li-Ion battery
• No memory effect – power life
doesn’t get shorter over time
• Highest power-to-weight ratio
• Provides max power through full charge
• Leave batteries on charger
until next use – trickle charge
• Quick charge from zero –
less than one hour
• One year warranty
• Lightweight – .19 lbs.
16CAPITAL EQUIPMENT Arthrex 600 Power System
V-600
V-600SS Sagittal Saw Large
Handpiece
V-600SS-2 Sagittal Saw Mini Speed: 0-13,000 cpm
Speed: 0-13,000 cpm
V-600SR Reciprocating Saw
Speed: 0-13,000 cpm
V-600PD-2
Pin Driver
1.6-4.1 mm
V-600DAT Drilling Small AO/Trinkle
V-600WD-2
Wire Driver
0.6-1.6 mm
V-600DAO Drilling Small AO
V-600BH
Battery Housing
V-600RJC Reaming Keyless Chuck V-600DJC Drilling Keyless Chuck
0.6-7.4 mm 0.6-7.4 mm
V-600TK
Transfer Plate
V-600RKC Reaming Keyed Chuck
V-600DKC Drilling Keyed Chuck
0.6-6.5 mm (1/4”)
0.6-6.5 mm (1/4”)
V-600RAP Reaming Large AO/Protek V-600L
V-600DAP Drilling Large AO/Protek Li-Ion Battery
V-600RZH Reaming Zimmer/Hudson V-600DZH Drilling Zimmer/Hudson
V-300/600
Charging Station for
V-300L and V-600L
V-600Key
V-600T Instrument Tray
Spare Key
(included with Keyed Chucks)
AR-600C Instrument Case
17Arthrex 300 Power System
CAPITAL EQUIPMENT
V-300L
Li-Ion Battery
V-300 V-300BH V-300TK
Handpiece Battery Housing Transfer Plate
V-300R
Burring Tool, 2.35 mm
V-300SS Sagittal Saw
V-300SR Reciprocating Saw
V-300WD
Wire Driver 0-1.6 mm
V-300DKC Drilling Keyed Chuck V-300RKC Reaming Keyed Chuck
0-4 mm (5/32”) 0-4 mm (5/32”)
V-300DA Drilling Small AO V-300RAO Reaming Small AO
V-300PD
Pin Driver 1-2.4 mm
V-300DL Drilling Large Keyless Chuck
0-4.5 mm (3/16”) V-300D Drilling Keyless Chuck
0-3 mm (1/8”)
V-300Key
Spare Key
(*included with Keyed Chucks) V-300T
Instrument Tray
V-300H
Handling Tool
(included with V-300)
V-300/600 Charging Station AR-300C
for V-300L and V-600L Instrument Case
18CAPITAL EQUIPMENT SynergyHD3 Imaging Platform
SynergyHD3 integrates three consoles into one and revolutionizes endoscopic visualization and image
management. The SynergyHD3 combines the latest technology, true 1080p HD cameras, LED lighting,
and image management with an intuitive tablet controller. One console and one unique tablet interface
simplifies use, and programmable individual surgeon preferences enhance the user experience.
Synergy Consoles
SynergyHD3 Console, 110v, w/tablet VAR-3200-0001
SynergyHD3 Console with Turret, 110v, w/tablet VAR-3200-0001T
SynergyHD3 Console, 220v VAR-3200-0002
SynergyHD3 Tablet VAR-3200-1004
SynergyHD3 Tablet Controller
Our unique and innovative remote “tablet” interface allows the users to remotely and efficiently enter patient
information, surgeon preferences and image management settings one time. The tablet can be draped in an
x-ray cassette cover for use in the sterile field. SynergyHD3 will help reduce cost, OR times and increase efficiency.
Camera Head
SynergyHD3 Camera Heads provide true 1080p HD resolution in a comfortable, ergonomic design.
The autoclavable, programmable head is designed and optimized with the integrated LED light source
and image management system to produce the best and most consistent
image available. High resolution, high dynamic range and depth
of field are not just words…they are now the standard.
Camera Head
SynergyHD3 Camera Head, 1080p, autoclavable VAR-3210-0001
HD Monitors
• High Definition (HD) Medical Display
• Widescreen, full HD 1920x1080 resolution
• Picture-in-picture and side-by-side display modes
• Versatile multi-format signal support
High definition Monitors
HD Monitor, LED, 26” VAR-3250-2601
25” HD OLED
HD Monitor, LCD, 32” VAR-3250-3201
HD Monitor, OLED, 25” VAR-3250-2602
Sheathless Arthroscope 30˚ HD Sheathless Arthroscope
VAR-3350-5030
The Sheathless Arthroscope will revolutionize the way arthroscopic
procedures are performed. By eliminating bulky scope sheaths, obturators,
Switching Sticks, and maintaining fluid inflow through operative cannulas – viewing
portal changes are quick and efficient. Fluid extravasation, due to repeated portal changes,
is minimized by maintaining operative cannulas in all portals. The Sheathless Arthroscope is designed and
constructed with additional structural support along its length to stand up to normal stresses without a sheath.
The Sheathless Arthroscope will reduce surgical times by expediting portal changes and eliminating distention loss.
4 mm Sheathless Arthroscopes
HD Sheathless Arthroscope, 30˚, 4 mm x 134 mm VAR-3350-5030
HD Sheathless Arthroscope, 70˚, 4 mm x 138 mm VAR-3350-5070
Light Guides
Fused Light Guide, Wolf, 3.5 mm x 2.7 m (9’) VAR-3240-3527
Fused Light Guide, Wolf, 5 mm x 2.7 m (9’) VAR-3240-5027
Fused Light Guide, Wolf, 5 mm x 4 m (13.4’) VAR-3240-5040 Light Guide
VAR-3240-5027
19Arthroscopes and Sheath Systems
CAPITAL EQUIPMENT
Arthrex offers a full complement of high quality scopes and sheaths for visualization of multiple joint types
and for surgeon preference. Scope sizes range from 1.9 mm – 4 mm with short, standard, or long lengths
to get into hard to access joints.
4 mm Arthroscopes
HD Arthroscope, 30˚, 4 mm x 152.5 mm VAR-3350-4030
HD Arthroscope, 70˚, 4 mm x 155.5 mm VAR-3350-4070
HD Arthroscope, 30˚, reverse cant, 4 mm x 152.5 mm VAR-3350-4030R
Sheaths and Obturators for 4 mm Arthroscopes
Sheath System*, single stopcock for 4 mm scope VAR-3370-4001
Sheath System*, double stopcock for 4 mm scope VAR-3370-4002
Hi-flow Sheath System*, fenestrated, single stopcock for 4 mm scope VAR-3371-4001 4 mm 30˚ Arthroscope
Hi-flow Sheath System*, fenestrated, double stopcock for 4 mm scope VAR-3371-4002 VAR-3350-4030
Sharp Trocar for 4 mm scope sheath system VAR-3375-4002
Blunt Obturator for 4 mm scope sheath system VAR-3375-4004
3 mm Arthroscopes
HD Arthroscope, 30˚, 3 mm x 138 mm VAR-3350-3030
HD Arthroscope, 70˚, 3 mm x 140 mm VAR-3350-3070
Fenestrated Sheath
Sheaths and Obturators for 3 mm Arthroscopes Conical Obturator VAR-3370-4002
VAR-3375-4001
Sheath System*, single stopcock for 3 mm scope VAR-3370-3001
Sheath System*, double stopcock for 3 mm scope VAR-3370-3002
Sharp Trocar for 3 mm scope sheath system VAR-3375-3002
Hi-flow Sheath System*, single stopcock for 3 mm scope VAR-3370-0301
Hi-flow Sheath System*, double stopcock for 3 mm scope VAR-3370-0302
Hi-flow Sheath System*, fenestrated, single stopcock for 3 mm scope VAR-3371-0301
Hi-flow Sheath System*, fenestrated, double stopcock for 3 mm scope VAR-3371-0302
Sharp Trocar for hi-flow 3 mm scope sheath system VAR-3375-0302
2.7 mm Short Arthroscopes
Arthroscope, 30˚, 2.7 mm x 72 mm VAR-3350-2730
Arthroscope, 70˚, 2.7 mm x 75 mm VAR-3350-2770
2.4 mm Short Arthroscopes
Arthroscope, 30˚, 2.4 mm x 72 mm VAR-3350-2430
Arthroscope, 70˚, 2.4 mm x 75 mm VAR-3350-2470
Sheaths and Obturators for 2.4 mm and 2.7 mm Arthroscopes
Sheath System*, single stopcock for 2.4 mm scope VAR-3370-2401
Sheath System*, double stopcock for 2.4 mm scope VAR-3370-2402
Sharp Trocar for 2.4 mm scope sheath system VAR-3375-2402
Sheath System*, single stopcock for 2.7 mm scope VAR-3370-2701
Sheath System*, double stopcock for 2.7 mm scope VAR-3370-2702
Sharp Trocar for 2.7 mm scope sheath system VAR-3375-2702
1.9 mm Arthroscope
30˚ Arthroscope, 1.9 mm x 58 mm VAR-3350-1930
Sheaths and Obturators for 1.9 mm Arthroscope
Sheath System*, single stopcock for 1.9 mm scope VAR-3370-1901
Sheath System*, double stopcock for 1.9 mm scope VAR-3370-1902
Sharp Trocar for 1.9 mm scope sheath system VAR-3375-1902
*Sheath Systems include Conical Obturator 20CAPITAL EQUIPMENT
70° Hip Scope
30° Hip Scope AR-3200-70
AR-3200-30
Cannulated Obturator
Hip Sheath
AR-3211
AR-3210-02
Arthroscopes and Sheath Systems
continued
Sheaths for Competitive Scopes
Sheath, continuous flow, double stopcock, rotatable for Storz AR-3300 Small Joint Scope Accessory Replacement Parts
Blunt Obturator for AR-3300 Sheath AR-3301 Sheath Body, 2.7 mm scope sheath system AR-3370-2700
Sheath, double stopcock, tapered, fenestrated for Stryker AR-3310-02 Conical Obturator, 2.7 mm scope sheath system AR-3375-2701
Blunt Obturator for AR-3310-02 Sheath AR-3311 Sheath Body, 2.4 mm scope sheath system AR-3370-2400
Trocar for AR-3310-02 Sheath AR-3312 Conical Obturator, 2.4 mm scope sheath system AR-3375-2401
Sheath, double stopcock, tapered, fenestrated for Dyonics AR-3315-02 Sheath Body, 1.9 mm scope sheath system AR-3370-1900
Blunt Obturator for AR-3315-02 Sheath AR-3316 Conical Obturator, 1.9 mm scope sheath system AR-3375-1901
Hip Arthroscope
Laparoscopes
30˚ Hip Arthroscope, 4 mm x 225 mm VAR-3200-30
70˚ Hip Arthroscope, 4 mm x 225 mm VAR-3200-70 Laparoscope, 0˚, 5.5 mm x 365 mm VAR-3351-5500
Laparoscope, 30˚, 5.5 mm x 365 mm VAR-3351-5530
Laparoscope, 45˚, 5.5 mm x 365 mm VAR-3351-5545
Hip Sheaths Laparoscope, extended length, 0˚, 5.5 mm x 480 mm VAR-3351-5500L
Sheath, hip, double stopcock, tapered, fenestrated, rotatable for Storz AR-3210-02 Laparoscope, extended length, 30˚, 5.5 mm x 480 mm VAR-3351-5530L
Obturator, hip, cannulated w/handle for AR-3210 AR-3211 Laparoscope, extended length, 45˚, 5.5 mm x 480 mm VAR-3351-5545L
Laparoscope, 0˚, 10 mm x 405 mm VAR-3351-1000
Laparoscope, 30˚, 10 mm x 405 mm VAR-3351-1030
Accessory Replacement Components Laparoscope, 45˚, 10 mmx 405 mm
Laparoscope, extended length, 0˚, 10 mm x 526 mm
VAR-3351-1045
VAR-3351-1000L
SynergyHD3 Accessory Laparoscope, extended length, 30˚, 10 mm x 526 mm VAR-3351-1030L
Laparoscope, extended length, 45˚, 10 mm x 526 mm VAR-3351-1045L
SynergyHD3 Turret Conversion Kit AR-3201-1002
Stopcock Replacements
Stopcock, single, spare for SynergyHD3 sheath AR-3370-0001
Stopcock, double, spare for SynergyHD3 sheath AR-3370-0002
4 mm Scope Accessory Replacement Parts
Hi-flow Sheath Body, fenestrated, 4 mm scope sheath system AR-3371-4000
Sheath Body, 4 mm scope sheath system AR-3370-4000
Conical Obturator, 4 mm scope sheath system AR-3375-4001
3 mm Scope Accessory Replacement Parts
Sheath Body, 3 mm scope sheath system AR-3370-3000
Conical Obturator, 3 mm scope sheath system AR-3375-3001
Sheath Body, fenestrated, hi-flow 3 mm scope sheath system AR-3371-0300
Sheath Body, hi-flow 3 mm scope sheath system AR-3370-0300
Conical Obturator, hi-flow 3 mm scope sheath system AR-3375-0301
21Video Cart Options
CAPITAL EQUIPMENT
Features:
• Multiple configurations
• Adjustable shelves
• Prewired power cord system
• Printer access from rear of cart on top shelf
• Printer and shaver on top shelf
• 38” extended boom arm
• 8” static mount arm
• 200° rotatable touch panel arm
• Transformer included Multi-directional
Boom Monitor Mount
• Dimensions 60” x 30” x 30”
Printer
Video Cart, static monitor mount AR-6000 (accessible
Video Cart, extended boom arm AR-6000b at the back) Tablet Controller
Adjustable Shelf Assembly AR-6000-1 (rotates to the left
Drawer Assembly AR-6000-2 and right of the
Keyboard Tray AR-6000-3 main monitor)
Co2 Cylinder Tank Holders, side mount AR-6000-4
Footswitch Holder, side mount AR-6000-5
Extended Boom Arm AR-6000-6
Touch Panel Arm, top mount AR-6000-7
Caster, nonlocking AR-6000-8
Caster, locking AR-6000-9
Fully Adjustable
Shelves
Large Capacity
Drawer
Footswitch
Holder
Printer
Sony UPDR80MD
Instrument Tray
Video Instrument Tray AR-3130C
22CAPITAL EQUIPMENT Canine Arthroscopy Set
The set contains three removable trays:
• The Main Instrument Tray includes a Cup Curette, Banana Knife, a large obturator for dilating
portals and three probes.
• The Canine Cannula Tray contains a unique cannula system that allows precise one-step placement
of the first cannula by using a cannulated obturator that inserts directly over the initial guide needle.
Beveled changing rods allow easy portal dilation and switching to two larger cannula sizes. This tray
also includes a fenestrated outflow cannula with stopcock and Switching Sticks designed for the stifle.
• A specialized Hand Instrument Tray secures a Series I Grasper and a Slender Punch in an upright position
for easy accessibility. The tray also has space for additional hand instruments. Arthrex offers a lifetime
guarantee on materials and workmanship on every Series I instrument. The compact, lightweight,
expandable and anodized Canine Arthroscopy Set contains the most popular instruments as determined
by leading canine arthroscopic surgeons. The aluminum autoclave case holds the instruments securely
in slotted, laser labeled silicone pads for proper protection and easy identification during use and repacking.
Main Instrument Tray Canine Arthroscopy Set (VAR-30000S):
Small Cup Curette, 2.5 mm diameter VAR-3008
Banana Knife, 2.5 mm diameter VAR-3009
Graduated Black Probe, 1.5 mm Tip AR-5021
Graduated Black Probe, 2.5 mm Tip AR-5007
Probe, Stainless Steel AR-10020
Obturator, Blunt AR-3033
Hand Instrument Tray: Hand Instrument Tray
Grasper, Alligator Hook Tip VAR-11600SR
Punch, Slender Straight Tip VAR-11100 Canine Cannula Set
Canine Cannula Set (VAR-3002S):
Cannulas (2.9, 3.7 & 4.3 mm) VAR-3002
Cannulated Obturator VAR-3003
Switching Stick, 2.9 mm VAR-3004-2.9
Switching Stick, 3.7 mm VAR-3004-3.7
Dilation Needles, qty. 5 VAR-3005
Stifle Outflow Cannula VAR-3006
Stifle Outflow Obturator VAR-3007
Main Instrument Tray
Hand Instrument Tray
Canine Cannula Tray
23Arthroscopy Instruments
CAPITAL EQUIPMENT
The arthroscopic hand instruments are precision manufactured to the highest quality standards in the U.S.
at Arthrex California, Inc. These instruments have state-of-the-art quality, durability, precise tactile feel and an
extremely low profile tip. These features facilitate easier access to pathology in tight joint spaces with precision
cutting edges and precise resection control. EDM manufacturing technology with stainless steel edges guarantees
maximum sharpness and durability that rarely require resharpening or repair. Less than 1% of all Arthrex Arthroscopy
Instruments require resharpening after two years of surgical usage, an unprecedented achievement for a fine
surgical instrument in orthopaedics.
Punch, Standard Straight Tip,
2.75 mm, Straight Shaft
VAR-110000
Self-Ratcheting Grasper, Blunt
Straight Tip, 2.75 mm, Straight Shaft
VAR-11500SR
Self-Ratcheting Grasper Alligator,
Hook Tip, 2.75 mm, 15° Up Curved
Straight Shaft
VAR-11600SR
Self-Ratcheting Grasper, Pointed
Straight Tip, 2.75 mm, 15° Up Curved
Straight Shaft
VAR-11700SR
24CAPITAL EQUIPMENT Graspers
Graspers are available in 2.75 mm, 3.4 mm and 4.2 mm shafts. Series I NR Graspers are made
with non-ratcheting handles and are nonlocking. Series I SR Graspers feature a self-releasing locking
mechanism. All WishBone™ Graspers feature a ratcheting lock mechanism that can be disengaged
for nonlocking operation.
Blunt Grasper Tips
Series 1 WishBone
(2.75 mm shaft diameter)
VAR-11500 NR (SR) VAR-11500W Straight Shaft
VAR-11510 NR (SR) VAR-11510 W 15˚ up Curved Shaft
(3.4 mm shaft diameter)
VAR-12500 NR (SR) VAR-12500W Straight Shaft
VAR-12510 NR (SR) VAR-12510W 15˚ up Curved Shaft
(4.2 mm shaft diameter)
VAR-13500 NR (SR) VAR-13500W Straight Shaft
Alligator Grasper/Hook Tips
Series 1 WishBone
(2.75 mm shaft diameter)
VAR-11600 NR (SR) VAR-11600W Straight Shaft
VAR-11610 NR (SR) VAR-11610W 15˚ up Curved Shaft
(3.4 mm shaft diameter)
VAR-12600 NR (SR) VAR-12600W Straight Shaft
VAR-12610 NR (SR) VAR-12610W 15˚ up Curved Shaft
(4.2 mm shaft diameter)
VAR-13600 NR (SR) VAR-13600 W Straight Shaft
ACL/PCL Graft Passing Forceps
Series 1 WishBone
(4.2 mm shaft diameter)
VAR-13400 VAR-13400W Straight Shaft
Pointed Grasper Tips
Series 1 WishBone
(2.75 mm shaft diameter)
VAR-11700 NR (SR) VAR-11700W Straight Shaft
VAR-11710 NR (SR) VAR-11710W 15˚ up Curved Shaft
(3.4 mm shaft diameter)
VAR-12700 NR (SR) VAR-12700W Straight Shaft
VAR-12710 NR (SR) VAR-12710W 15˚ up Curved Shaft
Mini-Graspers
Series 1 WishBone
(2.75 mm shaft diameter)
VAR-11900 NR (SR) VAR-11900W Straight Tip
VAR-11910 NR (SR) VAR-11910W 15° Up Curved Shaft, Straight Tip
KingFisher Suture Retriever
Tissue Grasper
Series 1 WishBone
(4.2 mm shaft diameter)
VAR-13970 VAR-13970W Straight Shaft
25Punches
CAPITAL EQUIPMENT
Straight Punches
Straight Tip Punches are available in three bite sizes with
a 2.75 mm shaft and four bite sizes with a 3.4 mm shaft.
Slender Punch Tips
Series 1 WishBone
(2.75 mm shaft diameter) Bite Size
VAR-11100 VAR-11100W Straight Shaft
2.75 mm Shaft 3.4 mm Shaft
VAR-11110 VAR-11110W 15˚ up Curved Shaft
VAR-11120 VAR-11120W 30˚ R Curved Shaft • slender - 0.7 mm • slender - 0.9 mm
VAR-11130 VAR-11130W 30˚ L Curved Shaft • standard - 1.4 mm • standard - 1.7 mm
(3.4 mm shaft diameter) • medium - 2.6 mm
VAR-12100 VAR-12100W Straight Shaft • large - 2.5 mm • large - 3.4 mm
VAR-12110 VAR-12110W 15˚ up Curved Shaft
VAR-12120 VAR-12120W 30˚ R Curved Shaft
VAR-12130 VAR-12130W 30˚ L Curved Shaft
Medium Punch Tips
Series 1 WishBone
(3.4 mm shaft diameter)
VAR-12300 VAR-12300W Straight Shaft
VAR-12310 VAR-12310W 15˚ up Curved Shaft
VAR-12320 VAR-12320W 30˚ R Curved Shaft
VAR-12330 VAR-12330W 30˚ L Curved Shaft
Large Punch Tips
Series 1 WishBone
(2.75 mm shaft diameter)
Standard Punch, 15˚ Up Tips VAR-11200 VAR-11200W Straight Shaft
Series 1 WishBone VAR-11210 VAR-11210W 15˚ up Curved Shaft
(2.75 mm shaft diameter) VAR-11220 VAR-11220W 30˚ R Curved Shaft
VAR-11050 VAR-11050W Straight Shaft VAR-11230 VAR-11230W 30˚ L Curved Shaft
VAR-11060 VAR-11060W 15˚ up Curved Shaft (3.4 mm shaft diameter)
VAR-11070 VAR-11070W 30˚ R Curved Shaft VAR-12200 VAR-12200W Straight Shaft
VAR-11080 VAR-11080W 30˚ L Curved Shaft VAR-12210 VAR-12210W 15˚ up Curved Shaft
(3.4 mm shaft diameter) VAR-12220 VAR-12220W 30˚ R Curved Shaft
VAR-12050 VAR-12050W Straight Shaft VAR-12230 VAR-12230W 30˚ L Curved Shaft
VAR-12060 VAR-12060W 15˚ up Curved Shaft
VAR-12070 VAR-12070W 30˚ R Curved Shaft
VAR-12080 VAR-12080W 30˚ L Curved Shaft
Medium Punch, 15˚ Up Tips
Series 1 WishBone
Standard Punch Tips (3.4 mm shaft diameter)
VAR-12350 VAR-12350W Straight Shaft
Series 1 WishBone VAR-12360 VAR-12360W 15˚ up Curved Shaft
(2.75 mm shaft diameter)
VAR-12370 VAR-12370W 30˚ R Curved Shaft
VAR-11000 VAR-11000W Straight Shaft
VAR-12380 VAR-12380W 30˚ L Curved Shaft
VAR-11010 VAR-11010W 15˚ up Curved Shaft
VAR-11020 VAR-11020W 30˚ R Curved Shaft
VAR-11030 VAR-11030W 30˚ L Curved Shaft Large Punch, 15˚ Up Tips
(3.4 mm shaft diameter) Series 1 WishBone
VAR-12000 VAR-12000W Straight Shaft (2.75 mm shaft diameter)
VAR-12010 VAR-12010W 15˚ up Curved Shaft VAR-11250 VAR-11250W Straight Shaft
VAR-12020 VAR-12020W 30˚ R Curved Shaft VAR-11260 VAR-11260W 15˚ up Curved Shaft
VAR-12030 VAR-12030W 30˚ L Curved Shaft VAR-11270 VAR-11270W 30˚ R Curved Shaft
VAR-11280 VAR-11280W 30˚ L Curved Shaft
26CAPITAL EQUIPMENT Suture Cutters and Scissors
No arthroscopy instrument line would be complete without top-of-the-line quality instruments like
Suture Cutters and arthroscopic Scissors.
Suture Cutter, open-ended, (for 2-0 suture only, meniscus repair)
left notch (used for any size suture) Suture Cutter, straight VAR-11790
VAR-11794L Suture Cutter, 15˚ up curve VAR-11791
Suture Cutter, straight
(for #2 suture only) VAR-12250
CrabClaw Knot Pusher/Suture Retriever Curved Scissor, right VAR-12150
VAR-12960 Curved Scissor, left VAR-12160
(3.4 mm shaft diameter)
Scissor, straight, serrated
(3.4 mm shaft diameter)
VAR-12140
Cannulas
PassPort Button Cannula
The PassPort Cannulas help maximize visibility and maneuverability inside and
outside of the arthroscopic work space. The double-dam, one-piece molded design
has low profile flanges that seat flush to the skin and soft tissue. These flanges create
a stable portal that allows instruments to be inserted and removed, without the concern
of cannula loss. They are easily introduced by grasping the inside flange with a curved hemostat
and inserting into the incision. Each PassPort is supplied with a 5 mm spacer to ensure the accurate
length. They may be used for indications in the shoulder, knee, hip and elbow.
Gemini SR8 Cannula
The Gemini SR8 Cannula incorporates a clever, deployable wing feature
to prevent cannula “fall-out” during insertion and removal of instruments
for Bankart, SLAP and rotator cuff repairs. The low profile design of the
wings will securely hold the cannula in place, even in the tightest working
spaces, without taking up space and hampering the surgeon’s ability to
efficiently complete their work. Additionally, the inner sleeve of the cannula can telescope relative to
the outer portion of the cannula allowing the surgeon a clear, unobstructed channel to pathology.
It is also very useful during knot tying, allowing the surgeon to place the clear telescoping tube down
to the knot to prevent soft tissue entrapment within the suture knot. The included, disposable cannulated
obturator allows for easy insertion over a 2.6 mm Switching Stick.
27Arthroscopic Cannulas
CAPITAL EQUIPMENT
Twist-In Cannulas
The translucent Twist-In Cannula allows direct arthroscopic visualization of instruments and
suture passing through the cannula. The flexible option easily conforms to large or curved Twist-In
instruments. Each cannula is supplied with a “no-squirt” cap and disposable obturator. Cannula
AR-6530
Crystal Cannula®
The Crystal Cannula offers a unique barrel-shaped retention bowl that pools fluid to
eliminate cannula “squirt”. Three atraumatic distal retaining options help to prevent
Partially
cannula “fall-out”. The translucent cannula allows for direct visualization of instruments Threaded
and suture passing. The flexible option easily conforms to large or curved instruments. Cannula
Each cannula is supplied with a disposable obturator. AR-6566
Low Profile 5 mm Cannula
This 5 mm cannula is the lowest profile cannula on the market that allows for direct
Instrument
visualization of instruments and suture passing. The proximal portion of the cannula is Cannula
similar to the Crystal Cannula. Each cannula is supplied with a disposable obturator. AR-6550
Shoehorn Cannula
The Shoehorn Cannula has a longitudinal slot on top of the cannula to allow oversized
Crystal
instruments to be introduced. Each cannula is supplied with a disposable obturator. Cannula
AR-6560
Bridge and Cannula Sets
• Maintain portals while moving the arthroscope
• Connect inflow or outflow tubing
Low Profile
• Fenestrated and nonfenestrated options Cannula
• J-lock type connector AR-6548
• Threaded portion can lock into certain shaver blades
Bridges
Shoehorn
Shoulder Bridge, two Stopcocks IR5001 Cannula
Shoulder Bridge, one Stopcock IR5002 AR-6565
Cannula Sets (available in fenestrated and nonfenestrated)
Cannula Set, 3.0 mm, fenestrated AR-3400-3.0S Cannula Set, 5.5 mm, fenestrated AR-3400-5.5S
Cannula Set, 3.0 mm, nonfenestrated AR-3410-3.0S Cannula Set, 5.5 mm, nonfenestrated AR-3410-5.5S
Sets include: Sets include:
3.0 mm Metal Cannula, 2 ea. AR-3400-3.0 5.5 mm Metal Cannula, 2 ea. AR-3400-5.5
Blunt Obturator for 3.0 mm Metal Cannula AR-3401-3.0 Blunt Obturator for 5.5 mm Metal Cannula AR-3401-5.5 Reusable
Obturator
Trocar Obturator for 3.0 mm Metal Cannula AR-3402-3.0 Trocar Obturator for 5.5 mm Metal Cannula AR-3402-5.5
AR-6549
Inflow Cannula Adapter AR-3035 Inflow Cannula Adapter AR-3035
Cannula Set, 4.5 mm, fenestrated AR-3400-4.5S Cannula Set, 6.5 mm, fenestrated AR-3400-6.5S
Cannula Set, 4.5 mm, nonfenestrated AR-3410-4.5S Cannula Set, 6.5 mm, nonfenestrated AR-3410-6.5S
Sets include: Sets include:
4.5 mm Metal Cannula, 2 ea. AR-3400-4.5 6.5 mm Metal Cannula, 2 ea. AR-3400-6.5 Inflow Cannula
Blunt Obturator for 4.5 mm Metal Cannula AR-3401-4.5 Blunt Obturator for 6.5 mm Metal Cannula AR-3401-6.5 Adapter
Trocar Obturator for 4.5 mm Metal Cannula AR-3402-4.5 Trocar Obturator for 6.5 mm Metal Cannula AR-3402-6.5 AR-3035
Inflow Cannula Adapter AR-3035 Inflow Cannula Adapter AR-3035
Cannula Set, 4.75 mm, fenestrated AR-3400-4.75S
Cannula Set, 4.75 mm, nonfenestrated AR-3410-4.75S
Sets include:
4.75 mm Metal Cannula, 2 ea. AR-3400-4.75
Blunt Obturator for 4.75 mm Metal Cannula AR-3401-4.75
Trocar Obturator for 4.75 mm Metal Cannula AR-3402-4.75 Inflow Cannula Adapter
with Stopcock
Inflow Cannula Adapter AR-3035 Bridge Cannula Set
AR-3035L
Cannula Set, 5.0 mm, fenestrated AR-3400-5.0S AR-3400 AR-3410
Cannula Set, 5.0 mm, nonfenestrated AR-3410-5.0S
Sets include:
5.0 mm Metal Cannula, 2 ea. AR-3400-5.0 Shoulder Bridge
Blunt Obturator for 5.0 mm Metal Cannula AR-3401-5.0 with two Stopcocks
IR5001 Fenestrated Nonfenestrated
Trocar Obturator for 5.0 mm Metal Cannula AR-3402-5.0
Inflow Cannula Adapter AR-3035 28You can also read
