Are carbon micro-clusters in the Khufu pyramid blocks of organic origin?
←
→
Page content transcription
If your browser does not render page correctly, please read the page content below
VOL. 33 NO. 5 (2021) ARTICLE Are carbon micro-clusters in the Khufu pyramid blocks of organic origin? PIXE and PIGE reveal the construction of Giza’s pyramids Guy Demortier SPS and LARN, University of Namur and 61, rue de Bruxelles, B-5000 Namur, Belgium The presence of carbon clusters of size ranging between 5 µm and 50 µm in samples of the Khufu pyramid identified with a nuclear microprobe seems to indicate that they are of organic origin. Their location in the pyramid samples coincide with the position of other clusters containing sodium. This situation is completely absent in limestone samples collected from Egyptian quarries. The interpretation of the results could shed some light on the technique of construction of this huge monument. Introduction Hawass, former minister of the Egyptian of mixed materials.9 In addition to the The interdisciplinary approach of the Antiquities who was initially sceptical already reported elemental analysis of technique of construction of the Big about the Morishima’s conclusions of Na, S and Cl associated with natural Pyramids of Egypt is a subject of muon scans, is now ready to fully accept limestone we present here a possible debate giving rise to passionate argu- them and suggest that this void could interpretation of abnormally incrusted ments. Increasingly, scientific teams are be the location of the Khufu burial as 5–50 µm carbon clusters. now being accepted on Egyptian sites reported in the Daily Express.3ruction to perform non-destructive investiga- are to look at the structure of the monu- Experimental tions of monuments. Recent discoveries ment as made by Bertho4 and by mate- arrangement by Morishima and co-workers of large rials analysis as reported by Davidovits.5 Non-vacuum proton-induced X-ray emis- cavities in the Khufu’s pyramid using These last two authors conclude that sion (PIXE) and proton-induced gamma- cosmic-ray muons 1 have encouraged the monument was constructed with ray emission (PIGE) analyses of Egyptian the Egyptian authorities to cooperate blocks moulded on site using local lime- pyramid blocks with low-energy protons with Egyptologists around the World. The stone and binder (to produce a kind of produced by electrostatic accelerators former reported length of the “big void” concrete) and not with hewn blocks. at the Universities of Namur and Lecce (around 30 m long) is now believed to We have recently considered this point have shown abnormal concentrations of be larger and continuous.2 The size of of view on the basis of the distribu- F, Na, S and Cl.10–12 More recently, micro- this void is so large that it is clear that all tion maps of six major elements (C, O, PIXE and micro-PIGE investigations with the surrounding structure must be highly Na, S, Cl and Ca) with a nuclear micro- a (in vacuum) scanning nuclear micro- rigid: this rigidity can only be achieved probe. 6,7 This view is also supported probe at ATOMKI (Debrecen, Hungary) with perfectly overlapping blocks. Zahi by Barsoum et al. who have used vari- (Figure 1) have been performed to ous X-ray and electron microscopies to locally quantify the composition in lighter demonstrate that pyramid blocks contain elements, down to carbon. The spatial DOI: 10.1255/sew.2021.a21 calcium oxides and magnesium oxides resolution and uniformity of irradiation © 2021 The Author with crystallographic structures which are were regularly checked on a copper grid not found in natural materials.8 Recent deposited on a carbon substrate during Published under a Creative Commons measurements of the orientation of the analysis (Figure 2). BY-NC-ND licence iron compounds in pyramid samples Samples were taken from the inside using paleo-magnetic methods support of chunks of Egyptian pyramid blocks the hypothesis of a man-made tech- and from stone in the limestone quar- nique giving rise to a rapid solidification ries of Tura and Maadi (north of Egypt). www.spectroscopyeurope.com SPECTROSCOPYEUROPE 21

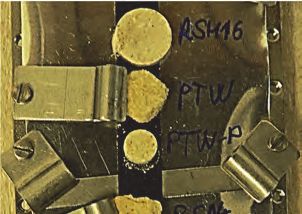

VOL. 33 NO. 5 (2021) ARTICLE They were crushed and pressed to obtain flat circular pellets without any additional binder (Figure 3). The sampling process ensured that any contamination with foreign material was excluded. The flat surfaces were irradiated with protons at normal inci- dence with the following experimen- tal conditions: 2.5 MeV proton beam focussed to a spot size of ~3 µm, beam current ~100–200 pA, size of the scanned region 1 × 1 mm 2. The measurement times were typically ~500–900 s corresponding to ~0.1– 0.2 µC accumulated charge. Incident 2.5 MeV protons offer a maxi- mum cross-section (100 %) for K-shell ionisation of Al; 61 %, 84 %, 93 %, Figure 1. The PIXE microprobe chamber at Atomki (Debrecen, Hungary). 98 %, 99.5 % for K-shell ionisation of C, Figure 1 : The PIXE microprobe chamber of ATOMKI (Debrecen Hungary) O, F, Na, Mg and F, respectively (region of decreasing slope of the K-shell ioni- sation cross-section at Ep = 2.5 MeV); and 87 %, 80 %, 73 %, 60 % and 53 %, respectively, for Si, P, Cl, K and Ca (region of increasing slope of the K-shell ionisation cross-section). This choice of proton energy is optimum to partially compensate for the unavoidable loss of low-energy X-ray signals from light elements (277 eV for CKa to 1.25 keV for MgK a ) in the material, since the K-shell ionisation cross-section increases as protons enter deeper into matter. The information depth for CKa , OK a and Figure 2. Micro-PIXE maps of a copper grid on a carbon substrate. Left: copper; data collected CaKa X-ray lines in pure CaCO3 is given Figure with the Be 2 : Micro-PIXE windowed maps detector). Right: of a copper carbon; grid onwith data collected a carbon substrate the SUTW detector. in Figure 4. ( left copper : data collected with the Be windowed detector) (rigth carbon :1cm data collected with the super ultra thin window detector) The micro -PIXE detection setup consisted of a super ultra-thin windowed Outside block Khufu compressed pellet (SUTW) Si(Li) X-ray detector and a Be-windowed detector which were oper- ated simultaneously, allowing the effi- Joining material Khufu as it is cient detection of light elements down to carbon (in the 0.28–8 keV range) as Joining material Khufu compressed pellet well as heavier ones (from K upwards), respectively. The SUTW detector was Outside block Khufu as it is protected from backscattered particles with a permanent magnetic unit. In the case of the Be-windowed detec- Outside block Khufu compressed pellet tor (solid angle ~100 msr) the intense soft characteristic x-rays (
VOL. 33 NO. 5 (2021) ARTICLE C K-abs-edge Ca K-abs-edge Micro-PIXE analysis of Egyptian pyramid blocks O K-abs-edge The choice of the positions of the SUTW and Be-windowed detectors installed on either side of the proton beam direction (see Figure 1) was essential to check the uniformity of the irradiated surface. In order to avoid any misinterpretation of the collected X-ray maps, it was neces- pure CaCO3 matrix sary to be sure that the structure of the CaKa maps was the same in both detec- tors. Shadowing effects due to poten- tial irregularities along the pellet surface would give rise to signal loss of X-rays emitted by the lightest elements. It is shown in Figure 8 that both CaKa maps are similar for homogeneous (quarry) and for non-homogeneous (pyramid) Figure 4. Information depth for C, O and Ca in CaCO3. samples. The CaKa maps collected in both detectors are similar but not iden- Figure 4 : Information depth for C, O and Ca in CaCO3 tical in their intensity (counts are less characteristic lines of elements from in the SUTW detector could indeed important in the Be-windowed detec- CK a upwards as well as escape and suffer from partial interference with the tor than in the SUTW detector which pile-up peaks present in the spectra are La line of Fe (705 eV): iron is indeed covers a higher solid angle). It can be fitted. However, elemental concentra- present in all the analysed samples. seen that a Si cluster takes the place of tions are calculated from the Ka or La The whole measurement procedure Ca in the top maps (Tura quarry). In the X-ray intensities of elements, considering was calibrated and tested thoroughly middle maps (an outside block from the the absorption-enhancement effects for with standard reference materials Khufu pyramid), clusters of Na and S are characteristic X-rays within the samples (RMs), e.g. NIST 610, “Corning D” present in those regions missing Ca. For as well as experimental parameters archaeological glass and some home- the bottom maps (an outside block from (proton beam energy, detector solid made RMs, as well as pure chemi- the Khaphra pyramid), large Na clusters angle, X-ray filters etc.) as described in cal compounds such as quartz, NaCl are present. These Na clusters have a References 13 and 14. The micro-PIGE etc. On average, ~5–10 rel. % accu- very irregular shape that induces some setup consisted of a NaI(Tl) detector racy can be achieved for the concen- apparent fuzziness which is certainly not (diam. = 110 mm) placed outside the trations of major and minor elements due to the proton beam being out of vacuum chamber at 90 ° relative to the and 10–20 rel. % for the trace element focus, but to large variations of thickness direction of the beam. It was chosen for data. at their edges. the detection of the 6–7.1 MeV g -ray Selected X-ray spectra of RMs, quarry The spatial distribution of all the group of the 19F(p,ag)16O nuclear reac- and pyramid samples are given in elements is uniform in all quarry samples tion, because FKa (677 eV) detection Figures 5–7. (Figures 9 and 10). Small inclusions Figure 5. PIXE spectra collected by SUTW detector (left) and Be-windowed detector (right) on the homogeneous Corning reference material. www.spectroscopyeurope.com SPECTROSCOPYEUROPE 23
VOL. 33 NO. 5 (2021) ARTICLE Figure 6. PIXE spectra collected by SUTW detector (left) and Be-windowed detector (right) on a limestone sample from Maadi quarry. Figure 7. PIXE spectra collected by SUTW detector (left) and Be-windowed detector (right) on a sample of the external block of the Khufu pyramid. Be windowed Si(Li) (SUTW) Si(Li) (around 15–30 µm in diameter) of Al, Si and Fe can also be observed in addition to nearly pure calcium carbonate (C, O Tura and Ca maps). Traces of Na, Mg, P, S, Cl quarry and K show no specific spatial distribu- tion. The elemental concentrations in Ca, Ca Ca Si Mg, Al and Si were combined with the appropriate O concentration to obtain Ca the most probable chemical compounds: Khufu CaCO3, MgO, Al2O3 and SiO2. VT3 outside On the contrary, the distribution is block very non-homogeneous in most of the Ca Ca Na S pyramid samples, as shown in Figures 11–14. Beside abundant calcium carbonate, there are inclusions (about Kaphra MYKF 20 µm wide or larger) of Na, Cl and/ outside or S which are correlated with a lack of block Ca and O. Sodium and chlorine (about Ca Ca Na O 4–6 % and sometimes more) are systematically correlated and could at Figure 8.Figure 8 –Flatness check of pellet samples by comparison of CaKa maps in both detectors Flatness check of pellet samples by comparison of CaKa maps in both detectors. first sight be interpreted as inclusions 24 SPECTROSCOPYEUROPE www.spectroscopyeurope.com
VOL. 33 NO. 5 (2021) ARTICLE Figure 9 – Distribution maps of 14 elements in Tura quarry sample (1mm x 1mm) C O F Na Mg Al Si P S Cl CaCO3 96,8 MgO 1,21 Al2O3 0,26 SiO2 0,62 Na 0,15 Cl 0,06 Fe 0,1 K Ca Fe Sr Figure 9. Distribution Figure 10maps of 14 elements – Distribution mapsin Tura of 14quarry samplein(1Maadi elements mm × 1quarry mm). sample (1mm x 1mm) C O F Na Mg Al Si P S Cl CaCO3 91,5 MgO 0,93 Al2O3 1,73 SiO2 4,41 Na 0,32 Cl 0,06 Fe 0,51 K Ca Fe Sr Figure 10. Distribution maps of 14 elements in Maadi quarry sample (1 mm × 1 mm). www.spectroscopyeurope.com SPECTROSCOPYEUROPE 25
VOL. 33 NO. 5 (2021) ARTICLE Figure 11 – Distribution maps of 14 elements in FH123 Khufu Great Gallery sample (1mm x 1mm) C O F Na Mg Al Si P S Cl CaCO3 87,25 MgO 1,15 Al2O3 1,47 SiO2 4,90 Na2O 2,0 SO3 0,7 Cl 0,8 FeO 0,53 K Ca Fe Sr Figure 11.Figure Distribution 12 –maps of 14 elements Distribution mapsinofFH123 Khufu Great 14 elements Gallery in VT3 sample block outside (1 mm of × 1Khufu mm). (1mm x 1mm) C O F Na Mg Al Si P S Cl CaCO3 87,25 MgO 1,3 Al2O3 0,7 SiO2 5,24 Na2O 0,96 SO3 1,25 Cl 0,36 FeO 2,33 K Ca Fe Sr Figure 12. Distribution maps of 14 elements in VT3 outside block of Khufu (1 mm × 1 mm). 26 SPECTROSCOPYEUROPE www.spectroscopyeurope.com
VOL. 33 NO. 5 (2021) ARTICLE Figure 13 – Distribution maps of 14 elements in 15a outside block of Khufu (1mm x 1mm) C O F Na Mg Al Si P S Cl CaCO3 88,61 MgO 1,28 Al2O3 0,97 SiO2 5,18 Na2O 0,75 SO3 1,30 Cl 0,23 FeO 0,12 K Ca Fe Sr Figure 13.Figure Distribution 14 –maps of 14 elements Distribution mapsinof15a 14outside blockinof15b elements Khufu (1 mm × outside 1 mm). block of Khufu (1mm x 1mm) C O F Na Mg Al Si P S Cl CaCO3 88,61 MgO 1,28 Al2O3 0,97 SiO2 5,18 Na2O 0,75 SO3 1,30 Cl 0,23 FeO 0,12 K Ca Fe Sr Figure 14. Distribution maps of 14 elements in 15b outside block of Khufu (1 mm × 1 mm). www.spectroscopyeurope.com SPECTROSCOPYEUROPE 27
VOL. 33 NO. 5 (2021) ARTICLE of sodium chloride. Nevertheless, the in both Ca and O maps as shown in Conclusion Na signal is always higher than what is the central upper part of maps, indi- Elemental distribution maps of C, O, Na, needed to form NaCl (as confirmed by cates that the CK a line is produced S, Cl and Ca clearly indicate that the struc- measurements on RMs). At the sites of deeper than 1 µm below the surface. ture of the samples of the Khufu pyramid high concentrations of Na and Cl, the The volume of that C-rich region cover- is not homogeneous and is completely Ca and O concentrations are less than ing a surface of 25 µm × 25 µm could different from samples from the Maadi in the surrounding area. Considering extend down to 10–20 µm below the and Tura quarries. The amount of natural that the oxygen content in Na 2O and surface. In addition, this region corre- limestone in pyramid samples is about H2O is lower than in CaCO3, it may be sponds also to the region of both Na 5–10 % less than in samples from the concluded that Na 2O (certainly with and Cl clusters: a probable signature of quarries. The other elements, like Na, S some H 2 O) is mixed into the NaCl the use of natron (a naturally occurring and Cl, are mainly distributed in clusters. clusters. Magnesium, phosphorus and mixture of hydrated sodium carbon- The mean concentration of Mg is higher potassium are also more abundant in ate: Na2CO3 • 10H2O with some sodium in the pyramid samples, but this element the pyramid samples than in the quarry chloride and sodium sulfate). All these is in general homogeneously distributed. samples, but they are not distributed in observations fit with the model of Abnormal clusters of C with size varying the clusters.6,7 Their presence may be construction created by Davidovits, from 5 µm to 30 µm are interpreted as attributed to ashes used to create the who states that the blocks of Khufu from an organic origin. These structural binder with a high chemical pH induced pyramid were cast in situ using granu- and compositional observations fit with by Na2O and H2O.15 Reported concen- lar limestone aggregates, natron, lime the model of construction involving a trations in Figures 10–14 have been (probably produced by the combustion moulding procedure. computed with the data collected in of wood in domestic fires) and water It would be certainly important to different regions of several irradiated to produce an alkali alumino–silicate understand why carbon is distributed samples (6–10 different locations) and based binder.15 The black spot in the in clusters. 14 C dating would be the do not only refer to the specific map. bottom-left part of the O map coincides best way to check this. If the C clus- Beside calcium and magnesium oxides, with the bright spots in the Na and Cl ters observed by micro-PIXE originate it is known that wood ash contains maps: the O content is indeed lower in from pollution, their 14C/12C ratio would small quantities of oxides of phospho- Na2O than in CaCO3. The black spot in be the same as that for modern wood. rus, potassium, manganese and iron.7 the bottom-right of the Ca map corre- If this ratio is lower by a factor of two sponds to the bright spot in the Si map: (T ½ of C14 is indeed very close to the Carbon clusters a small amount of SiO2 is common in reported age of the Giza pyramids!), Carbon clusters have been observed on natural limestone as is also observed in the interpretation would suggest the elemental maps collected on numer- the distribution maps of Figures 6 and 7. use of some organic material during ous (but not all) pyramid samples, but A similar interpretation may be given the construction of the pyramid. A 14 never on maps from Maadi and Tura for sample VT3 (an outside block from C : 12C ratio close to zero would mean quarry samples (see Figures 6 and 7) or Khufu) for C, O, Na, Cl and Ca maps that carbon is of geological age. As it in other natural limestone samples from (Figure 13). Additional large clusters of is difficult to perform 14 C dating on Belgium, Hungary and Saqqarah which Al, S and Fe justify the black spots in the very small samples like those used in were analysed in the complete micro- Ca map. the present study, sampling with the probe runs (more than 150 maps).6,7,16 Clusters of C in Figure 14 (sample 15B, agreement of the Egyptian authorities The carbon maps refer to the detection an outside block from the Khufu pyra- could allow the appropriate quantity of of the low-energy (277 eV) Ka line by mid) fully correlated with Na and Cl clus- material to be provided to experts in the SUTW detector. This low-energy CK ters may be understood as discussed accelerator 14C dating. The conclusions line, induced in pure CaCO3 by 2.5 MeV immediately above, but no clear of 14C dating would help lift the veil protons, cannot reach the detector if its decrease is observed in the correspond- of mystery of the construction of the production is deeper than 1 µm below ing Ca region. The C clusters are thinner Egyptian pyramids. the surface (see Figure 4). However, than in Figure 12. C, Na and Cl clus- if the carbon belongs to some organic ters are then concentrated closer to the Acknowledgements compound, the information depth may surface allowing a better transmission of I am indebted to the scientific and techni- be 5–10 times higher. Therefore, CK CaKa lines to explain the better uniform- cal staff of LARN (Namur, Belgium) and could have been produced deeper which ity in the Ca map. The holes in the O ATOMKI (Debrecen, Hungary) for their would explain the hole in the corre- map are in good correspondence with important support during the long runs sponding Ca map. the clusters in the C, Na and Cl maps. of measurements. My special thanks to The maps in Figure 12 refer to sample The C map of Figure 14 (same sample Prof. Á.Z. Kiss and Dr I. Uzonyi for fruit- FH123 collected in the Great Gallery 15B but another fragment) shows a fila- ful advice and their valuable sugges- of the Khufu Pyramid. A bright spot in ment-shaped distribution suggesting an tions concerning the nuclear microprobe the C map, correlated to black spots organic origin. equipment. 28 SPECTROSCOPYEUROPE www.spectroscopyeurope.com
VOL. 33 NO. 5 (2021) ARTICLE References 5. J. Davidovits, “X-ray analysis and X-ray 11. G. Demortier, G. Quarta, K. Butalag, 1. K. Morishima, M. Kuno, A. Nishio, diffraction of casing stones from the M. D’Elia and L. Calcagnile, X-Ray N. Kitagawa, Y. Manabe, M. Moto, F. pyramids of Egypt, and the lime- Spectrom. 37, 178 (2008). https:// Takasaki, H. Fujii, K. Satoh, H. Kodama, stone of the associated quarries”, doi.org/10.1002/xrs.1059 K. Hayashi, Sh. Odaka, S. Procureur, Science In Egyptology Symposia, pp. 12. G. Demor tier, “Revisiting the D. Attié, S. Bouteille, D. Calvet, Chr. 511–520 (1984). construction of Eg yptian pyra- Filosa, P. Magnier, I. Mandjavidze, M. 6. G. Demor tier, “Distribution of mids”, Europhys. News 40(1), 28 Riallot, B. Marini, P. Gable, Y. Date, M. sodium and chlorine in samples (2009). https://doi.org/10.1051/ Sigiura, Y. Elshayeb, T. Elnady, M. Ezzy, of Egyptian pyramids”, Geopolym. epn/2009303 E. Guerriero, V. Steiger, N. Serikoff, Archaeol. 1, 1–9 (2020). https://doi. 13. Gy. Szabó and I. Borbély-Kiss, “PIXYKLM J.-B. Mouret, B. Charlès, H. Hedal and org/10.13140/RG.2.2.33958.75844 computer package for PIXE analy- M. Tayoubi, “Discovery of a big void 7. G. Demortier, “Scanning micro-PIXE ses”, Nucl. Instrum. Meth. B 75, 123 in Khufu’s pyramid by observation of analysis of samples of Egyptian pyra- (1993). https://doi.org/10.1016/0168- cosmic-ray muons”, Nature 552, 386 mids for a global approach of work 583X(93)95626-G (2017). https://doi.org/10.1038/ involved in their construction”, Curr. 14. I. Uzonyi, Gy. Szabó, “PIXEKLM- nature24647 Top. Anal. Chem. 12, 15–32 (2020). TPI—a software package for quantita- 2. I. Arnaud, “Pyramide de Khéops: la ht tps://doi.org/10.1111/j.1551- tive elemental imaging with nuclear cavité inconnue s’avère encore plus 2916.2006.01308.x microprobe”, Nucl. Instrum. Meth. B longue”, Sci. Avenir 887 (2019). 8. M. Barsoum, A. Ganguly and G. Hug, 231, 156–161 (2005). https://doi. 3. C. Hoare, “Eg ypt exper ts set “Microstructural evidence of reconsti- org/10.1016/j.nimb.2005.01.050 sights on finding lost Pharaoh’s tuted limestone blocks in the Great 15. J. Davidovits and M. Morris, The re m a i n s i n G re a t P y r a m i d “, Pyramids of Egypt”, J. Am. Ceram. P yramids, an Enigma Solved. D a i l y E x p res s 14 N o v e m b e r Soc. 89(12), 3796–3788 (2006). Hippocrene Books, New York (1988). 2 019 . h t t p s : / / w w w . e x p r e s s . 9. I . Tú ny i a n d I . A . E l - h e m a l y, 16. G. Demortier, “La microsonde à c o . u k / n e w s / w o r l d / 12 032 21 / “Paleomagnetic investigation of the protons pour percer le mystère de egypt-khufu-found-void-scanpyra- great Egyptian pyramids”, Europhys. la construction de la pyramide de mid-great-pyramid-giza-zahi-hawass- News 43(6), 28–31 (2012). https:// Khéops”, Revue Quest. Sci. 188(1), tutankhamun-saatchi-spt doi.org/10.1051/epn/2012604 1–112 (2017). https://www.rqs.be/ 4. J. Bertho, La Pyramide Reconstituée : 10. G. Demortier, “PIXE, PIGE and NMR app/views/revue.php?id=5 Les Mystères des Bâtisseurs study of the masonry of the pyramid Égyptiens Révélés. Editions Unic, of Cheops at Giza”, Nucl. Instrum. Saint-Geoges-d’Orques, France Meth. B 226, 98 (2004). https:// (2001). doi.org/10.1016/j.nimb.2004.02.024 Guy Demortier has a PhD in nuclear physics, is Emeritus Professor of Physics at University of Namur, Belgium, Co-founder and past director of LARN (Laboratoire d’Analyses par Réactions Nucléaires), Past-president of the Belgian Physical Society, Past- president of COST Action G1 (Ion beam study of art and archaeological objects) and First winner of the EPS-IBA-Europhysics Prize for Applied Nuclear Science and Nuclear Methods in Medicine. His research fields include nuclear properties of light nuclei, neutron physics, accelerator-based methods of elemental analysis (PIXE, PIGE, RBS, RNA, XRF induced by PIXE, nuclear microprobe), and applications in materials sci- ence, archaeometry, ancient gold metallurgy, dentistry and supraconductors. https://orcid.org/0000-0001-6834-6866 guy.demortier@unamur.be www.spectroscopyeurope.com SPECTROSCOPYEUROPE 29
You can also read
