Advances in Video Exposure Monitoring (VEM): A Low-
Cost, Easy to Use Real-time Exposure Assessment Tool.
•April 14th, 2021

James D. McGlothlin, MPH, Ph.D., CPE, FAIHA
Professor Emeritus and Faculty Scholar –
Purdue University, West Lafayette, Indiana
April 14th, 2021 - Michigan Safety Conference
Michigan Safety Conference 2021 Doner

The 2021 Michigan Safety Conference recognizes and thanks
McGlothlin Ergonomics and VEM Smart Systems*, LLC’s, for
   Donner level support of the Industrial Hygiene Division.

 Not for profit Veteran-Owned and Operated companies located in Grand Rapids, Michigan.
April 14th, 2021 - Michigan Safety Conference
Disclosure Statement: VEM Smart Systems is a not-for-profit
veteran owned and operated company focused on using the latest video and
real-time sensor technology to identify and control health and safety hazards in
the workplace and environment.

            Smart Systems
April 14th, 2021 - Michigan Safety Conference
What is VEM?
■Video Exposure Monitoring (VEM)
 synchronizes real-time (or near real-
 time) chemical, biological radiological,
 and/or physical agent data with video
 recordings of workers and/or
 environmental activities.

■Does this technology remind you of
 anything else? Something that, if you
 are a science geek, had seen on TV.?
April 14th, 2021 - Michigan Safety Conference
The Star Trek Tricorder has been brought to life
              with VEM Systems
April 14th, 2021 - Michigan Safety Conference
Occupational Exposures
■ Exposures are a time event. Workers may experience different
  concentration levels at different time.

■ Personal exposure levels are the interactive results of workers,
  handled materials, performed tasks and environment.

                                             Patty’s Industrial Hygiene
                                             7th Edition, Vol 2 2021.
                                             McGlothlin, et al.
April 14th, 2021 - Michigan Safety Conference
1987: First Publications on
 Video Exposure Monitoring (VEM)
• McGlothlin, J. D., Heitbrink, W. A., Gressel, M. G., &
  Fischbach, T. J. (1987). Dust control by ergonomic
  design. In Proceedings of the IXth International
  Conference on Production Research, August 17-20,
  1987. Cincinnati, OH. Cincinnati, Ohio: University of
  Cincinnati.

• In Sweden VEM is called PIMEX for Picture Mix. The
  first publication of PIMEX was:
• Rosén G, Lundström S. Concurrent Video Filming and
  Measuring for Visualization of Exposure. Amer Industr
  Hyg Ass J 48 (8) (1987) 688-692.
April 14th, 2021 - Michigan Safety Conference
Evolution and Applications
of VEM Technology
April 14th, 2021 - Michigan Safety Conference
1985: The Genesis of
Video Exposure Monitoring
          (VEM)
April 14th, 2021 - Michigan Safety Conference
Video Exposure Monitoring Research
            Pioneered by
     NIOSH Researchers* in 1985

 • Company was batch processed products
 • Video Exposure Monitoring for Real-time sampling
   was done using a:
    – Used Handheld Aerosol Monitor (HAM)
    – Apple computer was used to log airborne dust
      concentrations
    – VHS camera was used to record work activities.

*James McGlothlin, William Heitbrink and Mike Gressel
Job where
NIOSH
researchers
studied batch
processing
of products.

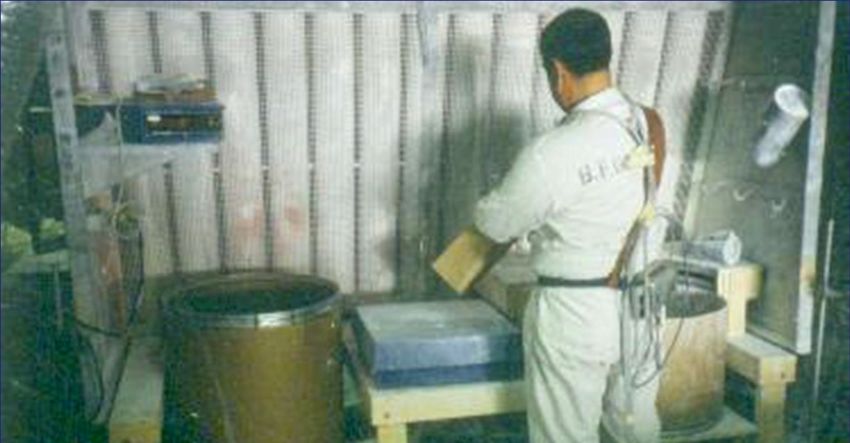

This job involved
scooping of
powder from
a drum, weighing
the powder on
a scale, and putting
the bag of powder
in a receiving bin
located behind the
worker.

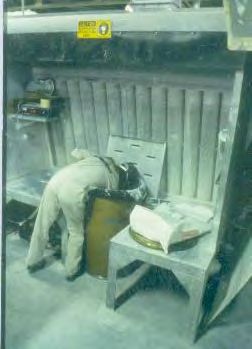

Drum Scooping Task

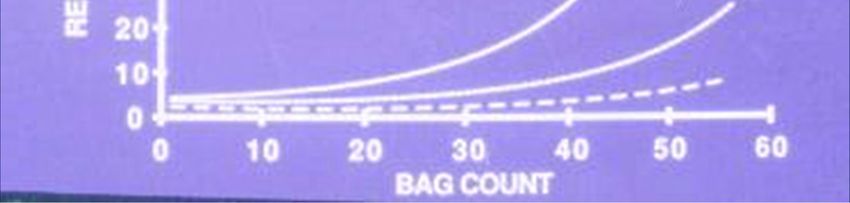

Summary of data what was modeled based on worker dust exposure.
Notice how the dust exposure increases significantly after 35 bags of
powder (about ½ of the total powder in the drum) have been scooped.

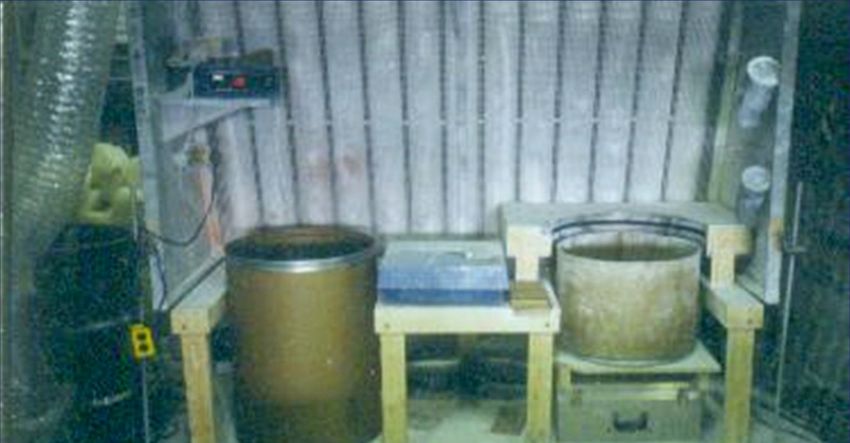

New workstation layout with ½ height drum and slot exhaust to
Capture any residual dust from scooping task.

                                     Horseshoe slot exhaust
Worker scooping powder from a drum cut in half and raised to waist height.
The bag scooping, weighing, depositing task are in line. Making it easier
and more efficient (about 1/3 the cycle time as the original job layout)

                           Production flow from right to left
by Dr. James D. McGlothlin
Wood processing industry for small businesses in New Zealand: VEM in a box.
Parkour application proof of concept for training Navy Seals safe ingress/egress of
hostile foreign villages.
Fingertip radiation exposure experiment in a University Pharmacy Laboratory
Pharmaceutical Laboratory exposure to Benzene

Pharmaceutical
Doctoral
Student – Purdue Pharmacy Lab
Application of dual video camera system: helmet cam and area cam
along with particulate monitoring for mixing pharmaceutical excipient
with active pharmaceutical ingredients (API’s) in a mixing bowl.
Representative set up for office indoor
  air quality monitoring using VEM.
Bioluminescence as a tool to
          detect Pathogens
• The use of Bioluminescence will help determine where
  the escaped pathogens broke through the filter and
  identify containment by the scavenging system.
• Approximately three hundred years ago, when Robert
  Boyle first studied the use of Bioluminescence in the
  carcass of a chicken, he reported that the glowing chicken
  gave no heat, luminescence needed air, and pouring wine
  on the chicken decreased luminescence.
• The rapid detection of pathogens is necessary in
  healthcare settings, and bioluminescence-based methods
  are the most promising for the detection of bacteria.
Example of Bioluminescence of
           Iso-Gard Scavenging System

Mask in ambient light   Mask imaged in dark showing bacteria pathogen (pseudomoas)
Example of Bioluminescence of Iso-Gard Scavenging
                     System

     Mask in ambient light   Mask imaged in dark showing bacteria pathogen
“Community Exposure to Erionite
 and Causes of Mesothelioma in
     Cappadocia, Turkey”

      JAMES MCGLOTHLIN, MPH, PHD, CPE
Associate Professor of Industrial Hygiene & Ergonomics
     Director of Occupational and Environmental
          Health Sciences Graduate Program
                          
Dr. Carbone’s Research Team
Cappadocia, Turkey
Dr. Carbone’s research showing genetic predisposition to mesothelioma from
Erionite exposure.
VEM monitoring of a resident’s home in Cappadocia, Turkey.
Karain – abandoned school
Underground abandoned home: Haunted they said – I was
volunteered to do the simulated work.
Sampling in a local resident’s home
Sampling in a Mosque
Sampling in a schoolhouse
Sampling in relocation development
Means Plot by Sample

300000
                             Abandoned homes
                             where family
                             members died                         Mosques
250000
                             from mesothelioma

200000

150000

100000

50000

     0
         1   2   3   4   5   6   7   8   9   10 11 12 13 14 15 16 17 18 19 20 21 22 23

         .1 Micron       .2 Micron       .3 Micron    .5 Micron    1 Micron   5 Micron
Potential Value of Real-Time Data versus Integrated
     Averaging of Data for Assessing Health Hazards.
    (Consider the value of Video Exposure Monitoring)

• Epidemiologic studies that
  assess peak exposures rather
  than average exposures for
  health impact
• Study of DNA after peak
  exposures to hazardous agents
• Evaluation of DNA repair after
  peak exposure to hazardous
  agents
• Assessment of current OSHA
  standards and ACGIH TLV’s
  based on damage caused by
  peak exposures versus average
  exposures to hazardous agents.
Breaking News: VEM Game Changer
• Costs matter. New VEM Software and Hardware will reduce
  initial and operational costs from approximately $3,000
  dollars + Sensor (~ $6,000 dollars) that may average to
  $6,000 or more, to ~$300 that includes an array of sensors.
• Size matters. The new VEM kit is portable, and like the
  “Tricorder”, gives you a lot of information in a small package.
• Ease of operation matters. VEM is easy to operate, and
  play back.
• Analytics matter. Real-time data and video can be
  uploaded to common spreadsheet software for detailed
  analyses for exposure assessment and control strategies.
  Most important, the camera helps to determine why the
  sensor data is changing thus pinpointing exposure sources
  and opportunities for control such exposures.
For example, the PM 2.5 sensor by
Plantower used in our VEM system
     today cost ~$40 dollars.

        http://plantower.com/en/list/?118_1.html
Video Exposure Monitoring – an
  Exposure Assessment Tool.
– Example: Exposure to vapors and gases.

Current project with Professor Dave Huizen
at GVSU: Evaluation of Carbon Dioxide (CO2)
exposure in the manufacture of beer. Professor
Huizen is looking at the interactions of physiologic
demands, CO2 levels, changes in heartrate, and
biomechanical demands (back and shoulder
disorders), of the job. His dissertation will
simultaneously address safety, ergonomics and health
on the job.
Video Exposure Monitoring – an
  Exposure Assessment Tool.
■ Note: CO2 is an asphyxiant, exposure to concentrations of 10 percent
 (100,000/ppm) or more of can cause death, unconsciousness, or
 convulsions. However, a recent Harvard study found “statistically
 significant and meaningful reductions in decision-making performance” in
 test subjects as CO2 levels rose from a baseline of 600 parts per million
 (ppm) to 1000 ppm and 2500 ppm.*

■ Our exhaled breath shows about 350 ppm of CO2.
■ It is not uncommon to find CO2 levels in brewery's above 5,000 ppm
 (from yeast, but also purging vessels with CO2 ).
■ The CO2 OSHA/NIOSH 8-hr limit is 10,000 ppm, for an 8-hour average,
 and 30,000 ppm for a 15 minute short term exposure.

https://thinkprogress.org/exclusive-elevated-co2-levels-directly-affect-human-cognition-new-harvard-
study-shows-2748e7378941/
Set up of portable-affordable VEM System

Special thanks to Kyle Fischer – B.S. (Computer Sciences), Purdue University
Portable-affordable VEM System
Water flushing tank that was
    purged with CO2.
Michigan OSHA study of
foundry fumes using VEM

  https://www.youtube.com/watch?v=FNMFLrQzocY
VEM System tested at NASA on Health Hazards
     (Particulates) associated with 3-D Printers
Entrance to Presentation Hall –   Bank of 3-D printers in 3-D
Engineering building              printer building.
VEM Set up at Langley for 3D
   Printing particle data
Screenshot of Real-time Particle
    Printer data using VEM
Langley in-house real-time data
       collection set up
Application of VEM as a
Public Health tool to monitor and record
elevated body temperatures potentially
from SARS-CoV-2 pathogen exposure
       and COVID-19 symptoms.
This tool is called Safe Temperature Systems (STS).

 Source: https://safetemperaturesystems.com/
SafeTemperatureSystems being used at a Dental Surgery Facility in
Indianapolis, IN., (left picture), and at a women’s homeless shelter in Grand
Rapids, Michigan (right picture). Subject looking at screen. Note pictures on
wall giving instructions to subject on what to do: Center face on screen and
                   hold wrist just next to IR sensor on right.
Sequence of events when subject comes to the
camera and puts their wrist under the temperature
                    sensor.
                   Screen ques – Taking   Screen ques –
Good screen ques
                   temperature – takes    Temperature
Put wrist up to    about 1 – 2 seconds.   taken and sent to
Sensor.                                   cloud.
A temperature recording and along with the person’s picture (optional) is
simultaneously taken and sent via the internet to a cloud STS database.
  A report is generated each day along with a dashboard report for all
                      temperatures taken that day.

                                          Cloud summary page showing
   Cloud Record of patient.               average, peak under 100.4 F,
                                          number exceeding 100.4 F and total
                                          count of patients for that day.
STS unit moved to main entrance of women’s shelter. Note social distance
 between the unit and the door security worker. An audible sound was given
when the temperature was taken and recorded. The handheld unit on the table
      was a backup in case the subject did not want to use the STS unit.

This proof of concept portable, affordable, SAFETEMPERATURESYSTEMS
(STS) tool, that operated on a VEM platform, made it easy for use at a range
of establishments from dental surgery centers, to homeless shelters.
Pivot to Environmental Monitoring for Public Health
Issues Emanating from Airborne Hazardous Airborne
   Particulates and Gases from Hawaii’s Volcanos.

According to the National Institute for Occupational Safety and
    Health (NIOSH) report these airborne hazards include
  excessive exposures to SO2 gas, and airborne particulates
 within and downwind form Hawaii Volcanoes National Park,
 including the Sulphur Bank area and the Halemaumau Trail
                             area.
 The elderly and children as well as workers with preexisting
respiratory conditions such as asthma, chronic bronchitis, and
 emphysema may be particularly susceptible to the effects of
               these airborne emissions. SO2.
  Source:; https://www.cdc.gov/niosh/hhe/reports/pdfs/1990-0179-2172.pdf?id=10.26616/NIOSHHETA901792172
February 25th, 2021
   Video Exposure
Monitoring (VEM) Proof
      of Concept
  Demonstration of
 Hazardous Volcanic
 Airborne Particulate
      Emissions

                       James D. McGlothlin & Kyle Fischer
                              VEM Systems, LLC

With gratitude, appreciation and assistance from: Ken Ikeda, Director of Safety and
                          Health, University of Hawaii, Hilo.
Map of two sampling points for VEM data collection of
potentially hazardous particulate data from Kuluapele Caldera
         at Volcano National Park on Feb. 25th, 2021.

                                                       1st
                                                       sample
                                                       area

                                                         C

                        2nd
                        sample
                        area

                           C
Kuluapele Caldera venting volcanic particulate on Feb.
             25th, 2021. for VEM Study.
Volcanos National Park Kuluapele Caldera showing Dr.
McGlothlin using VEM System collecting particulate data.
Cap cam view using VEM camera system to document
 particulate data coming from Kuluapele Caldera on
                   Feb. 25th, 2021.
Volcanos National Park Lodge showing Dr. McGlothlin
 using VEM System collecting particulate data from
                Kuluapele Caldera .
U.Hawaii, Hilo. Roof top sampling
front and rear view of VEM System
 with Raspberry Pi 4 Touch Screen
Video Presentation of VEM Proof of Concept for hazardous
        particulate emissions from Kuluapele Caldera on February 25th, 2021.
1. ~ 300 um
peak for
Rim of
Volcano:
Rain resulted
in reduced
particle
emission
detection

2. ~ 900 um
Peak for
volcano
Lodge:
Stopped
raining and
particulate
levels tripled
in
concentration    3. ~ 280 um peak for Roof top of University of Hawaii - Hilo about 25 miles
                 northeast of Volcanos National Park – no rain.
Example of what this may look like from Iceland’s Drone
   filming a Volcanic eruption (March 23rd, 2021).

          (77) Crater surfing DJI FPV style! - YouTube
Expansion of VEM to monitor
     Volcanic Emissions using Drones
• Based on the initial “proof of concept” for monitoring airborne
  particulates emitted from the volcano it is proposed that:
   – An array of 10 drones that can sample the air for particulates (volcanic-
     caused smog called VOG) and Sulfur Dioxide (SO2 ). Three will at
     predesignated areas (where the drone lands and collects samples for a
     specified time ~1 – 2 minutes) of the volcanic rim; three at
     predesignated areas of the volcanos national part lodge, and three at
     predesignated areas of the University of Hawaii, at Hilo. One drone will
     fly from the volcanic rim to the lodge to the UH-Hilo campus to collect
     samples. Weather conditions will be recorded, and particulate and SO2
     data will be correlated with the weather conditions.
   – The goal is to develop an affordable, portable, flexible, public health
     warning system of hazard detection for the citizens of Hawaii in, around
     and downwind (particularly Hilo) from Hawaii’s active volcanos.
Questions? jdm3@purdue.edu (765-588-7993)
Contact Information

• James D. McGlothlin, MPH, Ph.D., CPE, FAIHA
  616 Cascade Hills Hollow, SE
  Grand Rapids, Michigan 49546
  (765) 588-7993
  McGlothlin1951@gmail.com
  jdm3@purdue.edu
  www.JAMESMCGLOTHLIN.com
  www.Safetemperaturesystems.com
You can also read
