CATTANI NEW ZEALAND
2021 CATALOGUE & PRICE LIST
VALID TO 31 DECEMBER 2021
SMART THINKING, THE WAY WE INNOVATE.
ABOUT
CATTANI
IT STARTED IN ITALY In 2019, the position of Chief Executive Officer of the SPACE AGE TECHNOLOGY
Cattani Australasia Group of companies was created,
with General Manager Greg Fox stepping into the role.
Cattani is family. The late Mr Augusto Cattani established Cattani capability and innovation was acknowledged in
Cattani S.p.A. in Parma, Italy, in 1967 to develop and Today, the Clarks’ Cattani group of companies is spread a special and memorable way when Ferrari Engineering,
produce high-quality, high-performance dental suction across the Asia Pacific region, and includes Cattani as supplier to the European Space Agency, commissioned
units and oil-free compressors that delivered long-term Australasia, Cattani Asia, and industrial air technology Cattani and its sister company ESAM to provide the
cost benefits. Today, under the leadership of Mr Cattani’s company ESAM. air technology for the NASA space shuttle. Our Italian
son, Ennio, Cattani exports to countries all over the world, engineers designed a tiny, 180gm compressor able to
including Australia and New Zealand. maintain a pressure of 38 bar for the purpose. We were
TECHNICAL EXPERTISE AND TRAINING over the moon with its performance. Cattani and ESAM
In 1984, Cattani created ESAM, a subsidiary specialising
also contributed to the Eurostar project – the pride
in side-channel blowers, and in 2003 another subsidiary,
Cattani Australasia leads the way in modular installation of the Italian railway system, producing the train’s
Magnolia, was launched to develop a range of premium
of parallel units for multiple users, and every item of pressurisation system.
dental disinfection products.
equipment that leaves the Cattani Australasia warehouse
is checked, modified if necessary, and tested to ensure it
THE AUSTRALIAN STORY meets all regulatory and industrial standards. Moreover,
Cattani’s flagship suction equipment includes key
features designed by Australian technicians.
As in Italy, Cattani down under is very much a family
affair. Bill Clark, who founded Cattani Australia in 1987, Cattani’s clear focus extends into technical expertise.
started working in the dental industry more than 50 years Our vastly experienced specialist technicians are the
ago. Bill remains a Director and now focuses his time on industry leaders, giving us a competitive advantage in
ISO Committee Membership and Product Compliance service and customisation. With this expertise we ensure
for the business. Pam Clark has also made a major our products deliver optimum performance in any facility,
contribution to the wider dental community. In 2017 she whether it is a single-chair practice or a hospital or
was admitted as an Officer of the Order of Australia for university installation.
her distinguished service to the dental industry. The
We also run comprehensive training programmes to
next generation of the Clark family, Allison, has held
ensure that this technical expertise and level of service
leadership positions at Cattani for more than a decade
extends to our outstanding network of distributors, which
and, as a Director, plays an important strategic role
benefits end users directly through the Cattani Blueprints
throughout the Cattani group.
and After Care programmes.
CONTENTS
01
OUR CORE
VALUES
We act with unquestionable integrity
We embrace responsibility
We are results focused
We operate with transparency
CONTENTS
02
CONTENTS
04
OIL-FREE COMPRESSORS
20
SUCTION SYSTEMS
34 54
CONSUMABLES
05 COMPRESSORS 21 SMART SUCTION 34 PLANT ROOM 56 MAGNOLIA
– DENTAL SOLUTIONS 56 PULI-JET GENTLE
06 DENTAL COMPRESSOR RANGE 22 WHAT IS INVERTER 35 VENTO 56 ANTIFOAMING
09 DENTAL COMPRESSOR CONTROL? 36 BLOK-JET SILENT 1 (NEW) DISINFECTANT TABLETS
SPECIFICATIONS AND PRICES 56 PULSE CLEANER
36 BLOK-JET SILENT 2
AND ACCESSORIES
23 AMALGAM RETENTION
13 COMPRESSORS 57 LUBRI-JET
24 SMART SUCTION RANGE 38 CLASSIC SUCTION
– CAD/CAM 57 ANTIFOAM LIQUID
25 SMART CUBE RANGE 39 CLASSIC SUCTION RANGE
14 CAD/CAM COMPRESSOR
RANGE 26 SMART SUCTION 41 CLASSIC SUCTION
SPECIFICATIONS AND PRICES SPECIFICATIONS AND PRICES 58 SUCTION TIPS
15 CAD/CAM COMPRESSOR
SPECIFICATIONS AND PRICES 31 LARGE INSTALLATIONS RANGE
(NEW DESIGN)
45 SUCTION
32 LARGE INSTALLATIONS ACCESSORIES
18 COMPRESSOR SPECIFICATIONS AND PRICES
ACCESSORIES
03
60
MAINTENANCE
62
COMPRESSOR SERVICE
66
SUCTION SERVICE KITS
93
EQUIPMENT
AND SERVICE KITS AND SPARE PARTS AND SPARE PARTS INSTALLATION
61 AFTER CARE 63 COMPRESSOR 67 SUCTION SERVICE KITS
PROGRAMME SERVICE KITS
68 SUCTION SPARE PARTS
64 COMPRESSOR
SPARE PARTS
Recommended Retail Price: The price set out or referred to herein is a recommended price only and there is no obligation to comply with the recommendation.
Prices are valid until 31st December 2021. Prices may be changed without notice due to unforeseen increases of imported products or currency fluctuations.
Cattani Australasia has a commitment to innovation and as such we reserve the right to change product specifications without notice. Please refer to our
website for the most current product specifications. Product images and packaging are for illustrative purposes only, variations can occur due to the printing
process of colours therefore the product you receive may not exactly correspond to the image. Some items listed are “indent only” products and are subject to
our “Forward Order and Indent Item Policy.” Please contact your Cattani Business Development Manager or our Customer Service Team for further information.
CONTENTS
04
DENTAL COMPRESSORS
OIL-FREE COMPRESSORS
CONTENTS
05
COMPRESSORS
DENTAL
DENTAL COMPRESSORS
Quality air is essential in dental. That’s why Cattani compressors deliver clean, dry,
oil-free air to keep your practice running. Our compressors are incredibly reliable
and low maintenance.
7 YEAR OIL
WARRANTY FREE Performance is a key factor in any purchase decision. When comparing brands,
we encourage you to weigh price against air output (l/min at 5-bar pressure).
Often a cheaper compressor comes with inferior performance. That’s not Cattani.
Clean – Cattani compressors produce high quality, hygienic air. Every compressor
LOW NOISE PRE-FILTER FOR
tank is dual coated firstly with a certified food grade resin, which helps protect the
FOR “Q” RANGE HUMID CLIMATES patient and the work you are doing for them. Secondly a Biocote® silver-ion lining for
antimicrobial protection. The low-friction compressor components also reduce the need
for maintenance and prolong the lifespan of the unit.
Reliable – We back our compressors with an industry-leading 7-year parts and labour
warranty, such is our confidence in their superior design, mechanical precision
and robust components. Our compressors are easy to install and require minimal
maintenance.
Versatile – Cattani manufactures compressors in sizes and configurations suitable for
every scenario, from a single chair right through to large-scale hospital and university
installations.
Just quietly – We also offer a range of sound reduction options, from acoustic hoods
to fully enclosed boxes, if noise is an issue.
7-year warranty – Cattani stands by its products, and nothing says reliability like
an industry-leading warranty.
Installation Ease – Cattani compressors are supplied with an installation kit saving your
installer time on site.
For advice on site requirements and the installation of Cattani equipment,
please go to Equipment Installations on page 93.
Biocote® is a registered trademark of Biocote Limited.
CONTENTS
06 DENTAL COMPRESSOR RANGE
1 CHAIR 2-3 CHAIRS 3-4 CHAIRS
DENTAL COMPRESSORS
AC100 AC100E AC200 AC200E AC300 AC300E
013125 013125E 013208 013208E 013308 013308E
PAGE 09 PAGE 09 PAGE 09 PAGE 09 PAGE 10 PAGE 10
AC100Q AC100QE AC200Q AC200QE AC300Q AC300QE
013144 013144E 013244 013244E 013344 013344E
PAGE 09 PAGE 09 PAGE 09 PAGE 09 PAGE 10 PAGE 10
CONTENTS
DENTAL COMPRESSOR RANGE 07
5-6 CHAIRS 7-8 CHAIRS
DENTAL COMPRESSORS
AC400 AC400E AC4001P AC4001PE AC600 AC600E
013432 013432E 013422 013422E 013532 013532E
PAGE 10 PAGE 10 PAGE 10 PAGE 10 PAGE 11 PAGE 11
AC400Q AC400QE AC400Q1P AC400Q1PE AC600Q AC600QE
013450 013450E 013444 013444E 013557 013557E
PAGE 11 PAGE 11 PAGE 11 PAGE 11 PAGE 11 PAGE 11
CONTENTS
08 DENTAL COMPRESSOR RANGE
12 CHAIRS 16 CHAIRS 24 CHAIRS
DENTAL COMPRESSORS
AC900 AC900E AC1200 AC1200E AC1800 AC1800E
013599 013599E 013595 013595E 013594 0133594E
PAGE 12 PAGE 12 PAGE 12 PAGE 12 PAGE 12 PAGE 12
32 CHAIRS
AC2400
010656
PAGE 12
CONTENTSDENTAL COMPRESSOR SPECIFICATIONS AND PRICES 09
DENTAL COMPRESSORS
7 YEAR OIL
WARRANTY FREE
Single Cylinder Quiet Single Cylinder 2 Cylinder Quiet 2 Cylinder
LOW NOISE PRE-FILTER FOR
FOR “Q” RANGE HUMID CLIMATES Compressor Compressor Compressor Compressor
AC100 AC100Q AC200 AC200Q
ITEM CODE 013125 013144 013208 013244
NO. OF CHAIRS 1 1 2-3 2-3
POWER 1PH 240V 1PH 240V 1PH 240V 1PH 240V
3.8A 0.55KW 3.8A 0.55KW 7.1A 1.25KW 7.1A 1.25KW
HEIGHT MM 720 860 720 860
WIDTH MM 620 660 620 660
DEPTH MM 460 600 460 600
WEIGHT KG 47 57 54 64
SOUND OUTPUT dB(A) 70 63 71 63
MAX AIR FLOW AT 5 BAR NL/min 67.5 67.5 160 160
TANK SIZE (LITRES) 30 30 30 30
COST (EX GST) $6,744.00 $9,137.50 $7,619.50 $10,013.00
COST (INC GST) $7,755.60 $10,508.13 $8,762.43 $11,514.95
AC100E AC100QE AC200E AC200QE
Units with dryer pre-filter Units with dryer pre-filter Units with dryer pre-filter Units with dryer pre-filter
for humid climates for humid climates for humid climates for humid climates
ITEM CODE 013125E 013144E 013208E 013244E
COST (EX GST) $7,276.00 $9,669.50 $8,151.50 $10,545.00
COST (INC GST) $8,367.40 $11,119.93 $9,374.23 $12,126.75
CONTENTS10
DENTAL COMPRESSOR SPECIFICATIONS AND PRICES
DENTAL COMPRESSORS
7 YEAR OIL
WARRANTY FREE
3 Cylinder Quiet 3 Cylinder Tandem 2 Cylinder Tandem 2 Cylinder
LOW NOISE PRE-FILTER FOR
FOR “Q” RANGE HUMID CLIMATES Compressor Compressor Compressor Compressor
AC300 AC300Q AC400 AC4001P
ITEM CODE 013308 013344 013432 013422
NO. OF CHAIRS 3-4 3-4 5-6 5-6
POWER 1PH 240V 1PH 240V 3PH 400V 1PH 240V
9.2A 1.5KW 10.2A 1.5KW 7.2A 3.0KW 15.4A 2.4KW
HEIGHT MM 750 979 745 745
WIDTH MM 620 720 1155 1155
DEPTH MM 520 700 550 550
WEIGHT KG 65 80 112 112
SOUND OUTPUT dB(A) 73.6 68 73 73
MAX AIR FLOW AT 5 BAR NL/min 238 238 320 320
TANK SIZE (LITRES) 45 45 100 100
COST (EX GST) $9,312.00 $11,705.50 $13,950.00 $13,950.00
COST (INC GST) $10,708.80 $13,461.33 $16,042.50 $16,042.50
AC300E AC300QE AC400E AC4001PE
Units with dryer pre-filter Units with dryer pre-filter Units with dryer pre-filter Units with dryer pre-filter
for humid climates for humid climates for humid climates for humid climates
ITEM CODE 013308E 013344E 013432E 013422E
COST (EX GST) $9,844.00 $12,237.50 $15,014.00 $15,014.00
COST (INC GST) $11,320.60 $14,073.13 $17,266.10 $17,266.10
CONTENTSDENTAL COMPRESSOR SPECIFICATIONS AND PRICES 11
DENTAL COMPRESSORS
7 YEAR OIL
WARRANTY FREE
Quiet Tandem 2 Cylinder Quiet Tandem 2 Cylinder Tandem 3 Cylinder Quiet Tandem 3 Cylinder
LOW NOISE PRE-FILTER FOR
FOR “Q” RANGE HUMID CLIMATES Compressor Compressor Compressor Compressor
AC400Q AC400Q1P AC600 AC600Q
ITEM CODE 013450 013444 013532 013557
NO. OF CHAIRS 5-6 5-6 7-8 7-8
POWER 3PH 400V 1PH 230V 3PH 400V 3PH 400V
7.4A 3.0KW 15.4A 2.4 KW 7.4A 3.0KW 7.4A 3.0KW
HEIGHT MM 890 890 890 1040
WIDTH MM 1160 1160 1320 1320
DEPTH MM 650 650 590 770
WEIGHT KG 135 135 124 169
SOUND OUTPUT dB(A) 63.8 63.8 74 70.4
MAX AIR FLOW AT 5 BAR NL/min 320 320 476 476
TANK SIZE (LITRES) 100 100 150 150
COST (EX GST) $18,737.50 $18,737.50 $16,973.50 $21,761.00
COST (INC GST) $21,548.13 $21,548.13 $19,519.53 $25,025.15
AC400QE AC400Q1PE AC600E AC600QE
Units with dryer pre-filter Units with dryer pre-filter Units with dryer pre-filter Units with dryer pre-filter
for humid climates for humid climates for humid climates for humid climates
ITEM CODE 013450E 013444E 013532E 013557E
COST (EX GST) $19,801.50 $19,801.50 $18,037.50 $22,824.50
COST (INC GST) $22,771.73 $22,771.73 $20,743.13 $26,248.18
CONTENTS12
DENTAL COMPRESSOR SPECIFICATIONS AND PRICES
DENTAL COMPRESSORS
7 YEAR OIL
WARRANTY FREE
Triple 3 Cylinder Tandem 6 Cylinder Triple 6 Cylinder Quad 6 Cylinder
DRY AIR
DELIVERY Compressor Compressor Compressor Compressor
AC900 AC1200 AC1800 AC2400
ITEM CODE 013599 013595 013594 010656
NO. OF CHAIRS 12 16 24 32
POWER 3PH 400V 3PH 400V 3PH 400V 3PH 400V
11.1A 4.5KW 15A 6.5KW 22.6A 9.75KW 31A 13KW
HEIGHT MM 1000 1100 1100 2000
WIDTH MM 1800 1800 1800 1550
DEPTH MM 810 880 1100 760
WEIGHT KG 260 303 394 300
SOUND OUTPUT dB(A) 75 81 82.5 83.5
MAX AIR FLOW AT 5 BAR NL/min 714 952 1428 1680
TANK SIZE (LITRES) 300 300 300 200
COST (EX GST) $28,714.50 $36,212.50 $55,102.50 $109,569.50
COST (INC GST) $33,021.68 $41,644.38 $63,367.88 $126,004.93
Indent item Indent item Indent item
AC900E AC1200E AC1800E
Units with dryer pre-filter Units with dryer pre-filter Units with dryer pre-filter
for humid climates for humid climates for humid climates
ITEM CODE 013599E 013595E 013594E
COST (EX GST) $30,310.50 $38,340.00 $58,294.00
COST (INC GST) $34,857.08 $44,091.00 $67,038.10
Indent item Indent item
CONTENTS13
COMPRESSORS
CAD/CAM
CAD/CAM COMPRESSORS
Sometimes you need air so clean that it’s out of this world – CAD/CAM milling for
example. That’s why Cattani made a compressor that delivers its purest air yet,
specifically to meet the demands set by CAD/CAM manufacturers.
Cattani CAD/CAM compressors are ideal for precision CAD/CAM milling, setting the
standard for power, air quality and performance. If you need a CAD/CAM compressor,
you need a Cattani CAD/CAM compressor.
Power – purpose-built to maintain a constant and sustainable operating pressure of 8 bar
over long CAM cycles, Cattani CAD/CAM compressors ensure optimal mill performance.
Air quality – Cattani CAD/CAM compressors sit comfortably within ISO standards with
a 99.97% efficiency rating for particles greater than 0.3 microns, so preventing damage
to your valuable equipment and precious work.
Performance – nothing says reliability like an industry-leading 7-year warranty.
Our CAD/CAM compressors run and run. They’re particularly robust, easy to install
and low maintenance.
CAD/CAM compressors by Cattani:
• Ultra clean, dry, oil-free air
• Silver ion BioCote® tank lining protects against microbes
• Power for the purpose
• Super robust and reliable
• Minimal maintenance
• Sound reduction options
• Unrivalled technical service back-up
Biocote®is a registered trademark of Biocote Limited.
CONTENTS14 CAD/CAM COMPRESSOR RANGE
CAD/CAM COMPRESSORS
AC310 AC4101-P AC410 AC610 AC910
013310 013410 013413 013513 013578
PAGE 15 PAGE 15 PAGE 15 PAGE 16 PAGE 17
AC310Q AC410Q AC410Q1-P AC610Q
013355 013458 013455 013558
PAGE 15 PAGE 16 PAGE 16 PAGE 16
CONTENTSCAD/CAM COMPRESSOR SPECIFICATIONS AND PRICES 15
CAD/CAM COMPRESSORS
7 YEAR OIL
WARRANTY FREE
3 Cylinder Quiet 3 Cylinder Tandem 2 Cylinder Tandem 2 Cylinder
LOW NOISE PRE-FILTER FOR
FOR “Q” RANGE HUMID CLIMATES CAD/CAM Compressor CAD/CAM Compressor CAD/CAM Compressor CAD/CAM Compressor
AC310 AC310Q AC410 AC4101-P
ITEM CODE 013310 013355 013413 013410
POWER 1PH 230V 1PH 230V 3PH 400V 1PH 240V
10.2A 1.5KW 10.2A 1.5KW 7.2A 3KW 15.4A 2.4KW
HEIGHT MM 750 979 745 745
WIDTH MM 620 720 1155 1155
DEPTH MM 520 700 550 550
WEIGHT KG 64 80 112 112
SOUND OUTPUT dB(A) 73.6 68 73 73
MAX AIR FLOW AT 8 BAR NL/min 165 165 215 215
TANK SIZE (LITRES) 45 45 100 100
COST (EX GST) $10,110.00 $12,503.50 $14,748.00 $14,748.00
COST (INC GST) $11,626.50 $14,379.03 $16,960.20 $16,960.20
Indent item Indent item Indent item
All CAD/CAM range compressors are available with
pre-filters for humid environments upon request.
CONTENTS16
CAD/CAM COMPRESSOR SPECIFICATIONS AND PRICES
CAD/CAM COMPRESSORS
7 YEAR OIL
WARRANTY FREE
LOW NOISE PRE-FILTER FOR
Quiet Tandem 2 Cylinder Quiet Tandem 2 Cylinder Tandem 3 Cylinder Quiet Tandem 3 Cylinder
FOR “Q” RANGE HUMID CLIMATES CAD/CAM Compressor CAD/CAM Compressor CAD/CAM Compressor CAD/CAM Compressor
AC410Q AC410Q-1P AC610 AC610Q
ITEM CODE 013458 013455 013513 013558
POWER 3PH 400V 1PH 230V 3PH 400V 3PH 400V
7.4A 3KW 15.4A 2.4KW 7.4A 3KW 7.4A 3KW
HEIGHT MM 890 890 890 1040
WIDTH MM 1160 1160 1320 1320
DEPTH MM 650 650 590 770
WEIGHT KG 135 135 137 169
SOUND OUTPUT dB(A) 63.8 63.8 74 70.4
MAX AIR FLOW AT 8 BAR NL/min 215 215 330 330
TANK SIZE (LITRES) 100 100 150 150
COST (EX GST) $19,535.50 $19,535.50 $17,771.50 $22,559.00
COST (INC GST) $22,645.83 $22,465.83 $20,437.23 $25,942.85
Indent item Indent
indent item Indent item Indent item
All CAD/CAM range compressors are available with
pre-filters for humid environments upon request.
CONTENTSCAD/CAM COMPRESSOR SPECIFICATIONS AND PRICES 17
CAD/CAM COMPRESSORS
7 YEAR OIL
WARRANTY FREE
Triple 3 Cylinder
PRE-FILTER FOR
HUMID CLIMATES CAD/CAM Compressor
AC910
ITEM CODE 013578
POWER 3PH 400V
11.1A 4.5KW
HEIGHT MM 1000
WIDTH MM 1800
DEPTH MM 810
WEIGHT KG 260
SOUND OUTPUT dB(A) 75
MAX AIR FLOW AT 8 BAR NL/min 495
TANK SIZE (LITRES) 300
COST (EX GST) $29,512.50
COST (INC GST) $33,939.38
Indent item
All CAD/CAM range compressors are available with
pre-filters for humid environments upon request.
CONTENTS18
COMPRESSOR ACCESSORIES
COMPRESSOR ACCESSORIES
ACOUSTIC CABINET FOR AC100, AC200 AND AC300 COMPRESSOR PARALLEL CONNECTION KIT
For indoor and outdoor use. The box is made using electro-galvanised metal plate and DRK 2000 – 2 x AC100 or AC200
epoxy-polyester powders that can withstand rain and direct sunlight in hot and cold DRK 3000 – 2 x AC300
climates.
Reduces noise of compressors to:
AC100 – 50 dB(A)
AC200 – 51 dB(A)
AC300 – 51 dB(A)
K-010800
ITEM CODE K-010800
HEIGHT MM 887 D-RK2000 D-RK3000
WIDTH MM 870 ITEM CODE D-RK2000 D-RK3000
DEPTH MM 700 COST (EX GST) $1,950.00 $1,950.00
WEIGHT KG 84 COST (INC GST) $2,242.50 $2,242.50
COST (EX GST) $4,203.00
COST (INC GST) $4,833.45
HEPA FILTER FOR COMPRESSOR AIR INLET FILTER FOR COMPRESSOR
ITEM CODE QTY COST INC GST ITEM CODE QTY COST INC GST
K-168429 SINGLE $121.33 K-168563 SINGLE $79.93
K-16856310 10 PACK $673.33
K-16856350 50 PACK $2,814.05
CONTENTSCOMPRESSOR ACCESSORIES 19
COMPRESSOR ACCESSORIES
DRYER PRE FILTER (FOR HUMID CLIMATES) VENTILATION FAN KITS
KIT FOR COMPRESSOR
Recommendations –
Fitted between the condenser and the desiccant 100 m3/hr for each kW of equipment installed.
dryer, and removes a percentage of condensation 250 & 500 kits include fan, ducting and vent cover.
from the air before reaching the dryer. 800 includes fan only.
Can be easily retro-fitted to existing compressors.
(1 filter required per desiccant dryer, therefore
2 filters required for AC400 and AC600 etc).
K-E10000 L-TD2500-KIT L-TD5000-150 L-TD8000
ITEM CODE K-E10000 ITEM CODE L-TD2500-KIT L-TD5000-150 L-TD8000
COST (EX GST) $585.50 COST (EX GST) $814.50 $1,222.00 $1,396.50
COST (INC GST) $673.33 COST (INC GST) $936.68 $1,405.30 $1,605.98
AUXILIARY CONTROL PANEL
Allows for up to 4x of the same type 3PH compressors
to be installed in parallel.
ITEM CODE MODEL SUITED COST INC GST
070904 ALL 3 PHASE MODELS $5,804.63
CONTENTS20
SUCTION SYSTEMS
SUCTION SYSTEMS
CONTENTS21

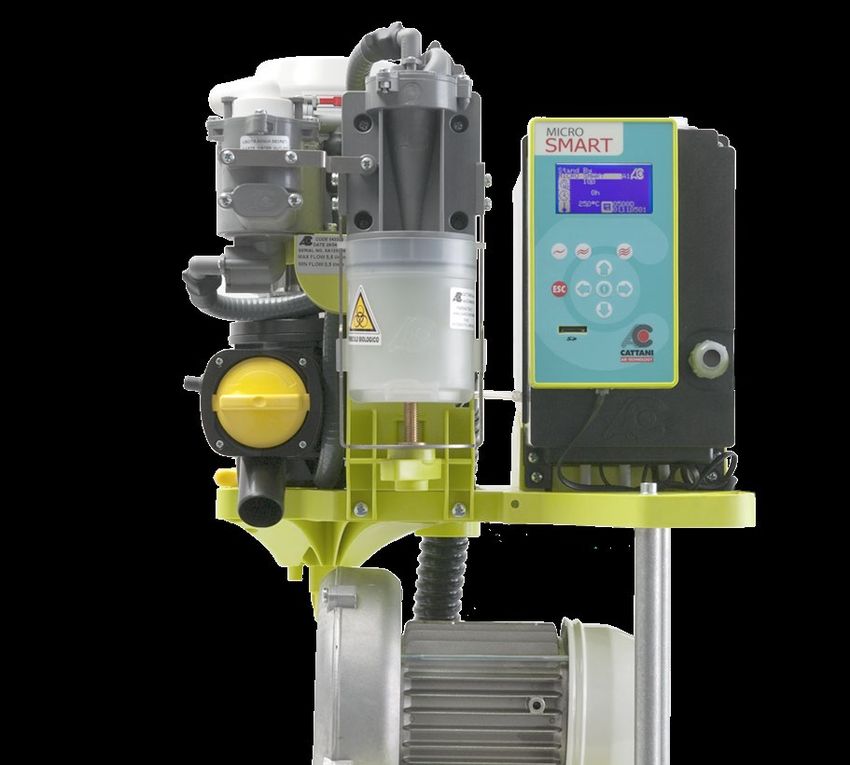

SMART SUCTION
Save your energy
Cattani SMART Suction Systems use variable frequency inverter technology, also known
as Variable Speed Drive (VSD), designed to provide consistent, high-performance suction
SUCTION SYSTEMS
while reducing energy costs.
Economical inverter technology – With this inverter technology, pioneered by Cattani,
energy consumption drops significantly – and so do your energy costs. There is no wasted
energy, and no unwanted fluctuations in air flow common to other systems.
Smart technology – The inverter control senses the real-time requirements of your
practice, from the number of chairs in use right down to size of suction tip and amount
of fluid being aspirated, and adjusts the unit speed and output accordingly.
Just quietly – Cattani’s Cube range of suction systems cut perceived noise by half, and
these machines are even more economical than our already efficient SMART range.
Get SMART online – You can monitor and manage your Cattani SMART suction equipment
using special smartphone apps. And a remote alarm system can also be activated by your
machine.
Flexible – There is a system configuration for every need, from a single chair up to
hospital and university set-ups. “Plug and play” parallel installation also provides built-in
redundancy to protect surgery workflow.
Amalgam retention – Cattani is a world leader in protecting the environment through
amalgam retention for recycling. The Hydrocyclone has a retention rate of more than 98%
and costs nothing to run. It can be retro-fitted.
3-year warranty – We stand by our products, and nothing says reliability like an industry-
leading warranty on our SMART suction units.
Installation ease – Cattani SMART suction systems are supplied with an installation kit
saving your installer time on site.
For advice on site requirements and the installation of Cattani equipment,
please go to Equipment Installation on page 93.
CONTENTS22
WHAT IS INVERTER CONTROL?
SMART by name, smart by design
Traditional suction motors have a fixed speed that makes them less efficient: when just a
small number of chairs are in use, energy consumption remains constantly high. Cattani
SUCTION SYSTEMS
pioneered the use of inverter technology in dental suction equipment, solving this waste
energy problem.
Tell me what the inverter does in technical language
OK. The variable frequency inverter or drive (VFD) controls the rotational speed of the AC
(alternating current) electric motor by controlling the electrical frequency (Hz) supplied
to the motor. A variable frequency inverter is also known as a variable speed drive (VSD).
Cattani suction units always know what’s going on
Inverter control uses sensors to measure demand for suction and adjusts the motor’s
performance accordingly. In this way, Cattani SMART units always draw the optimal
amount of air and use only the energy required. Sensors also monitor performance,
detecting and reporting unusual changes.

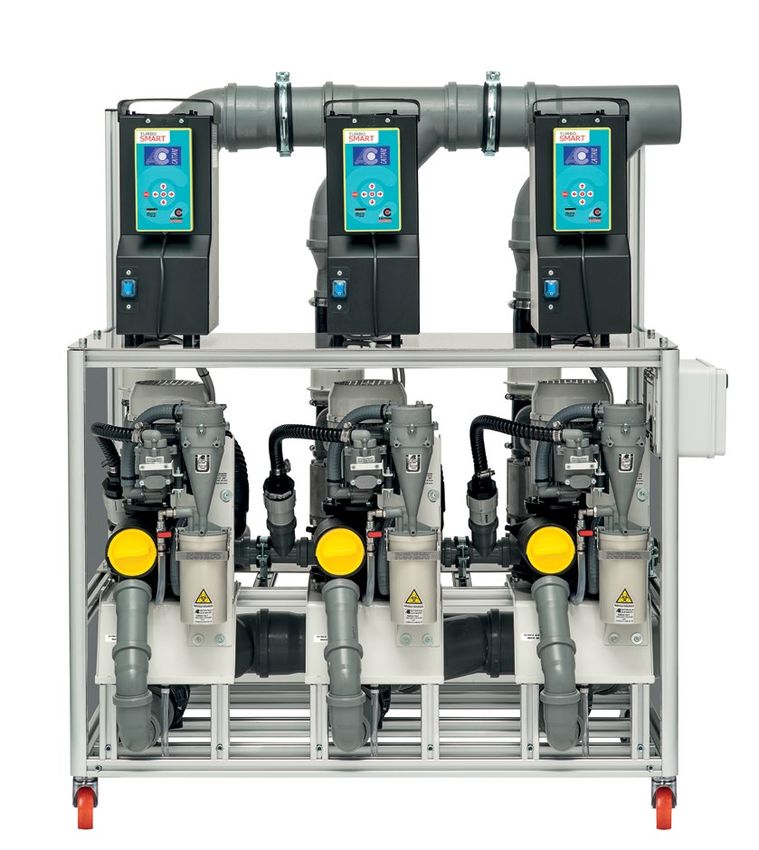

Built-in redundancy keeps your practice running
Thanks to inverter technology, installing parallel SMART suction systems and have
them “talk” to each other is simple. You can easily expand clinic capacity, with built-in
redundancy to ensure the clinic keeps running no matter what.
CONTENTS23
AMALGAM RETENTION

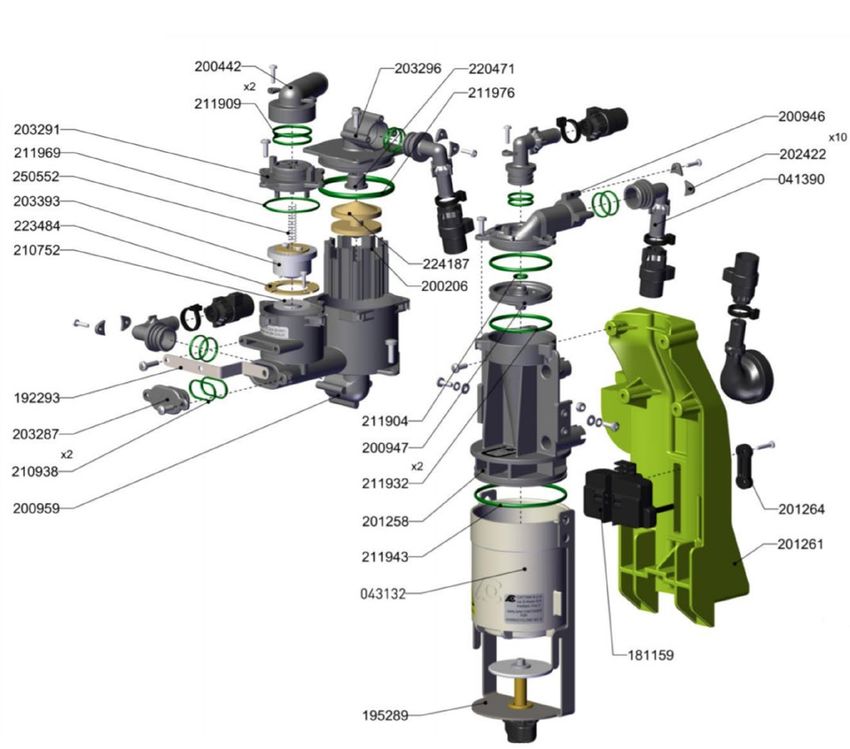

The Cattani Hydrocyclone
The recycling of amalgam is an important dental issue and one that Cattani has been at
the forefront in addressing. We offer the option of amalgam retention that fully integrates
SUCTION SYSTEMS
with all of our SMART suction systems, in the form of the Cattani Hydrocyclone.
The Hydrocyclone is a simple and effective concept that uses the fluid pressure created
by the suction system to separate and retain amalgam, all without the need for moving
parts. Fluids enter the hydrocyclonic cone and are forced downward in a spiral motion.
When the fluids hit the base of the Hydrocyclone they are forced to make a rapid
inversion, while the heavier amalgam particles fall into a collection canister. The retention
rate of 98% or more complies with ISO 11143.
The Hydrocyclone has no effect on power consumption or noise levels, nor does it require
any additional space.
Cattani SMART suction units can easily be retro-fitted with Hydrocyclones at any stage.
The process is carried out on-site by a trained technician and takes less than an hour,
so we will have you back up and running in no time.
Efficient collection and replacement of canisters is also very simple. Cattani has an
arrangement with specialist recycling company Ecocycle. Contact Ecocycle directly when
you need to arrange your canister collection:
AU: 1300 32 62 92
NZ: 0800 732 922
ISO 6 and ISO 18 Hydrocyclone specs and prices: Pages 80-83.
CONTENTS24 SMART SUCTION RANGE
1-2 CHAIRS 2-3 CHAIRS 4 CHAIRS 5 CHAIRS 8 CHAIRS
MICRO SMART TURBO SMART B WITH
TURBO SMART A TURBO SMART B TANDEM TURBO SMART A TANDEM TURBO SMART B
WITH KEYPAD ISO 18 HYDROCYCLONE
SUCTION SYSTEMS
035050TP 035105 035105B 035115B 035105X2 035105BX2
PAGE 26 PAGE 27 PAGE 28 PAGE 28 PAGE 30 PAGE 30
TANDEM MICRO TANDEM TURBO SMART A TANDEM TURBO SMART B
MICRO SMART WITH TURBO SMART A WITH
TANDEM MICRO SMART SMART WITH WITH 2 X WITH 2 X
ISO 6 HYDROCYCLONE ISO 18 HYDROCYCLONE
ISO 6 HYDROCYCLONE ISO 18 HYDROCYCLONE ISO 18 HYDROCYCLONE
035060 035115 035050TX2 035060X2 035115X2 035115BX2
PAGE 26 PAGE 27 PAGE 29 PAGE 29 PAGE 30 PAGE 30
CONTENTSSMART SUCTION RANGE 25
SMART CUBE 1-2 CHAIRS 2-3 CHAIRS 4 CHAIRS
MICRO SMART CUBE TURBO SMART CUBE A TURBO SMART CUBE B
Half as loud
Suction units make their fair share of noise but we can’t run a practice without
them. Cattani’s SMART Cube suction range is a fine example of what can be
SUCTION SYSTEMS
achieved with noise reduction and other efficiencies.
Cattani’s engineers have been able to cut perceived noise by half with the Cube’s
acoustic housing. The Cube’s compact design also has the major benefit of even
greater efficiency – which translates into lower running costs. And with inverter
(variable speed drive) technology part of the package, energy savings are a given
with SMART Cube.
With the full range of benefits, SMART Cube promises peace and quiet, and
peace of mind: 035031TP 035121 035121B
• Acoustic housing cuts perceived noise by 50% PAGE 26 PAGE 27 PAGE 28
• Inverter control slashes energy consumption
TURBO SMART TURBO SMART
MICRO SMART CUBE WITH
• Compact, all-in-one design CUBE A WITH CUBE B WITH
ISO 6 HYDROCYCLONE
ISO 18 HYDROCYCLONE ISO 18 HYDROCYCLONE
• Consistent vacuum performance
• Generous 3-year parts and labour warranty
• Easy to add parallel units
• Amalgam retention optional
• Unrivalled technical service back-up
Your SMART Cube comes in three sizes:
• Micro SMART Cube for 1-2 chairs
• Turbo SMART A Cube for 2-3 chairs
• Turbo SMART B Cube for 2-4 chairs
035030 035120 035120B
PAGE 26 PAGE 27 PAGE 28
CONTENTS26
SMART SUCTION SPECIFICATIONS AND PRICES – MICRO SMART
3 YEAR INVERTER
WARRANTY CONTROL
SUCTION SYSTEMS
Micro SMART with Keypad Micro SMART with Micro SMART Cube Micro SMART Cube with
LOW NOISE HYDROCYCLONE
FOR CUBE RANGE AVAILABLE ISO 6 Hydrocyclone ISO 6 Hydrocyclone
ITEM CODE 035050TP 035060 035031TP 035030
NO. OF CHAIRS 1-2 1-2 1-2 1-2
POWER 1PH 8A 1PH 8A 1PH 4A 1PH 4A
1.12KW 1.12KW 230V 0.9KW 230V 0.9KW
HEIGHT MM 600 600 470 470
WIDTH MM 380 380 420 420
DEPTH MM 350 350 350 350
WEIGHT KG 33 33 31 31
SOUND OUTPUT dB(A) 64 64 59 59
MAX AIR FLOW l/min 900 900 1000 1000
MAX VACUUM FOR 210 210 210 210
CONTINUOUS OPERATION mBar
HYDROCYCLONE NO YES NO YES
AMALGAM RETENTION
COST (EX GST) $6,763.00 $7,295.00 $7,507.50 $8,039.50
COST (INC GST) $7,777.45 $8,389.25 $8,633.63 $9,245.43
CONTENTSSMART SUCTION SPECIFICATIONS AND PRICES – TURBO SMART 27
3 YEAR INVERTER
WARRANTY CONTROL
SUCTION SYSTEMS
Turbo SMART A Turbo SMART A with Turbo SMART A Cube Turbo SMART A Cube with
LOW NOISE HYDROCYCLONE
FOR CUBE RANGE AVAILABLE ISO 18 Hydrocyclone ISO 18 Hydrocyclone
ITEM CODE 035105 035115 035121 035120
NO. OF CHAIRS 2-3 2-3 2-3 2-3
POWER 1PH 7A 1PH 7A 1PH 5.5A 1PH 5.5A
1.22KW 1.22KW 1.2KW 1.2KW
HEIGHT MM 645 645 650 650
WIDTH MM 400 400 500 500
DEPTH MM 330 330 370 370
WEIGHT KG 49 50 43 44
SOUND OUTPUT dB(A) 69 69 60 60
MAX AIR FLOW l/min 1400 1400 1400 1400
MAX VACUUM FOR 210 210 200 200
CONTINUOUS OPERATION mBar
HYDROCYCLONE NO YES NO YES
AMALGAM RETENTION
COST (EX GST) $9,271.50 $9,804.00 $10,176.50 $10,708.00
COST (INC GST) $10,662.23 $11,274.60 $11,702.98 $12,314.20
CONTENTS28
SMART SUCTION SPECIFICATIONS AND PRICES – TURBO SMART
3 YEAR INVERTER
WARRANTY CONTROL
SUCTION SYSTEMS
Turbo SMART B Turbo SMART B with Turbo SMART B Cube Turbo SMART B Cube with
LOW NOISE HYDROCYCLONE
FOR CUBE RANGE AVAILABLE ISO 18 Hydrocyclone ISO 18 Hydrocyclone
ITEM CODE 035105B 035115B 035121B 035120B
NO. OF CHAIRS 4 4 4 4
POWER 1PH 9A 1PH 9A 1PH 7A 1PH 7A
1.5KW 1.5KW 1.6KW 1.6KW
HEIGHT MM 645 645 650 650
WIDTH MM 400 400 500 500
DEPTH MM 330 330 370 370
WEIGHT KG 50 50 44 44
SOUND OUTPUT dB(A) 73.7 73.7 60 60
MAX AIR FLOW l/min 1750 1750 1700 1700
MAX VACUUM FOR 210 210 200 200
CONTINUOUS OPERATION mBar
HYDROCYCLONE NO YES NO YES
AMALGAM RETENTION
COST (EX GST) $10,532.00 $11,064.00 $11,436.50 $11,968.50
COST (INC GST) $12,111.80 $12,723.60 $13,151.98 $13,763.78
CONTENTSSMART SUCTION SPECIFICATIONS AND PRICES – TURBO SMART, TANDEM MICRO SMART 29
SUCTION SYSTEMS
Turbo SMART B 2V Turbo SMART B 2V with Tandem Micro SMART Tandem Micro SMART with
3 YEAR INVERTER HYDROCYCLONE
WARRANTY CONTROL AVAILABLE ISO 18 Hydrocyclone ISO 6 Hydrocyclone
ITEM CODE 035130 035135 035050TX2 035060X2
NO. OF CHAIRS 4 4 4 4
POWER 1PH 9A 1.5kW 1PH 9A 1.5kW 1PH 2 X 6.3A 1.3KW 1PH 2 X 6.3A 1.3KW
2X10A POWER OUTLETS 2X10A POWER OUTLETS
REQUIRED REQUIRED
HEIGHT MM 650 650 600 600
WIDTH MM 540 540 1,030 1,030
DEPTH MM 400 400 640 640
WEIGHT KG 41 43 50 50
SOUND OUTPUT dB(A) 70 70 67-74 67-74
MAX AIR FLOW l/min 1600 1600 1824 1824
MAX VACUUM FOR 280 280 210 210
CONTINUOUS OPERATION mBar
HYDROCYCLONE NO YES NO YES
AMALGAM RETENTION
COST (EX GST) $11,381.00 $11,913.00 $15,376.00 $16,439.50
COST (INC GST) $13,088.15 $13,699.95 $17,682.40 $18,905.43
C-TMSKIT
Frame kit for
Tandem Micro SMART
COST (EX GST) $1,497.00
COST (INC GST) $1,721.55
CONTENTS30
SMART SUCTION SPECIFICATIONS AND PRICES – TANDEM TURBO SMART
SUCTION SYSTEMS
Tandem Turbo SMART A Tandem Turbo SMART A with Tandem Turbo SMART B Tandem Turbo SMART B with
3 YEAR INVERTER HYDROCYCLONE
WARRANTY CONTROL AVAILABLE 2 x ISO 18 Hydrocyclone 2 x ISO 18 Hydrocyclones
ITEM CODE 035105X2 035115X2 035105BX2 035115BX2
NO. OF CHAIRS 5 5 8 8
POWER 1PH 2 X 7A 1.45KW 1PH 2 X 7A 1.45KW 1PH 2X9A 1.87KW 1PH 2X9A 1.87KW
2X10A POWER OUTLETS 2X10A POWER OUTLETS 2X10A POWER OUTLETS 2X10A POWER OUTLETS
REQUIRED REQUIRED REQUIRED REQUIRED
HEIGHT MM 740 740 740 740
WIDTH MM 1250 1250 1250 1250
DEPTH MM 760 760 760 760
WEIGHT KG 85 85 85 85
SOUND OUTPUT dB(A) 72 72 76.7 76.7
MAX AIR FLOW l/min 2860 2860 3500 3500
MAX VACUUM FOR 210 210 210 210
CONTINUOUS OPERATION mBar
HYDROCYCLONE NO YES NO YES
AMALGAM RETENTION
COST (EX GST) $21,109.50 $22,173.00 $23,388.50 $24,452.50
COST (INC GST) $24,275.93 $25,498.95 $26,896.78 $28,120.38
C-1TMKIT
Frame kit for
Tandem Turbo SMART
COST (EX GST) $3,143.20
COST (INC GST) $3,614.68
CONTENTSLARGE INSTALLATIONS RANGE 31
LARGE
INSTALLATIONS
12 CHAIRS 16 CHAIRS 20 CHAIRS 12+ CHAIRS
MAXI-SMART WITH
MULTI-SMART T3 MULTI-SMART T4 MULTI-SMART T5 ISO 60 HYDROCYCLONE
(HEPA 14 OPTION ALSO AVAILABLE)
NEW Multi-SMART
12-20 chairs
The NEW Multi SMART suction systems are specifically
SUCTION SYSTEMS
designed for the Australasian region. Co-engineered, our
Italian and Australian engineering and technical teams
worked closely to develop a new 12 – 20 chair solution that
is more compact with no compromise on performance.
Easy maintenance, no disruptions.
• Installation of Multi-SMARTS, whether a T3 (12 chairs),
T4 (16 chairs) or T5 (20 chairs), is a simple process, the
system is designed with easy access for future annual
servicing. 035105BX3 035105BX4 035105BX5 035210
• Each suction module of the system can be isolated PAGE 32 PAGE 32 PAGE 33 PAGE 33
to allow for easy servicing while still allowing
uninterrupted suction, keeping the dental site running
MAXI-SMART WITH
without disruption. MULTI-SMART T3 WITH MULTI-SMART T4 WITH MULTI-SMART T5 WITH ISO 60 HYDROCYCLONE
ISO 18 HYDROCYCLONE ISO 18 HYDROCYCLONE ISO 18 HYDROCYCLONE AND ACOUSTIC COVER
Compact Design (HEPA 14 OPTION ALSO AVAILABLE)
• Space is a premium, the NEW Multi SMART has been
designed to be more compact than its predecessor.
Consistent and reliable air flow
• Multi-SMARTS are assembled in parallel, and thanks
to inverter technology provide steady and reliable air
flow, with built-in redundancy. Our modular design
allows for easy HEPA filter upgrade onsite.
Maxi-SMART
20-60 chairs
A single Maxi-SMART unit will supply all the suction
needs for up to 15 chairs, but they are designed to be
installed as a modular system, in pairs, with the potential
to serve 60 or more chairs. The system units are activated 035115BX3 035115BX4 035115BX5 035215
sequentially, depending on suction demand.
Maxi-SMARTS are supplied in kit form, with all PAGE 32 PAGE 32 PAGE 33 PAGE 33
interconnecting components necessary for parallel
installation.
CONTENTS32
LARGE INSTALLATIONS SPECIFICATIONS AND PRICES – MULTI SMART
NEW DESIGN
Multi-SMART
Multi SMART T3 Multi SMART T3 with Multi SMART T4 Multi SMART T4 with
SUCTION SYSTEMS
3 YEAR INVERTER HYDROCYCLONE
WARRANTY CONTROL AVAILABLE
ISO 18 Hydrocyclone ISO 18 Hydrocyclone
ITEM CODE 035105BX3 035115BX3 035105BX4 035115BX4
NO. OF CHAIRS 12 12 16 16
POWER 4 X 1PH 240V 4 X 1PH 240V 5 X 1PH 240V 5 X 1PH 240V
9A 1.87 KW 9A 1.87 KW 9A 1.87 KW 9A 1.87 KW
HEIGHT MM 1280 1280 1280 1280
WIDTH MM 1000 1000 1345 1345
(1090 with control panel) (1090 with control panel) (1435 with control panel) (1435 with control panel)
DEPTH MM 760 760 760 760
WEIGHT KG 148 148 184 184
SOUND OUTPUT dB(A) 78.5 78.5 79.7 79.7
MAX AIR FLOW l/min 5100 5100 6800 6800
MAX VACUUM FOR 210 210 210 210
CONTINUOUS OPERATION mBar
HYDROCYCLONE NO YES NO YES
AMALGAM RETENTION
COST (EX GST) $47,419.00 $50,732.00 $61,776.50 $66,193.50
COST (INC GST) $54,531.85 $58,341.80 $71,042.98 $76,122.53
Indent item Indent item Indent item Indent item
035105BHX3 035115BHX3 035105BHX4 035115BHX4
Units with H14 Filtration Units with H14 Filtration Units with H14 Filtration Units with H14 Filtration
COST (EX GST) $50,990.50 $62,632.00 $66,904.50 $71,474.50
COST (INC GST) $58,639.08 $72,026.80 $76,940.18 $82,195.68
CONTENTSLARGE INSTALLATIONS SPECIFICATIONS AND PRICES – MULTI SMART, MAXI SMART 33
NEW DESIGN
Multi-SMART
Multi SMART T5 Multi SMART T5 with Maxi SMART with Maxi SMART with ISO 60
SUCTION SYSTEMS
3 YEAR INVERTER HYDROCYCLONE
WARRANTY CONTROL AVAILABLE
ISO 18 Hydrocyclone ISO 60 Hydrocyclone* Hydrocyclone and Acoustic Cover*
ITEM CODE 035105BX5 035115BX5 035210 035215
NO. OF CHAIRS 20 20 12-15 12-15
POWER 6X 1PH 240V 6X 1PH 240V 3PH 400V 3PH 400V
9A 1.87KW 9A 1.87KW 25A 11.8KW 25A 11.8KW
HEIGHT MM 1280 1280 1490 1490
WIDTH MM 1690 1690 708 708
(1780 with control panel) (1780 with control panel)
DEPTH MM 760 760 1037 1037
WEIGHT KG 220 220 215 270
SOUND OUTPUT dB(A) 80.7 80.7 77 68
MAX AIR FLOW l/min 8500 8500 5000 5000
MAX VACUUM FOR 210 210 240 240
CONTINUOUS OPERATION mBar
HYDROCYCLONE NO YES YES YES
AMALGAM RETENTION
COST (EX GST) $73,552.50 $79,155.00 $41,792.50 $47,489.00
COST (INC GST) $84,585.38 $91,028.25 $48,061.38 $54,612.35
Indent item Indent item Indent item Indent item
035105BHX5 035115BHX5 035211 035216
Units with H14 Filtration Units with H14 Filtration Units with H14 Filtration Units with H14 Filtration
COST (EX GST) $79,375.00 $90,197.50 $44,943.50 $51,430.50
COST (INC GST) $91,281.25 $103,727.13 $51,685.03 $59,145.08
Indent item Indent item Indent item Indent item
*Maxi SMART is designed as a modular system to be connected in parallel, not to operate as a single unit. Capacity per unit: 12 chairs if the unit is installed on the same level; 15 chairs if the unit is on the level below.
CONTENTS34
PLANT ROOM SOLUTIONS
Simple, effective ways to overcome challenges Blok-Jet Silent 1 & 2 – the self-contained plant solutions for up to four chairs
of limited space The Blok-Jet Silent solution is to stack the units inside their own cabinet. It can service
PLANT ROOM SOLUTIONS
up to four chairs and is ultra-quiet, so is an excellent option when mitigating noise is a
Space is valuable and in many practices strictly limited. There can also be issues with priority. The cabinet has a very small footprint and stands on caster wheels, so is easy to
noise upsetting staff, patients and even neighbours. Cattani understands that, so provides position and service.
compact solutions in a variety of configurations and sound-reducing options that can Blok-Jet Silent 1 & 2 must be installed inside the clinic, with
even do away with the need for a plant room entirely. an ambient temperature of no more than 28°C. It requires 2 x 10
Vento – the ultimate space saver for up to eight chairs amp single phase power supplies.
Designed and developed by Cattani Australia, the Vento approach is to stack the suction • Serves up to four chairs
unit and the compressor on a special frame, halving the floor space. This is the perfect • Compact – the size of a fridge
plant configuration for practices in shopping centres where space is tight and a dedicated
plant room is a luxury. Instead, the Vento can easily fit into a ventilated cupboard. • Ultra-quiet
Vento is normally designed to service up to eight chairs but it is very adaptable and • Mobile – it stands on lockable wheels
Cattani can customise configurations on request. Just tell the Cattani experts what • Cabinet doors also lockable
your requirements are and it is very likely these can be met. Units with acoustic hoods
are also available. • External display panel shows compressor and suction status
Vento can incorporate:
• Micro SMART
• Turbo SMART
• Noise-reducing SMART Cube suction units
• Our entire compressor range, including CAD/CAM
• Acoustic compressor hoods
• Amalgam retention
CONTENTSVENTO 35
Please refer to the relevant
compressor and suction pages
of this catalogue for individual
unit specifications, accessories
and spare parts.
PLANT ROOM SOLUTIONS
SMART Vento SMART Vento Trio SMART Vento Duo Tandem SMART Vento Trio Tandem
with C1A & AC200 with C2A & AC300 with C1A & AC400 with C2A & AC600
DUO TRIO DUO TANDEM TRIO TANDEM
ITEM CODE C-VC1A20 C-VC2A30 C-VTC1A4 C-VTC2A5
COMPRESSOR AC200 AC300 AC400 AC600
SUCTION TURBO SMART A TURBO SMART B TANDEM TURBO SMART A TANDEM TURBO SMART B
NO. OF CHAIRS 2 3-4 5 UP TO 8
HEIGHT MM 1540 1570 1695 1840
WIDTH MM 695 695 1280 1280
DEPTH MM 490 490 600 600
COST (EX GST) $19,079.50 $22,059.00 $38,816.00 $44,410.00
COST (INC GST) $21,941.43 $25,367.85 $44,638.40 $51,071.50
JVT0000 JCSTTS
Frame for SMART Frame for Tandem
Vento Duo & Trio Vento Duo and Trio (AC400/AC600)
COST (EX GST) $1,756.50 $2,147.70
COST (INC GST) $2,019.98 $2,469.86
CONTENTS36
BLOK-JET SILENT 1 & 2
Please refer to the relevant compressor and suction pages of this catalogue for individual unit specifications,
accessories and spare parts. Please note: Blok-Jet Silent 1 and 2 requires 2 x 10 amp single phase power supplies.
NEW NEW BLOK-JET Silent 1
AC200 Compressor &
Micro SMART with Hydrocyclone
BLOK-JET SILENT 1
PLANT ROOM SOLUTIONS
ITEM CODE 073500
COMPRESSOR AC200
SUCTION MICRO SMART
NO. OF CHAIRS 1-2
HEIGHT MM 1935
WIDTH MM 760
DEPTH MM 650
SOUND OUTPUT dB(A) 57.5
COST (EX GST) $23,500.00
COST (INC GST) $27,025.00
Indent item
BLOK-JET Silent 2
AC300 Compressor &
Turbo SMART B with Hydrocyclone
BLOK-JET SILENT 2
ITEM CODE 073525
COMPRESSOR AC300
SUCTION TURBO SMART B
NO. OF CHAIRS 3-4
HEIGHT MM 1935
WIDTH MM 760
DEPTH MM 650
SOUND OUTPUT dB(A) 55
COST (EX GST) $31,862.00 Blok-Jet Silent 2 pictured
COST (INC GST) $36,641.30
Indent item
CONTENTSWE LOVE WHAT WE DO. 37
WORKING AS ONE
MAGNOLIA BY CATTANI
Magnolia products are designed specifically for cleaning, disinfecting
and sanitising dental suction systems and surgeries. Magnolia can be
trusted to keep your practice hygienic.
• Puli-Jet Gentle – ideal solution for daily suction system disinfection
• Pulse Cleaner – Puli-Jet Gentle’s agitating partner in grime
• Antifoaming Disinfectant Tablets – keep blood/mucus foam at bay
• Lubri-Jet – silicone lubricant for suction unit o-rings
Please go to page 54 to learn more about our Magnolia range.
Magnolia in Action
Point your smartphone
camera at this QR code to
view Cattani’s short suction
maintenance videos, or go to
www.cattani.com.au/videos
CONTENTS38
CLASSIC SUCTION
Proven Cattani technology Turbo-Jet – simply safe suction
Turbo-Jet is a powerful and effective aspiration and air/fluid separation single-chair
Dry Suction – built to last system that is made for continuous use. Turbo-Jet uses simple, proven concepts in its
Cattani dry suction motors deliver high volume and appropriate vacuum, even with a large mechanics and circuitry, so is easy to operate and maintain. Acoustic covers are available
SUCTION SYSTEMS
suction tip. Our separators and vacuum relief valves are all you need if dry suction is your if noise is a concern.
preferred option. Turbo-Jet comes in a variety of configurations and is small enough to fit into a ventilated
Cattani dry suction motors are made from quality materials, and built to last. cupboard close to the dental chair, while the separator may be placed close to the chair.
The machines are incredibly easy to operate and the mechanics and circuitry are easy With proper care and simple maintenance, Turbo-Jet will give many years of reliable
to maintain: service.
• Sizes from one surgery to seven • Robust Uni-Jet 75 suction motor
• Available single or three-phase, depending on the unit • Centrifugal pump
• Acoustic covers available if noise is a concern • High flow, medium vacuum performance
• Units designed to be installed close to the dental unit • Maximum negative pressure 130 mBar
Aspi-Jet – your mobile, all-in-one suction system • Maximum air flow rate 650 l/min
If you need a simple, safe and mobile chairside aspirator for a single chair, Aspi-Jet is for • Automatic drainage
you – just plug it in and turn it on. Aspi-Jet is designed for continuous use and reliable • Amalgam separator optional
high flow, medium vacuum and effective air/fluid separation. Aspi-Jet is on wheels for
easy transfer from surgery to surgery. It is a handy back-up system and a good option • Bacterial exhaust filter optional
where it is difficult to get plumbing to the dental unit. • Acoustic cover optional
Aspi-Jet uses simple, proven technology and is made from quality materials:
• Robust Uni-Jet 75 motor
• Maximum negative pressure 130 mBar
• Maximum air flow rate 1250 l/min
• Bacterial exhaust filter optional
• Foam-lined cabinet for quietness
• Superior design, mechanical precision, quality components
• Four models to choose from, including manual drain and auto-drain
CONTENTSCLASSIC SUCTION RANGE 39
1 CHAIR 2-3 CHAIRS 4 CHAIRS 7 CHAIRS 1 CHAIR
UNI-JET 75 TECNO-JET FLUX-JET MEDIO-JET UNI-JET 75
IN COVER
SUCTION SYSTEMS
020322 046759 048137 061503 020274
PAGE 41 PAGE 41 PAGE 42 PAGE 42 PAGE 43
UNI-JET 75 2V TECNO-JET 2V FLUX-JET 2V MEDIO-JET 2V UNI-JET 75
IN COVER WITH CONTROL
020370 020921 020715 020930 020276
PAGE 41 PAGE 41 PAGE 42 PAGE 42 PAGE 43
CONTENTS40 CLASSIC SUCTION RANGE
1 CHAIR
CONTINUOUS SUCTION
SEPARATOR – ASPI-JET 6 ASPI-JET 7
MULTI-SURGERY
SUCTION SYSTEMS
C0016A 010010 010021
PAGE 43 PAGE 44 PAGE 44
CONTINUOUS SUCTION
SEPARATOR IN COVER – ASPI-JET 8 ASPI-JET 9
SINGLE-SURGERY
020998 010030 010041
PAGE 43 PAGE 44 PAGE 44
CONTENTSCLASSIC SUCTION SPECIFICATIONS AND PRICES 41
SUCTION SYSTEMS
Uni-Jet 75 Uni-Jet 75 2V Tecno-Jet Tecno-Jet 2V
1 YEAR
WARRANTY Single Phase Single Phase Single Phase Single Phase
ITEM CODE 020322 020370 046759 020921
NO. OF CHAIRS 1 1 2-3 2-3
POWER 1PH 1PH 1PH 1PH
3.1A 0.42KW 5.2A 0.7KW 5.5A 0.75KW 7.5A 1.1KW
HEIGHT MM 275 275 320 320
WIDTH MM 232 246 310 310
DEPTH MM 246 491 310 550
SOUND OUTPUT dB(A) 62 64 64 65
MAX AIR FLOW l/min 1250 1330 2000 2170
MAX VACUUM FOR 130 270 140 200
CONTINUOUS OPERATION mBar
COST (EX GST) $1,498.50 $2,756.00 $2,457.00 $3,837.00
COST (INC GST) $1,723.28 $3,169.40 $2,825.55 $4,412.55
Indent item
CONTENTS42
CLASSIC SUCTION SPECIFICATIONS AND PRICES
SUCTION SYSTEMS
Flux-Jet 1.1kW Flux-Jet 2V Medio-Jet Blower Medio-Jet 2V
1 YEAR
WARRANTY Single Phase 3 Phase 3kW 3 Phase 3 Phase
ITEM CODE 048137 020715 061503 020930
NO. OF CHAIRS 4 4 7 7
POWER 1PH 3PH 3PH 3PH
7.6A 1.1KW 5.2A 2.2KW 6.8A 3.0KW 9.0A 4.0KW
HEIGHT MM 350 350 420 420
WIDTH MM 340 340 400 400
DEPTH MM 410 590 335 705
SOUND OUTPUT dB(A) 68.5 72 76 77
MAX AIR FLOW l/min 3300 3330 5000 4830
MAX VACUUM FOR 150 230 230 245
CONTINUOUS OPERATION mBar
COST (EX GST) $3,023.50 $6,108.00 $4,302.50 $6,569.50
COST (INC GST) $3,477.03 $7,024.20 $4,947.88 $7,554.93
Indent item
CONTENTSCLASSIC SUCTION SPECIFICATIONS AND PRICES 43
SUCTION SYSTEMS
Uni-Jet 75 Uni-Jet 75 Continuous Suction Separator Continuous Suction Separator
1 YEAR
WARRANTY In Cover In Cover with Control with Bracket – Multi Surgery in Cover – Single Surgery
ITEM CODE 020274 020276 C0016A 020998
NO. OF CHAIRS 1 1
POWER 1PH 1PH 24V 24V
3.1A 0.42KW 3.1A 0.42KW
HEIGHT MM 330 330 350 350
WIDTH MM 320 320 250 250
DEPTH MM 280 280 100 100
SOUND OUTPUT dB(A) 58 58 - -
MAX VACUUM FOR
CONTINUOUS OPERATION mBar 130 130 - -
COST (EX GST) $2,577.00 $2,696.00 $1,857.50 $2,276.50
COST (INC GST) $2,963.55 $3,100.40 $2,136.13 $2,617.98
Indent item Indent item C0016AB 020996
Multi Surgery Units without bracket Multi Surgery Units
COST (EX GST) $1,738.50 $2,696.00
COST (INC GST) $1,999.28 $3,100.40
Indent item
C0016B0
Single Surgery Units with bracket
COST (EX GST) $1,439.00
COST (INC GST) $1,654.85
CONTENTS44
CLASSIC SUCTION SPECIFICATIONS AND PRICES
SUCTION SYSTEMS
1 YEAR
WARRANTY
Aspi-Jet 6 Aspi-Jet 7 Aspi-Jet 8 Aspi-Jet 9
ITEM CODE 010010 010021 010030 010041
NO. OF CHAIRS 1 1 1 1
HEIGHT MM 750 750 750 750
WIDTH MM 325 325 325 325
DEPTH MM 420 420 420 520
SOUND OUTPUT dB(A) 60 60 60 60
MAX AIR FLOW l/min 650 650 650 650
MAX VACUUM FOR 130 130 130 130
CONTINUOUS OPERATION mBar
TANK SIZE (LITRES) 4 - - -
COST (EX GST) $4,700.00 $5,700.00 $7,100.00 $8,200.00
COST (INC GST) $5,405.00 $6,555.00 $8,165.00 $9,430.00
Manual drain Automatic drain pump Automatic drain pump & cup filler Automatic drain pump, cup filler and spittoon
4 litre canister capacity Requires plumbing to waste Requires plumbing to waste Requires plumbing to waste
Requires a water supply Requires a water & air supply
Indent item Indent item Indent item
010010B
Units with Bacterial Filter
COST (EX GST) $5,450.00
COST (INC GST) $6,267.50
CONTENTS45
SUCTION SYSTEMS
SUCTION ACCESSORIES
SMART AND CLASSIC
CONTENTS46
SUCTION ACCESSORIES – SMART AND CLASSIC
ISO 6 HYDROCYCLONE RETRO FIT KIT ISO 18 HYDROCYCLONE RETRO FIT KIT
AMALGAM RETENTION FOR MICRO SMART AMALGAM RETENTION FOR TURBO SMART
Does not require any additional space. Integrates into
Does not require any additional space. Integrates into the same dimensions of the unit. ISO 11143 Compliant
SUCTION SYSTEM ACCESSORIES
the same dimensions of the unit. ISO 11143 Compliant Max Flow = 18 l/min Min Flow = 0.5 l/min
Max Flow = 5.5 l/min Min Flow = 0.5 l/min ITEM CODE SYSTEM COST INC GST
ITEM CODE SYSTEM COST INC GST C-1H0000 TURBO SMART A OR B $1,928.44
C-MR6000 MICRO SMART $1,570.10 C-1H3C00 TURBO SMART 3C $1,928.44
C-043382 MICRO SMART CUBE $1,570.10 C-1H3CUB TURBO SMART CUBE $2,423.63
REPLACEMENT AMALGAM CONTAINERS FOR SMART SUCTION SYSTEMS
ECOCYLE are Cattani’s recycling partner. Please contact them for pricing on replacement containers, pick up and recycling services.
ITEM CODE SYSTEM
C-043132 MICRO SMART
C-043135 TURBO SMART
C-043138 MAXI SMART
C-043130 MODULAR
AU: 1300 32 62 92 NZ: 0800 73 29 22
TRIPLEX SYRINGE HOLDER SALIVA EJECTOR HOLDER
Able to be cabinet mounted or to the side of Able to be cabinet mounted or to the side of the
the Pneumatic Tip Support. Includes a range Pneumatic Tip Support. Includes a micro switch
of reducers for different sized syringes. & a range of reducers for different sized hoses.
ITEM CODE COLOUR COST INC GST ITEM CODE COLOUR COST INC GST
C-A0028B BLACK $98.56 C-007000 BLACK $212.41
C-A0028G GREY $98.56 C-0070G0 GREY $212.41
C-A0028W WHITE $98.56 C-0070W0 WHITE $212.41
CONTENTSSUCTION ACCESSORIES – SMART AND CLASSIC
47
PASSWORD – UPGRADE TURBO MANUAL TIP SUPPORT
SMART A TO TURBO SMART B
Three hose hanger with manual closure
Simply installed by entering via the unit’s keypad of terminals. Dimensions (w/o) hoses or terminals):
H = 118mm W = 135mm D = 105mm
SUCTION SYSTEM ACCESSORIES
Requirements for order: Serial Number – found on I.D. label
on chassis. Generated Code – found on label on control panel
ITEM CODE ENTRY SIDE COLOUR COST INC GST
ITEM CODE COST INC GST
C-0011B0 REAR BLACK $845.25
035500 $2,466.75
C-0011BG REAR GREY $845.25
EXTENSION SEGMENT ARM – PNEUMATIC TIP SUPPORT PNEUMATIC TIP SUPPORT
Extension arm for tip supports. Extension lengths do not include the tip
support depth. Two hose hanger with automatic pneumatic closure
of terminals. Dimensions (w/o) hoses or terminals):
Single arm extends – Min length = 50mm Max length = 270mm H = 118mm W = 135mm D = 105mm
Two segment arm extends – Min length = 50mm Max length = 470mm
ITEM CODE ARMS COST INC GST ITEM CODE COLOUR COST INC GST
C-006000 SINGLE $494.50 C-0055G0 GREY $1,125.51
C-006100 DOUBLE $776.02 C-0055W0 WHITE $1,125.51
EXTENSION SEGMENT ARM – MANUAL TIP SUPPORT PNEUMATIC TIP SUPPORT WITH TRIPLEX HOLDER
Indent item Two hose hanger with automatic closure of terminals
and triplex holder. Dimensions (w/o hoses or terminals):
Available in 1 segment giving 300mm extension
H = 118mm W = 148mm D = 105mm
or 2 segments giving 500mm extension.
Wall or cabinet mounted.
ITEM CODE ARMS COST INC GST ITEM CODE COLOUR COST INC GST
C-040030 SINGLE $492.50 C-5528G0 GREY $1,197.15
C-040050 DOUBLE $858.71 C-5528W0 WHITE $1,197.15
CONTENTS48
SUCTION ACCESSORIES – SMART AND CLASSIC
CLEANING BRUSH – SMALL CLEANING BRUSH – LARGE
Designed for scrubbing the internal surface Designed for scrubbing the internal surface
of small suction tips prior to autoclaving. of large suction tips prior to autoclaving.
SUCTION SYSTEM ACCESSORIES
ITEM CODE QTY COST INC GST ITEM CODE QTY COST INC GST
C-180000 SINGLE $12.42 C-190000 SINGLE $12.42
C-180000100 100 PACK $703.23 C-190000100 100 PACK $703.23
ADAPTOR FOR SALIVA EJECTOR TIP REDUCERS
Adapts most saliva ejector tips to either Reduces the internal bore diametre of
the 11mm or 16mm hose terminal. the 17mm hose terminal to 11mm for
fitment of 11mm suction tips.
ITEM CODE QTY COLOUR COST INC GST ITEM CODE QTY COLOUR COST INC GST
C-150000 SINGLE GREY $24.15 C-160000 SINGLE GREY $7.13
C-15000050 50 PACK GREY $634.11 C-160000100 100 PACK GREY $170.09
C-150000200 200 PACK GREY $2,246.30 C-160000200 200 PACK GREY $449.31
FUNNEL SPITTOON AIR FLOW METER
Fits into either the 11mm or 17mm hose terminal. For measuring airflow at the
HVE suction termimal in the
clinic (service technician tool).
ITEM CODE QTY COLOUR COST INC GST ITEM CODE COST INC GST
C-040502 SINGLE WHITE $30.59 C-A87000 $1,547.21
C-04050250 50 PACK WHITE $845.25
CONTENTSSUCTION ACCESSORIES – SMART AND CLASSIC
49
SILENCER FOR TURBO SMART BACTERIAL FILTER FOR ASPI & TURBO JET 1&2
L = 440mm Diameter = 100mm
50mm ports Removes bacterial & viral particles down to 0.001 micron.
Filter should be replaced approx. every 12 months.
SUCTION SYSTEM ACCESSORIES
H = 225 mm Diameter = 140 mm
ITEM CODE COST INC GST
ITEM CODE COST INC GST
C-160566 $249.90
C-E11024 $920.00
SILENCER FOR UNI JET
Reduces noise by approx. 2 dB(A)
L = 400 mm Diameter = 80 mm
30mm ports HEPA H14 FILTER – 4-6 SURGERIES
Suits Turbo SMART and certain dry suction equipment
ITEM CODE COST INC GST
(contact Cattani customer service for more information).
C-160562 $212.41 HEPA H14 Filter (90 m3/h)
H = 230 mm Diameter = 200 mm (plus port protrusion)
65mm port connections.
SILENCER FOR TECNO JET & FLUX JET ITEM CODE COST INC GST
Reduces noise by approx. 2 dB(A) C-042090 $1,978.92
L = 440 mm Diameter = 160 mm C-160540* $563.73
50mm ports
*Replacement Cartridge
ITEM CODE COST INC GST
C-160564 $353.17 HEPA H14 FILTER – 9-12 SURGERIES
Suits Turbo SMART and certain dry suction equipment
(contact Cattani customer service for more information).
SILENCER FOR MEDIO JET HEPA H14 Filter (188 m3/h)
Reduces noise by approx. 2 dB(A) H = 460 mm Diameter = 200 mm (plus port protrusion)
L = 265 mm Diameter = 90 mm 65mm port connections.
50mm ports ITEM CODE COST INC GST
ITEM CODE COST INC GST C-042092 $3,819.38
C-S2S000 $274.51 C-160541* $845.25
*Replacement Cartridge
CONTENTS50
SUCTION ACCESSORIES – SMART AND CLASSIC
CONVERSION SWITCHING BOX EP SUCTION ISOLATING VALVE
24V power supply to convert the SMART’s 2 wire switching system into 24V isolation valve, for use with all types of suction systems.
a 3 wire system i.e. to provide 24V power to isolation & spittoon drain Dimensions: H = 68mm W = 85mm D = 70mm
valves. 30 VA (1.25 Amp). Please ensure that valves that are being
SUCTION SYSTEM ACCESSORIES
powered by this panel do not exceed this rating. Higher powered
units available upon request.
ITEM CODE QTY COST INC GST
ITEM CODE COST INC GST
C-0039C0 SINGLE $563.73
D-RZ0000 $1,774.22 C-0039C04 4 PACK $1,687.97
ALARM PANEL FOR TURBO SMART MANUAL AIR INJECTOR VALVE
Panel to be installed in hi-vis area (i.e. reception). Lamp/s illuminate FOR TURBO SMART
when when there is an alarm on the SMART suction system.
Designed to be installed at the end of the suction line.
Includes power supply for lamps and mounting plate.
Allows air to enter the suction line when it is working
Highly recommended for SMART units installed in parallel.
at a closed head, keeping fluids flowing.
ITEM CODE LAMPS COST INC GST
D-RA1000 1 $1,500.87 ITEM CODE AUTOMATIC COST INC GST
D-RA2000 2 $1,910.84 C-1AIV00 NO $206.54
D-RA3000 3 $1,500.87
D-RA4000 4 $1,279.26
SPITTOON DRAIN VALVE AUTOMATIC AIR INJECTOR VALVE
FOR TURBO SMART
Automatic valve that connects the spittoon waste to the suction
system. Requires 24V AD/DC supply. Valve is activated when Designed to be installed at the end of the suction line.
fluid is sensed by the electronic level sensing probes. Allows air to enter the suction line when it is working
Valve also activates suction system if not already running. at a closed head, keeping fluids flowing.
ITEM CODE AUTOMATIC COST INC GST
ITEM CODE MOUNT TYPE COST INC GST
C-AAIV00 YES $1,968.34
C-021960 POST BOX $915.63
C-021974 UNIVERSAL $1,337.22
CONTENTSSUCTION ACCESSORIES – SMART AND CLASSIC
51
NOTE: If a 25m roll is required, please add “FR” to end of the item code.
SPIRAL HOSE — SMALL SIZES SILICONE HOSE
ITEM CODE SIZE COLOUR COST INC GST ITEM CODE SIZE COLOUR COST INC GST
C-110130 11MM BLACK $42.90 PER M, $654.58 25M ROLL C-11013S00G 11MM GREY $72.80 PER M, $1,125.51 25M ROLL
SUCTION SYSTEM ACCESSORIES
C-11013G 11MM GREY $42.90 PER M, $654.58 25M ROLL C-11013W 11MM WHITE $72.80 PER M, $1,125.51 25M ROLL
C-H14000 14MM BLACK $42.90 PER M, $654.58 25M ROLL C-11012S00G 17MM GREY $72.80 PER M, $1,125.51 25M ROLL
C-H14G00 14MM GREY $42.90 PER M, $654.58 25M ROLL C-11012W 17MM WHITE $72.80 PER M, $1,125.51 25M ROLL
C-110120 17MM BLACK $42.90 PER M, $654.58 25M ROLL
C-11012G 17MM GREY $42.90 PER M, $654.58 25M ROLL
SPIRAL HOSE — MEDIUM SIZES HEAT RESISTANT HOSE FOR
ITEM CODE SIZE COLOUR COST INC GST
SUCTION OR EXHAUST AIR
C-H20000 20MM BLACK $59.92 PER M, $950.82 25M ROLL
ITEM CODE SIZE COLOUR COST INC GST
C-H20G00 20MM GREY $59.92 PER M, $950.82 25M ROLL
C-H40HR0 40MM BLACK $311.54 PER M
C-H25000 25MM BLACK $59.92 PER M, $950.82 25M ROLL
C-H50HR0 50MM BLACK $342.01 PER M
C-H25G00 25MM GREY $59.92 PER M, $950.82 25M ROLL
C-H60HR0 60MM BLACK $353.17 PER M
C-H25W00 25MM WHITE $59.92 PER M, $950.82 25M ROLL
C-H80HR0 80MM BLACK $437.58 PER M
C-H30000 30MM BLACK $59.92 PER M, $950.82 25M ROLL
C-H30G00 30MM GREY $59.92 PER M, $950.82 25M ROLL
SPIRAL HOSE — LARGE SIZES HEAT RESISTANT HOSE
FOR EXHAUST AIR ONLY
ITEM CODE SIZE COLOUR COST INC GST
C-H40000 40MM BLACK $72.80 PER M, $1,231.65 25M ROLL ITEM CODE SIZE COLOUR COST INC GST
C-H40G00 40MM GREY $72.80 PER M, $1,231.65 25M ROLL C-H30EHR 30MM BLACK $177.22 PER M
C-H50000 50MM GREY $73.95 PER M C-H40EHR 40MM BLACK $202.40 PER M
C-H60000 60MM BLACK $82.80 PER M C-H50EHR 50MM BLACK $219.42 PER M
C-H80000 80MM BLACK $143.18 PER M
CONTENTSYou can also read
